MTE FBF-S 4000 CNC Universal Mil, X-157", Y-78", Z- 47", 4000 RPM, 2-Axis Head, Heidenhain 530 CNC, #30656

Manufacturer

MTE

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

30656

Model

FBF-S 4000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30656

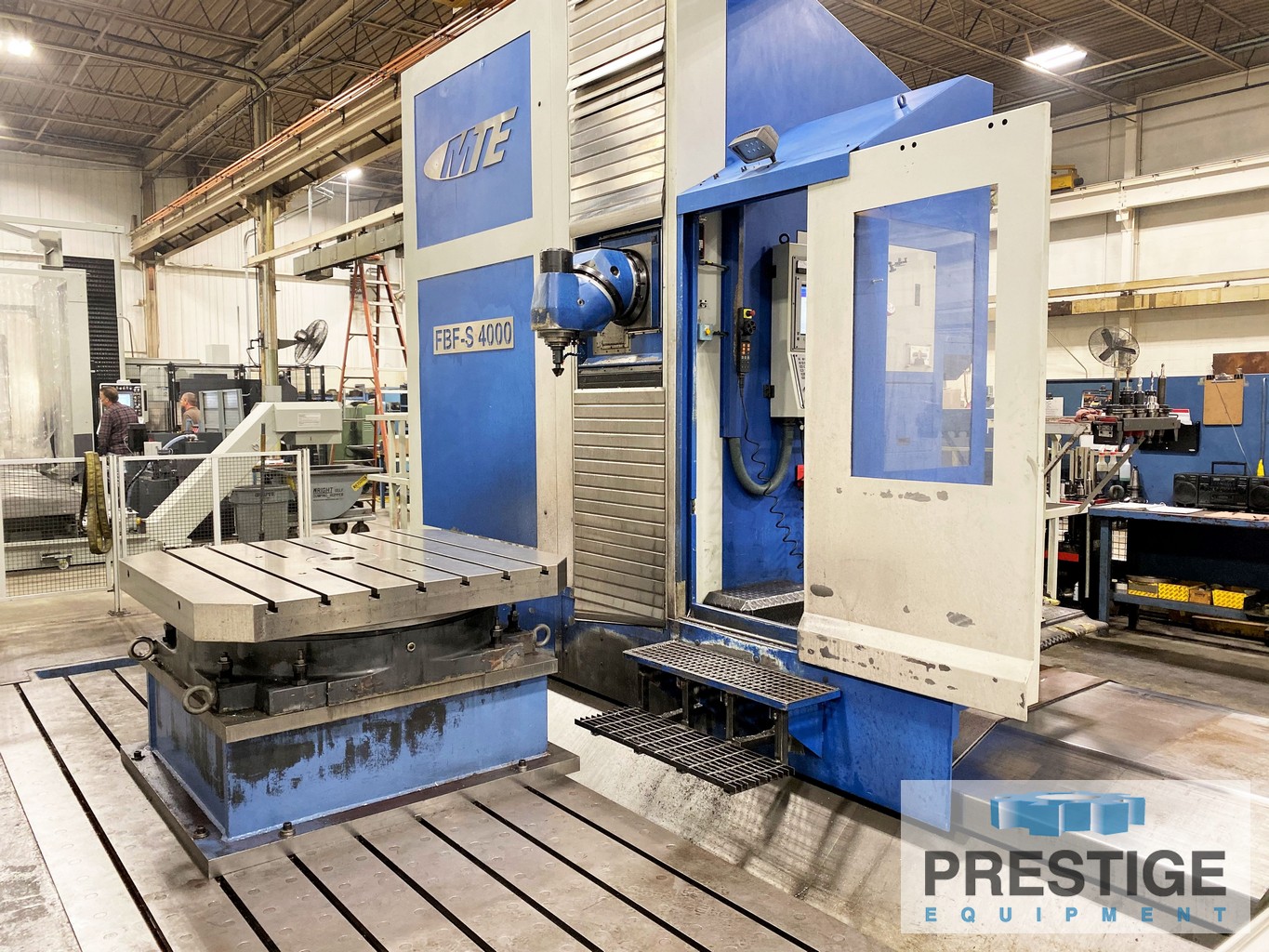

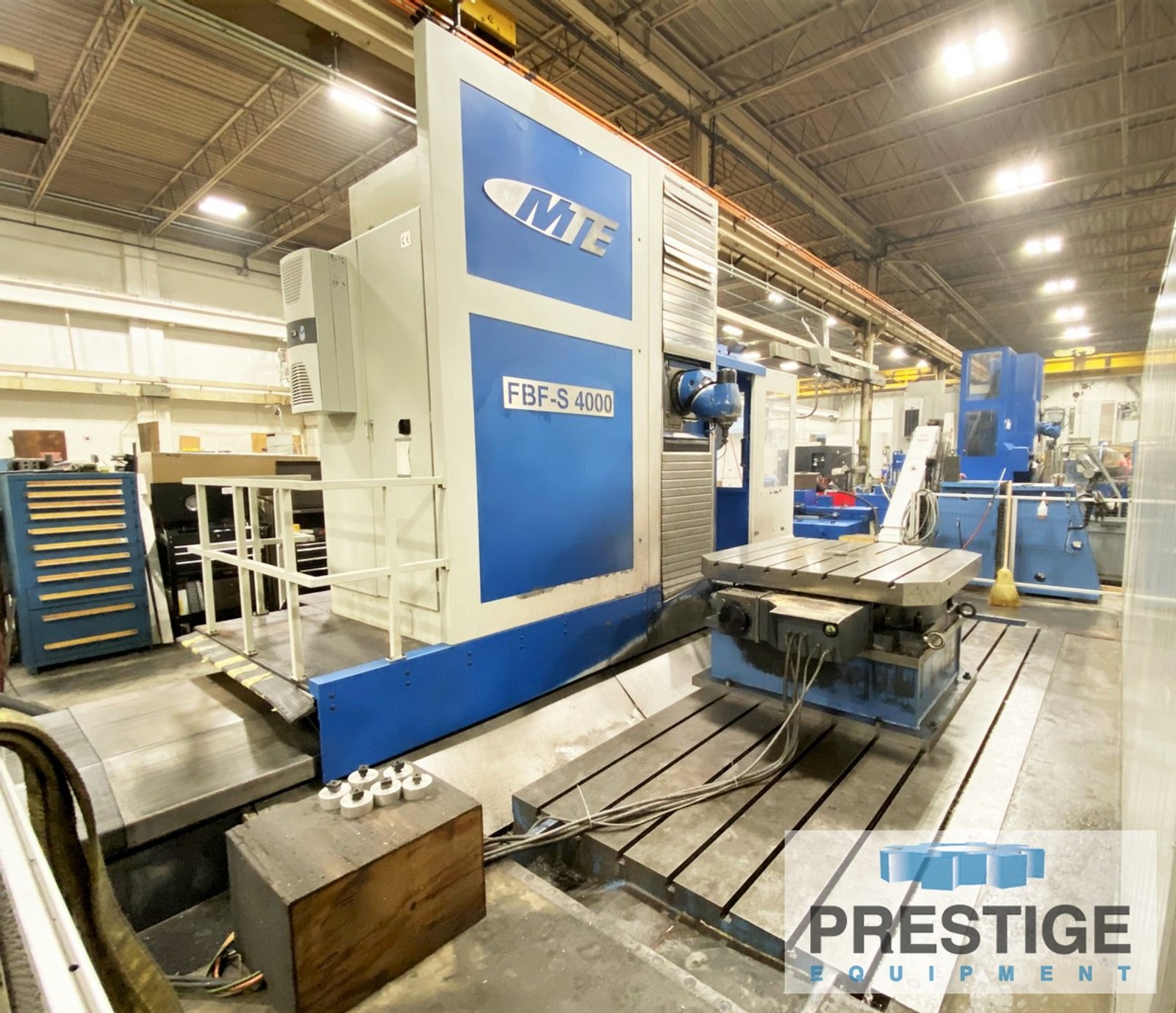

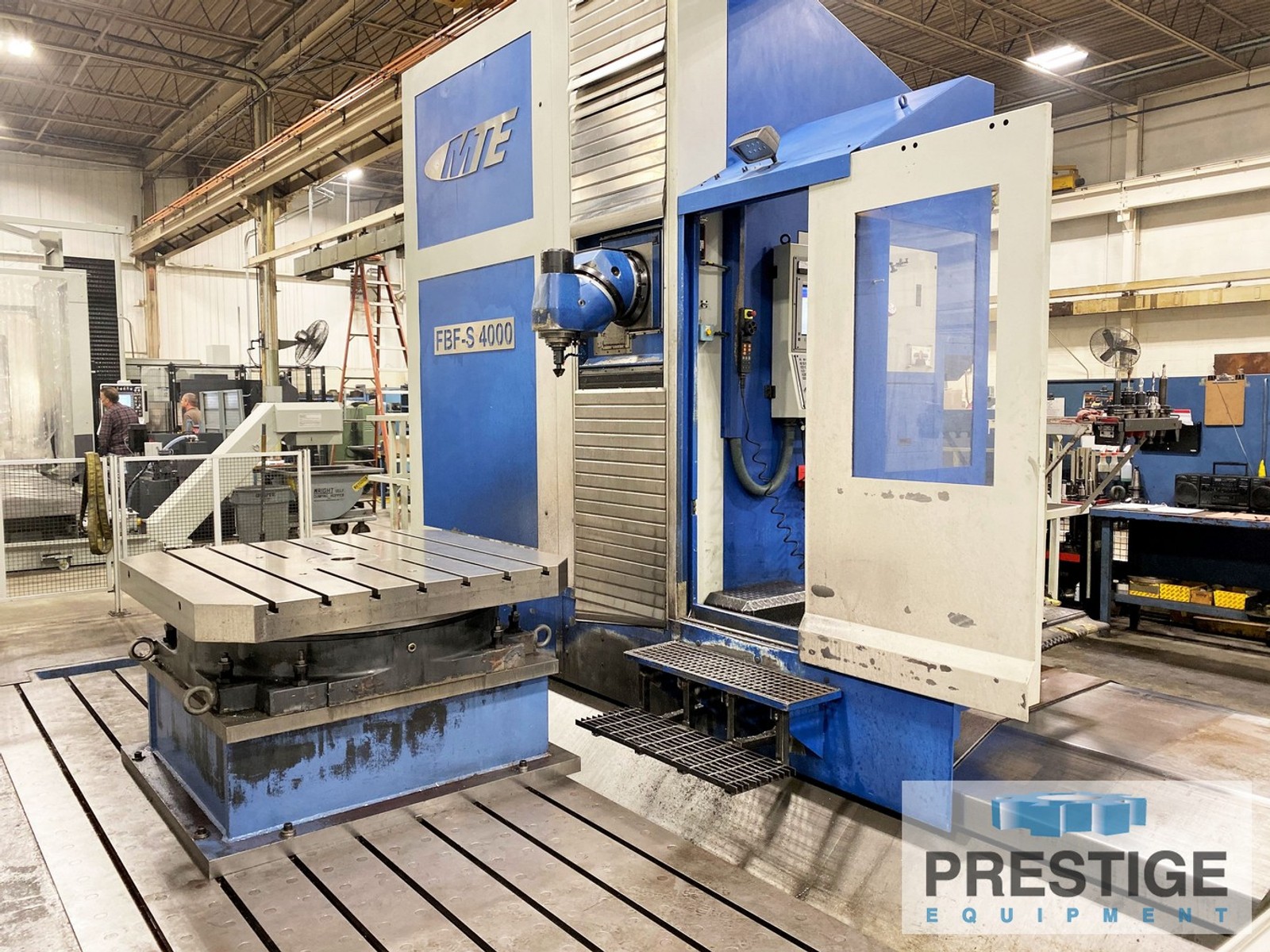

MTE Model FBF-S 4000 CNC Traveling Column Universal Machining Center

FEATURES:
Heidenhain iTNC 530 CNC Control
Operator Cabin with Controls
Heidenhain Scale Feedback
CNC Universal head with 2.5 degree resolution
Through Spindle Coolant, 300 PSI with Filtration System
4th Axis Rotary Table Interface
Any And All Available Manuals

CAPACITY:
Table Travel, X-Axis ................. 157.48"
Vertical Travel, Y-Axis .............. 78.74"
Spindle Travel, Z-Axis ............... 47"
Table, T-Slotted ..................... 160" x 60"
A-Axis, +/- ........................... 120 Degrees
B-Axis ............................... 360 Degrees
Spindle Speed, Max ................... 4,000 RPM
Spindle Taper ........................ #50 CAT
Spindle Motor ........................ 50 HP

EQUIPPED WITH:
Heidenhain iTNC 530 CNC Control
Operator Cabin with Controls
Heidenhain Scale Feedback
CNC Universal head with 2.5 degree resolution
Through Spindle Coolant, 300 PSI with Filtration System
4th Axis Rotary Table Interface
Any And All Available Manuals

NOTE:
Inspect In Plant Under Power
Rotary Table is Not Being Offered with the Machine
