JOHNFORD DMC-2100H, X-80.7", Y-51", Fanuc OiMD CNC, 40 ATC, 1000 PSI Thru Spindle Coolant, 2013, #32118

Manufacturer

JOHNFORD

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32118

Model

DMC-2100H

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32118

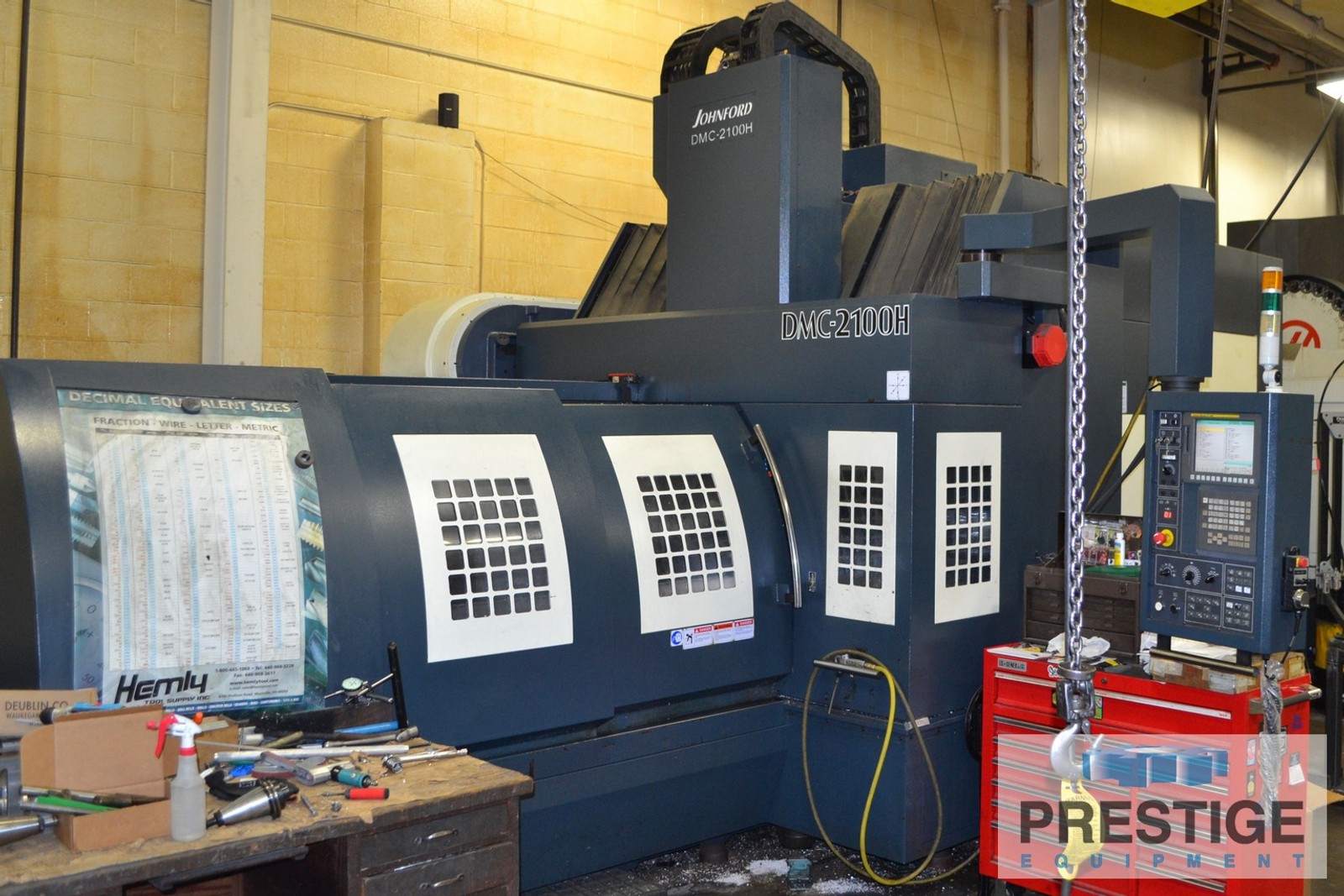

JOHNFORD DMC-2100H CNC Double Column Vertical Machining Center

FEATURES:

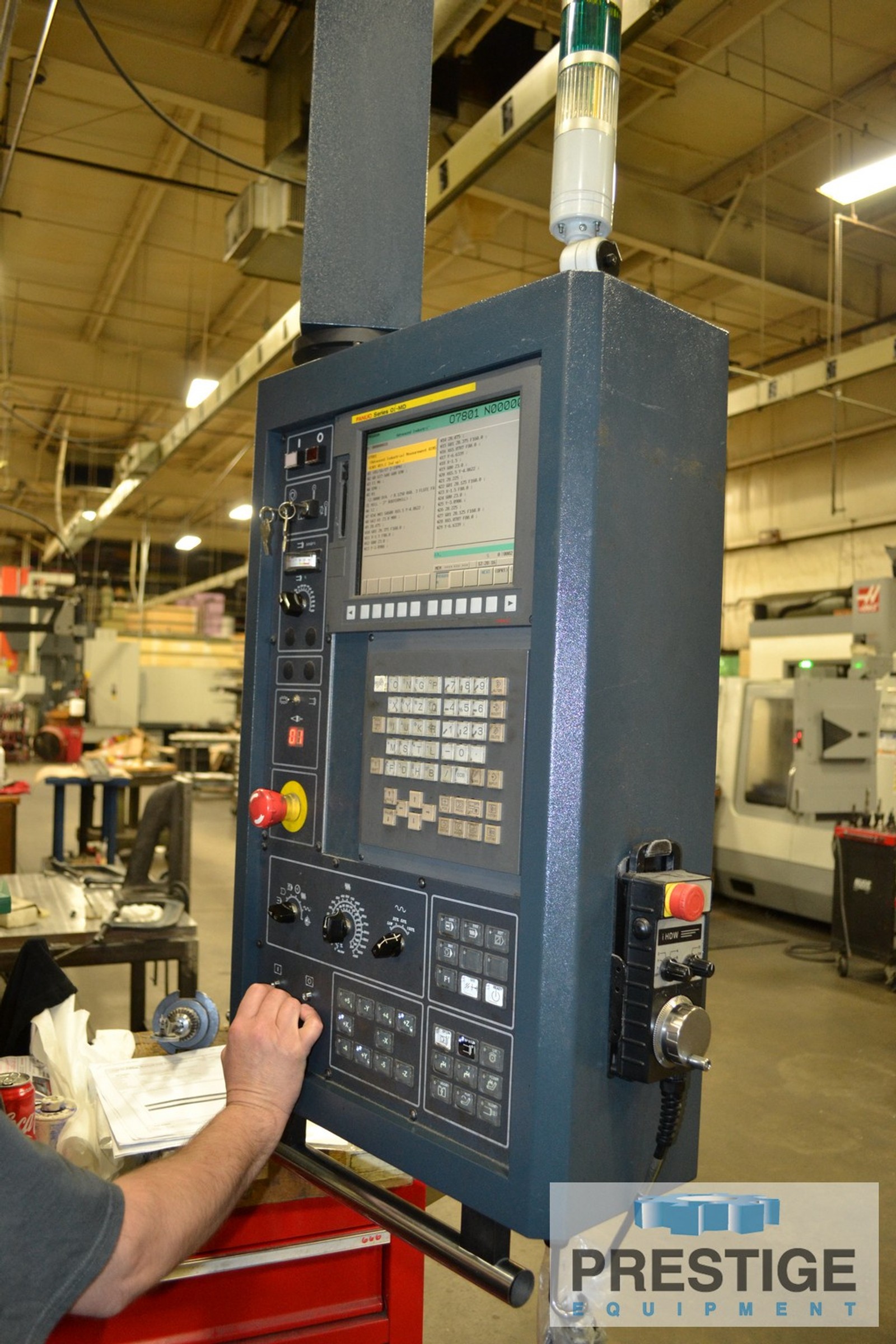

Fanuc OiMD CNC Control
40 Station Automatic Tool Changer
Through Spindle Coolant (1000 PSI)

CAPACITY:
X-Axis Travel ......................... 80.7"
Y-Axis Travel ......................... 51.18"
Z-Axis Travel ......................... 31.49"
Table Nose to Spindle ................. 5.9"-37.4"
Distance Between Columns .............. 51.18"
Table Size ............................ 43.3" x 86.61"
Table Load Capacity ................... 13,200 lbs
Spindle Speeds (2-Speed Gear Box ...... 6000 RPM
Spindle Taper ......................... #50
Spindle Motor, 2- Ranges .............. 35 HP
Automatic Tool Changer Capacity ....... 40 ATC
Machine Weight, Approx ................ 52,000 lbs

EQUIPPED WITH:
Fanuc OiMD CNC Control
40 Station Automatic Tool Changer
Through Spindle Coolant (1000 PSI)

NOTE:
Inspect In Plant Under Power
