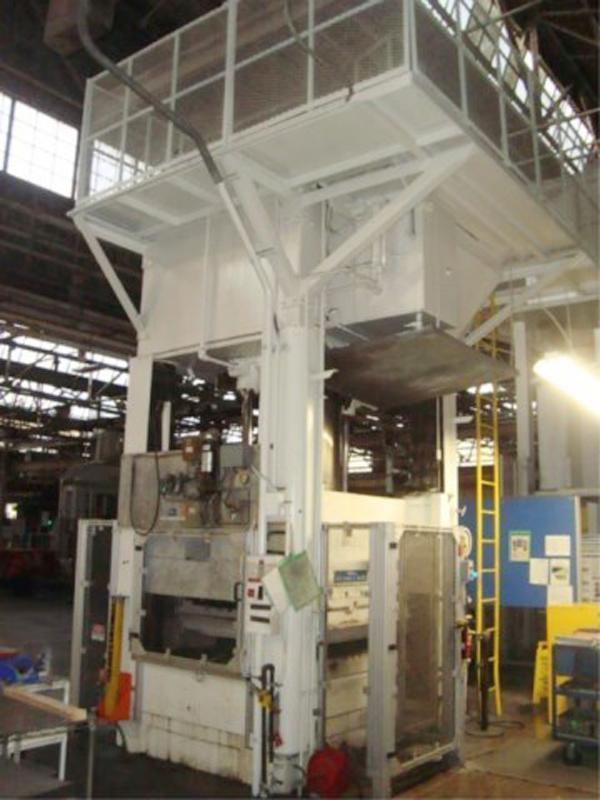

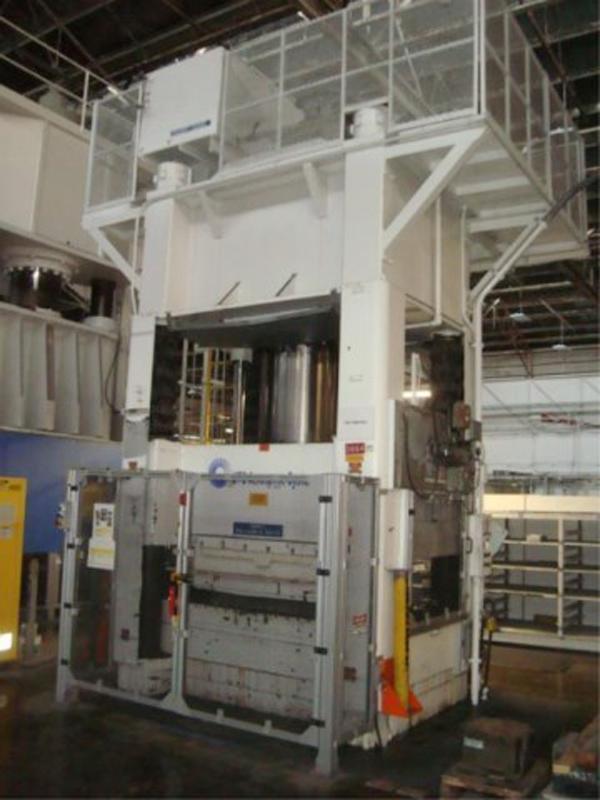

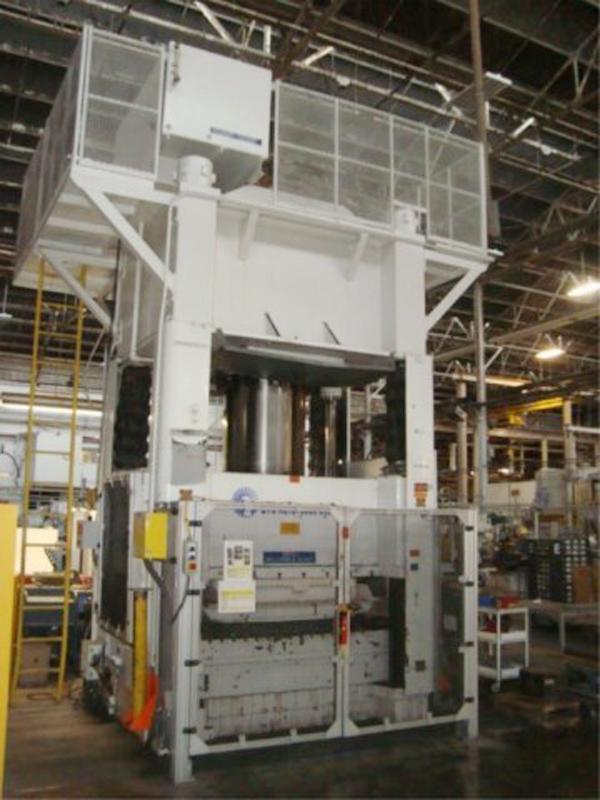

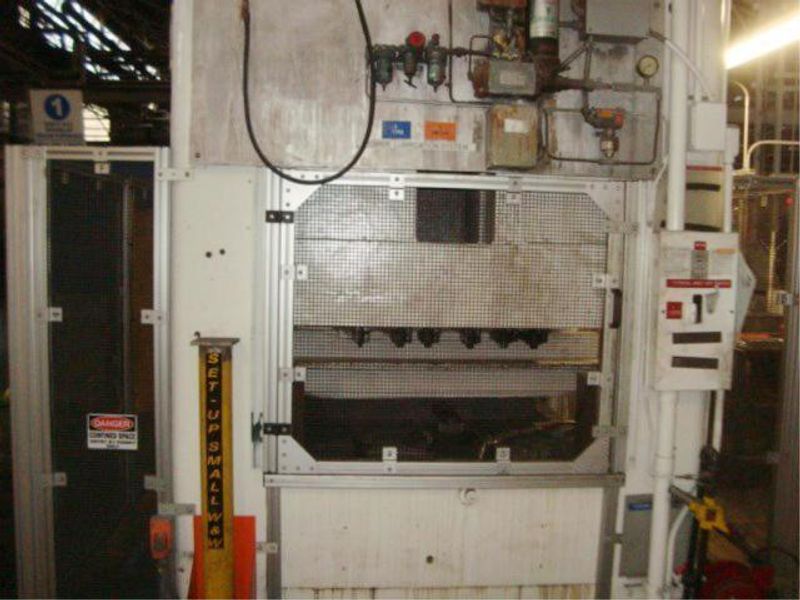

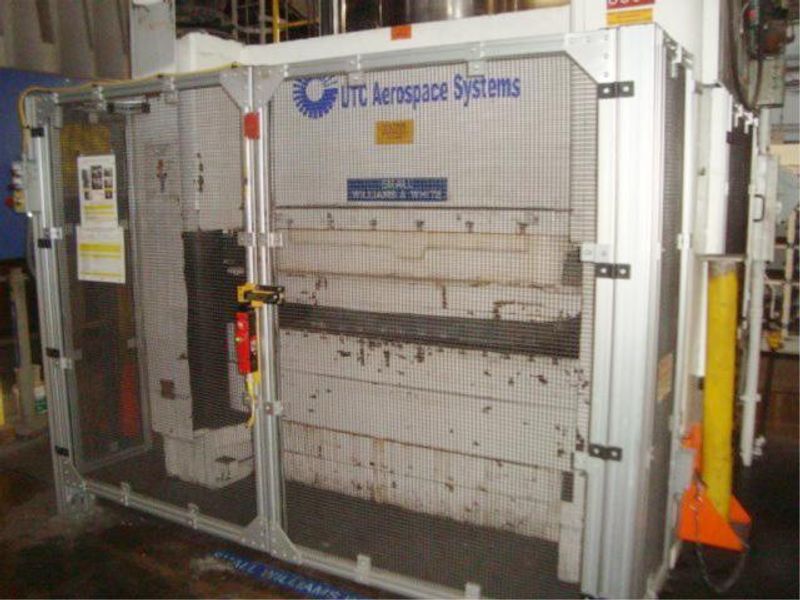

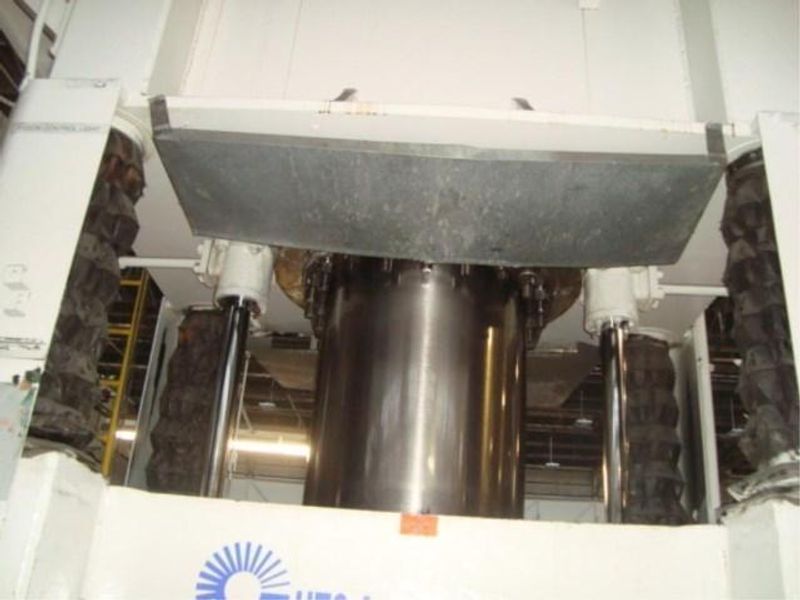

1000 TON WILLIAMS & WHITE 96" X 48" BED 4-POST HYDRAULIC PRESS: STOCK# 15313

Manufacturer

WILLIAMS & WHITE

Category

Presses

Type

PRESSES, WHEEL, HYDRAULIC

Stock

15313

Model

HIT#2273807

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - Approx Dims: 111” x 111” x 222” high
Weight - 140000 pounds



CAPACITY ..................... 1000 TONS
BED LENGTH ................... 96"
BED WIDTH .................... 48"
DISTANCE BETWEEN COLUMNS ..... 72"
STROKE ....................... 42"
RAM SPEED (RAPID ADVANCE) .... 360" PER MINUTE
RAM SPEED (PRESSING SPEED) ... 14" PER MINUTE
DAYLIGHT (BOLTER TO PLATEN) .. 42" MAX
DAYLIGHT (BED TO PLATEN) ..... 51.75" MAX
BOLSTER THICKNESS ............ 9.75"
BOLSTER WITH T SLOTS ......... YES, 4" CENTERS
RAM PLATEN WITH HOLES ........ (200) 3/4" DIAMETER
PUMP ......................... DH-6025
HYDRO PNEUMATIC CUSHION ...... 250 TON
DIE CUSHION PAD .............. 59" X 36"
STROKE OF DIE CUSHION ........ 14"
