Johnford DMC-2100SH, X-83",Y-70", Z-32", 86.5" x 59" Table, 8,000 RPM, 24 ATC, Fanuc 18iMB CNC, 2003, #30794

Manufacturer

JOHNFORD

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

30794

Model

DMC-2100

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #30794

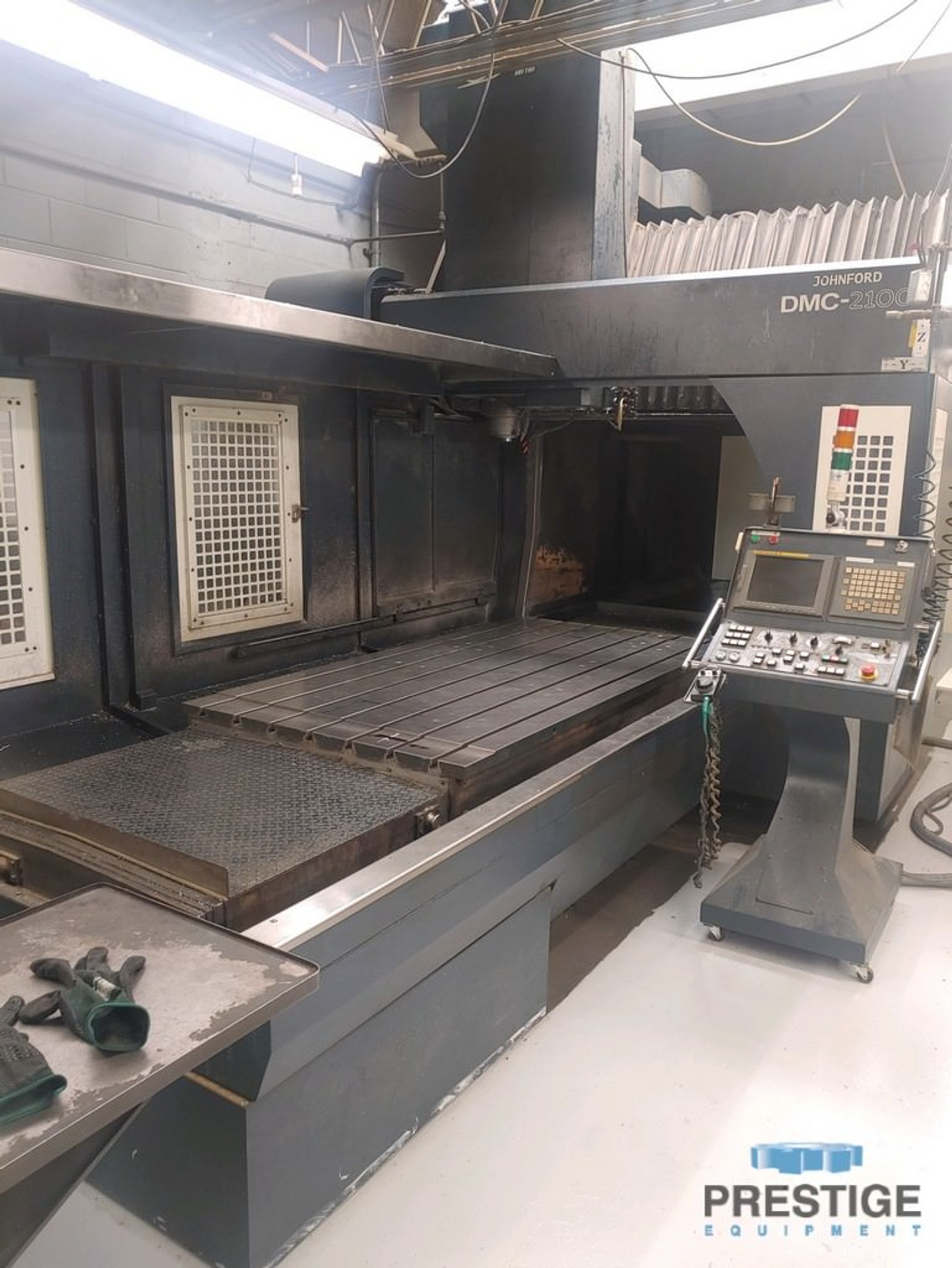

JOHNFORD DMC-2100 CNC Double Column Vertical Machining Center

FEATURES:

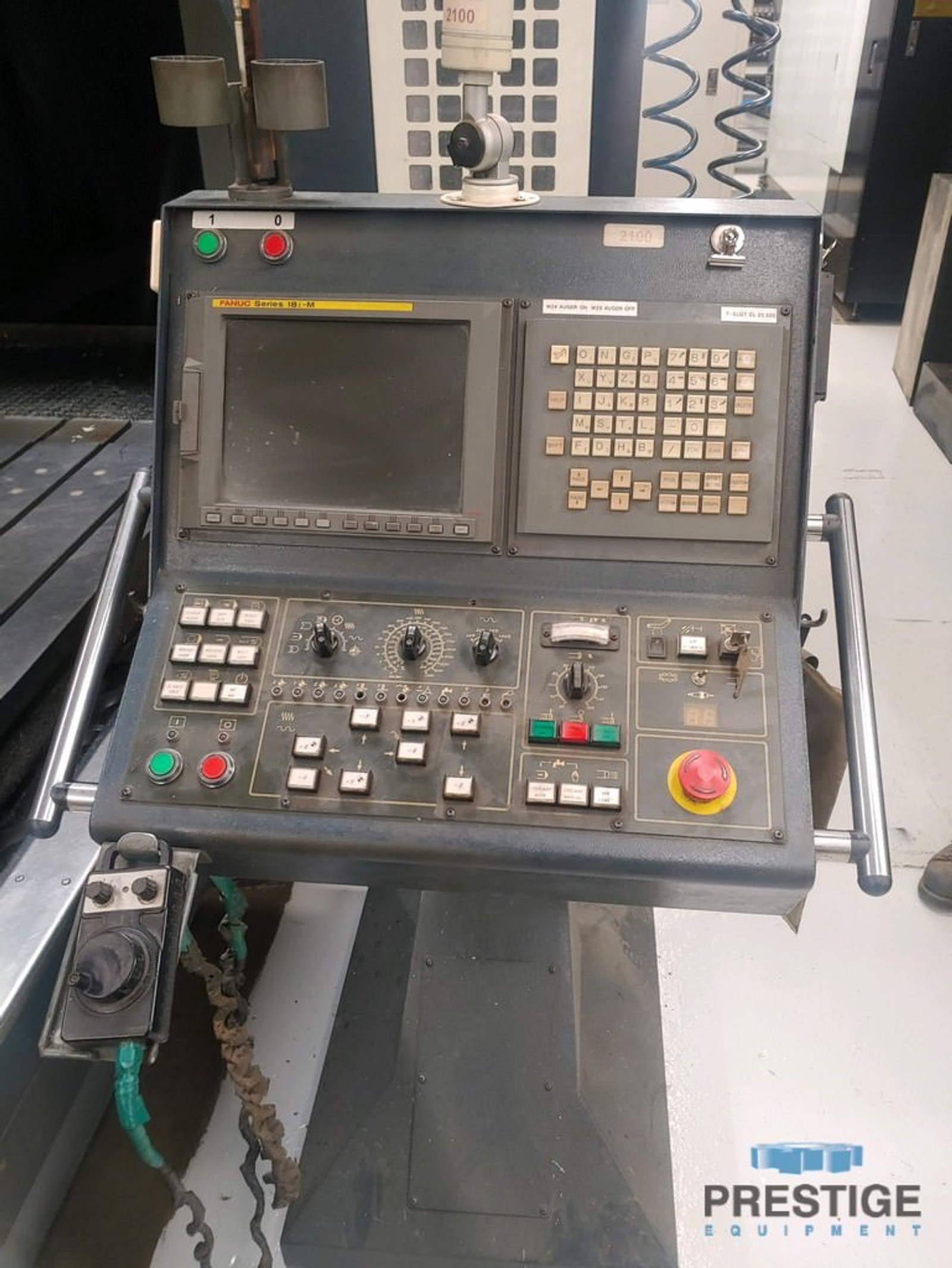

FANUC 18iMB CNC Control
24 Station Automatic Tool Changer
CAPACITY:

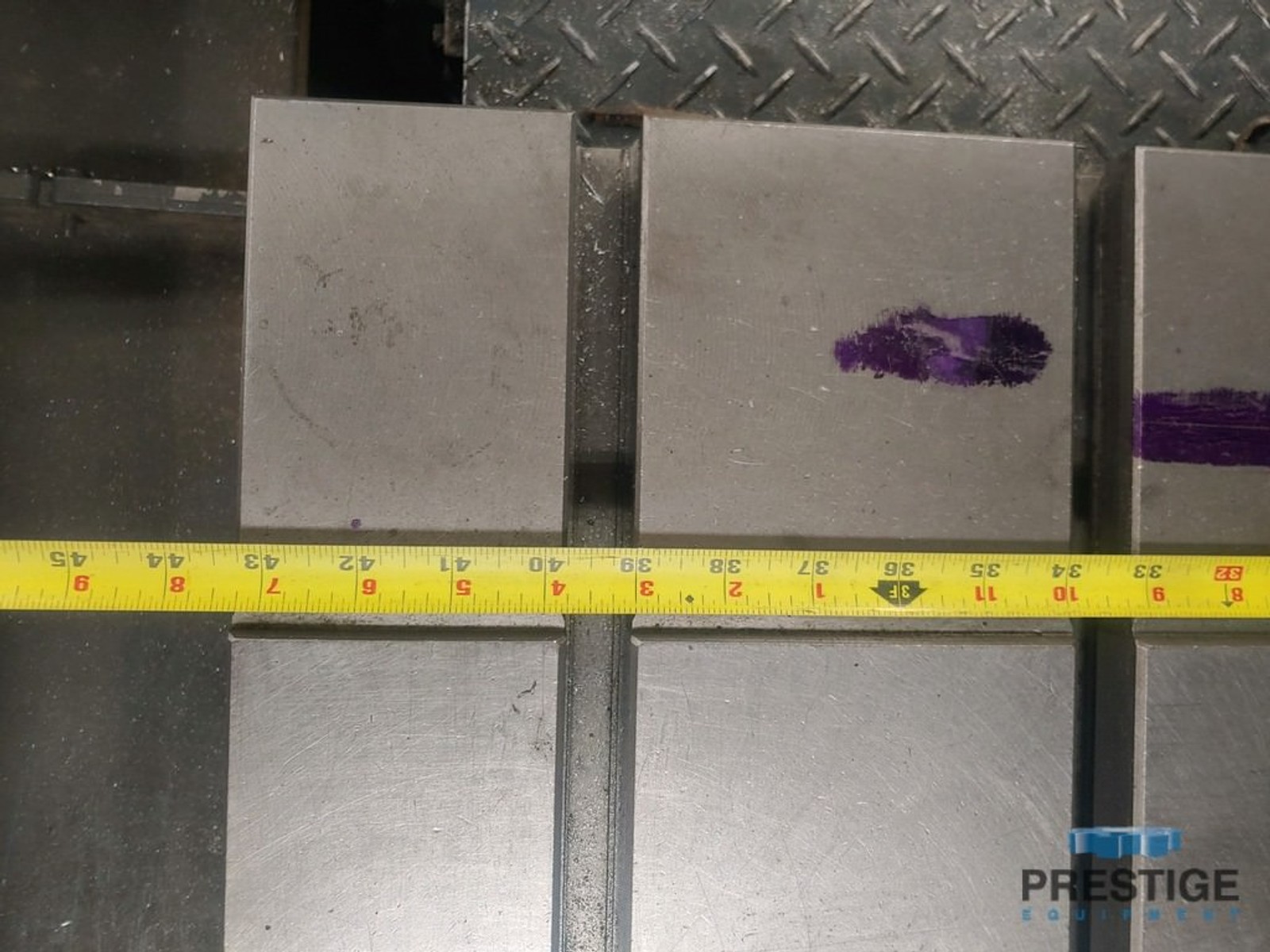

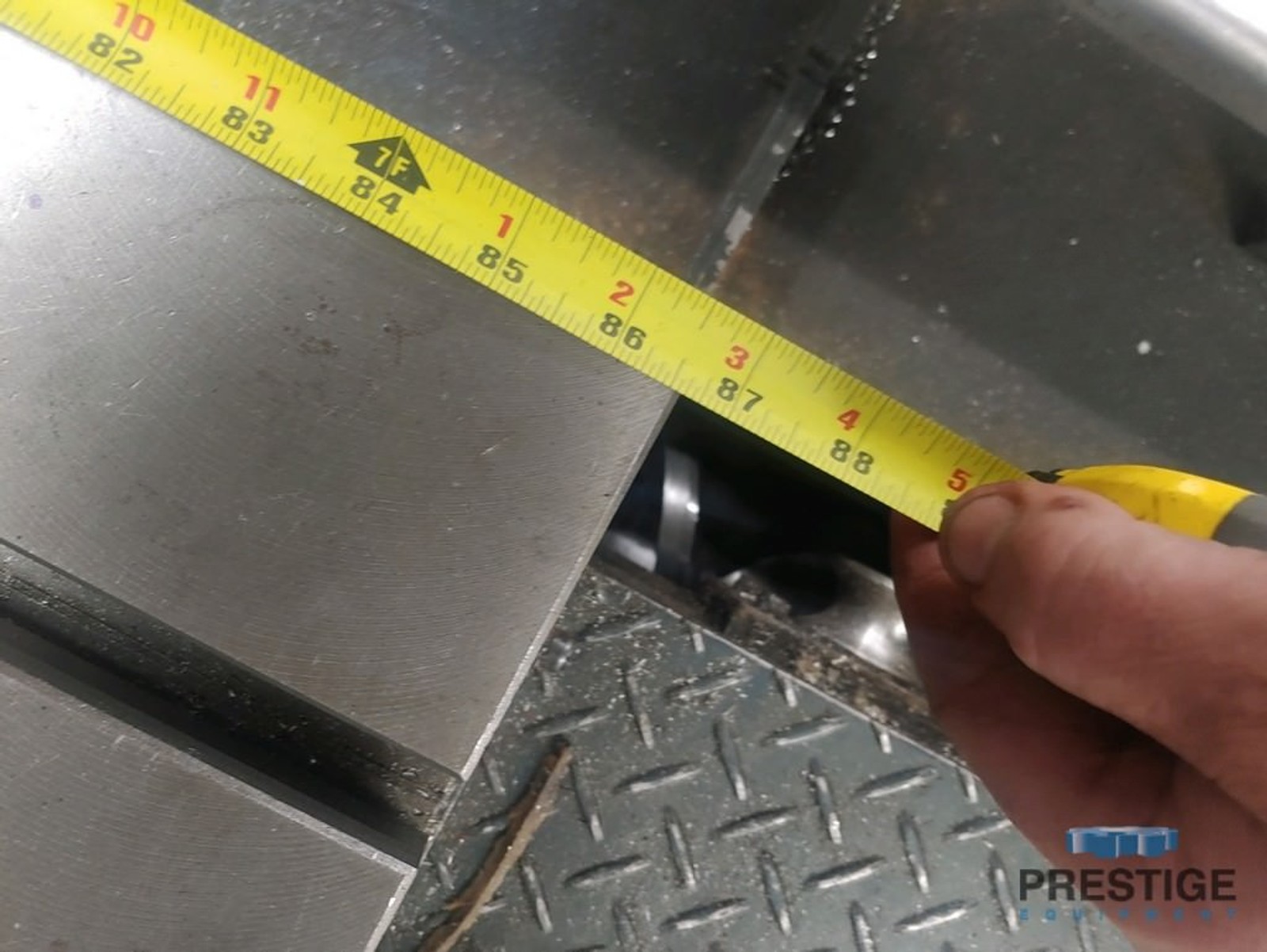

Table Size ............................ 59" x 86.5"
Table Load Capacity ................... 22,000 lbs
X-Axis Travel ......................... 83"
Y-Axis Travel ......................... 70"
Z-Axis Travel ......................... 42"
Spindle Speeds ........................ 8,000 RPM
Spindle Taper ......................... #40
Spindle Motor, 2- Ranges .............. 25 HP
Automatic Tool Changer Capacity ....... 24 ATC
Machine Weight, Approx ................ 52,000 lbs

EQUIPPED WITH:
FANUC 18iMB CNC Control
24-Position Automatic Tool Changer

NOTE:
Inspect In Plant Under Power
