78"/216" Toshiba TSS 20/55, Ram, 216" Turning Diameter, Open Side, 125 RPM, 50 HP, Fanuc 15T, #31012

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

31012

Model

TSS-20/55B

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31012

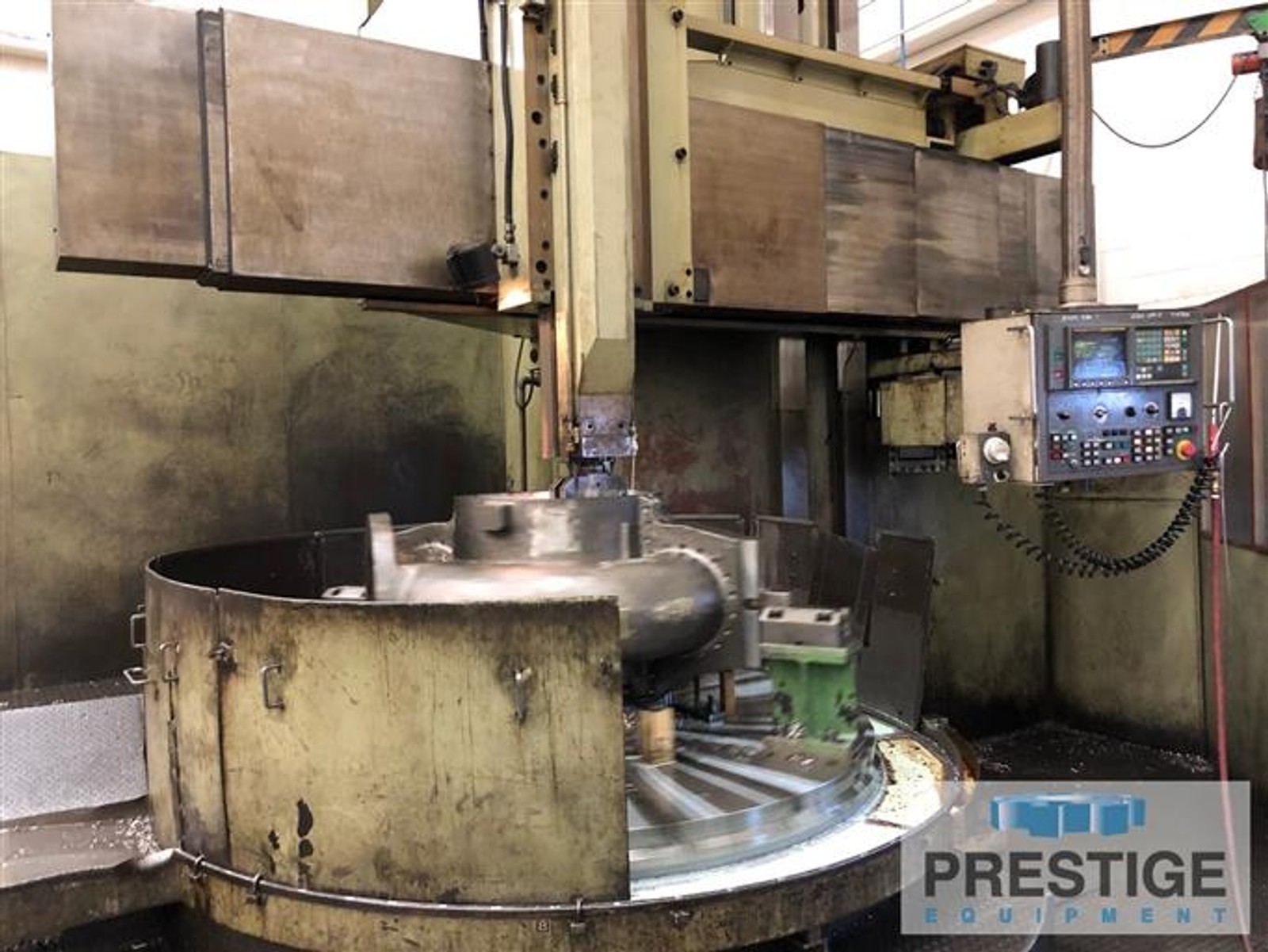

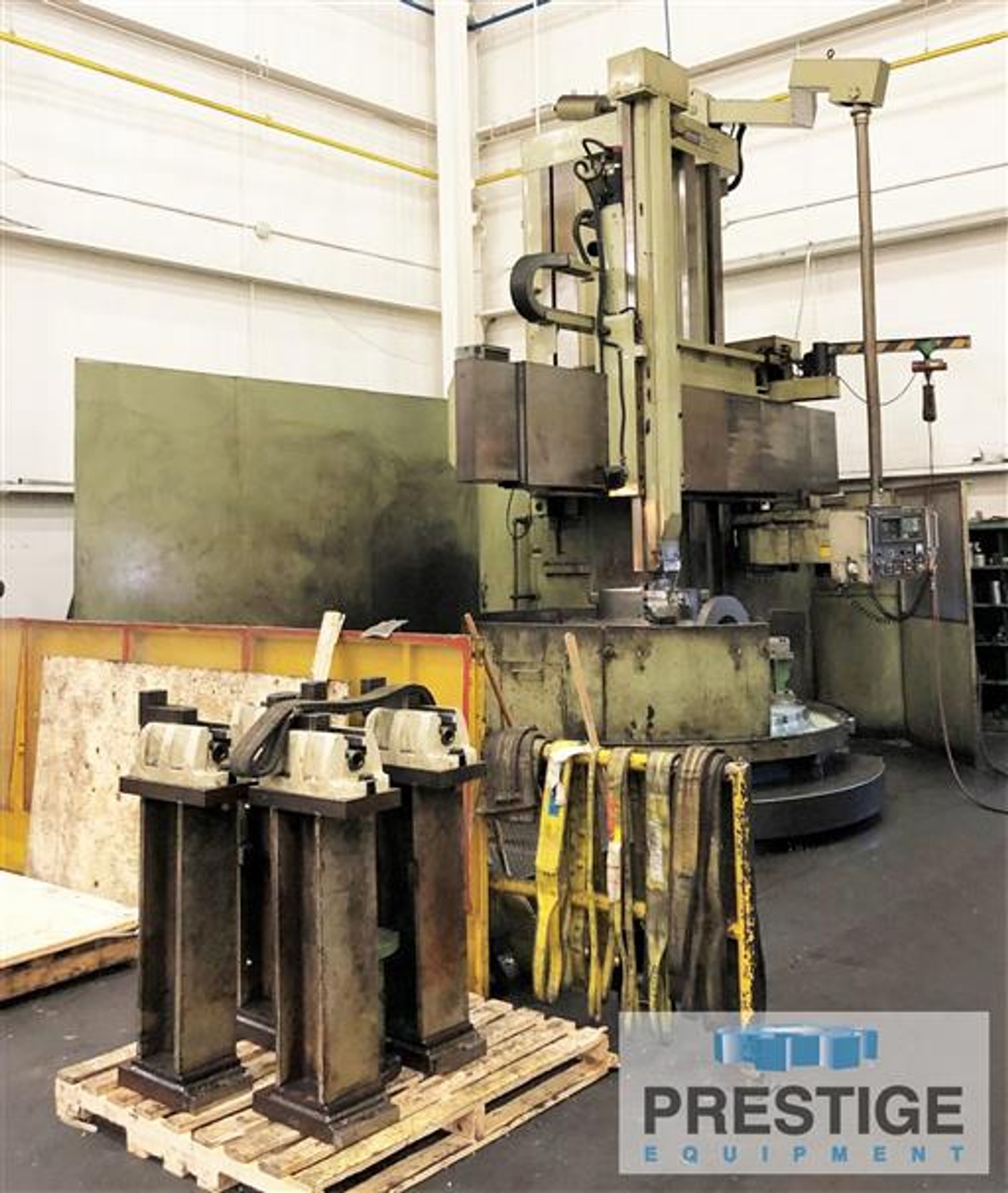

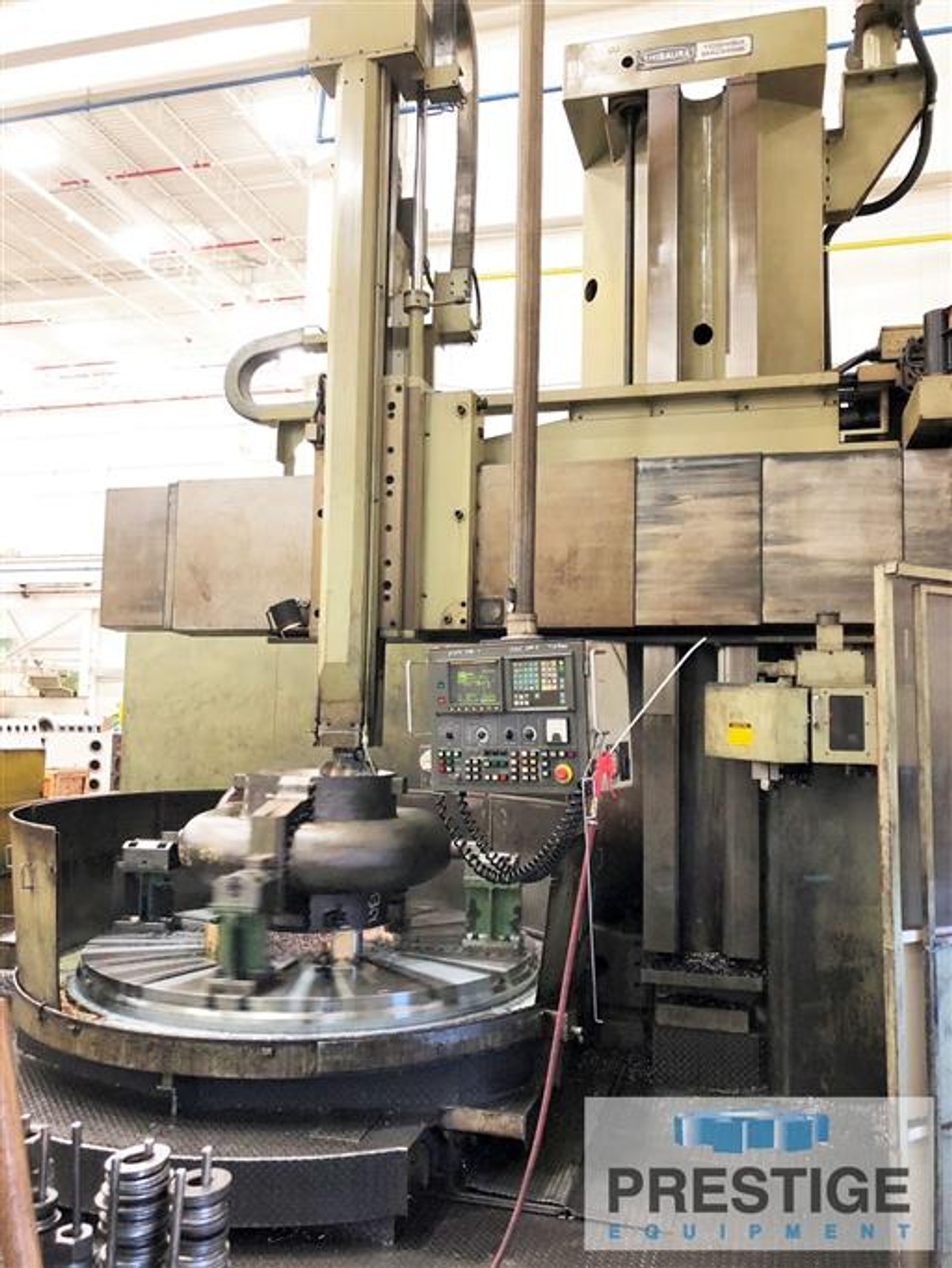

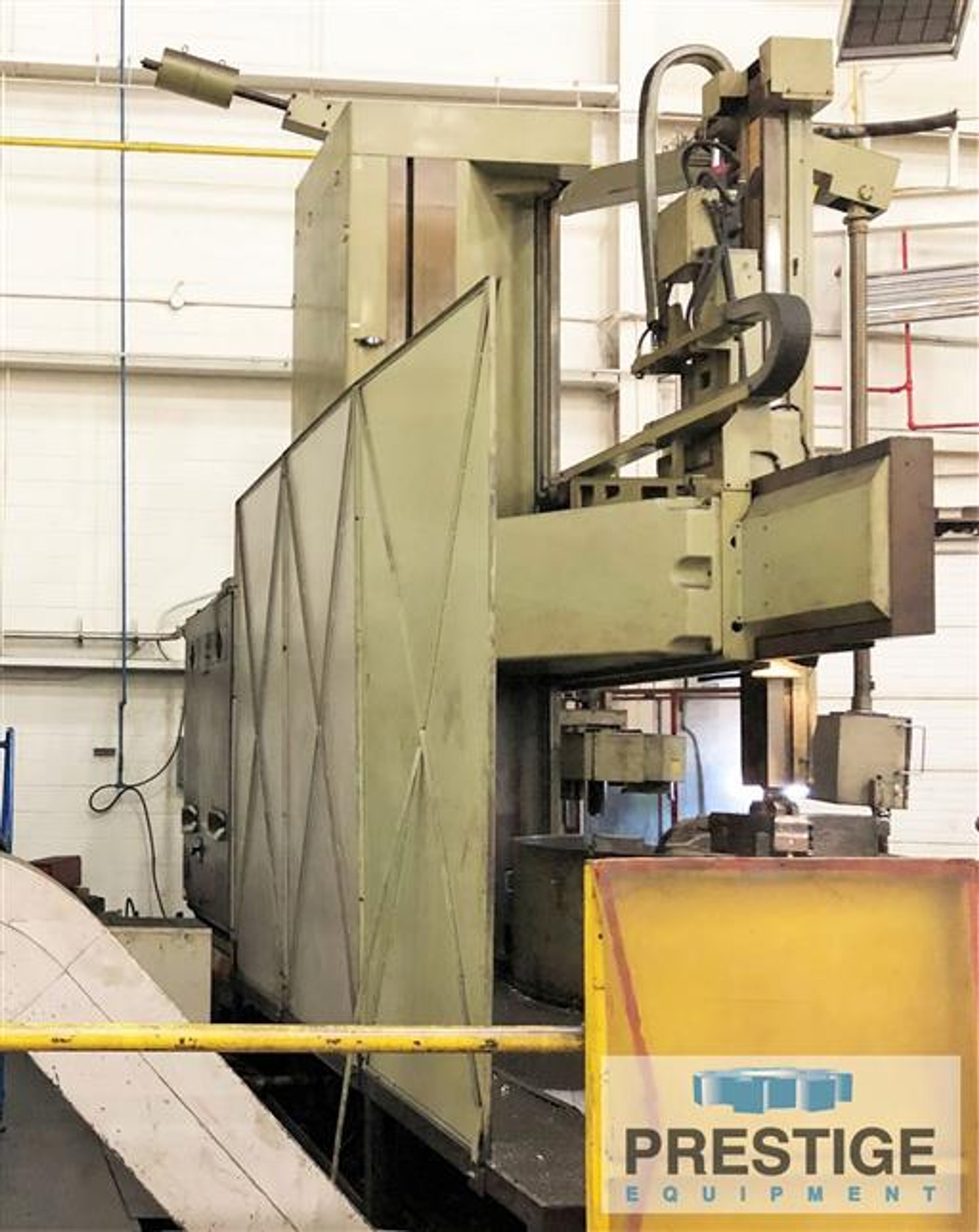

Toshiba TSS 20/55B 78"/216" CNC Vertical Boring Mill

FEATURES:
Fanuc 15T CNC Controls
12-Position ATC
Ram with 59" Vertical Travel

SPECIFICATIONS:
Table Diameter ........................ 78.74"
Maximum Swing ......................... 216"
Maximum Turning Dia. to Center ........ 126"
Maximum Height Under Cross Rail ....... 91"
Ram Stroke, Z-Axis .................... 59"
Table Speeds, 2-Ranges ................ 4-125 RPM
Table Capacity ....................... 44,000 lbs
Table Infeed Travel .................. 74"
Feeds ................................. .001- 19.6 IPR
Rapid Traverse ........................ 196 IPM
Table Load Capacity ................... 44,000 Lbs
Table Motor .......................... 67 HP
Machine Footprint ..................... 320" x 234"
Machine Height ........................ 276"
Machine Weight ....................... 66,000 lbs

EQUIPPED WITH:
Fanuc 15T CNC Controls
12-Position Automatic Tool Changer
78.74" Diameter T-Slotted Table w/ 4-Top Jaws
Hardened Ways

NOTE:
Inspect In Plant Under Power!
