You Ji VTL-1000ATC, 12-ATC, 53" Swing35" Turning Height, 39" 4-Jaw Power Chuck, 600 RPM, 60 HP, Fanuc 0i, 2012 #31187

Manufacturer

YOU JI

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

31187

Model

VTL-1000ATC

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31187

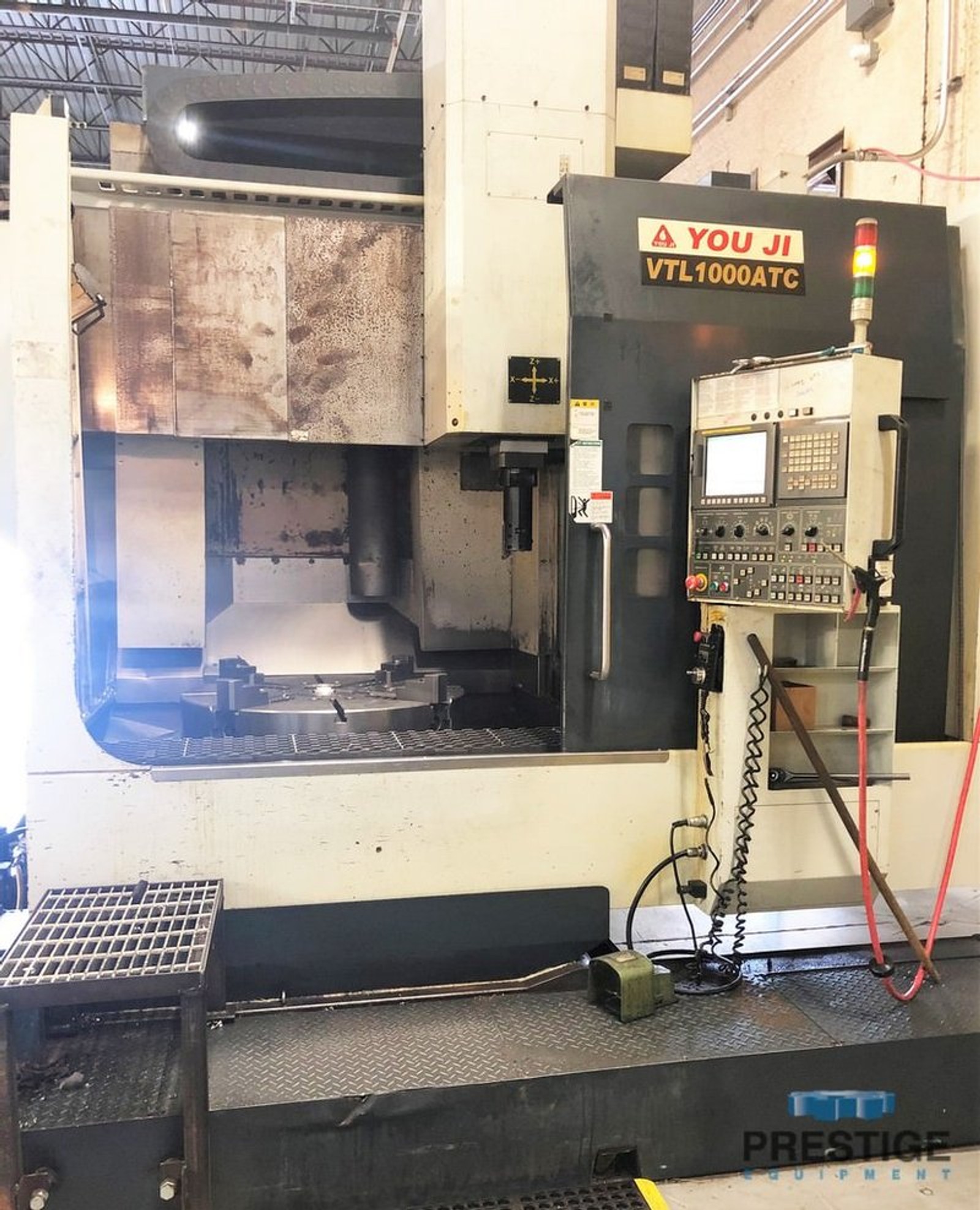

Youji VTL1000 ATC CNC Vertical Boring Mill

FEATURES:

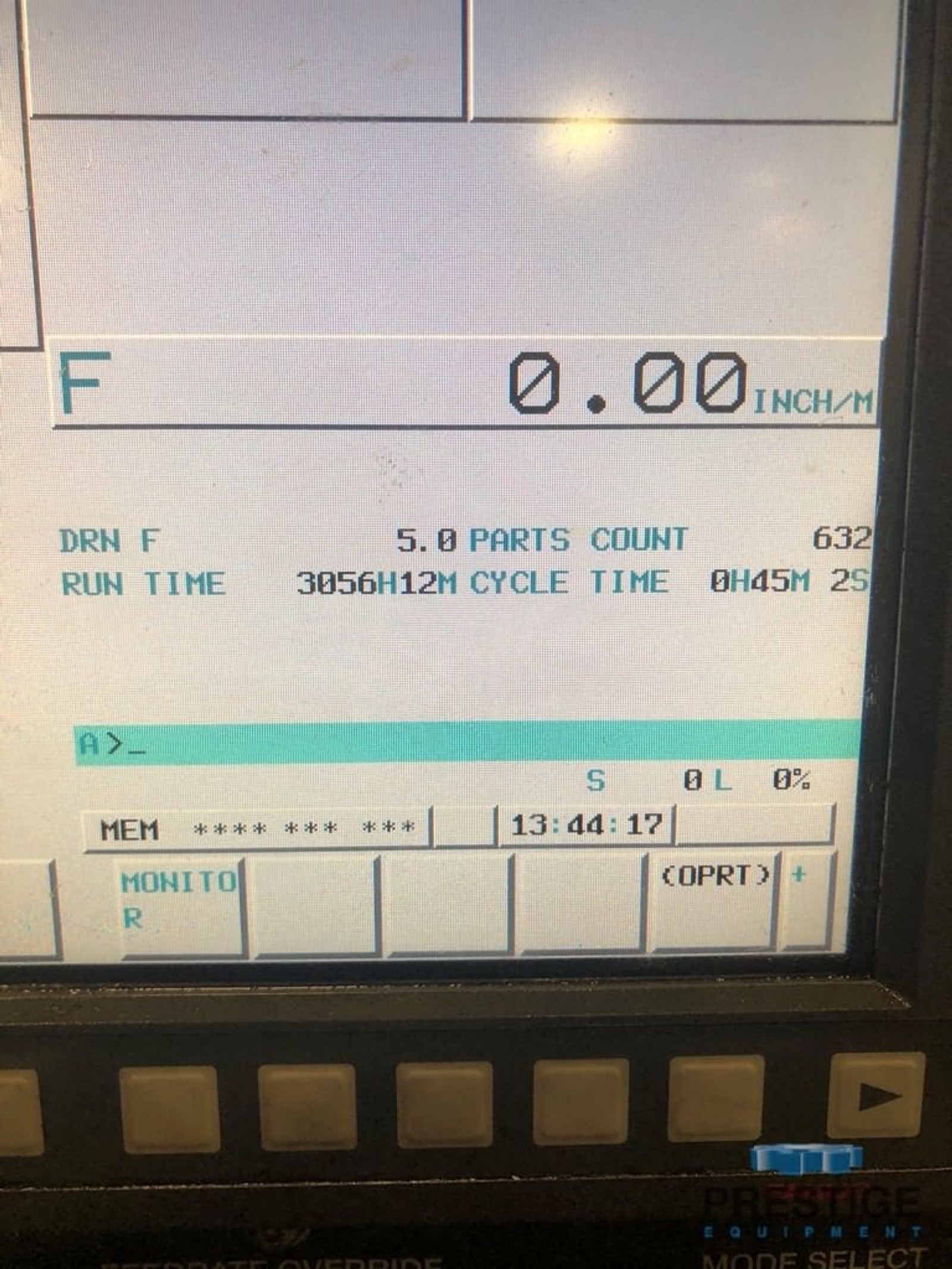

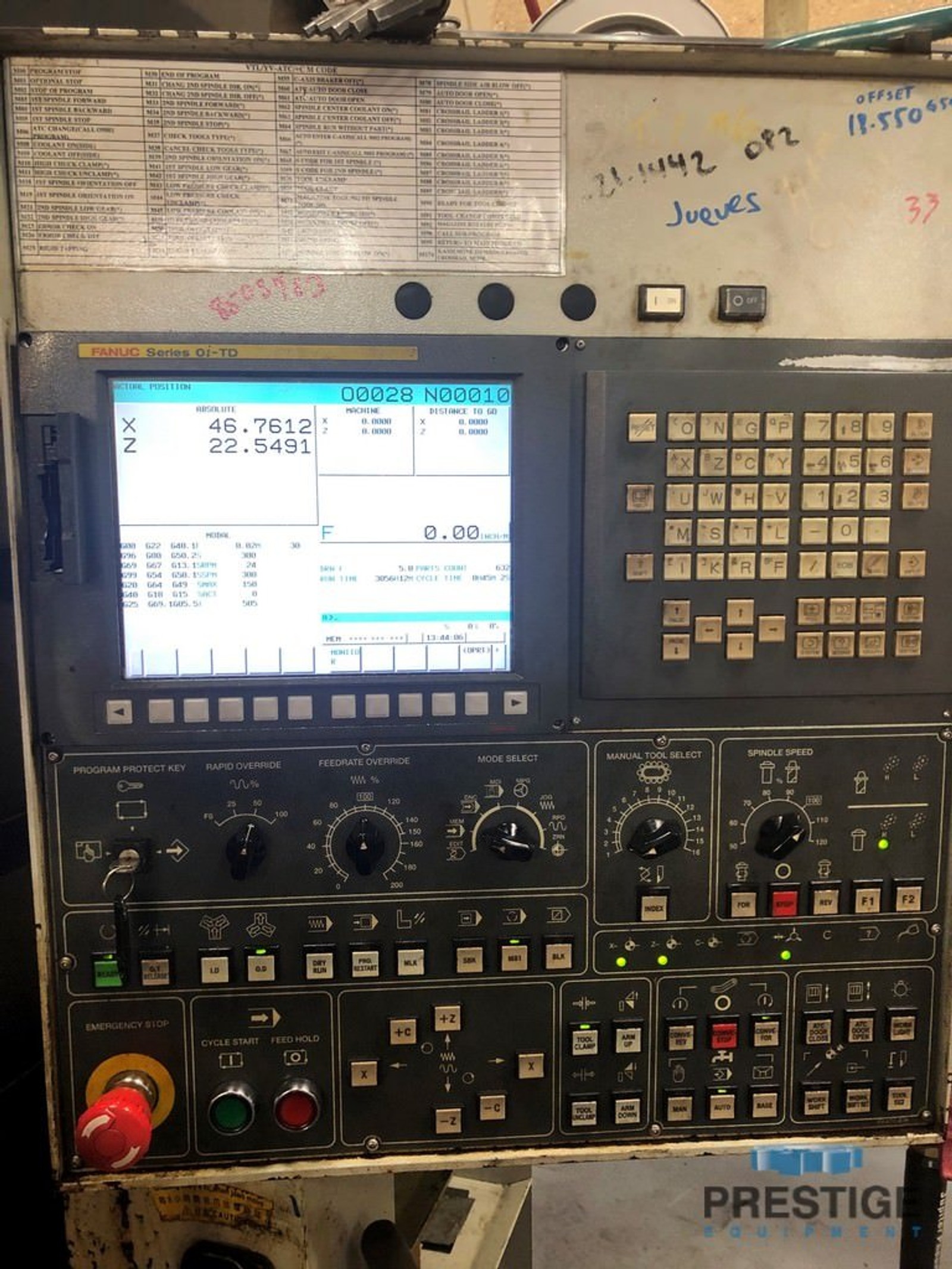

Fanuc Oi-TD CNC Control

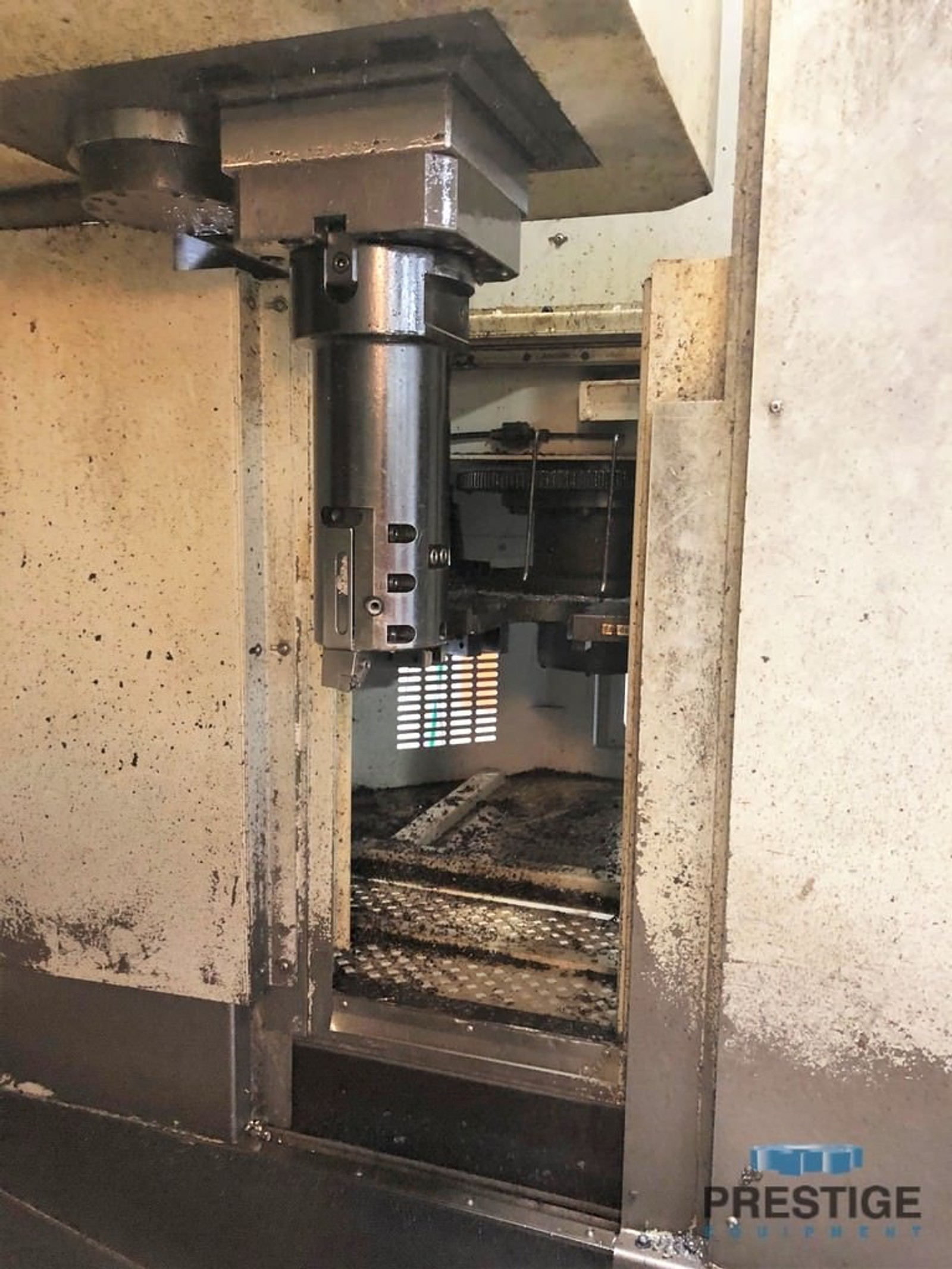

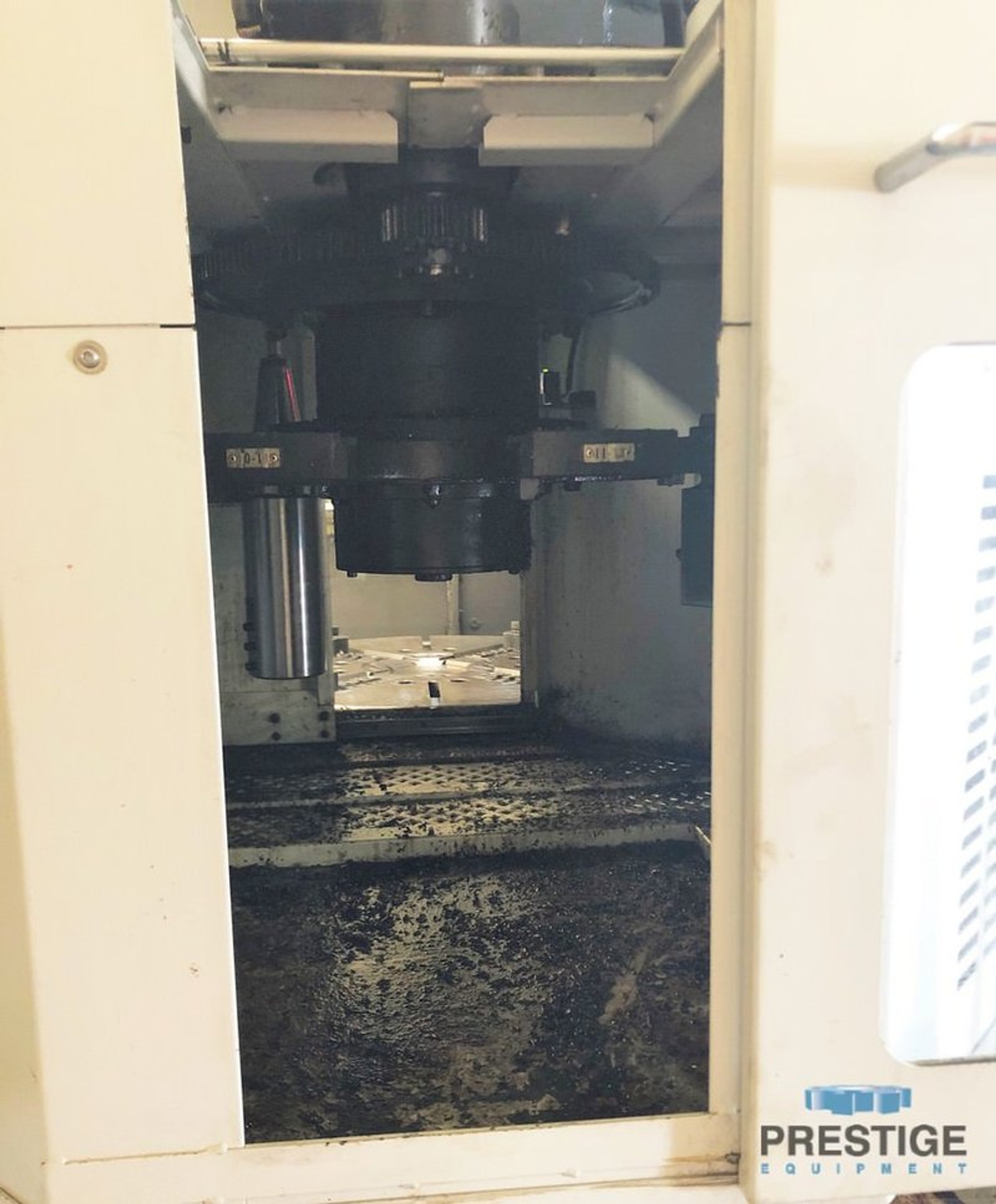

Ram with 12-Position ATC
Elevating Rail

CAPACITY:
Table Diameter ........................ 39.37"
Maximum Swing ......................... 53.14"
Maximum Cutting Diameter .............. 43.30"
Maximum Cutting Height ................ 35.43"
Rail Travel ........................... 20"
Ram Stroke, Z-Axis .................... 31.49"
Table Weight Capacity ................. 8,800 Lbs
Table Speed, 2-Ranges ................. 1-600 RPM
Cutting Feed Rate ..................... 0.39-78.7 IPM
Automatic Tool Changer ................ 12 ATC
Tool Shank ............................ BT-50 7/24
Main Table Motor (220 Volt) ........... 49 HP/60 HP
Machine Weight ........................ 64,200 lbs

EQUIPPED WITH:
Fanuc Oi-TD CNC Control

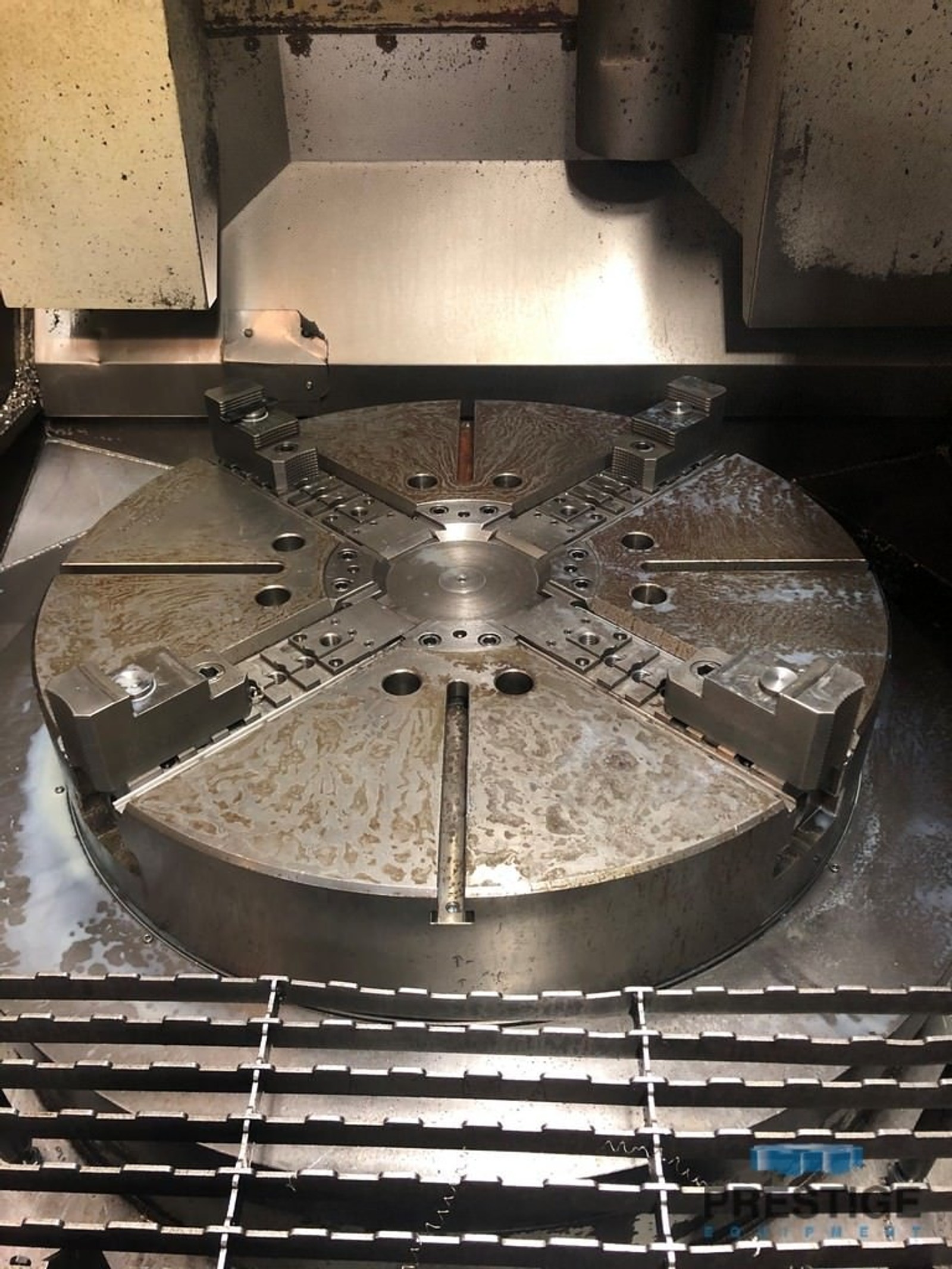

39.37" 4-Jaw Hydraulic Independent Chuck
Ram w/ 12-Position Automatic Tool Changer
Chip Conveyor
60 HP Table Drive Motor
Misc. Tooling
