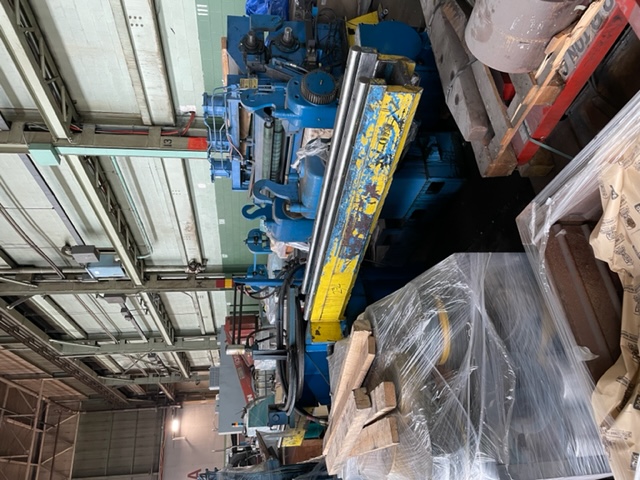

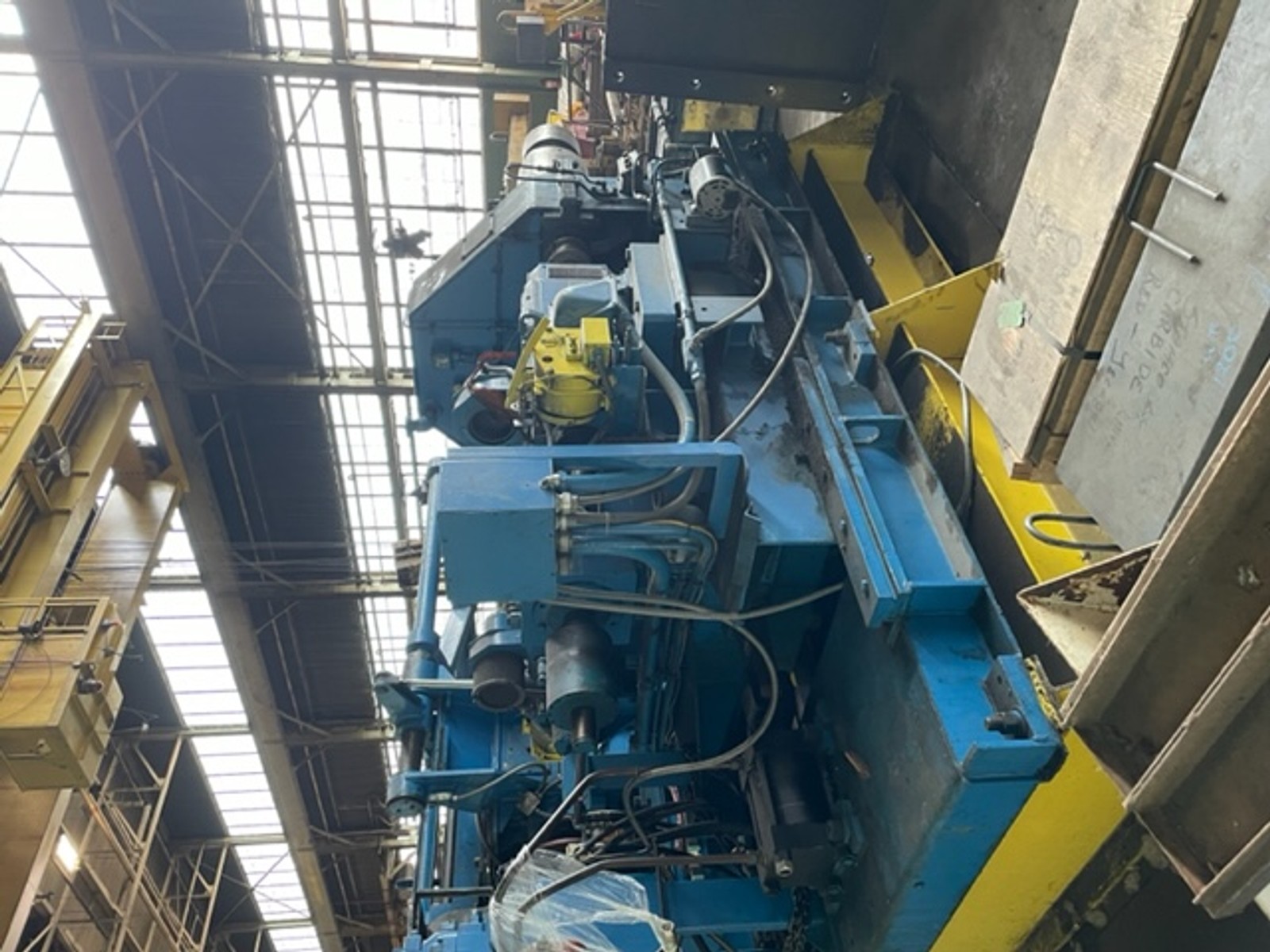

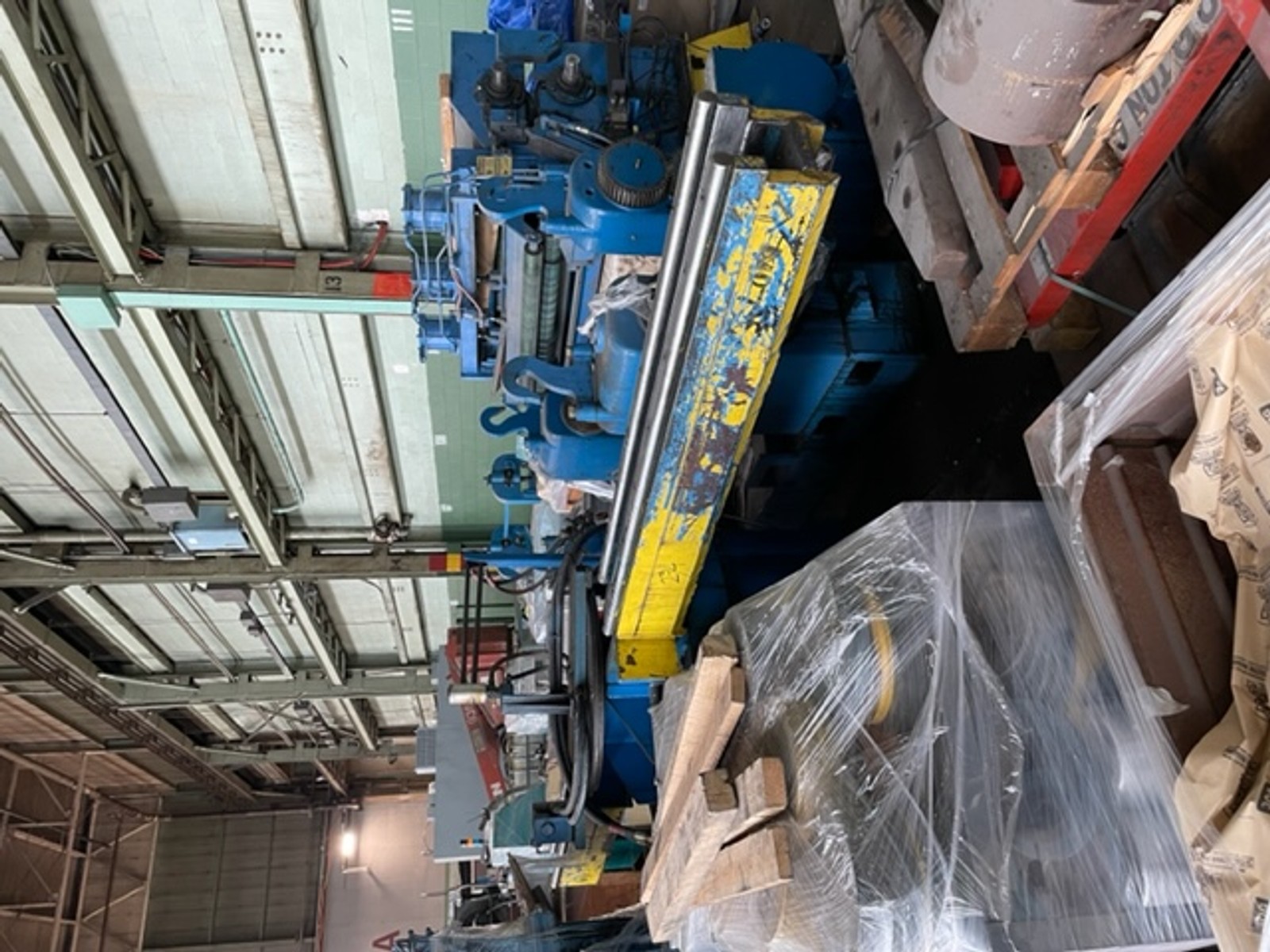

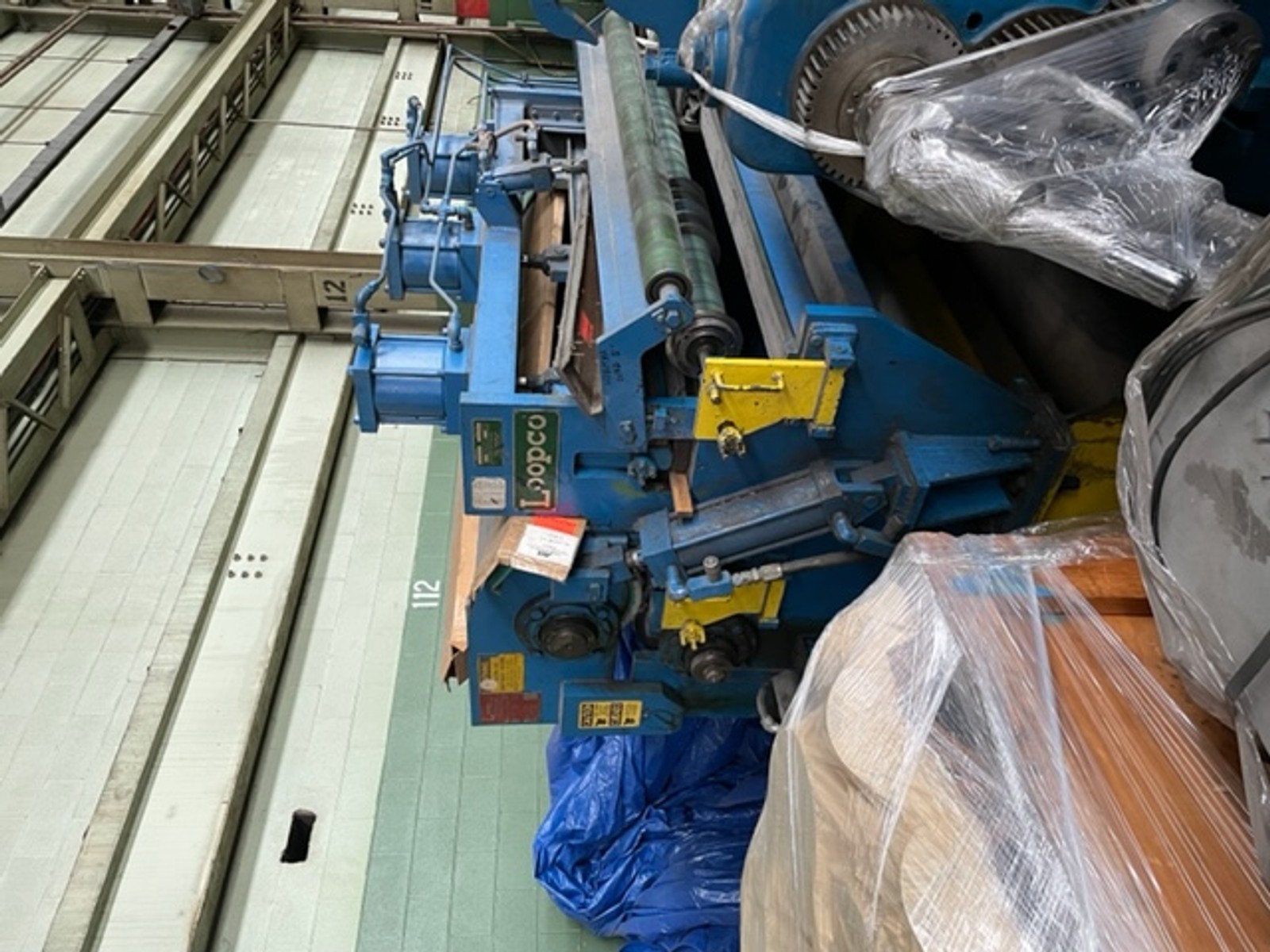

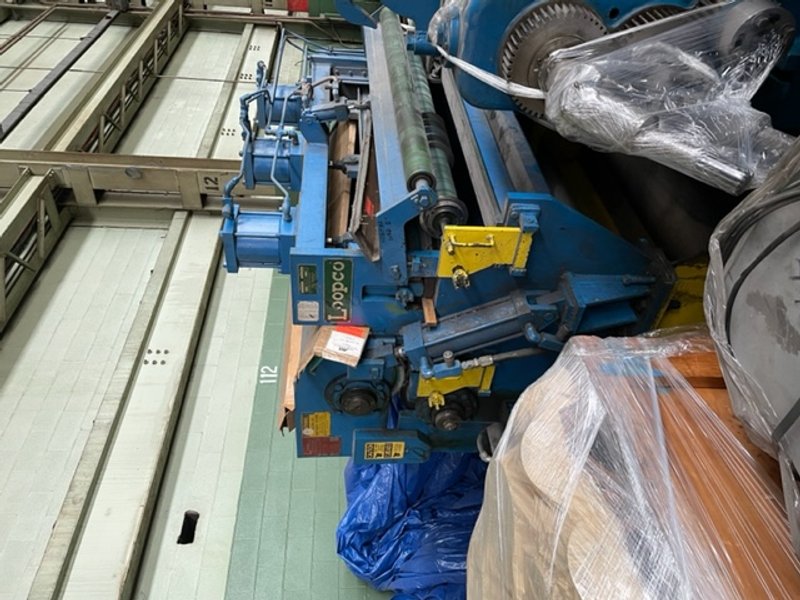

60" x .125" x 40,000Lb Stamco Loop Slitting Line

Manufacturer

LOOPCO

Category

Slitters and Slitting Lines

Type

SLITTERS

Stock

19650B

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

If you do not see machinery that you are looking for, send us a quote request and include machinery you are looking for in the description. We only advertise a small portion of our inventory!

Make: Stamco
Material Width: 12" - 60"
Material Thickness: .010" - .125"
Coil Weight: 40,000Lb
Coil ID: 20"
Coil OD: 72"
Speed: 1200 feet per minute

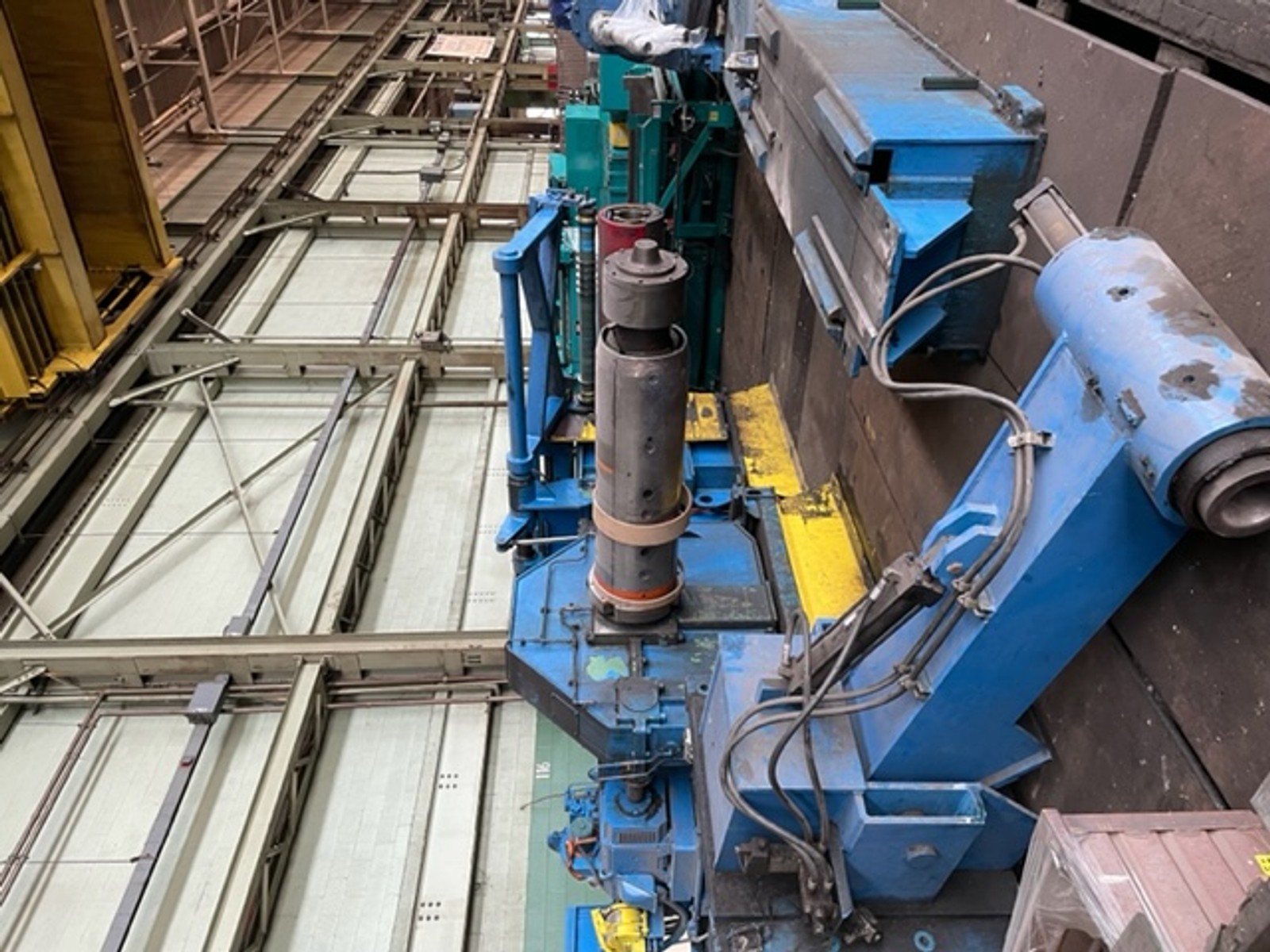

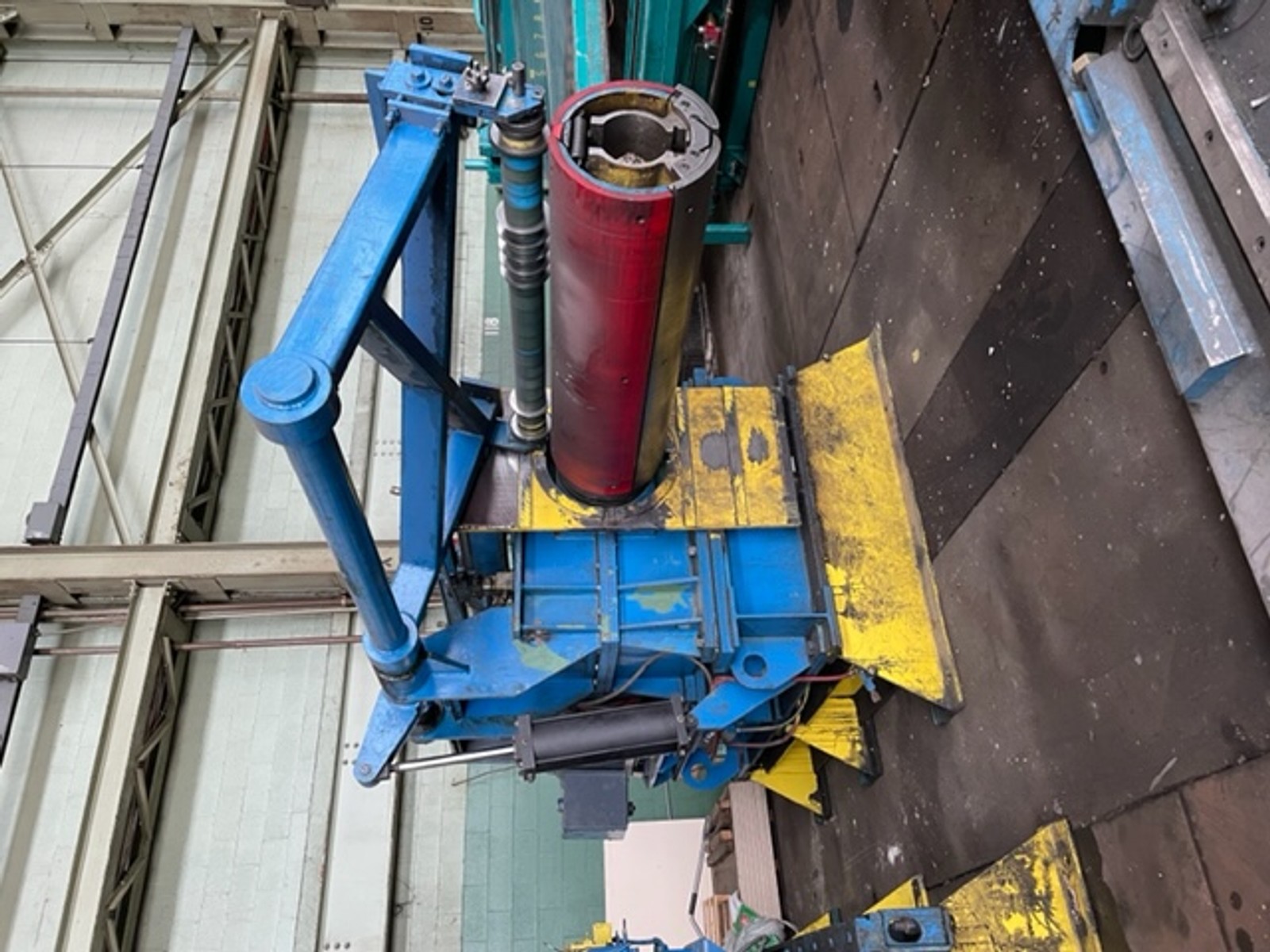

Mandrel Uncoiler
Powered Hold Down Roll
Powered Expansion
Water Cooled Brake
AC Feed Up Motor
Sliding Base

Hydraulic Peeling Table
Adjustable Edge Guides
Driven Pinch Rolls

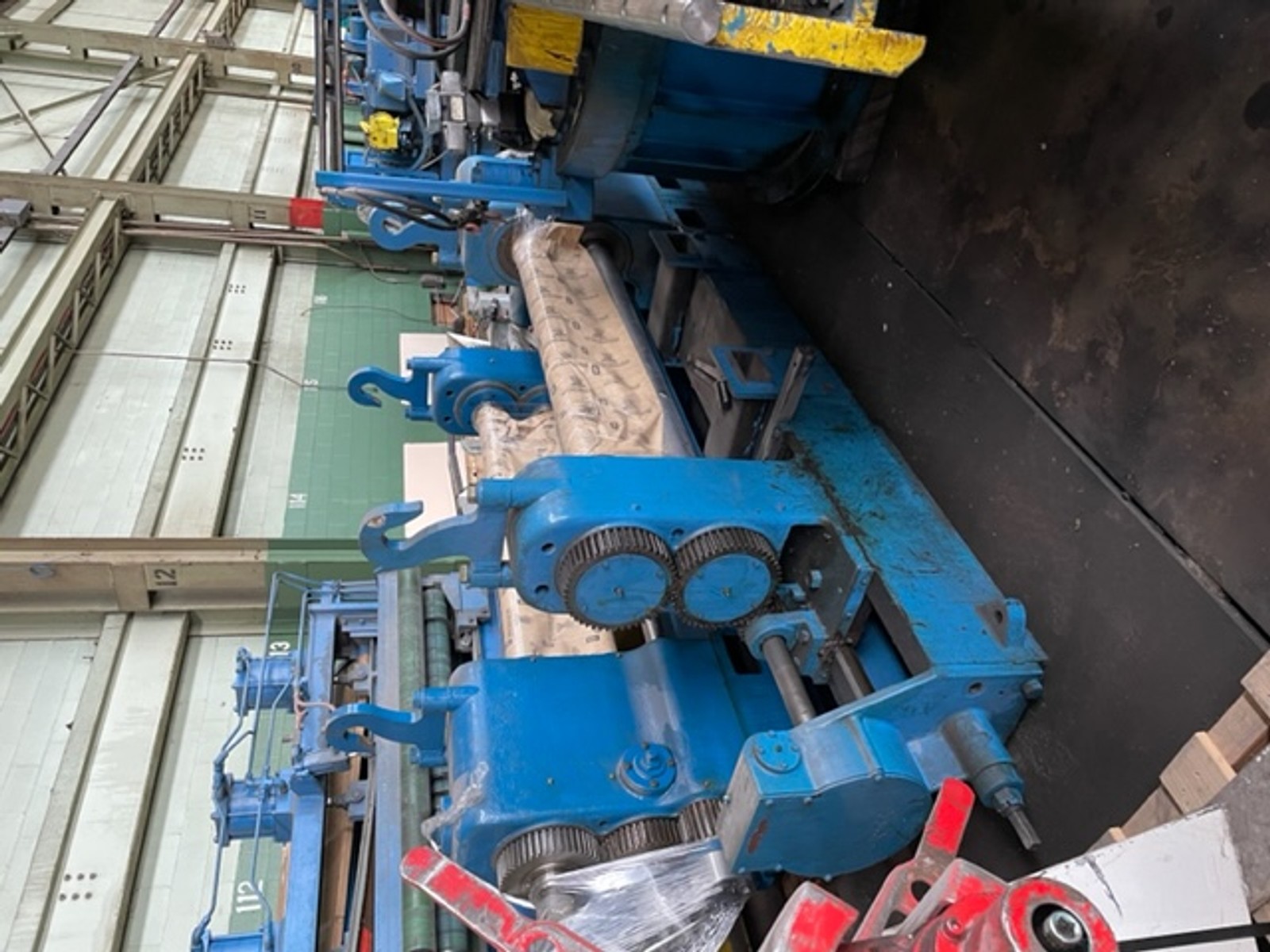

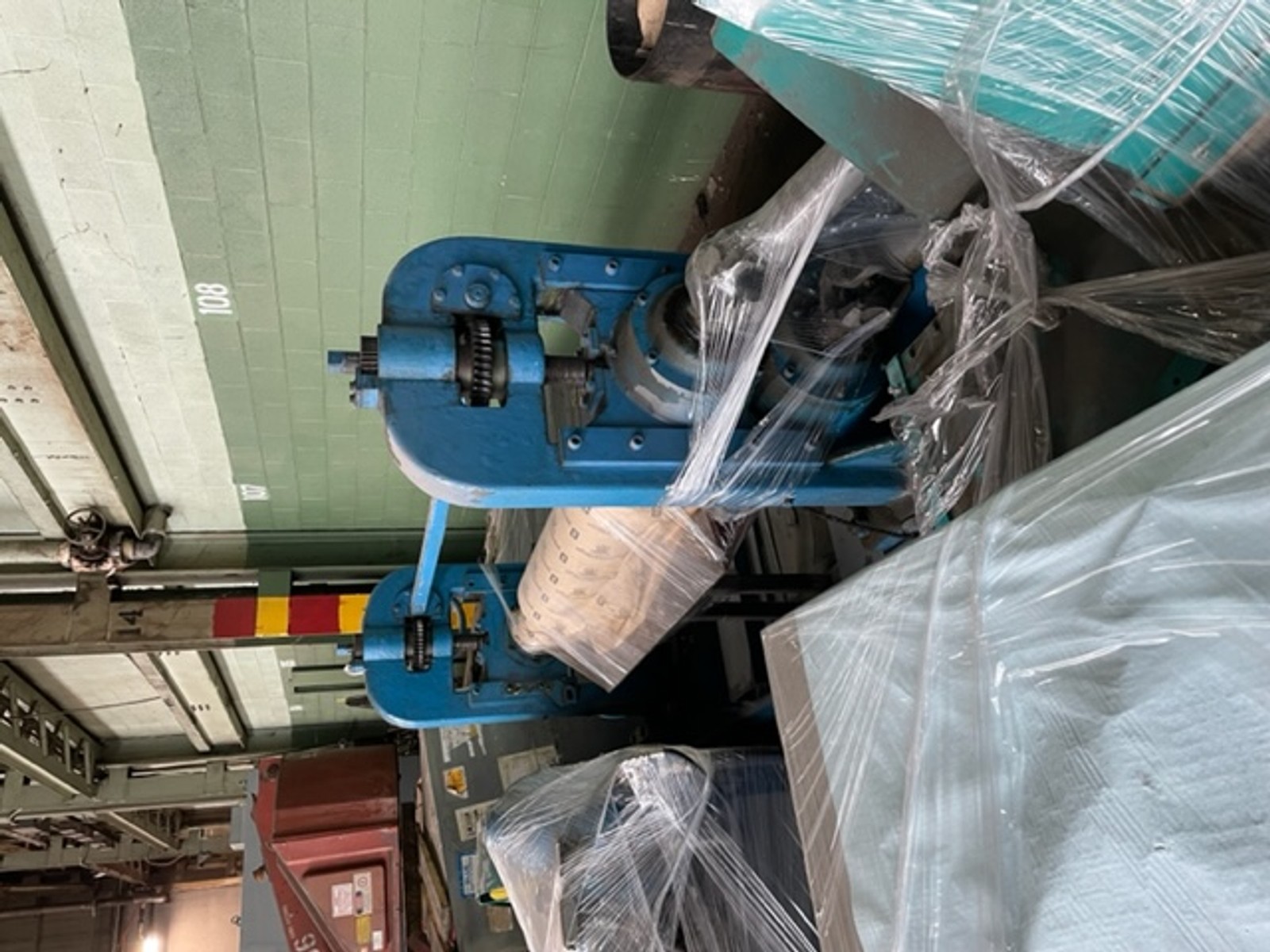

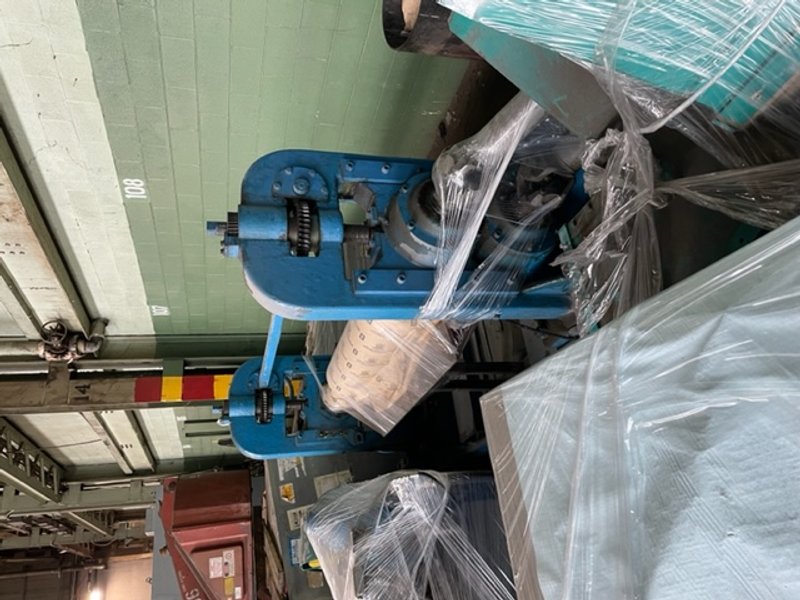

Three (3) Slitting Heads
Arbor Diameter: 5"
Crane Removable Design
Keyless and Shimless Tooling
Adjustable Arbors
100HP DC Motor Drive

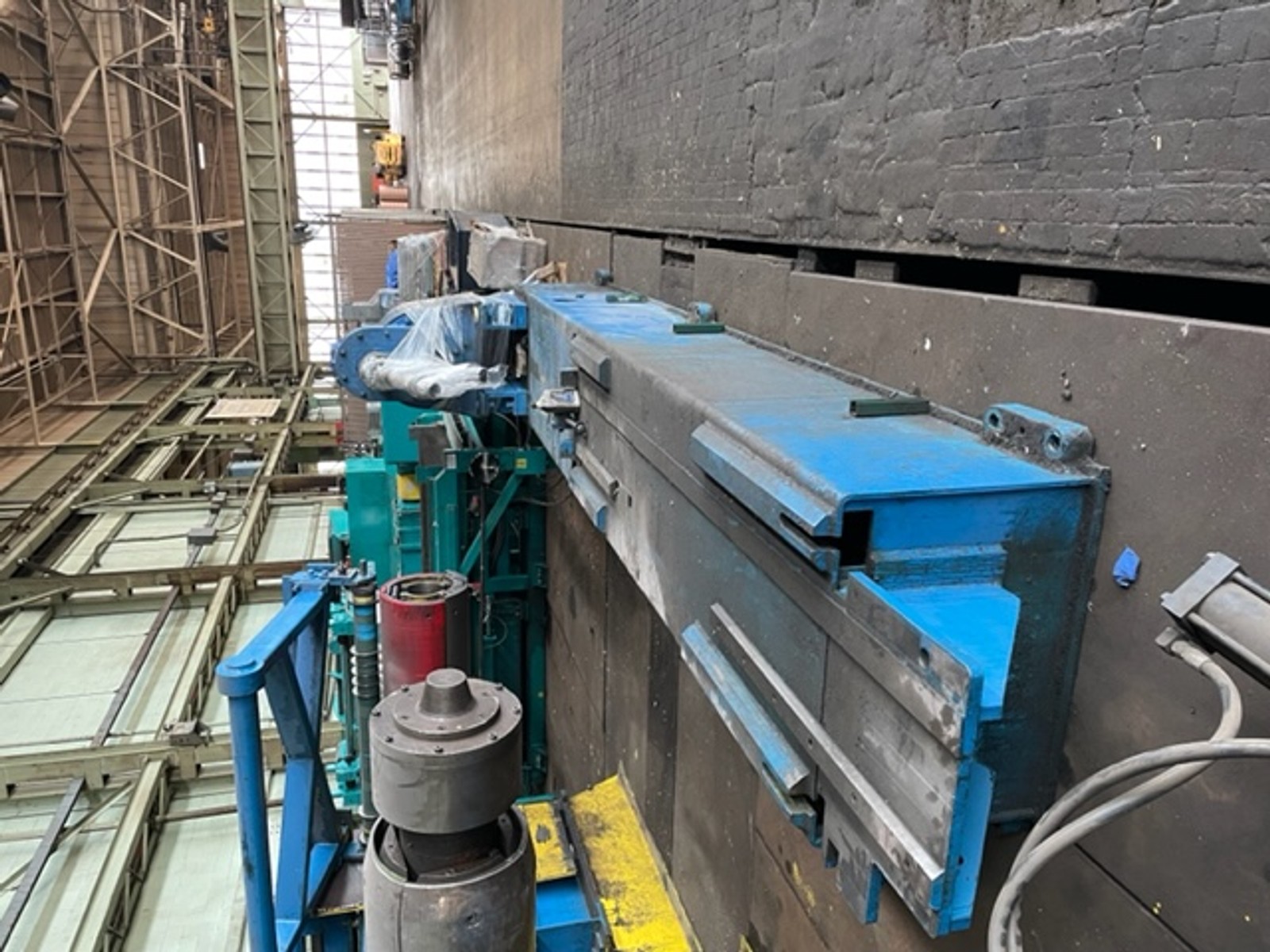

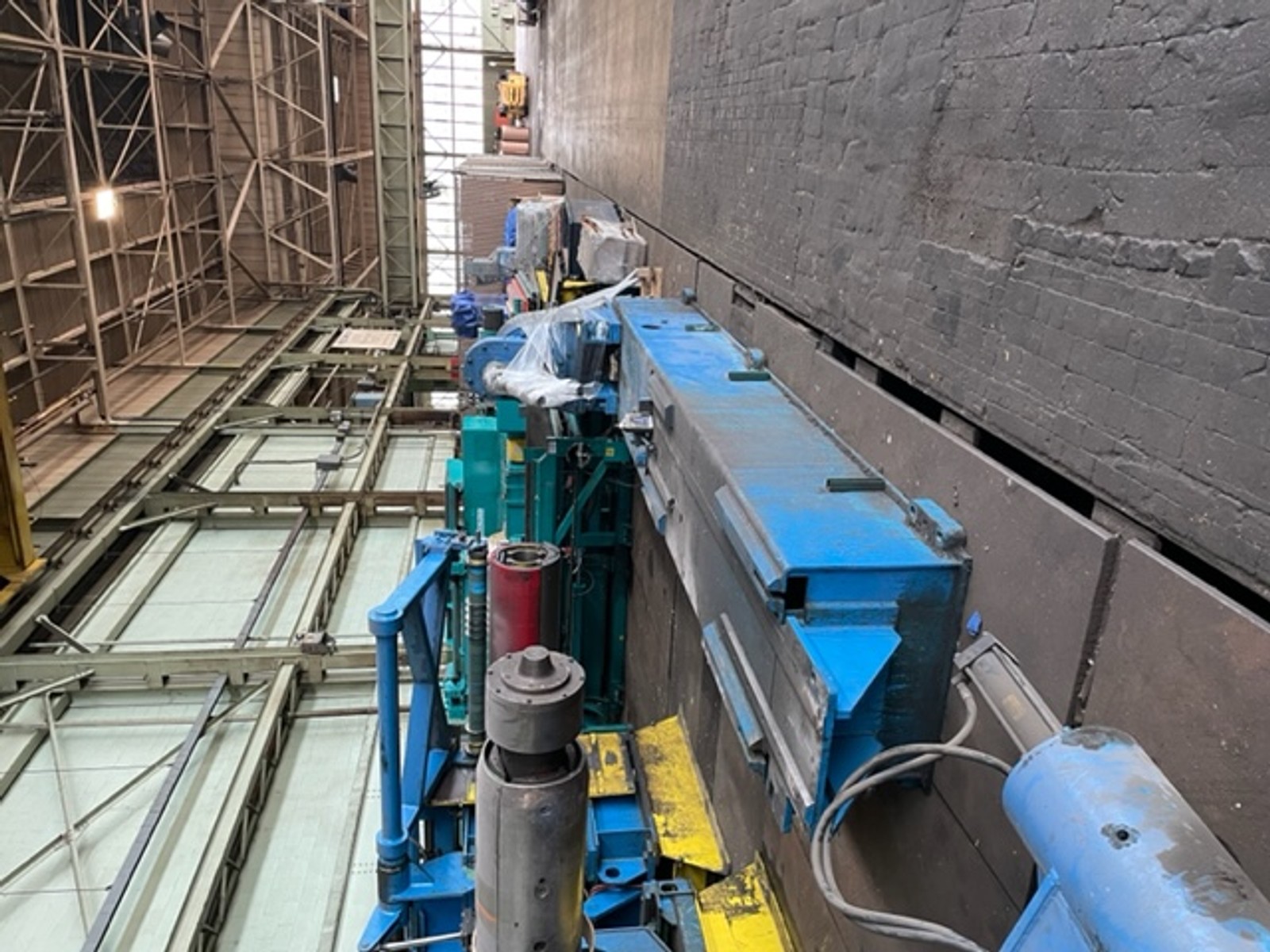

Pit Cross Over Table
Rotary & Drag Board Tension Stand
DC Motor Drive
Coated Tension Rolls
Strip Separating Bar with Tooling

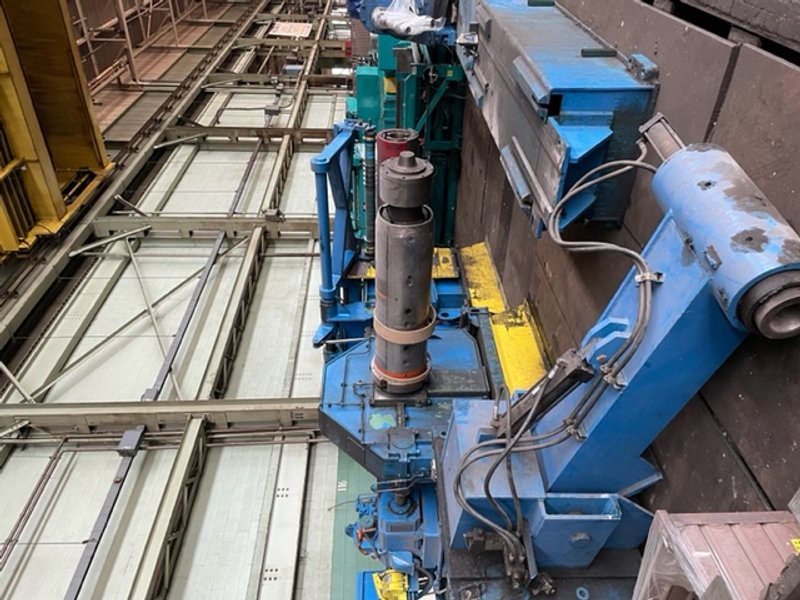

Recoiler
Powered Over-Arm Separator
Hydraulic Push - Off
Powered Gripper
125HP DC Motor Drive

Exit 2-Arm Turnstile
Powered Rotation
ID Protective Arms

Electrics, Hydraulics, Controls, Tooling, Updated PLC Controls
