60" x .080" x 20,000Lb Dahlstrom CTL Line

Manufacturer

DAHLSTROM

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

19649

Model

20H-1824-60

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

If you do not see machinery that you are looking for, send us a quote request and include machinery you are looking for in the description. We only advertise a small portion of our inventory!

Make: Dahlstrom
Model: 20H-1824-60
Material Width: 12" - 60"
Material Thickness: .010" - .080"
Coil Weight: 20,000Lb
Coil ID: 18" - 24"
Coil OD: 72"
Voltage: 460/3/60
Controls: 115VAC

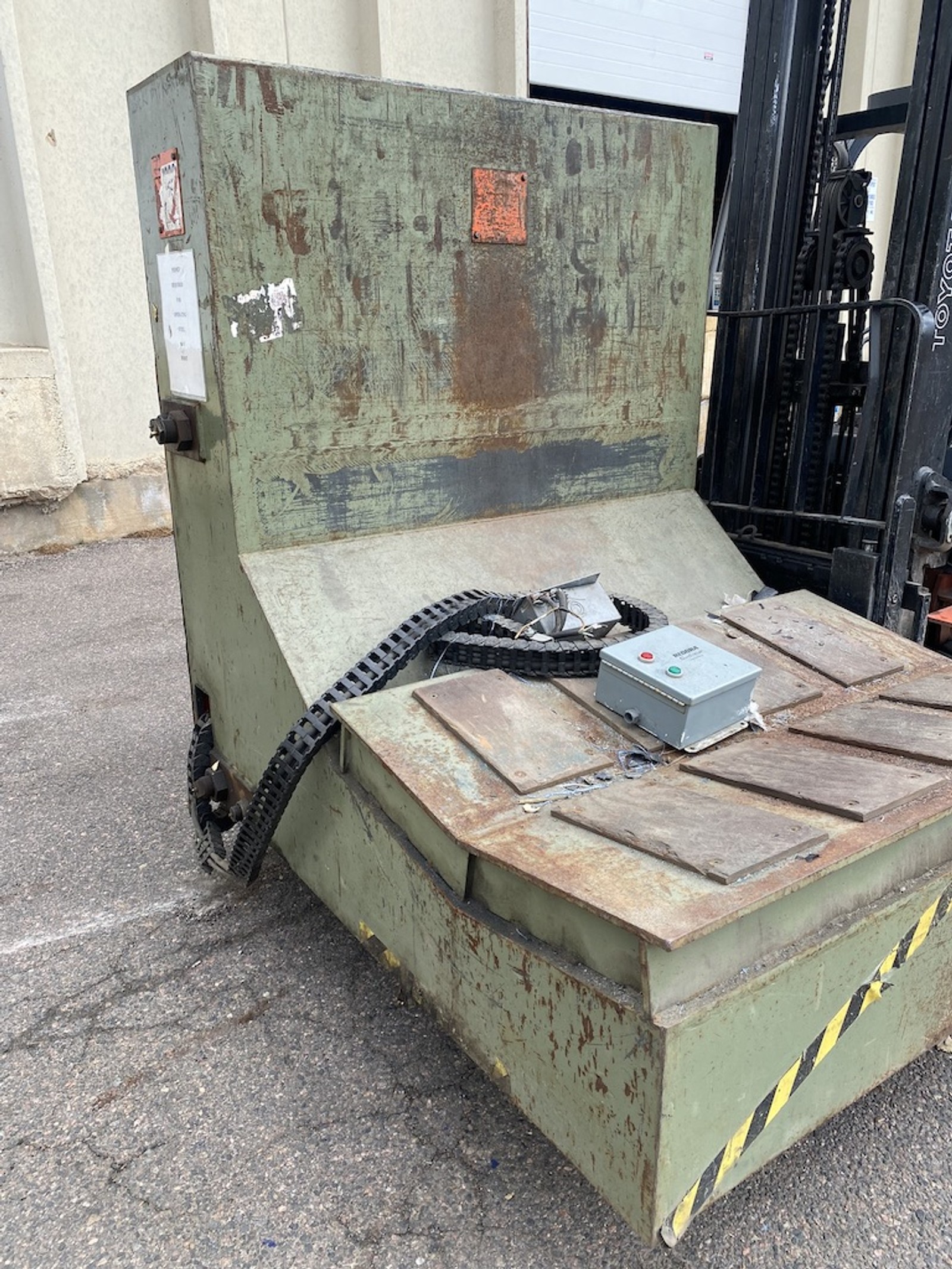

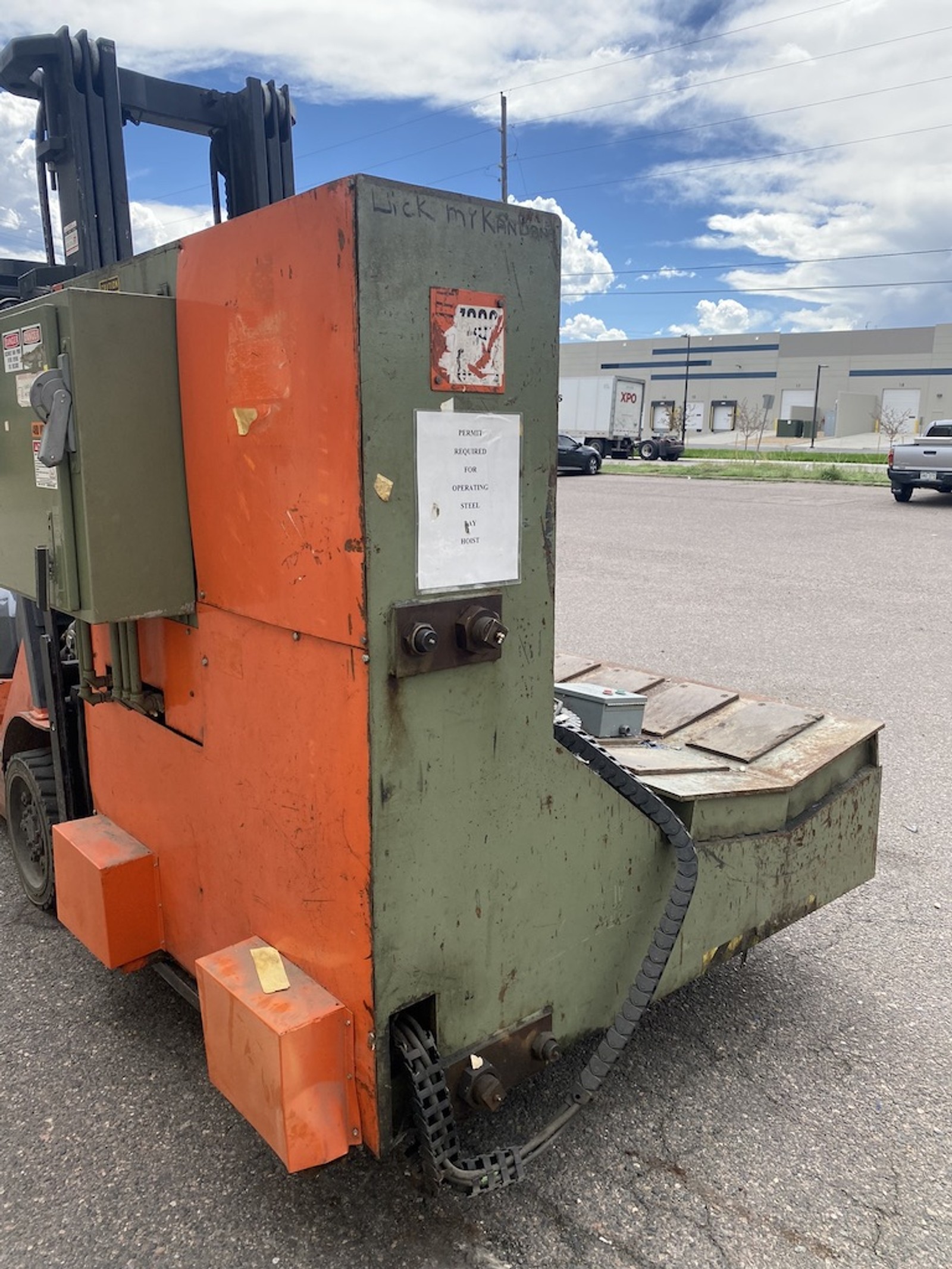

Entry Coil Car
Powered Lift & Traverse
Control Panel

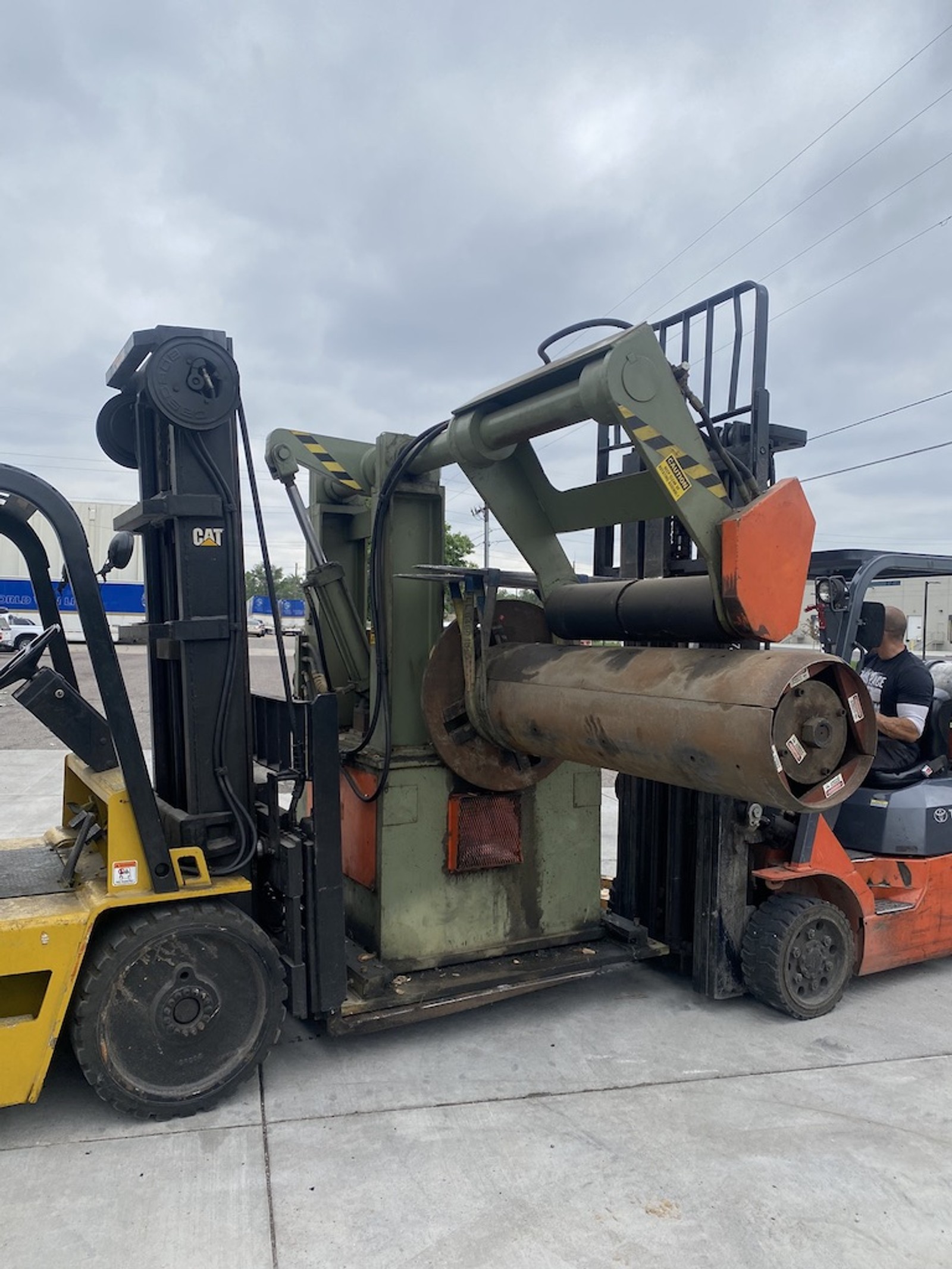

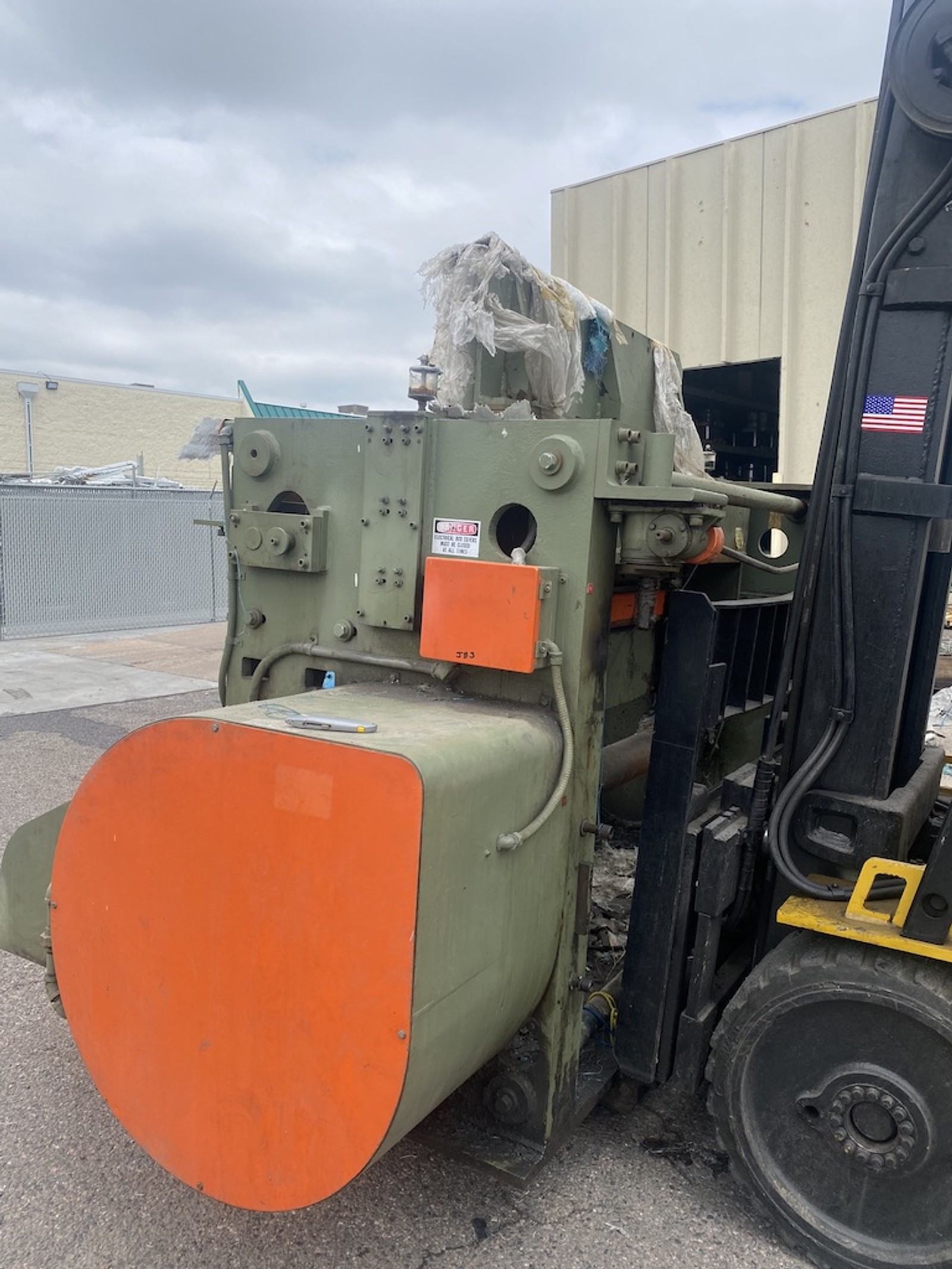

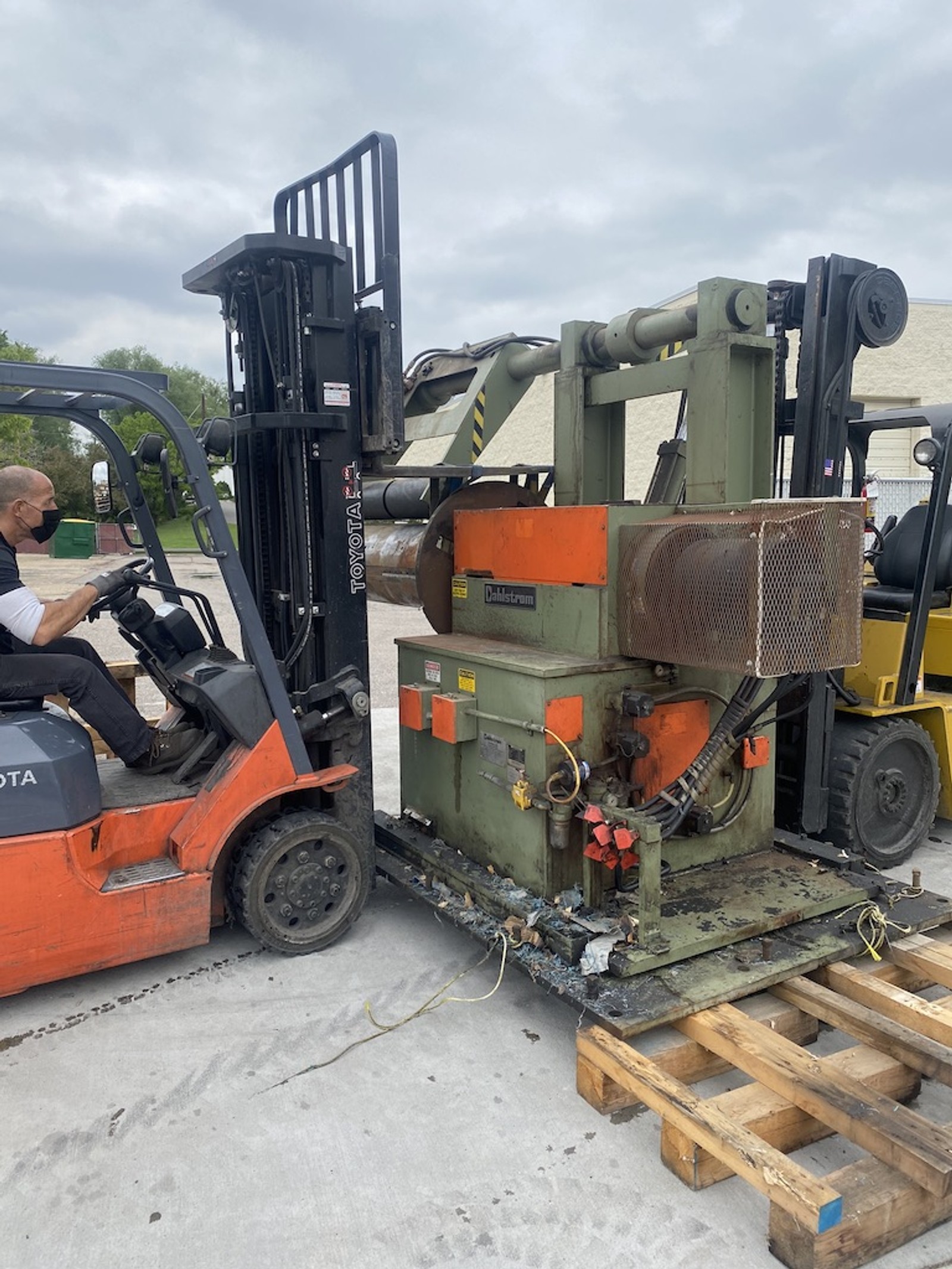

Mandrel Uncoiler

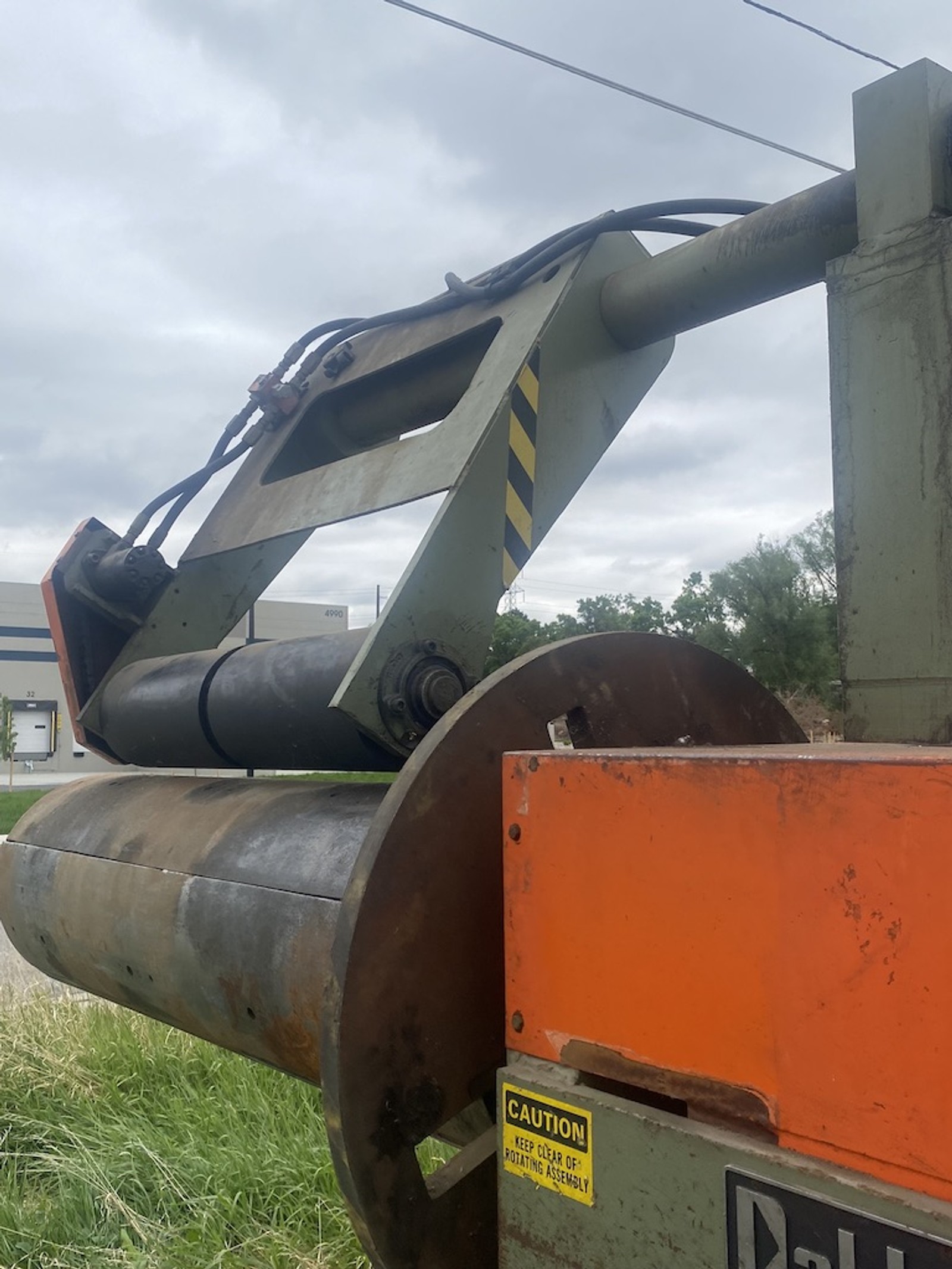

Powered Hold-Down Roll
Sliding Base
Powered Mandrel Expansion
Feed-Up Motor

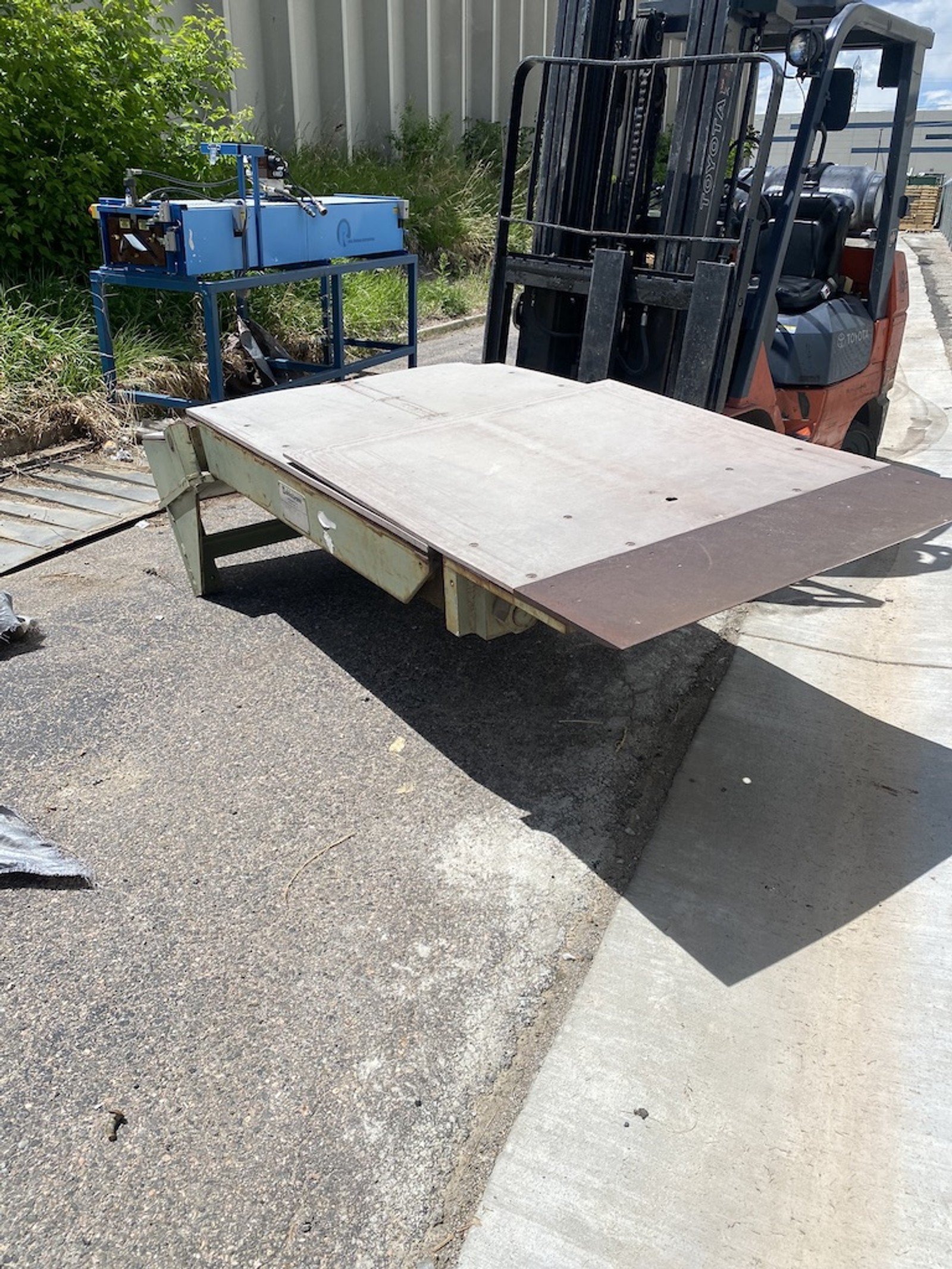

Hydraulic Peeling Table
Driven Pinch Rolls
Adjustable Edge Guides

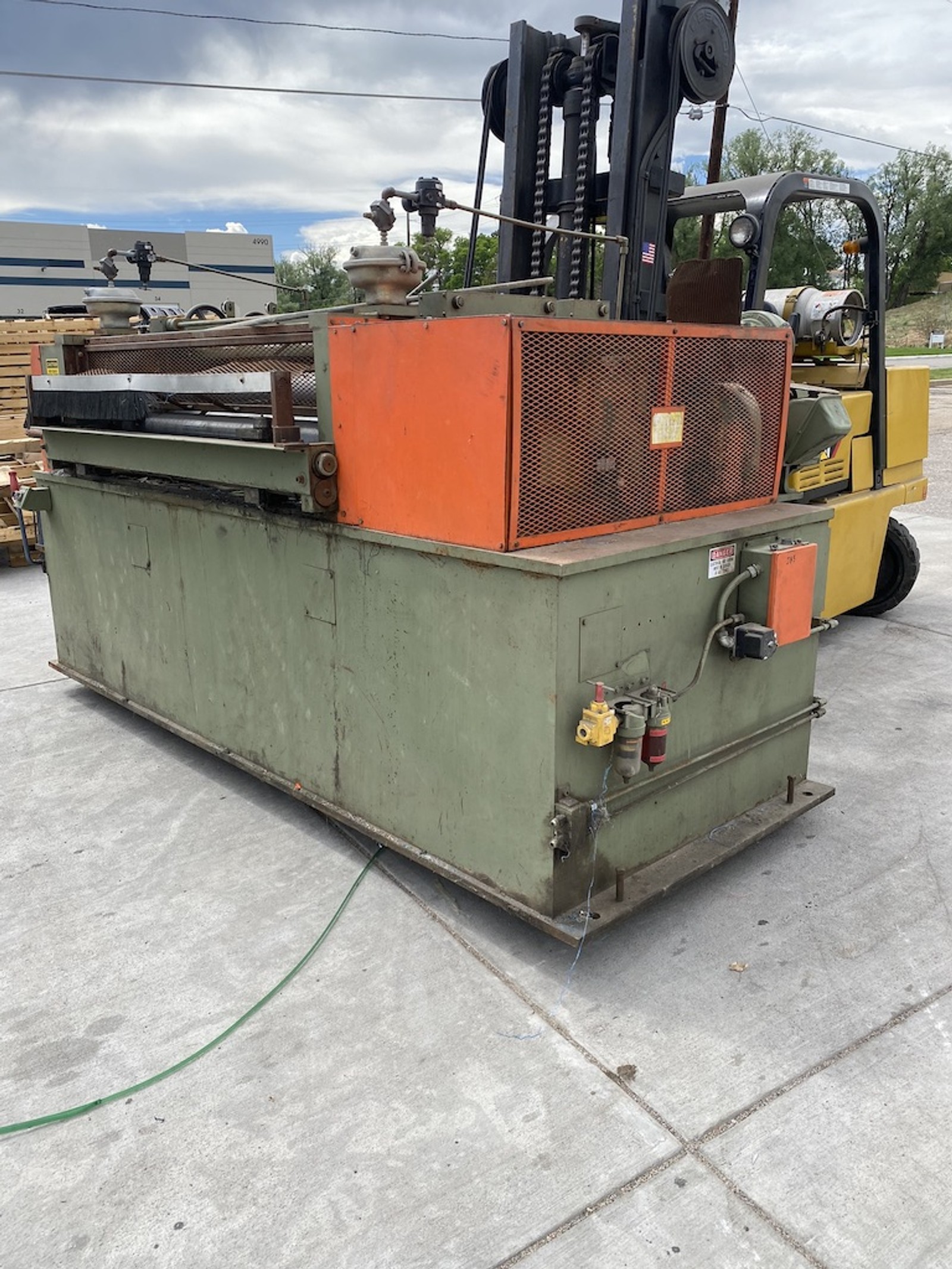

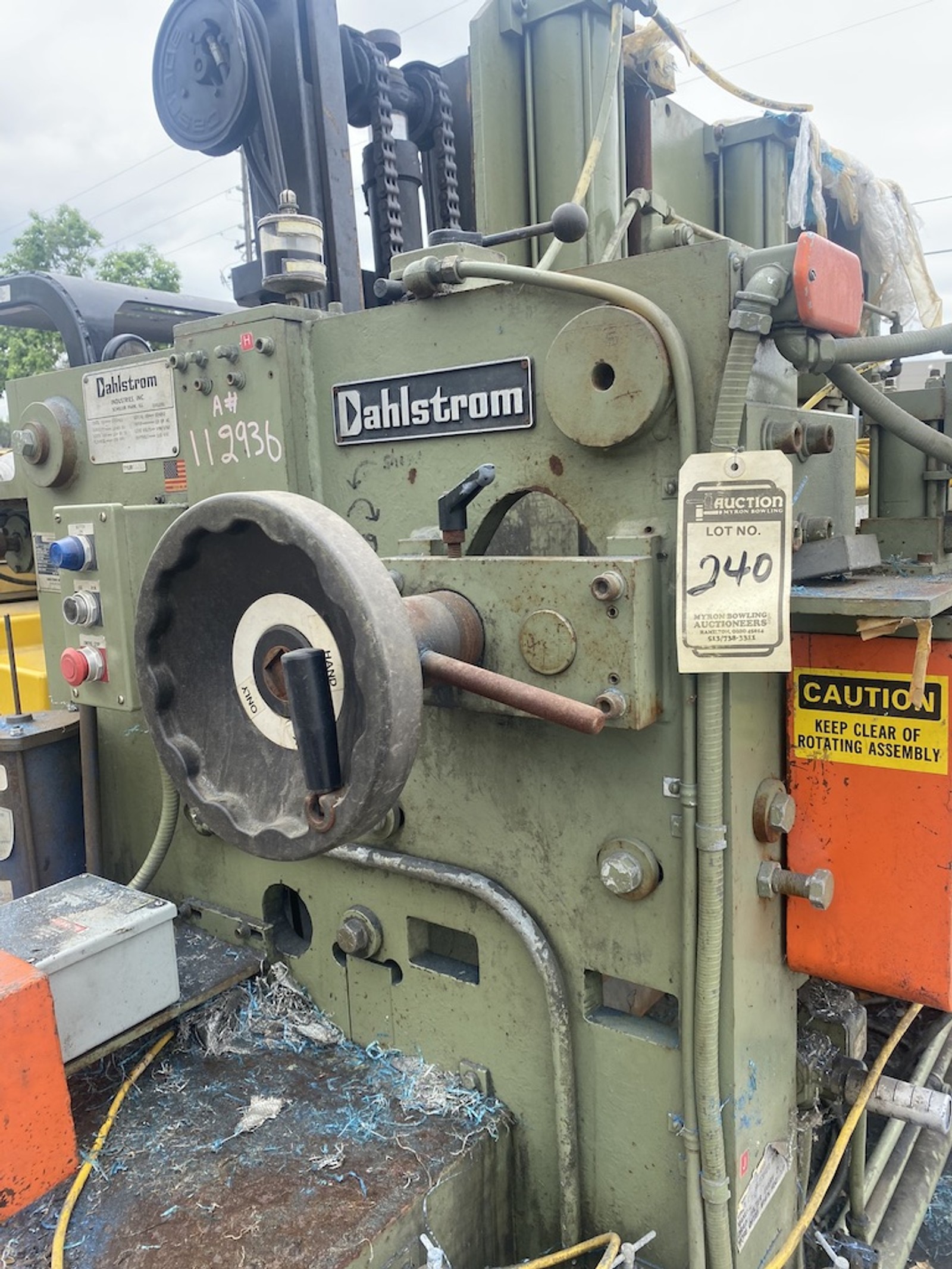

Edge Trimming Machine
Scrap Chopper

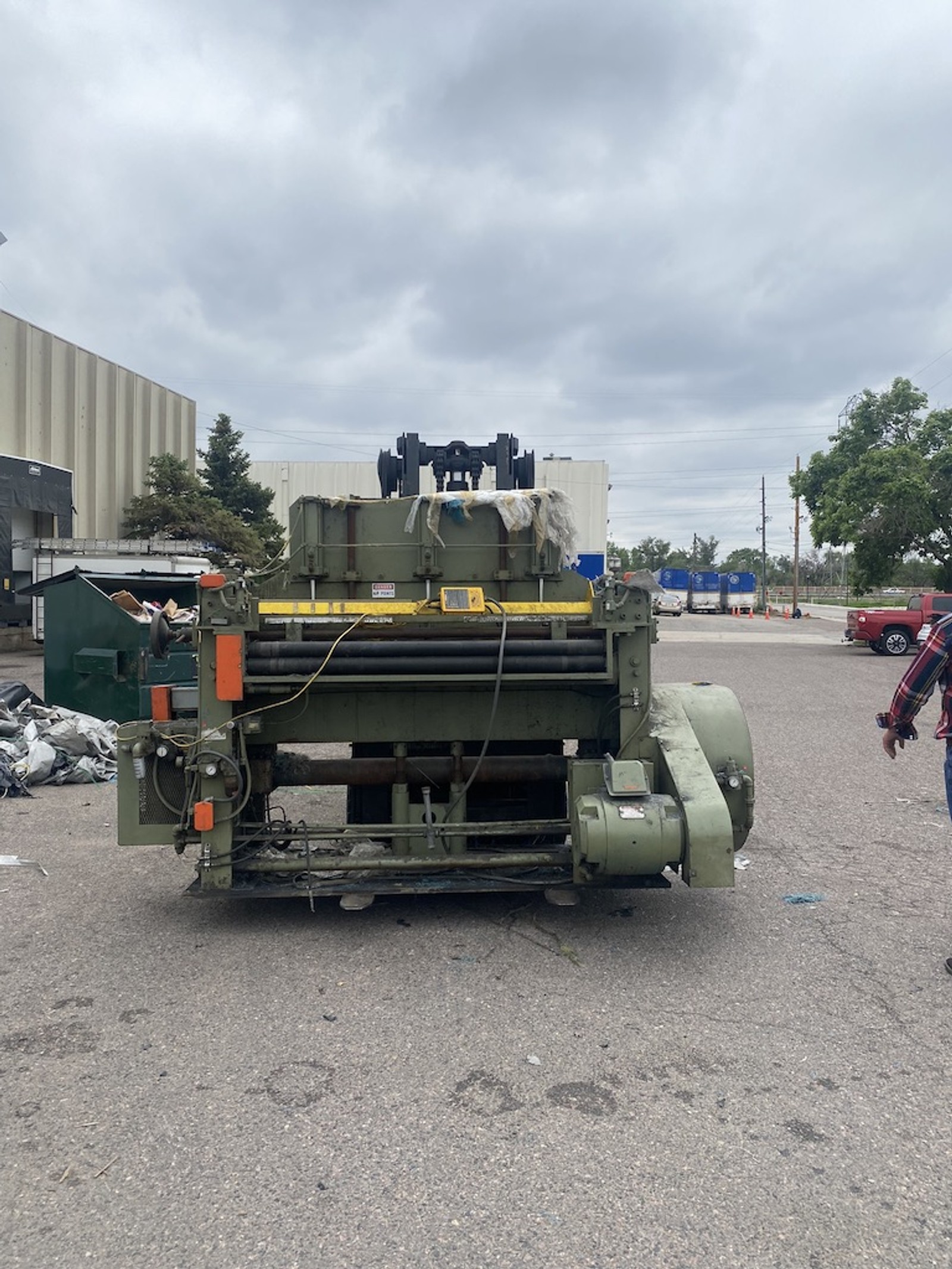

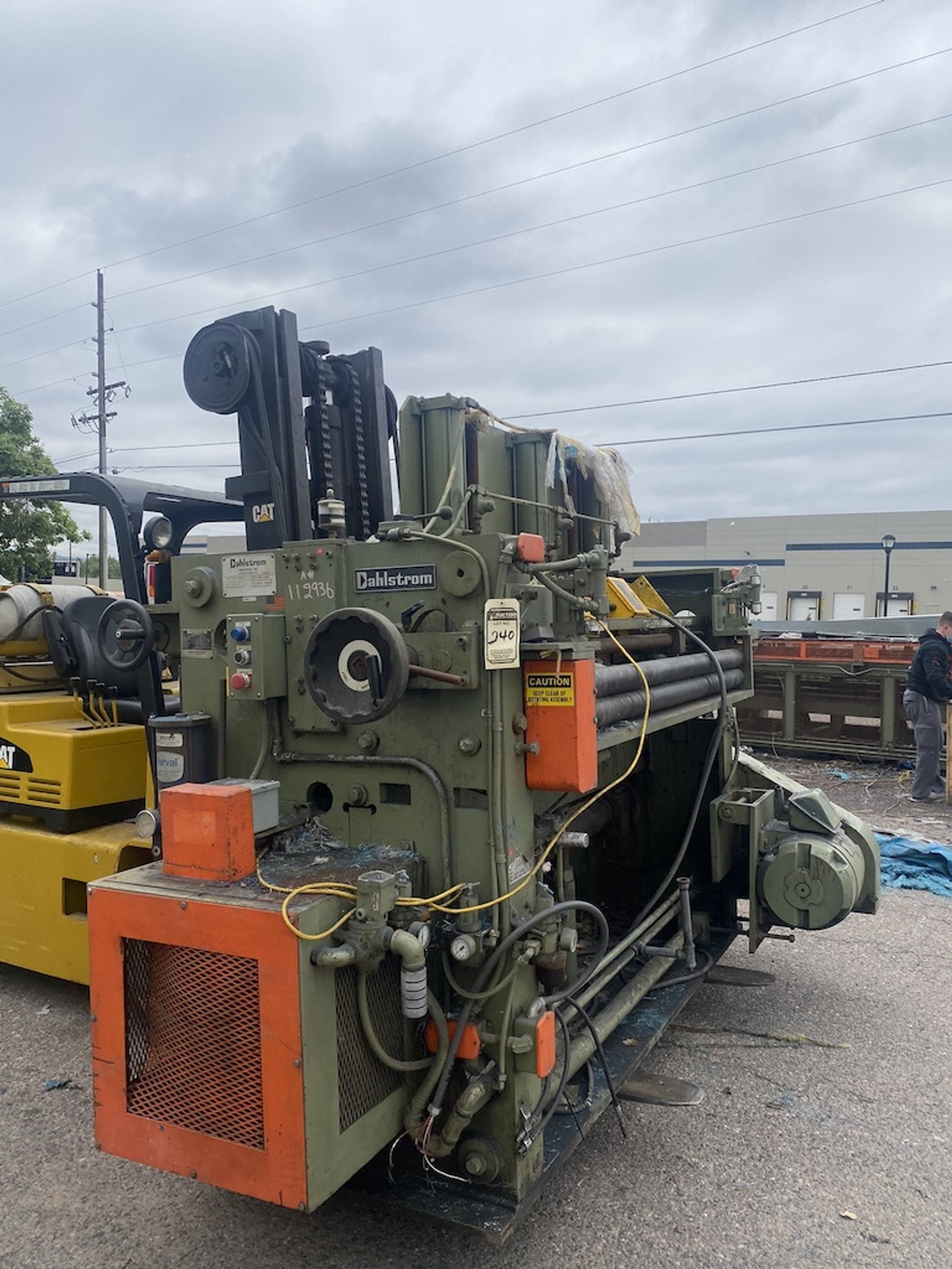

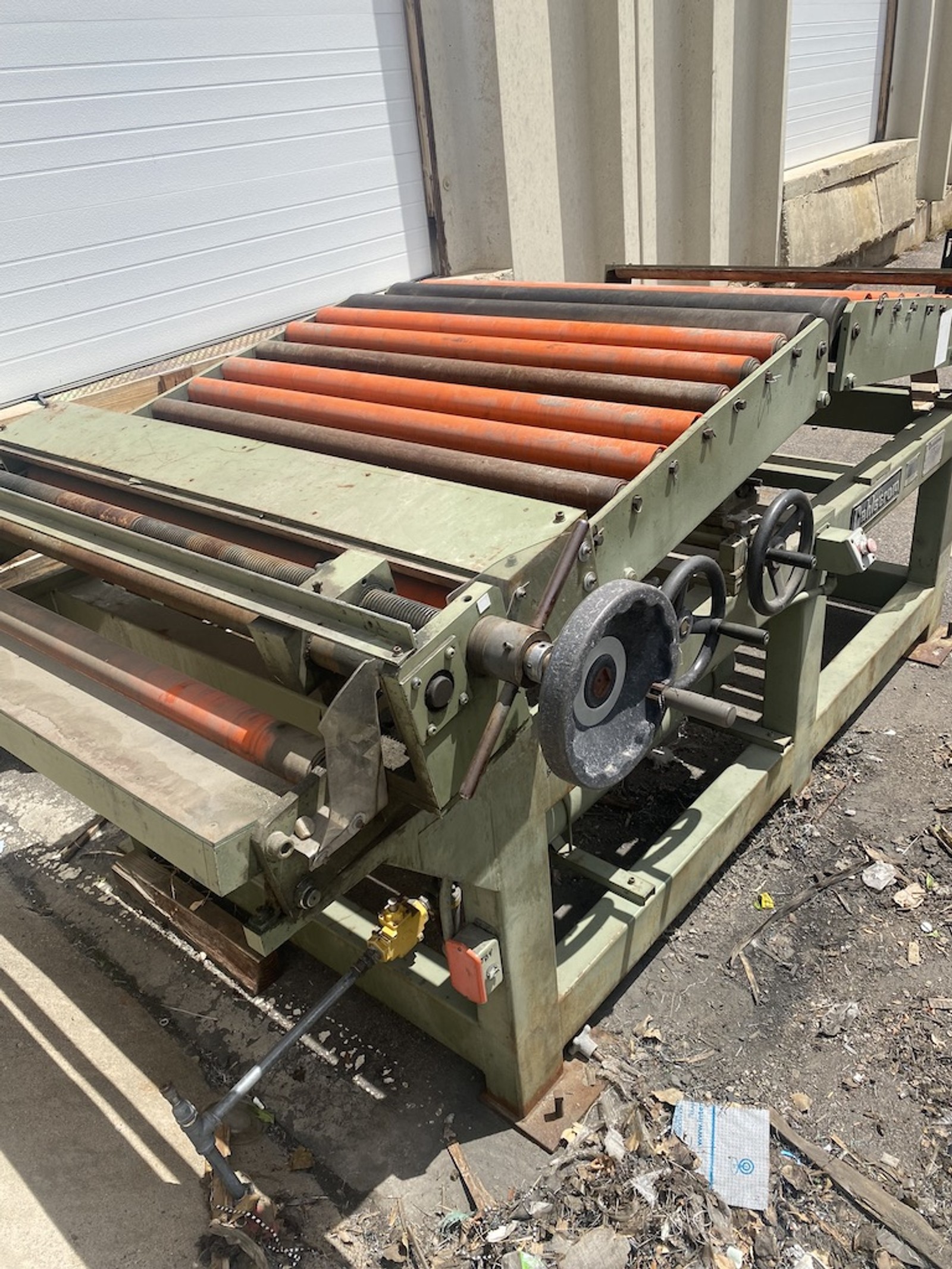

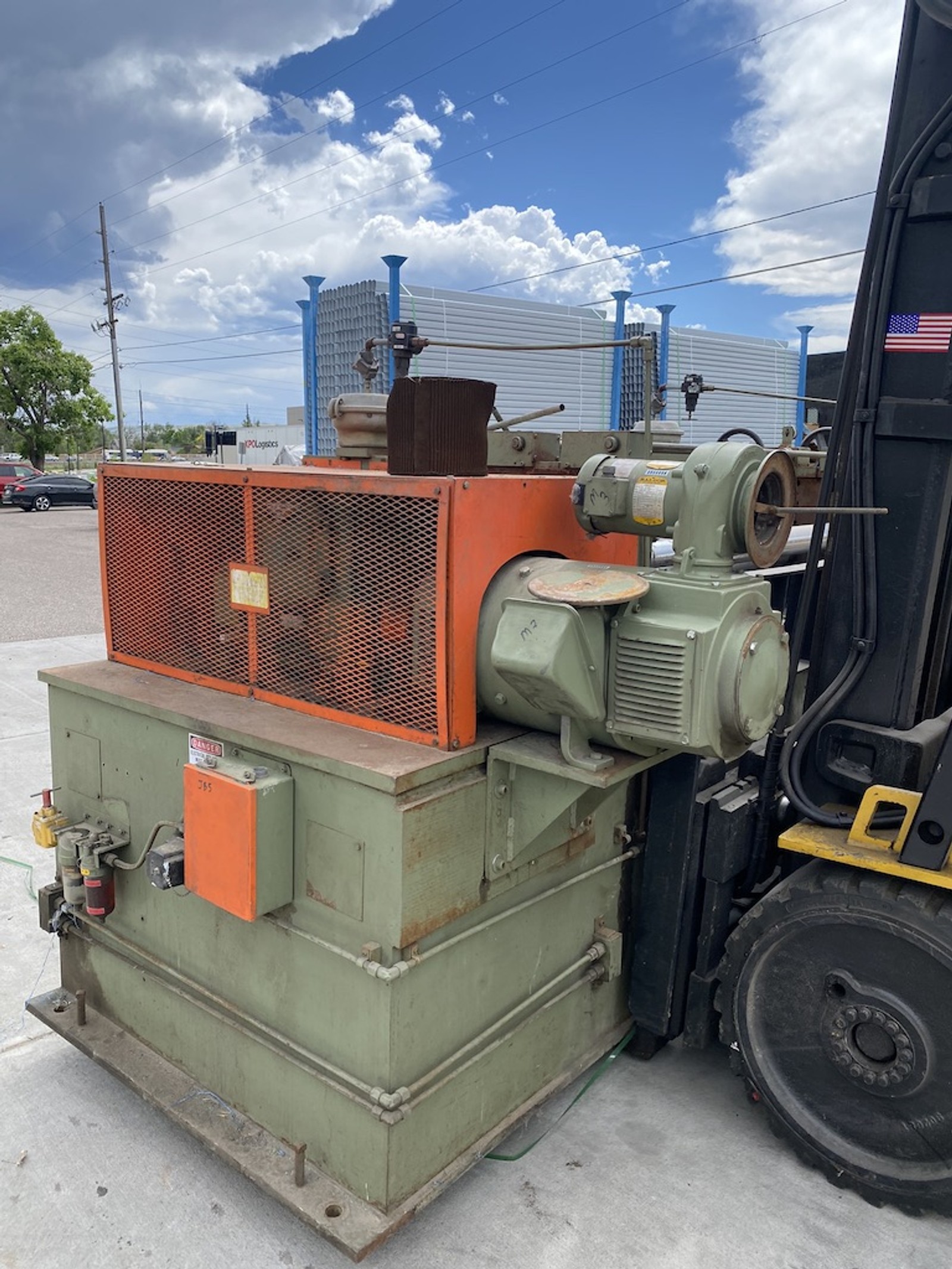

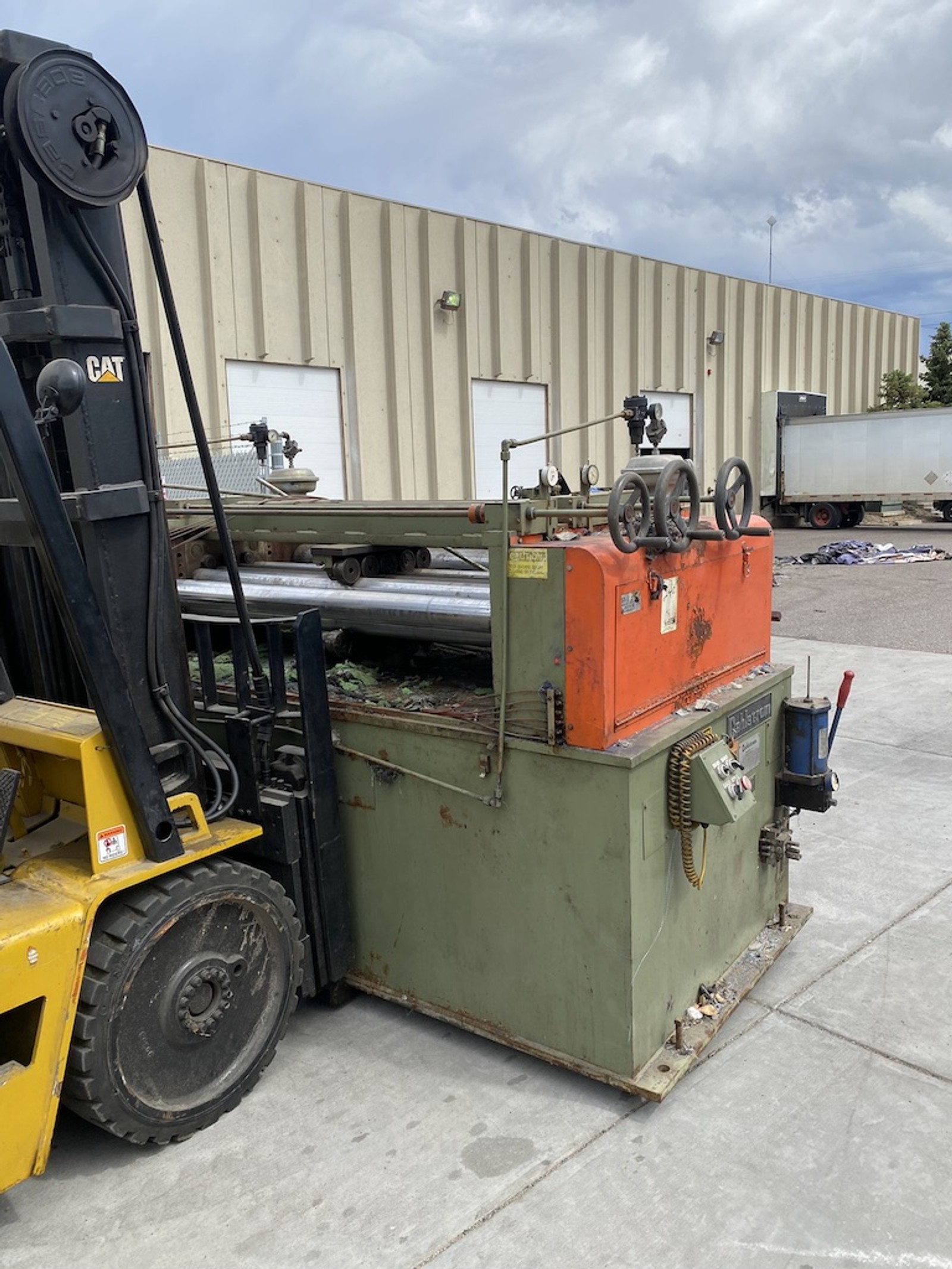

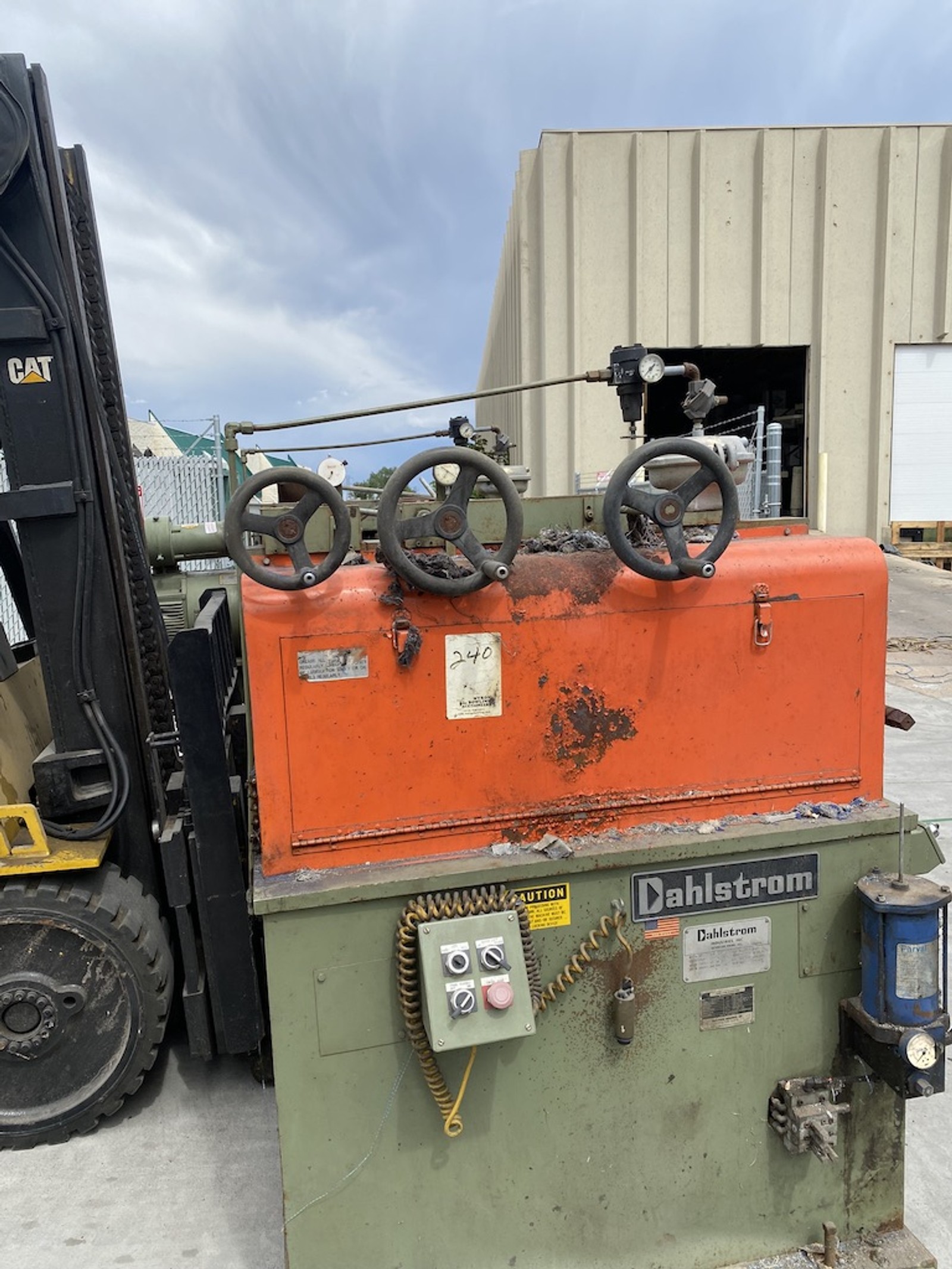

Coil Straightening Machine
Adjustable Work Rolls
DC Motor Drive & Gear Box

Hump Table
Adjustable Heights

Mechanical Shear
Air Clutch & Brake
AC Motor Drive

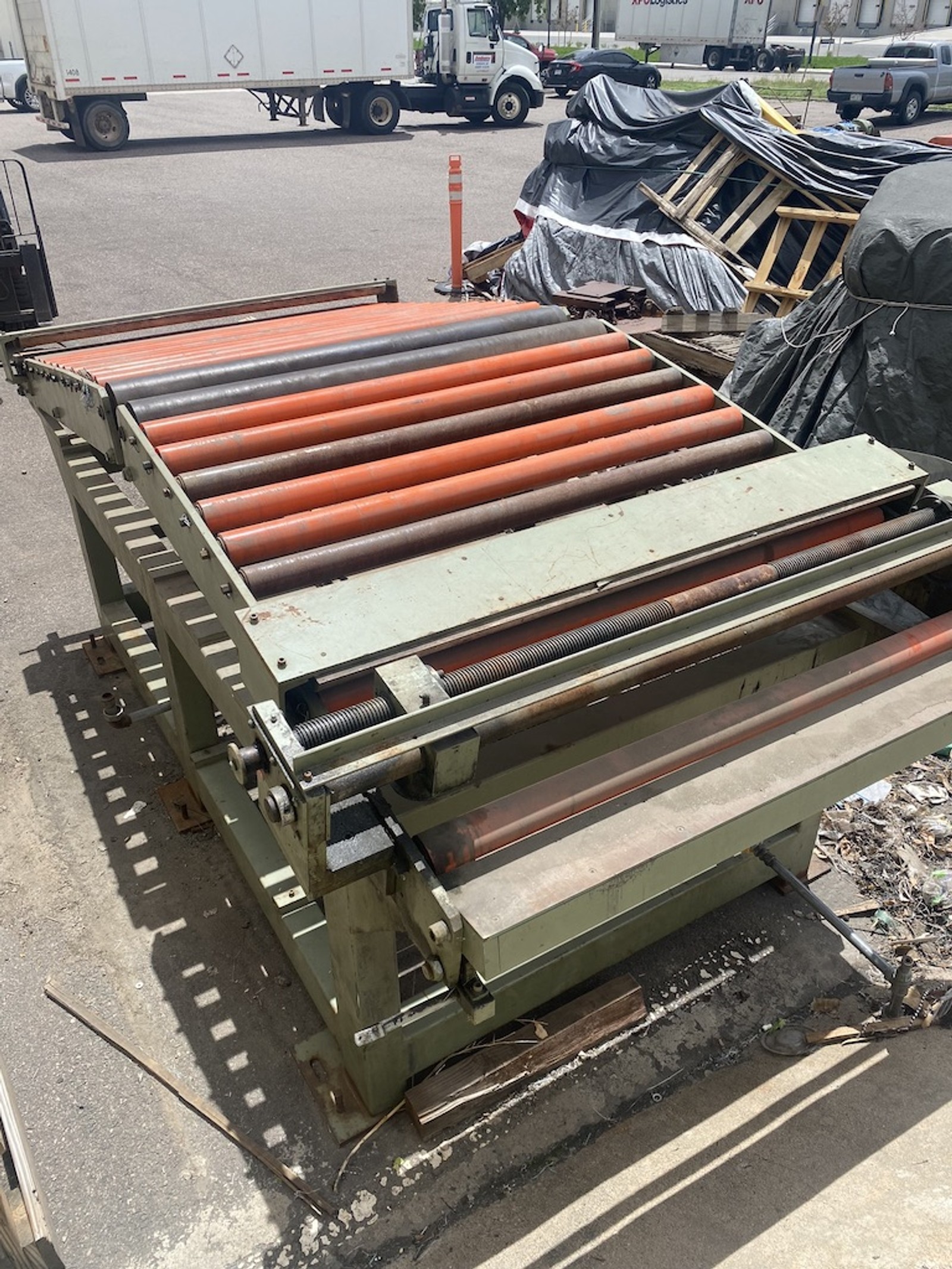

Exit Driven Belt Conveyor

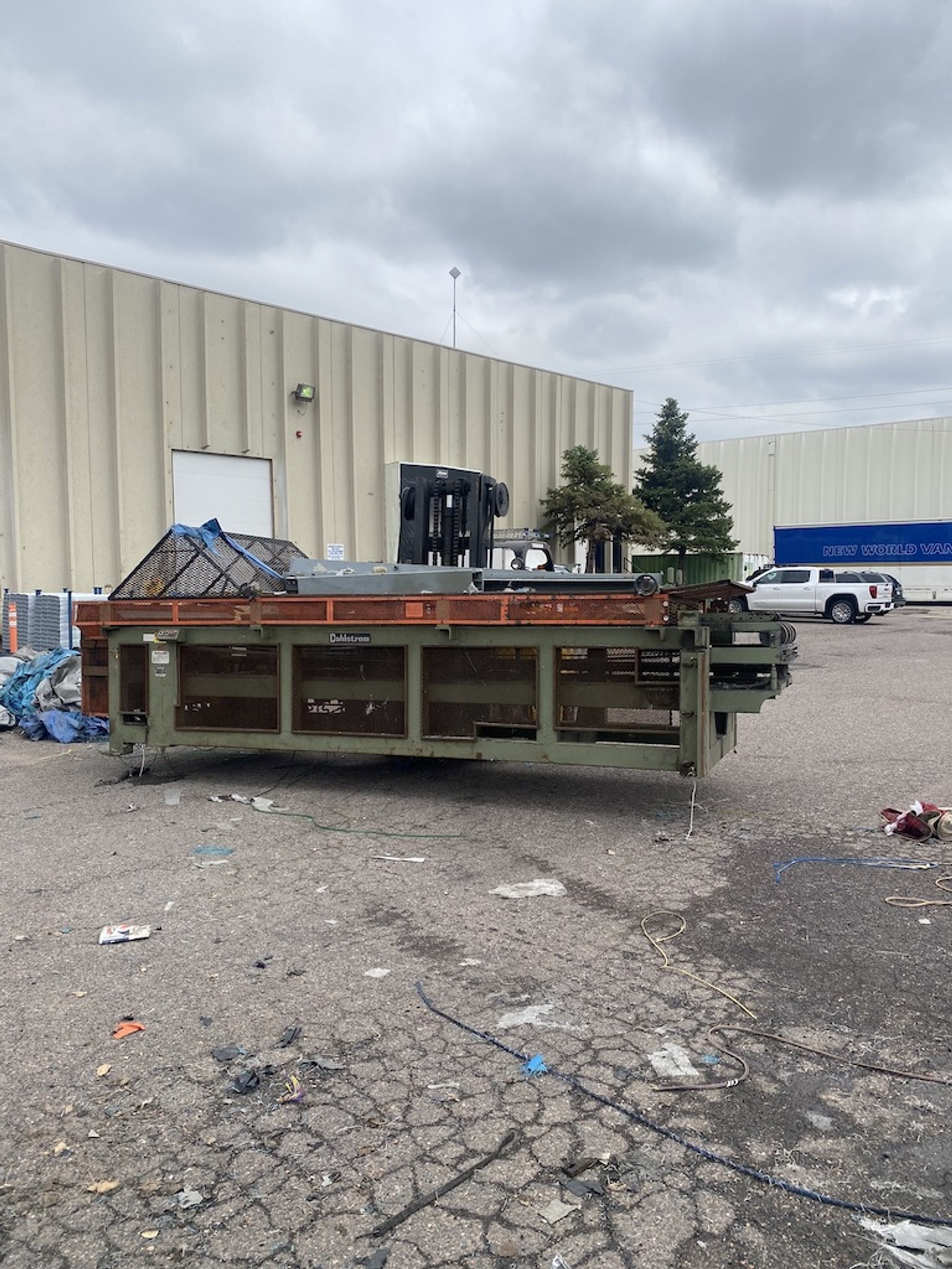

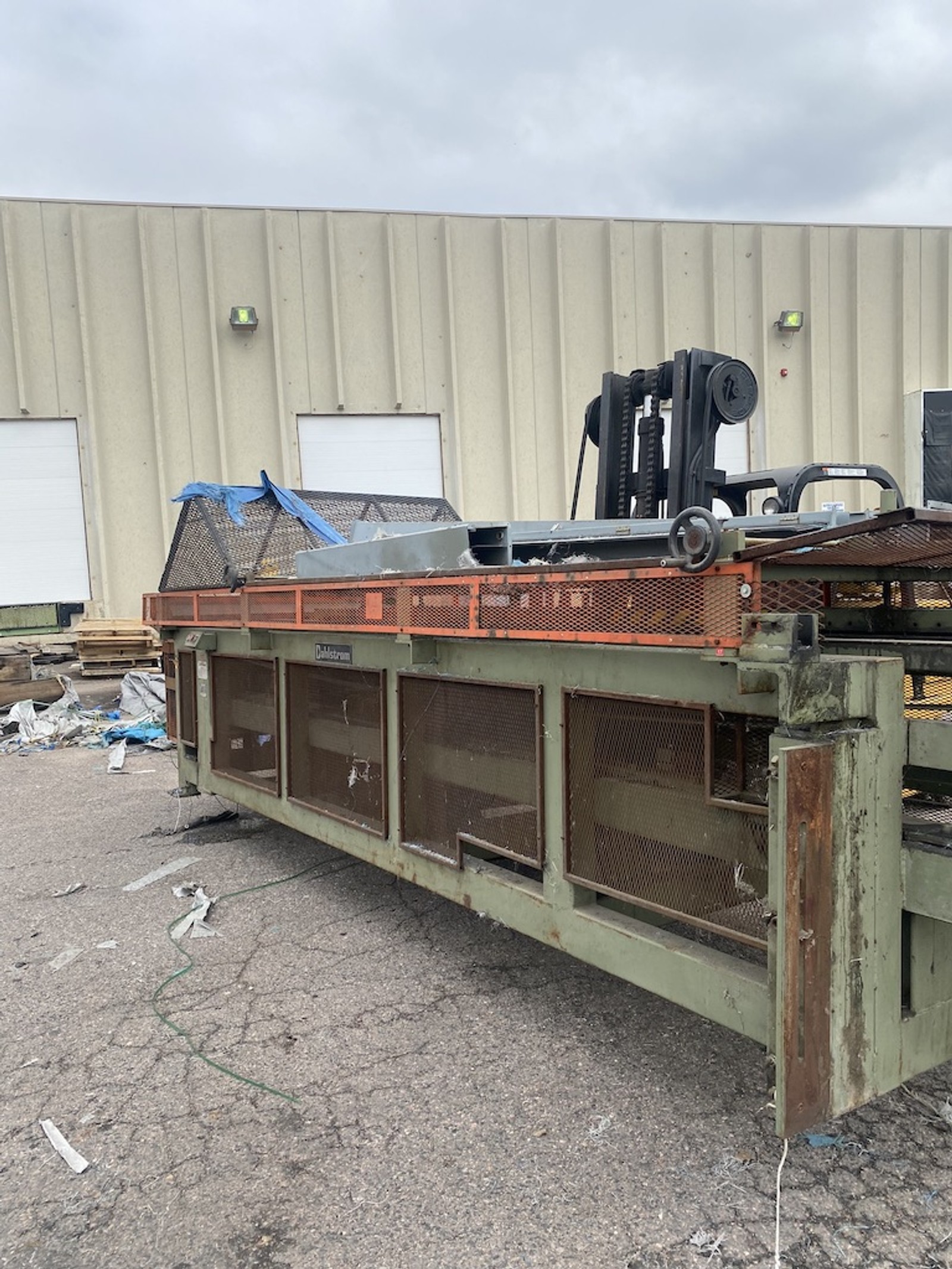

Sheet Stacker
Drop Type Stacking Design
Driven Stacking Conveyor
Driven Exit & End Conveyor

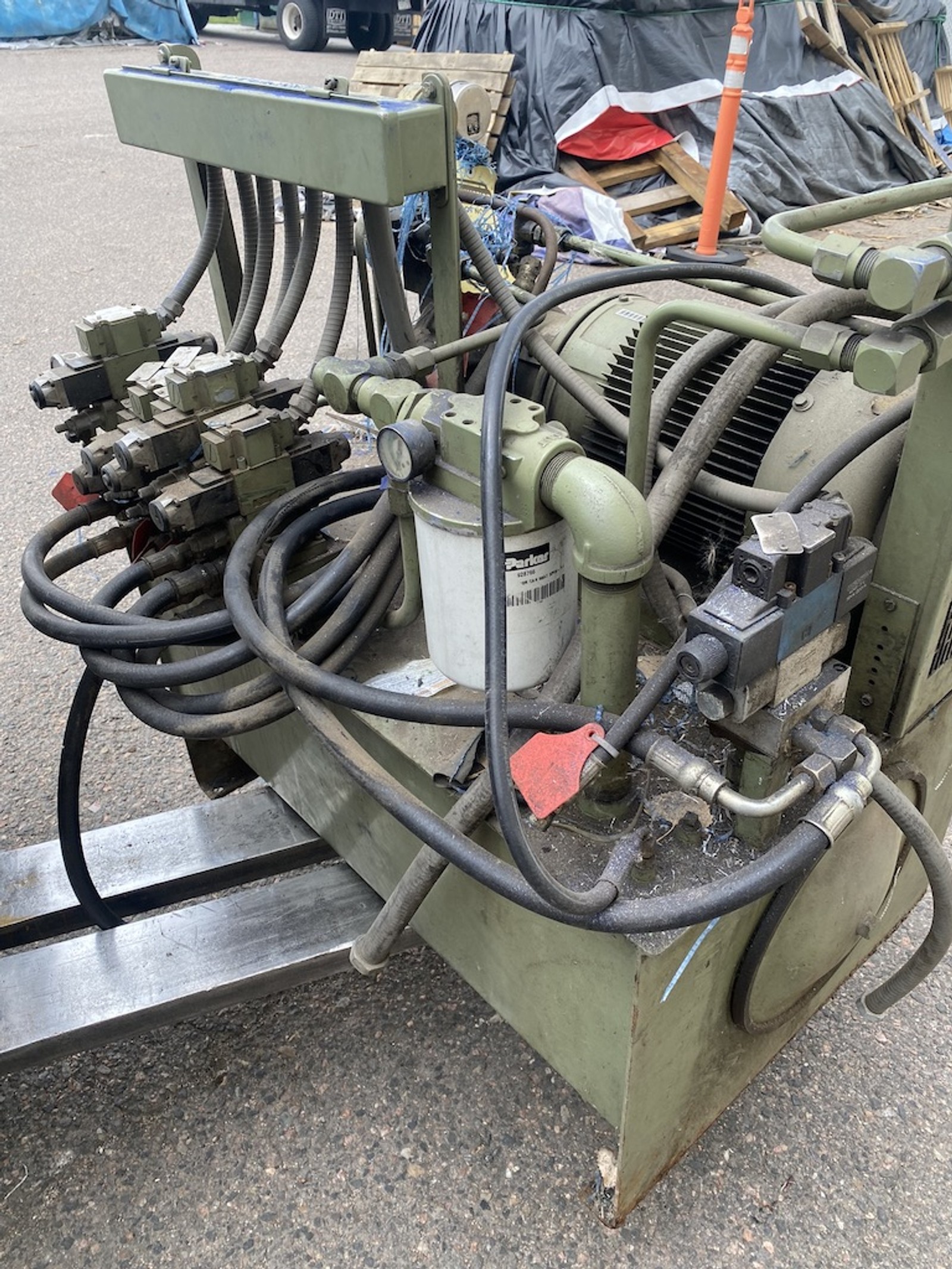

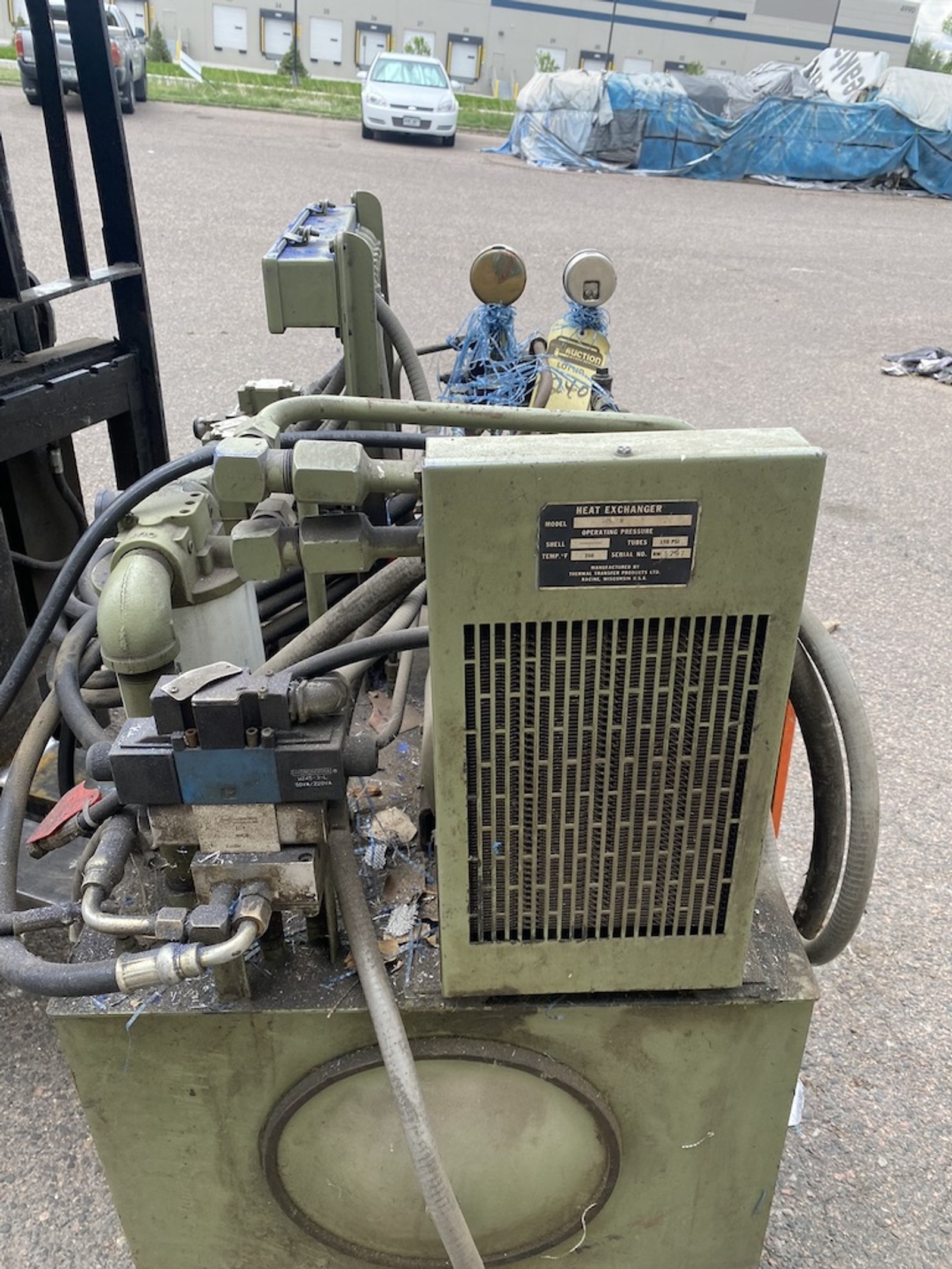

Complete Line with Electrics, Hydraulics, Controls
