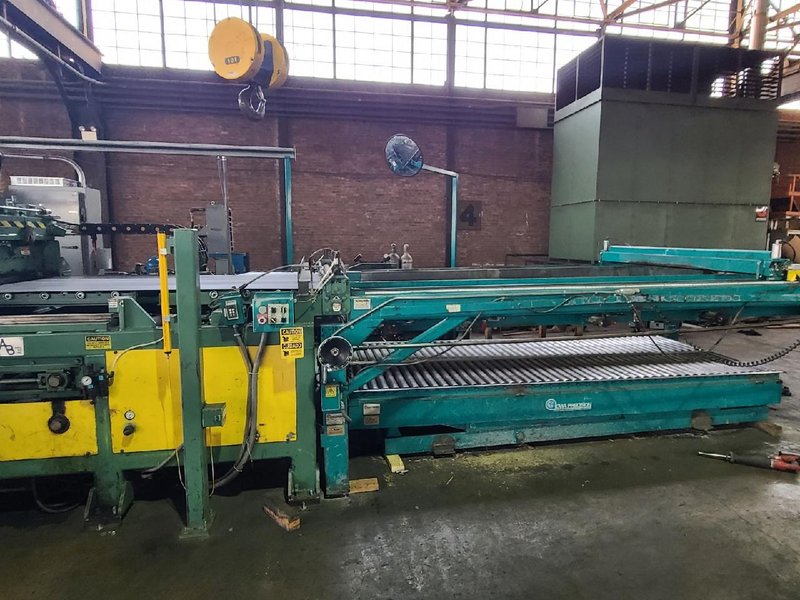

60" x .060" x 30,000Lb Iowa Precision / Herr Voss Multi Blanking Line

Manufacturer

IOWA PRECISION

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

19650A

Model

None listed

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

If you do not see machinery that you are looking for, send us a quote request and include machinery you are looking for in the description. We only advertise a small portion of our inventory!

Make: Iowa Precision
Material Width: 12" - 60"
Material Thickness: .010" - .060"
Coil Weight: 30,000Lb
Coil ID: 20"
Coil OD: 72"
Direction: Left to Right

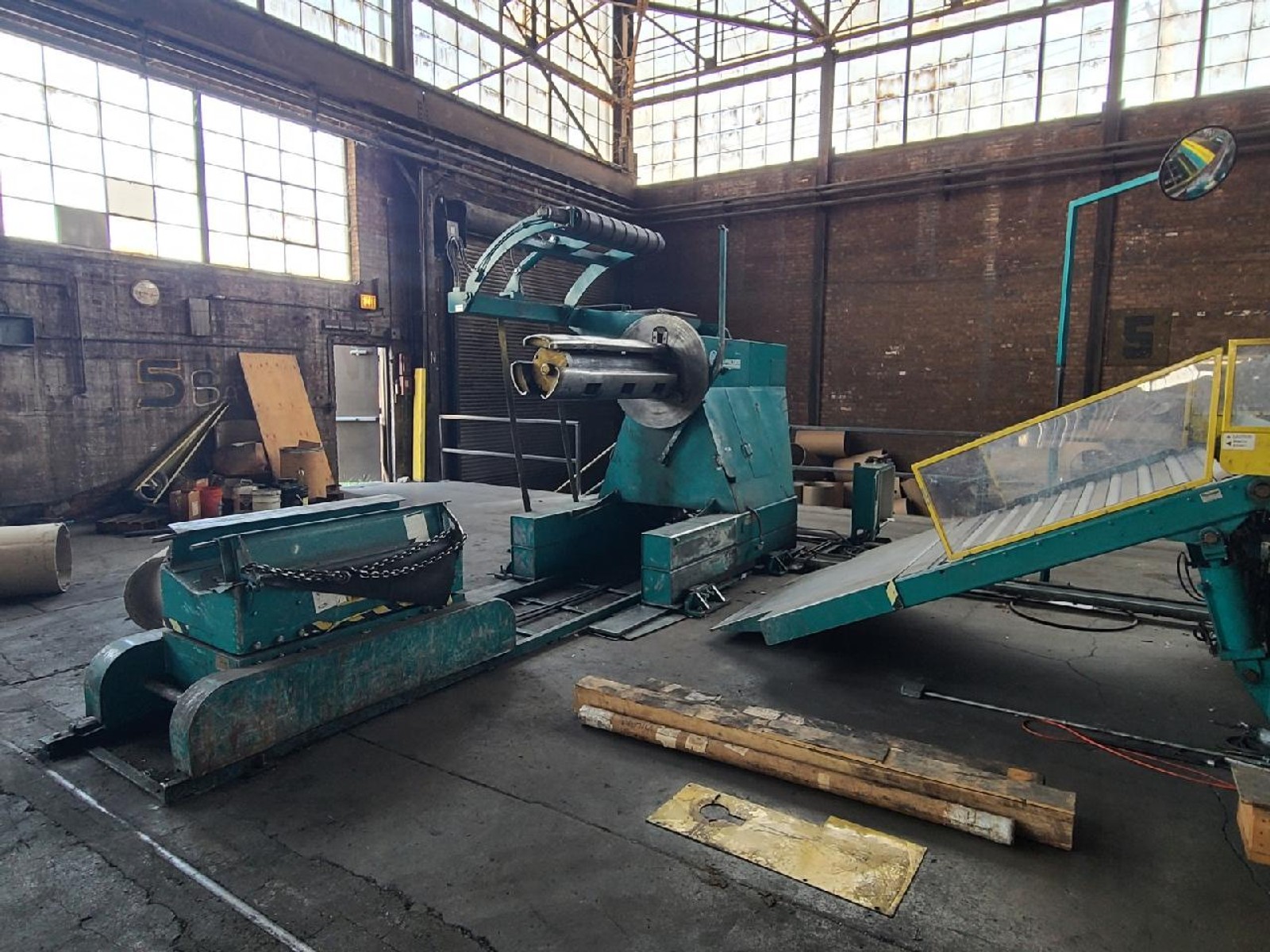

Entry Coil Car
V-shape Floor Standing Design
Powered Lift & Traverse

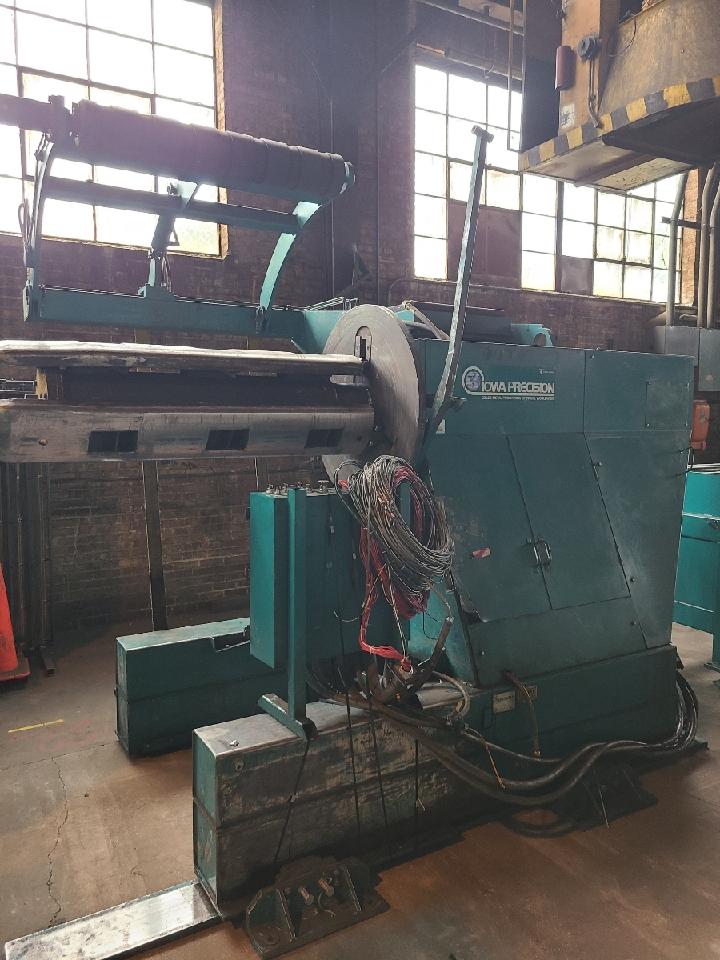

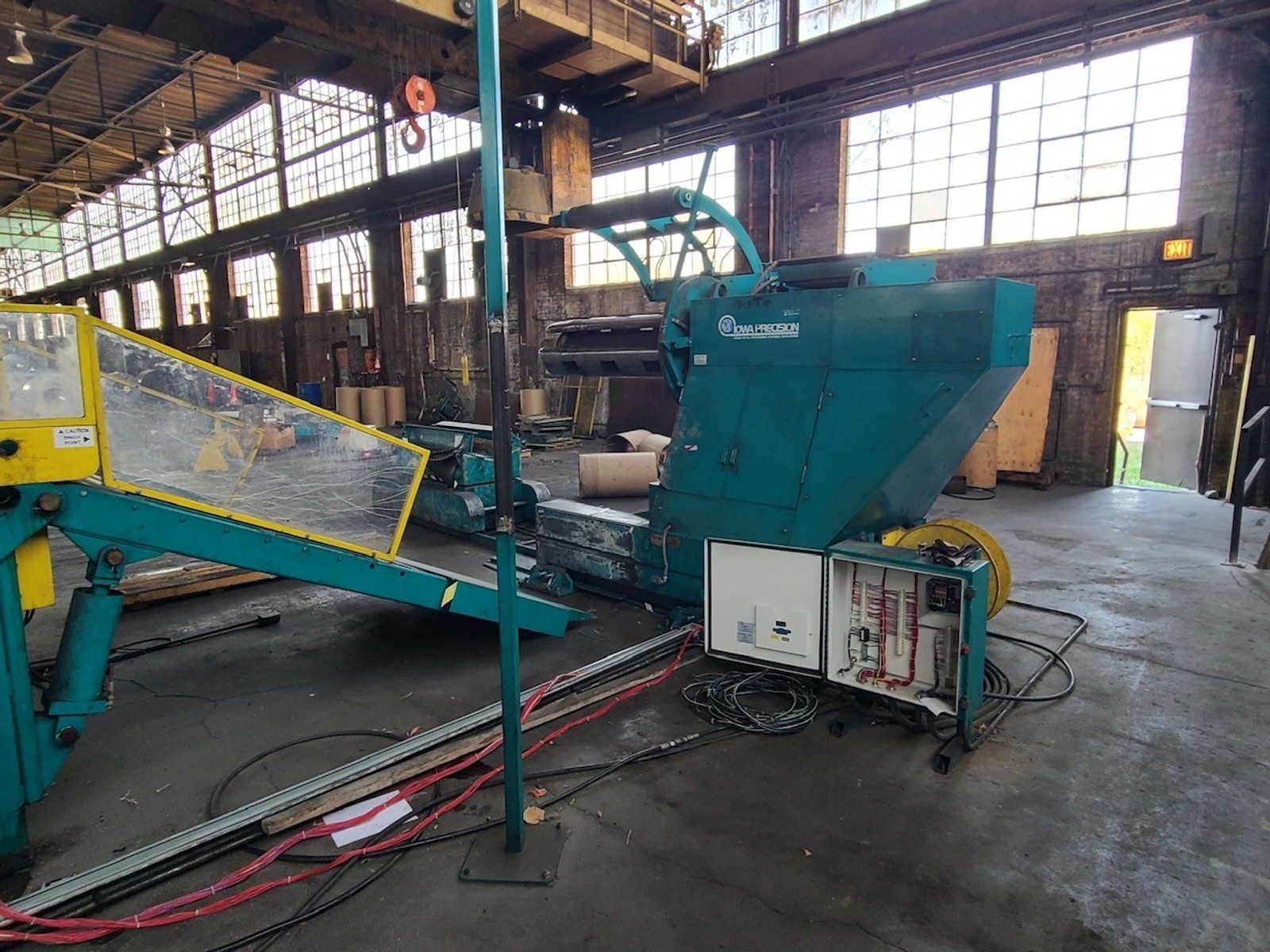

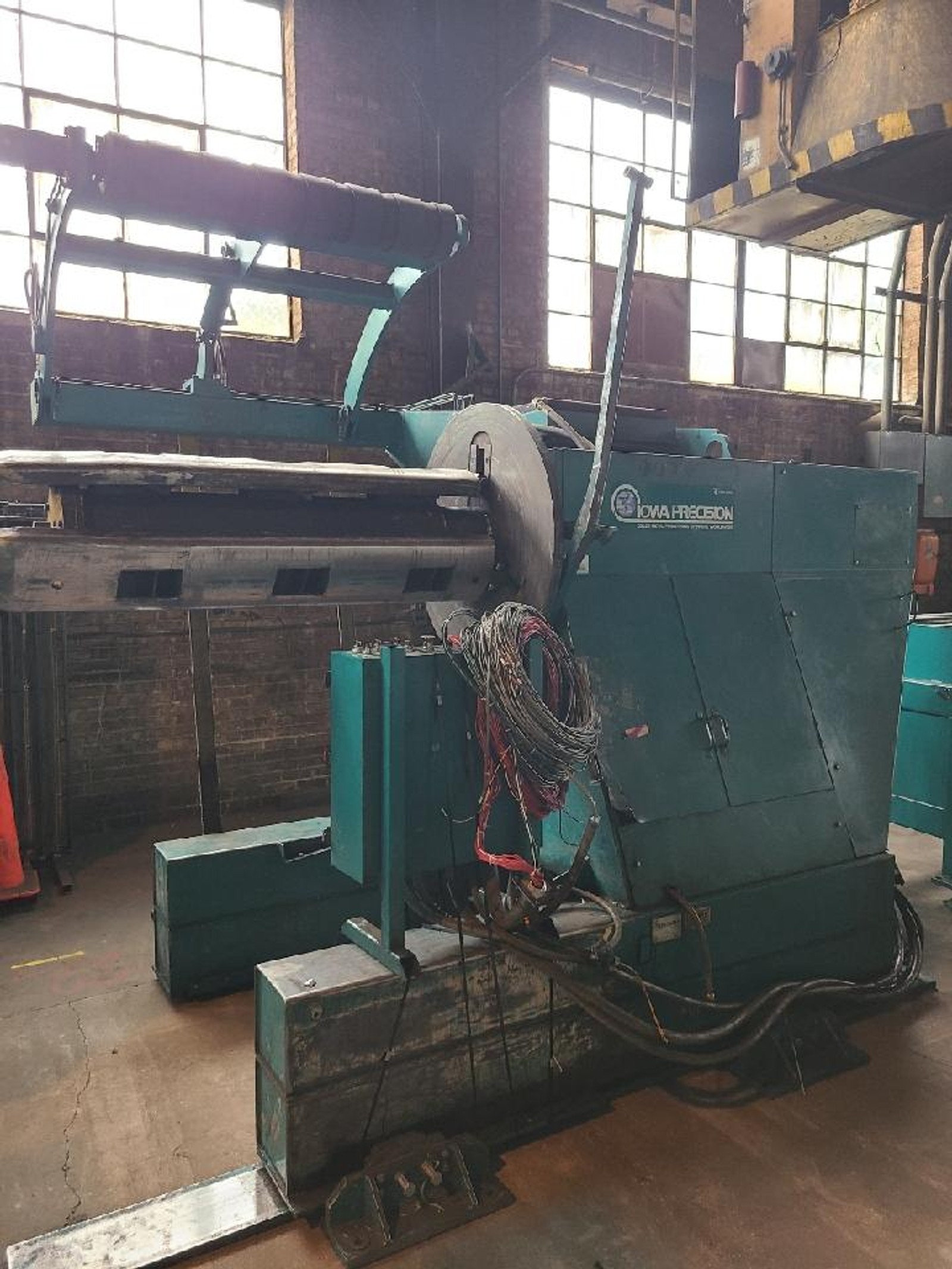

Mandrel Uncoiler
3-Leaf Mandrel Design
Powered Expansion
Powered Hold - Down Roll
Electrical Drive Panel

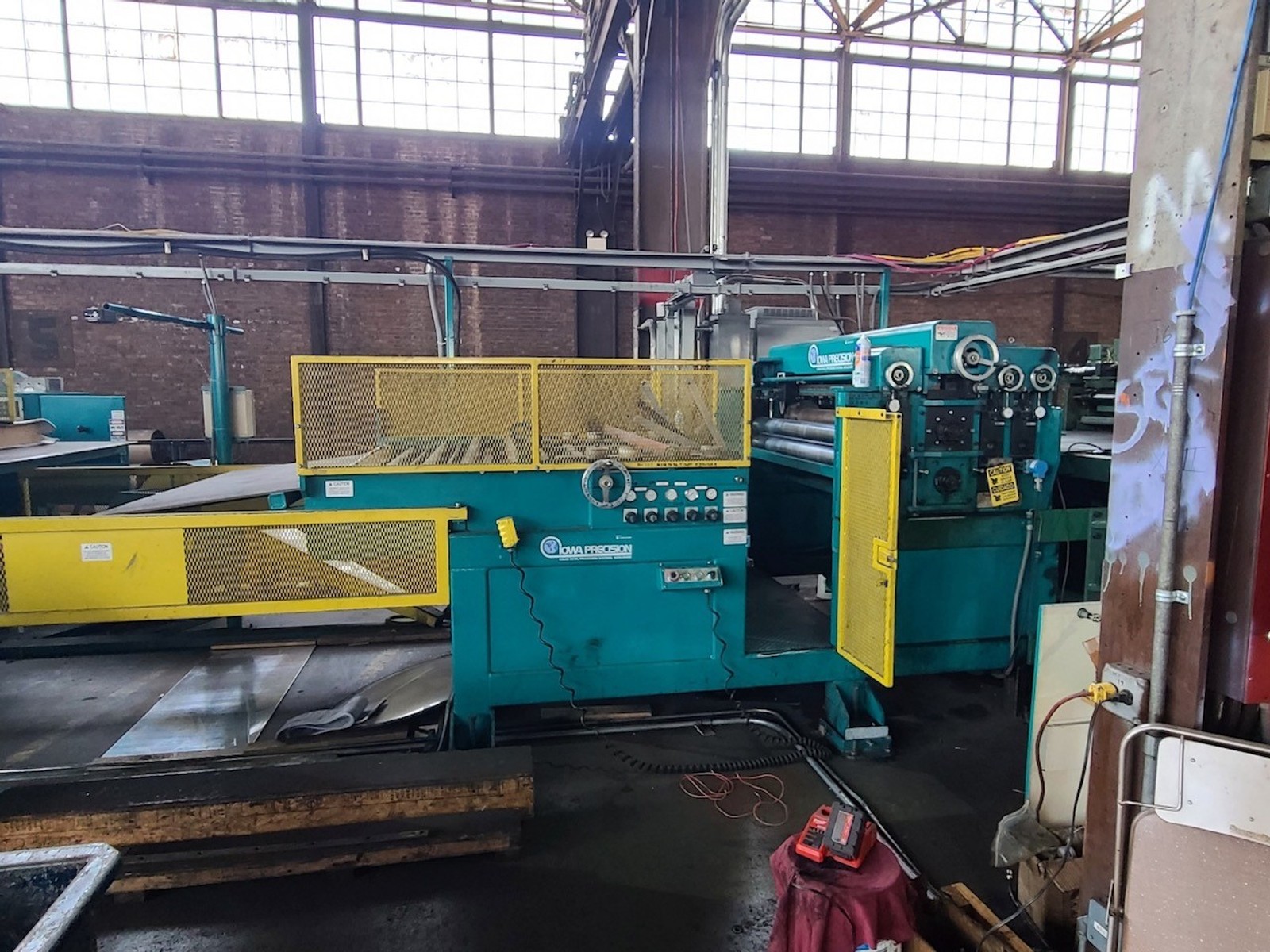

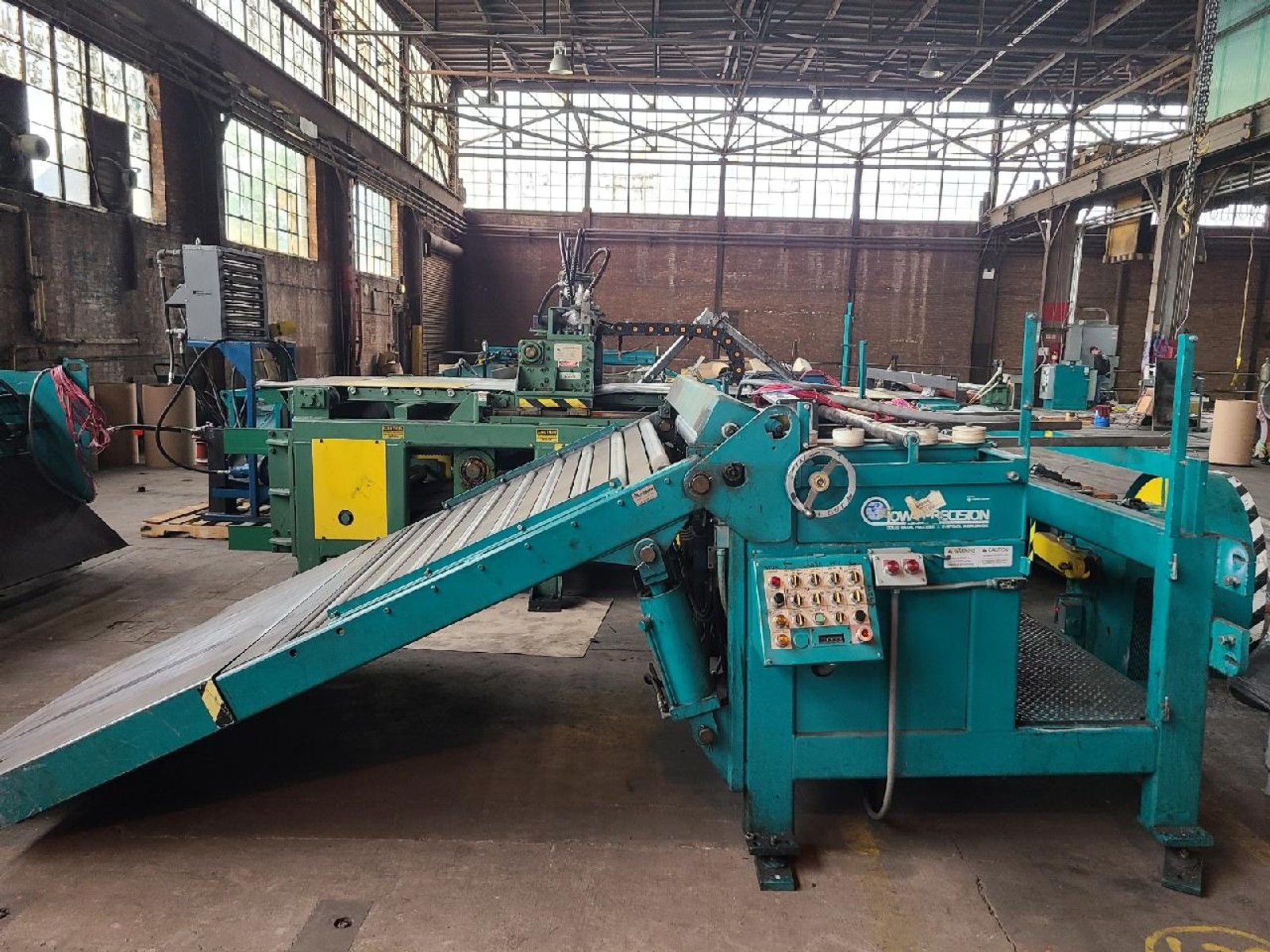

Hydraulic Peeling Table
Adjustable Edge Guides
Driven Pinch Rolls
Adjustable Coil Braking Rolls

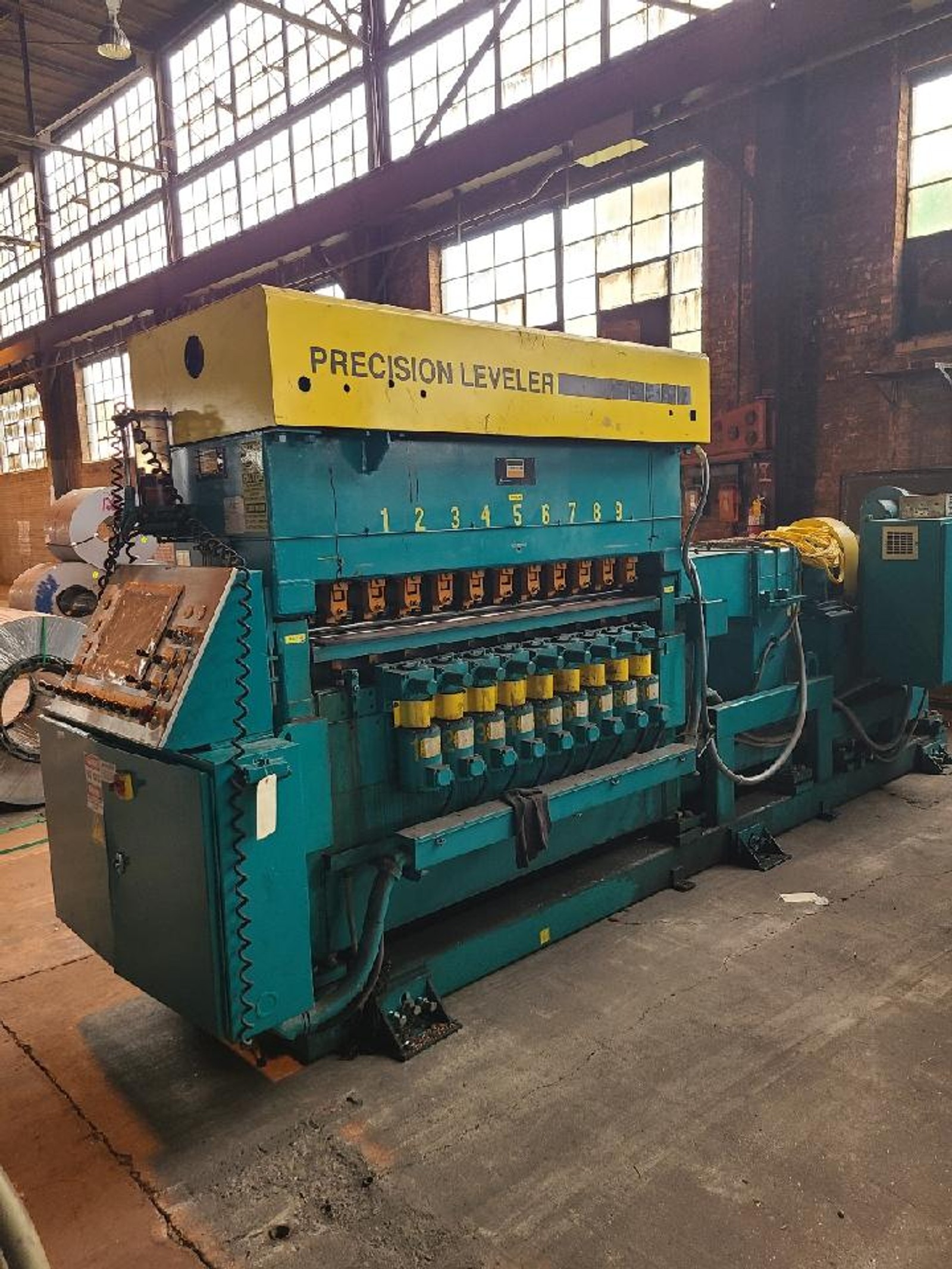

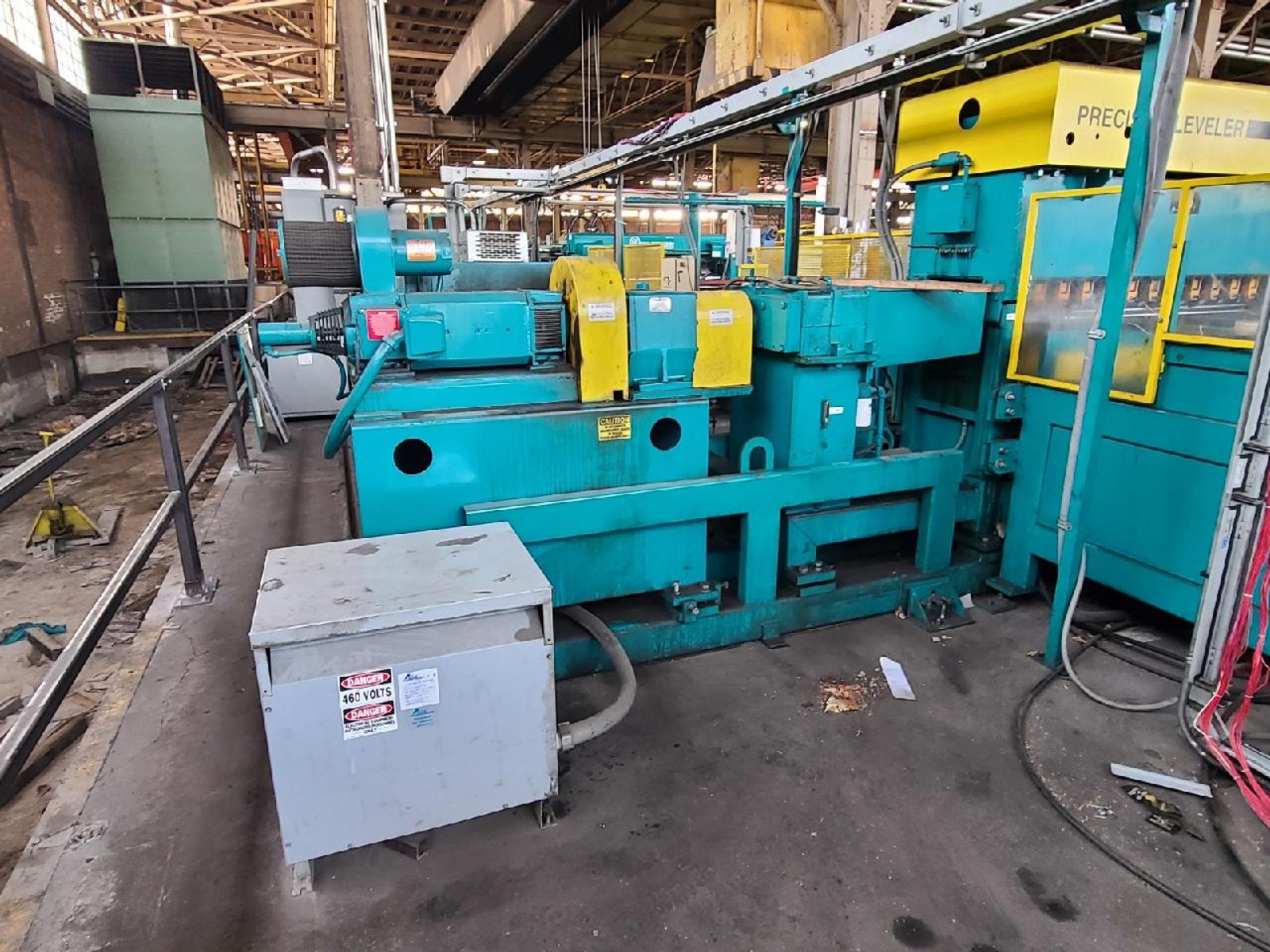

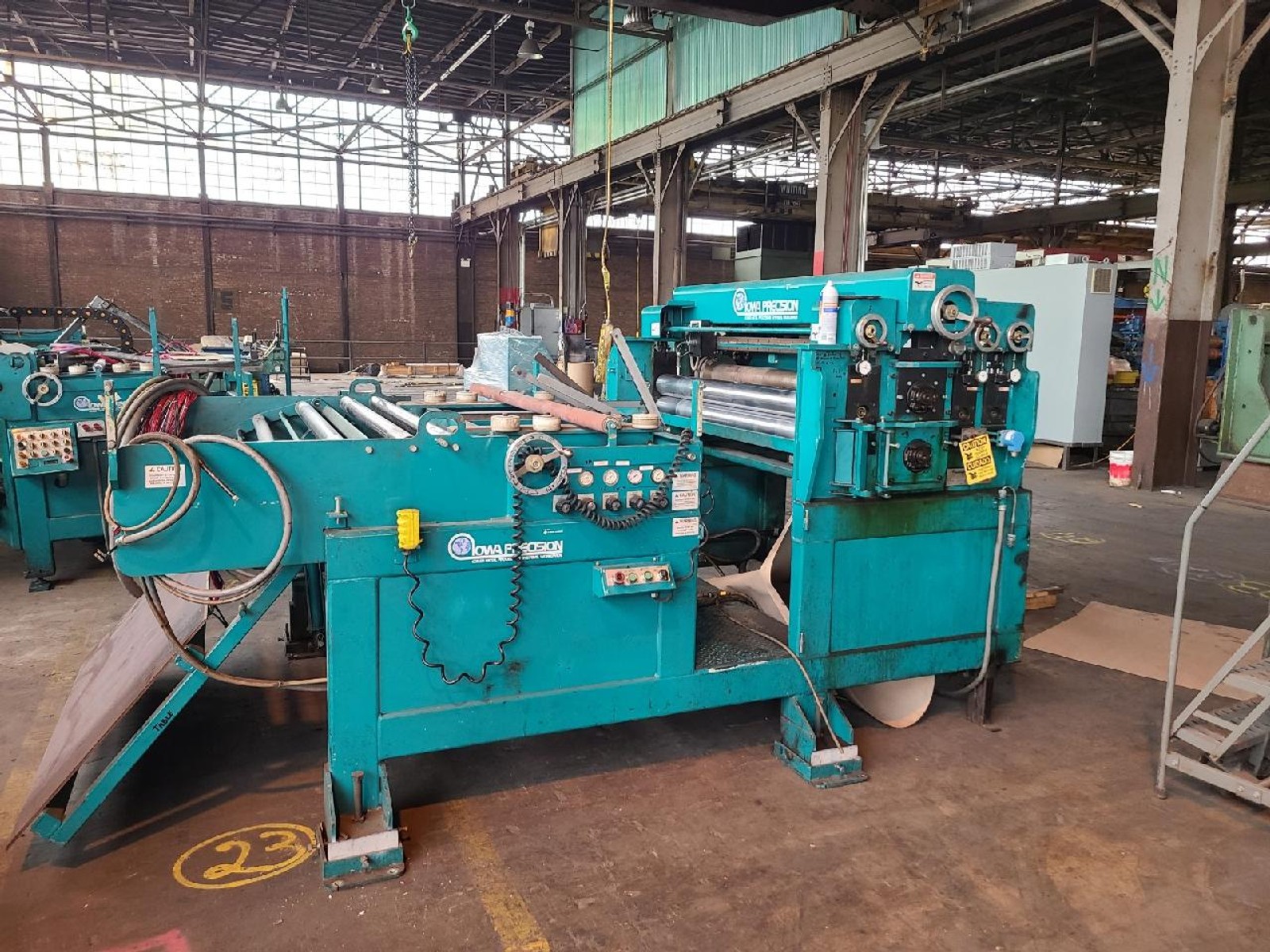

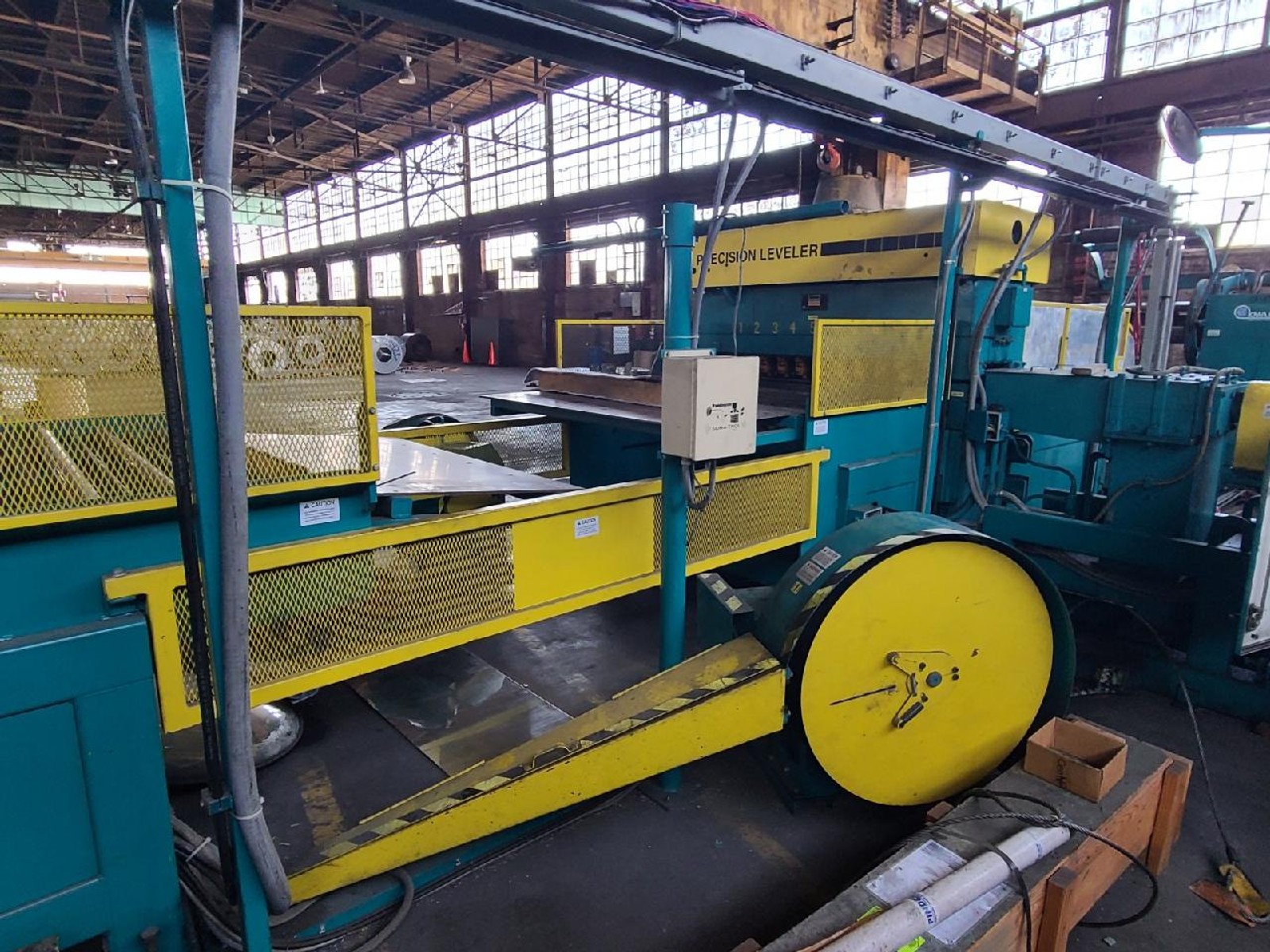

Herr - Voss 4-Hi Precision Leveler
Work Roll Diameter: 1.50"
Work Roll Width: 74"
Number of Work Rolls: 19
Adjustable Work Rolls
Up & Down Back Up Flights
Variable Speed Motor and Gear Box

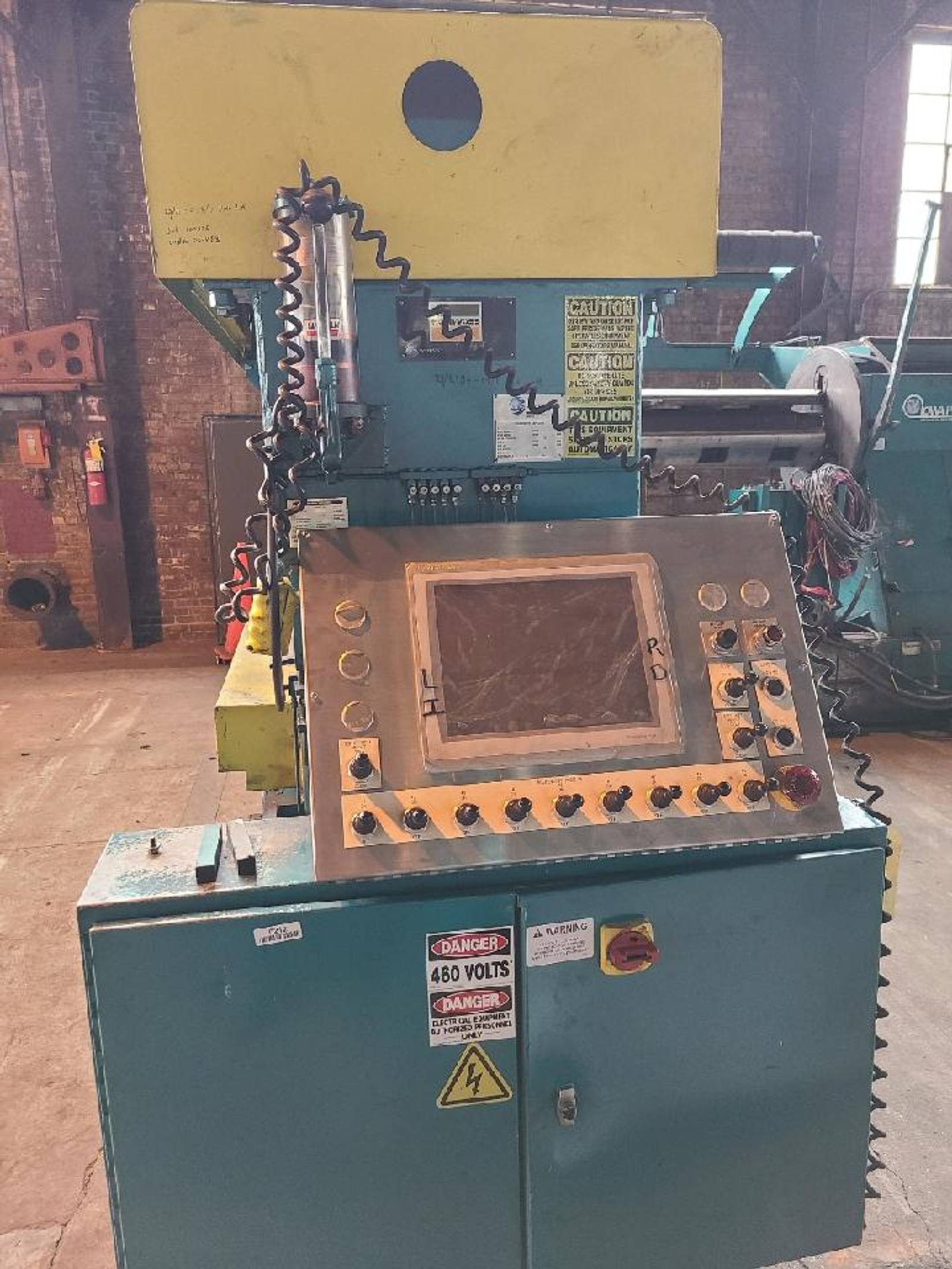

Electrical Drive / Control Panel

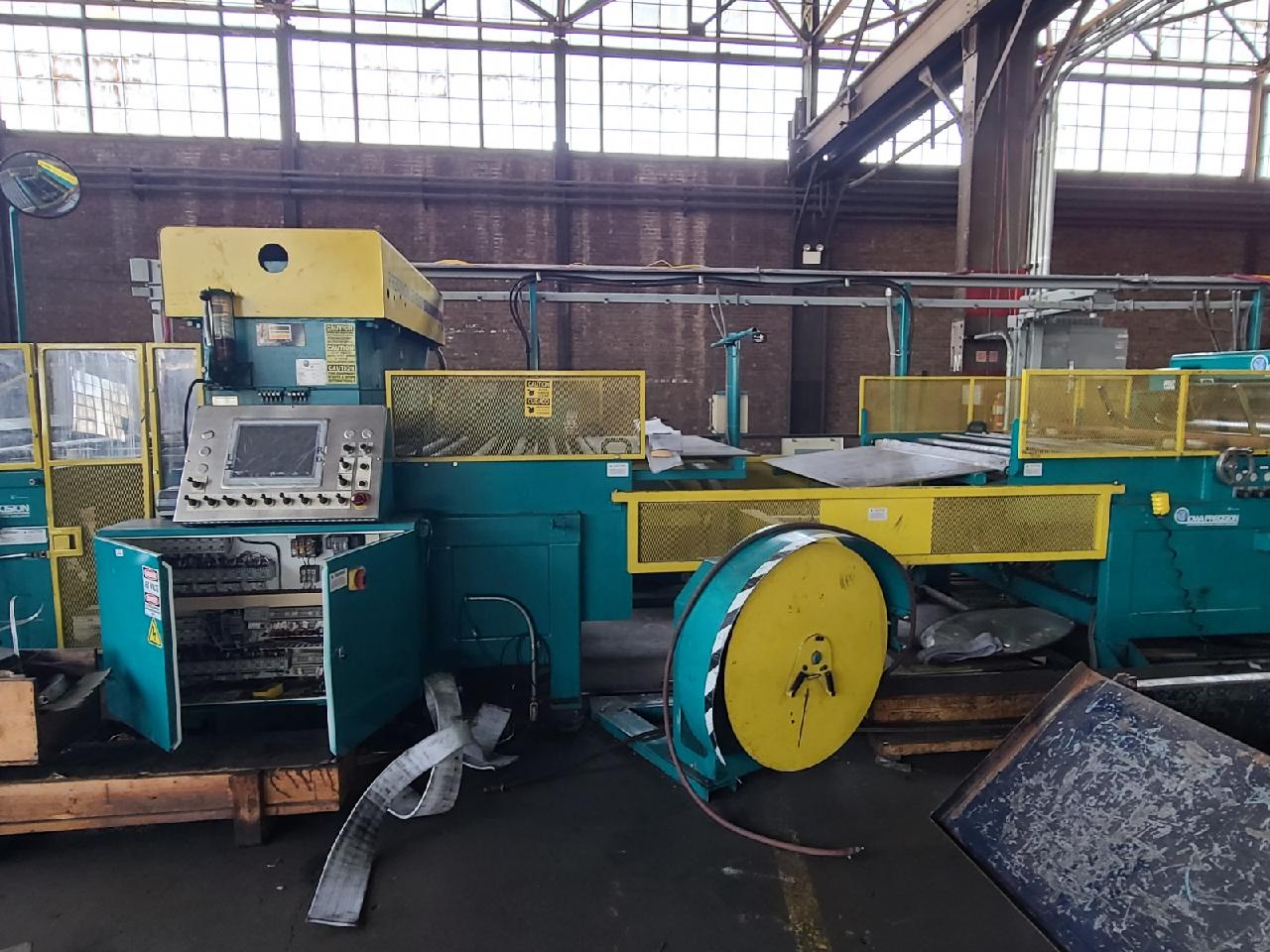

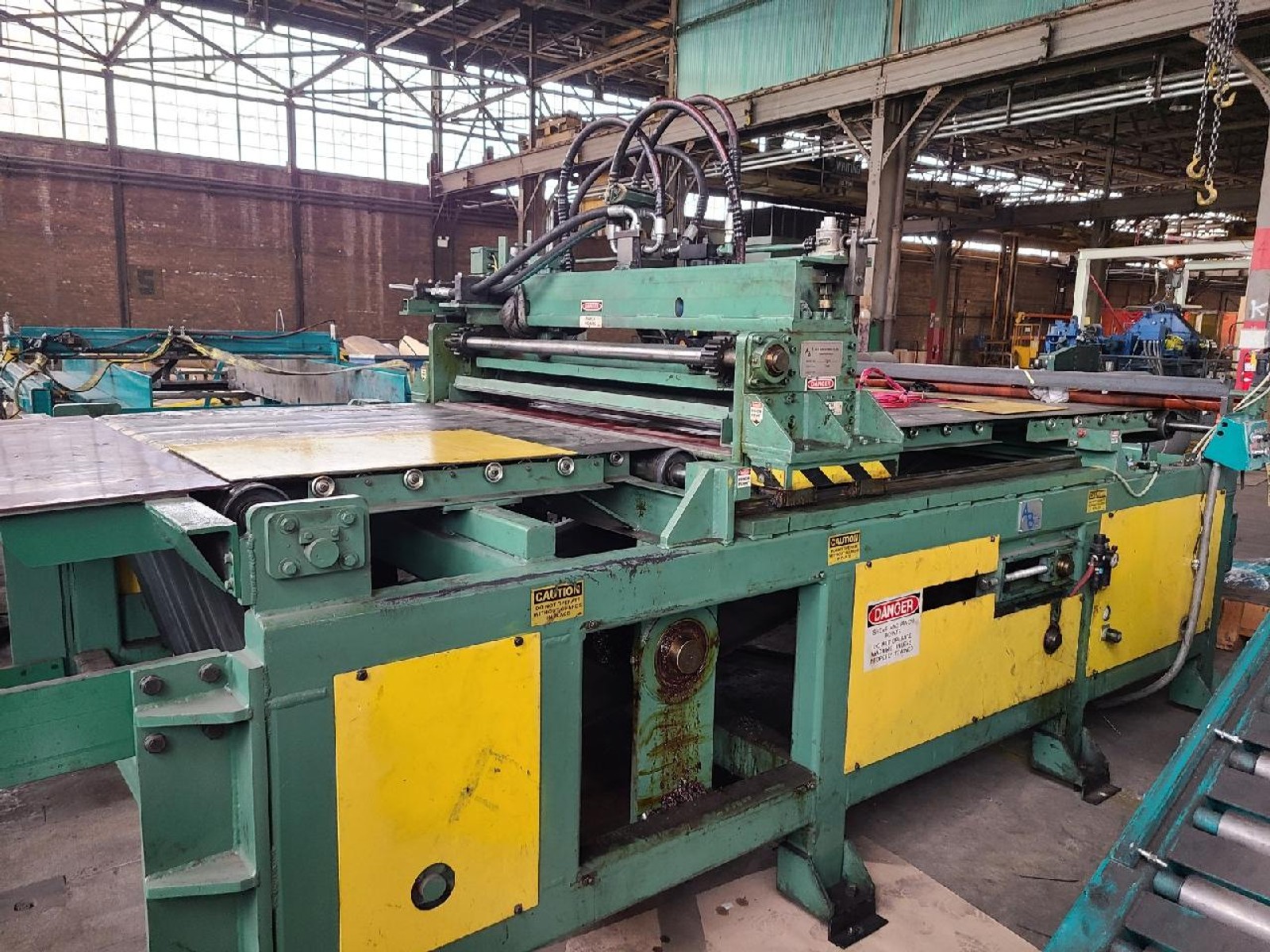

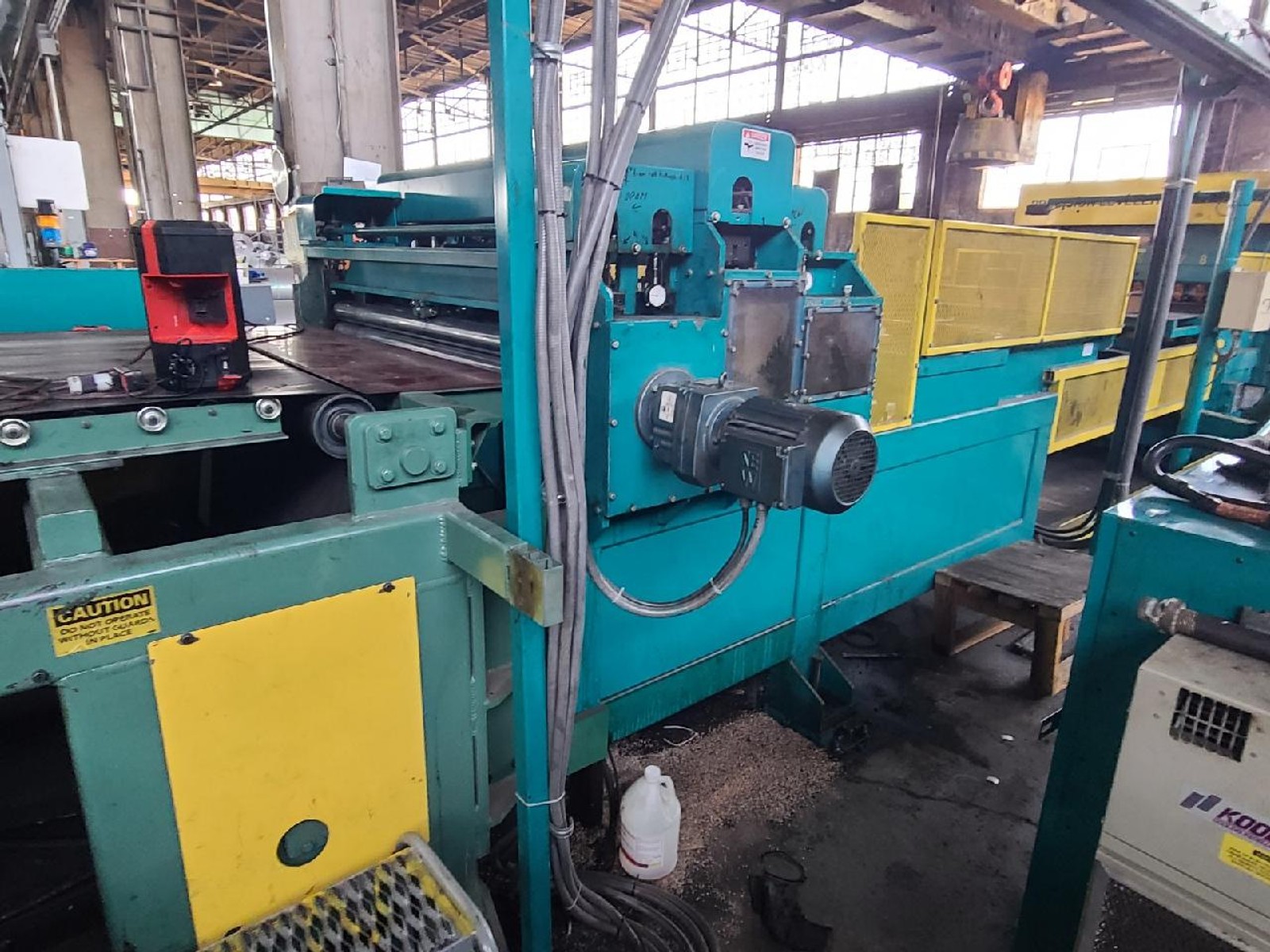

Slitter / Shear
Make: Iowa Precision
Model: Slear 3
Entry and Exit Pinch Rolls
Slitting Head with Knives

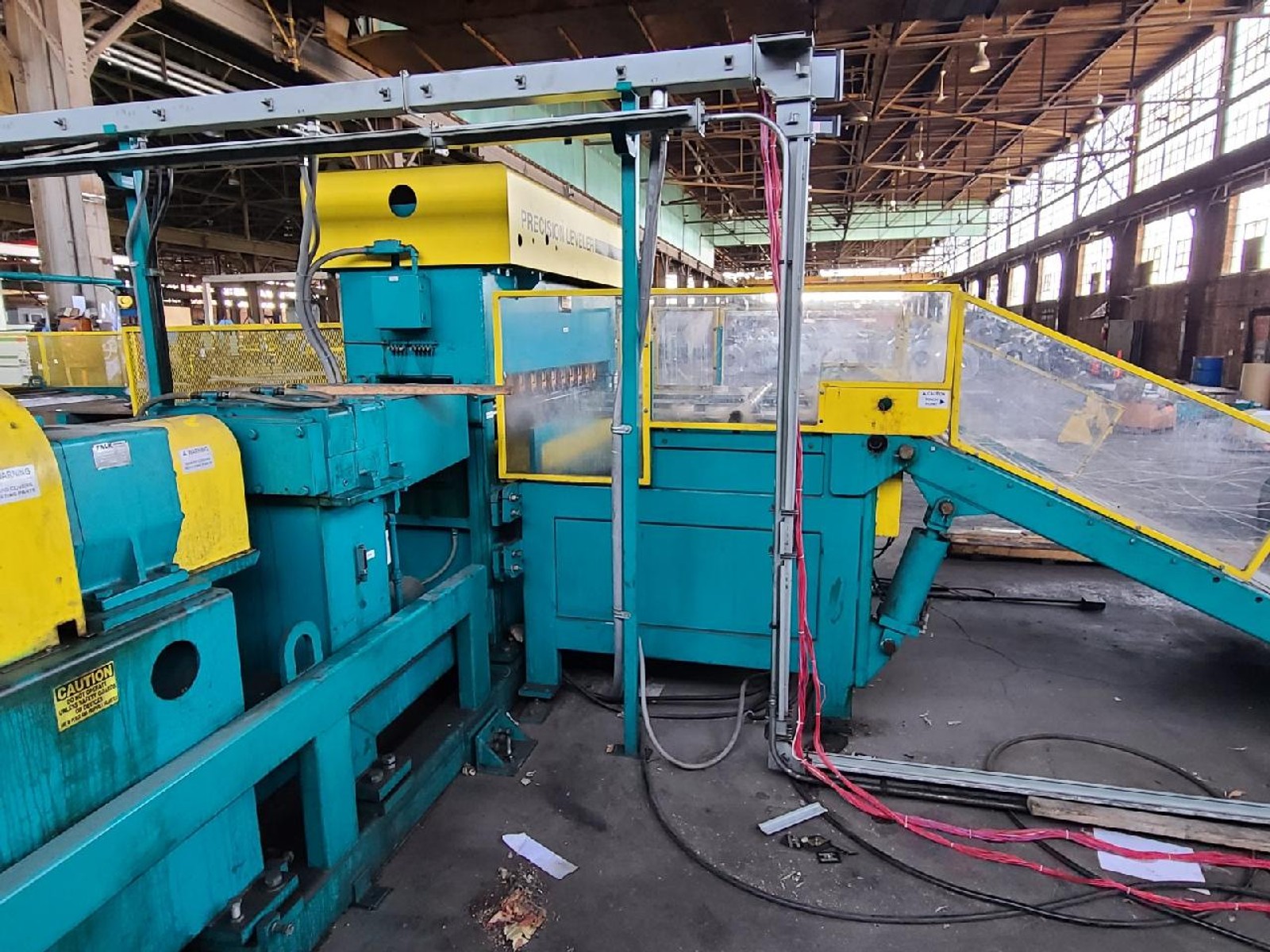

Hydraulic Flying Shear
Servo Feed Traverse Drive
Exit Belt Conveyor

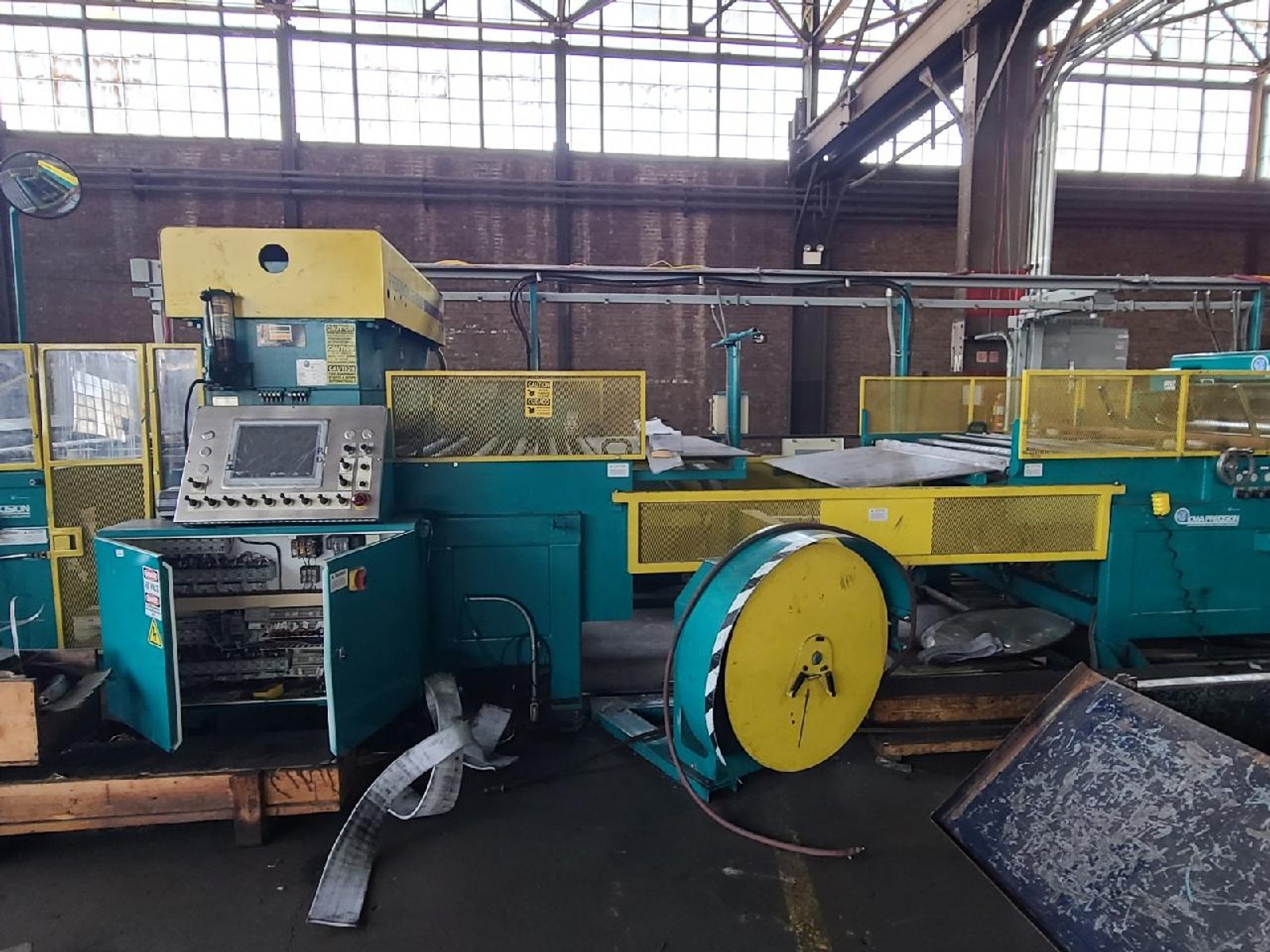

Two (2) Scrap Winders
Hydraulic Drive
Powered Open / Close

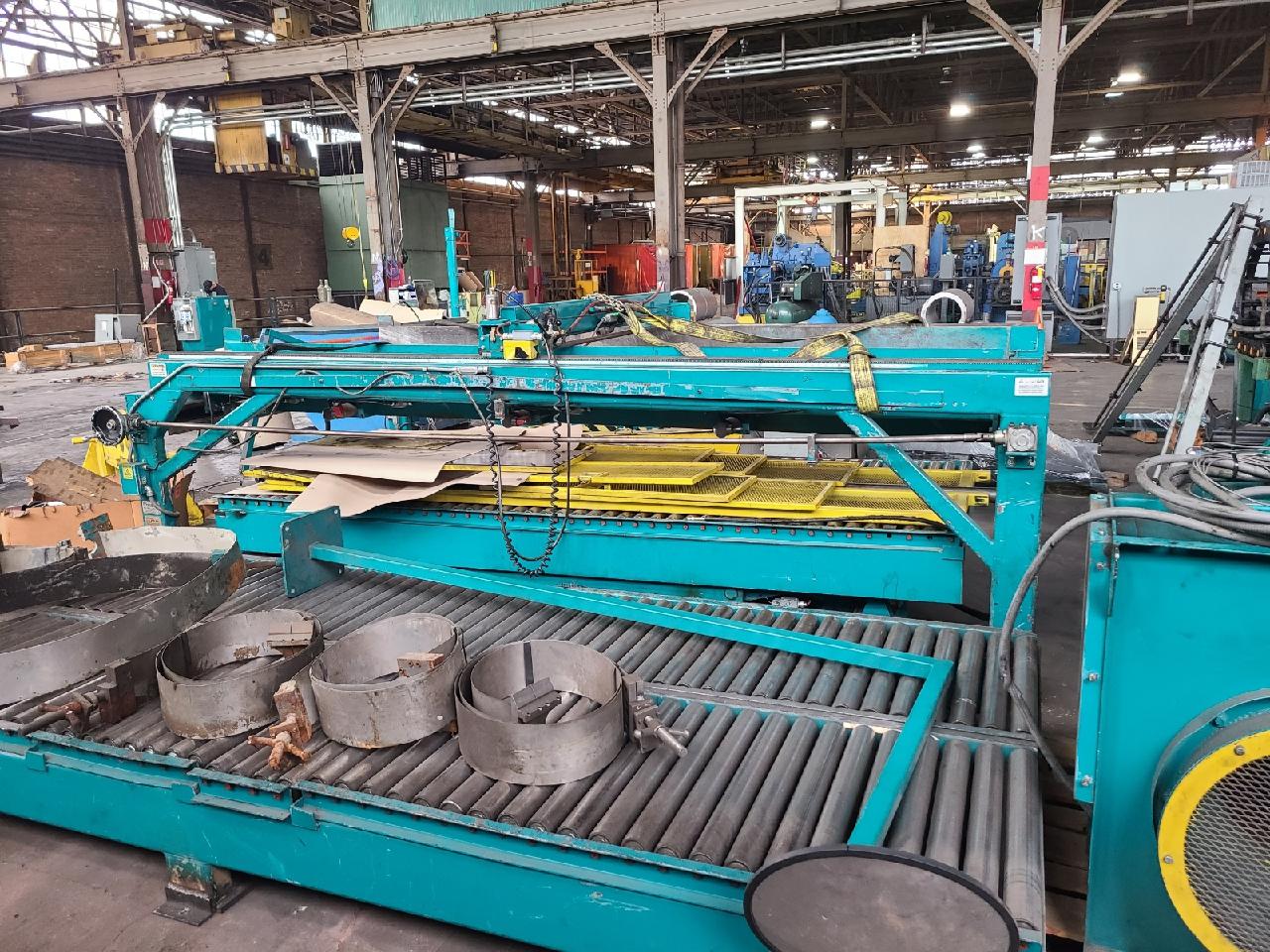

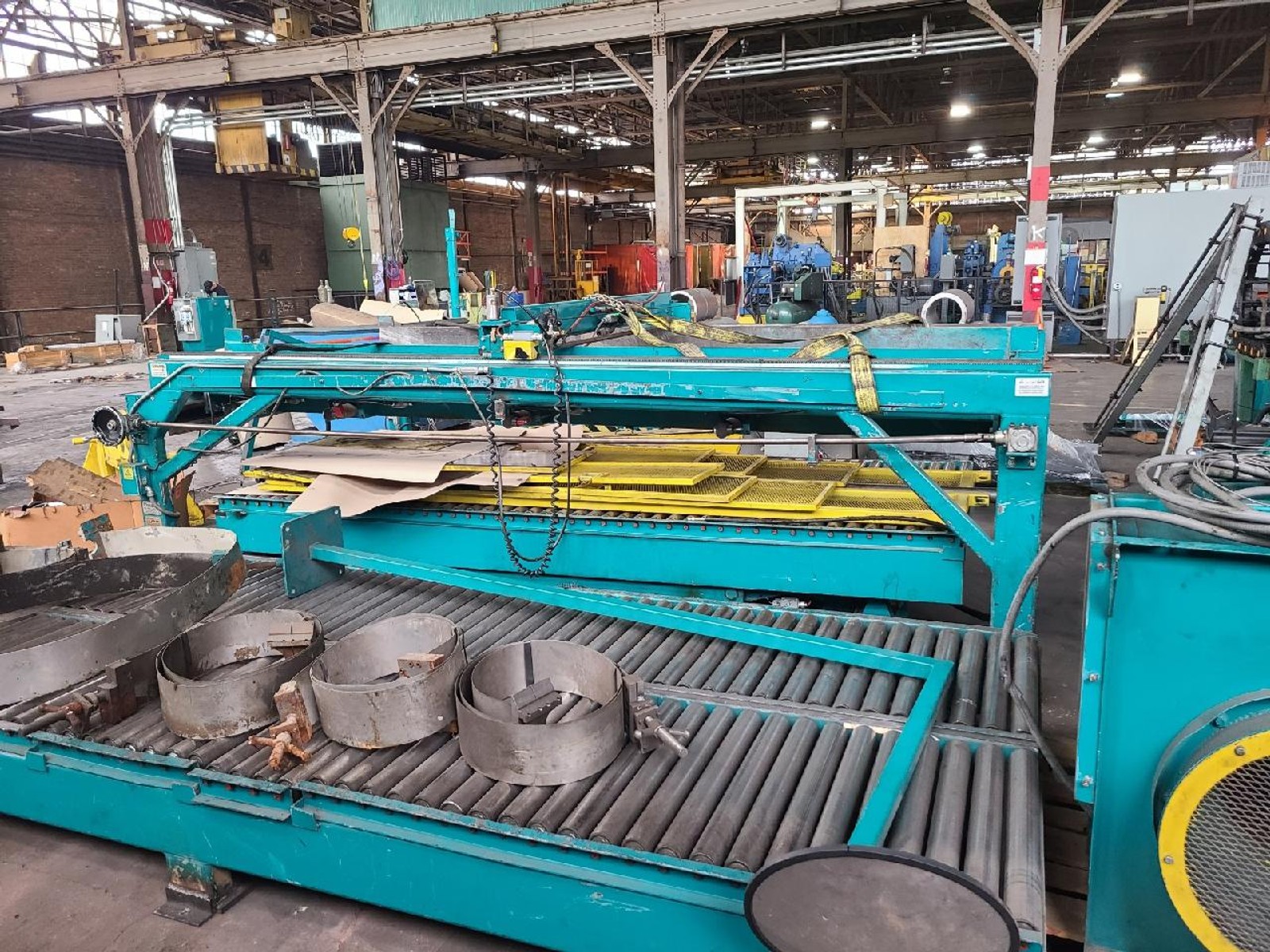

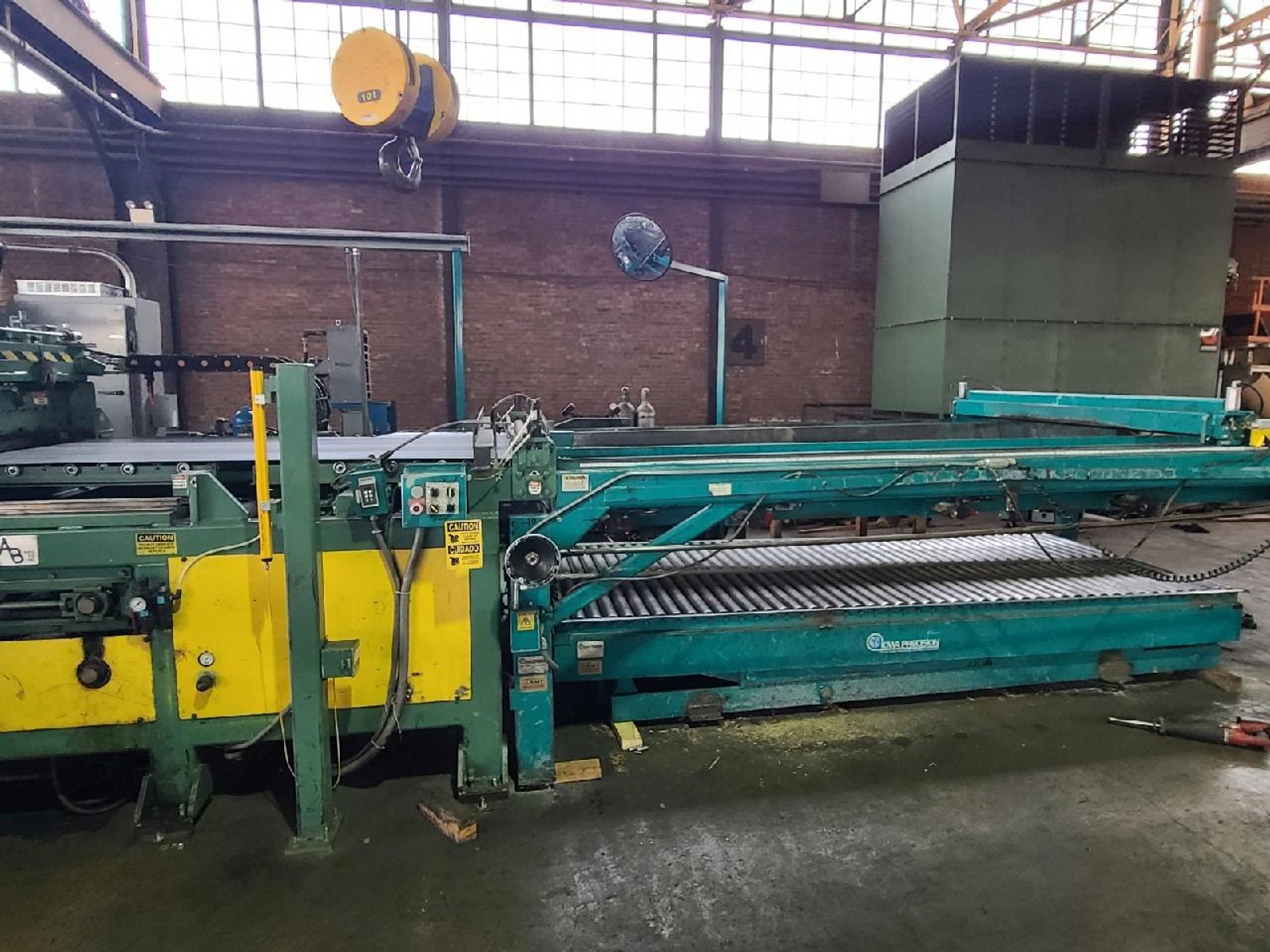

Sheet Stacker
Powered Lifting Table
Driven Run-Out Conveyor
Driven Exit Conveyor

Electrics, Hydraulics, Controls, Tooling
