Tru Turn CW61160H, 64.5" Swing, 236" C.C, 49" Chuck, 315 RPM, Tailstock, Inch/Metric Threading, Taper Attachment, #30891

Manufacturer

TRU TURN

Category

Lathes

Type

LATHES, ENGINE

Stock

30891

Model

CW61125H x 6000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30891

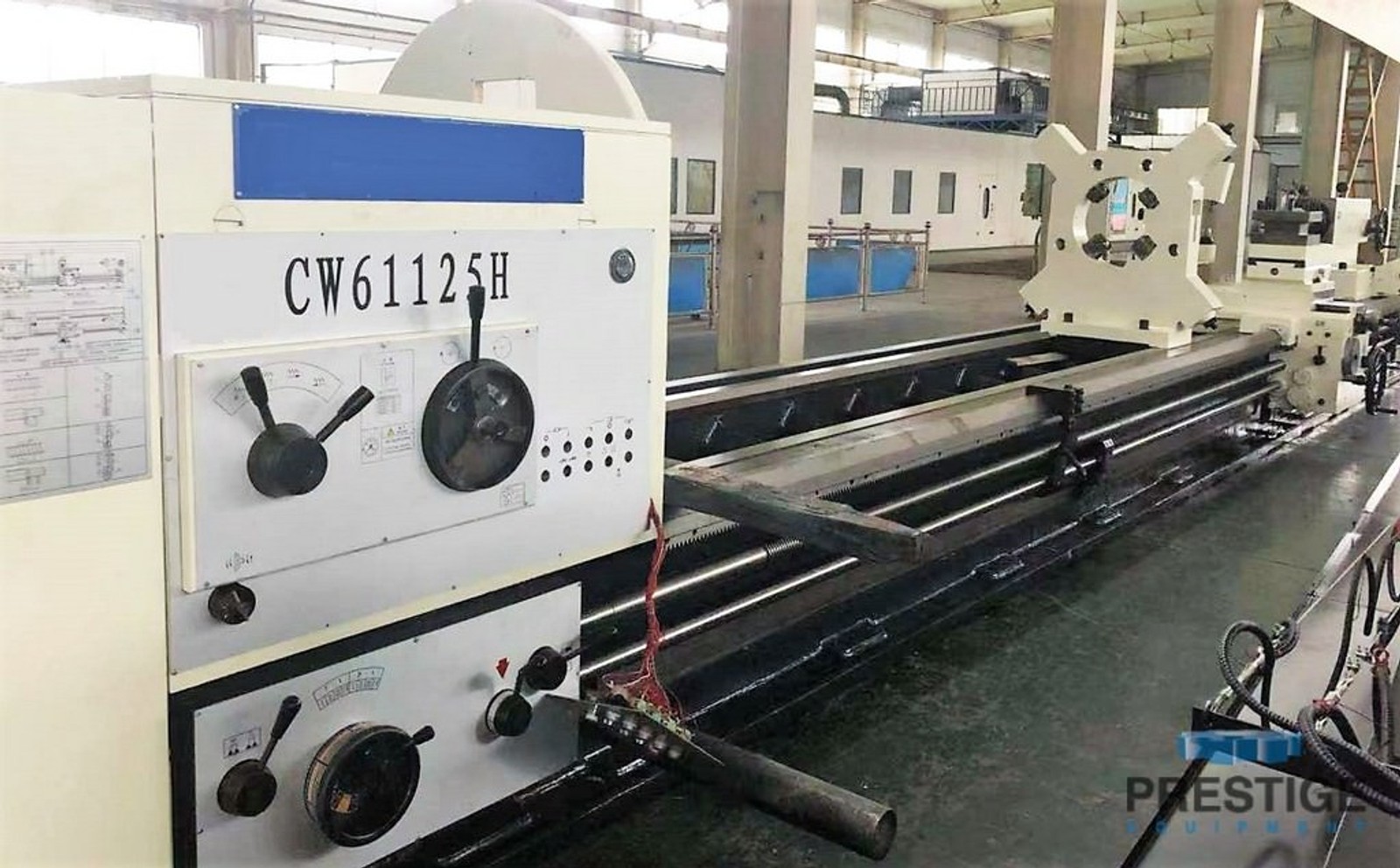

Tru Turn CW61125H 64.5" x 236" Manual Lathe, New 2022

FEATURES:
49.21" Diameter Face Plate with 4-Top Jaws
Taper Attachment
Inch / Metric Threading
Thread Dial

CAPACITY:
Swing Over Bed ....................... 64.56"
Swing Over Cross Slide ............... 49.21"
Width of Guide Way ................... 43.30"
Distance Between Centers ............. 236.22"
Spindle Speeds (21 Speeds) ........... 3.15 - 315 RPM
Spindle Bore ......................... 5.12"
Spindle Nose ......................... A-15
Tailstock Diameter ................... 11.02"
Tailstock Travel ..................... 11.81"
Taper of Tailstock Bore .............. 140 Metric
Weight Capacity ...................... 44,000 lbs

EQUIPPED WITH:
49.21" Diameter Face Plate with 4-Top Jaws
Taper Attachment
Inch / Metric Threading
Thread Dial

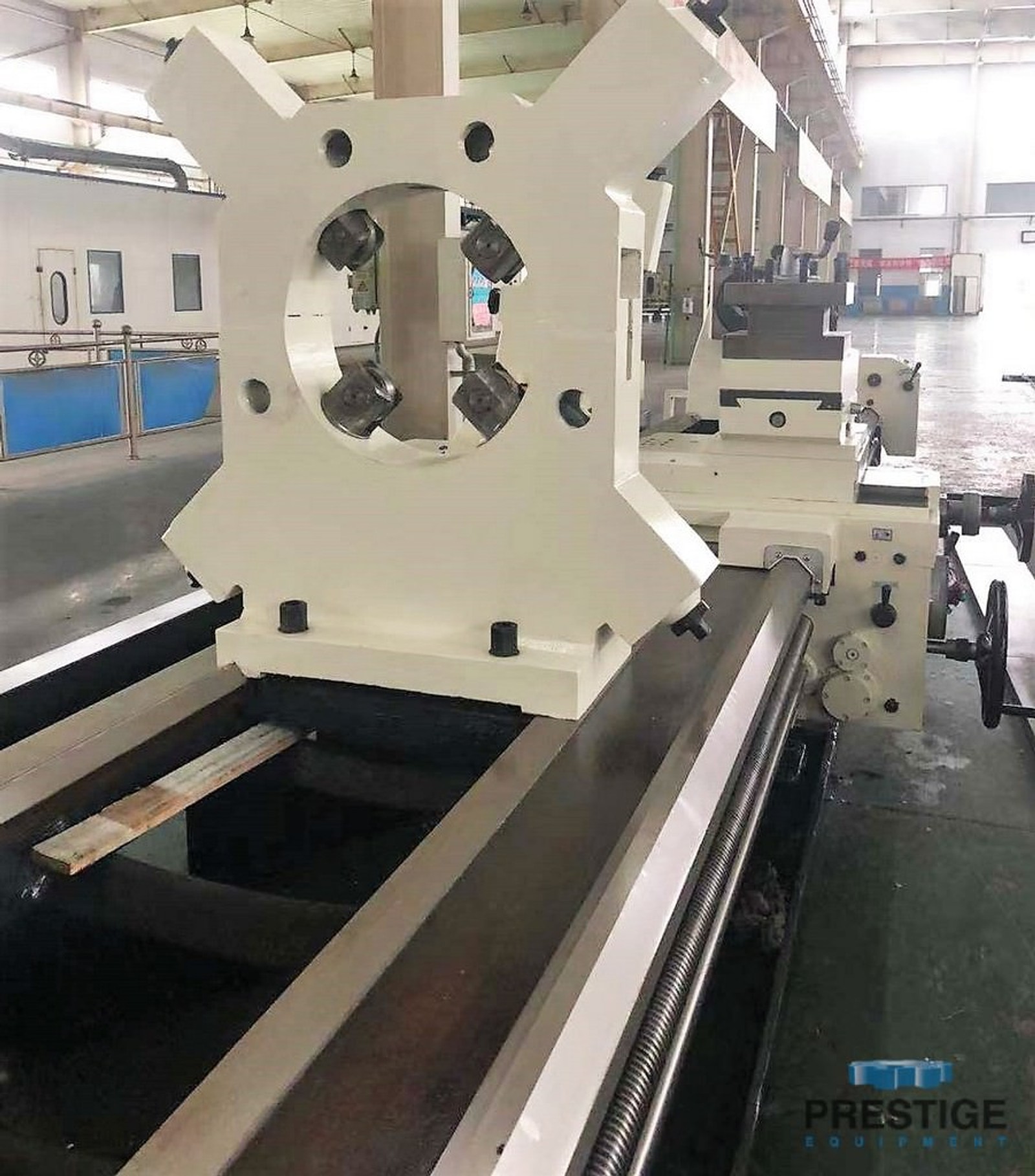

(2) Roller Type Steady Rest: 18.89 & 27.55"
Follow Rest
Power Drive To Top Slide For Conical Cutting

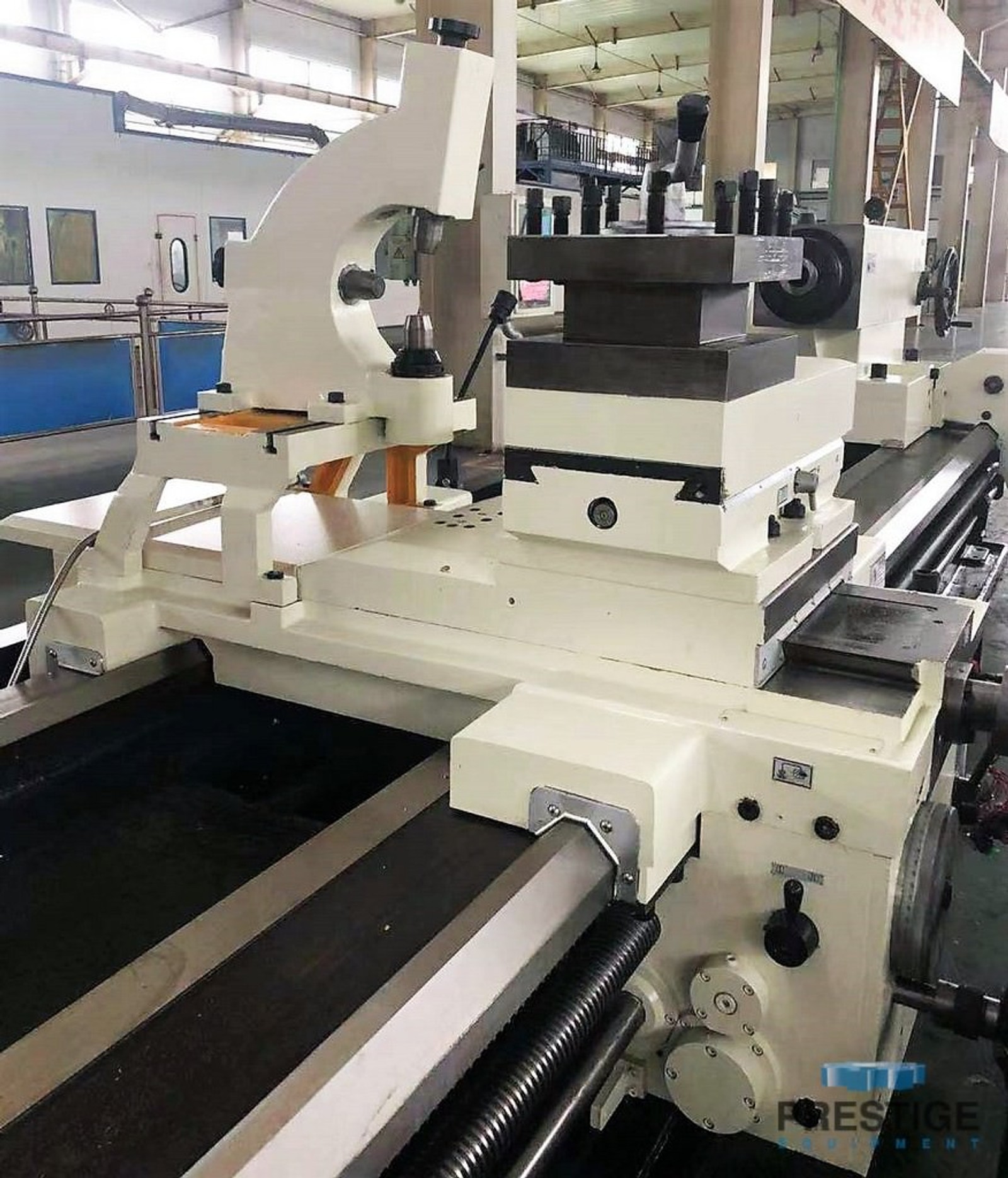

Swivel Compound & Toolpost
Built in 4-Way Tool Post
Pan Bed and Coolant System

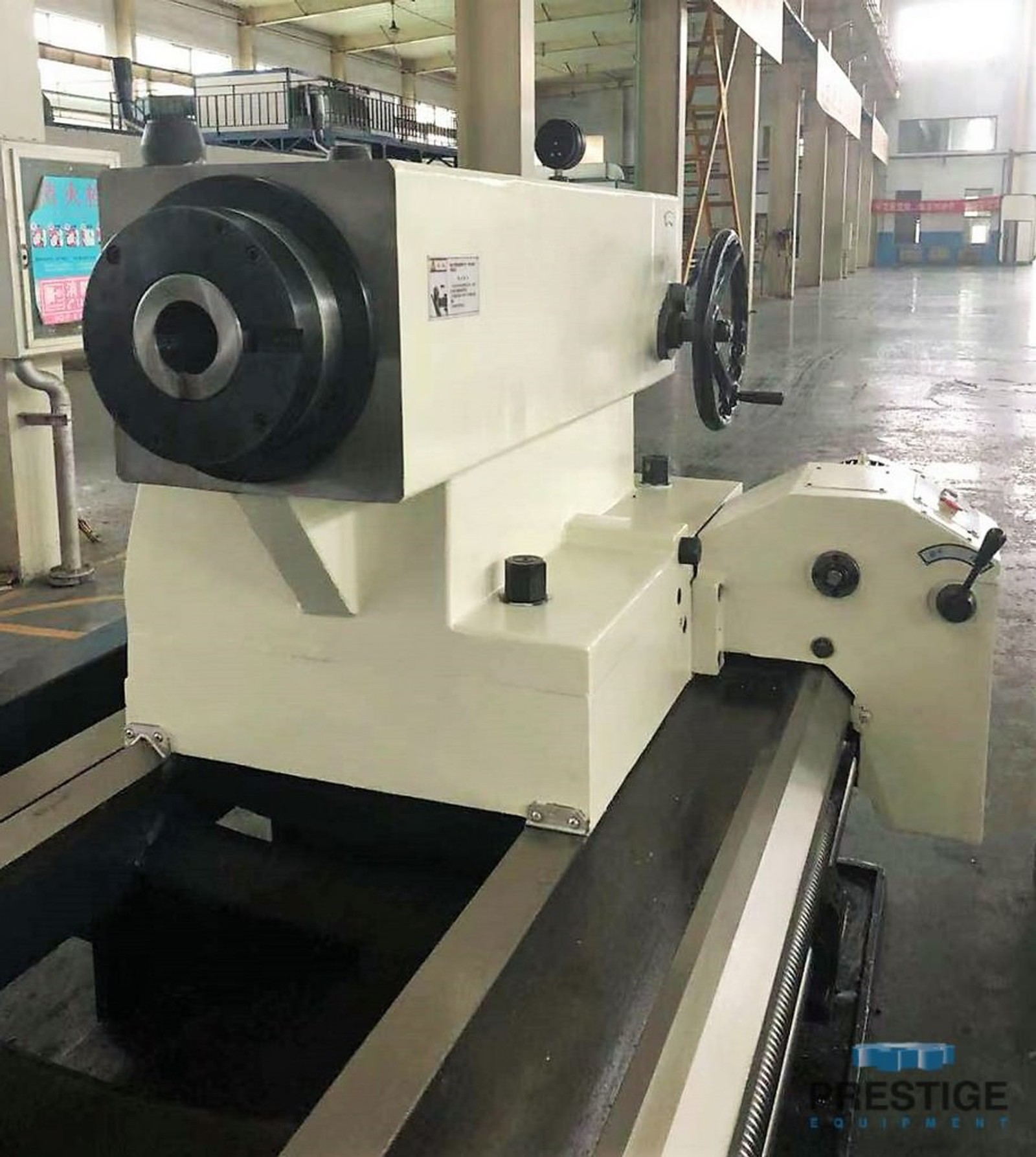

Live Quill in Tailstock
Motorized Tailstock
Flame Hardened Bed Ways
40 HP Drive Motor With Controls
3/60/440 Volt Electrics
1-Year Parts Warranty

DELIVERY:
3-5 Months From of Confirmed Order
