Forest Line MajorMill 5-Axis Travelling Ganty, 72 ATC, X-207", 94" Between Housing, 3-Head Attach, Fidia 20, #32205

Manufacturer

Forest-Line

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32205

Model

Major-Mill

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32205

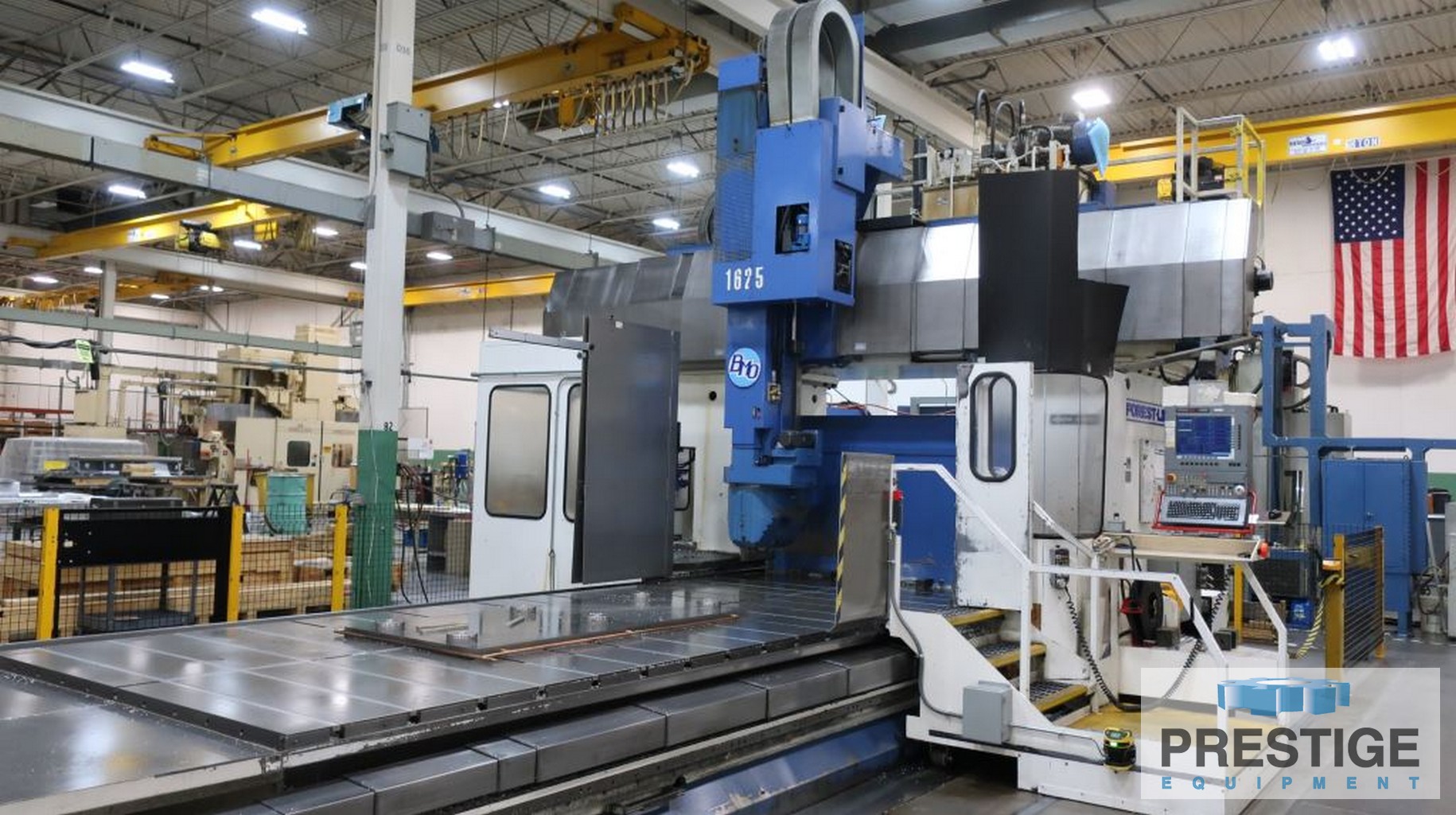

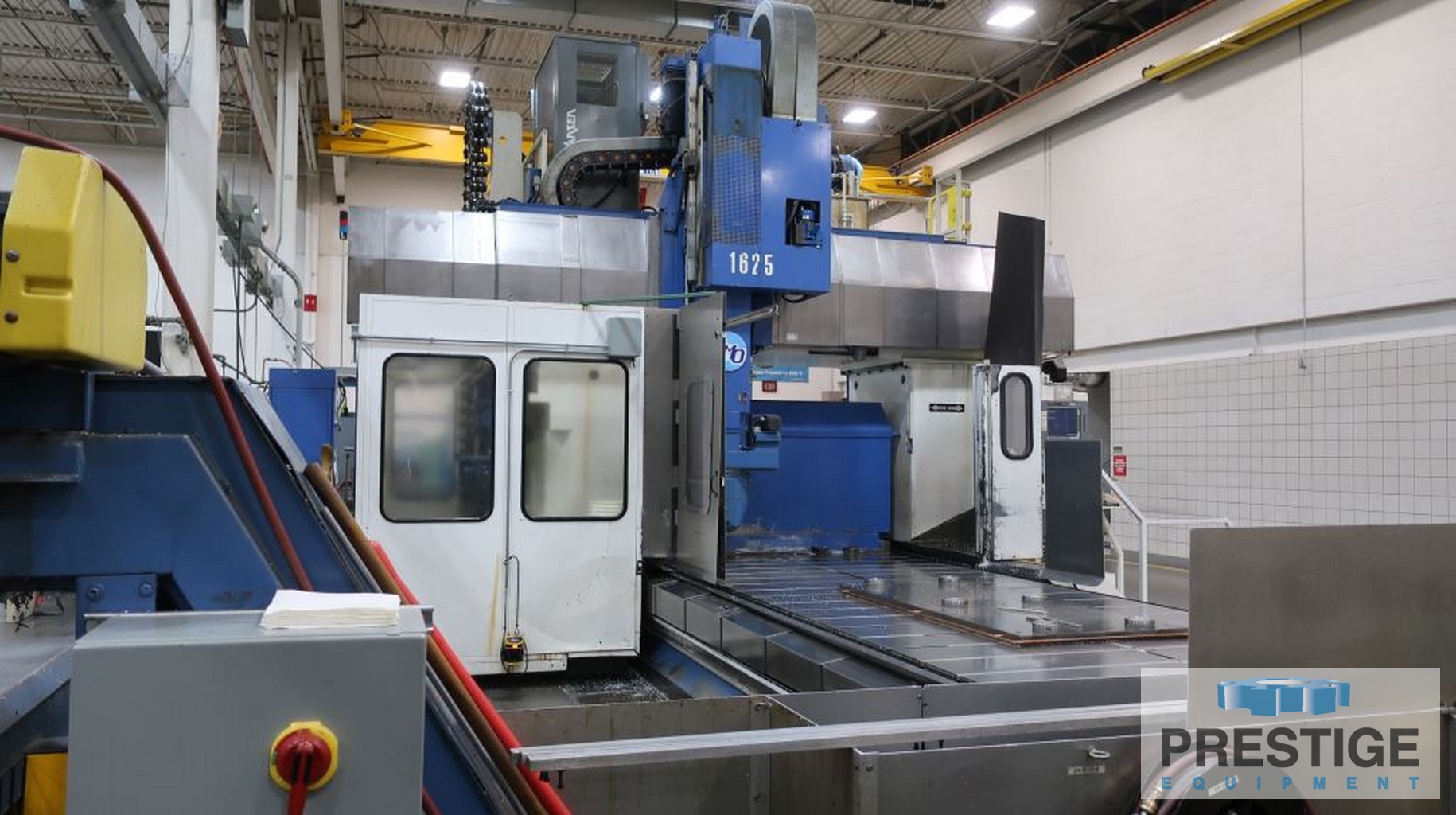

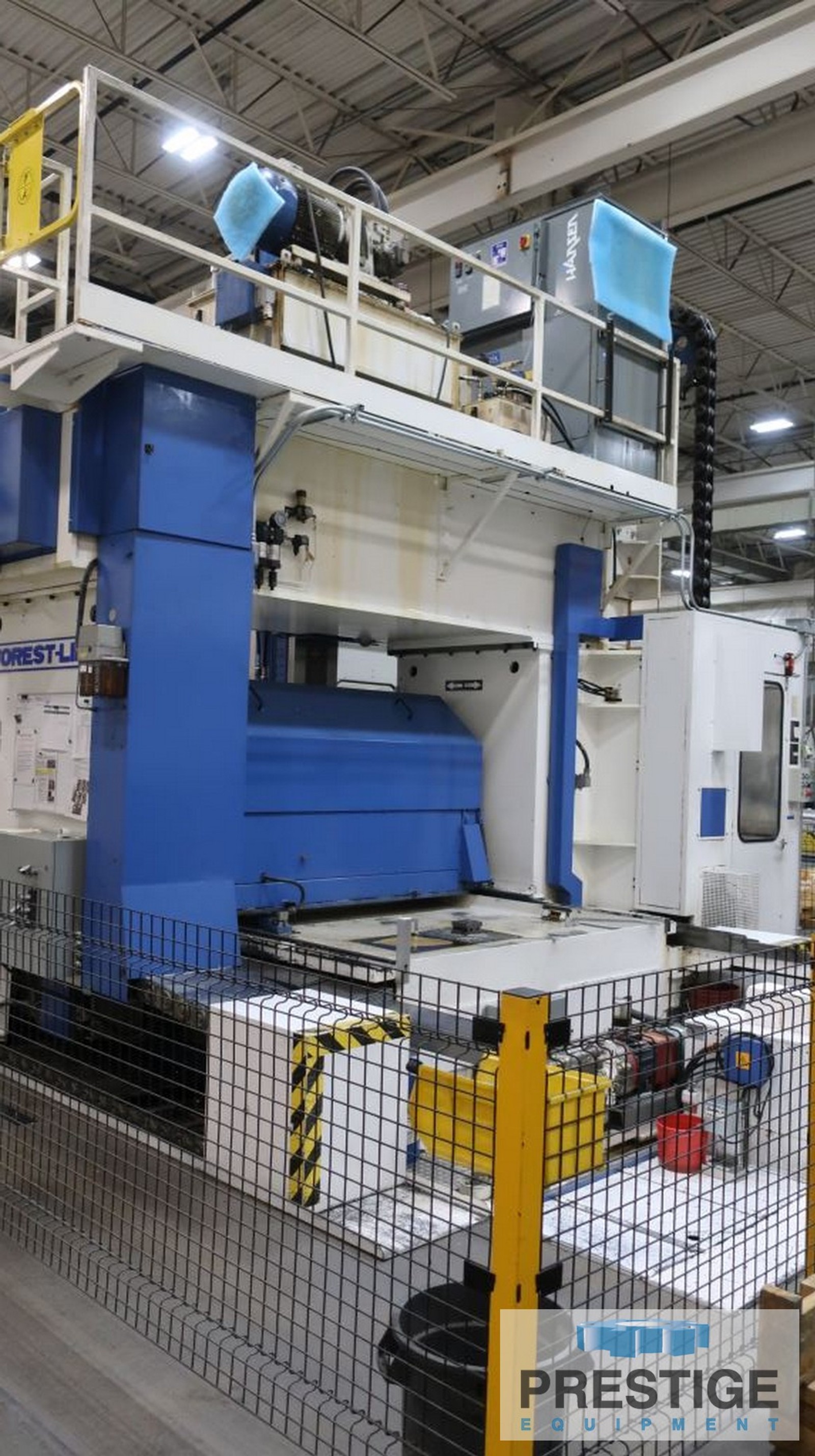

Forest-Line MajorMill 5-Axis CNC Gantry Mill

FEATURES:

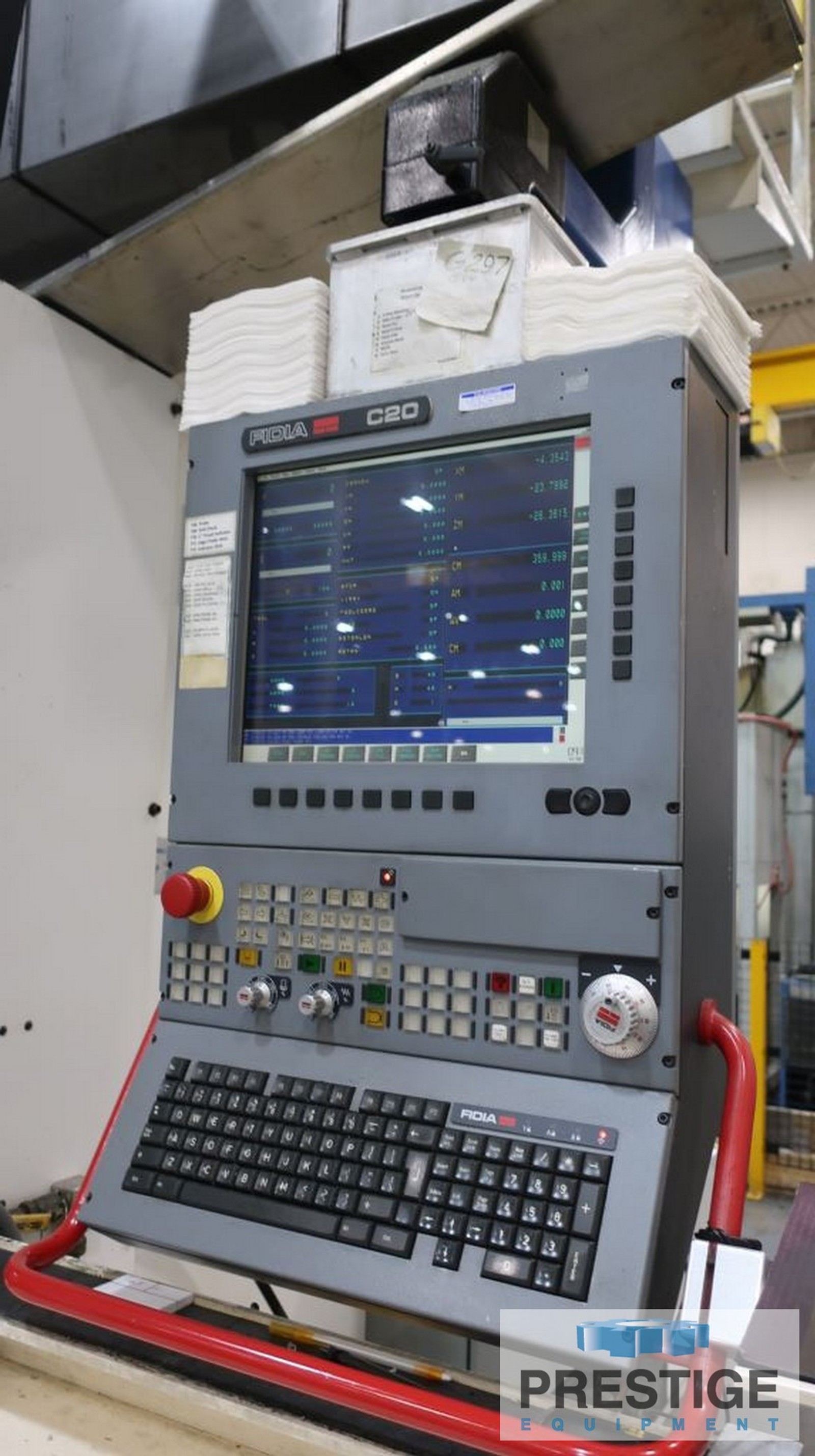

Fidia C20 CNC Control Retrofit in 2008

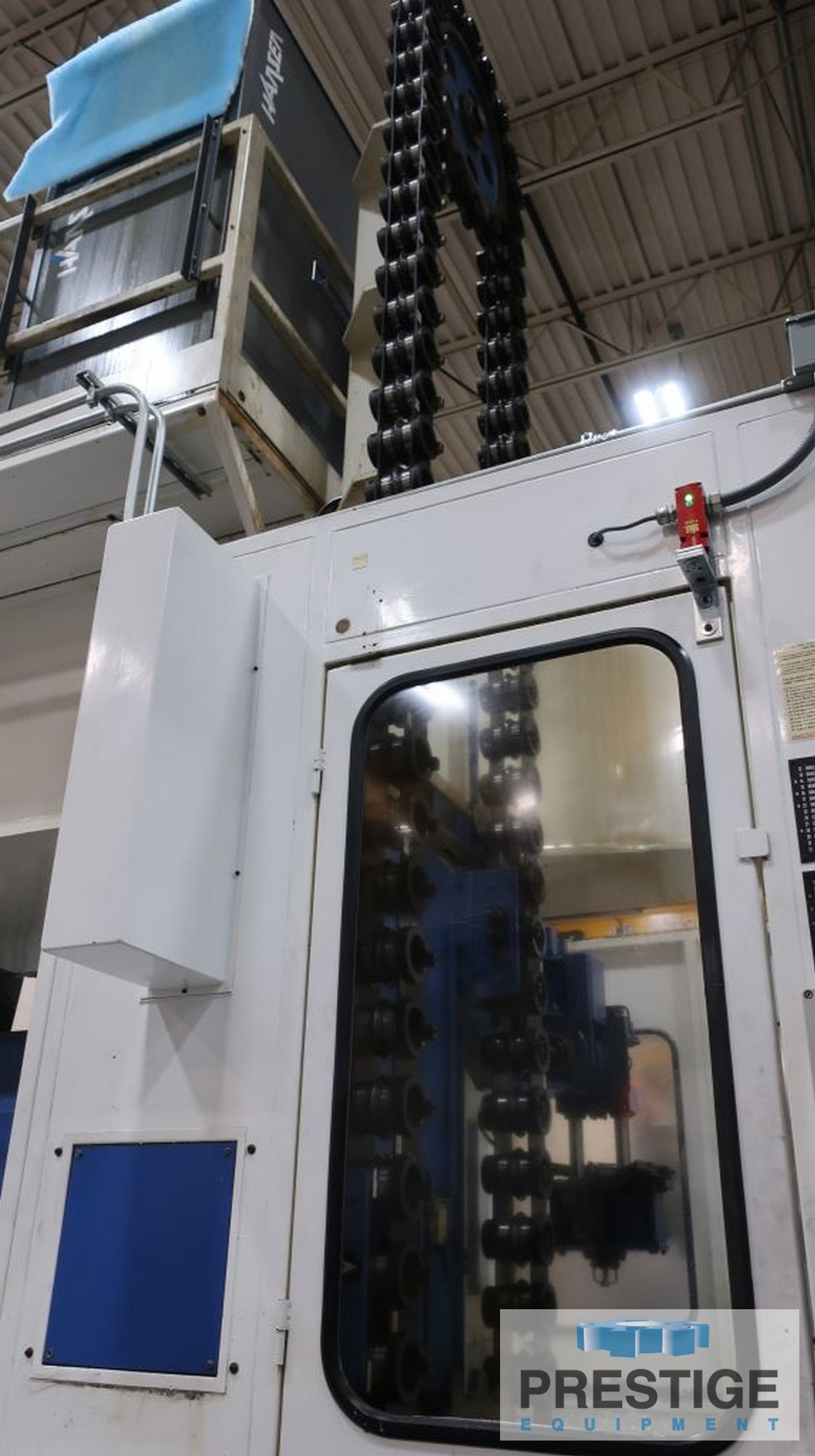

72-Station Automatic Tool Changer
Automatic Accessory Changer

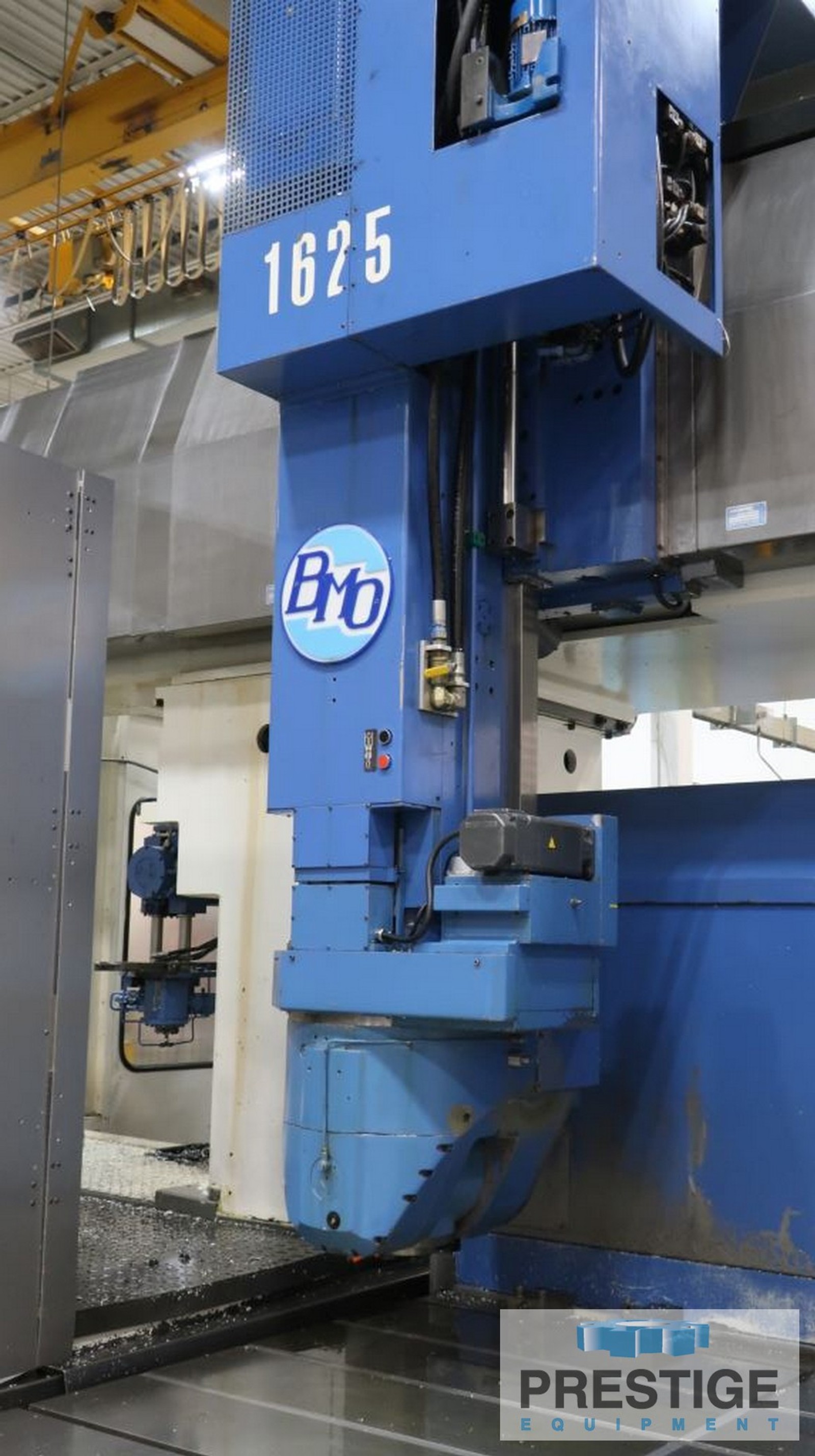

Steel Spindle Unit, FA 310 FAI AC
Nutating Head, DRC 12 Double Rotation Stepless
Right Angle Head
Straight Head with Speed Increaser

CAPACITY:
Table Working Surface................... 83.27" x 236"
Between Housings ...................... 94.5"
X-Axis Gantry Travel ................... 204.72"
Y-Axis Head Travel ..................... 129.72"
Z-Axis Vertical Head Travel ............ 49.21"
Max Cutting Height .................... 62.99"
A-Axis Spindle Head Tilt ............... +/- 95 degrees
B-Axis Spindle Head Swivel ............. 360 degrees
Spindle Drive Motor .................... 42.9 HP (32 KW)
Spindle Speeds, 3-Ranges................ 10-3200 RPM
Spindle Taper........................... #50 ISO
Machine Foot Print, L x W .............. 382" x 251"
Machine Height ........................ 267"

EQUIPPED WITH:
Fidia C20 CNC Control Retrofit in 2008
72-Station Automatic Tool Changer
Automatic Accessory Changer
Steel Spindle Unit, FA 310 FAI AC
Nutating Head, DRC 12 Double Rotation Stepless
Right Angle Head
Straight Head with Speed Increaser

Note:
Machine had complete Re-control in 2008 with Fidia C20 CNC Controls
