275"/ 354" Homma HTM 7.0/9.0 Gantry Travel, Milling, 157" Work Ht., 275" Table, 200 HP, Fanuc CNC, #31684

Manufacturer

HOMMA

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

31684

Model

HTM 7.0/9.0

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #31684

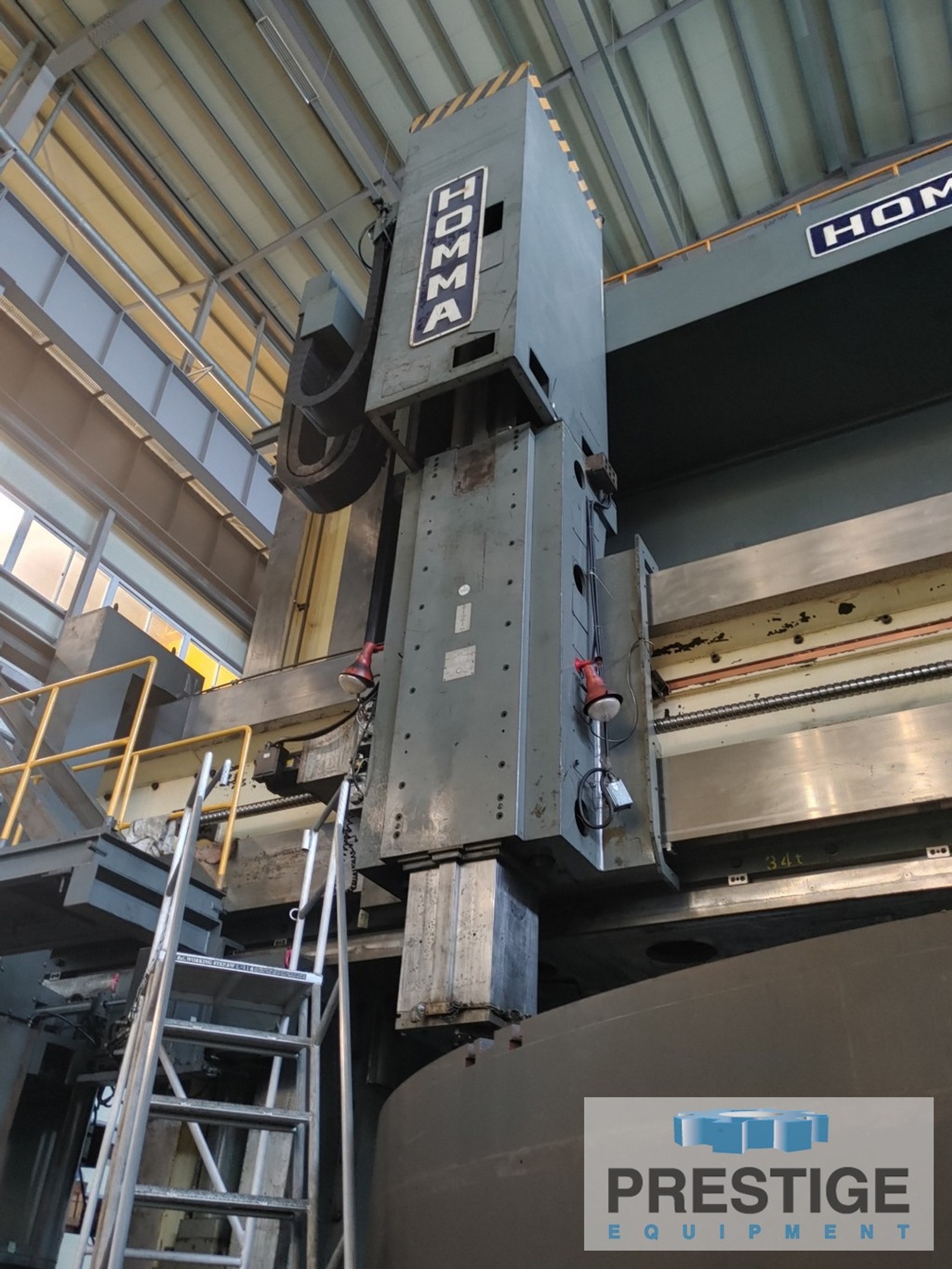

275"/354" Homma HTM 7.0/9.0 CNC CNC MillTurn Travelling Gantry

FEATURES:
Traveling Gantry Mill/Turn

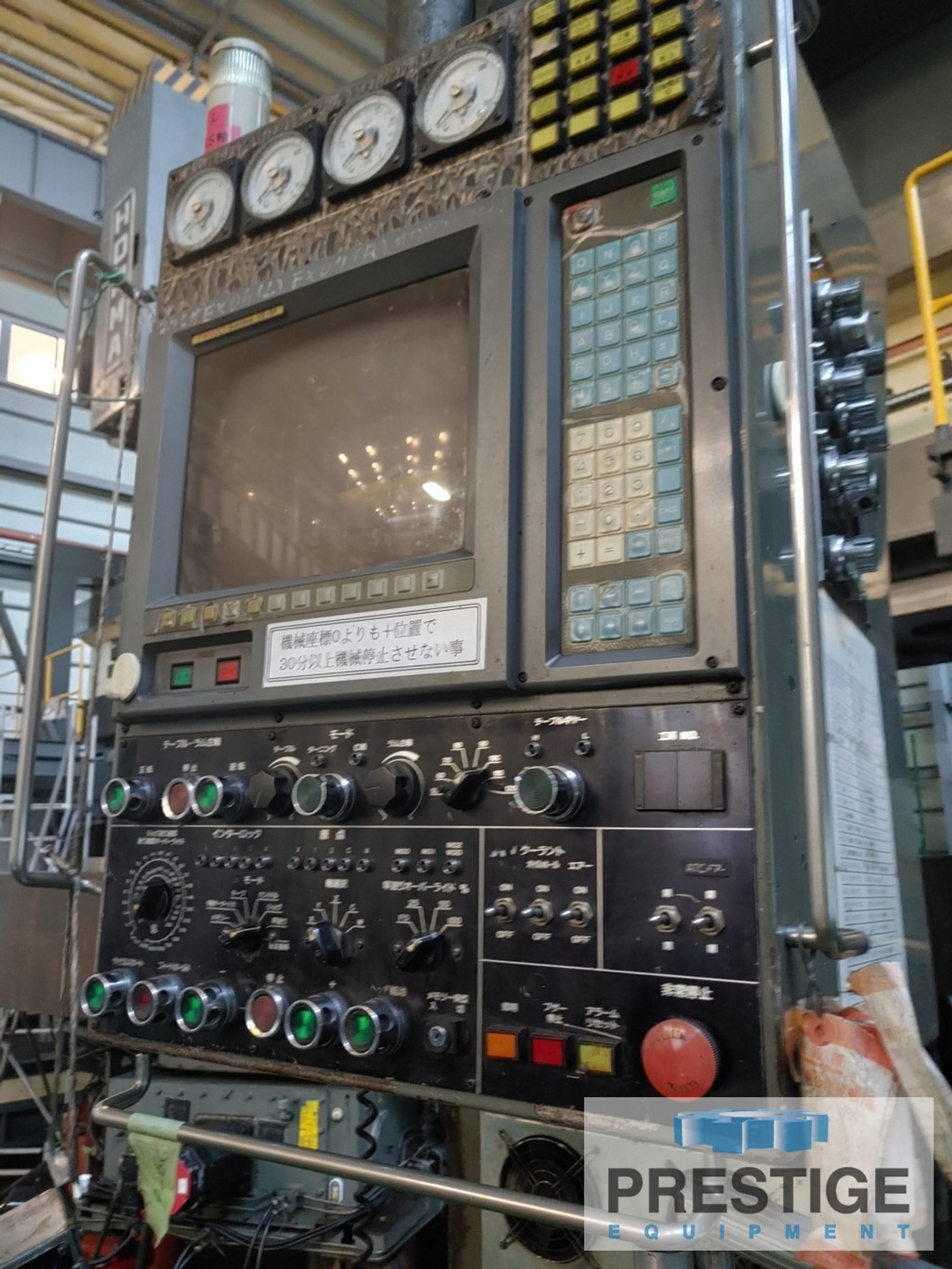

Fanuc 15-M CNC Control
Ram with Live Milling Spindle
C-Axis Table

TURNING SPECIFICATIONS:
Table Diameter ........................ 275.59"
Maximum Working Diameter .............. 354.33"
Maximum Work Height ................... 157.48"
Table Speed Range, 2-Step ............. .25 - 30 RPM
Maximum Table Load .................... 250 Ton
Table Spindle Motor ................... 201 HP
Ram Dimensions ........................ 19.68" x 19.68"
Ram Stroke, Z-Axis .................... 118.11"
Taper in Ram .......................... ISO #50
Cross Rail Elevation, W-Axis .......... 78.74"
Distance Table - Cross Rail ........... 92.51" - 171.25"
W-Axis Feed Rate ...................... .0393 - 19.68 IPM

MILLING SPECIFICATIONS:
Milling Spindle Diameter .............. 5.06"
Milling Spindle Speeds, 2-Step ........ 10 - 1,000 RPM
Column Movement, X-Axis ............... -112"/+332.87"
Horizontal Stroke, Y-Axis ............. 427.16"
Distance Between Columns .............. 354.33"
Rapid Traverse, X/Y Axes .............. 236.22 IPM
Cutting Feed Rate, X/Y Axes ........... .0393 - 118.11 IPM
C-Axis Positioning .................... .001 Deg.
C-Axis Feed Rate ...................... .1 - 100 Deg/Min

EQUIPPED WITH:
Fanuc 15-M CNC Control
Automatic Attachment Changer
Right Angle Milling Head
275.59" Diameter C-Axis Table
Live Milling Spindle
Steel Sliding Way Covers
Chip Conveyor

NOTE:
Mill Turn Gantry Design for Milling And Turning Applications
