Trumpf TrumaBend C110, 121 Ton, 122" OA, 106" BH, Delem 6-Axis CNC, 2002, #32164

Manufacturer

TRUMPF

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

32164

Model

Trumabend C110

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32164

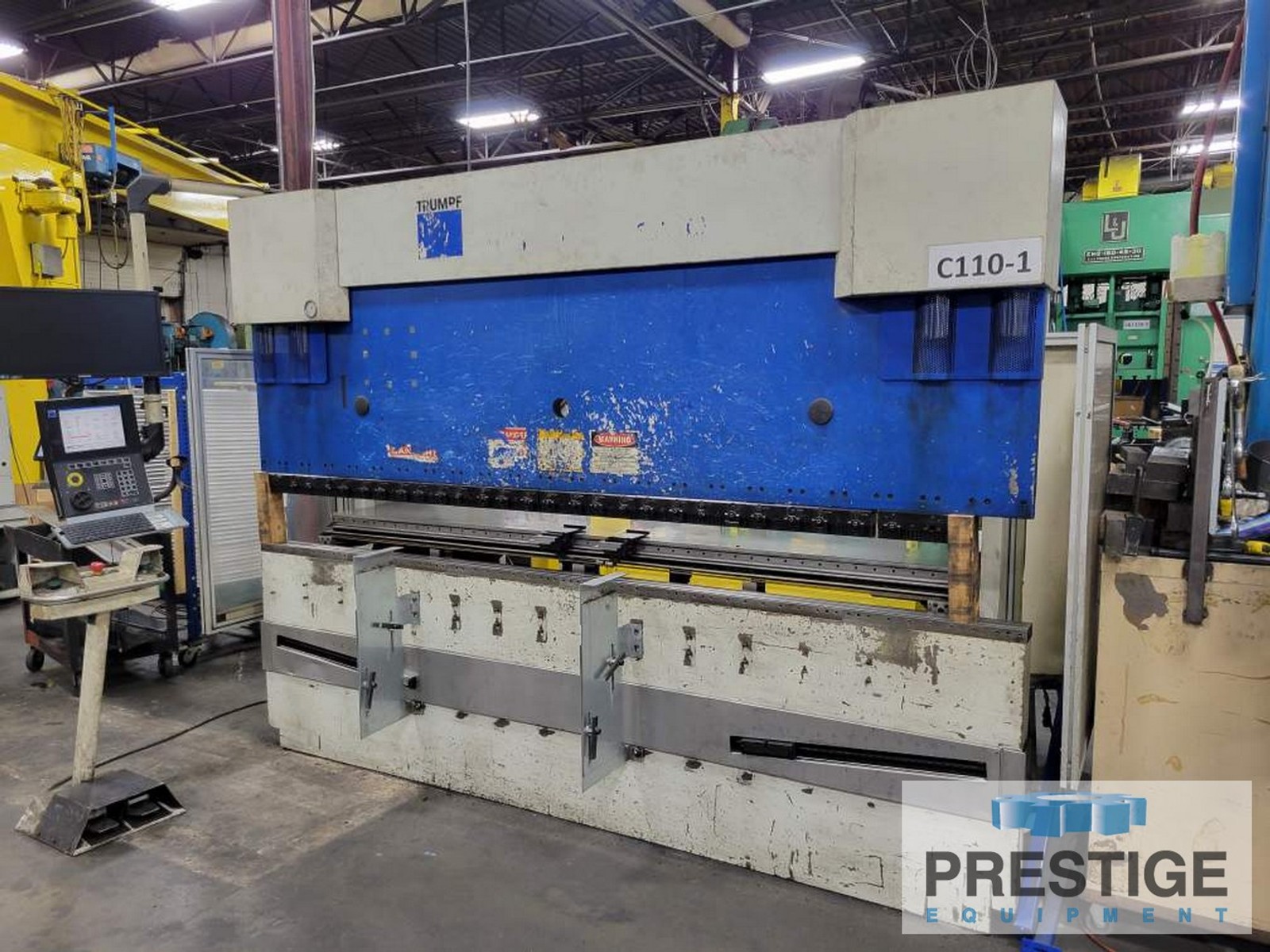

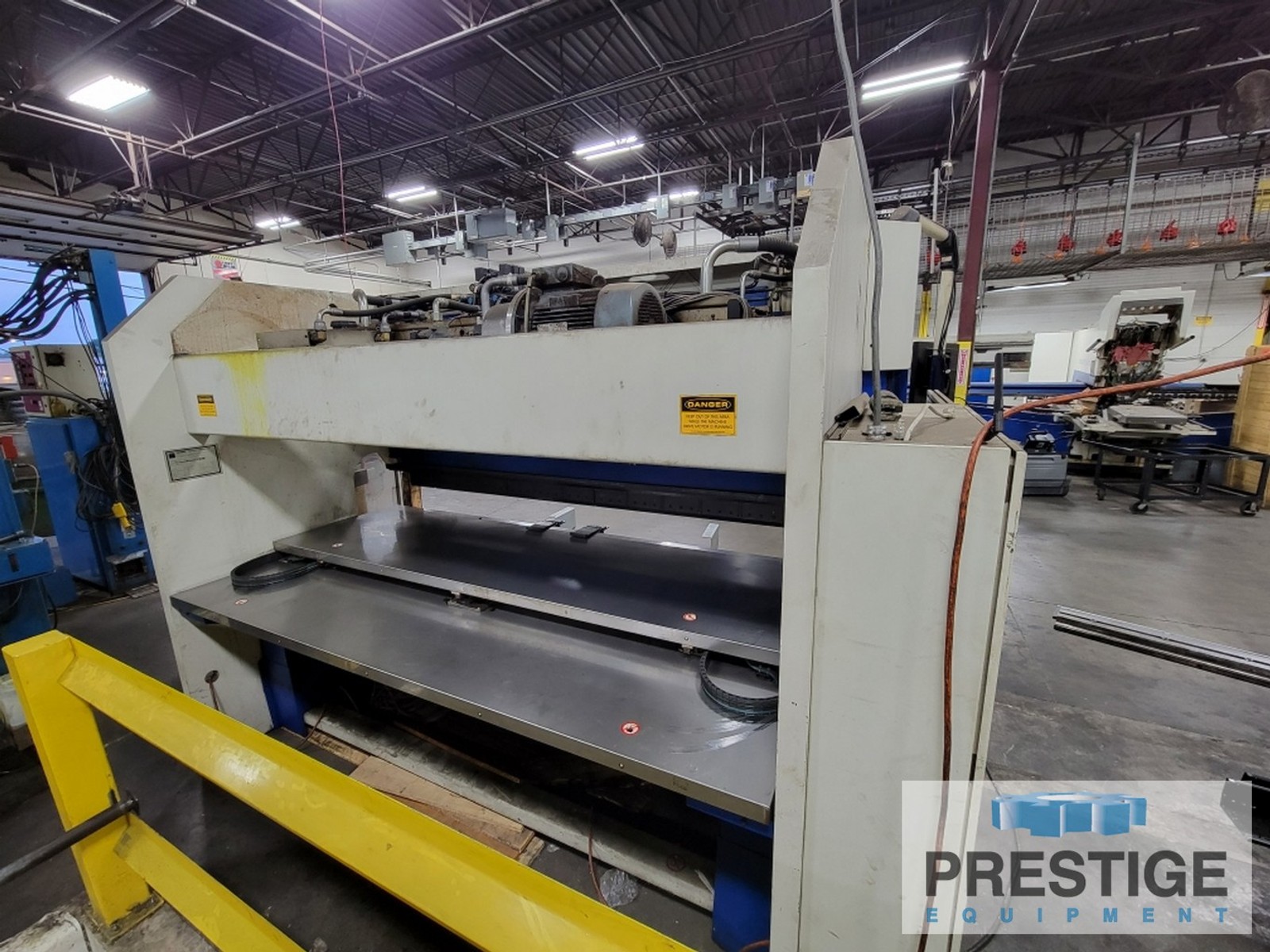

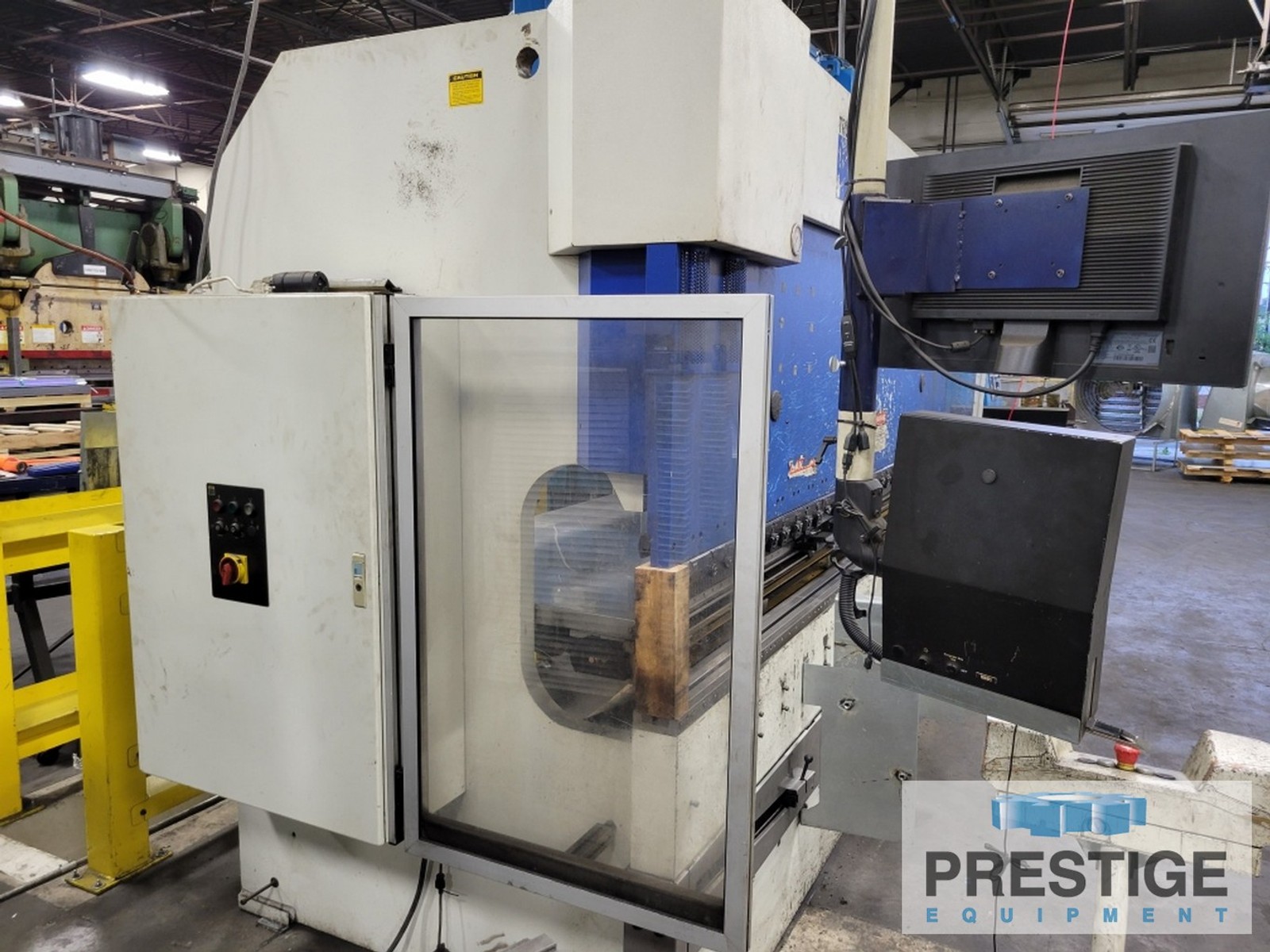

Trumpf C110 121 Ton Trumpf Trumabend 6-Axis CNC Press Brake

FEATURES:

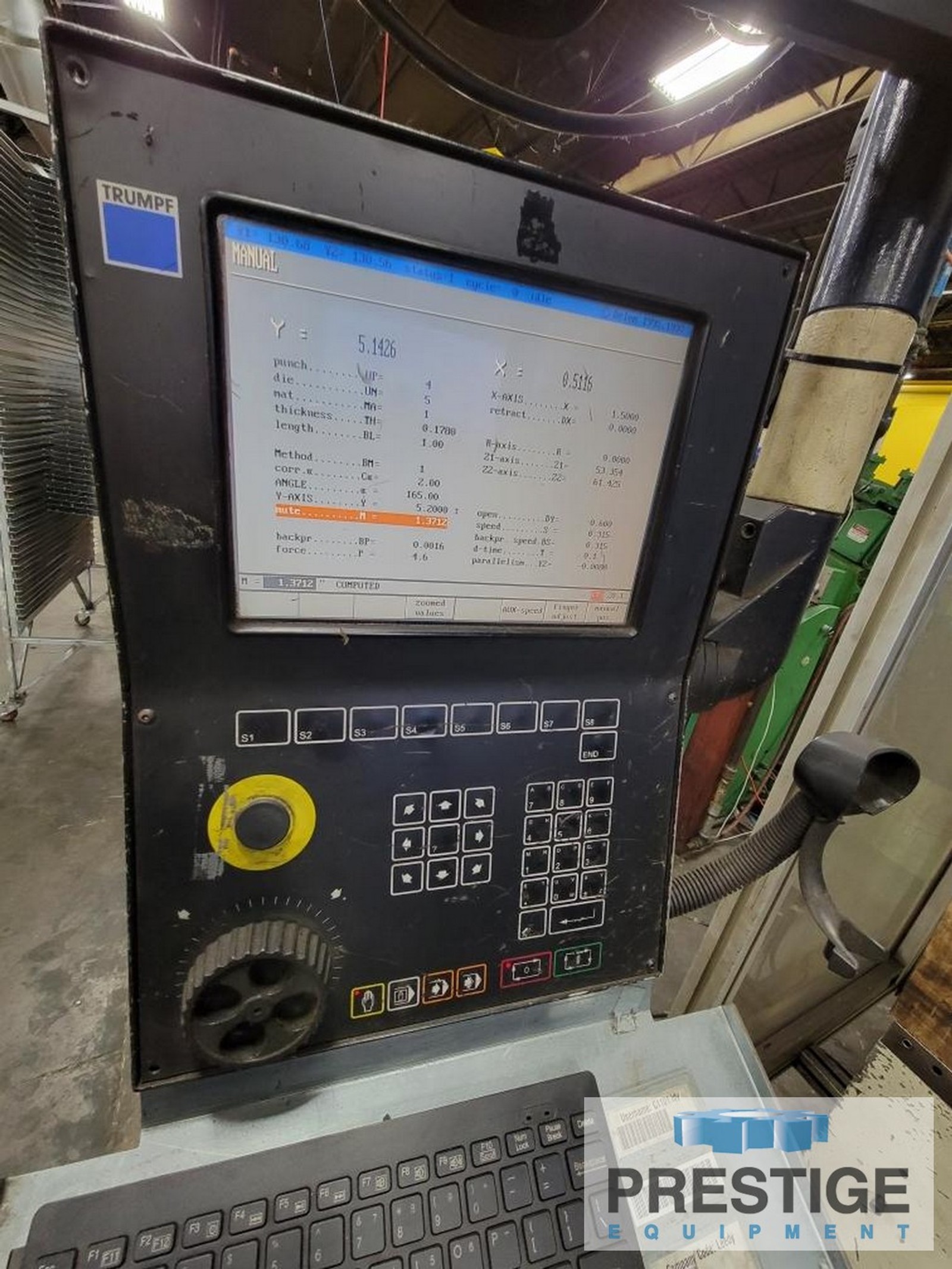

Delem 6-Axis Graphic CNC Control
(4) Cylinder Ram Drive
(4) Axis Back Gauge, X,R,Z1 and Z2
Electric Foot Switch Controls
(2) Sheet Supports

CAPACITY:
Tonnage Capacity ...................... 121 Tons
Maximum Bending Length ................ 122"
Distance Between Housings ............. 105.9"
Stroke Length ......................... 7.87"
Open Height ........................... 13.4"
Throat Depth .......................... 16.5"
Travel In X-Axis ...................... 19.69"
Travel In R-Axis ...................... 13.4"
Travel Speed in X-Axis ................ 827 IPM
Travel Speed in R-Axis ................ 236 IPM
Travel Speed Y-Axis Approach .......... 236 IPM
Travel Speed Y-Axis Press ............. 19 IPM
Travel Speed Y-Axis Return ............ 189 IPM
Drive Motor ........................... 10 HP
Approximate Shipping Weight ........... 16,940 Lbs.
Approximate Dimensions ................ 134" x 65" x 95" H

EQUIPPED WITH:
Delem 6-Axis Graphic CNC Control
(4) Cylinder Ram Drive
(4) Axis Back Gauge, X,R,Z1 and Z2
Electric Foot Switch Controls
(2) Sheet Supports

NOTE:
Inspect In Plant Under Power
