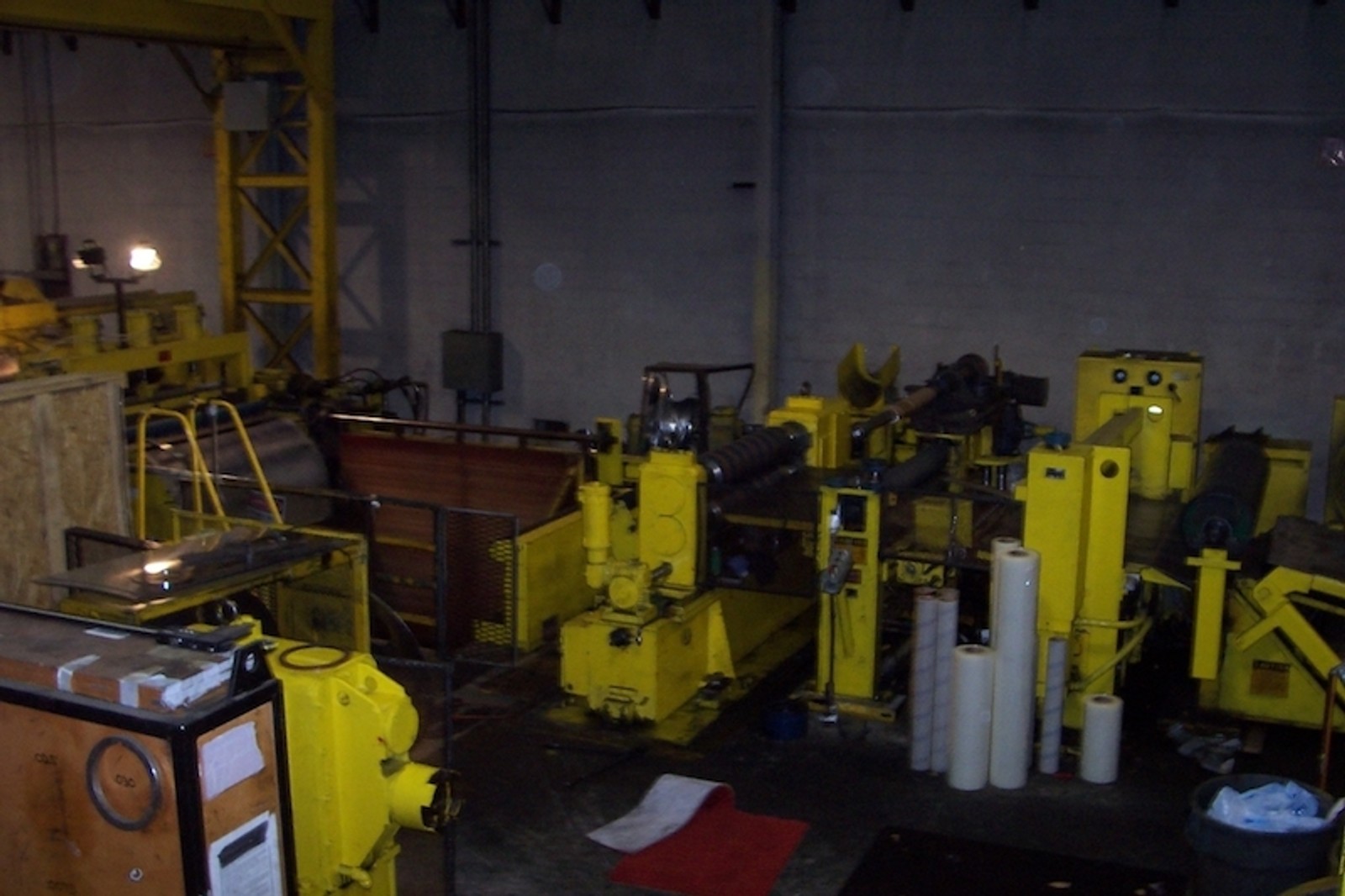

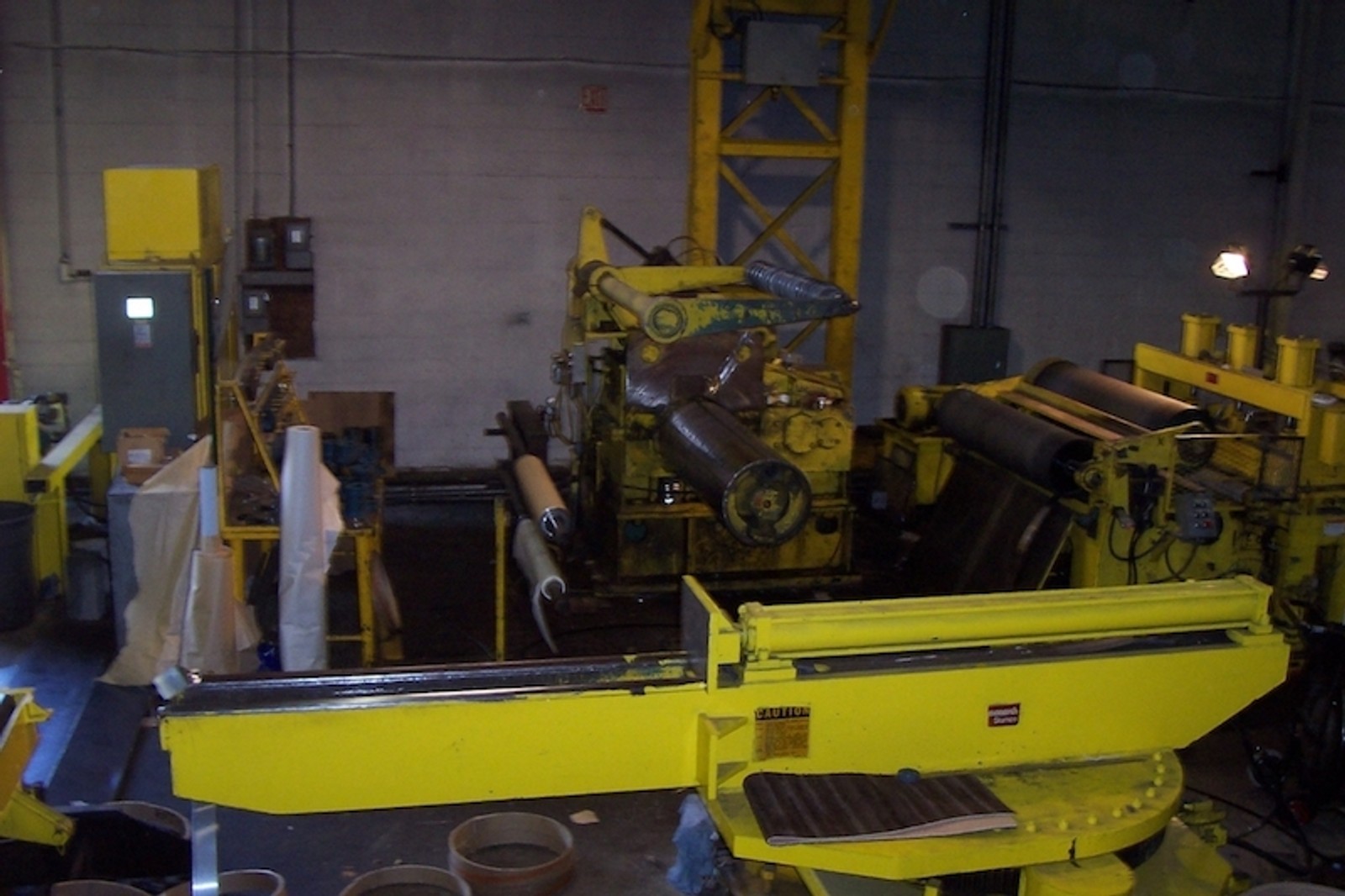

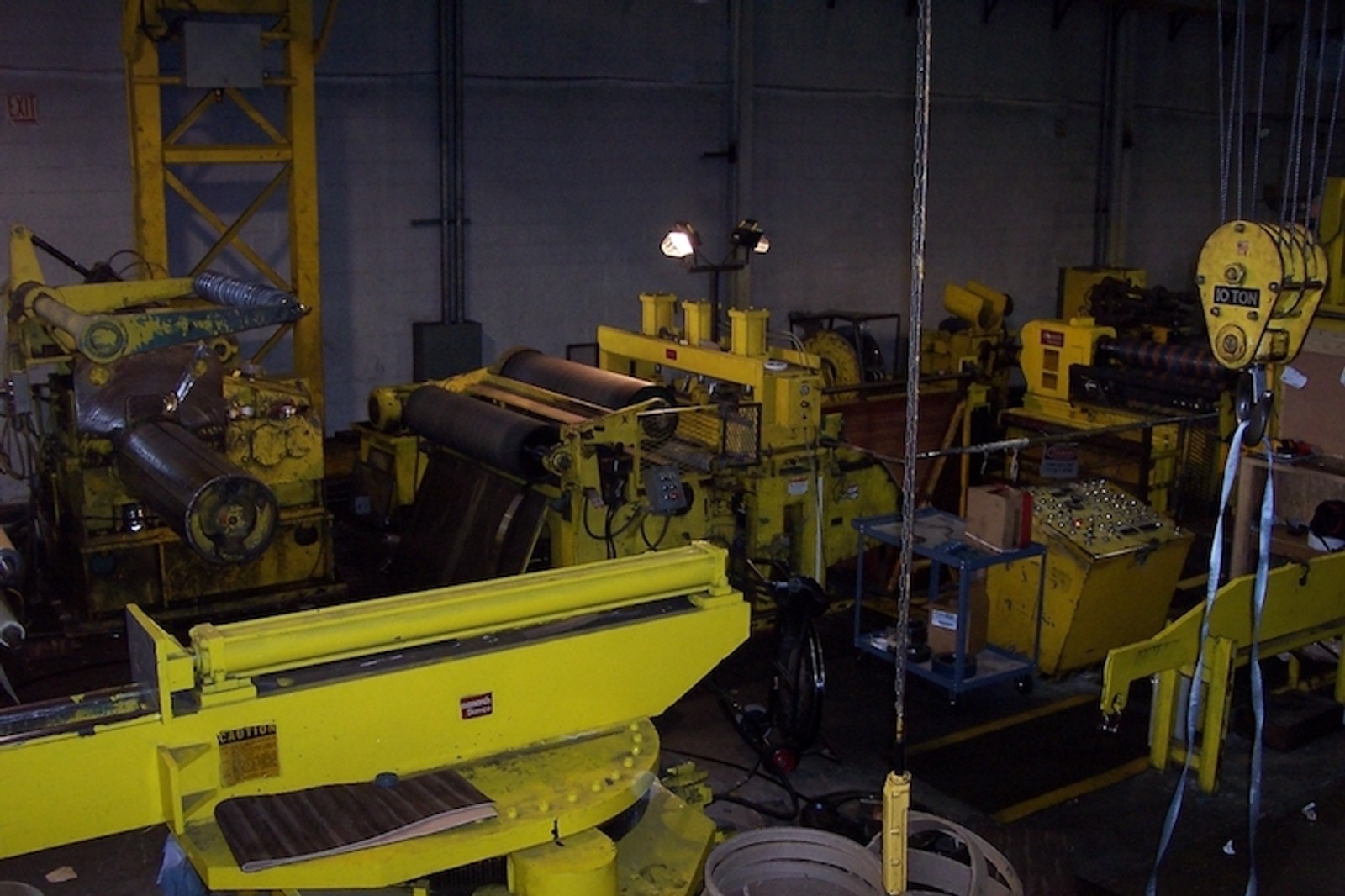

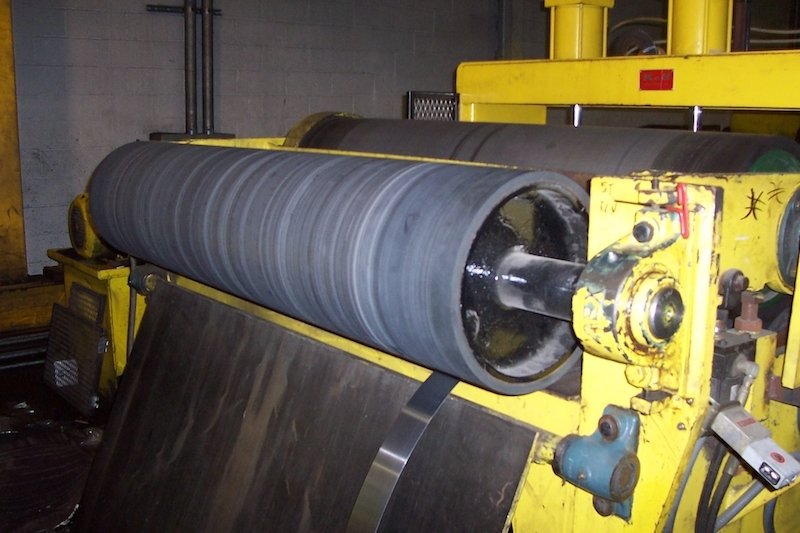

60" x .135" x 40,000Lb Stamco Loop Slitting Line

Manufacturer

STAMCO

Category

Slitters and Slitting Lines

Type

SLITTERS

Stock

19667

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Make: Stamco
Material Width: 12" - 60"
Material Thickness: 010" - .135" (stainless), .190" (aluminum)
Coil ID: 20"
Coil OD: 72"
Direction: Right to Left

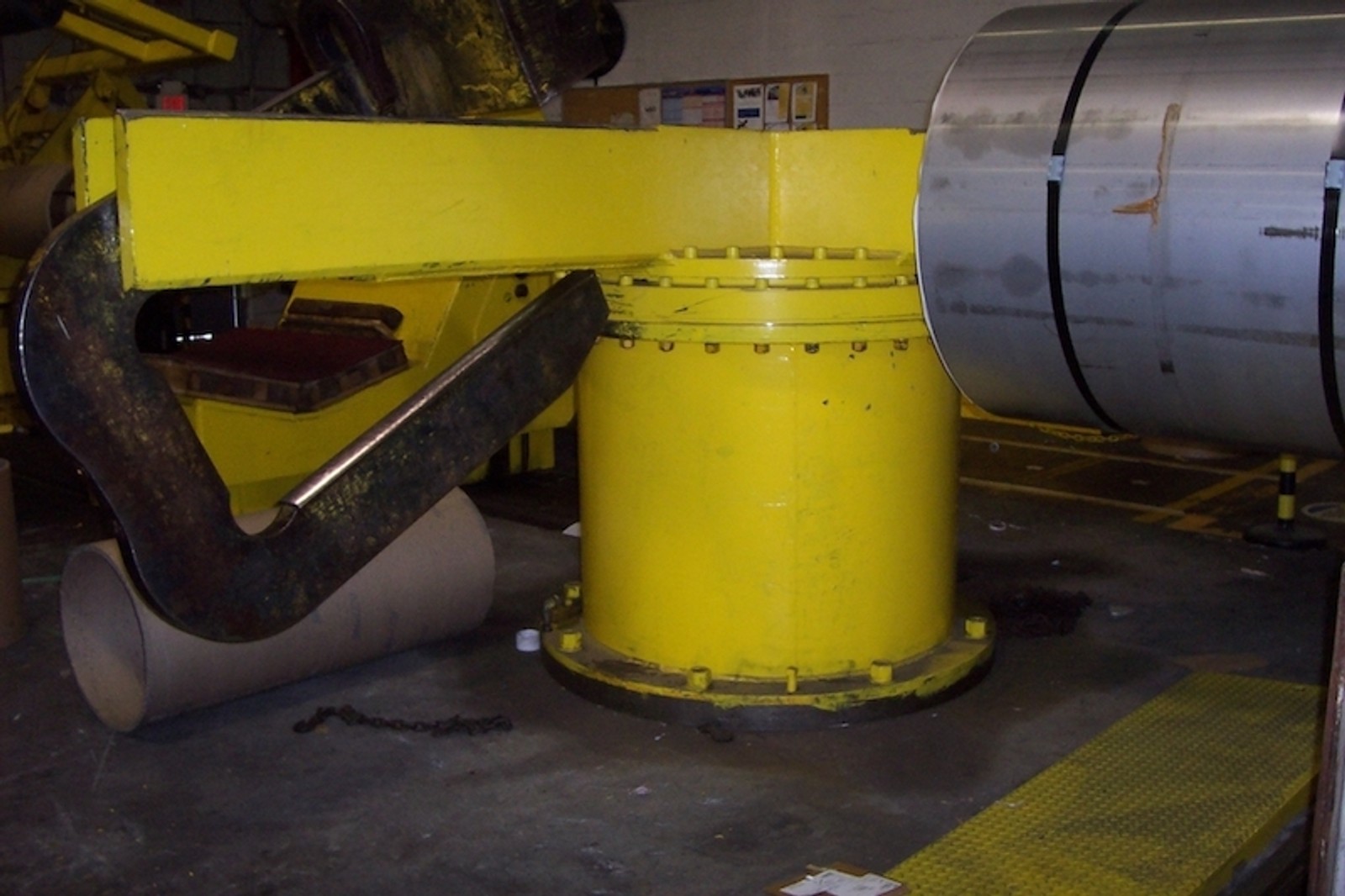

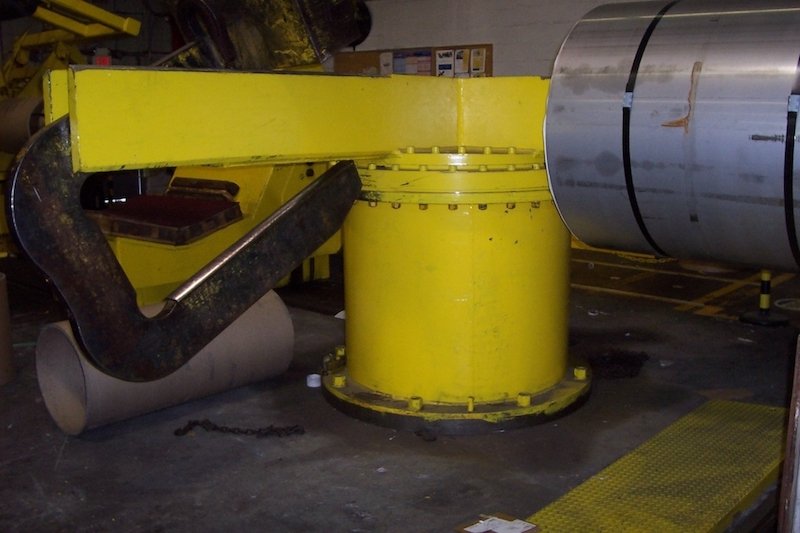

Entry 4-Arm Turnstile
Powered Rotation
C-Hook Arm Slot

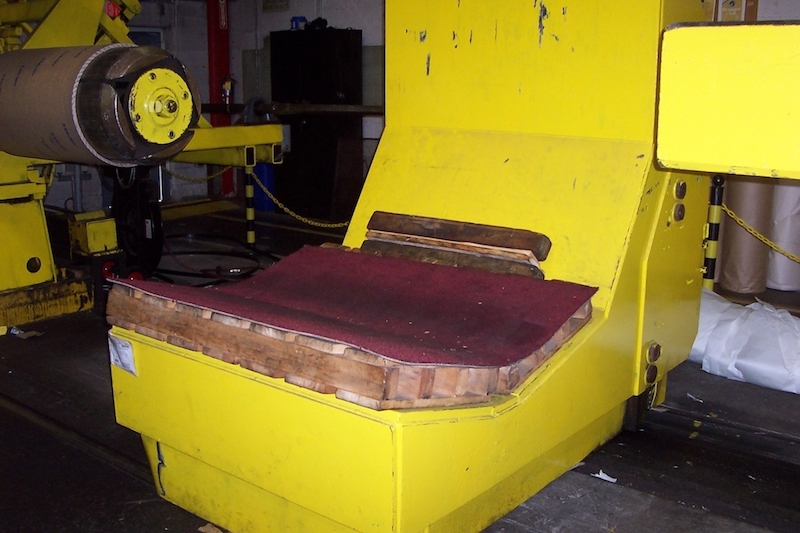

Entry L-Type Floor Standing Coil Car
Hydraulic Lift & Traverse
Self Contained Hydraulics

Mandrel Uncoiler
Powered Hold-Down Roll
Hydraulic Expansion
Sliding Base
Water Cooled Brake
Feed-Up Motor Drive

Hydraulic Peeling Table
Entry Guiding Roll

Entry Mechanical Crop Shear
Driven Pinch Rolls
Adjustable Edge Guides

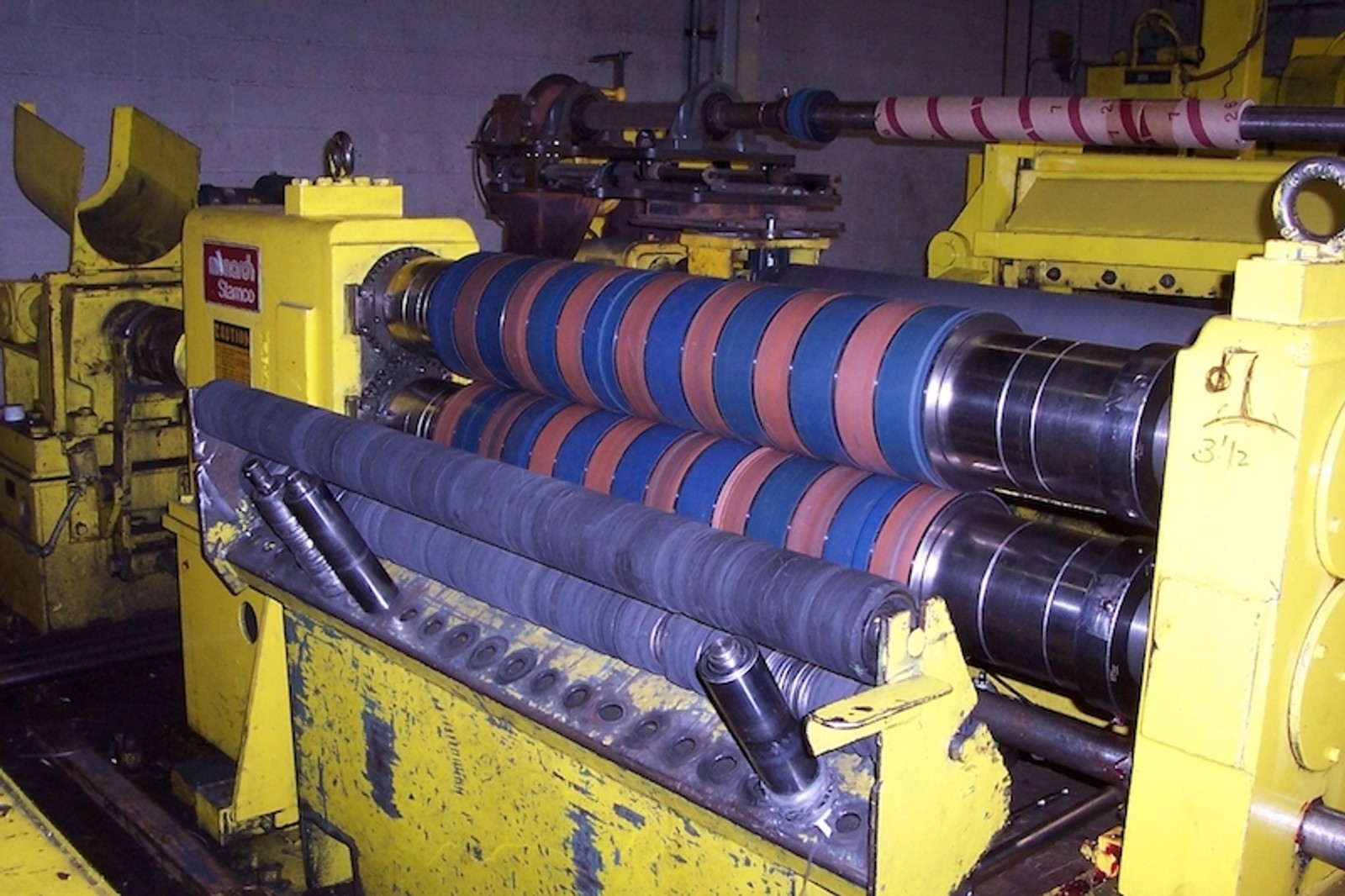

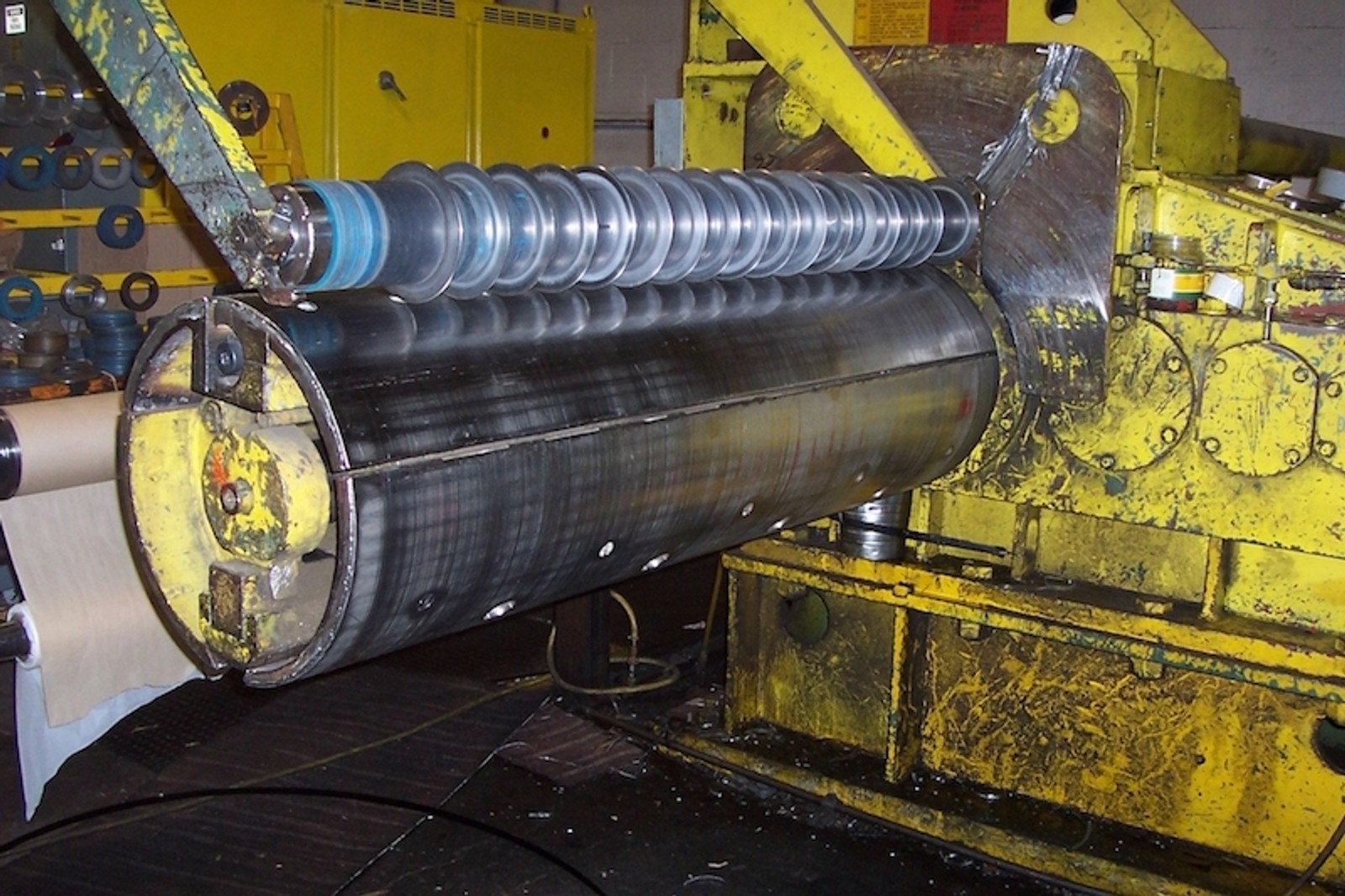

Two (2) Slitting Heads
Arbor Diameter: 7"
Crane Removable Heads
Adjustable Arbors
Motor: 75HP @ 1750 / 2100 RPM
Lots of Knives and Tooling

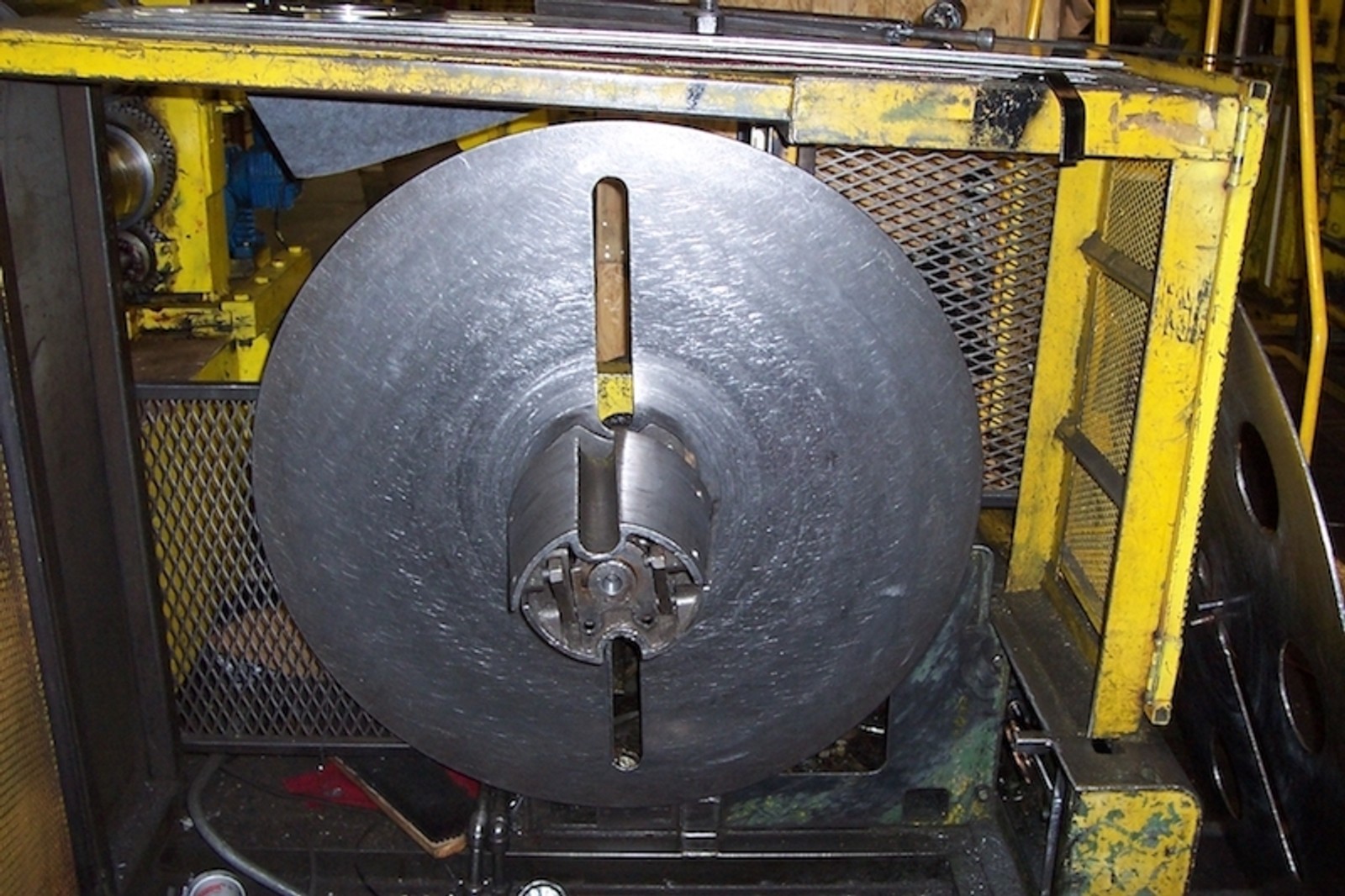

Two (2) Scrap Winders
Hydraulic Motor Drive
Powered Open / Close

Pit Cross Over Table
Cascade Rolls

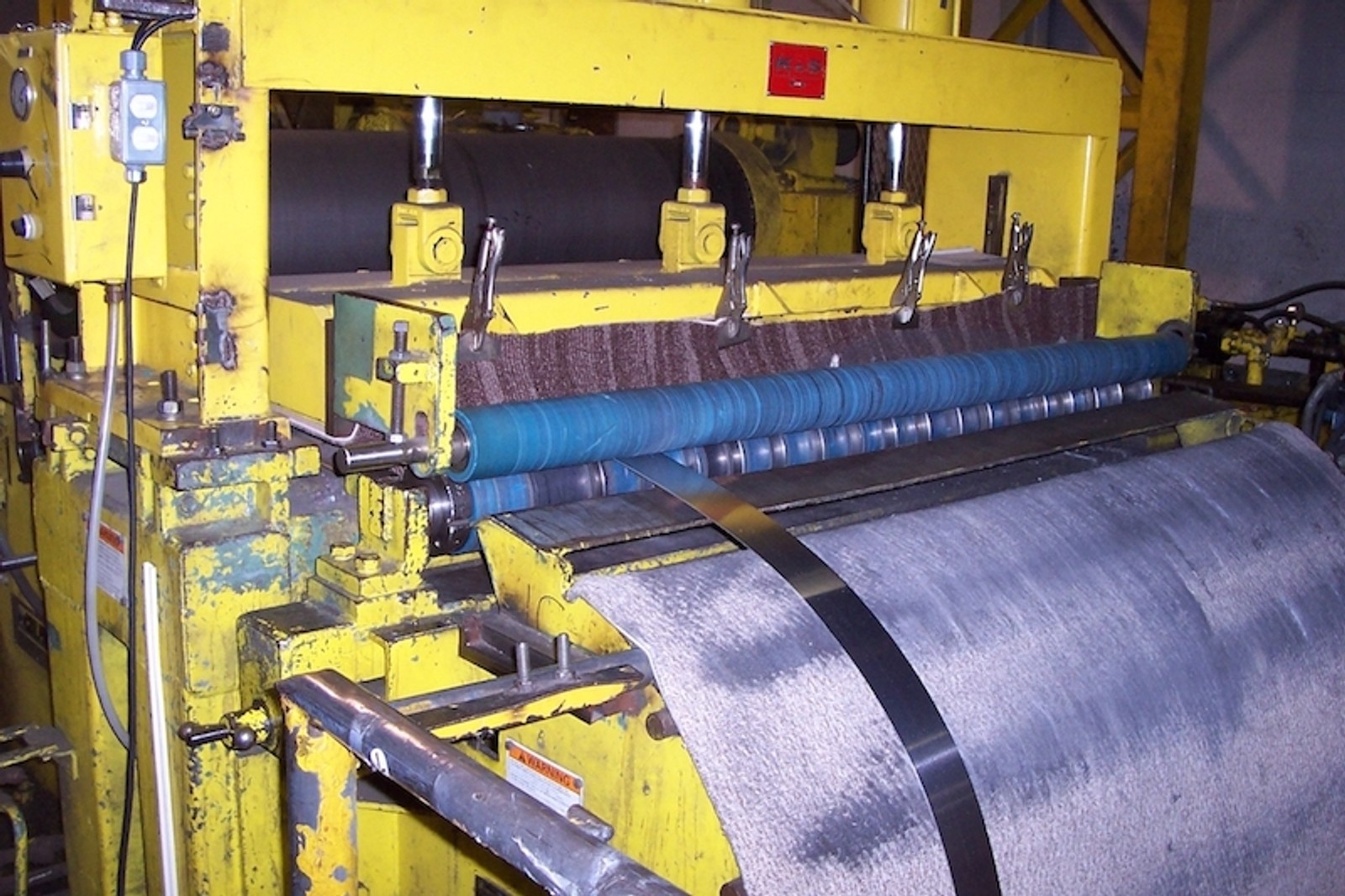

Drag Board Tension Stand
Pneumatic Tension Boards

Rotary Tension Stand

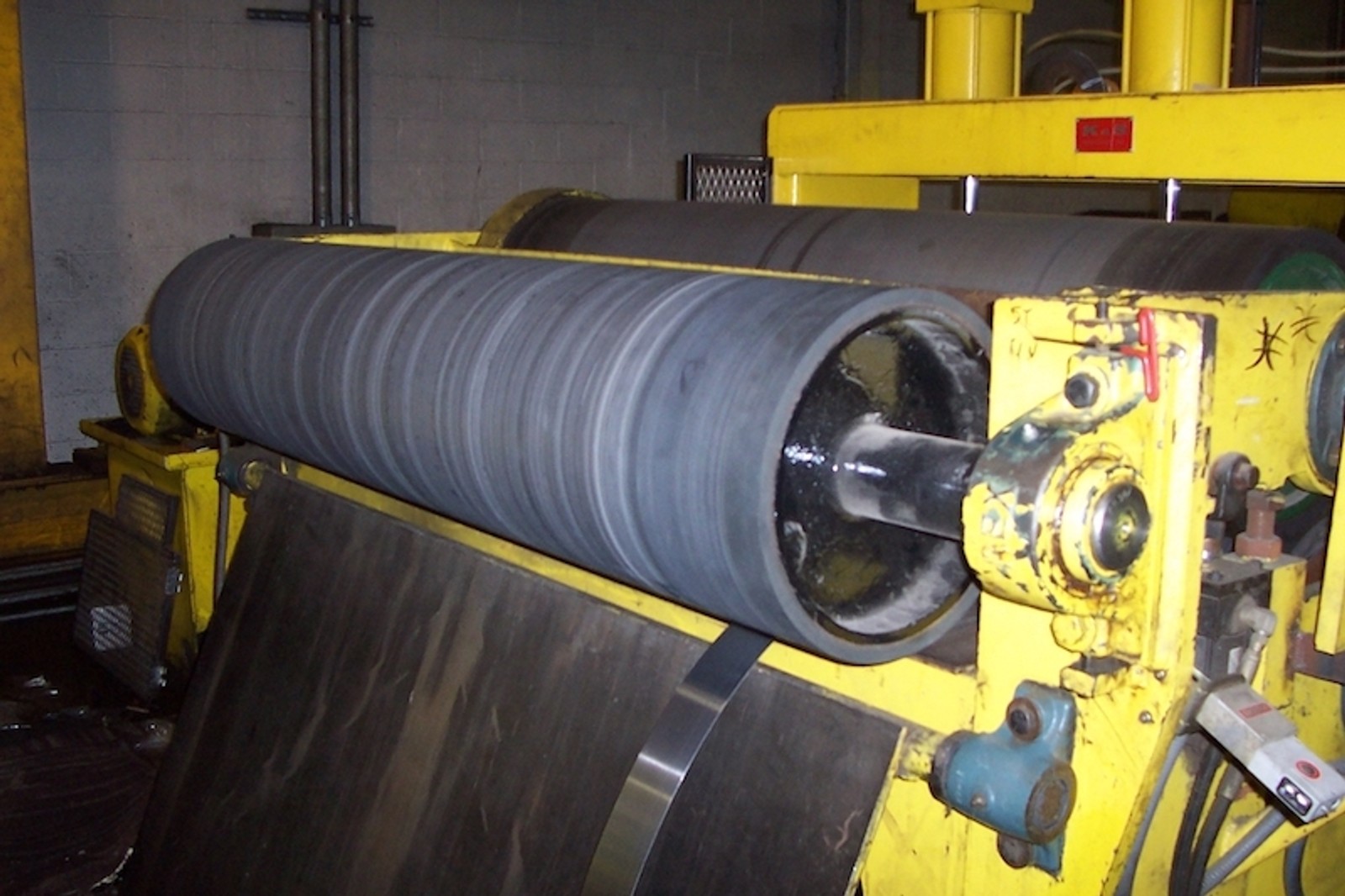

Coated Tension Rolls
Wichita Tension Brake
Strip Separating Bar

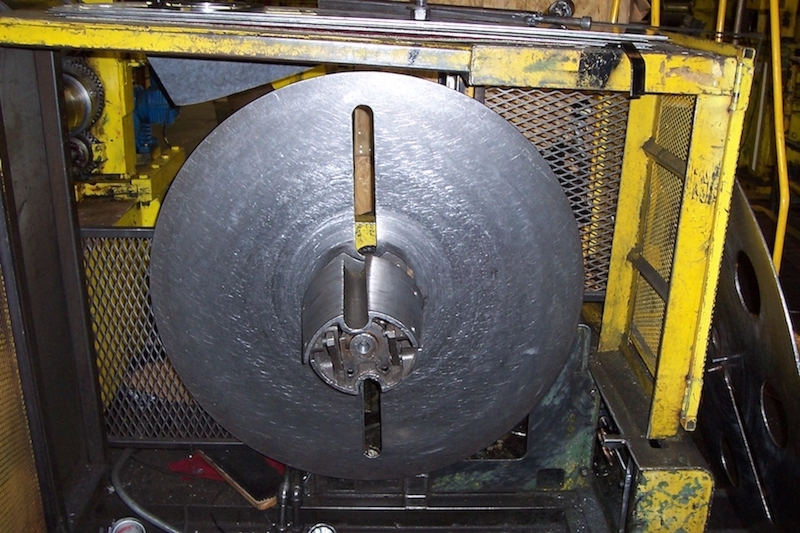

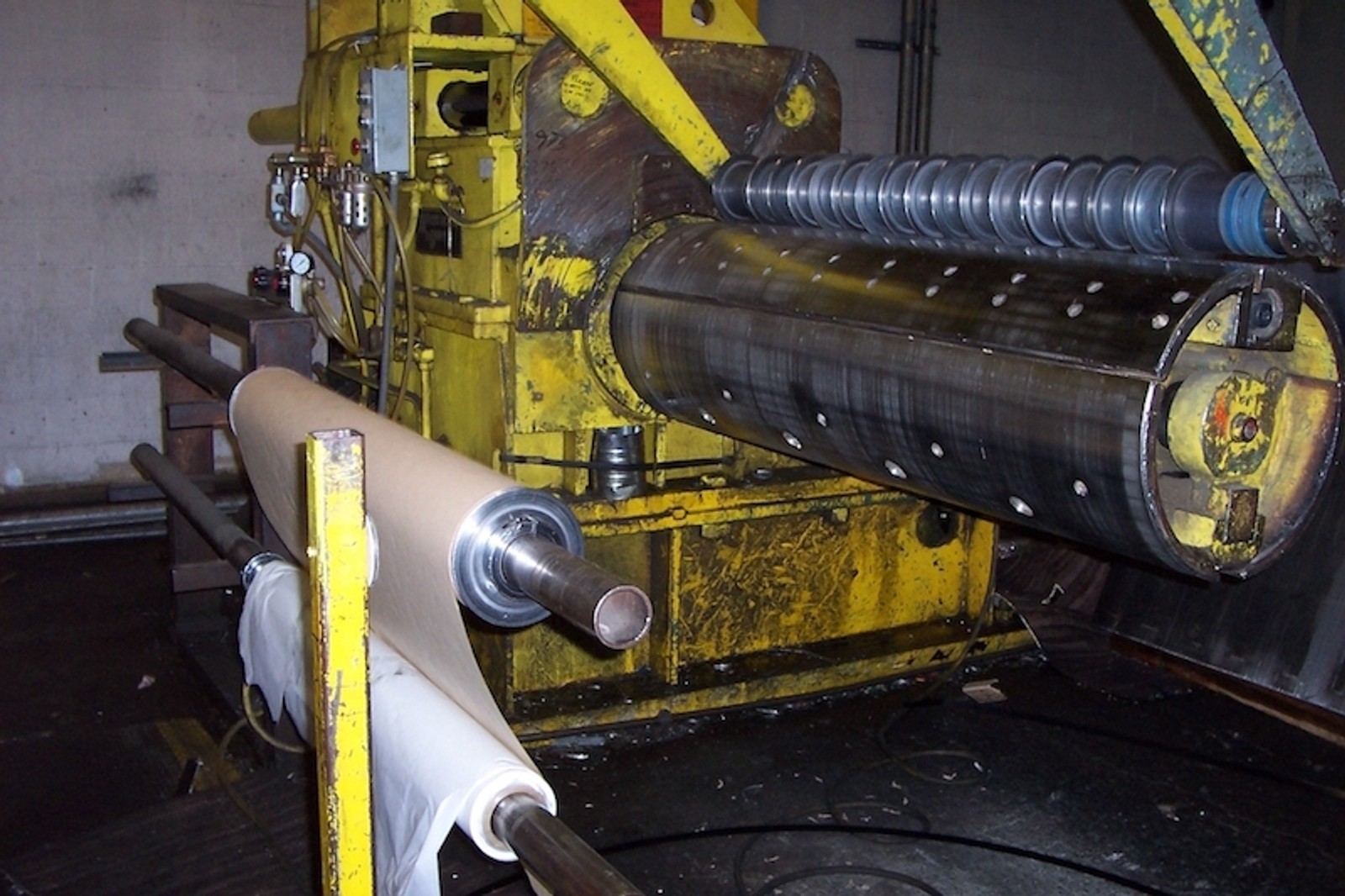

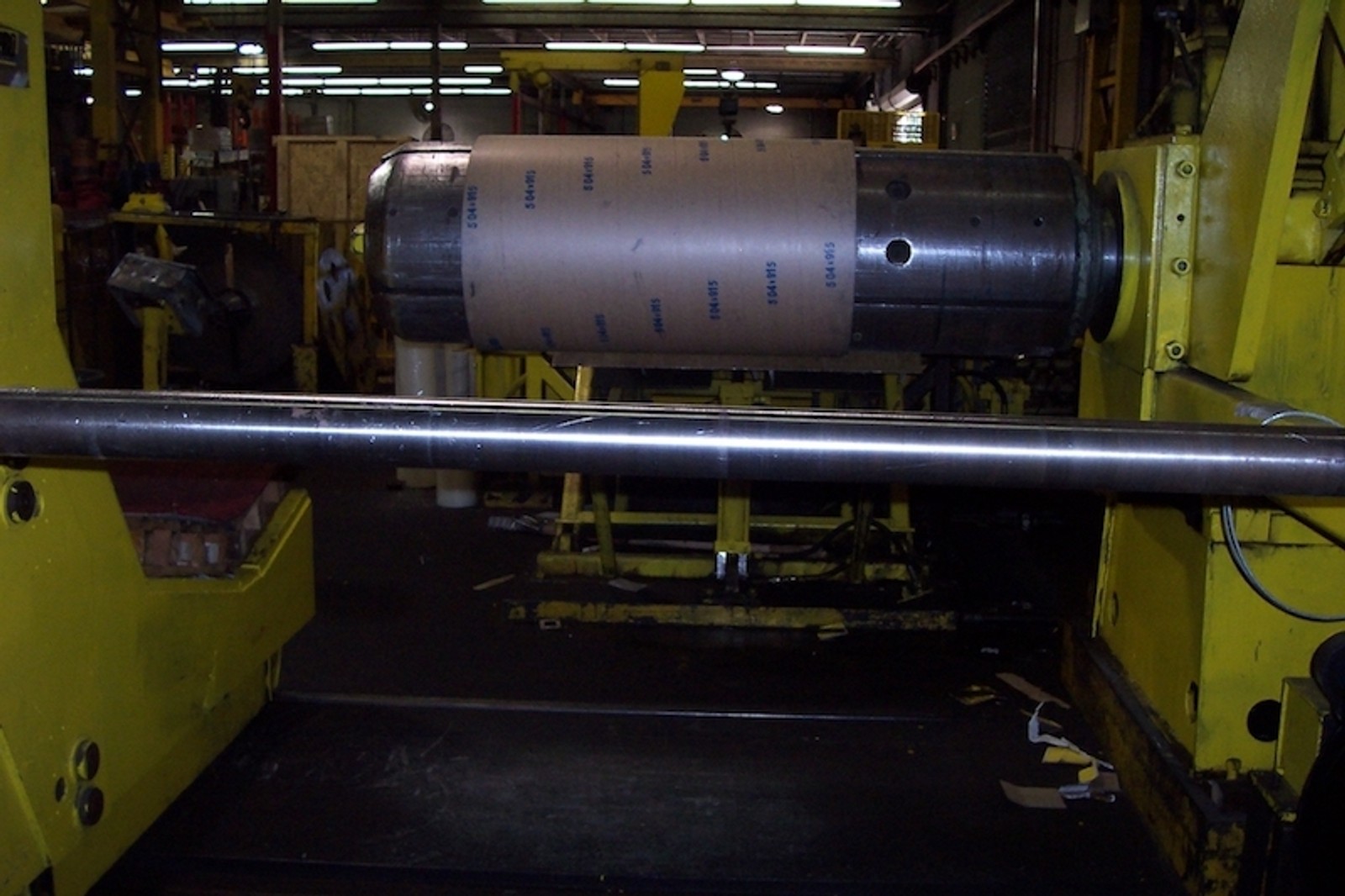

Recoiler
Powered Over Arm Separator
Hydraulic Push - Off
Powered Gripper
75HP DC Motor Drive

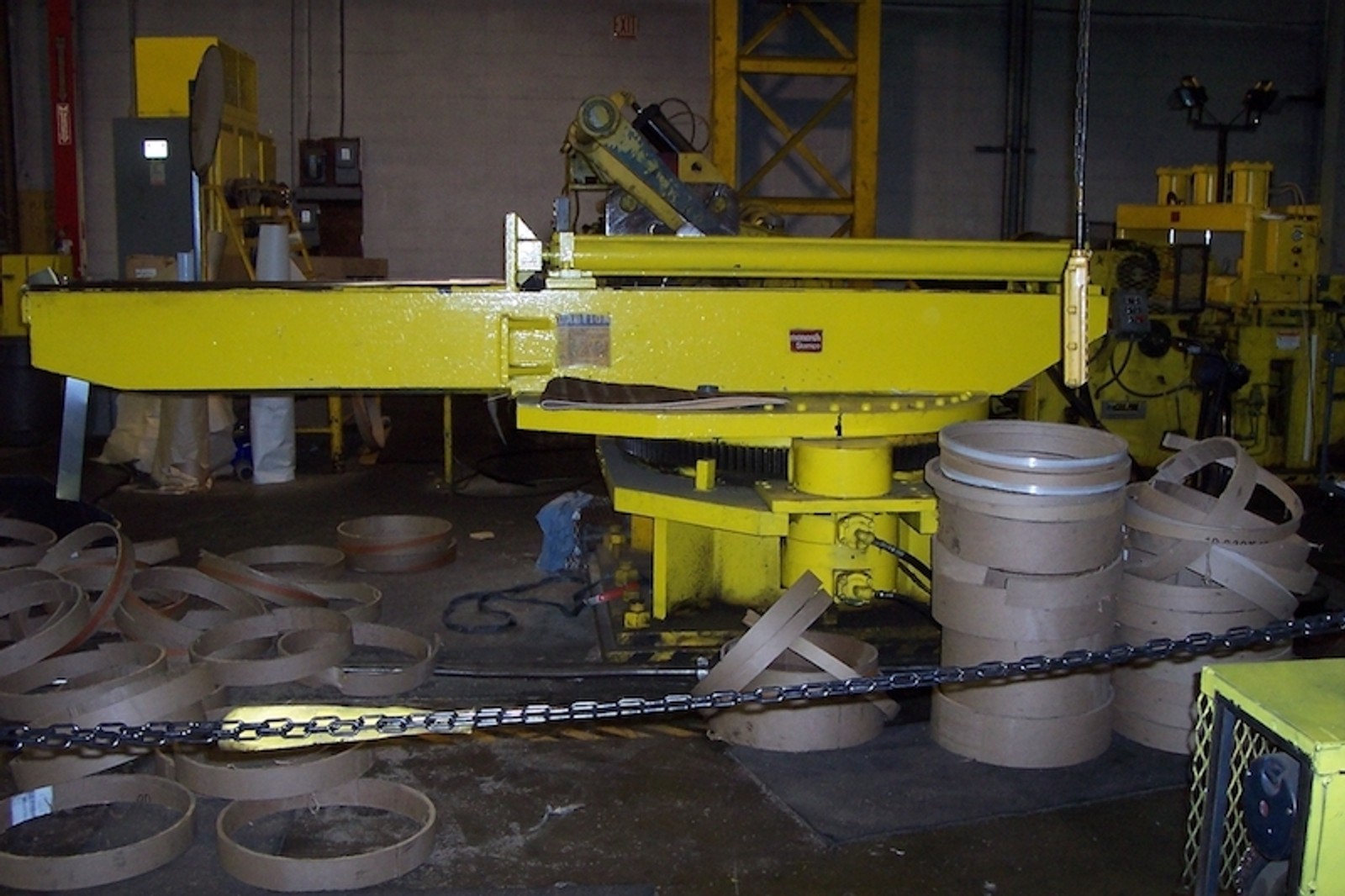

Exit 1-Arm Turnstile
Powered Push-Off

Hydraulic Down-Layer
Straight Coil Discharge

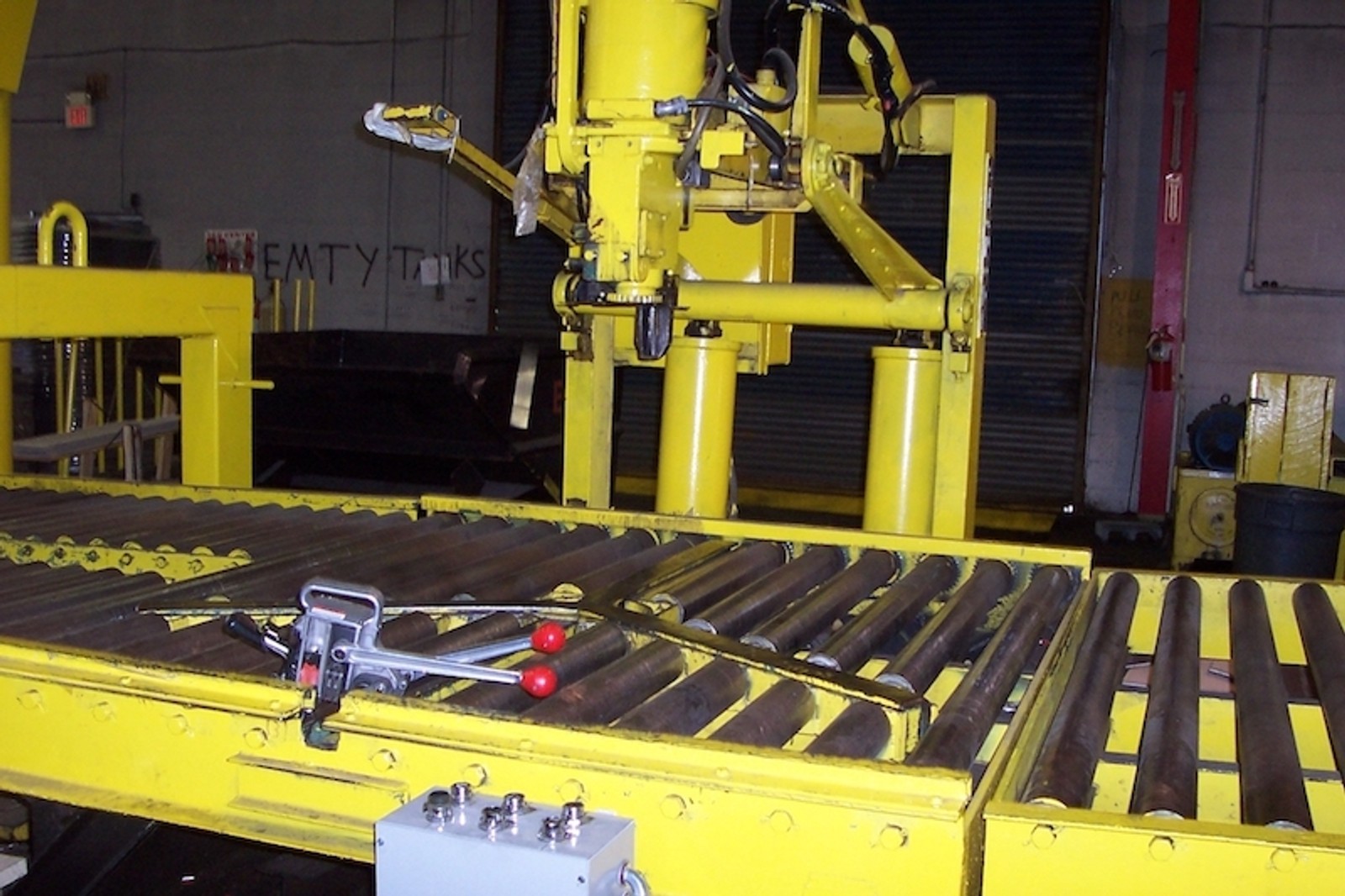

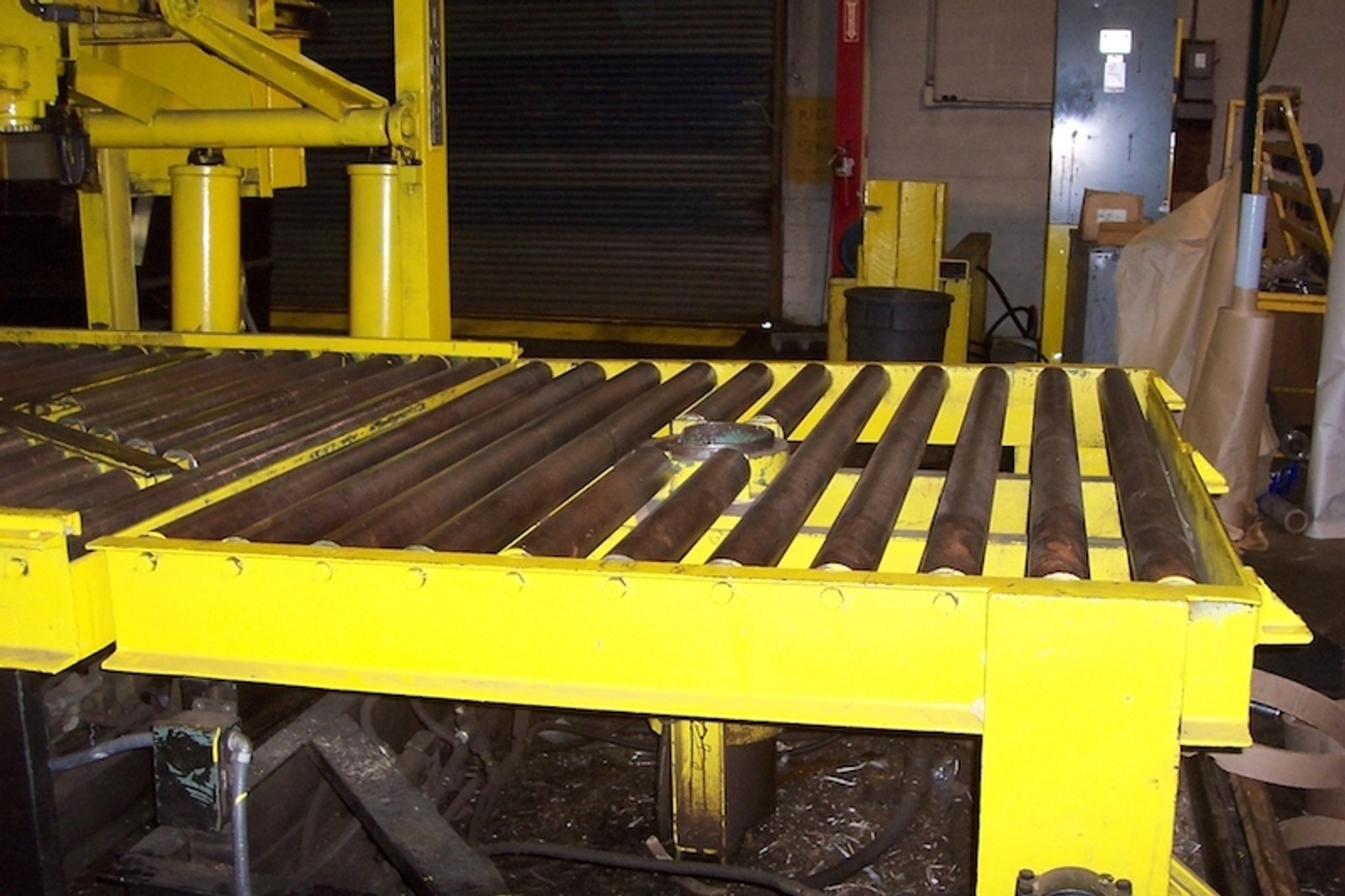

Complete Packaging Line

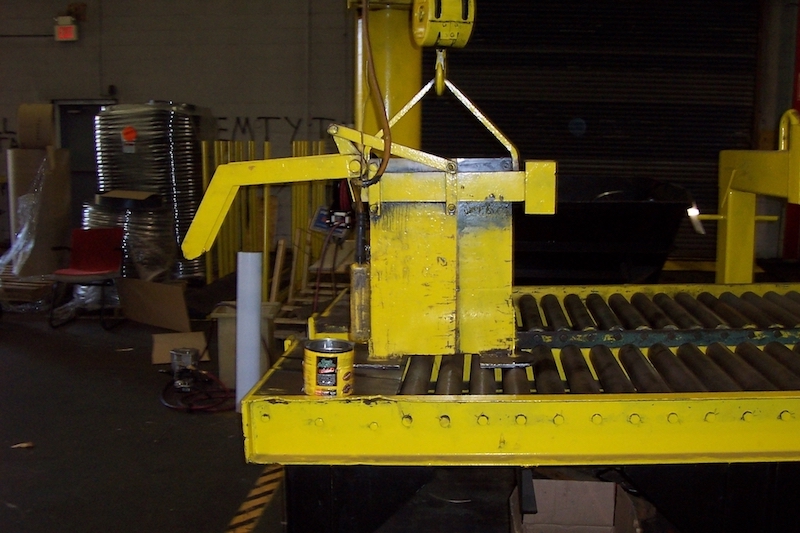

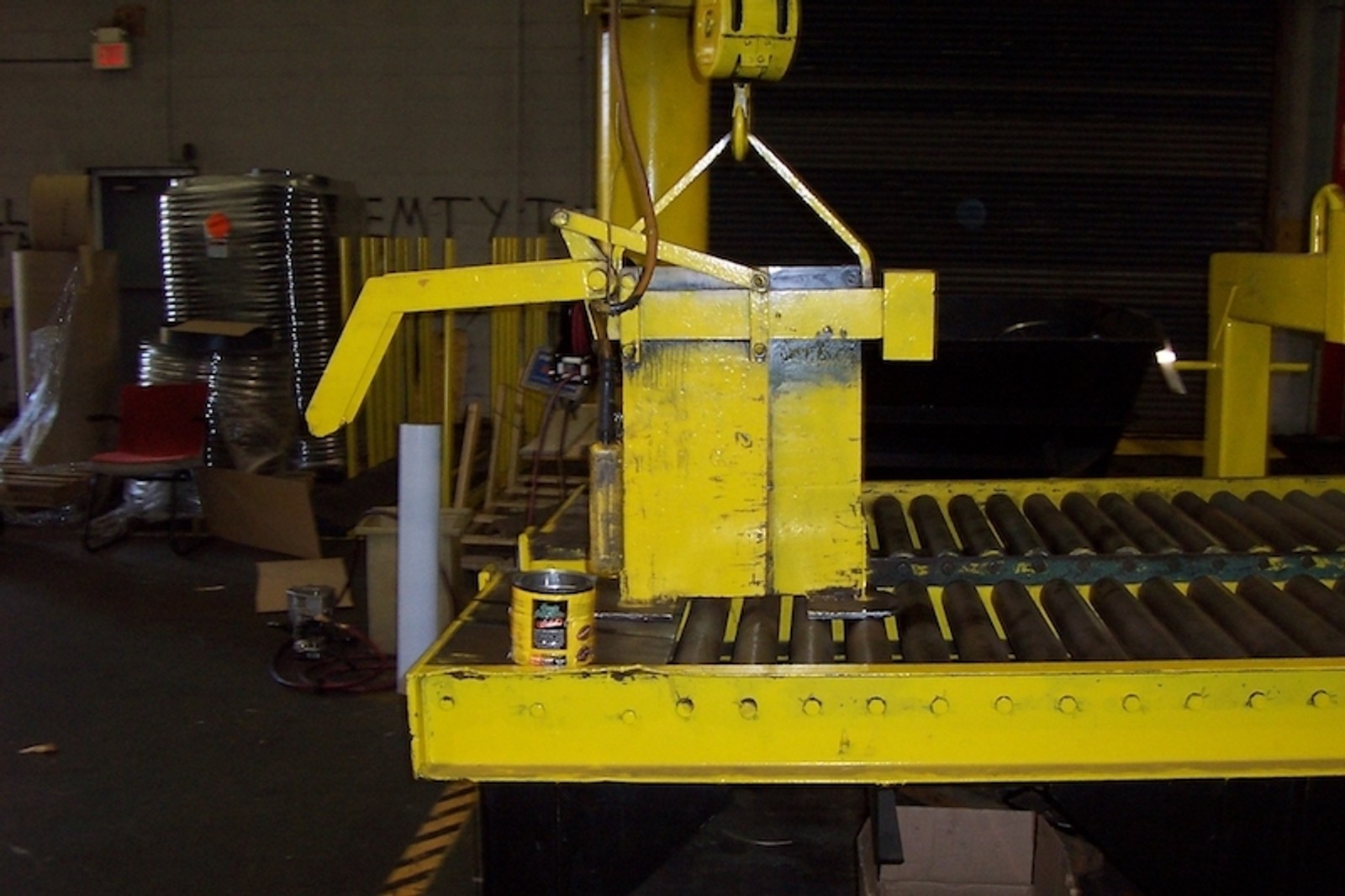

Banding Table with Lifting Cylinders
End JIB Crane

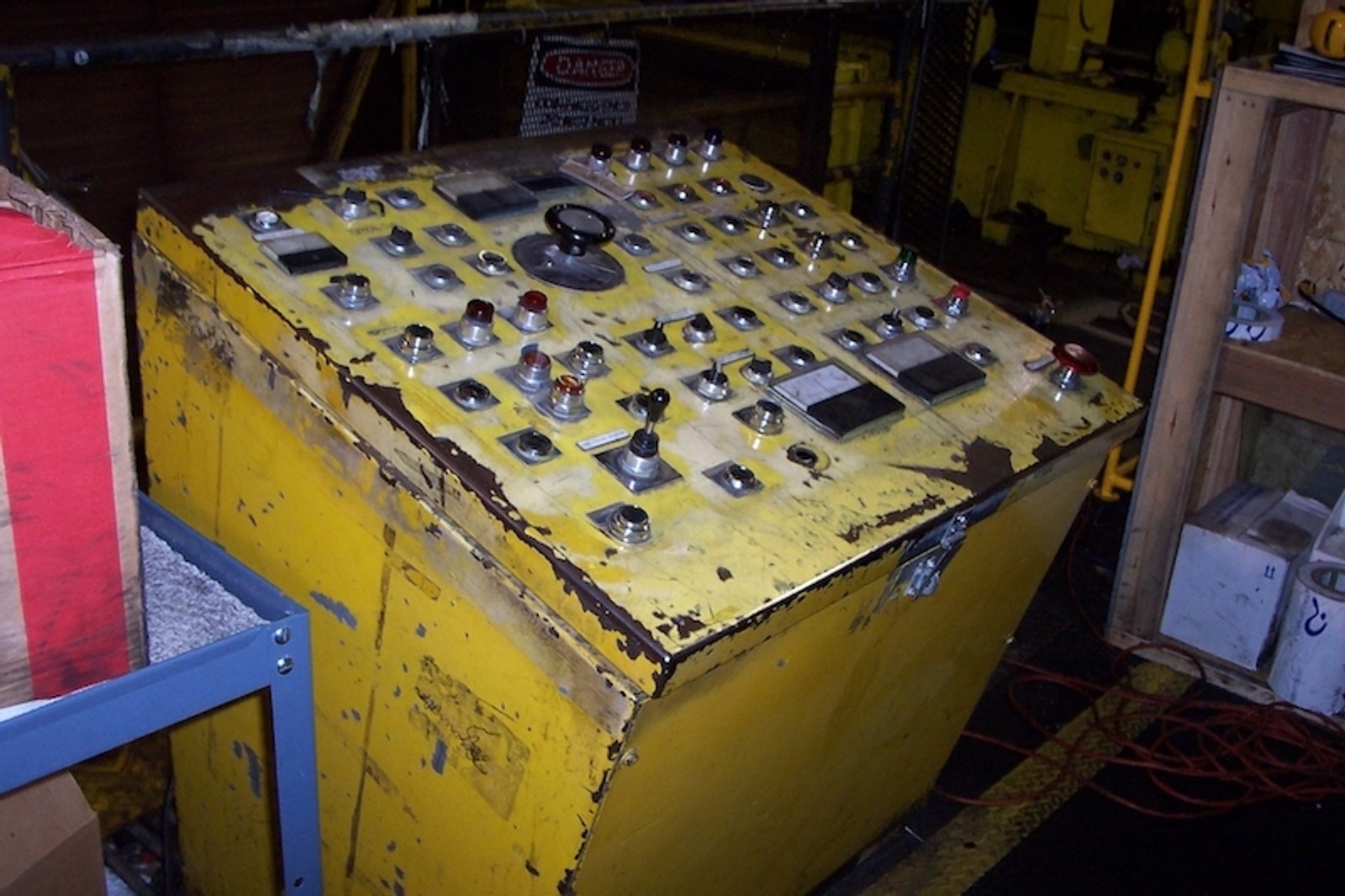

Electrics, Hydraulics, Controls, Knives & Tooling
