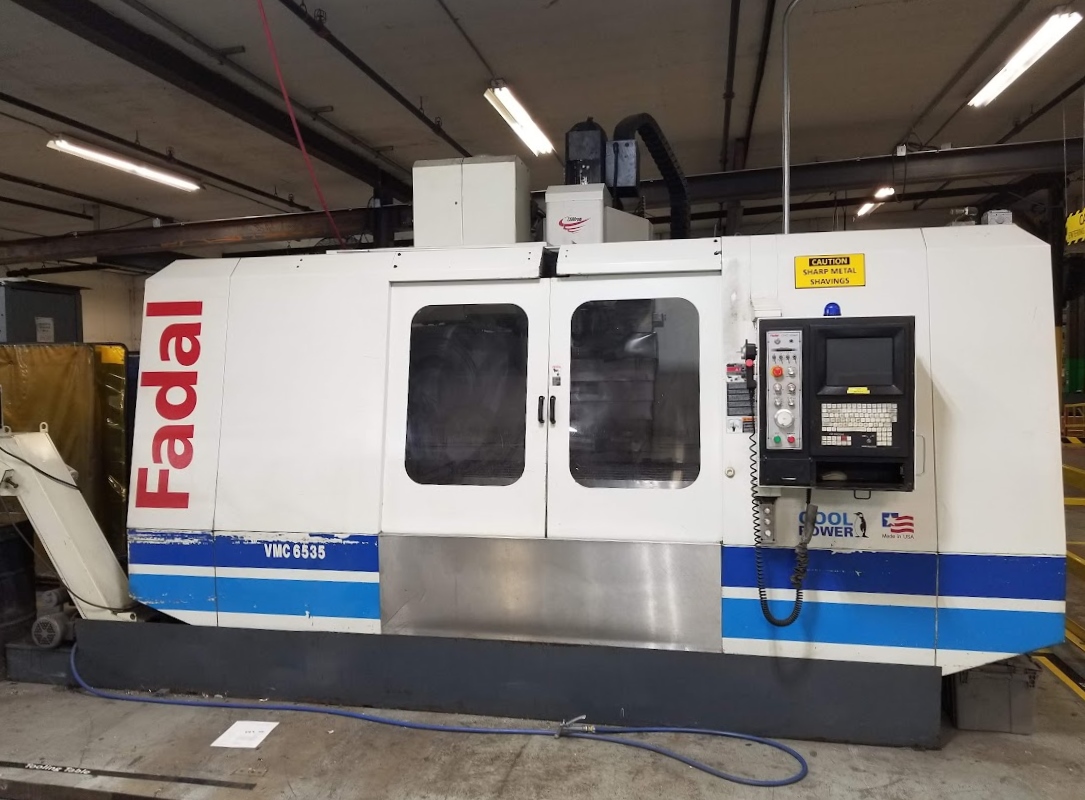

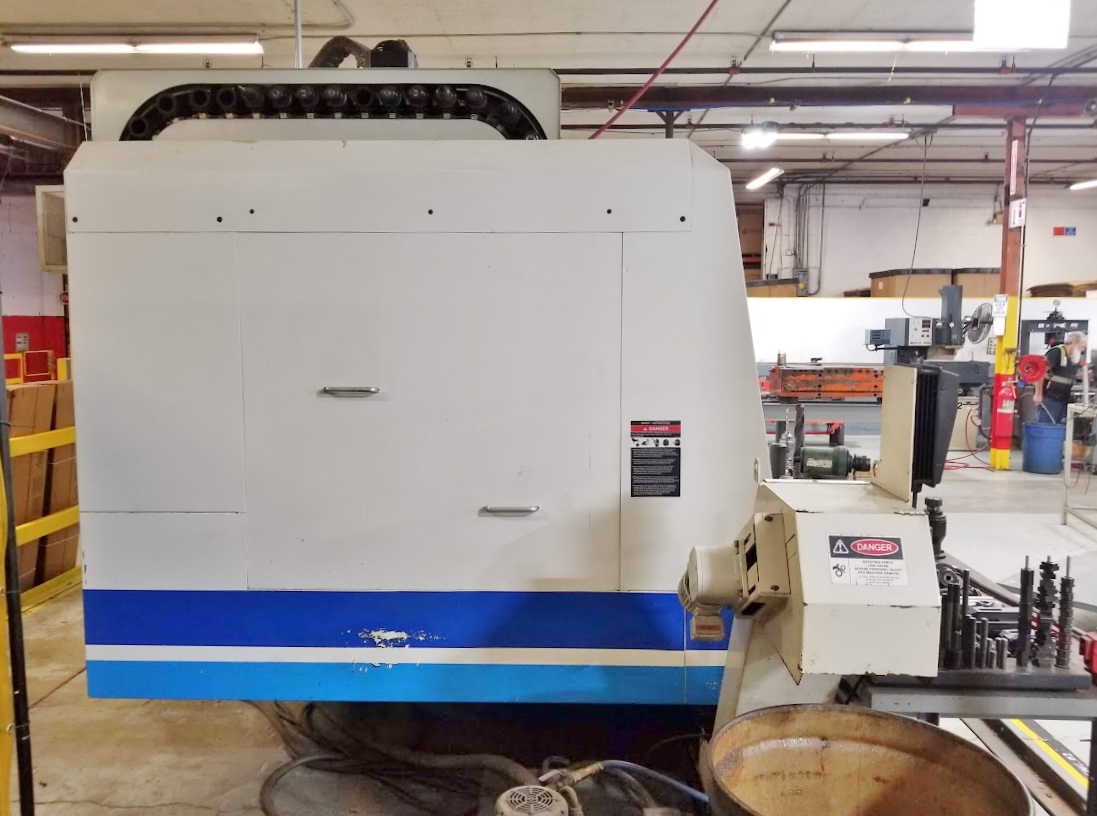

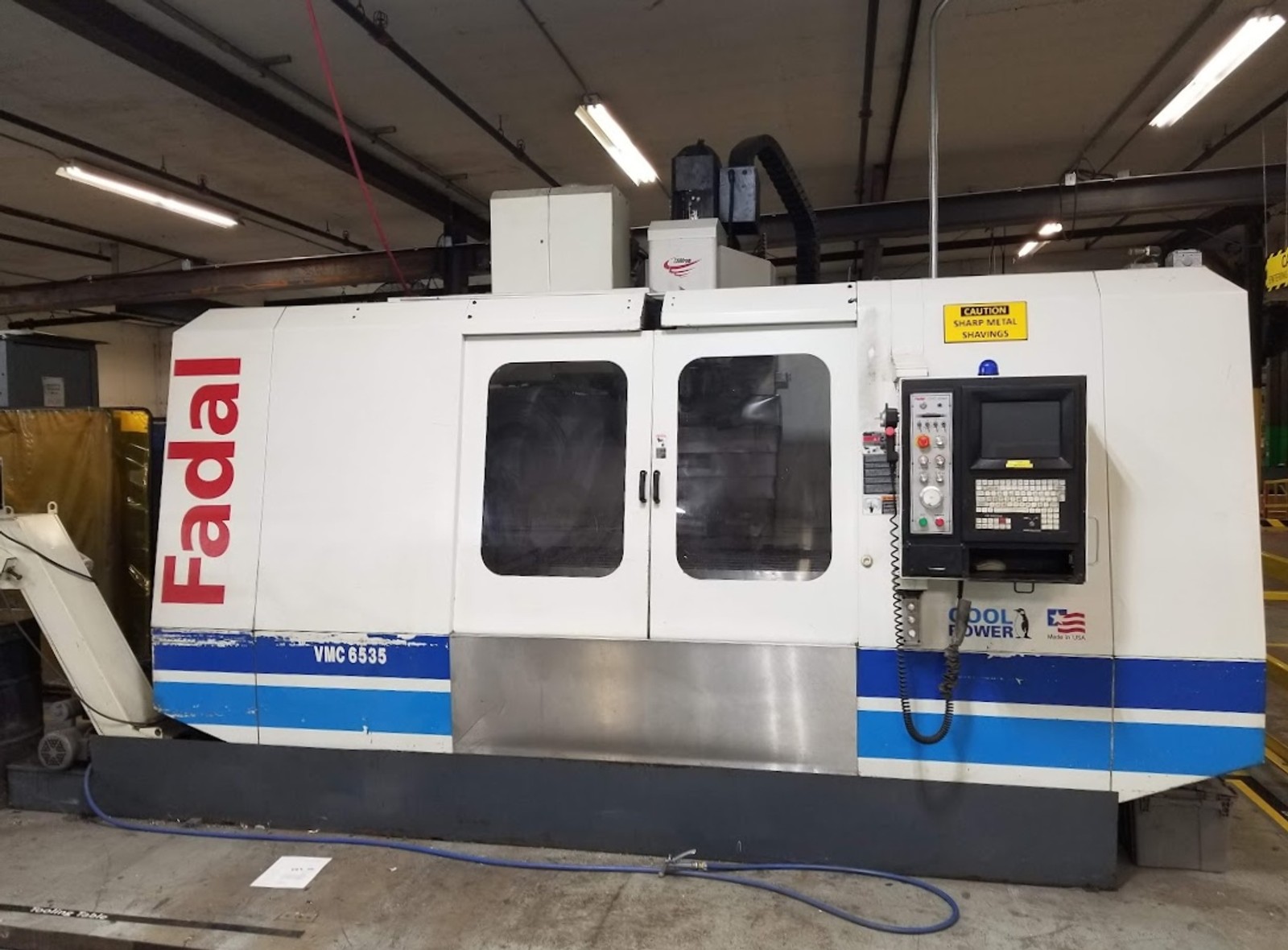

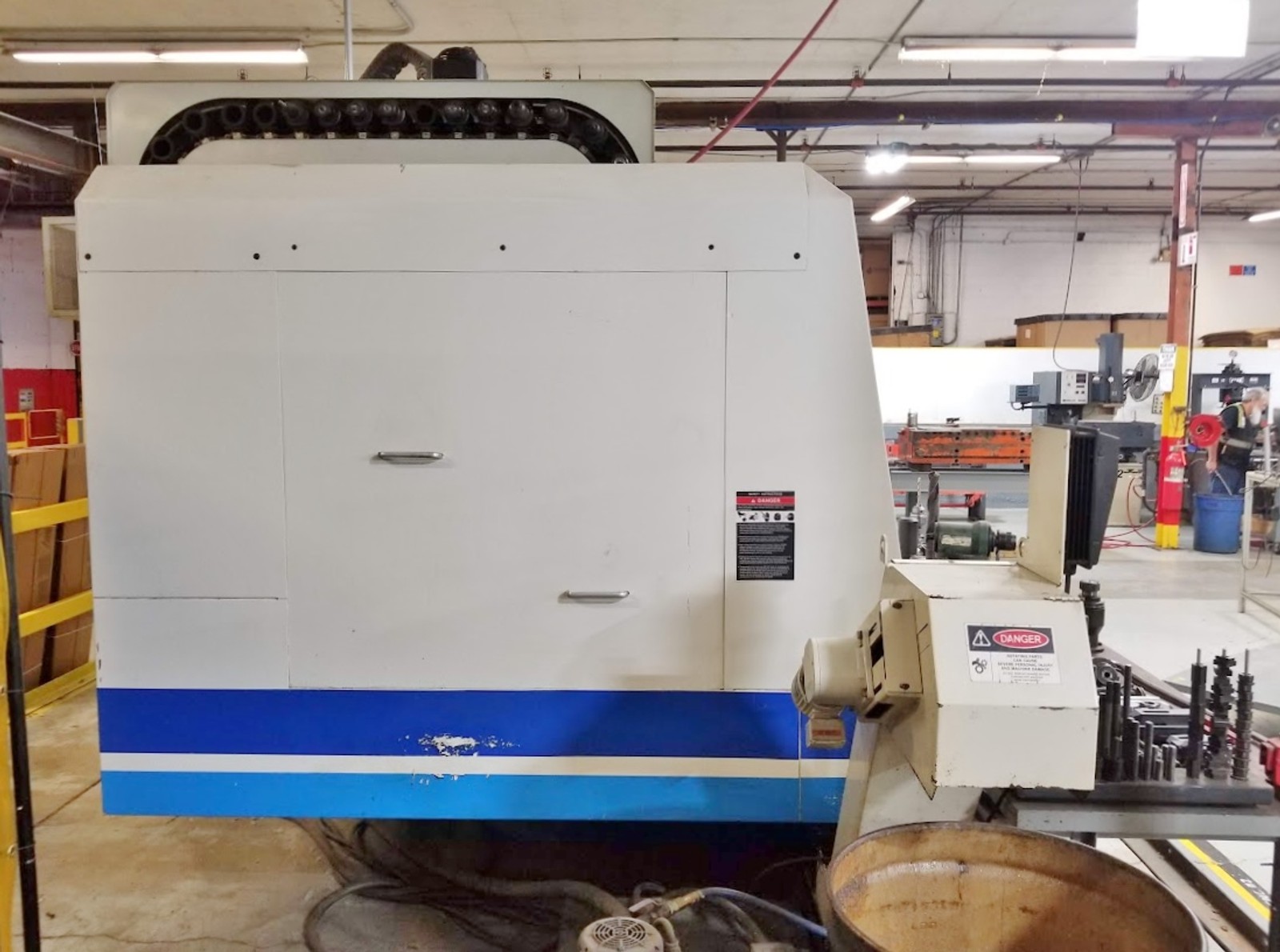

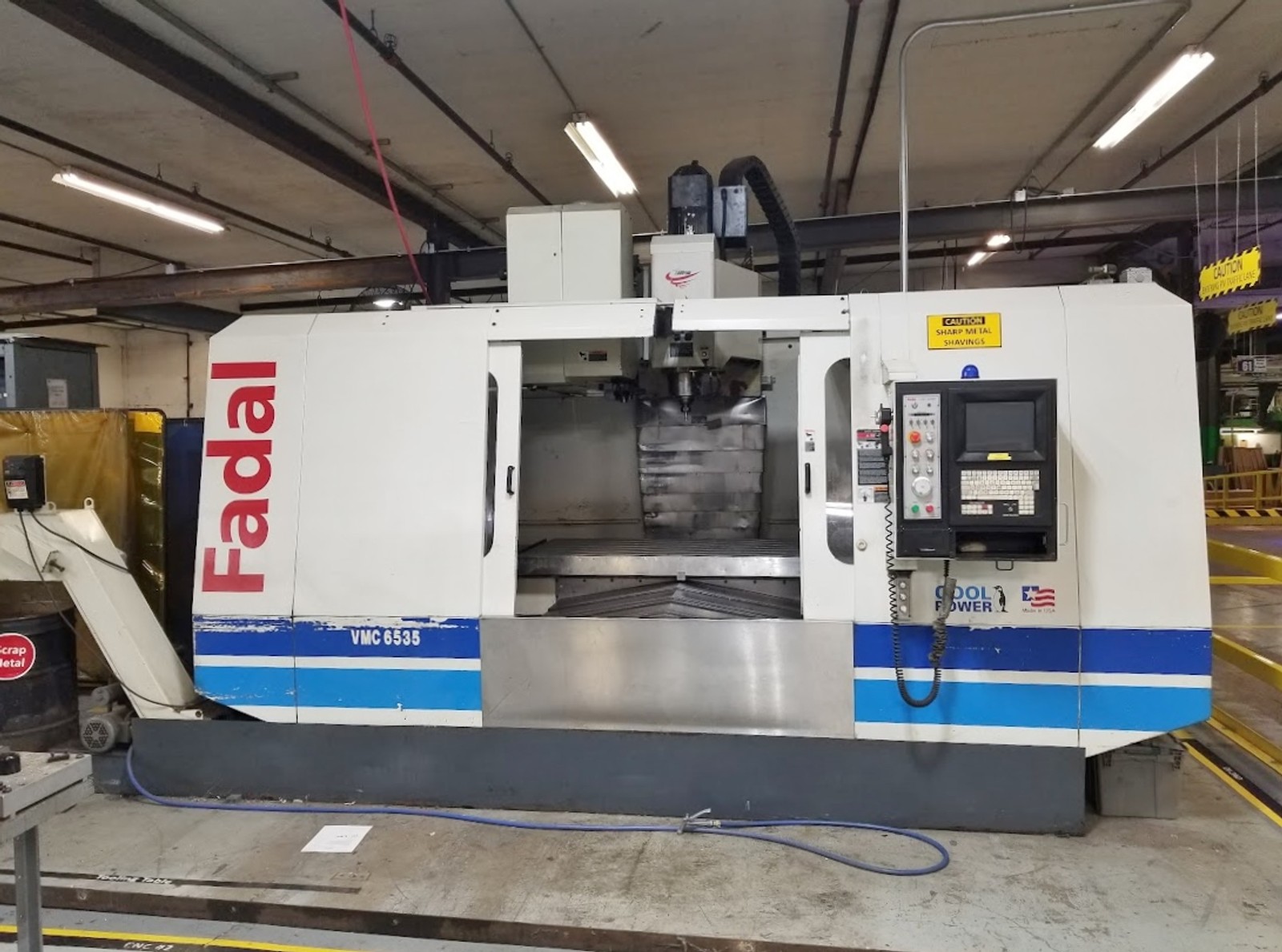

2002 FADAL VMC-6535-50

Manufacturer

FADAL

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

497097

Model

VMC-6535-50

Dealer Location

Maryland

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

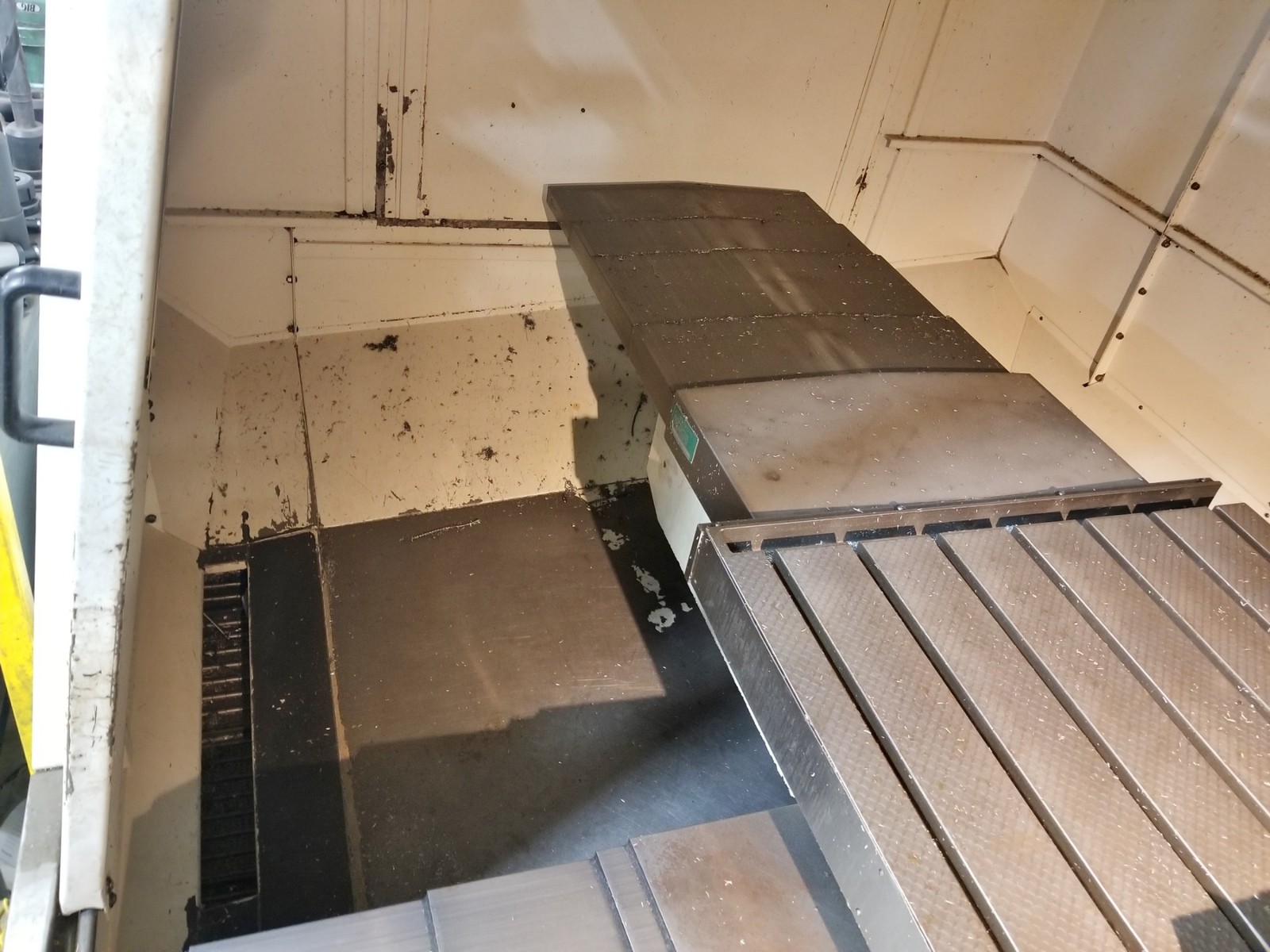

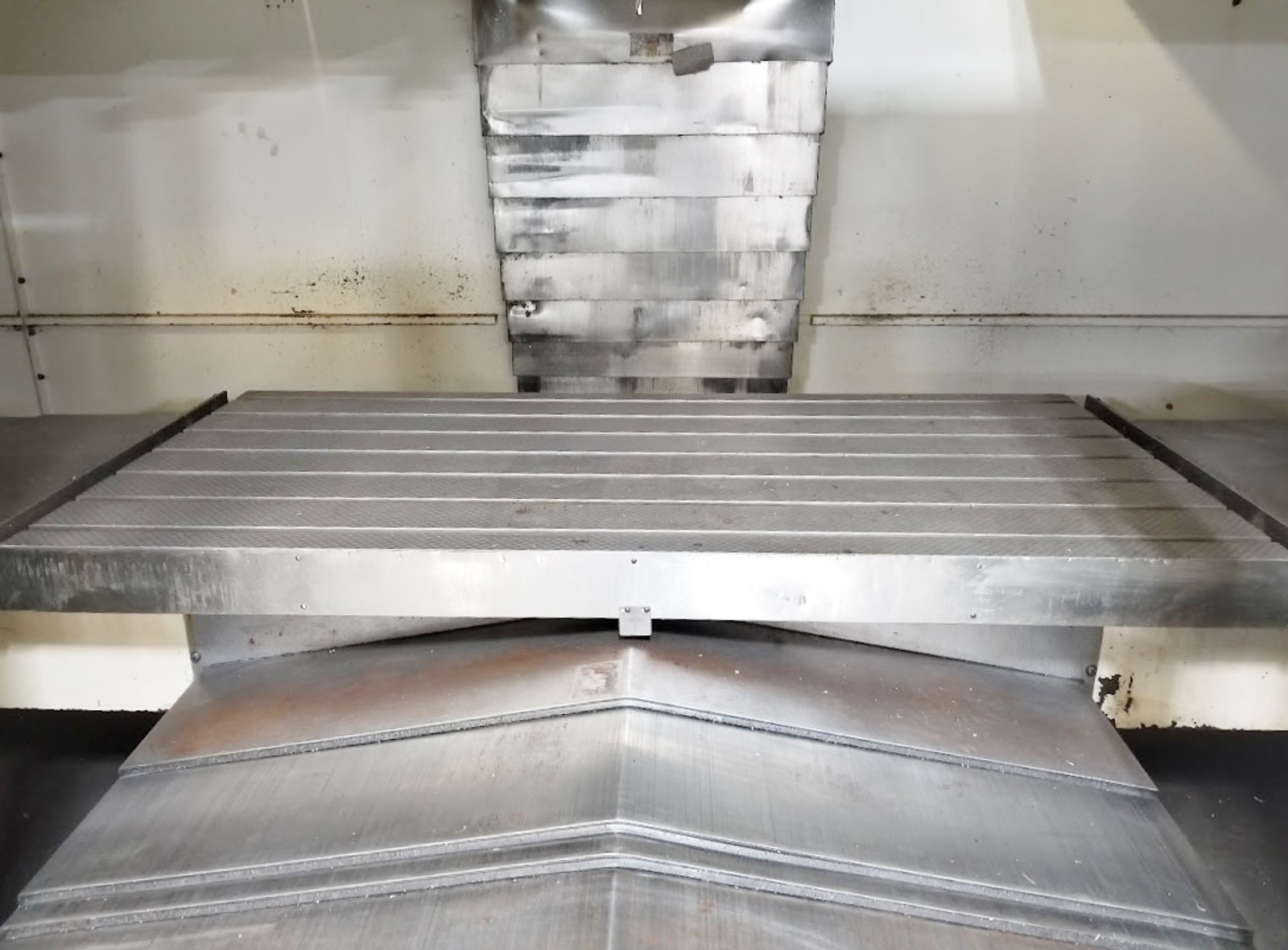

TABLE DIMENSIONS........... 74.8" x 26.5"
TABLE CAPACITY............. 4250 LBS
X-AXIS TRAVEL.............. 65"
Y-AXIS TRAVEL.............. 35"
Z-AXIS TRAVEL.............. 34"
SPINDLE SPEED.............. 7500 RPM
SPINDLE MOTOR.............. 22.5 HP
SPINDLE TAPER.............. CAT 50
TOOL CAPACITY.............. 32 ATC
RAPID TRAVERSE RATE X/Y.... 900 IPM
RAPID TRAVERSE RATE Z...... 700 IPM
CUTTING FEEDRATE........... 400 IPM

EQUIPPED WITH:

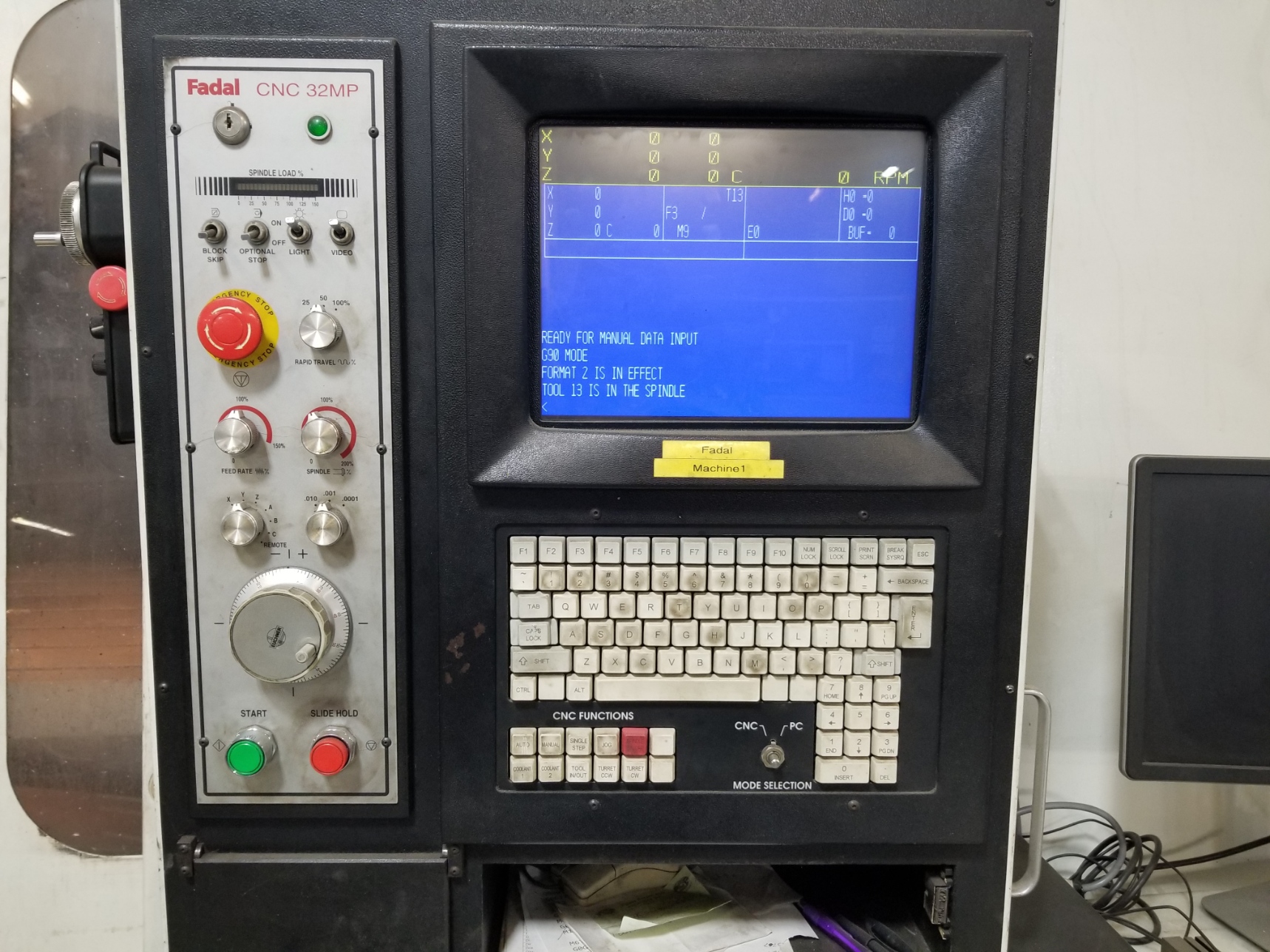

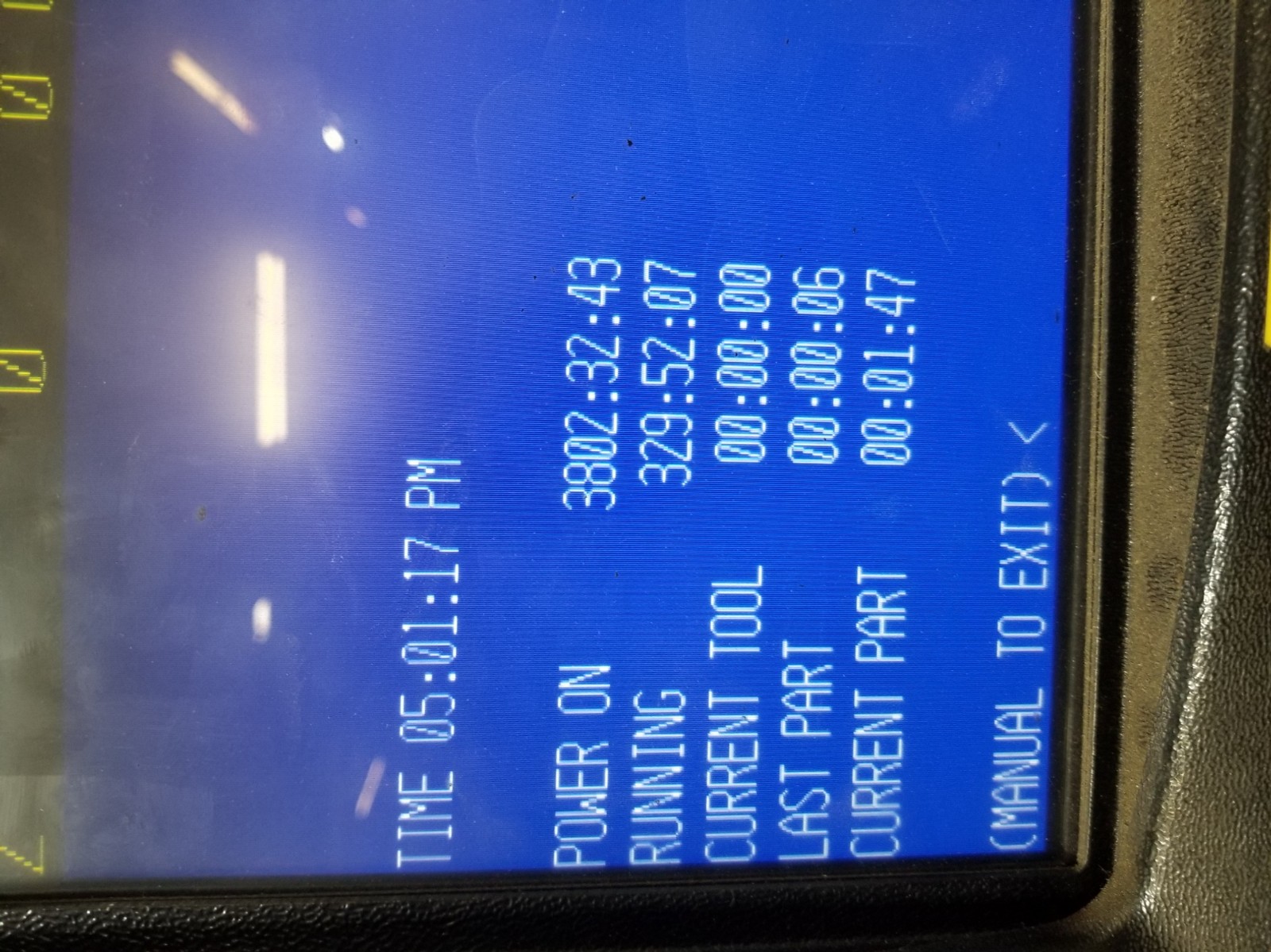

FADAL 32MP CNC CONTROL
THROUGH SPINDLE COOLANT
WASH DOWN COOLANT SYSTEM

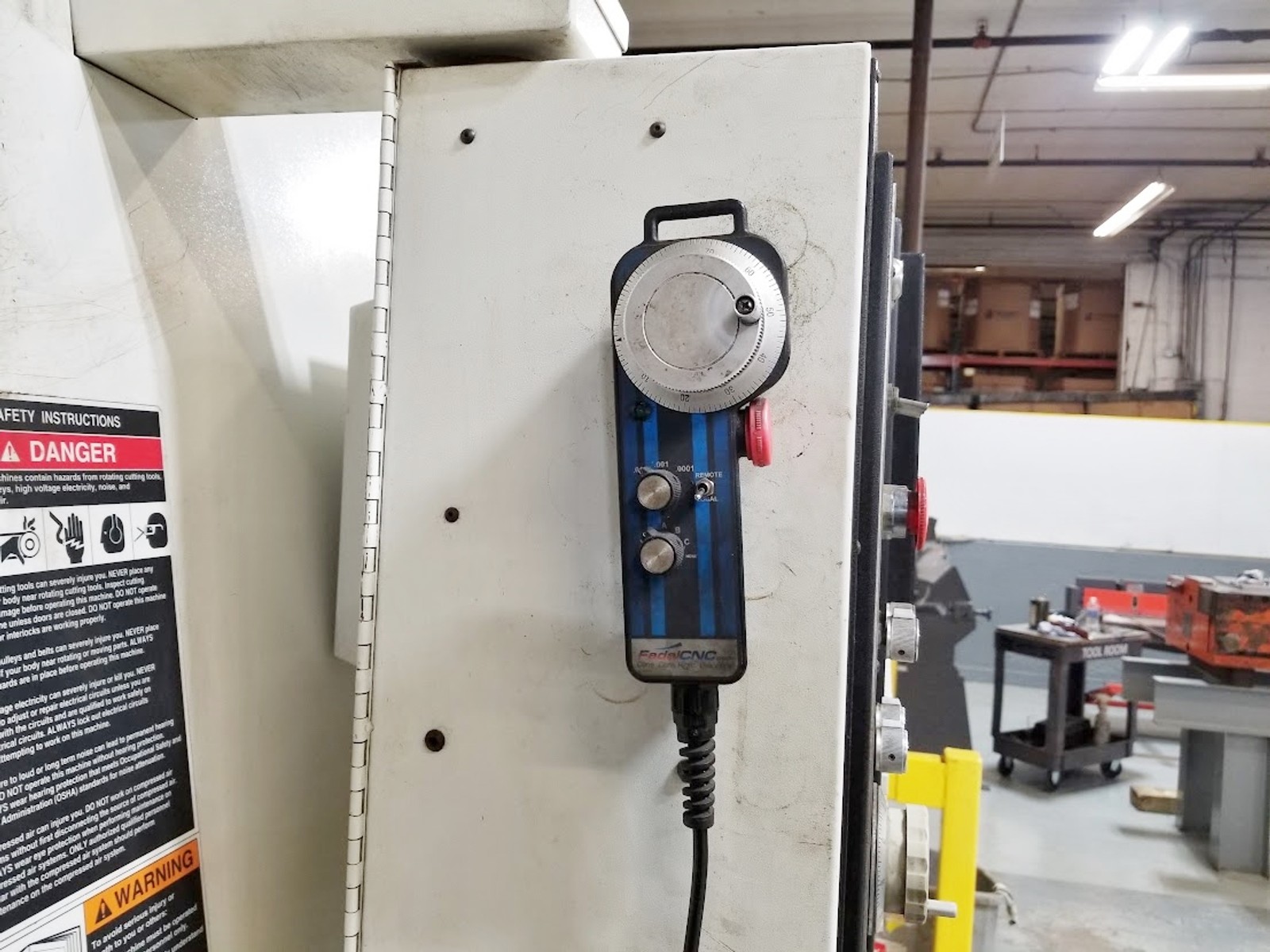

REMOTE MPG
HIGH TORQUE OPTION
CHIP CONVEYOR
HIGH SPEED CPU
GRAPHICS
RIGID TAPPING
(2) GROUND WAYS PER AXIS (X/Y/Z)
4 WAY SURFACES ON SADDLE
DUAL BALL SCREW SUPPORTS (X/Y/Z)
422K EXPANDED MEMORY
30 AMPS @ 460 VAC
VOLTAGE 480 VAC
COOL POWER

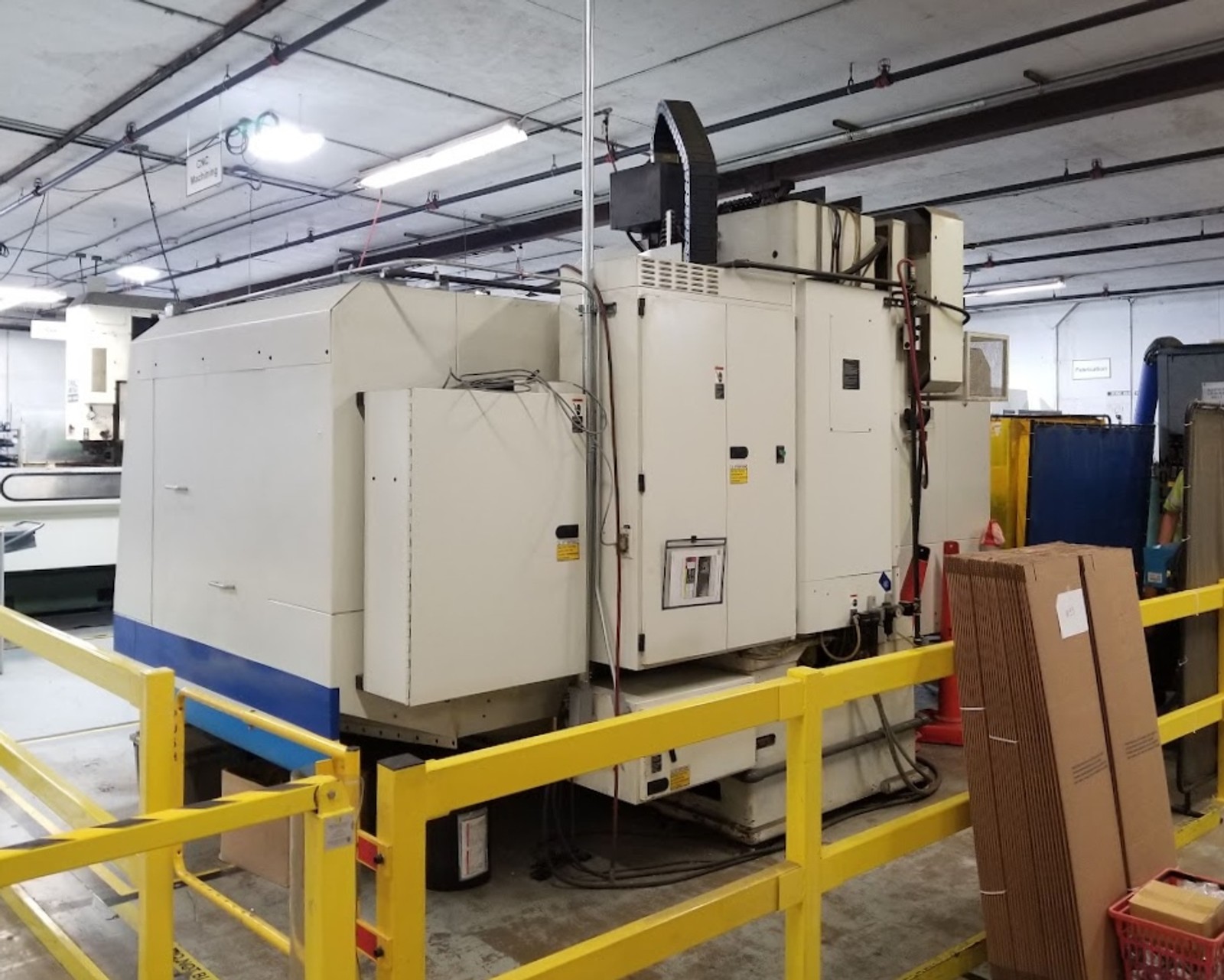

** MACHINE IS IN PLANT, UNDER POWER. AVAILABLE IMMEDIATELY
