DMG Mori CTX Gamma 2000 TC, Siemens 840D, 27.6" x 78", 36 ATC, 70 HP, 1000 PSI, 2012, #32247

Manufacturer

DMG MORI

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

32247

Model

CTX Gamma 2000

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32247

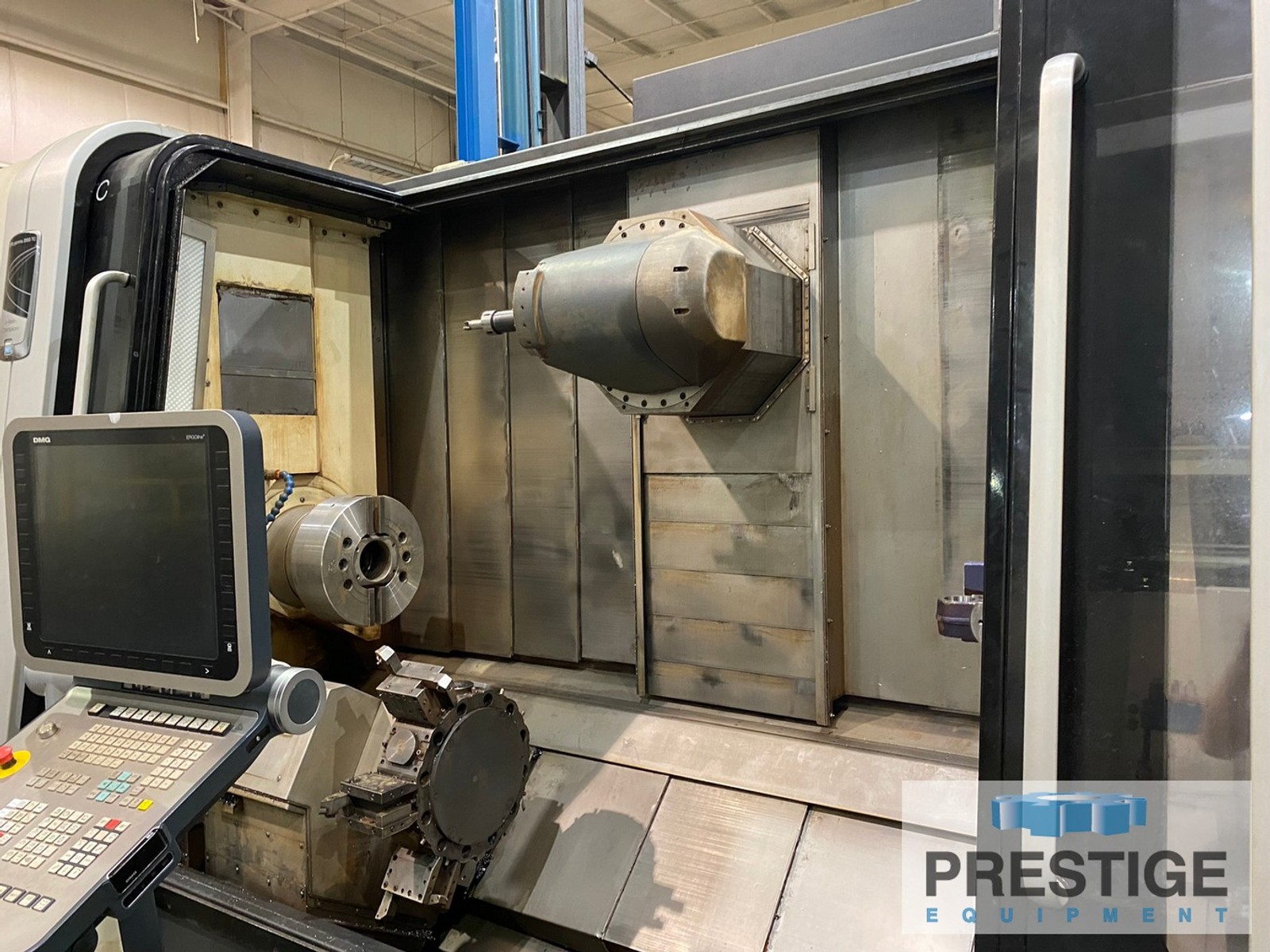

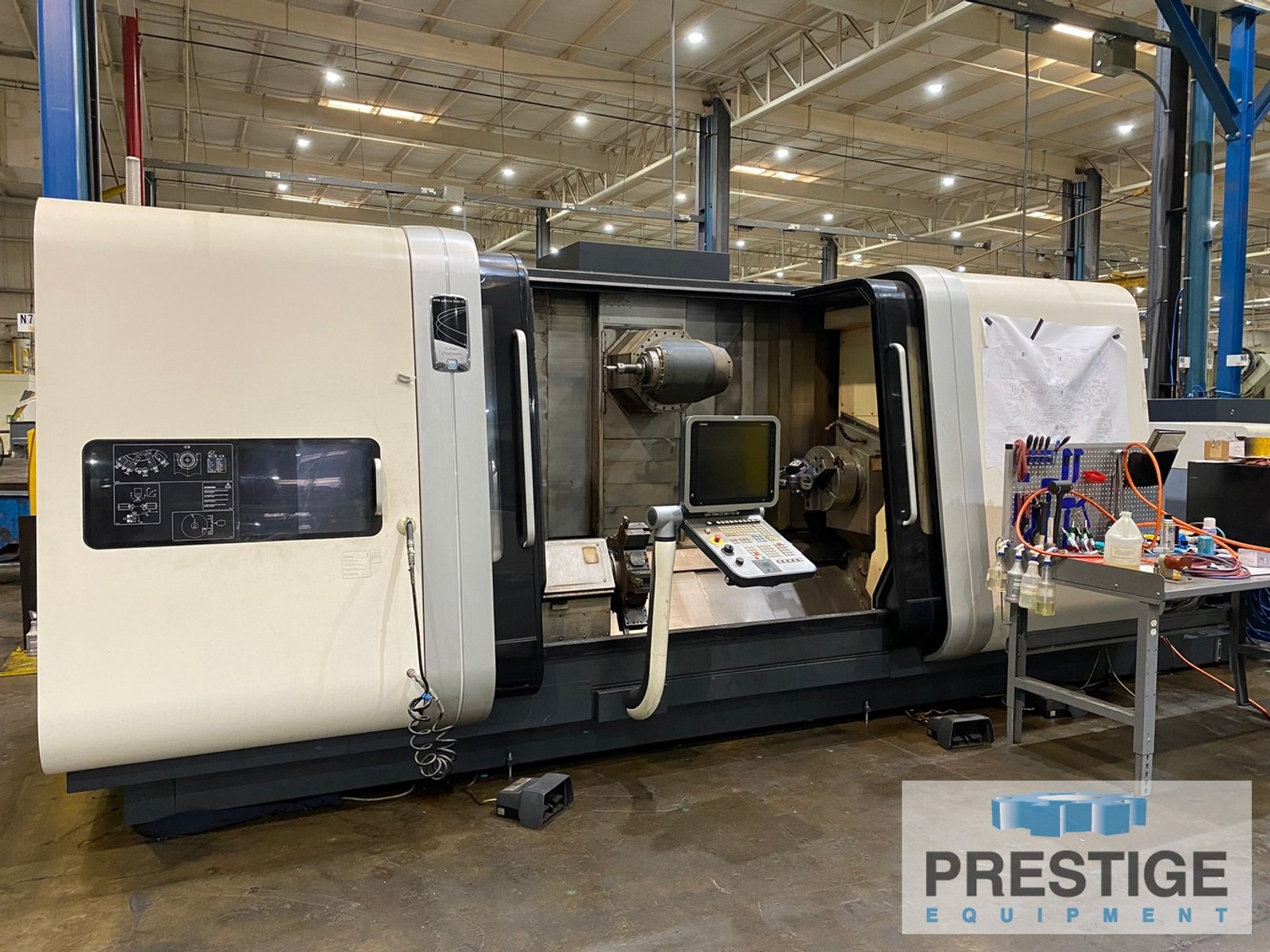

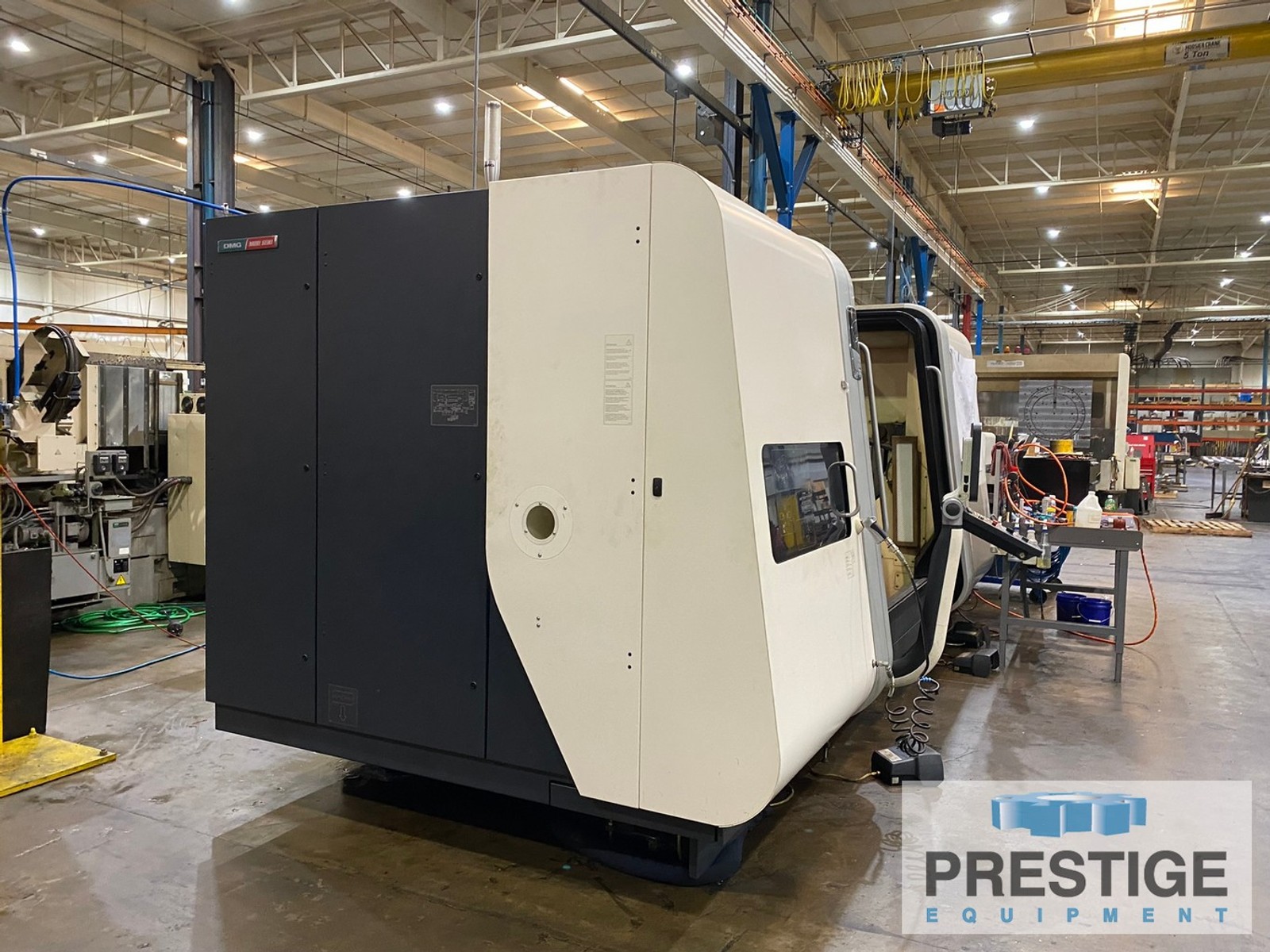

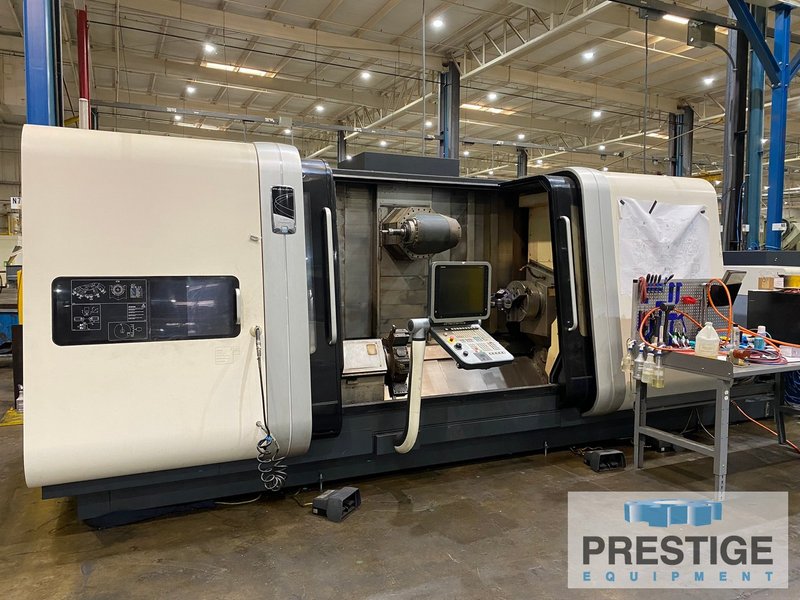

DMG Mori CTX Gamma 2000 TC CNC Mill Turn

FEATURES:

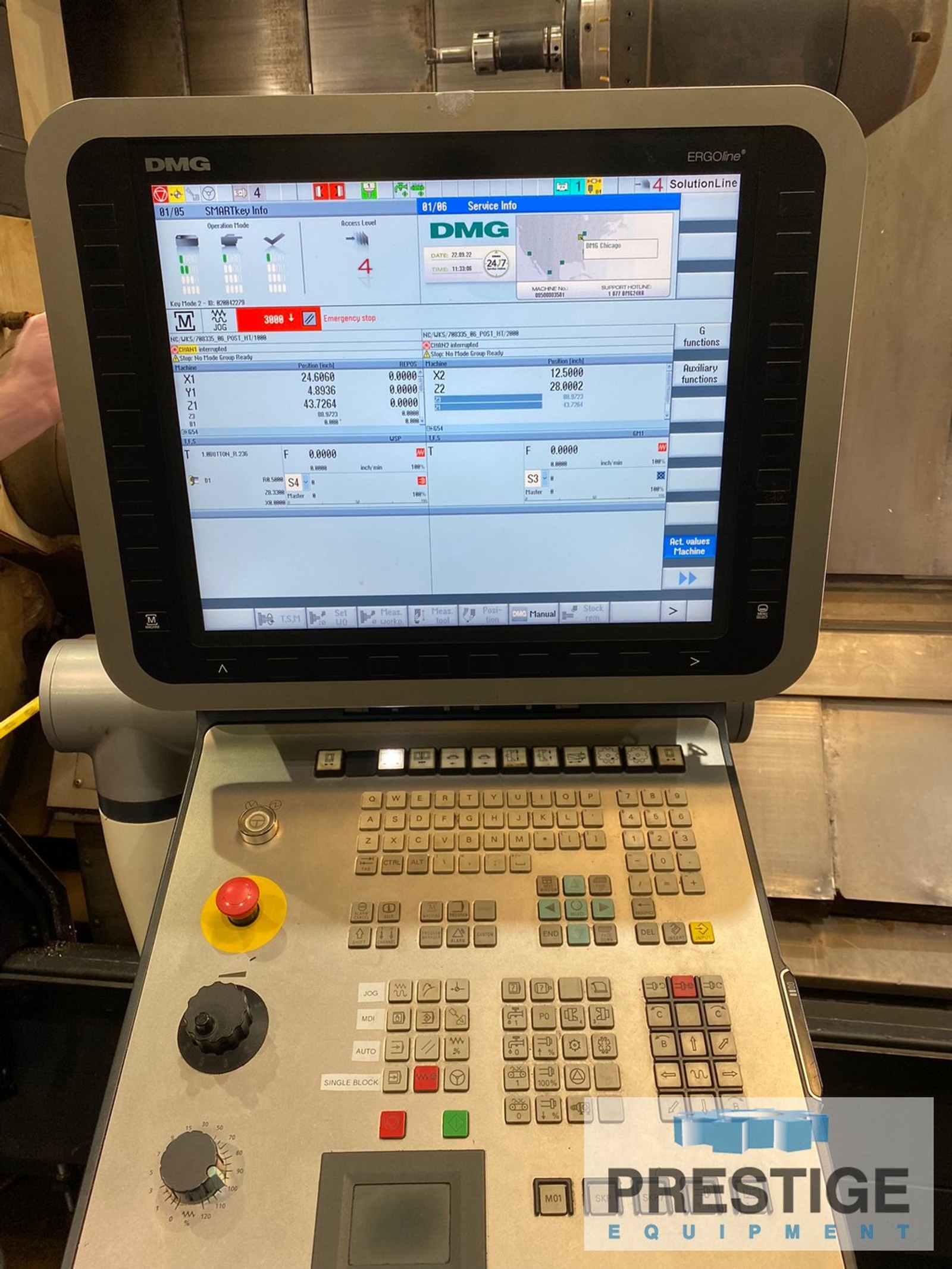

Siemens 840D CNC Control

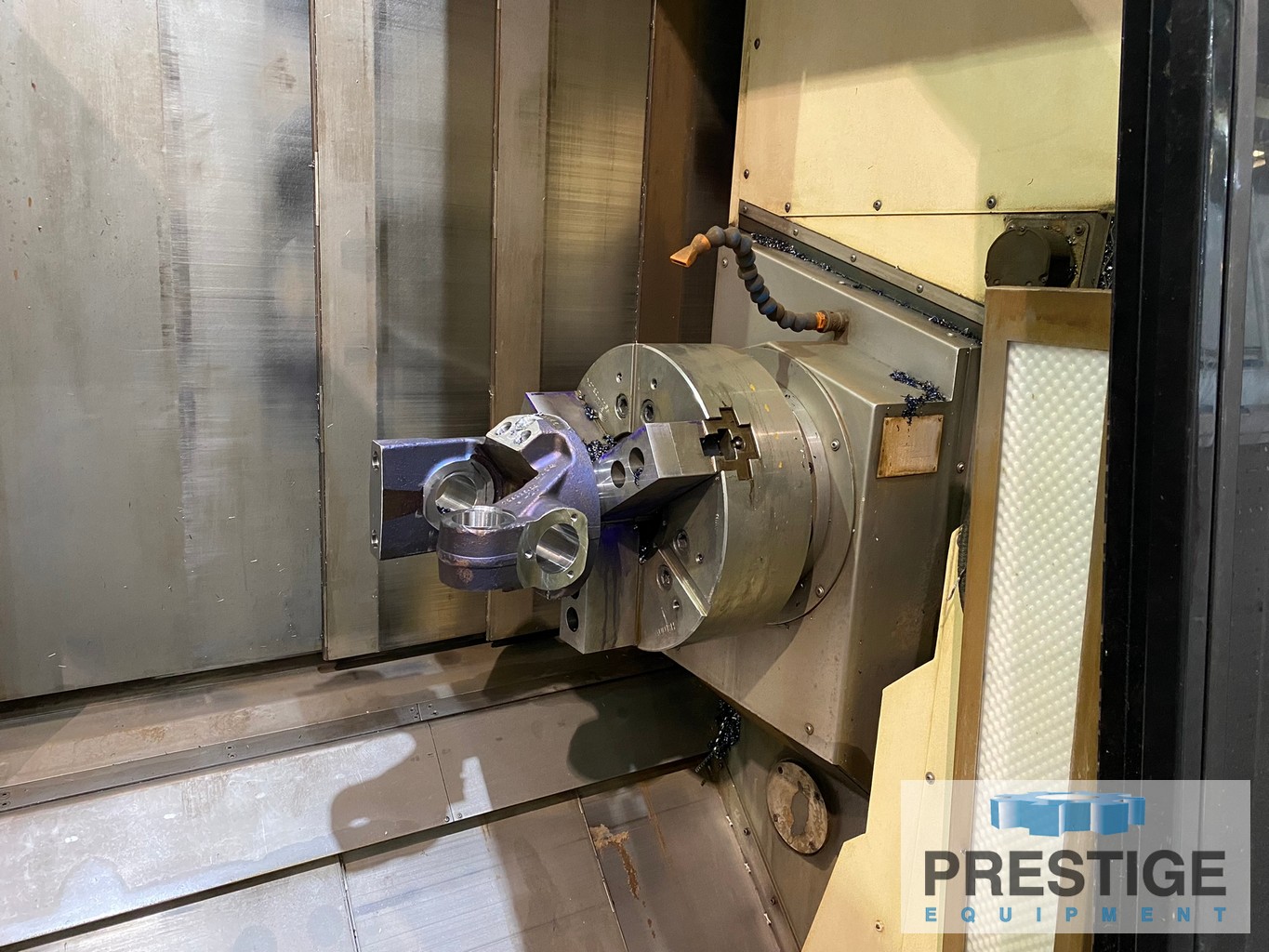

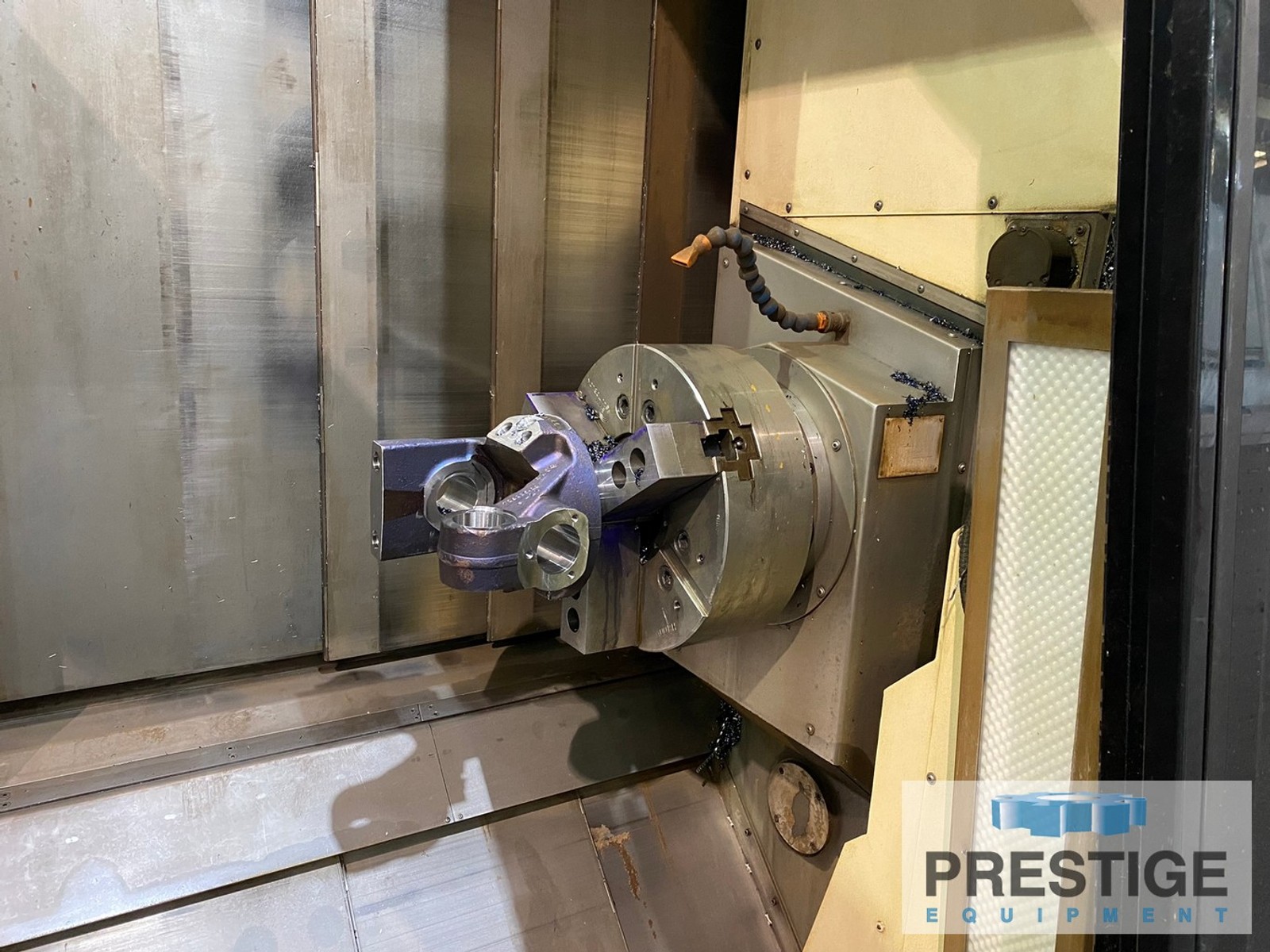

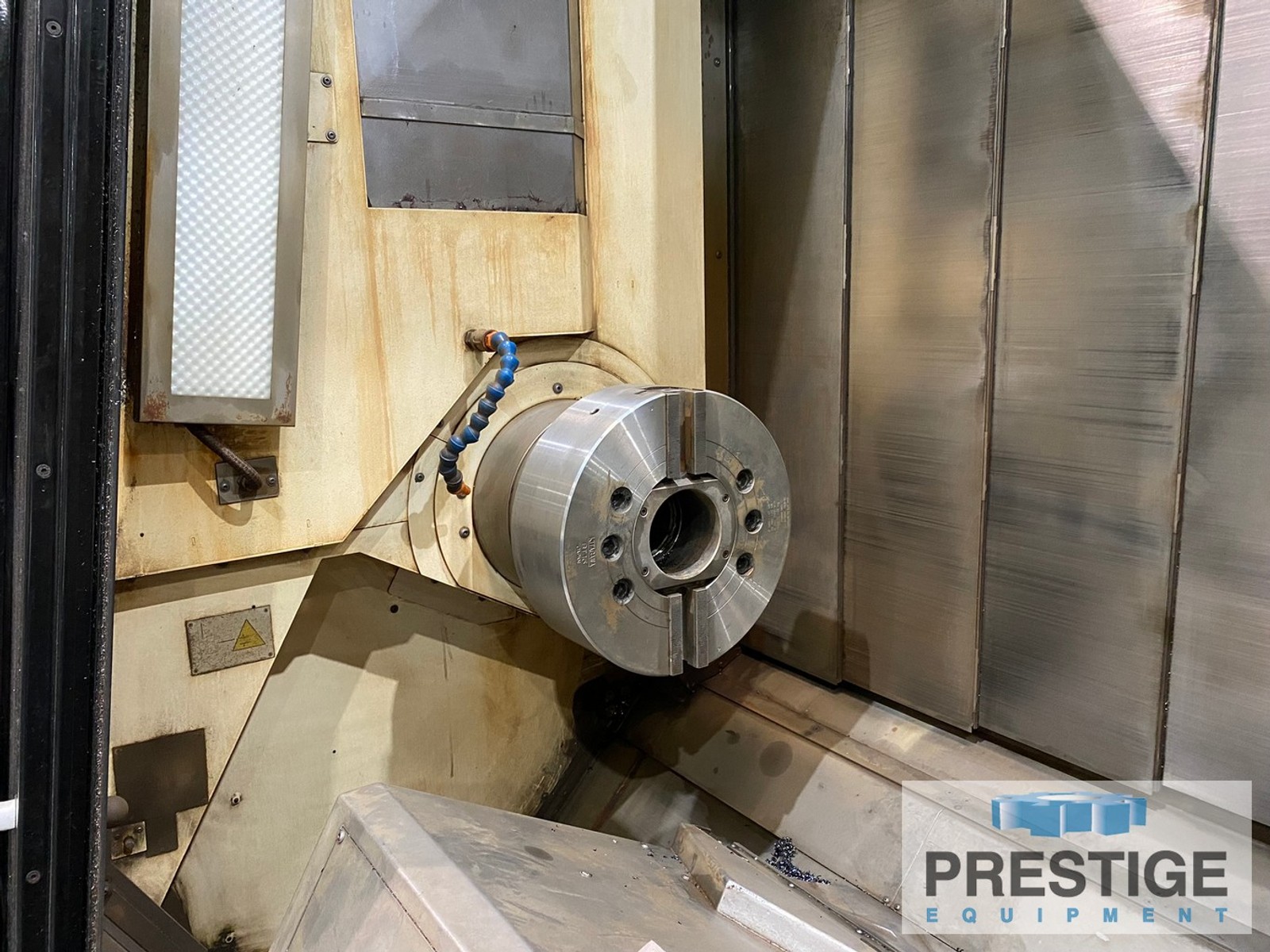

Main & Counter Spindles
15" Chuck on Main Spindle
18" Chuck on Counter Spindle
Lower Turret
36 Station Automatic Tool Changer
Tooling

CAPACITY:
Maximum Workpiece Diameter ............ 27.6"
Maximum Workpiece Length .............. 78.74"
Maximum Bar Capacity .................. 4.1"
X1 Travel ............................. 25.59"
Y1 Travel ............................. +/-7.87"
Z1 Travel ............................. 80.70"
Z2 Travel ............................. 75.19"
Z3 Travel ............................. 75.19"
B-Axis ................................ +/- 0.001 Degrees

MAIN SPINDLE:
Chuck Size ............................ 20"
Maximum Speed ......................... 2,500 RPM
Motor Output (30 minute rating) ....... 70 HP

SECOND SPINDLE:
Chuck Size ............................ 13"
Maximum Speed ......................... 4,000 RPM
Motor Output (30 minute rating) ....... 61 HP

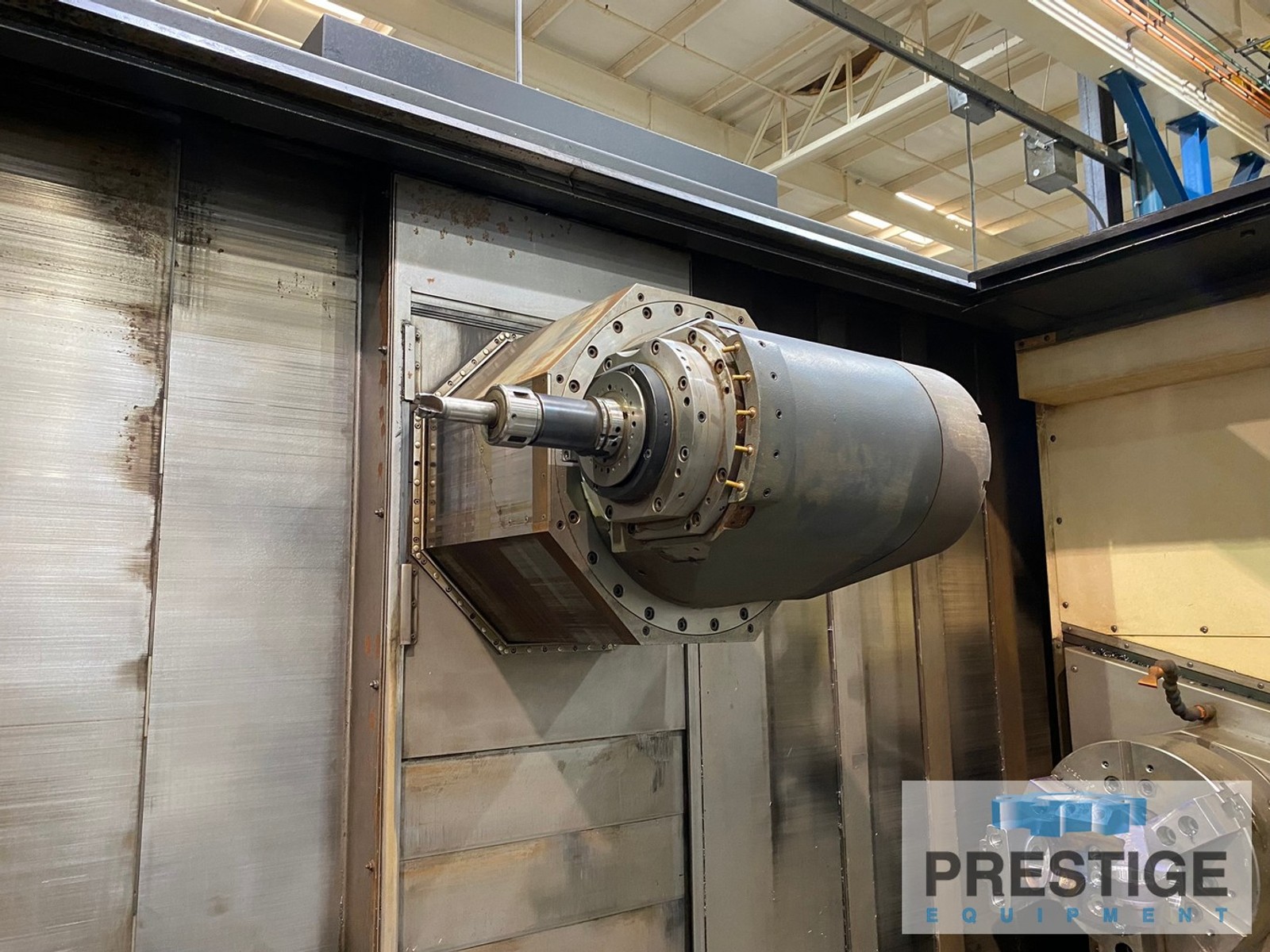

MILLING SPINDLE:
B-Axis Travel ......................... 240 Degrees
Tool Magazine ......................... 36 ATC
Tooling ............................... HSK63
Maximum Speed ......................... 8,000 RPM
Motor Output .......................... 43 HP
Approximate Dimensions ................ 299" x 166" x 100"
Approximate Weight .................... 52,910

EQUIPPED WITH:
Siemens 840D CNC Control
Main & Counter Spindles
15" Chuck on Main Spindle
18" Chuck on Counter Spindle

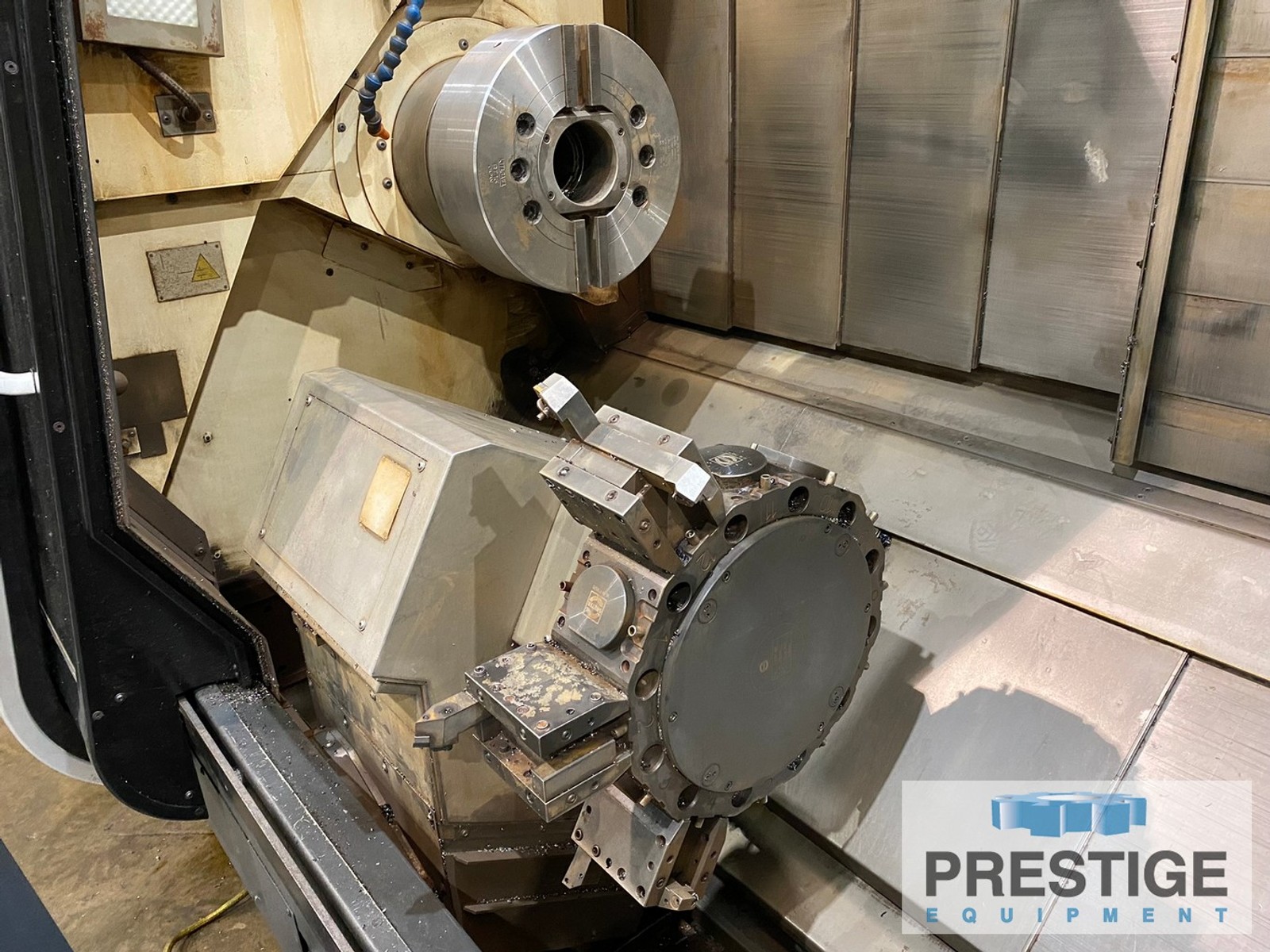

Lower Turret
High Pressure Coolant System

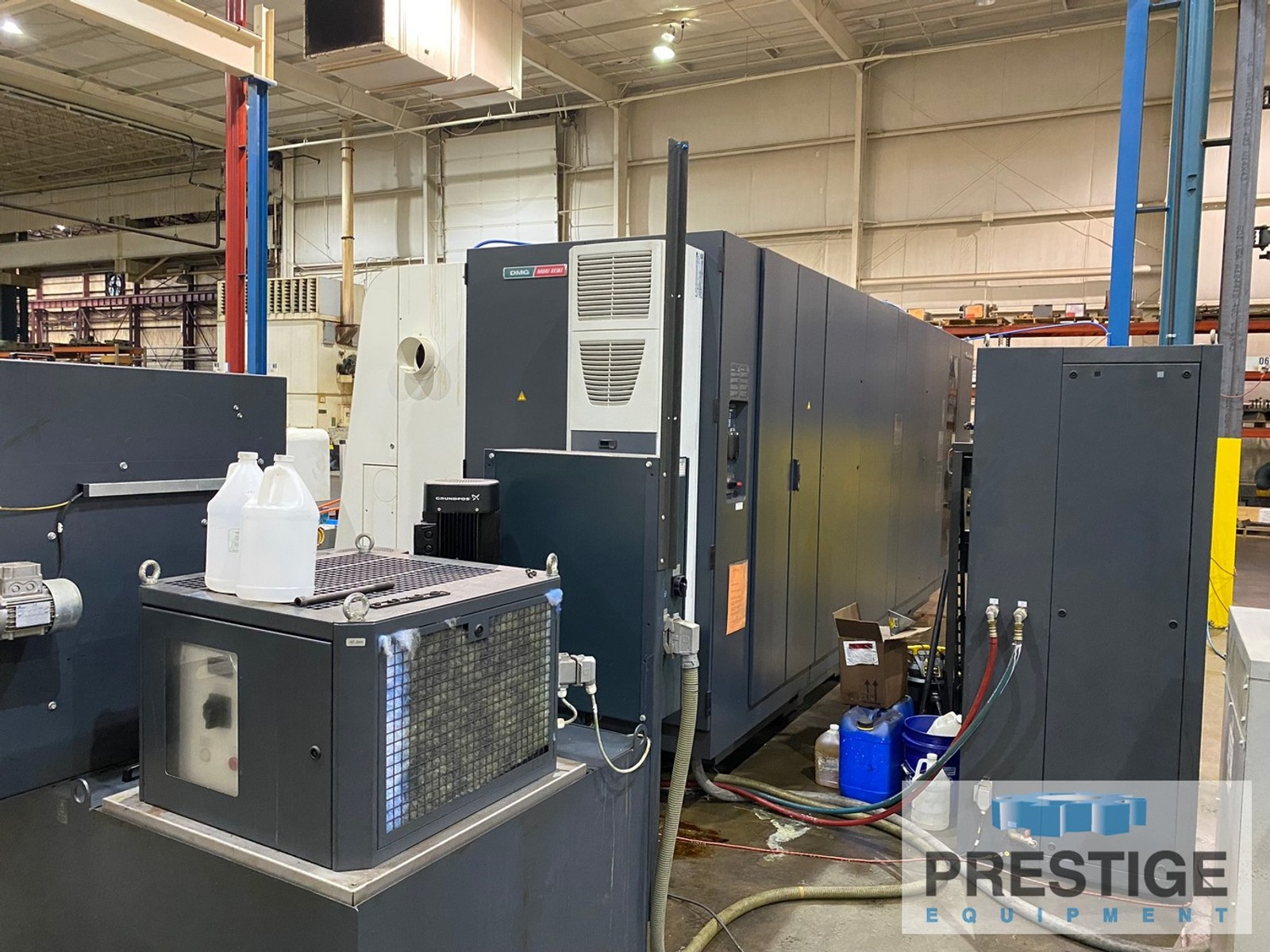

Factory Coolant Chiller
Dual CTS 300 PSI & 1000 PSI Pumps
Balanced Pressure Clamping for Main and Sub-Spindles
Flushing of Chucks, Steady Rest, Way Covers
Chiller System, Cooling of the Milling/Turning Spindle and Counter Spindles
Sub Spindle as Tailstock Option with Programmable Movement and Force
36 Station Automatic Tool Changer
Automatic Cabin Doors

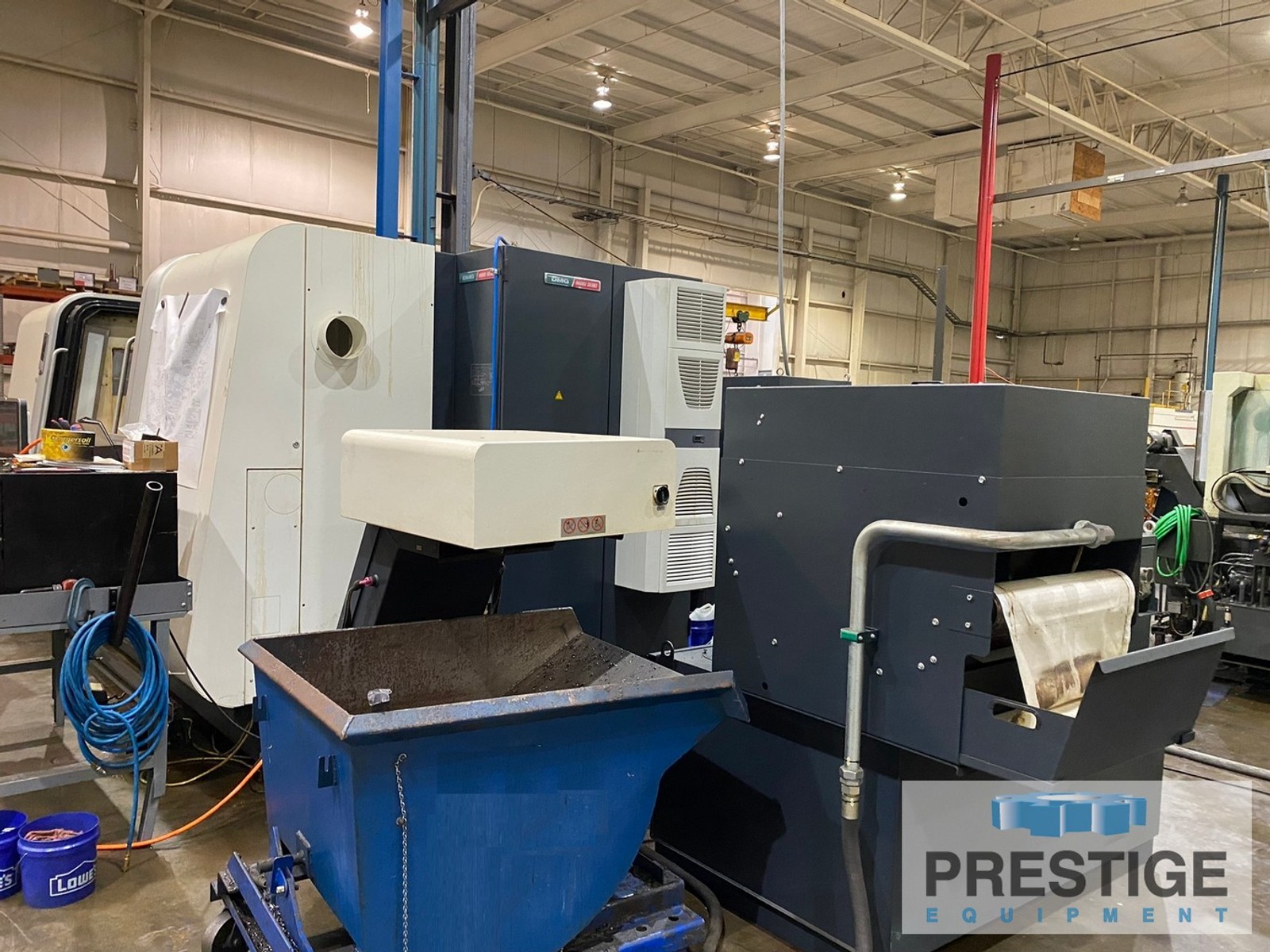

Chip Conveyor
Tooling

NOTE:
Machine in Plant Under Power. Was used for 5-Axis Machining of Prototype Parts
