5.12" Toshiba BF130A, X-295", Y-118", 78" x 98" Rotary Table, 5-800 RPM Fanuc 15-M CNC, 1996, #32261

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

32261

Model

BF-130A

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32261

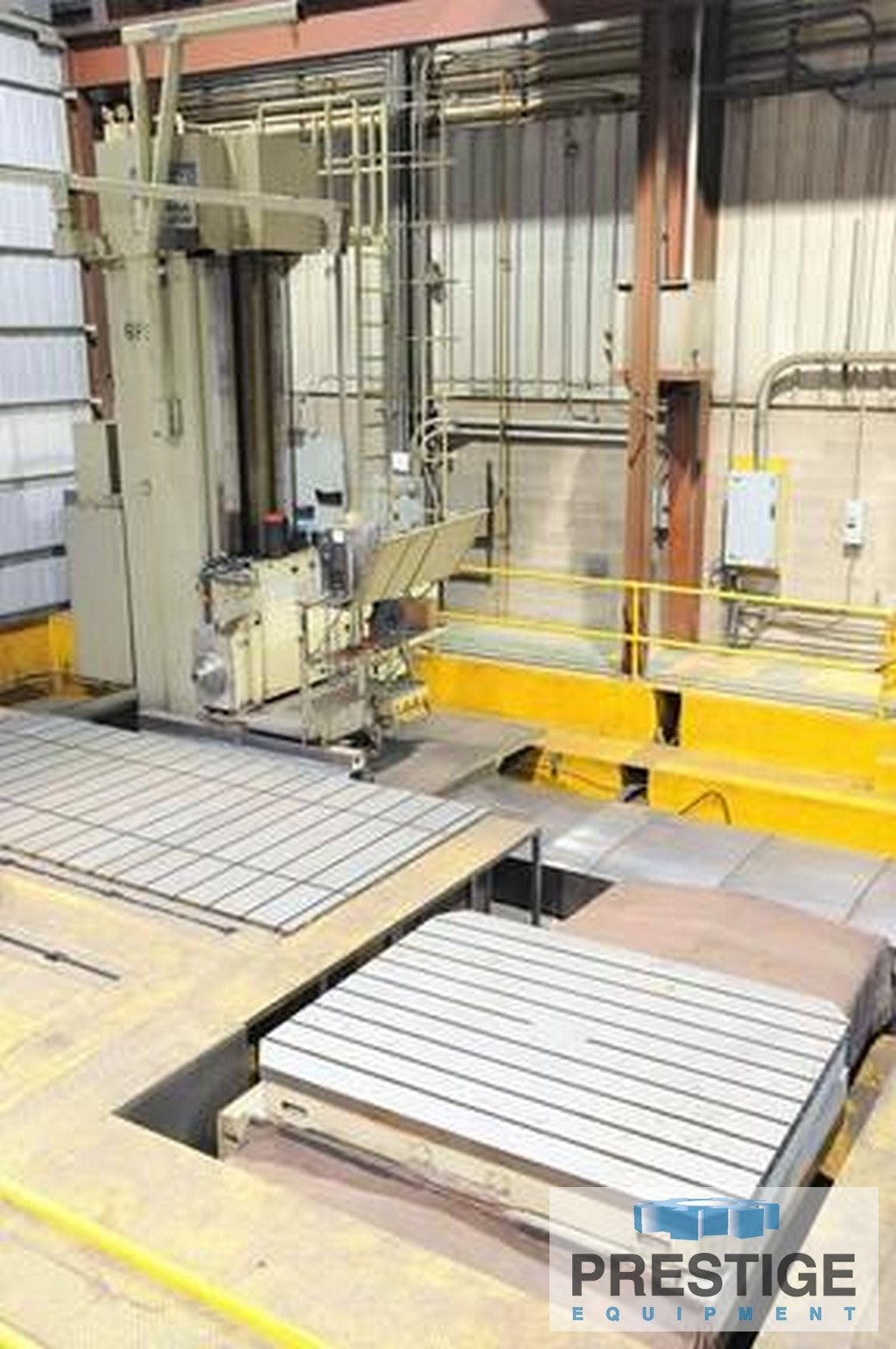

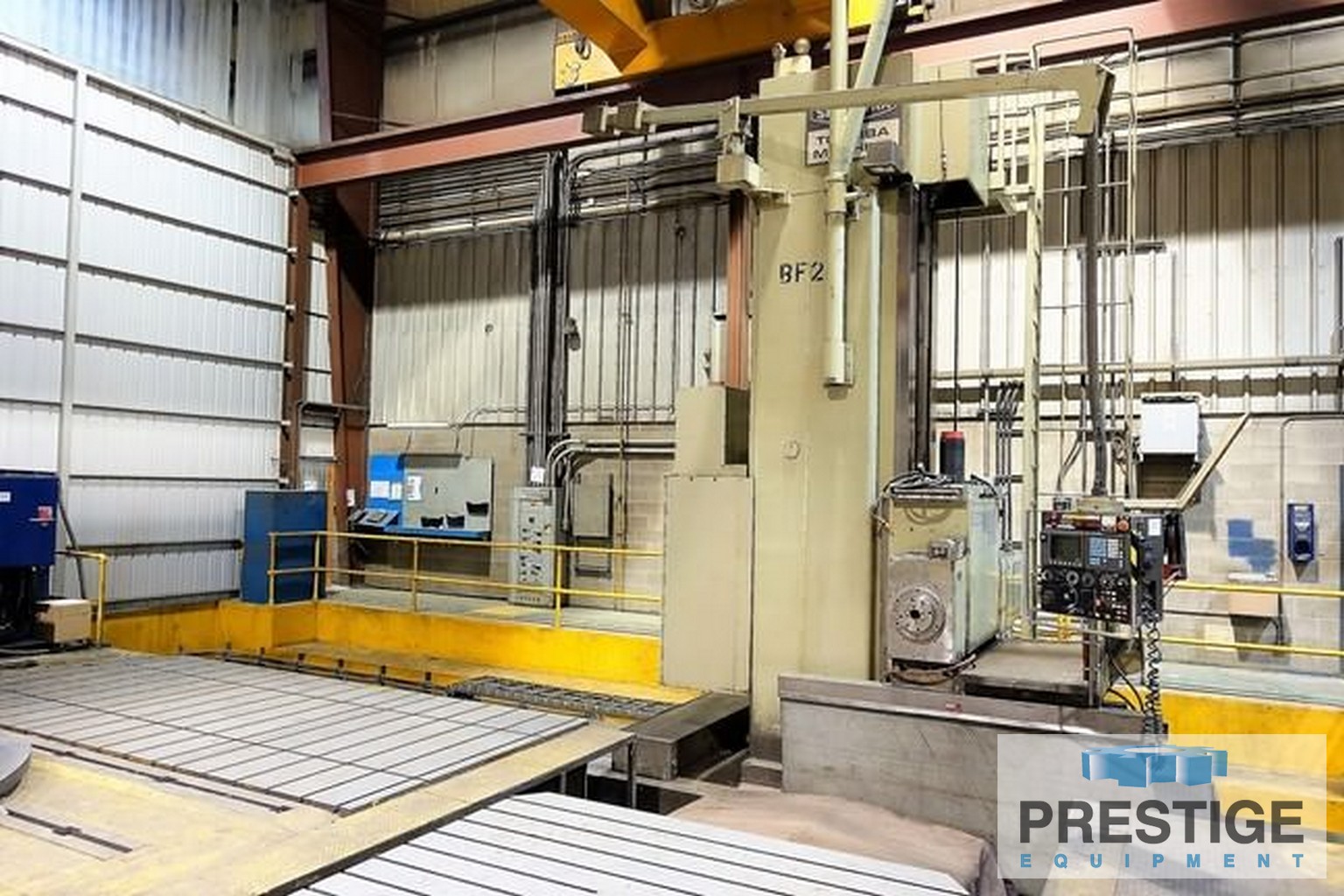

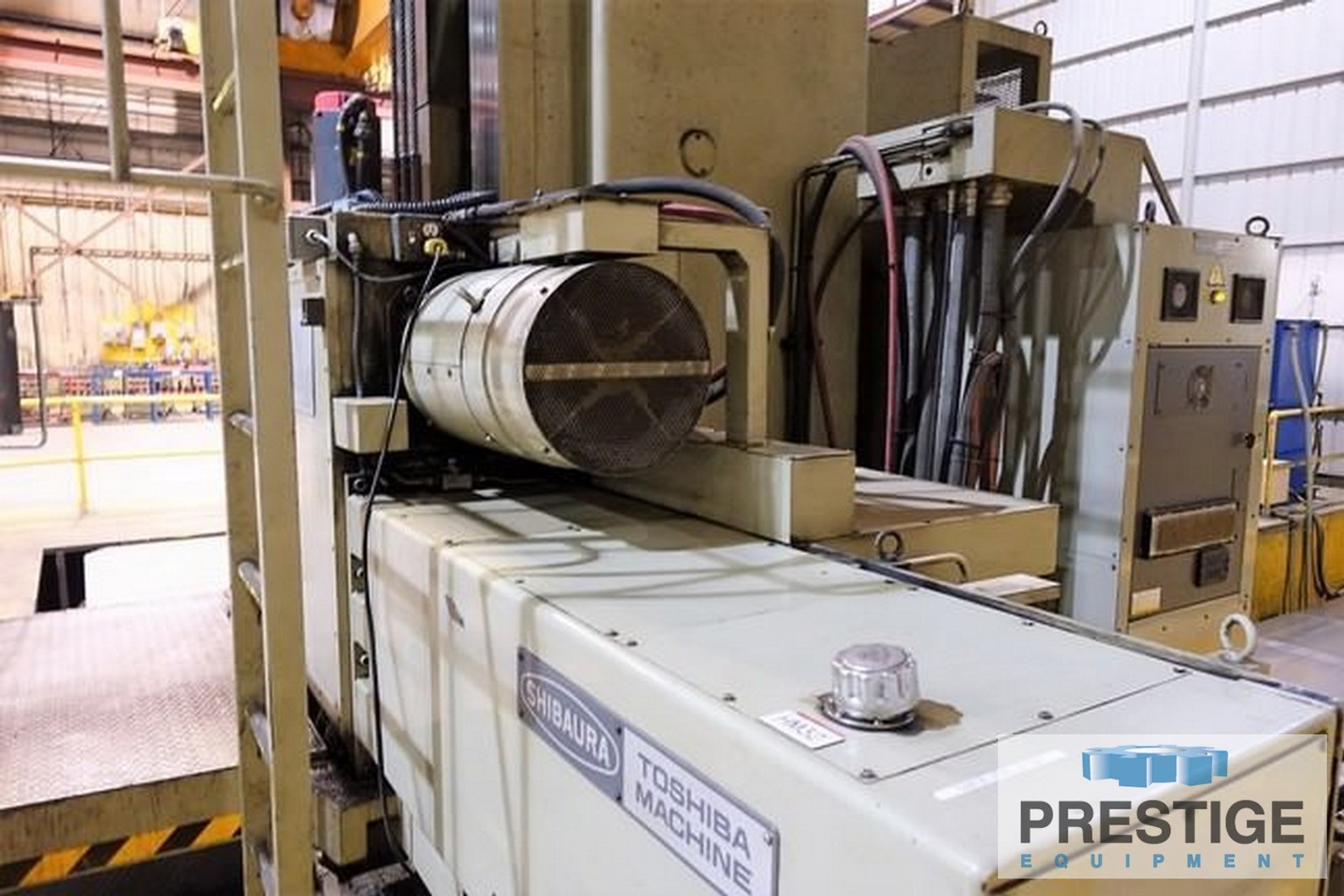

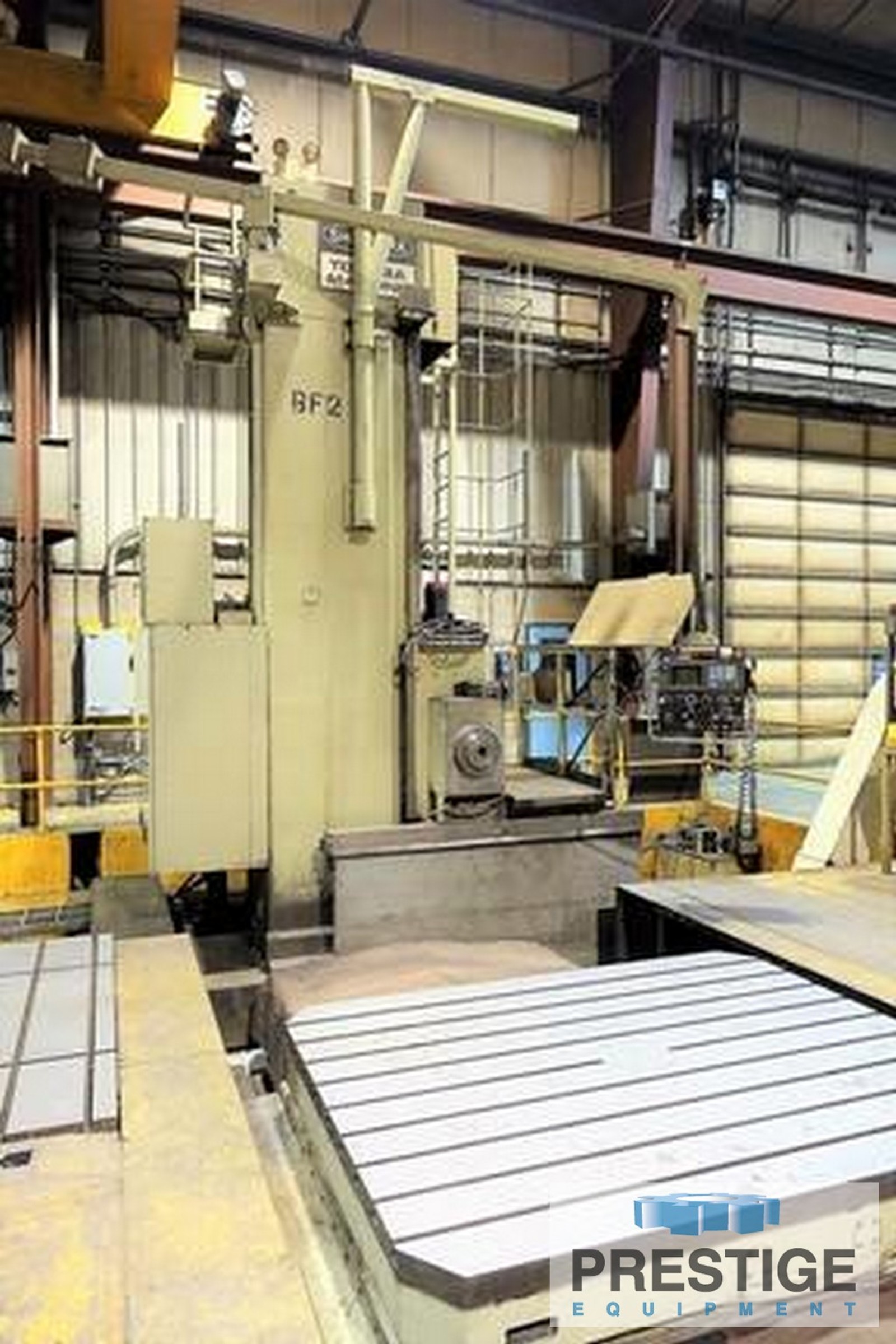

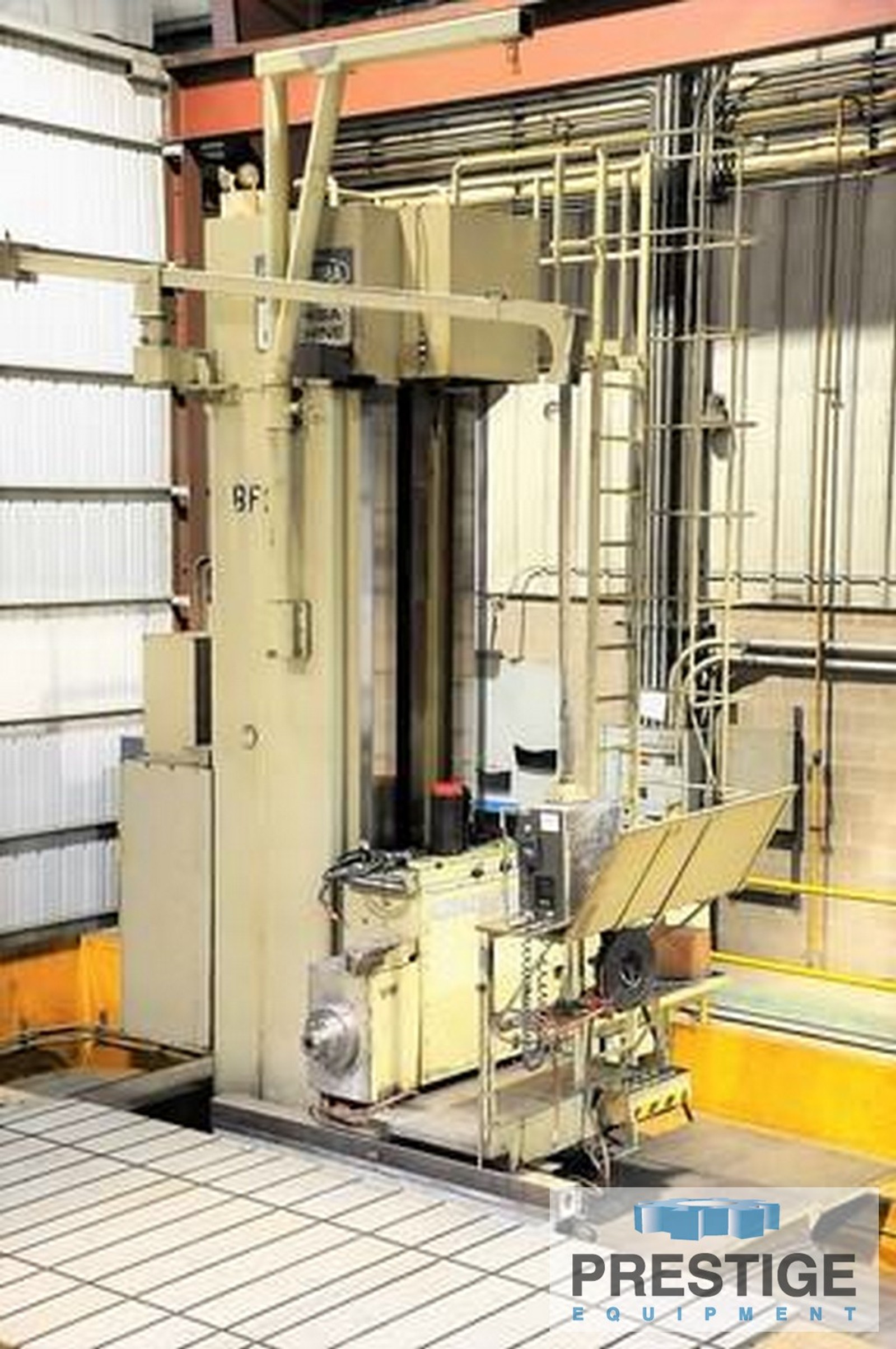

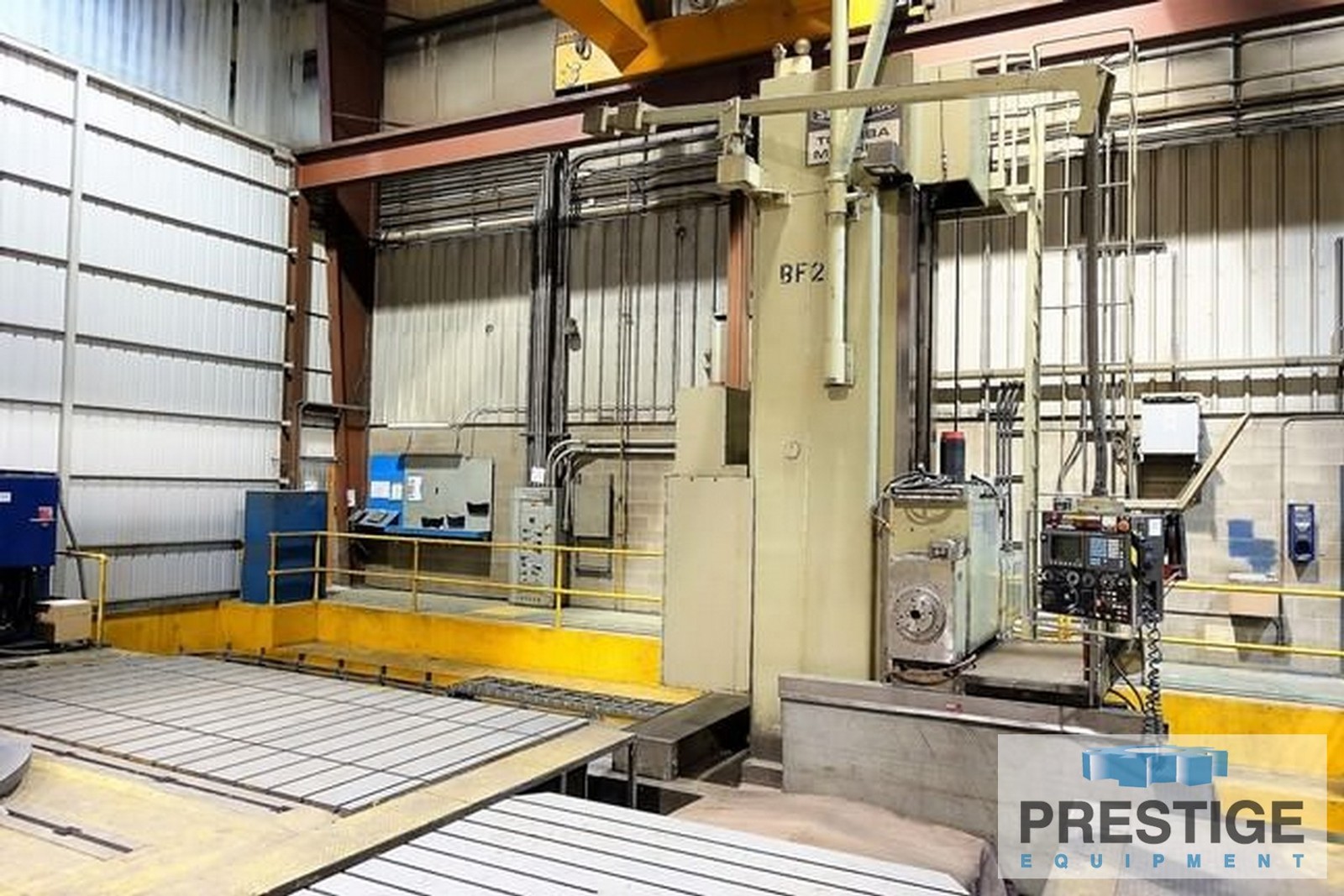

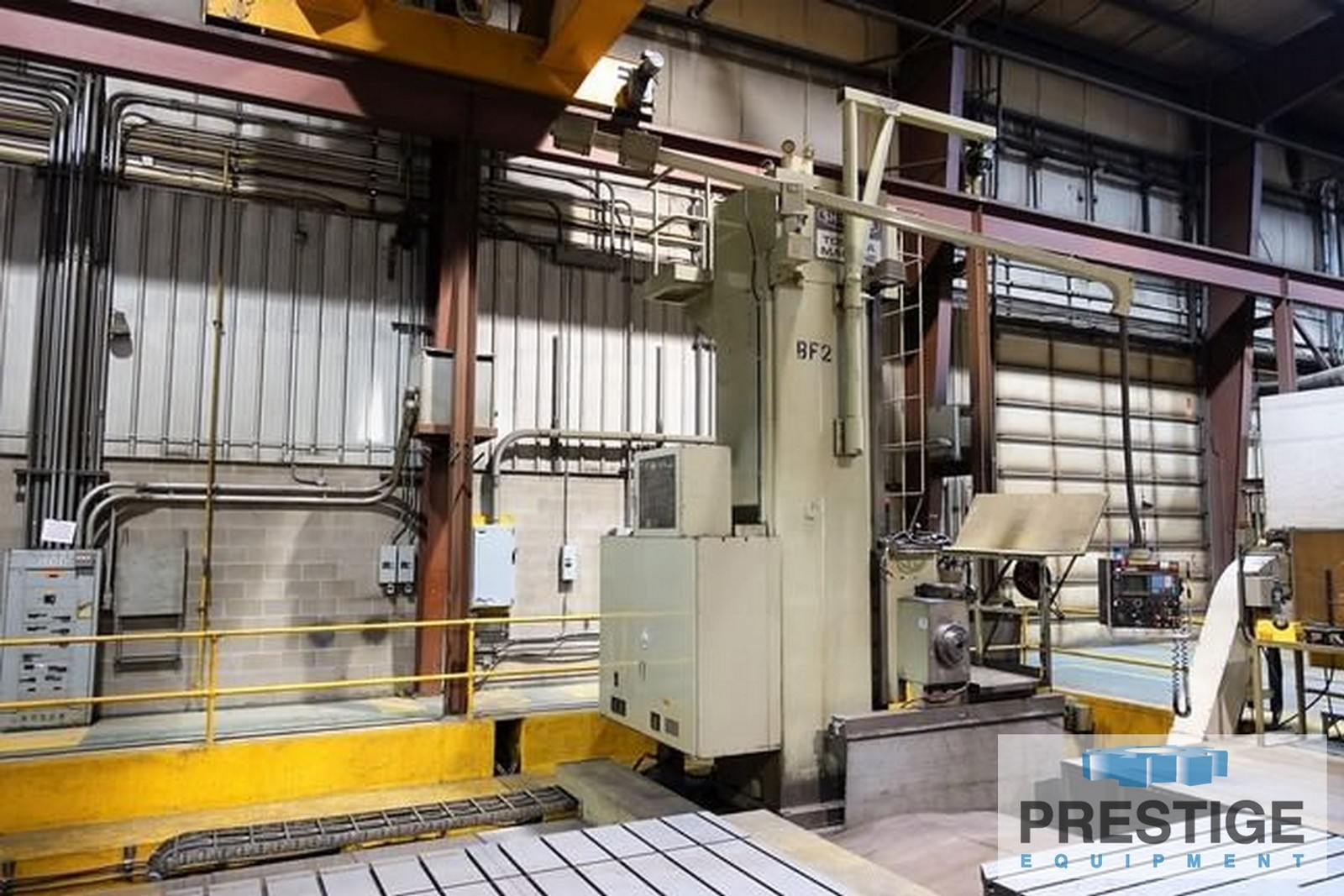

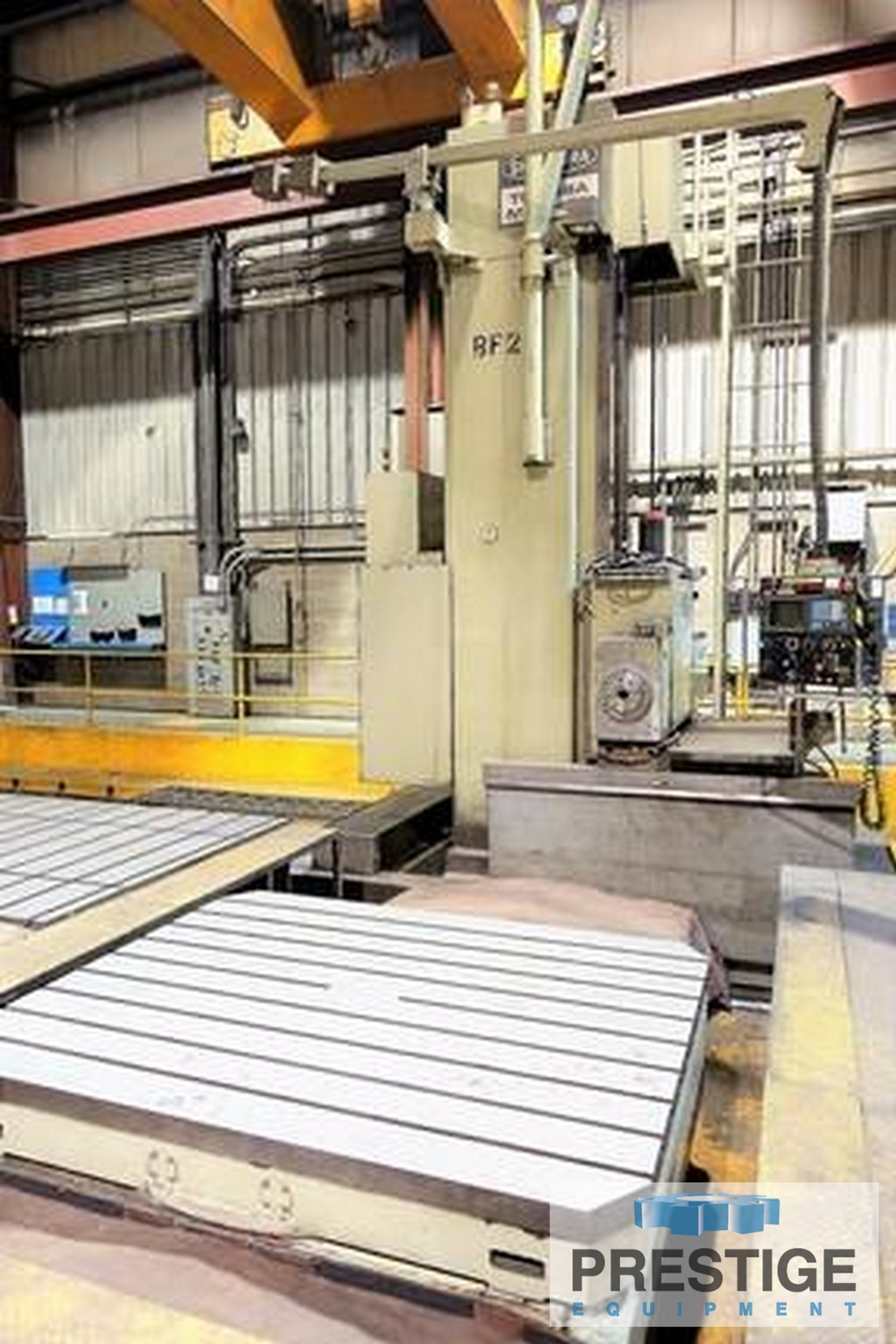

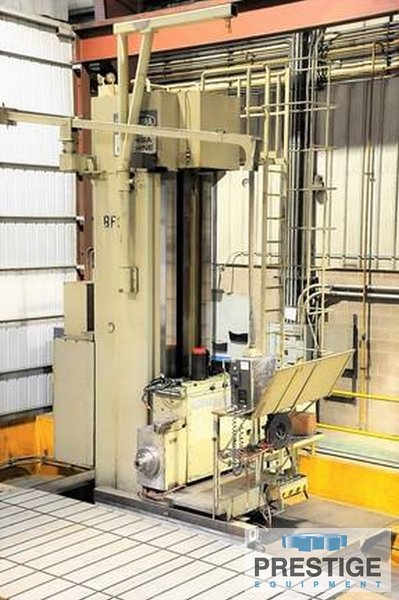

5.12" Toshiba Shibaura BF-130A CNC Floor Type Horizontal Boring Mill

FEATURES:

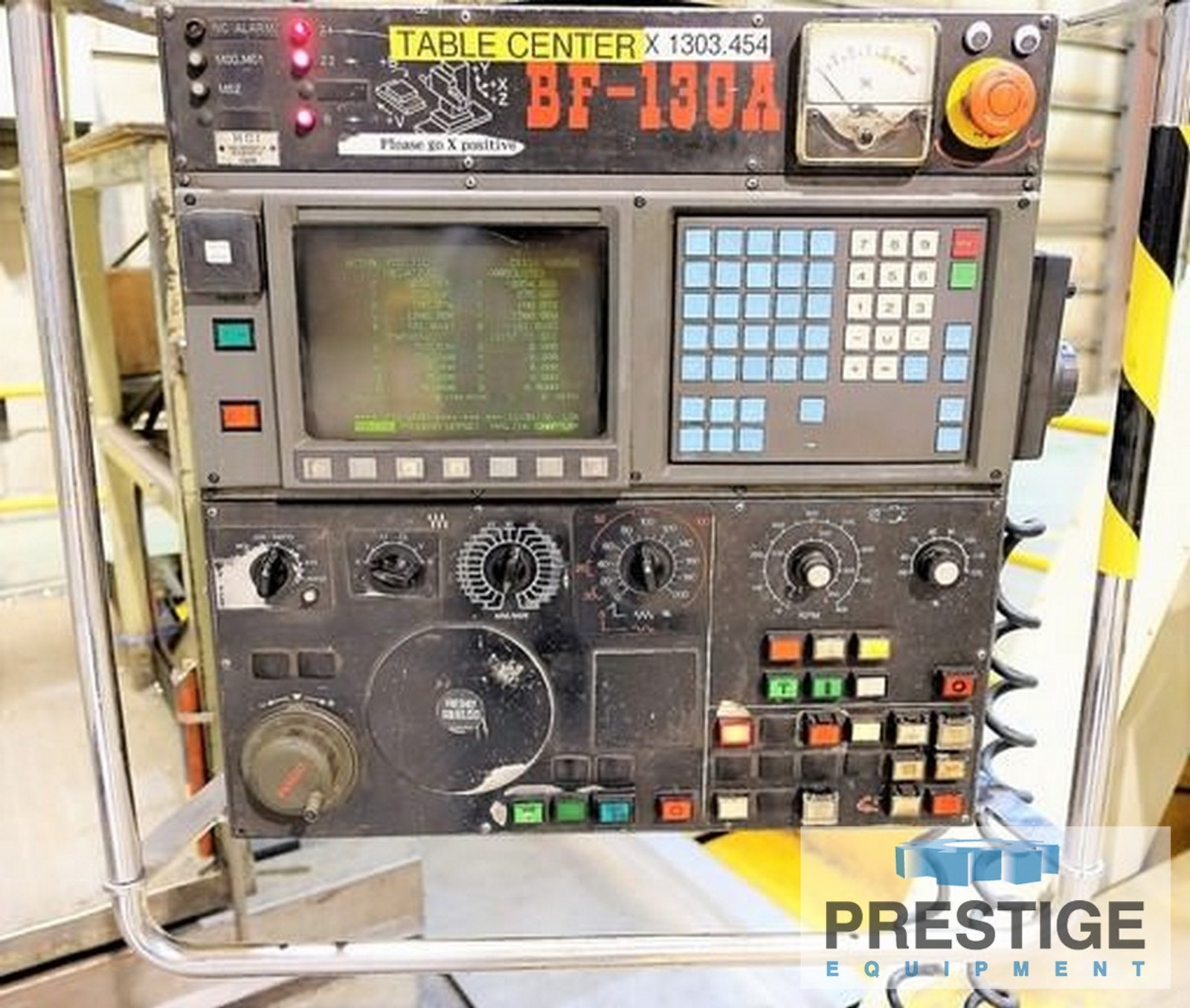

Fanuc 15-M CNC Control
Toshiba BD 20/25 Infeeding CNC Rotary Table

CAPACITY:

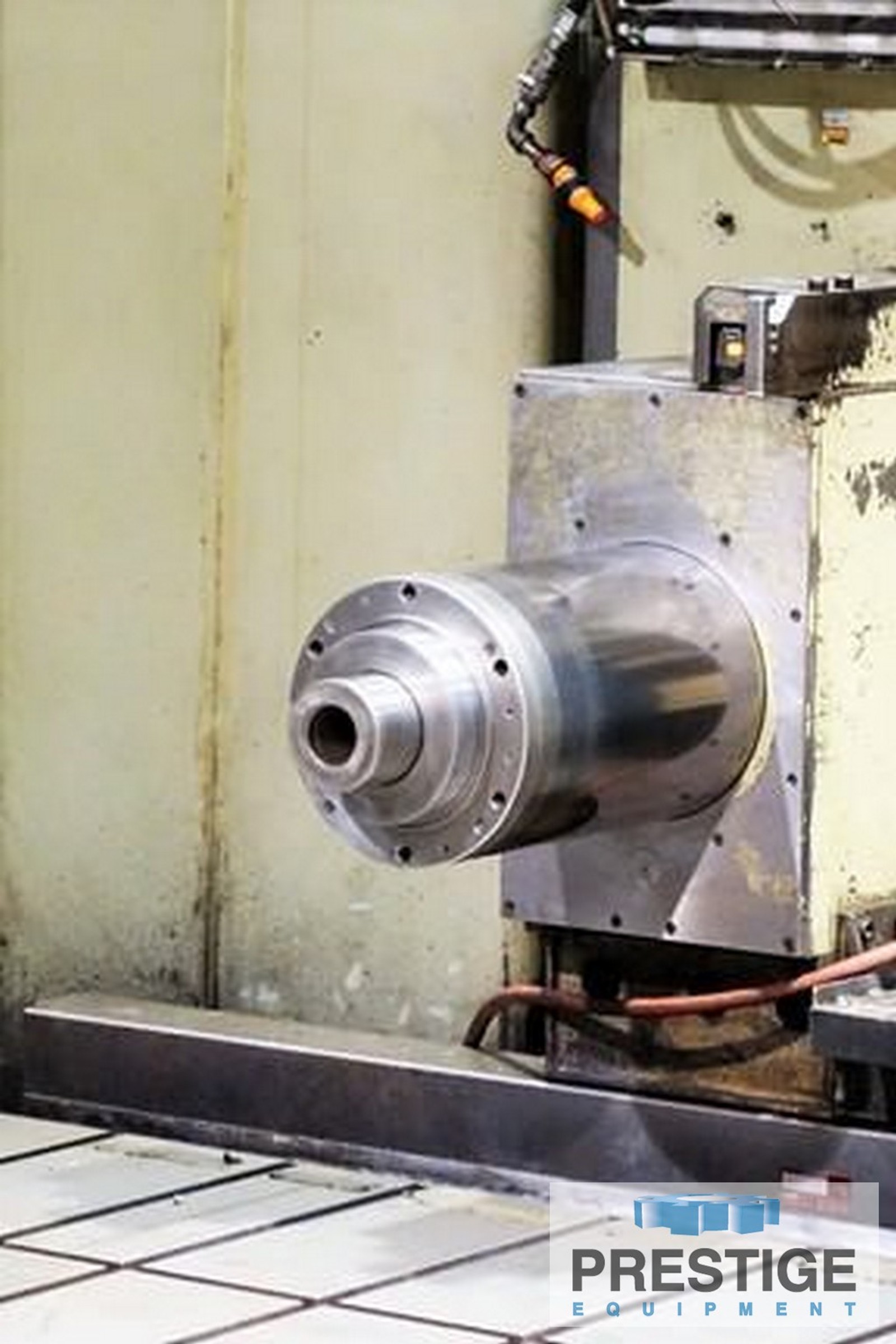

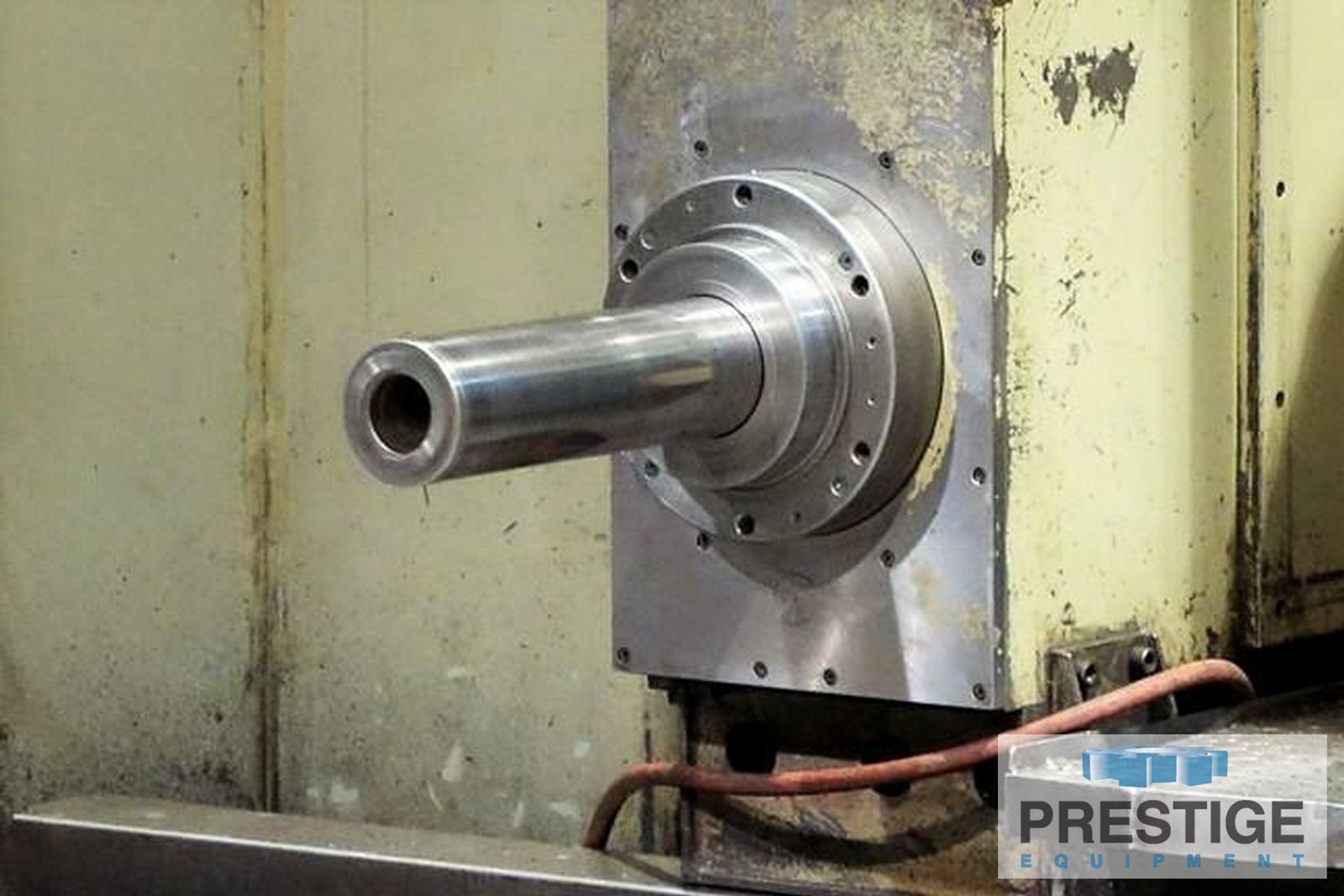

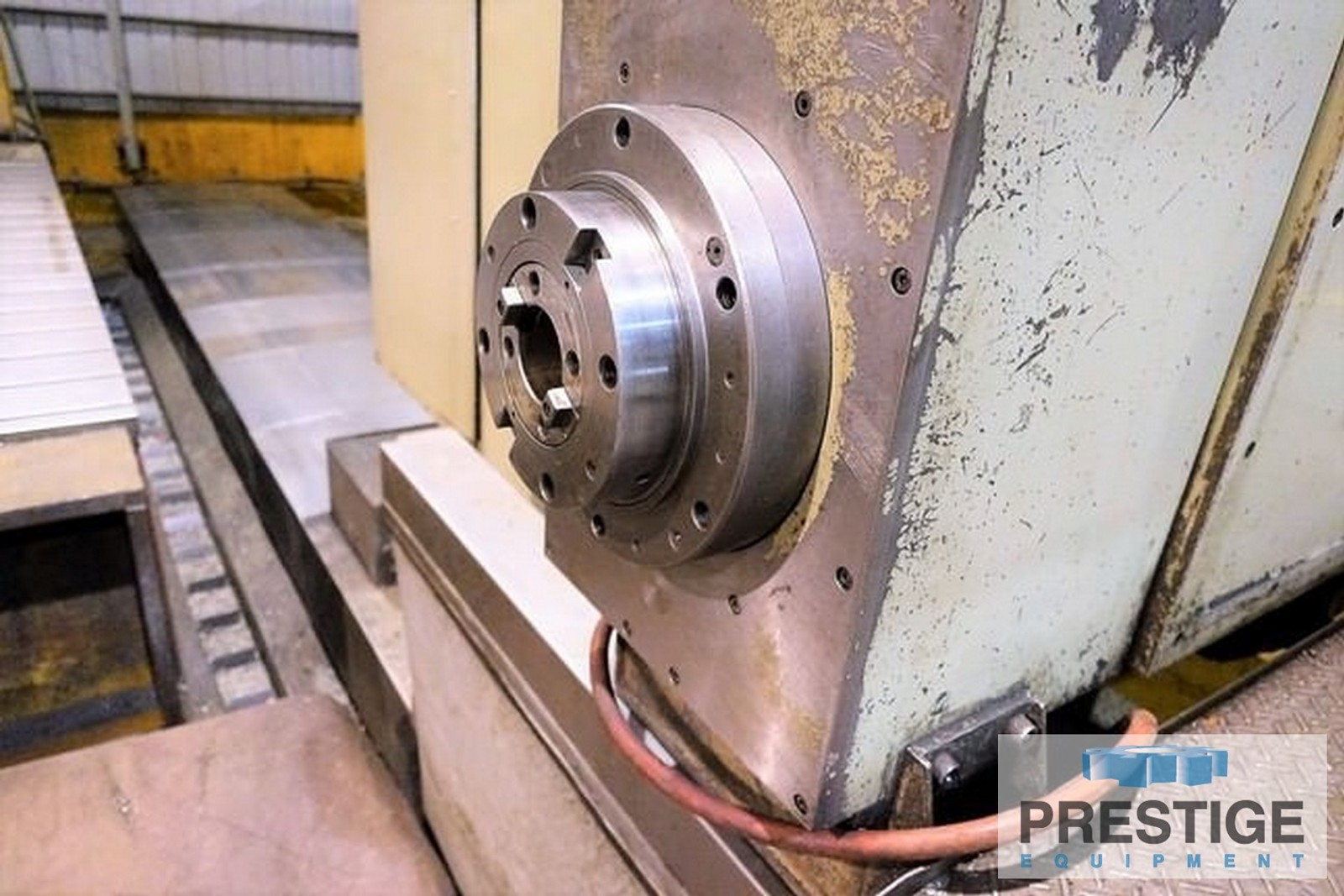

Spindle Diameter ..................... 5.12"
Quill Diameter ....................... 13.38"
Milling Sleeve Diameter .............. 8.8"
Vertical Headstock Travel, Y-Axis .... 118.11"
Column Travel, X-Axis ................ 295.27"
Boring Spindle Travel, Z-Axis ........ 39.37"
Quill Travel, Z-2 Axis ............... 17.7"
Total Axial Travel, Spindle & Quill .. 39.37"
Spindle Speed Ranges ................. 2
Spindle Speeds, Infinitely Variable .. 5-800 RPM
Spindle Taper ........................ #50
Feeds, Variable ...................... 0.04 - 157 IPM
Rapid Traverse ....................... 157 IPM
Spindle Motor ........................ 30 HP / 40 HP
Approx. Machine Dimensions ........... 496" x 175" x 289"
Machine Only Weight .................. 69,500 Lbs

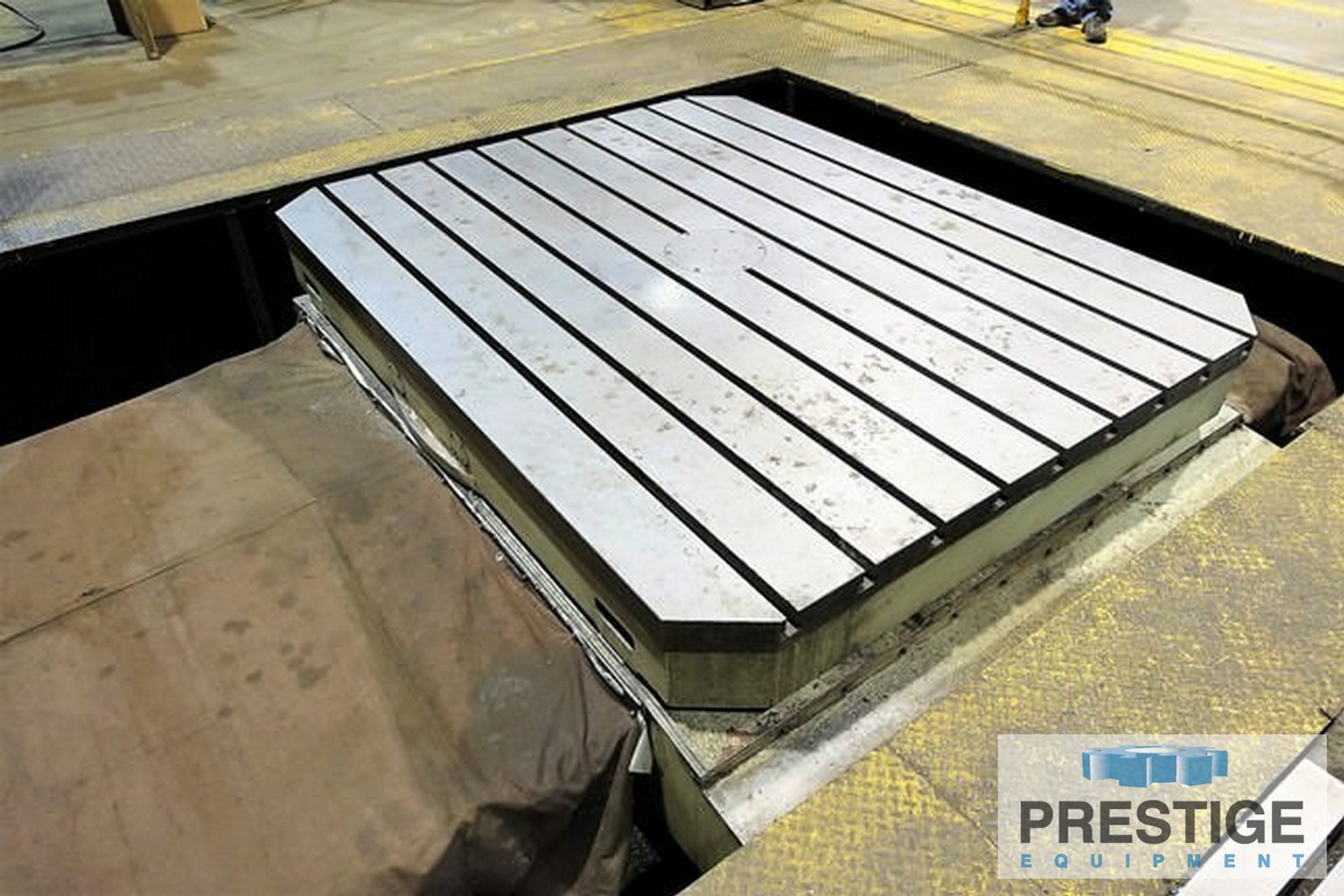

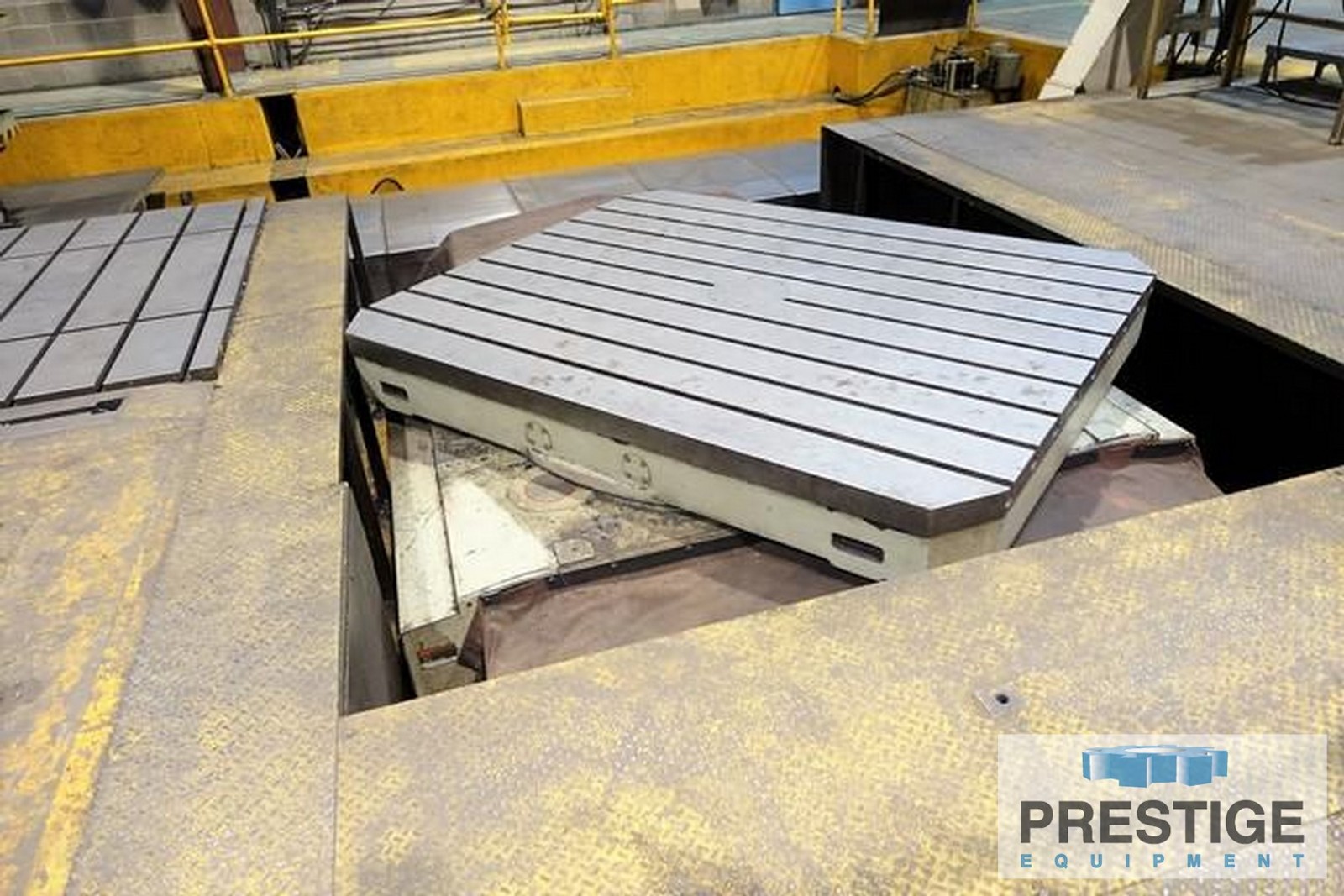

TOSHIBA CNC INFEEDING ROTARY TABLE:
Table Size ........................... 78.74" x 98.42"
Table Infeed ......................... 78.74"
Table Rotation ....................... .001 IPM
Table Weight Capacity ................ 97,000 Lbs

EQUIPPED WITH:
Fanuc 15M CNC Control
Toshiba BD 20/25 CNC Infeeding Rotary Table

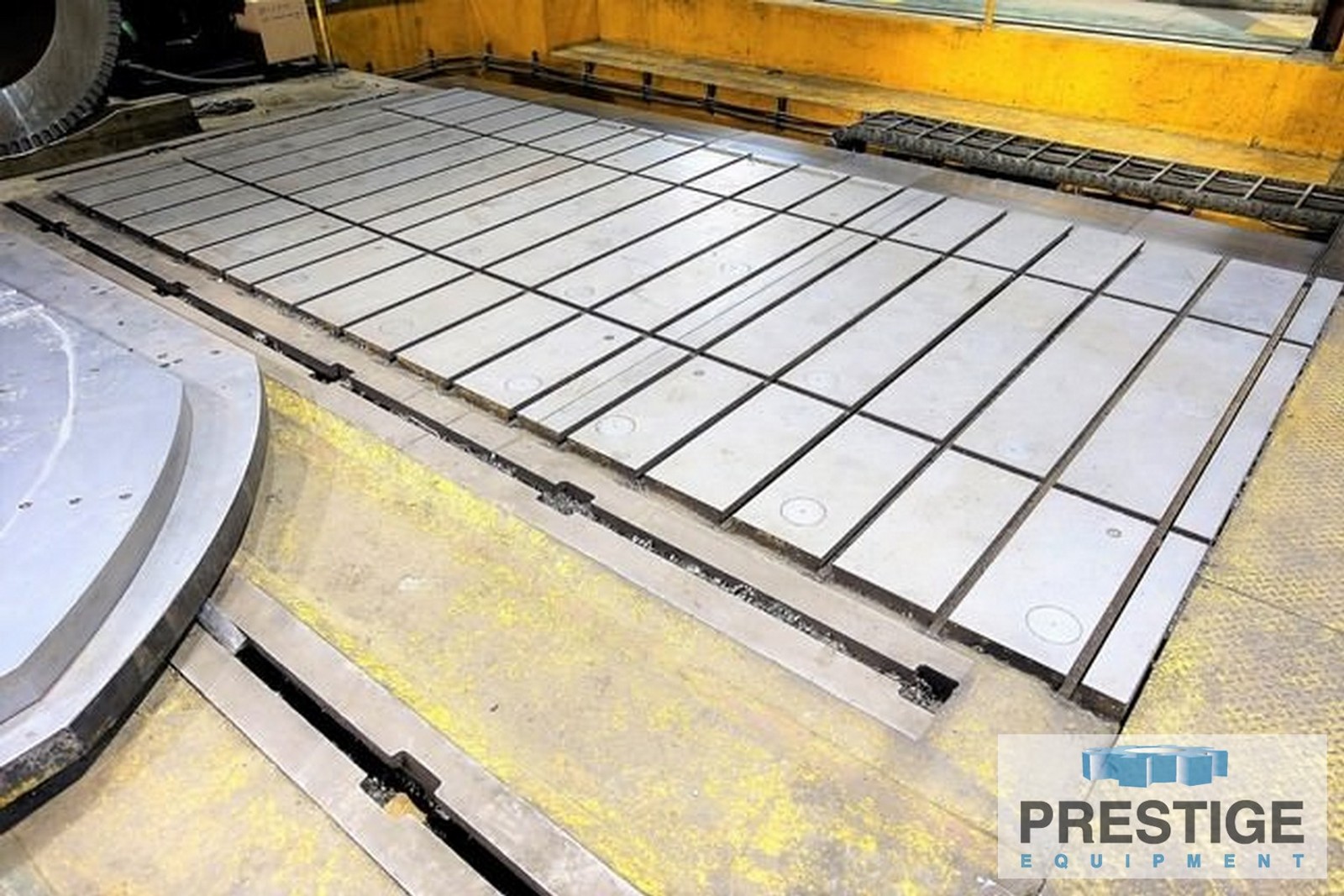

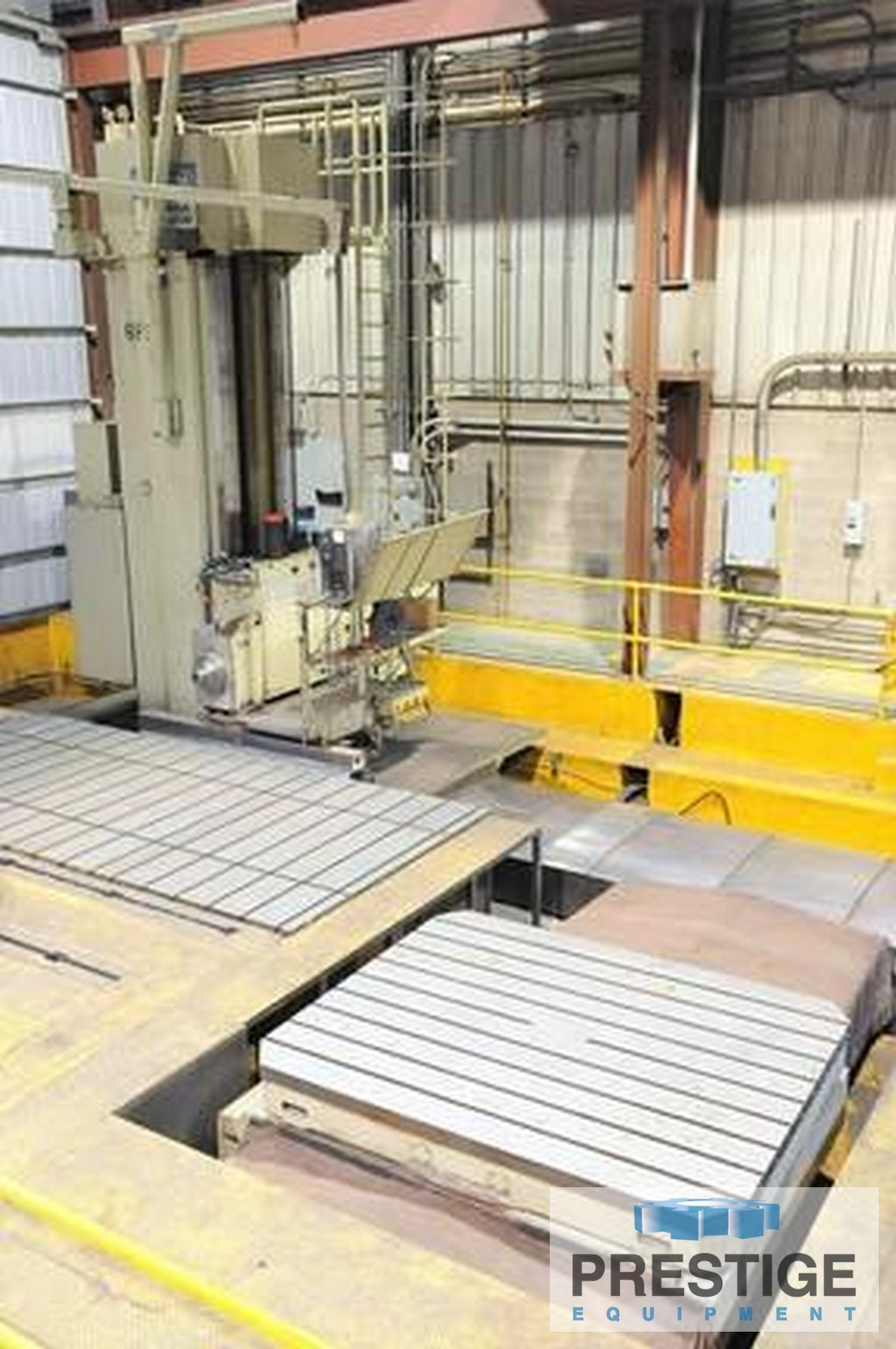

189" x 94" T-Slotted Floor Plate

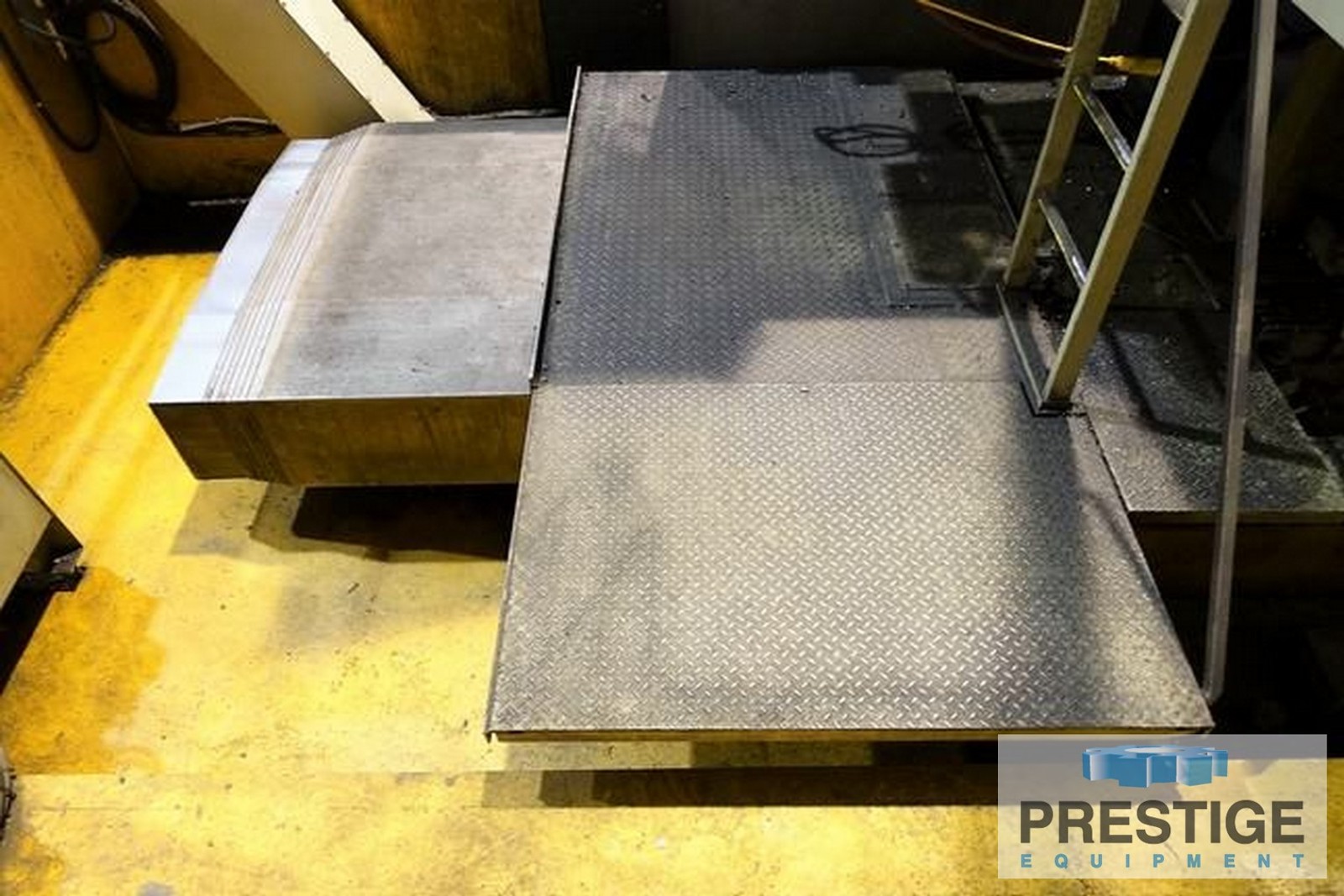

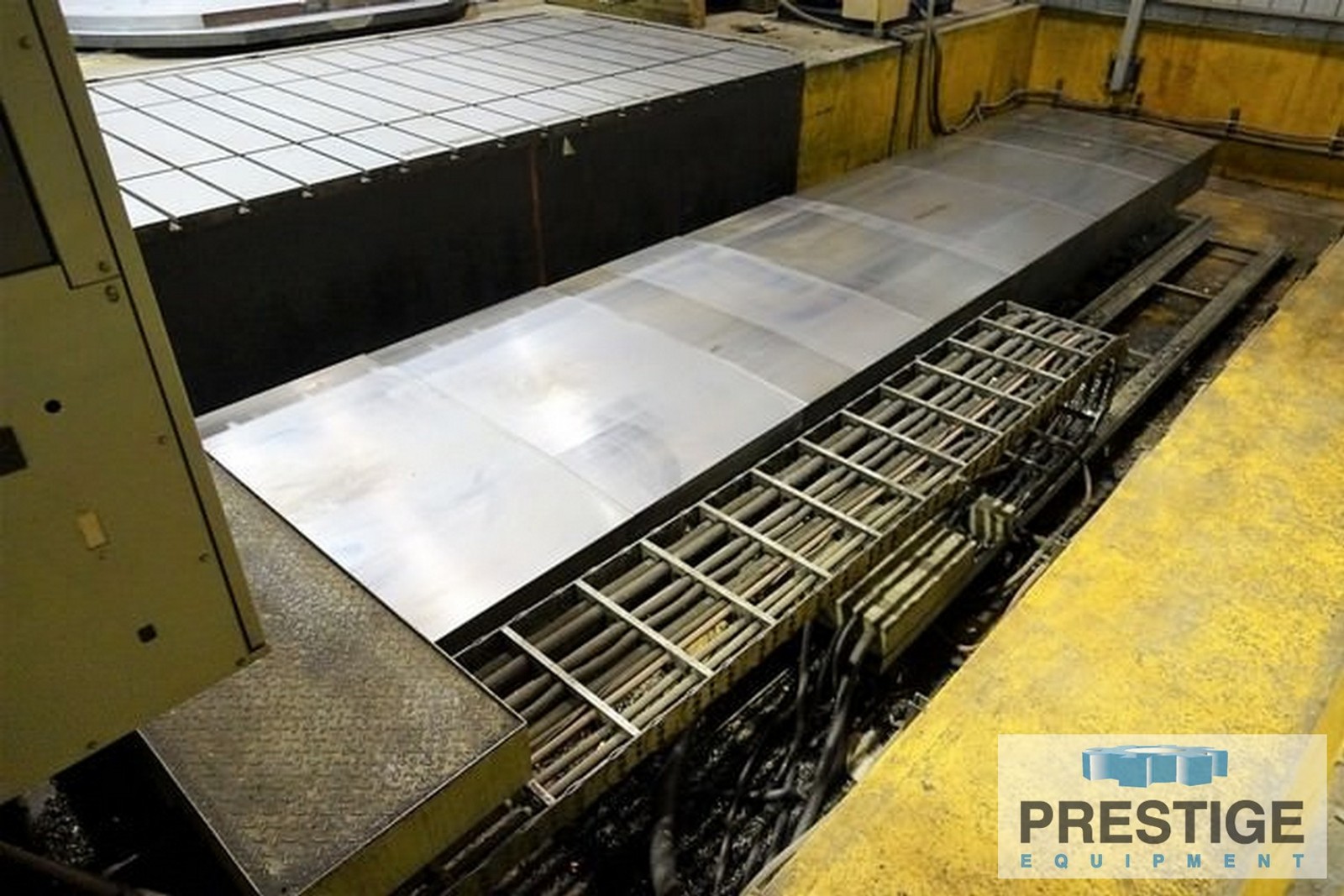

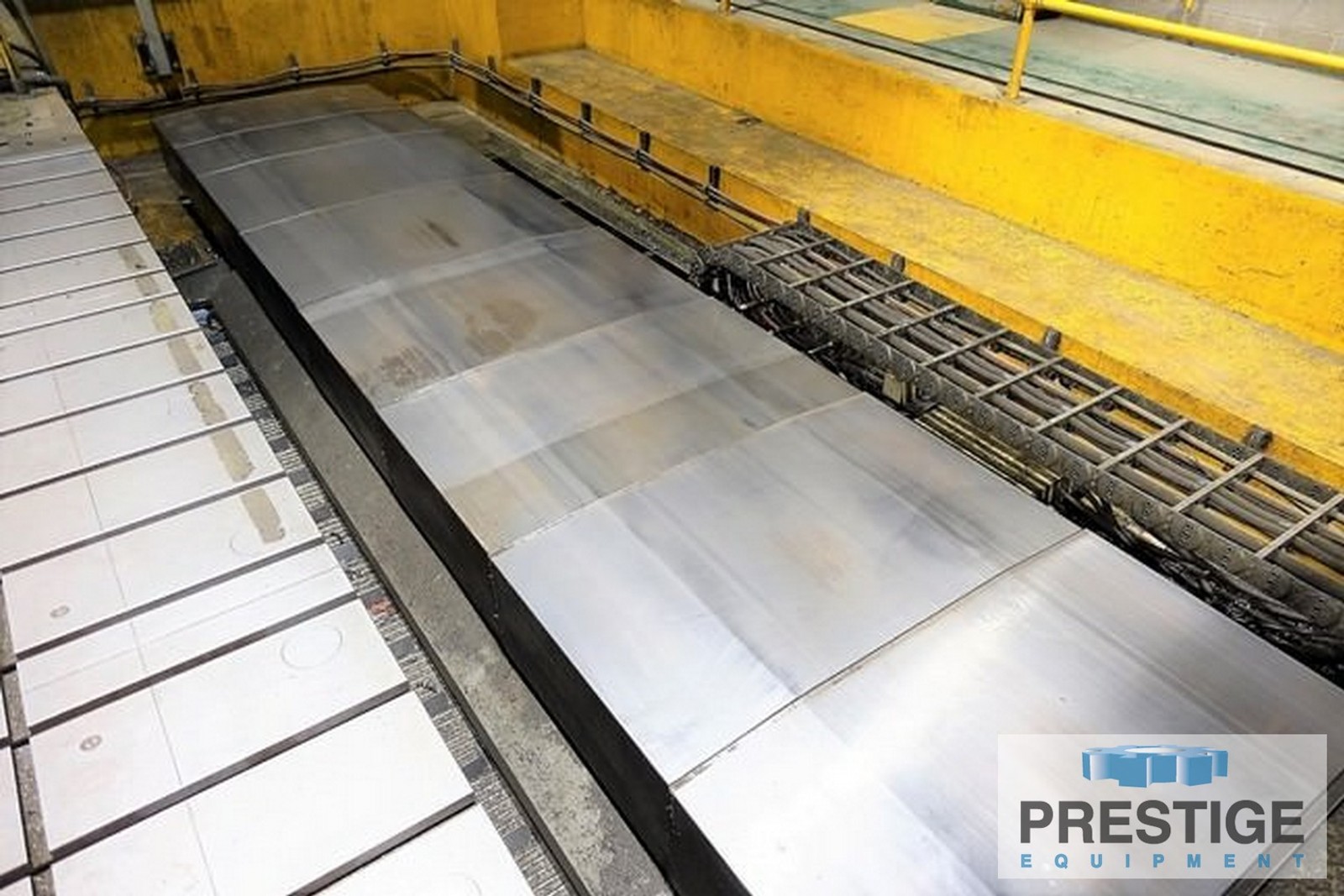

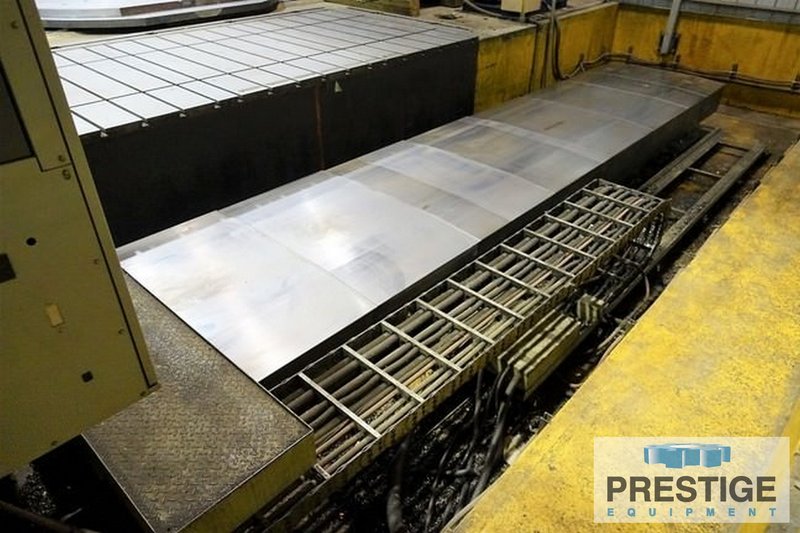

Telescoping Way Covers on Runway
Ball Screws & Independent Drives
40 HP Spindle Drive
