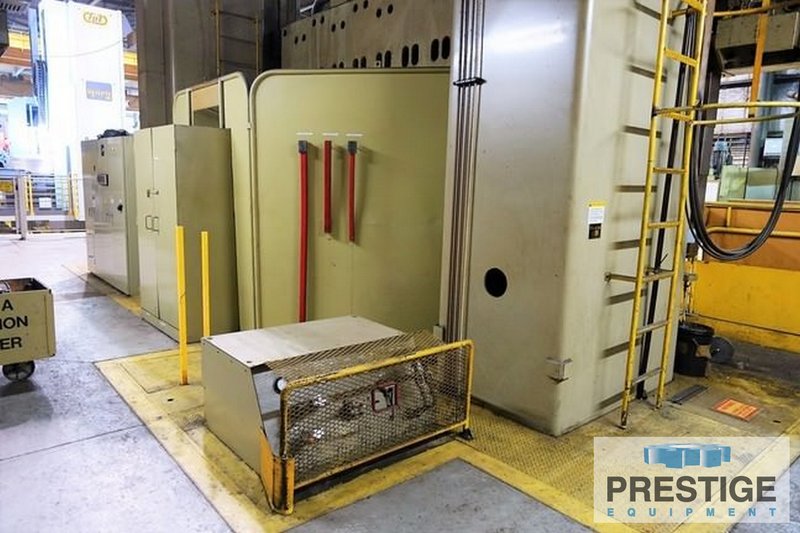

216" O-M Ltd. TMD 55/60N, 236" Max Dia., 145" U/R, 66T Tbl Cap., .3-45 RPM, Fanuc 18-TB Ctrl, 1995, #32263

Manufacturer

O-M Ltd

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32263

Model

TMD 55/60N

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32263

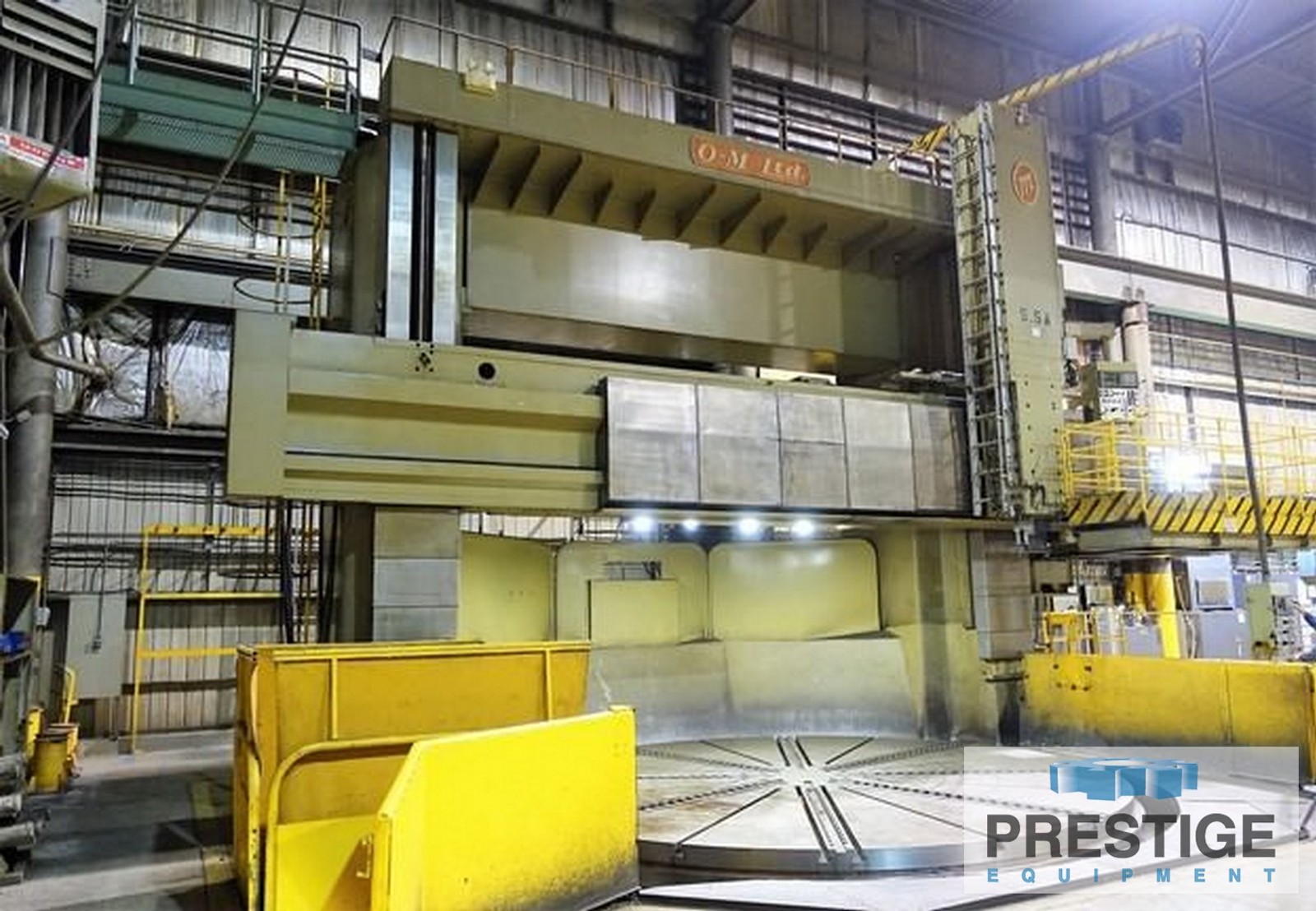

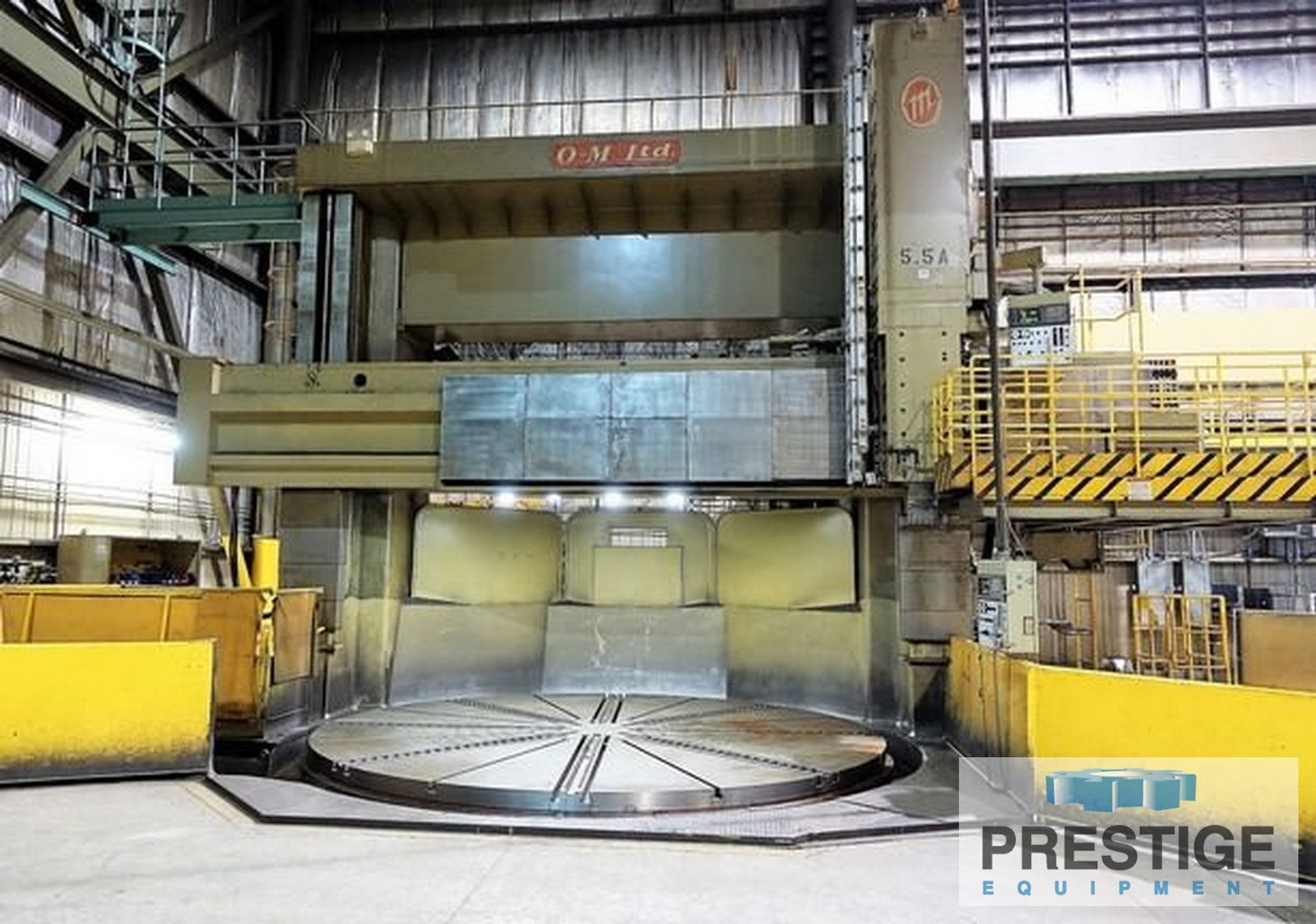

216" O-M Ltd. TMD 55/60 Vertical Boring Mill

FEATURES:
Fanuc 18TB CNC Control

CAPACITY:
Table Diameter ........................ 216.53"
Maximum Turning Diameter .............. 236.22"
Maximum Turning Height ................ 145.66"
Horizontal Travel of Rail Head ........ 135.82"
Vertical Travel of Cross Rail ......... 102.36"
Ram Stroke ............................ 78.74"
Ram Cross Section ..................... 11.02"
Table Speed (3- Ranges) ............... .3-45 RPM
Table T-Slots (Nominal)................ 1.65"
Table Weight Capacity ................. 132,277 Lbs
Table Motor ........................... 80 HP / 100 HP

EQUIPPED WITH:

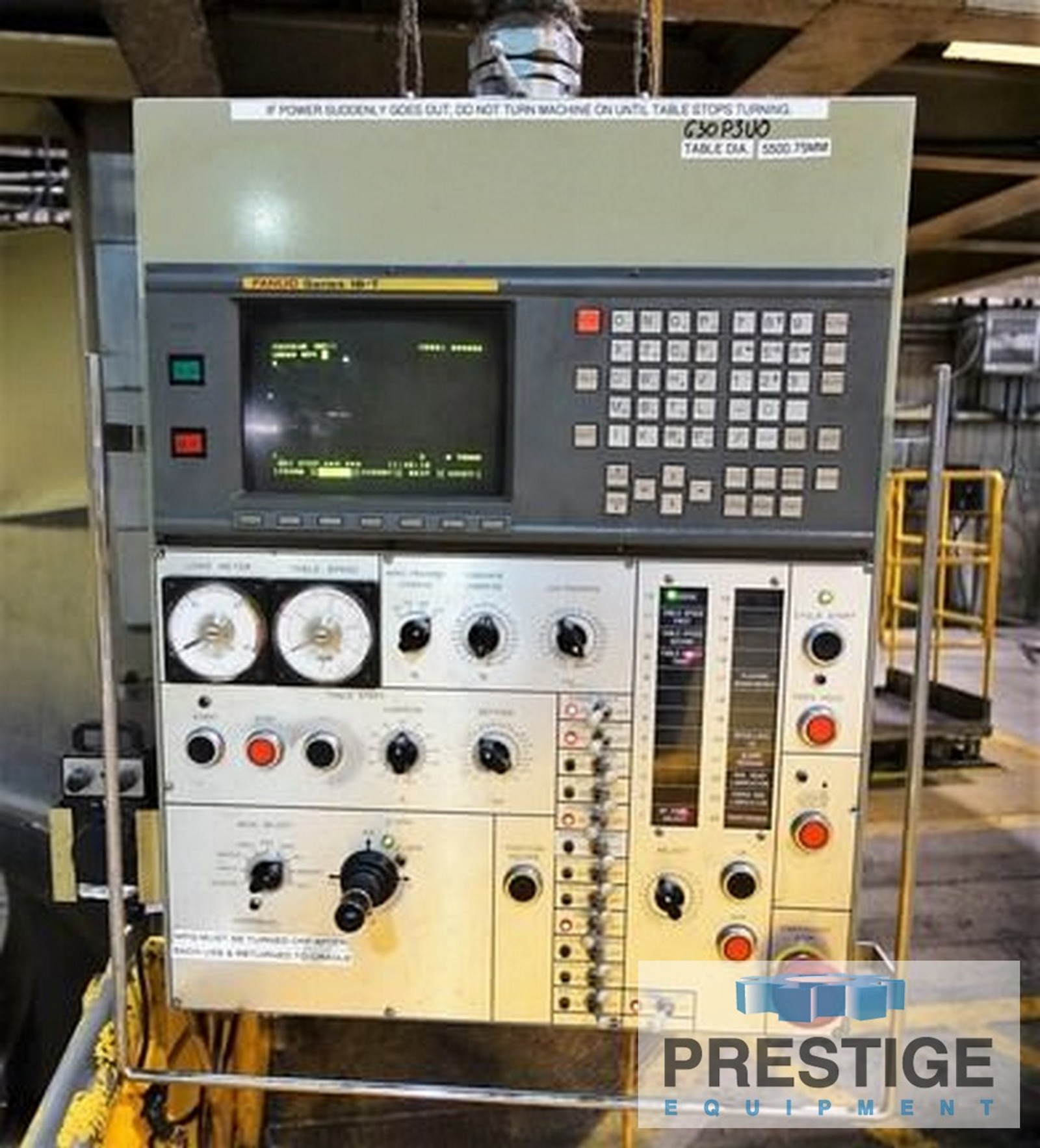

Fanuc 18-TB CNC Control
Dual Operator Controls
196" T-Slotted Table with (4) Face Plate Type Jaws

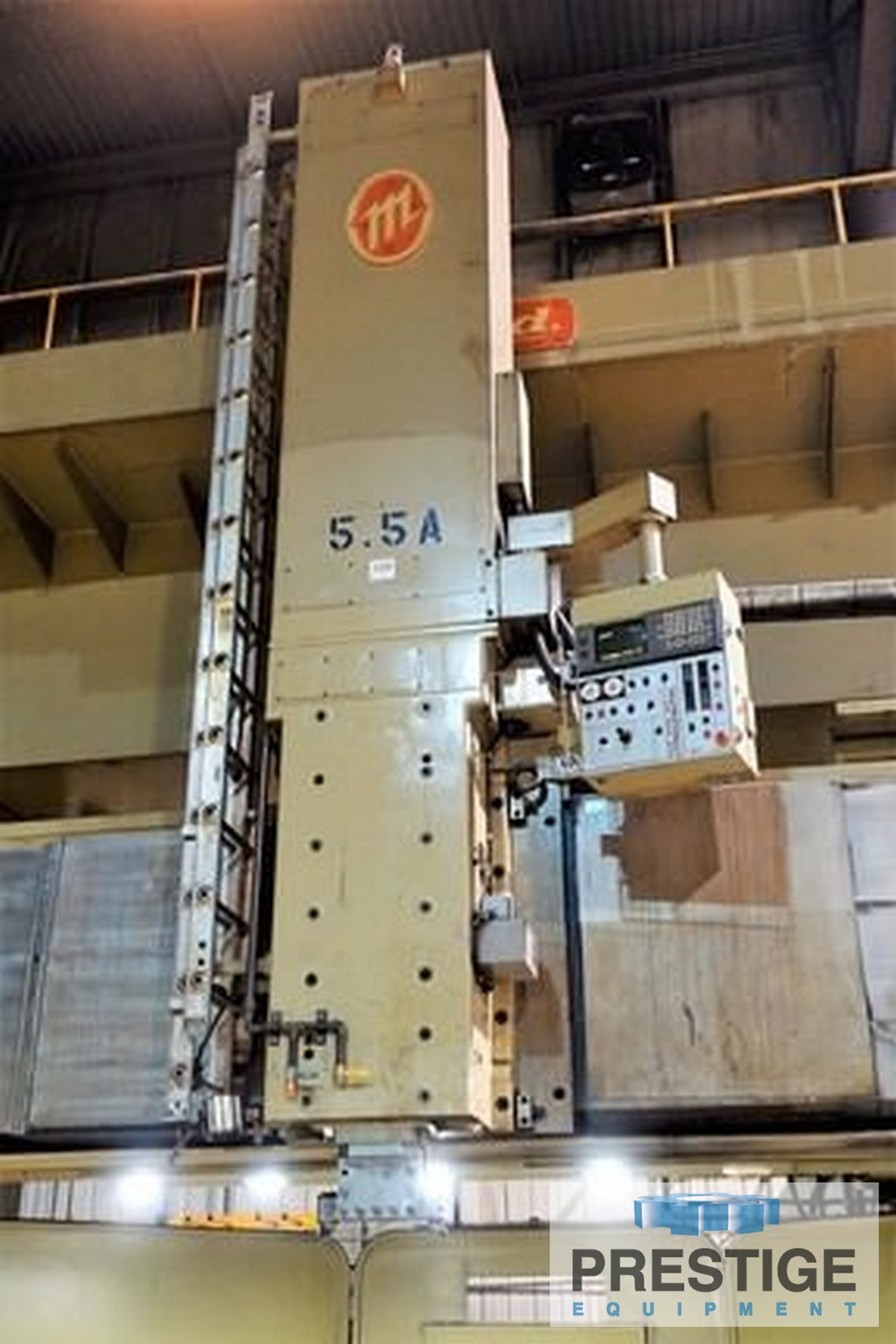

Vertical Ram with Tool Block Holder
Thread Cutting Cycle Retract
Constant Surface Speed Control
Inch / Metric Conversion
Chamfering / Corner Rounding
Tool Nose Radius Compensation
Tool Geometry / Wear Compensation
Stored Pitch Error Compensation

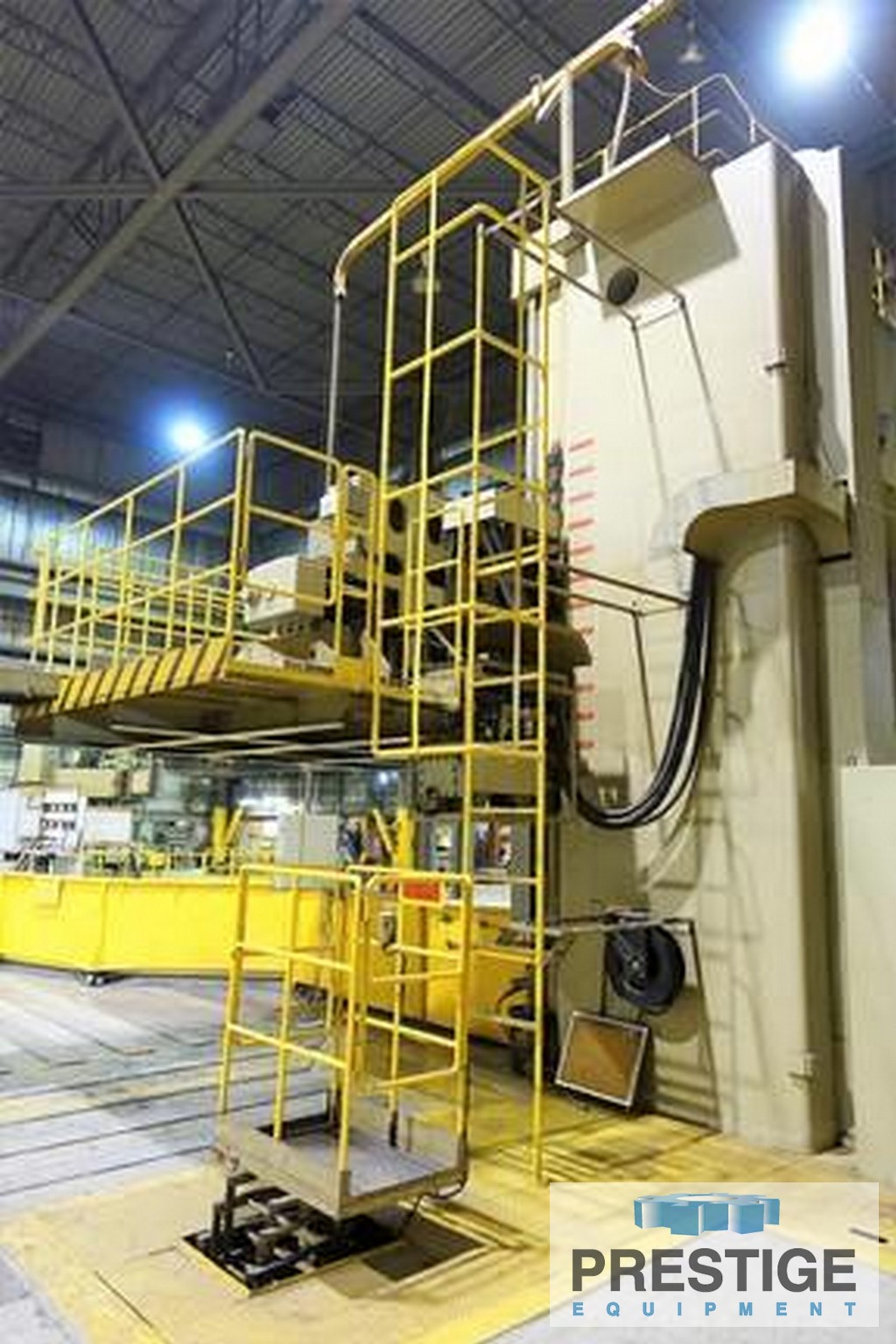

Independent Operator Platform and Lift
Steel Sliding Way Covers
100 HP Table Drive

NOTE:
Excellent Condition, Inspect Under Power in Turbine Mfg Facility
Price on Request!
