118" HNK VTC 30/40 CNC, 2-Rams, 157" Swing, 59" Work Height, ATC, Chip Conv, 80 RPM, 100 HP, Fanuc 18i, #32065

Manufacturer

HNK

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32065

Model

NT-30/40

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32065

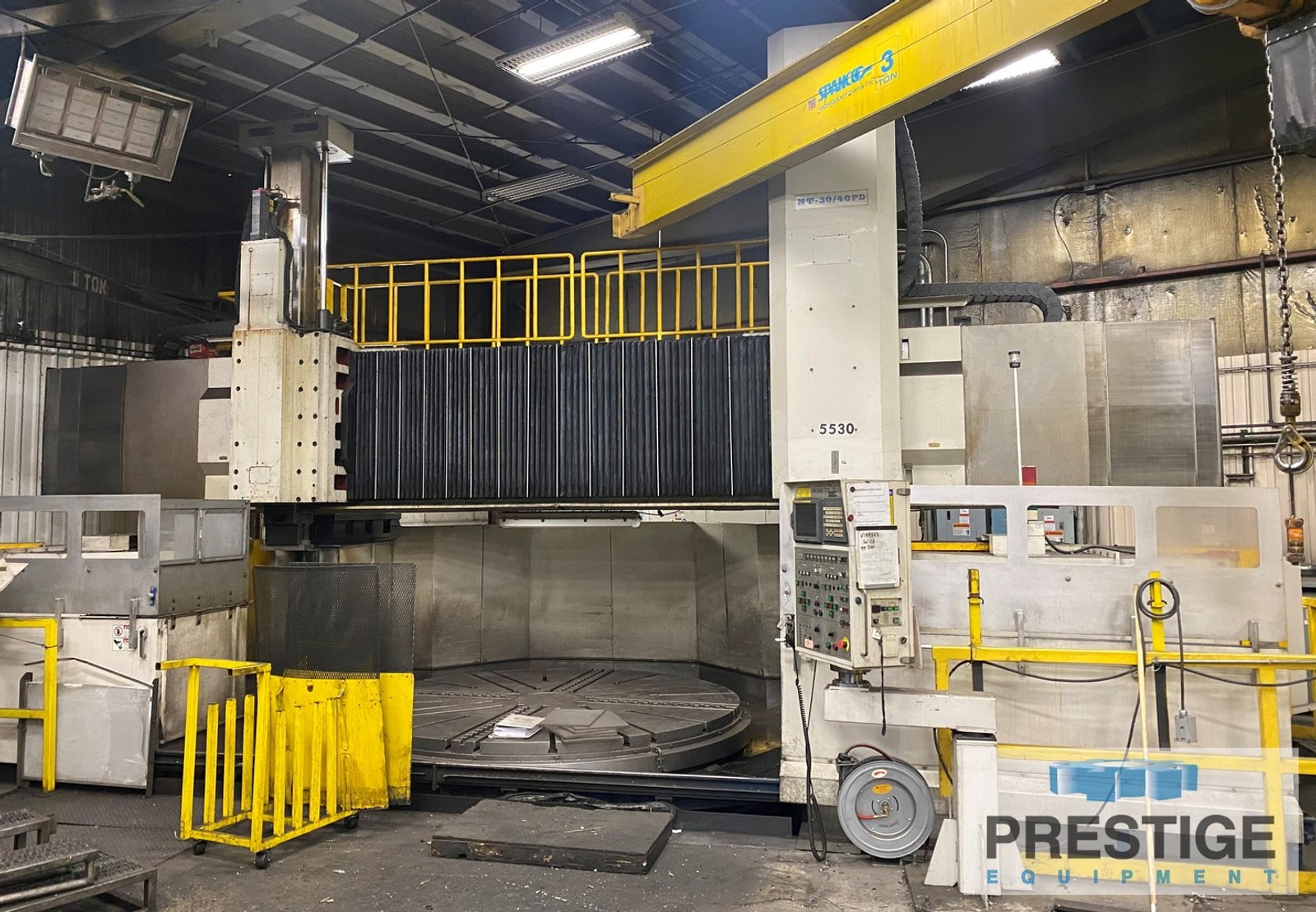

HNK NT-30/40 118"/157" CNC Vertical Boring Mill

Features:
Fanuc 18i-TB CNC Controls
(2) Rams with Automatic Tool Changer

SPECIFICATIONS:

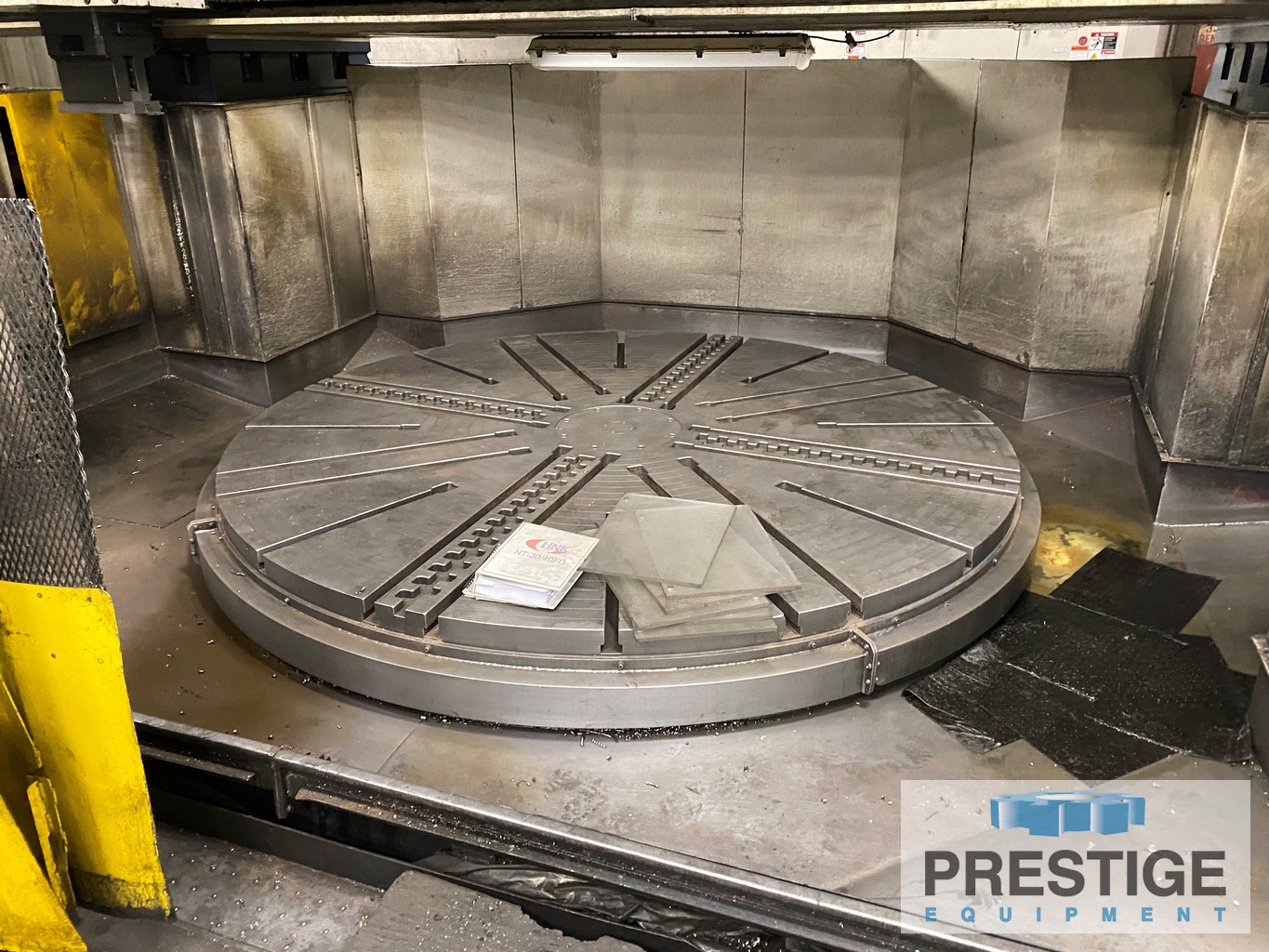

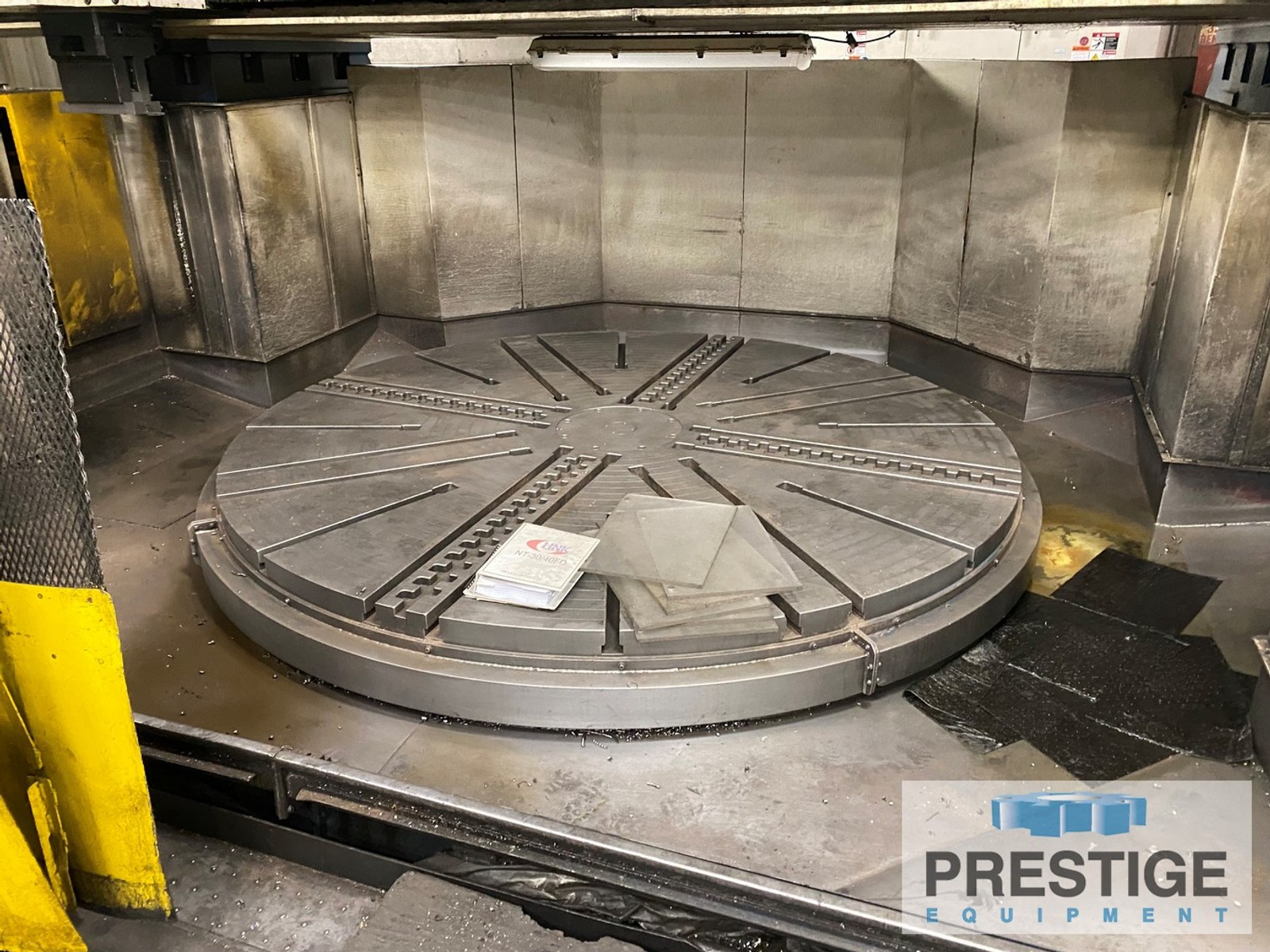

Table Diameter ........................ 118.11"
Maximum Swing ......................... 157.48"
Maximum Work Height ................... 59"

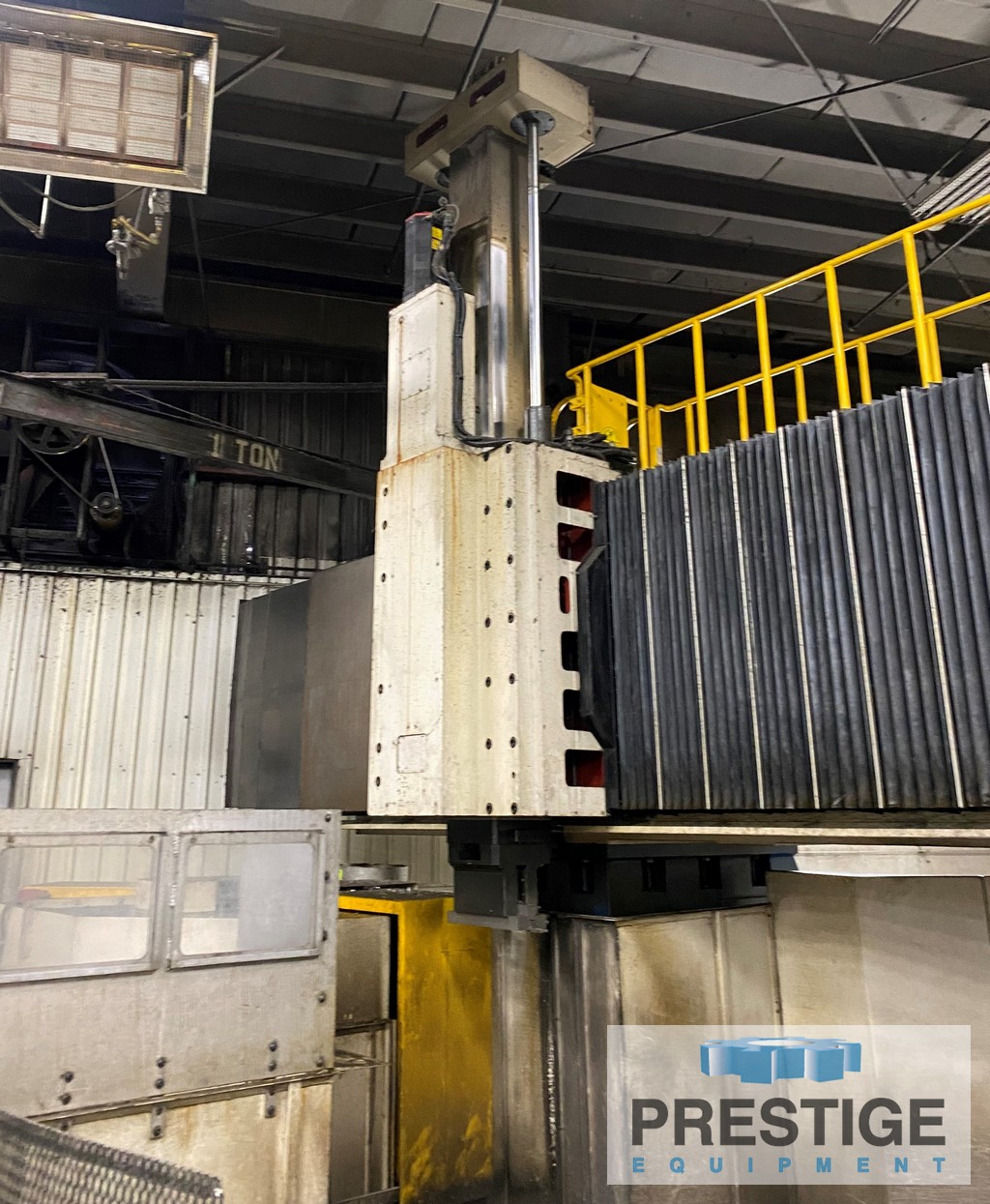

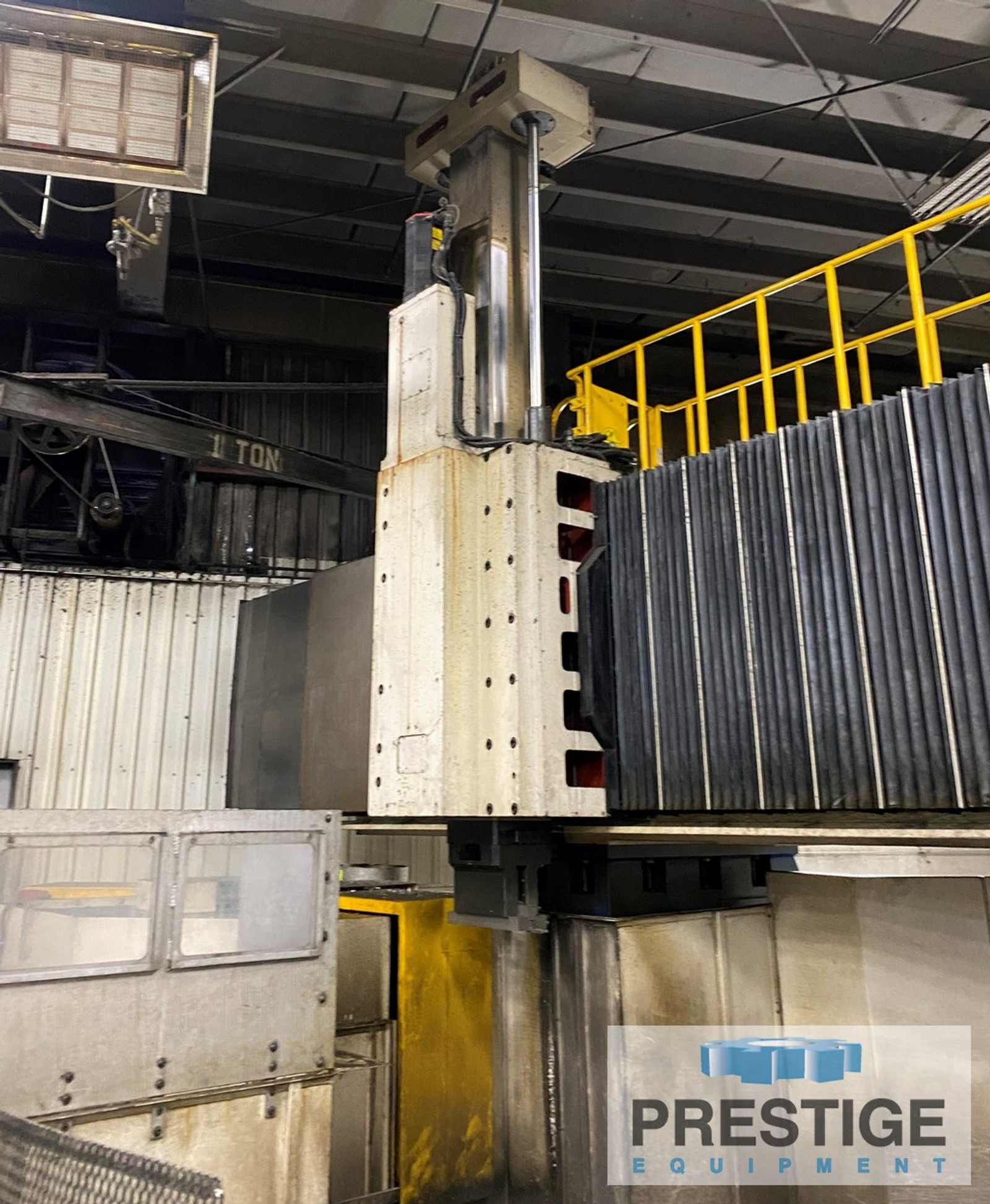

Ram Stroke ............................ 59.05"
Ram Cross Section ..................... 11.81" x 11.81"
Cross Rail Vertical Travel ............ 59.05"
Cross Rail Positioning ................ 7 x 9.84" Steps
Table Speeds, 2-Speeds ................ 1-80 RPM
Table Weight Capacity ................. 55,000 lbs
Machine Weight ........................ 187,000 lbs


EQUIPPED WITH:

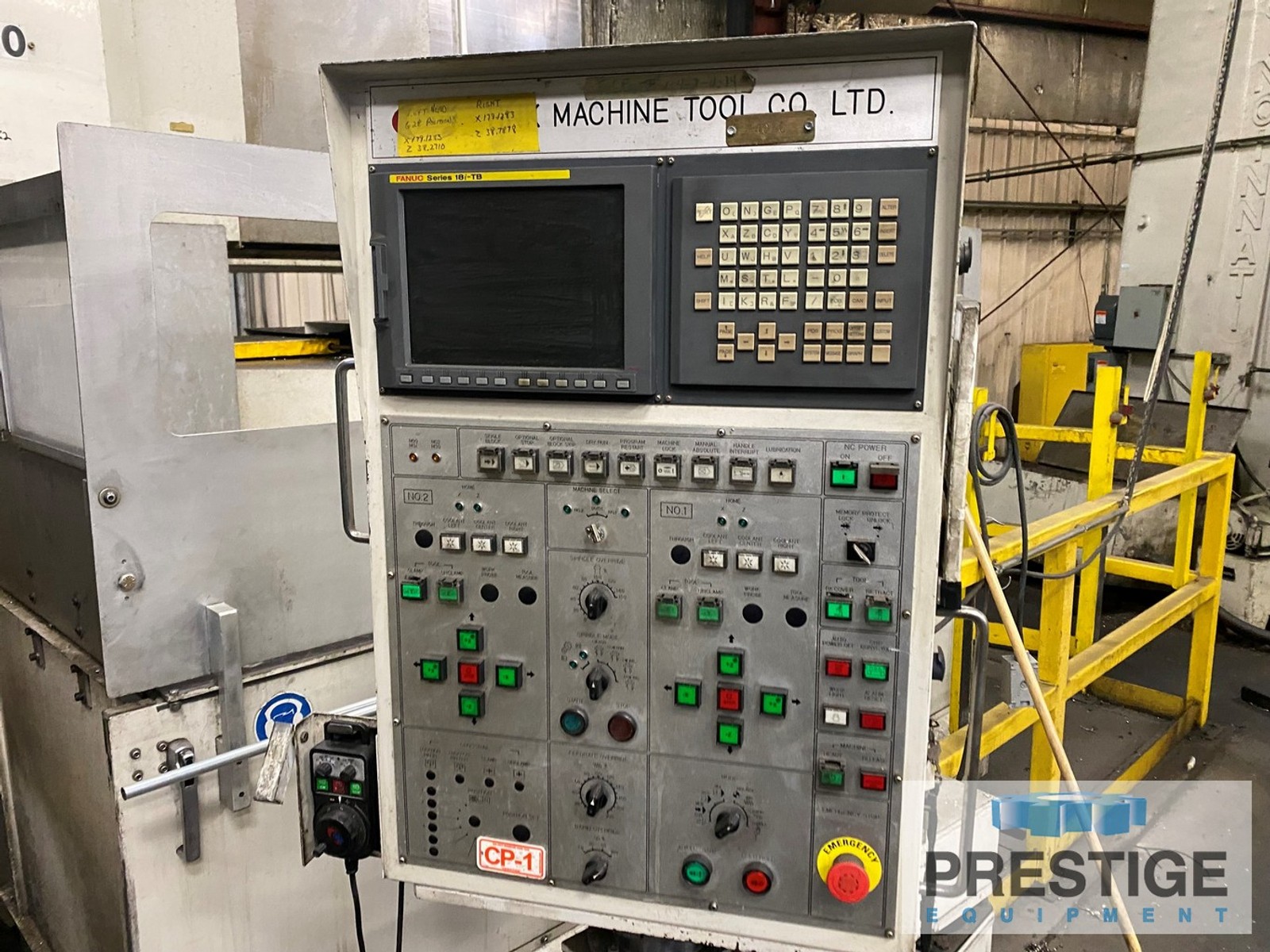

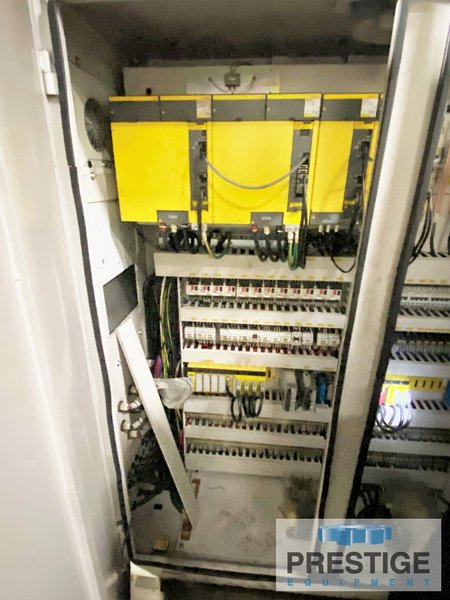

Fanuc 18i-TB 3-Axis CNC Controls
Automatic Tool Changer
118.11" 4-Jaw Chuck
Chip & Splash Guarding
Chip Conveyor System
87 HP / 100 HP Main Drive Motor

NOTE:
Inspect In Plant Under Power!

No Video Available
