Union 5.12" BFT 130 CNC, X-110", Y-110", W-88", Z-37", 55" x 63" Rotary, Heidenahin 530 CNC, #32028

Manufacturer

UNION

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32028

Model

BFT 130 NC

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32028

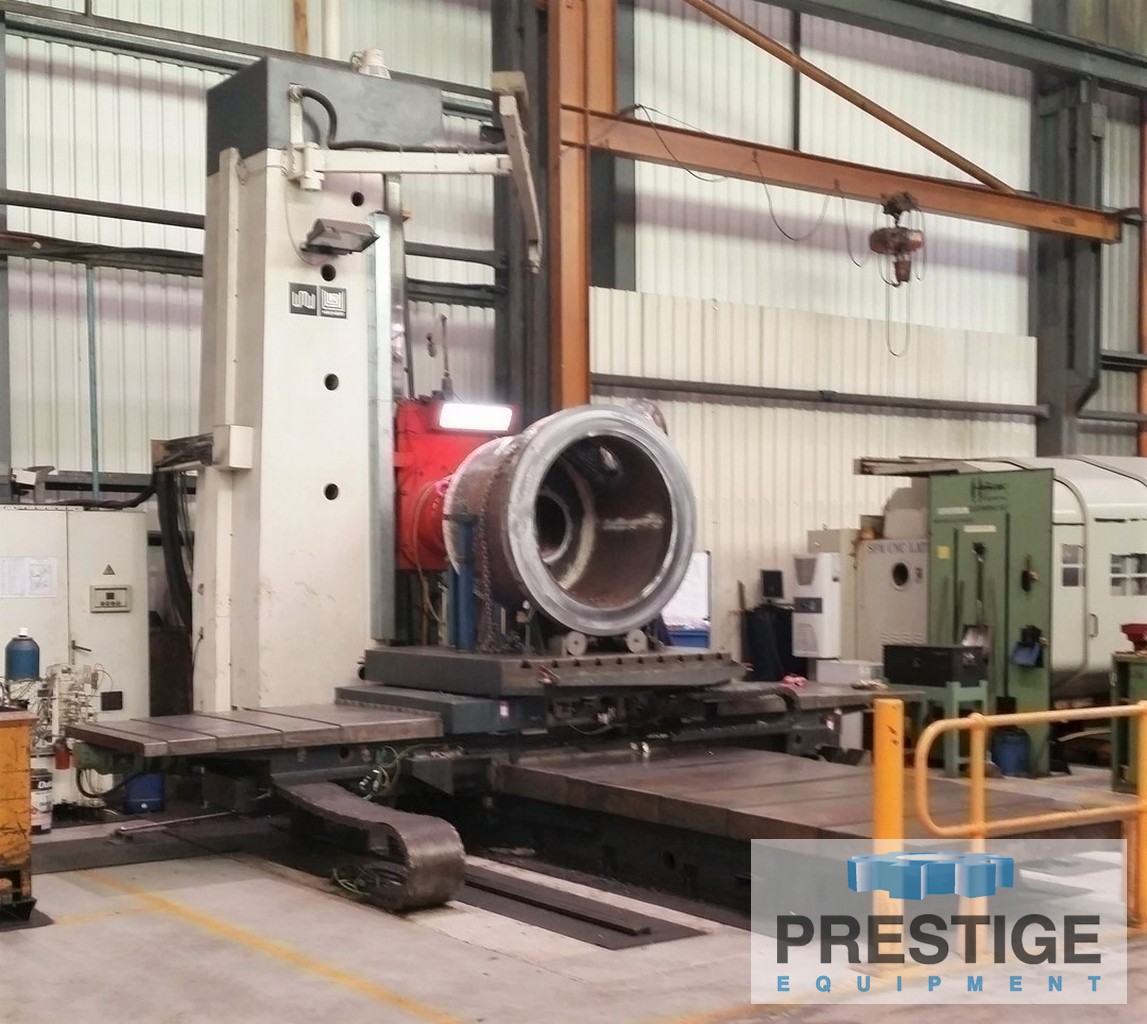

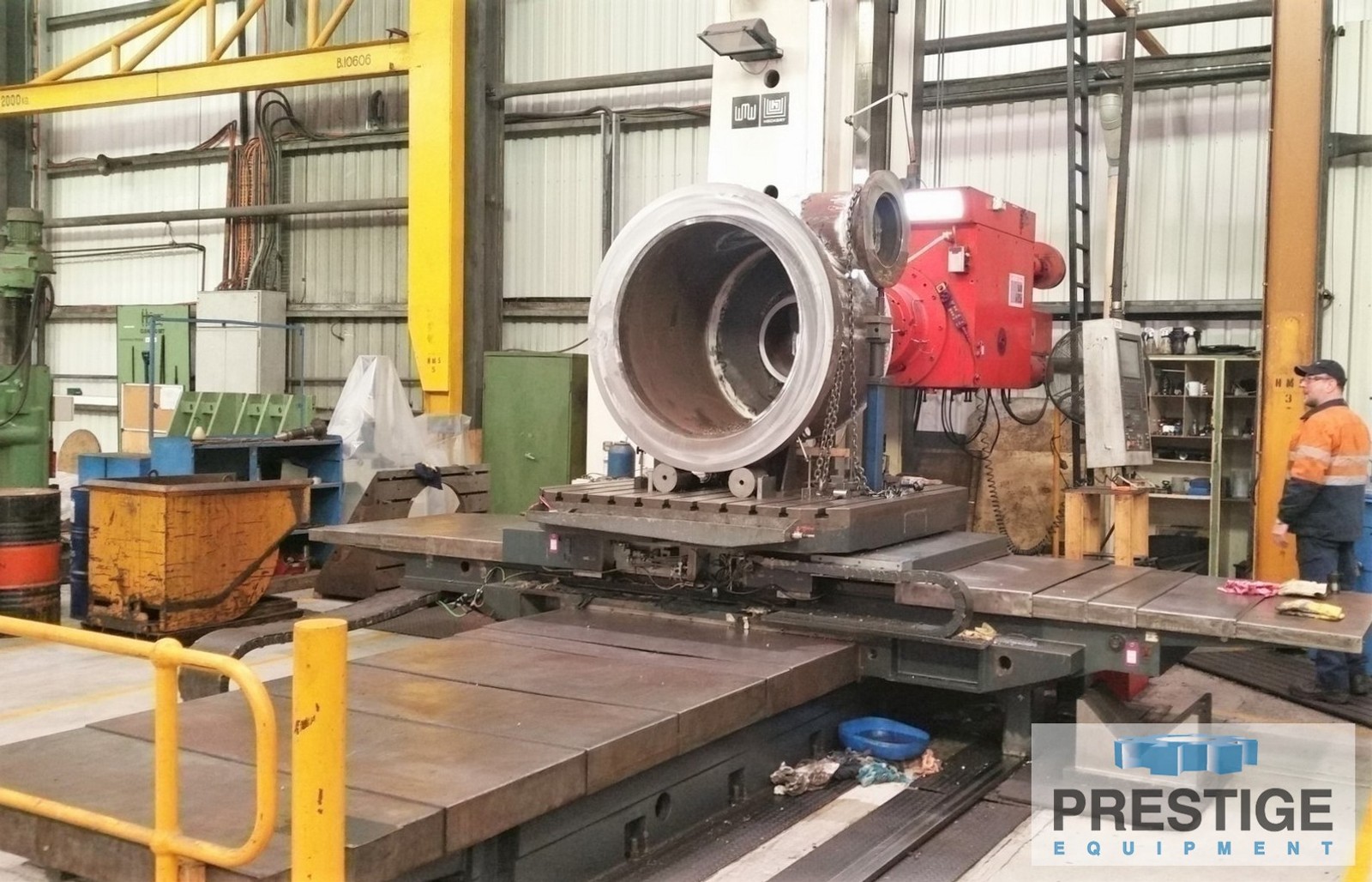

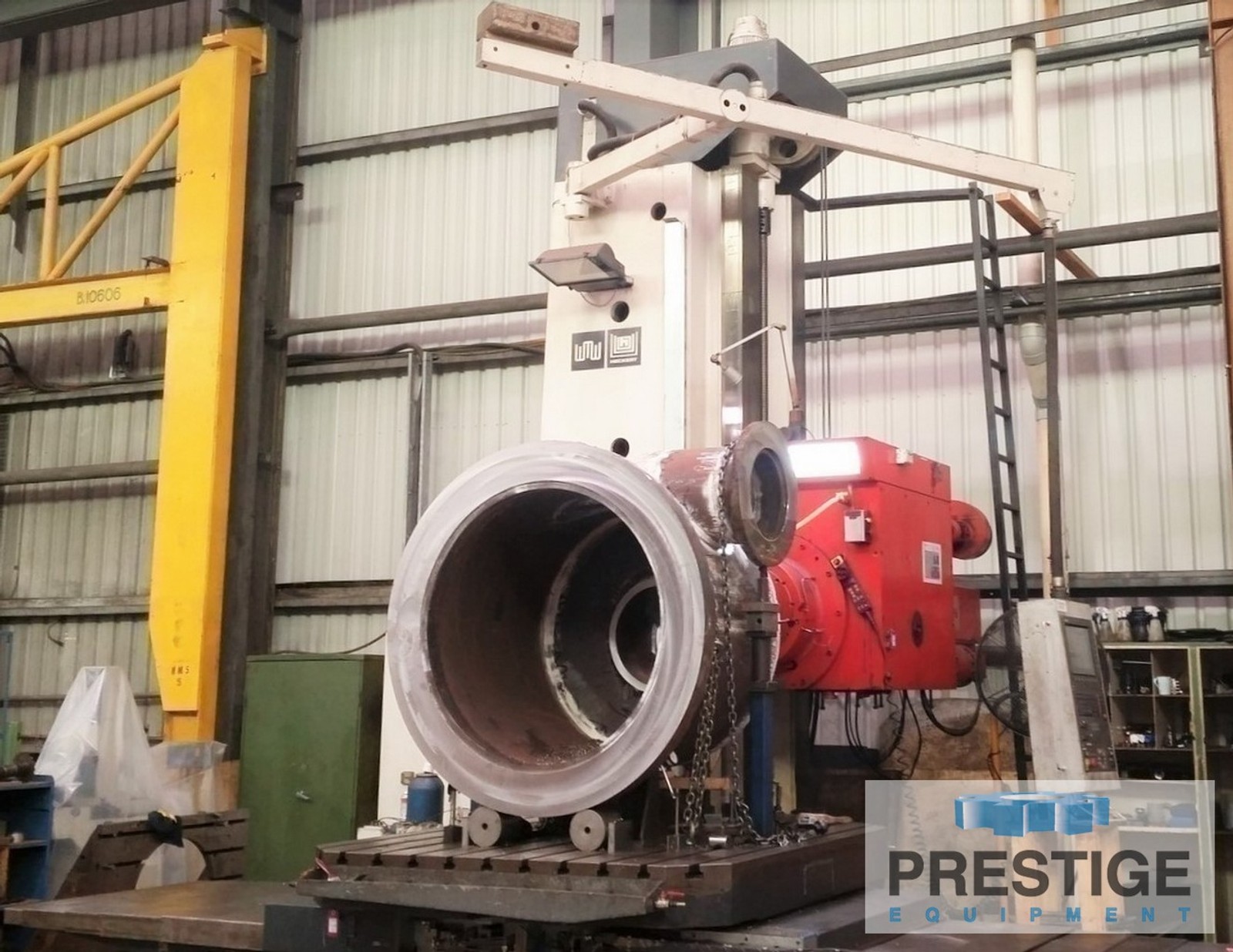

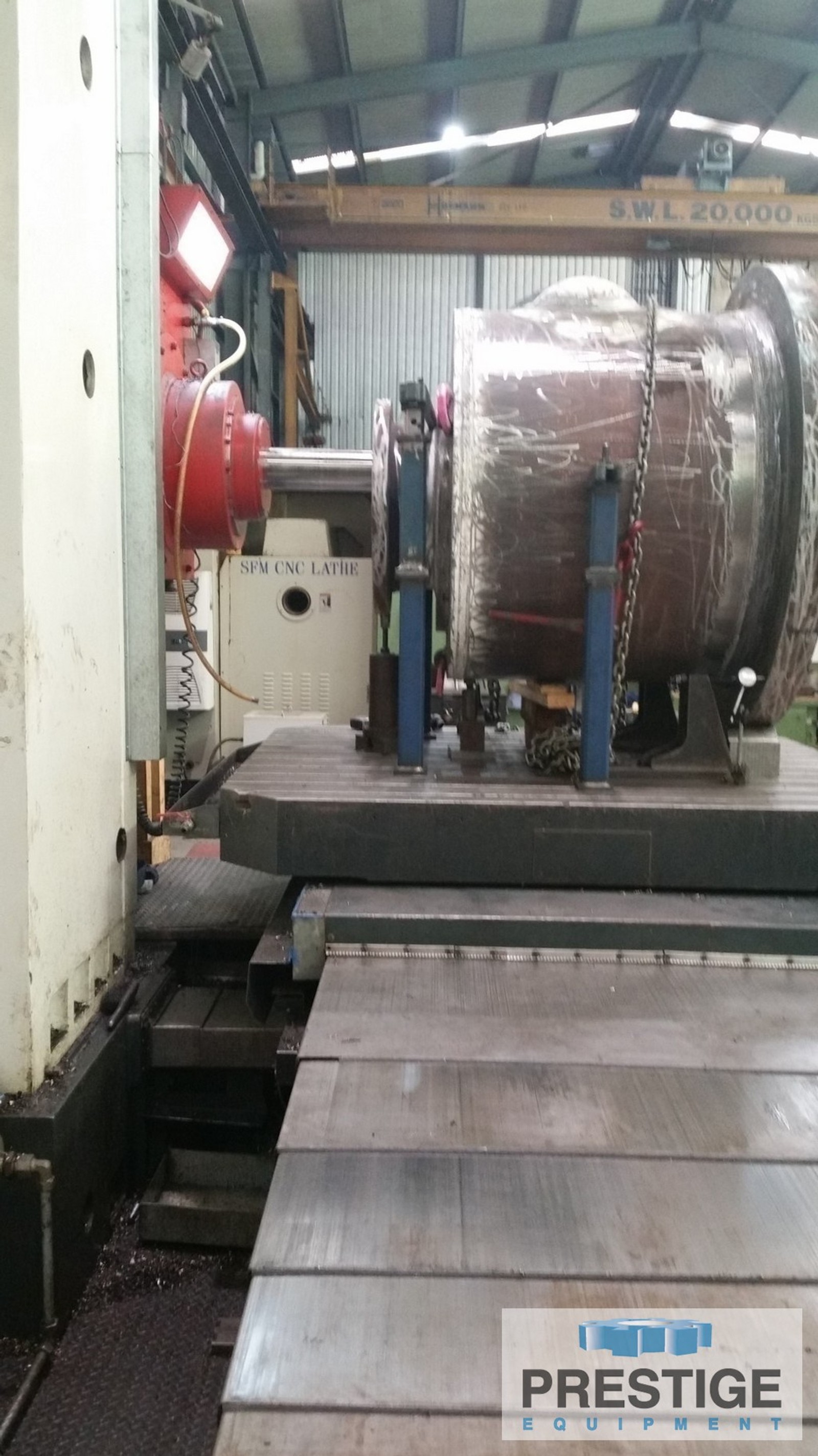

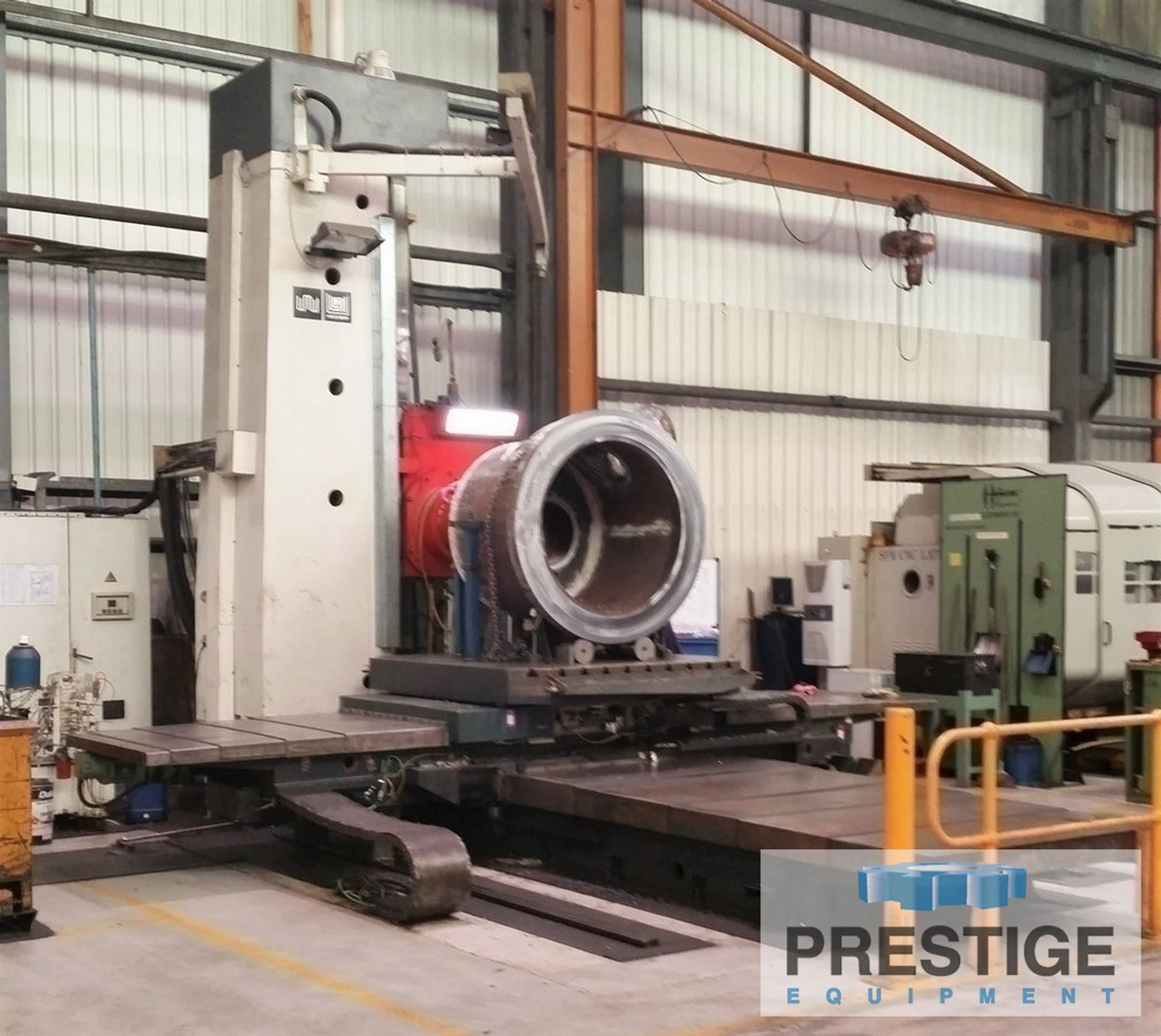

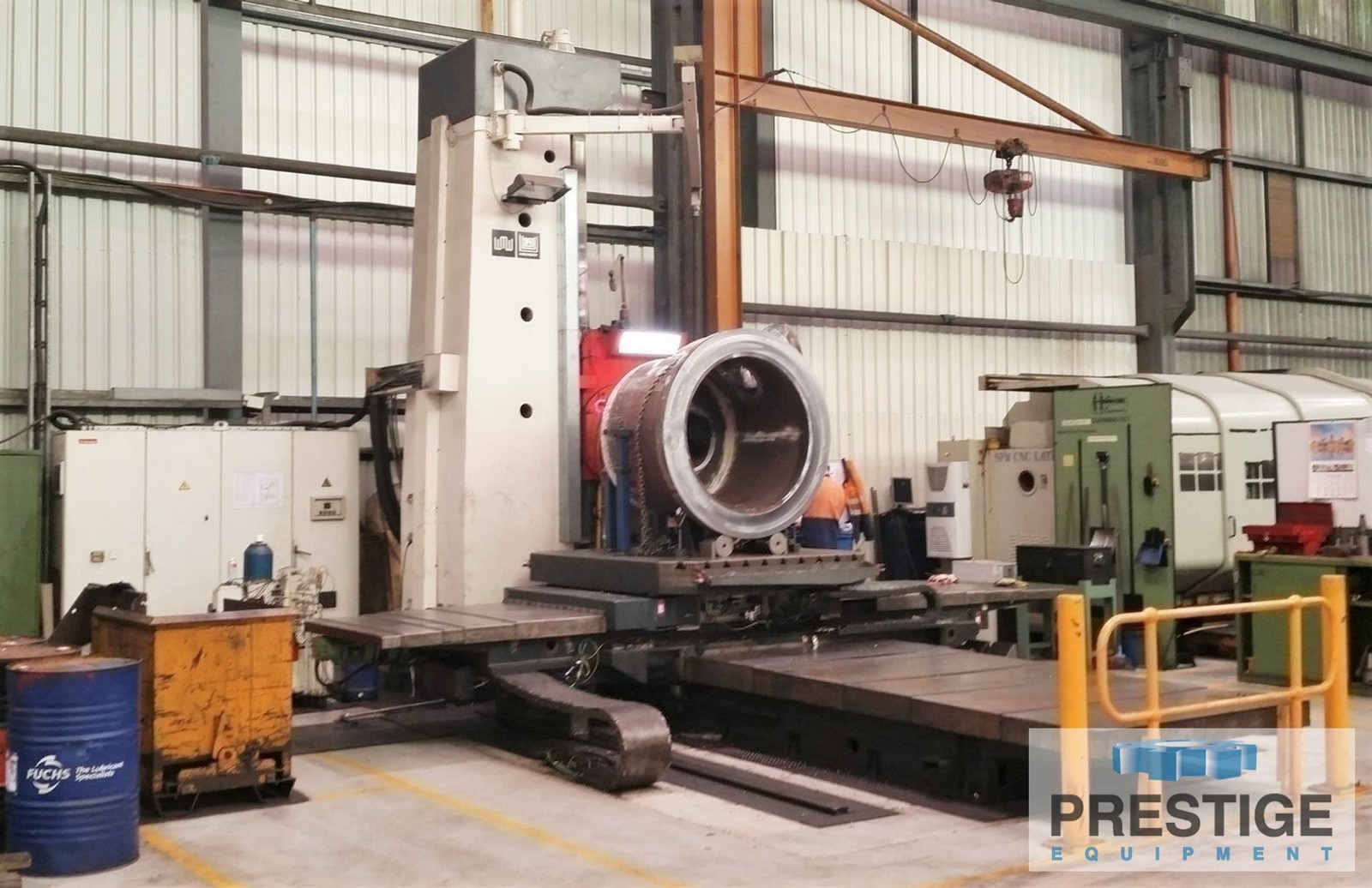

Union 5.12" CNC Table Type Boring Mill

FEATURES:

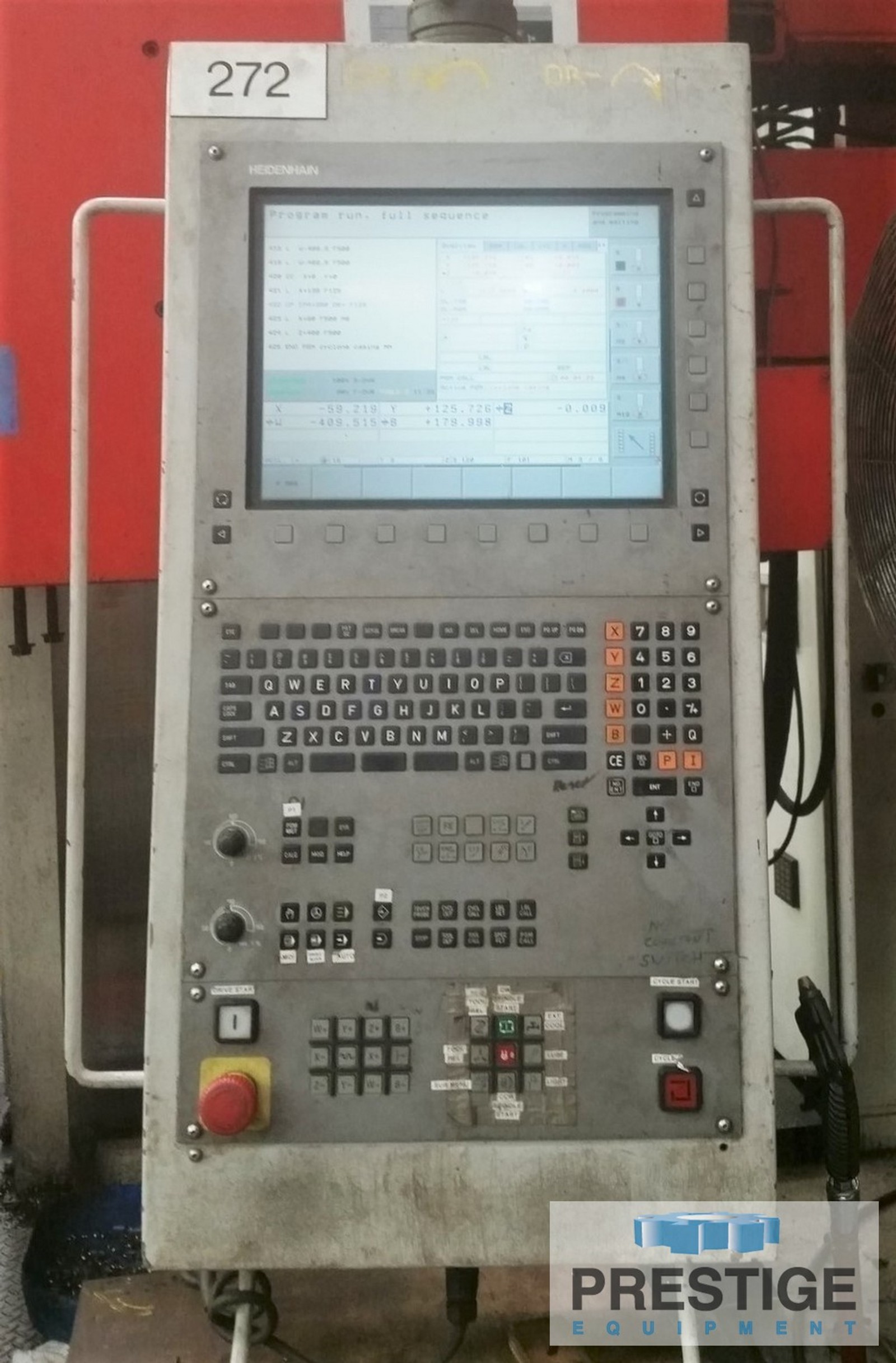

Heidenhain 530 CNC Control -Retrofit 2005
Built In Rotary Table
Hardened & Ground Ways w/ Way Covers
67 HP Spindle Motor

CAPACITY:
Spindle Diameter ...................... 5.12"
Taper In Spindle ...................... #50
Vertical Travel Of Headstock, Y-Axis... 100.78"
Cross Travel Of Table, X-Axis ......... 110.2"
Saddle Travel, W-Axis ................. 88.58"
Spindle Travel, Z-Axis ................ 37.79"
Spindle Speeds: Inf. Variable ......... 5-1000 RPM
Table Size (Built In Rotary) .......... 55.11" x 62.99"

EQUIPPED WITH:
Heidenhain 530 CNC Control - Retrofit 2005
Built In Rotary Table
Hardened & Ground Ways w/ Way Covers
67 HP Spindle Motor
