Atlantic TS3006, .25" x 122" Cap., 10 - 25 SPM, 29" BG, 31" Work Height, 40" Squaring Arm, 15 HP, #32270

Manufacturer

ATLANTIC

Category

Shears

Type

SHEARS, POWER SQUARING (Inches)

Stock

32270

Model

TS 3006

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32270

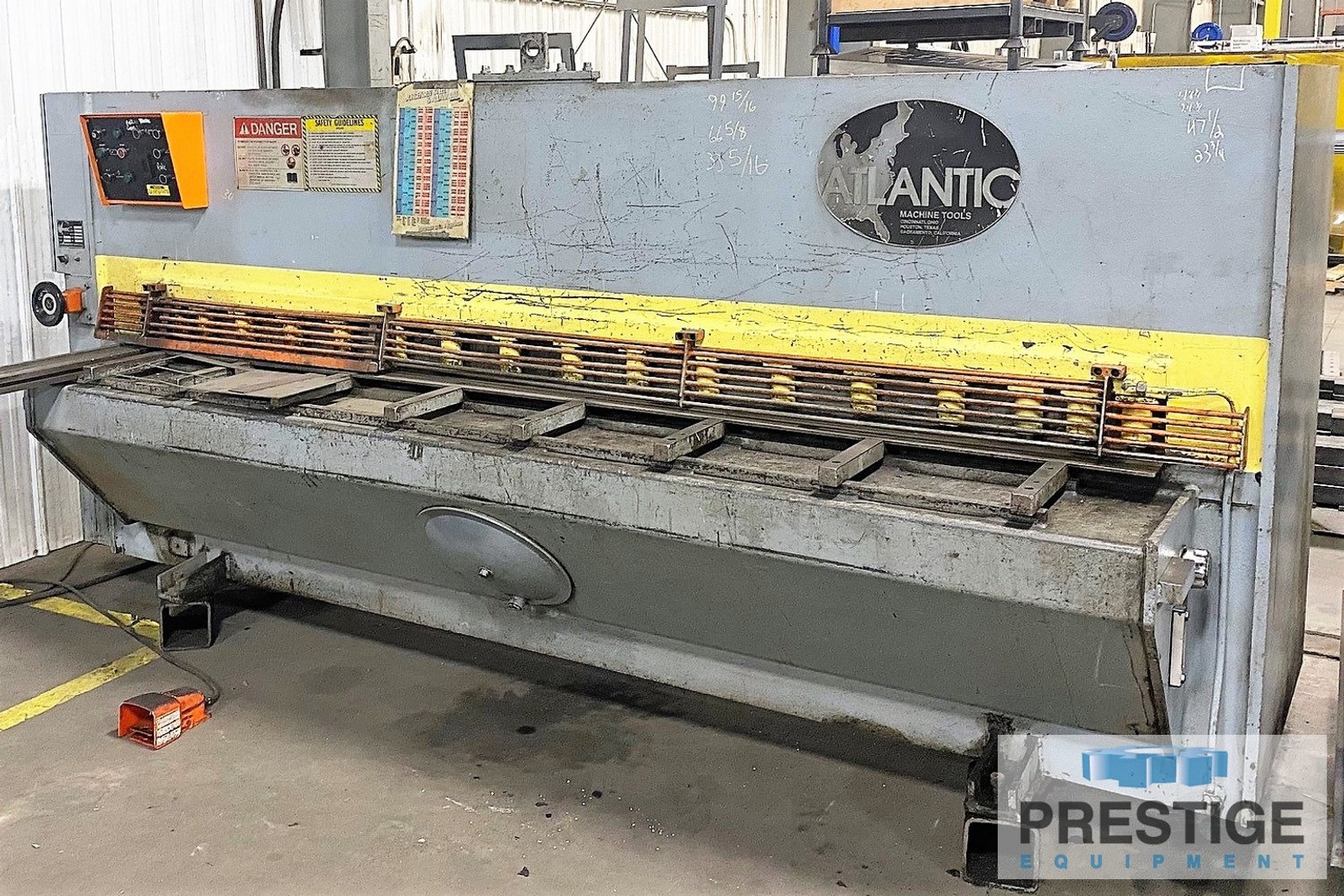

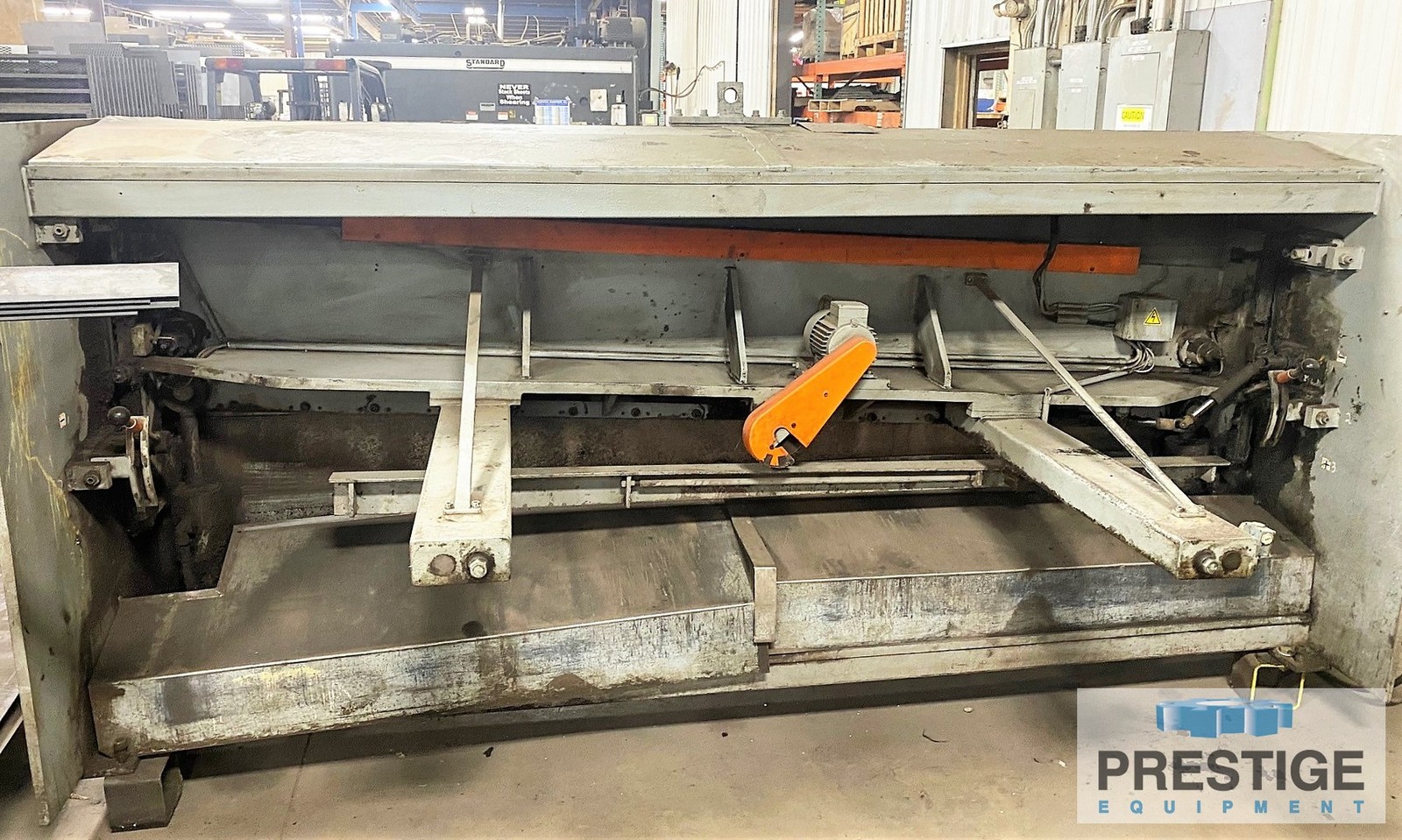

Atlantic 1/4" x 10' TS 3006 Hydraulic Shear

FEATURES:
40" Front Squaring Arm
Front Operated Backgauge
Fine Adjustment Wheel for Backgauge

SPECIFICATION:
Shearing Capacity, Mild Steel ......... .25"
Shearing Capacity, Stainless Steel .... 10 Ga.
Maximum Cutting Length ................ 122"
Angle Adjustment ...................... 1 - 3 Deg.
Number of Hold Downs .................. 18
Backgauge Reach ....................... 29"
Working Height ........................ 31"
Motor ................................. 15 HP
Approx. Machine Dimensions ............ 148" x 66" x 63"
Approx. Machine Weight ................ 10,500 Lbs

EQUIPPED WITH:
40" Front Squaring Arm
Front Operated Backgauge
Fine Adjustment Wheel for Backgauge

NOTE:
Inspect In Plant Under Power
