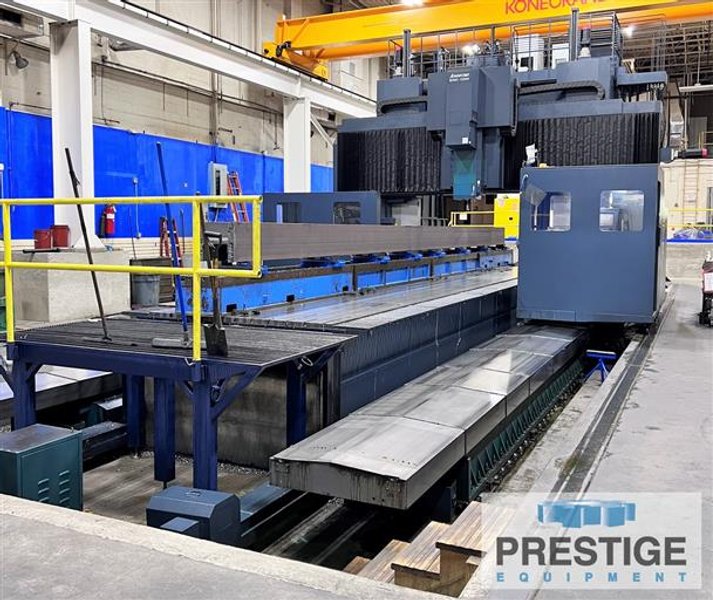

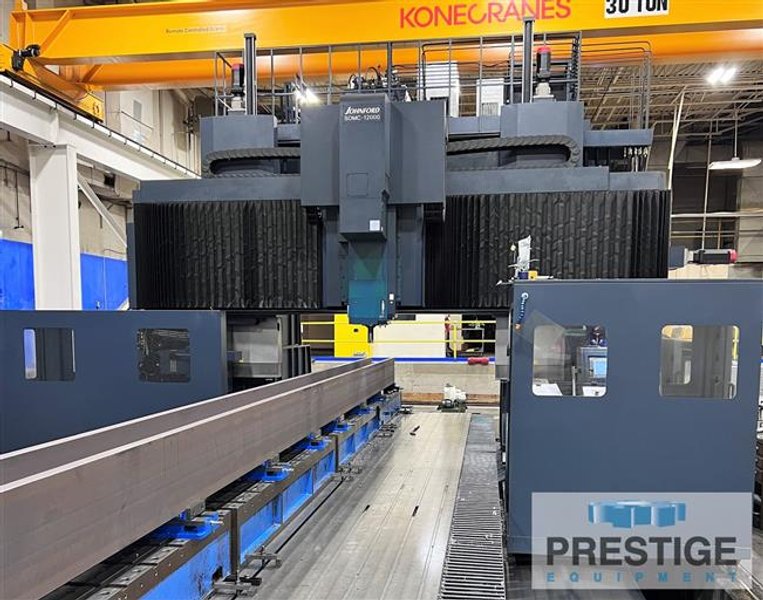

Johnsford SDMC 5-Face Gantry Mill with Adj. Rail, x-472", Y-141" z-55", 40 ATC, TSC, Fanuc 31i, 2017 #32073

Manufacturer

JOHNFORD

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

32073

Model

SDMC 12000 x 2800

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32073

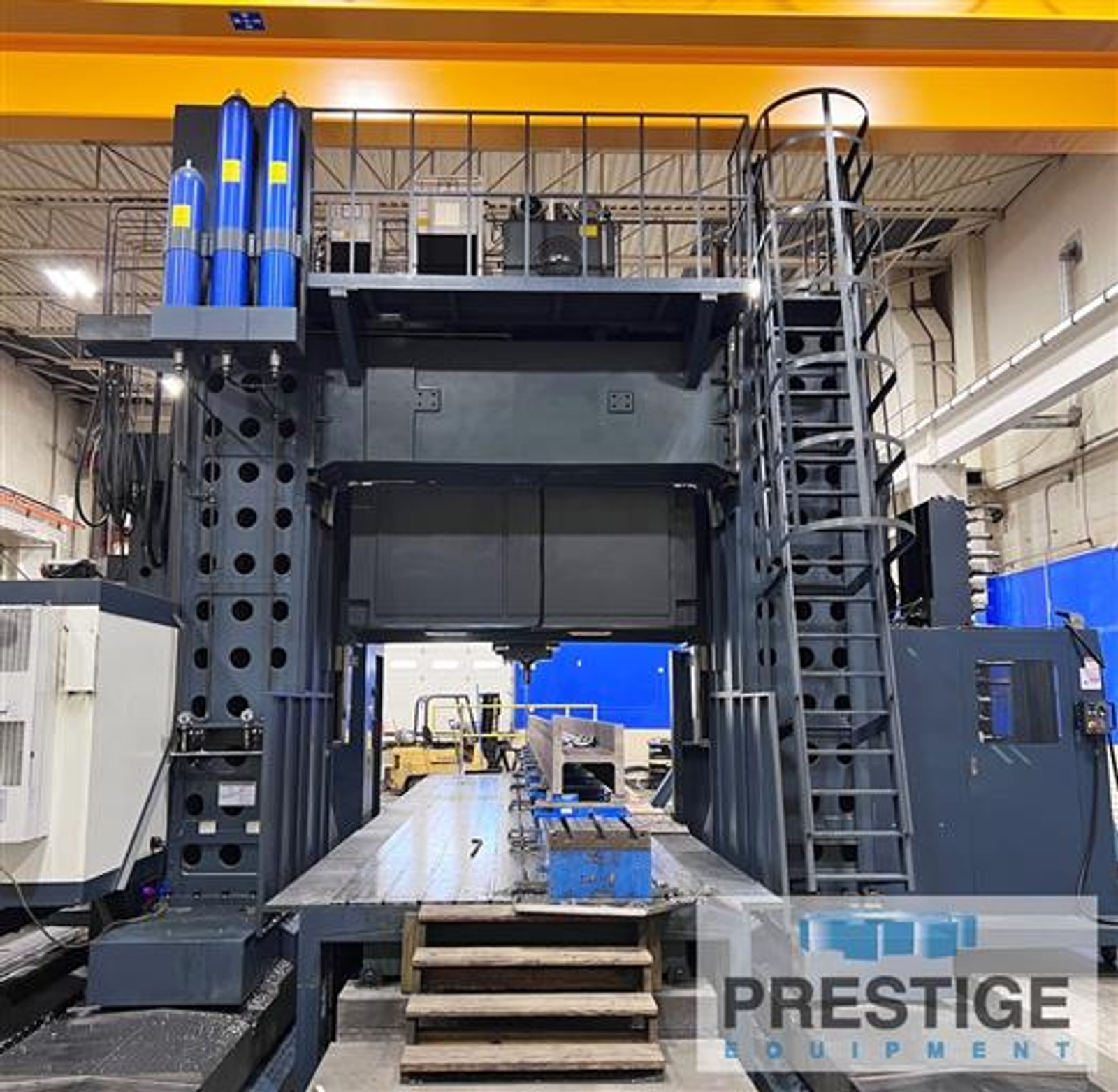

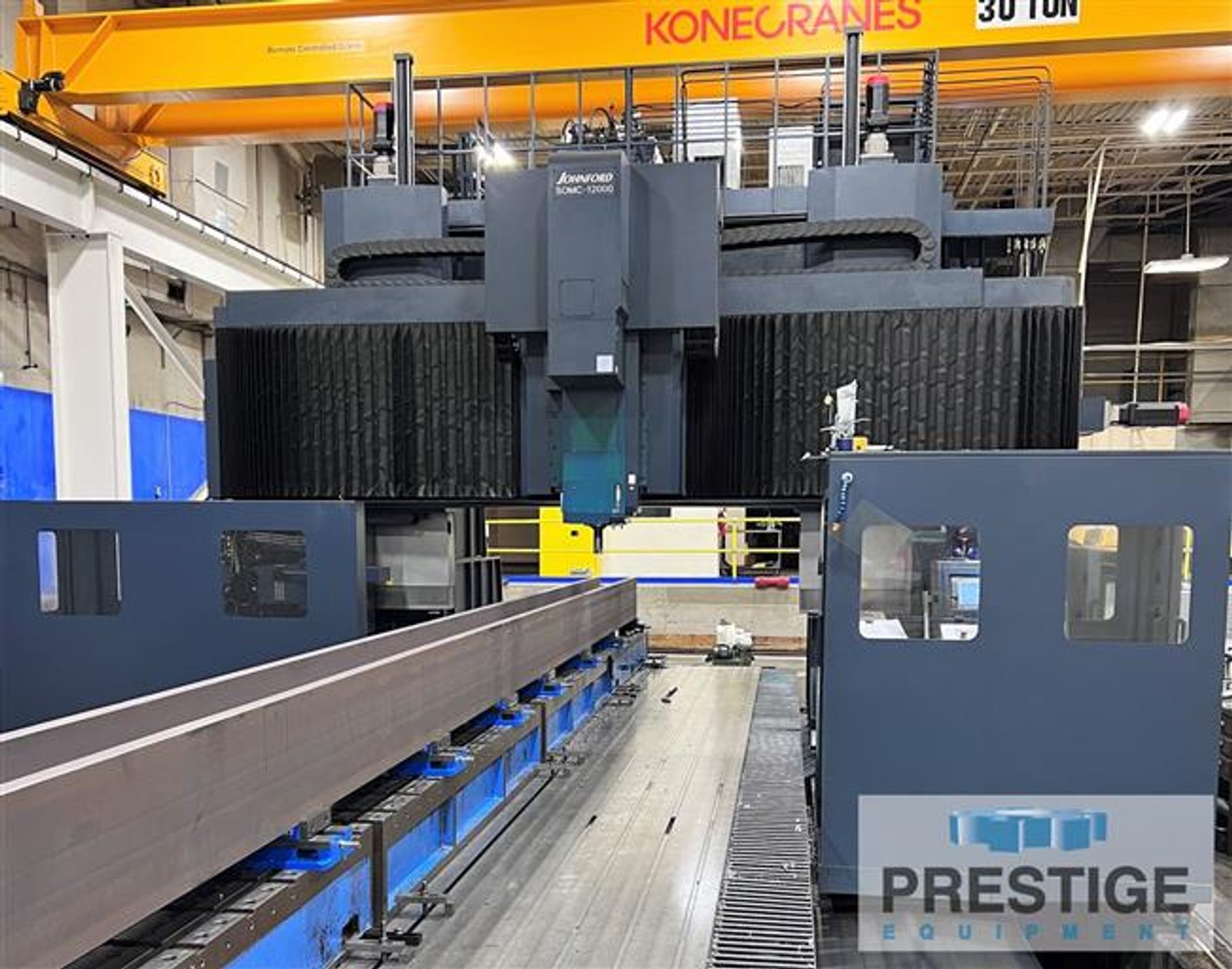

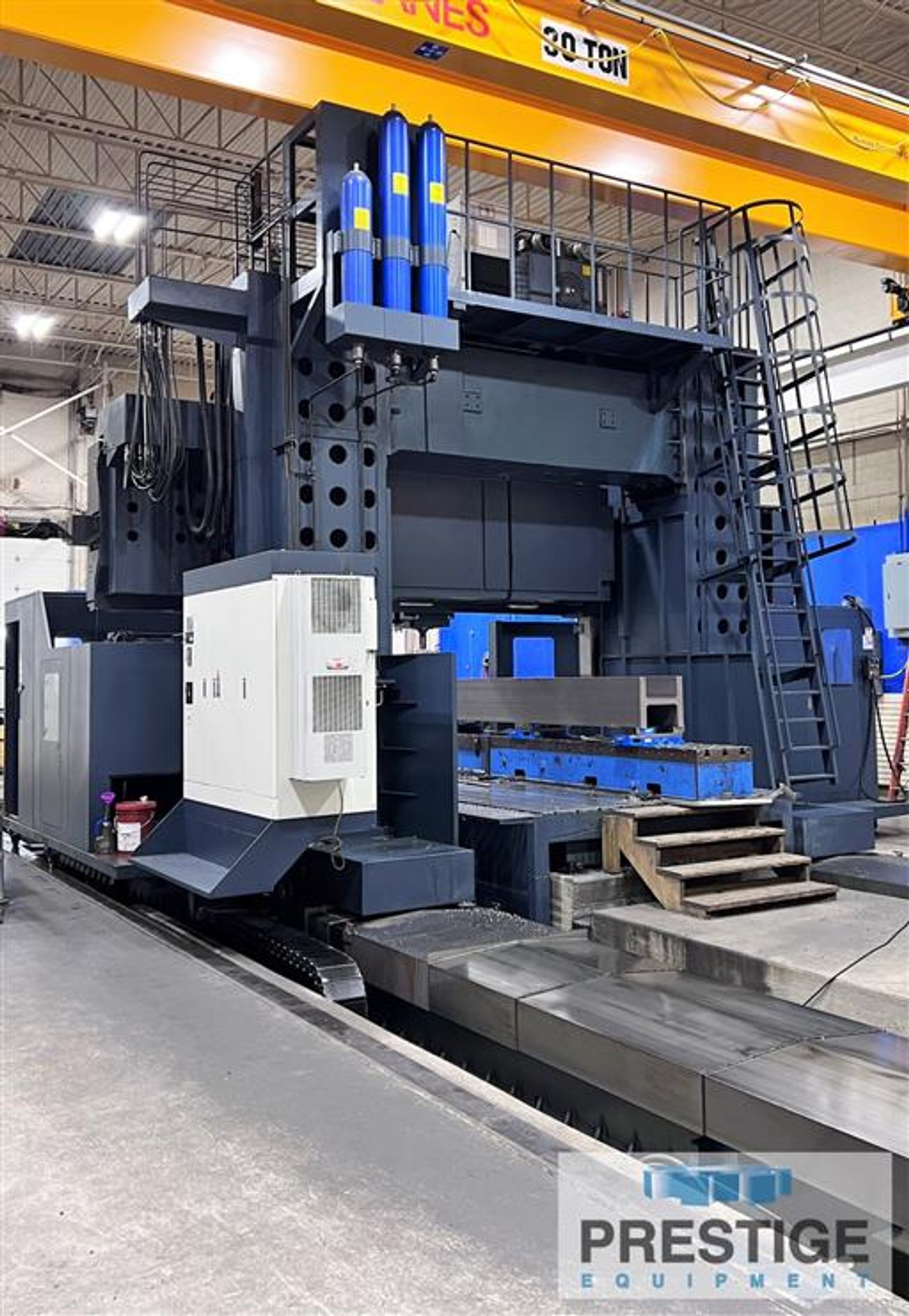

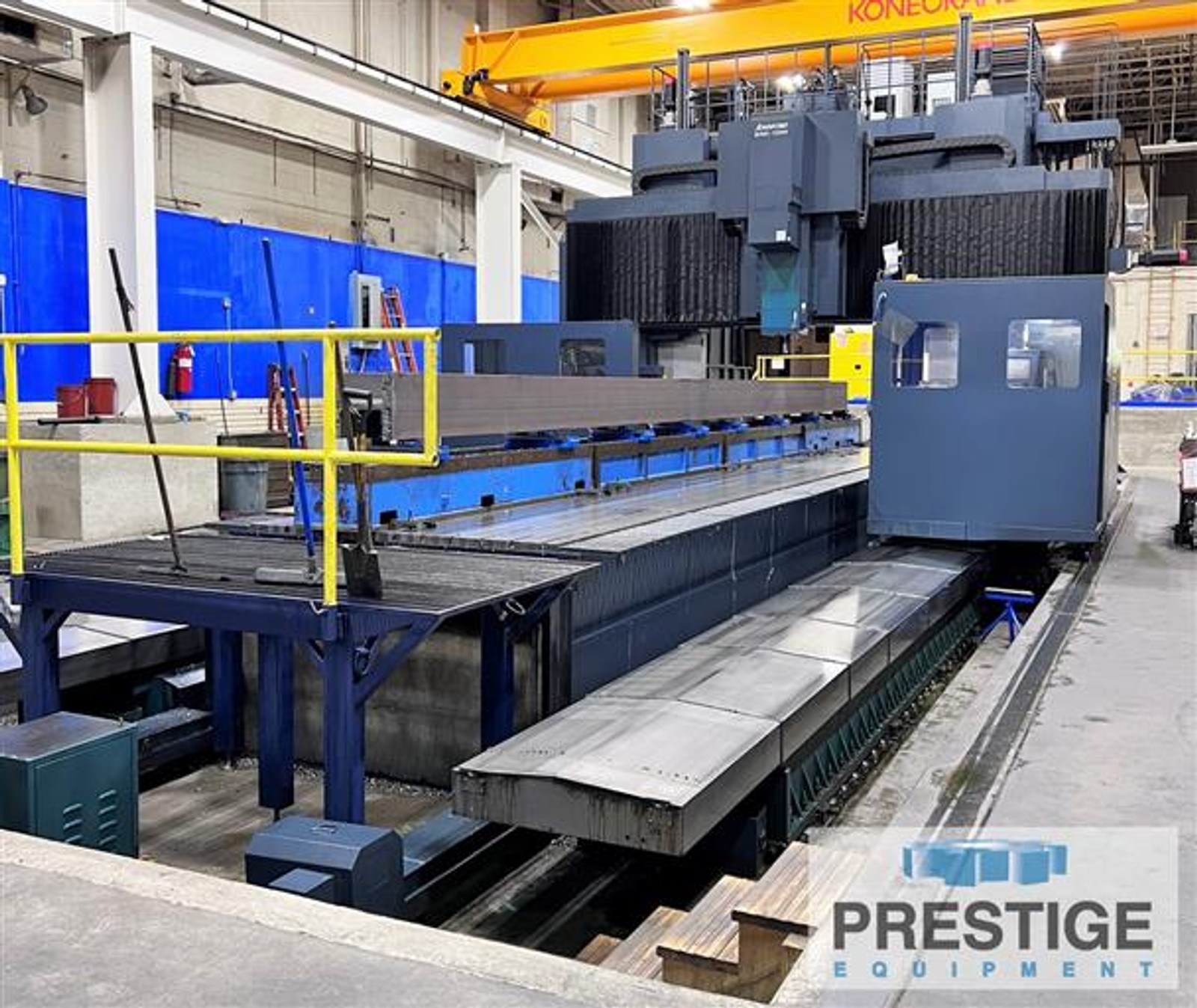

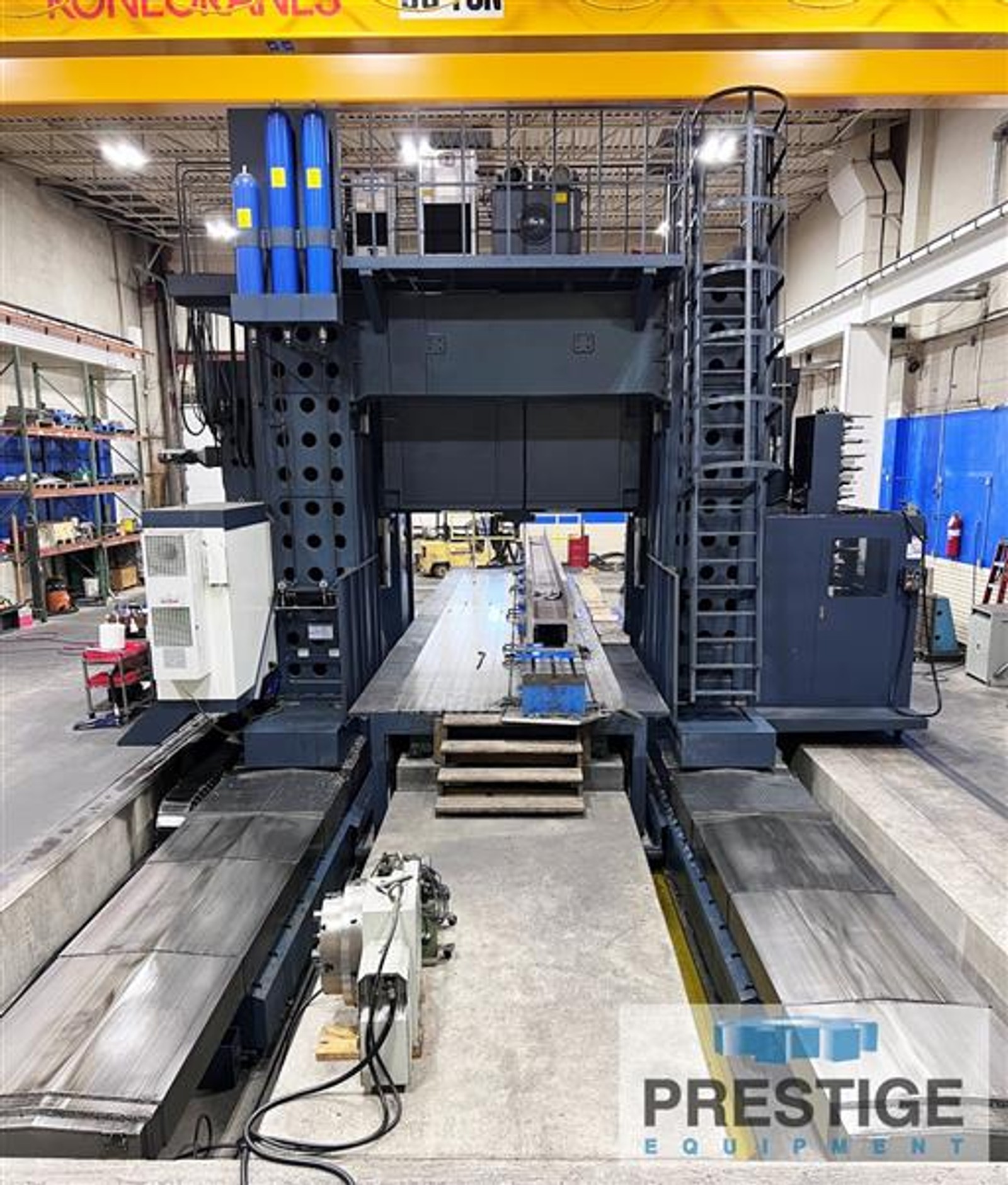

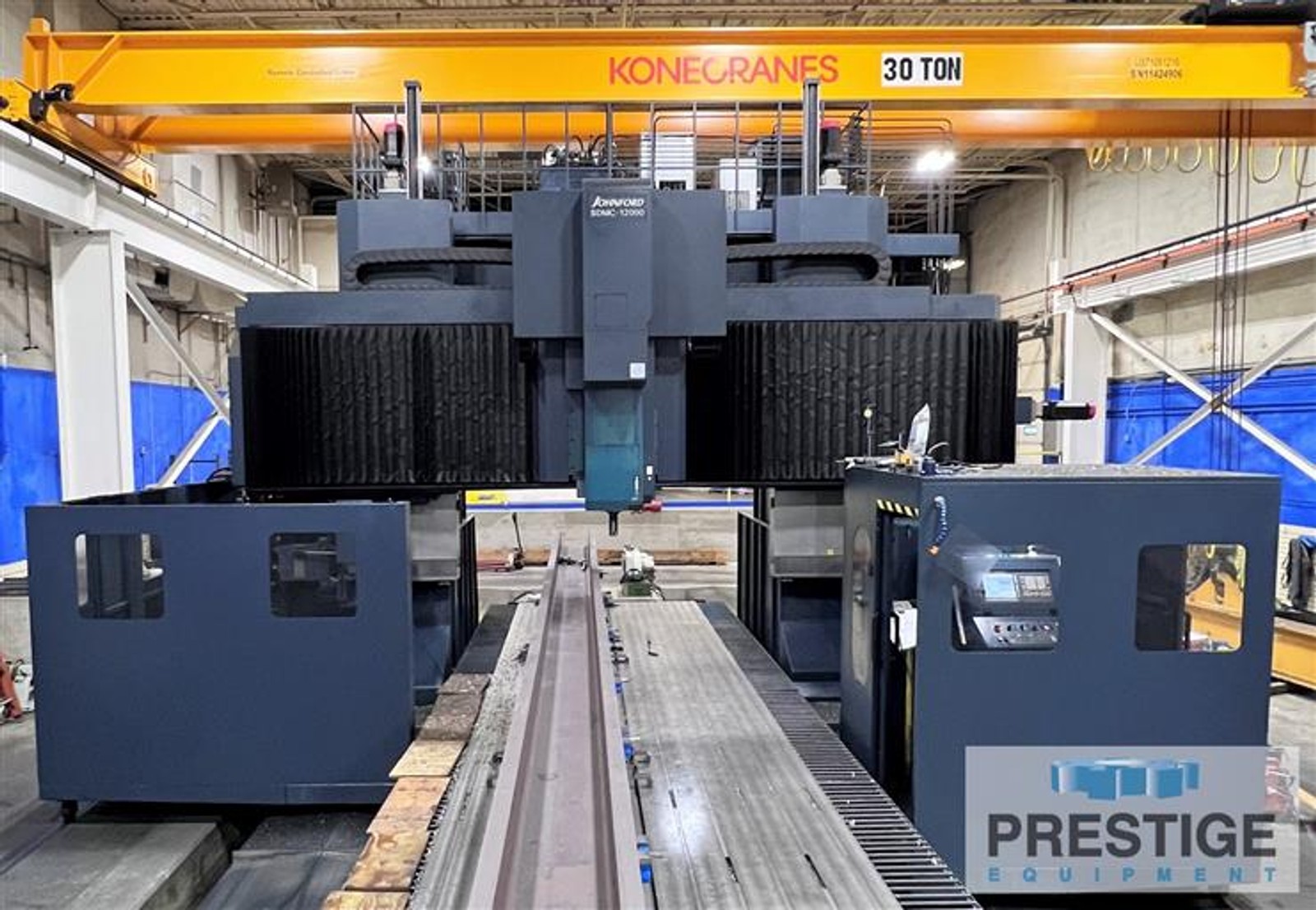

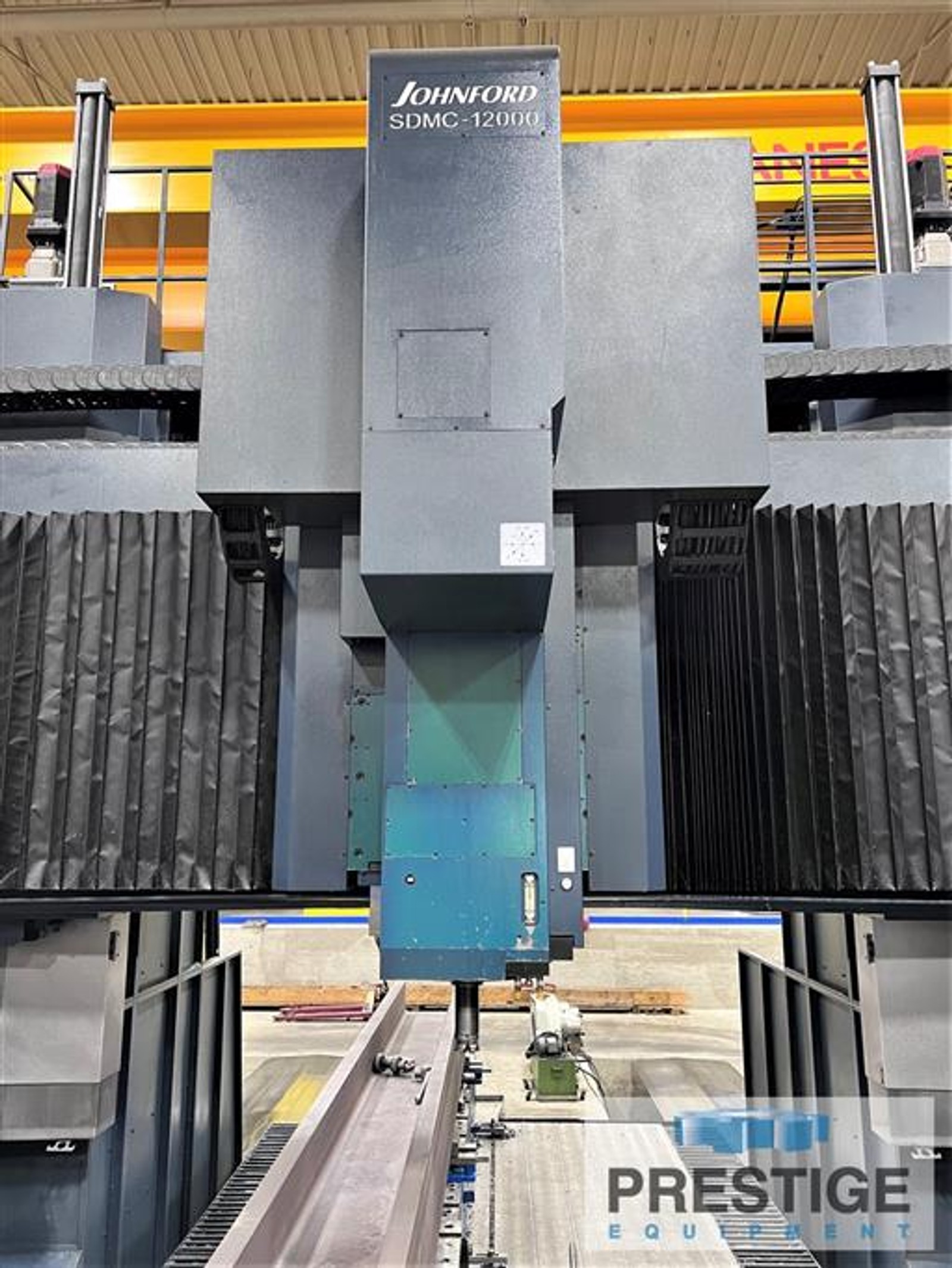

Johnford CNC 5-Face Travelling Gantry Type Milling Machine

FEATURES:

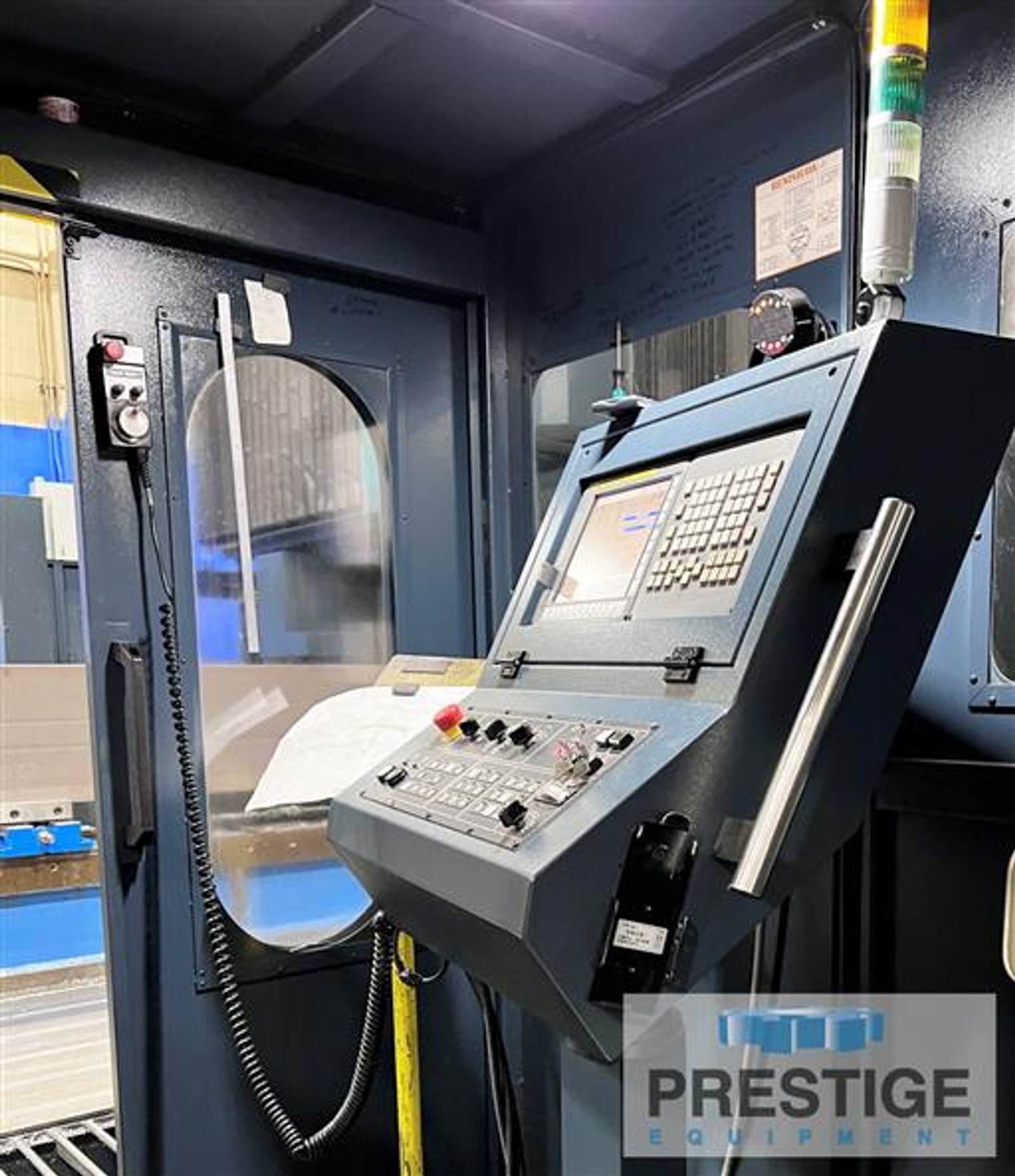

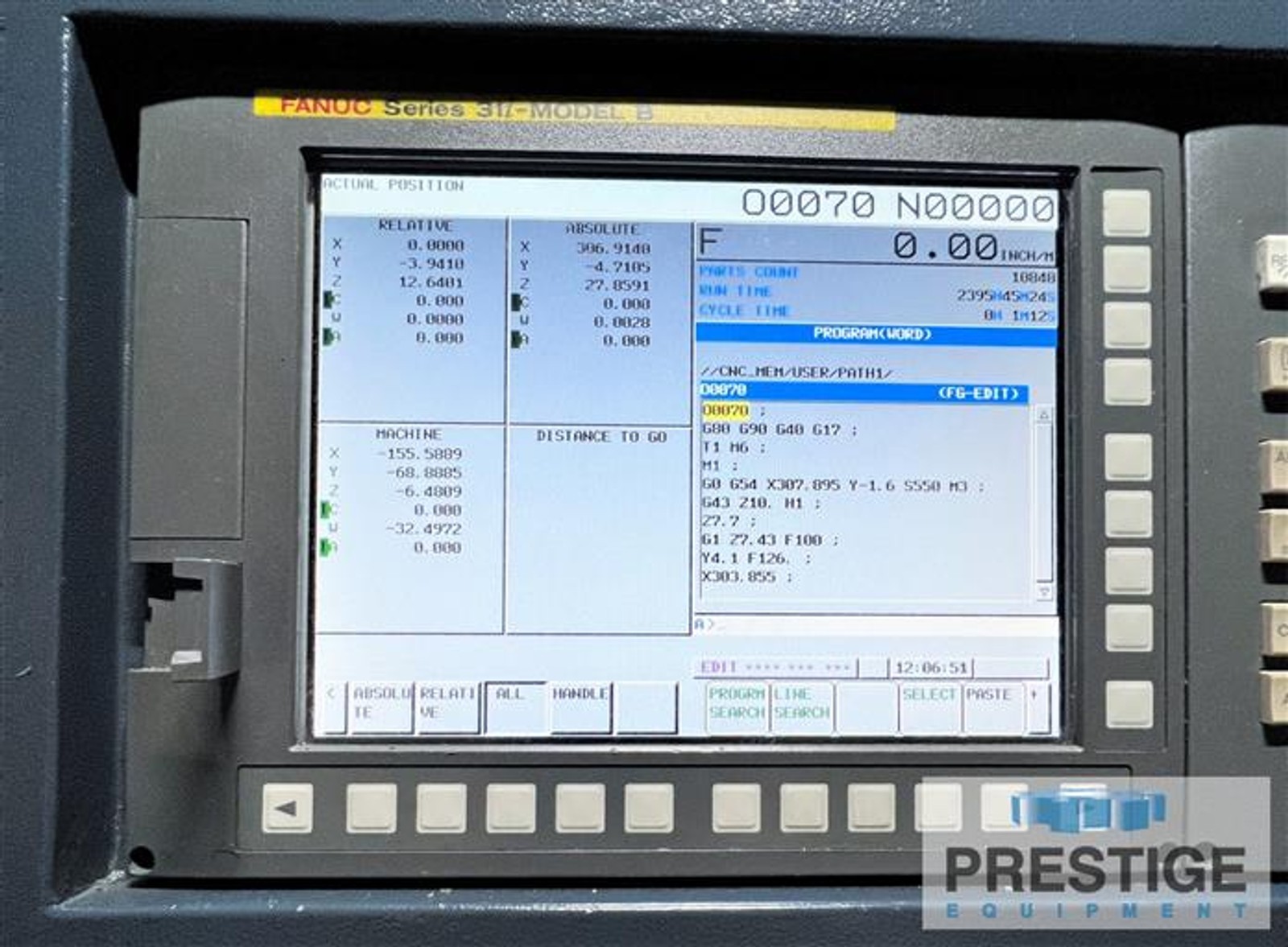

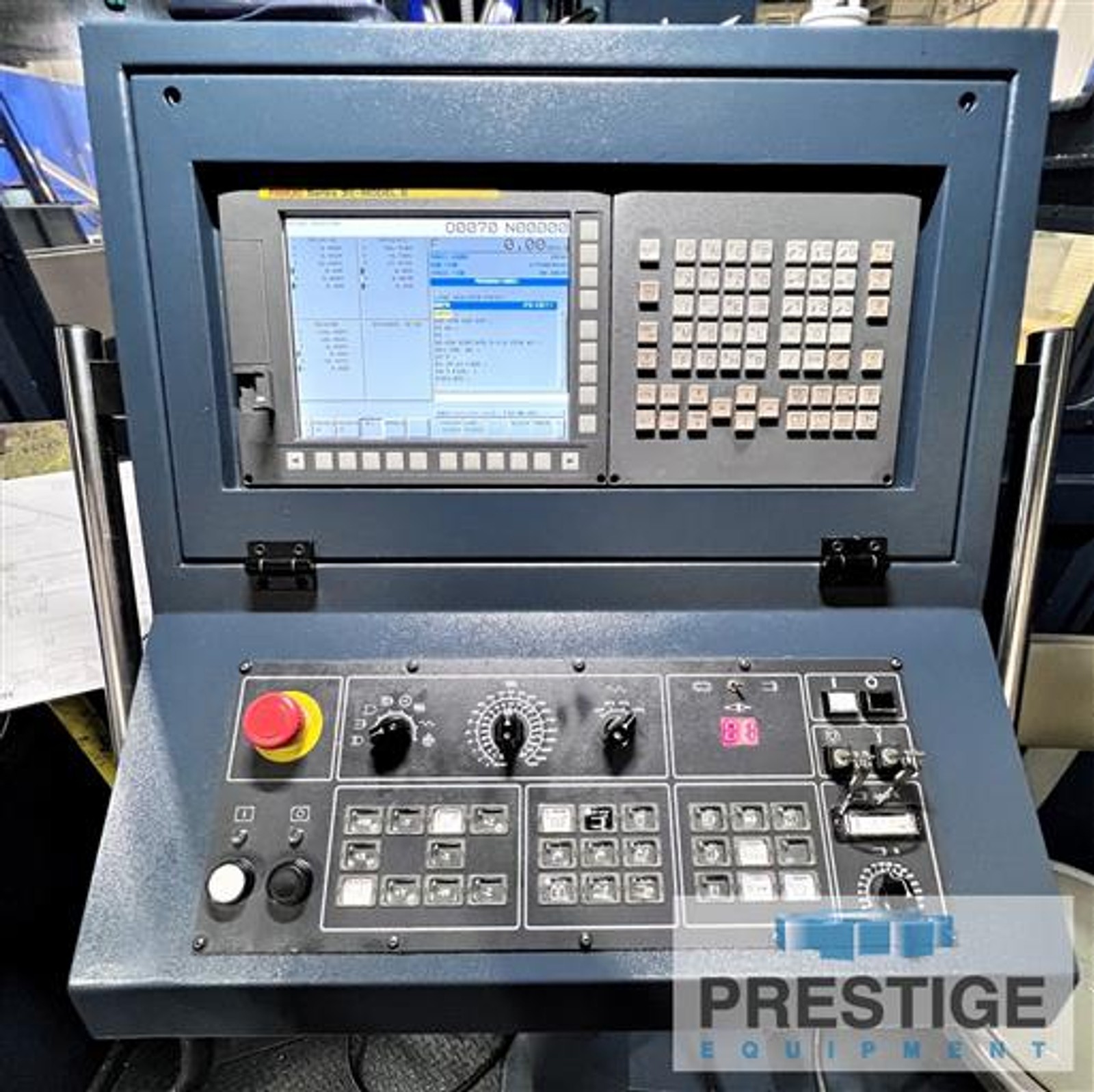

Fanuc 31i 4-Axis CNC Control
Renishaw RTS Radio Tool Setter
Renishaw RMP-600 Radio Part Probe 3-D surfaces
High Speed Machining Function 600 Block Look Ahead

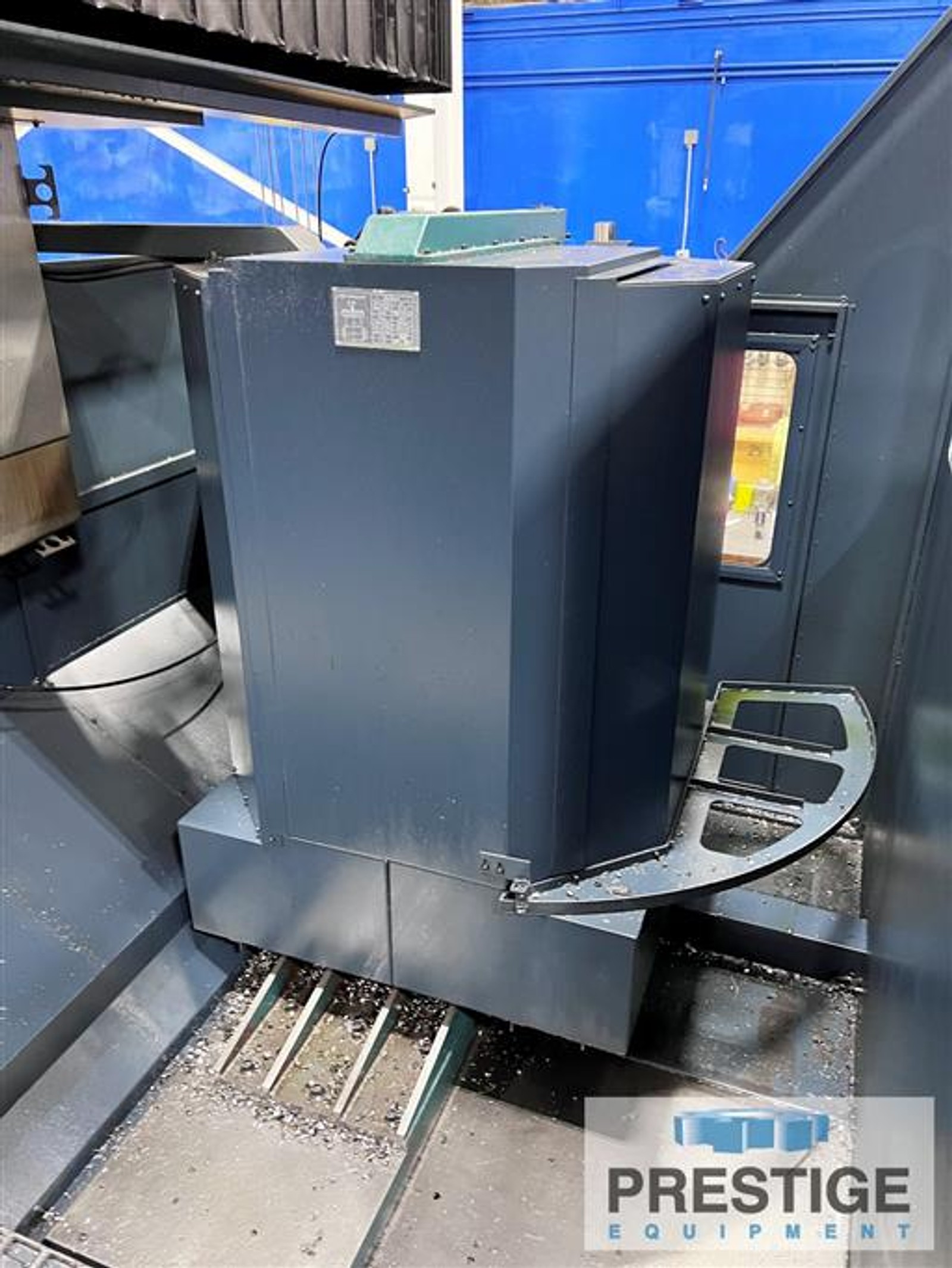

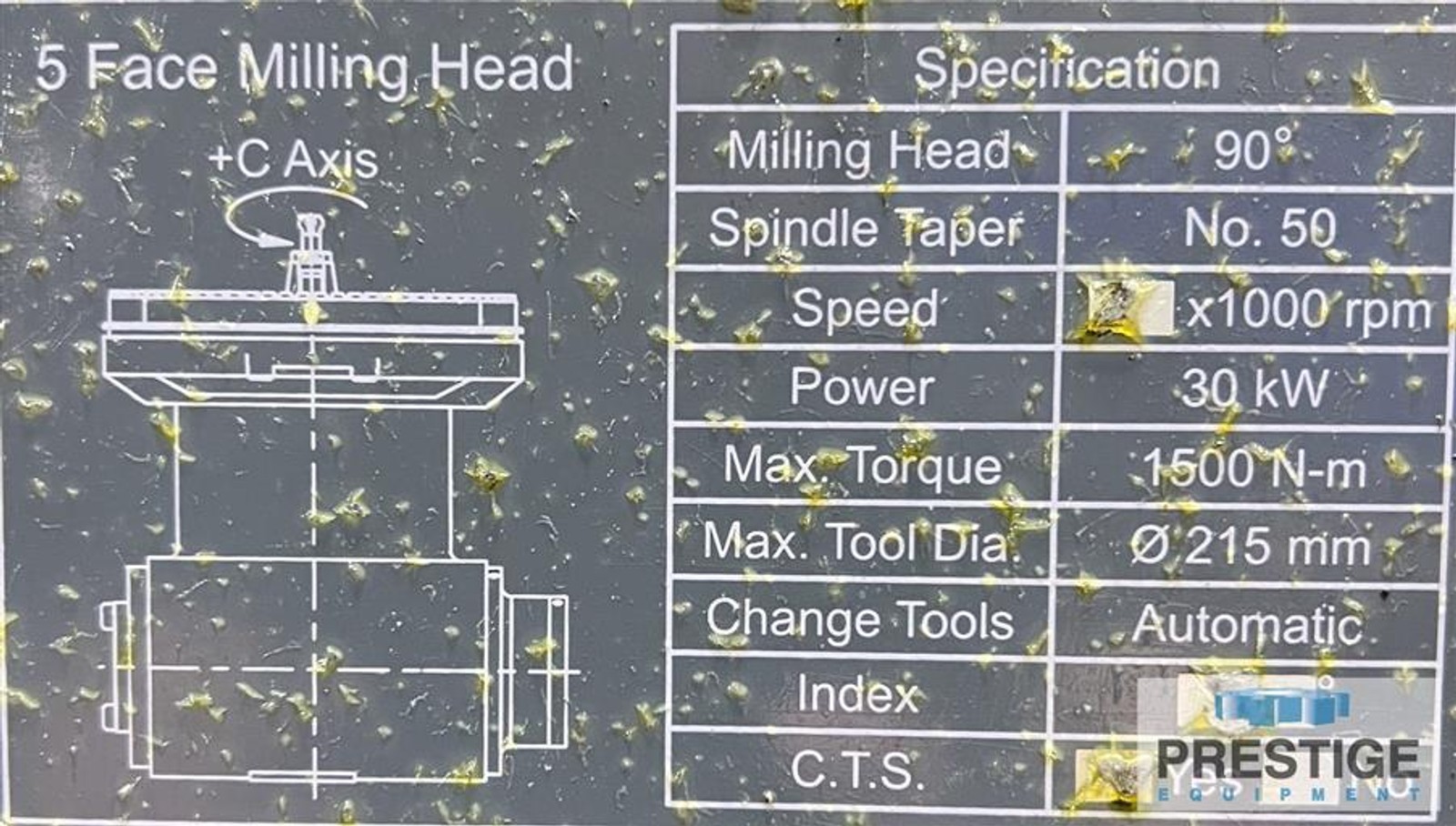

Auto Indexing Right Angle Head

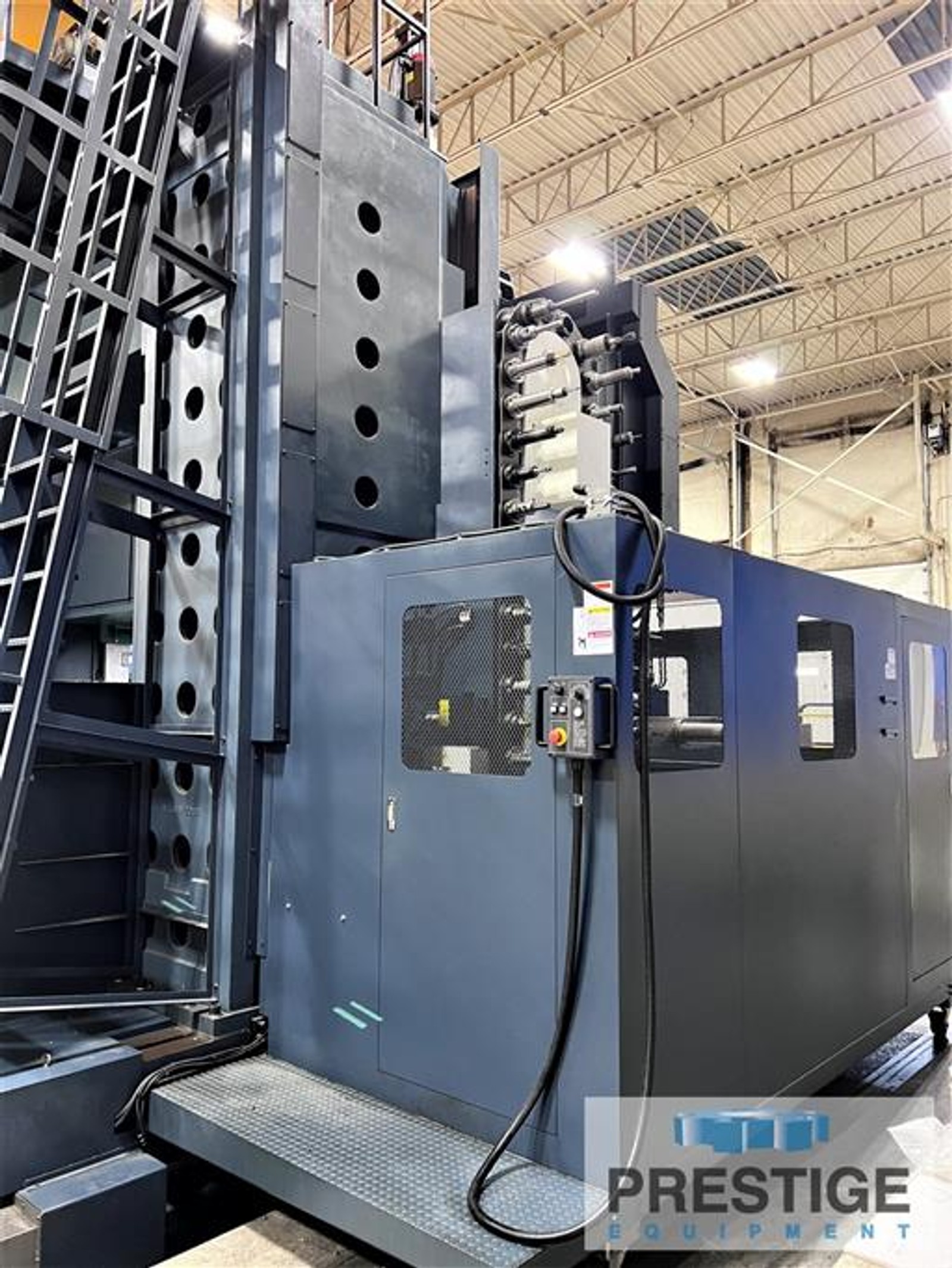

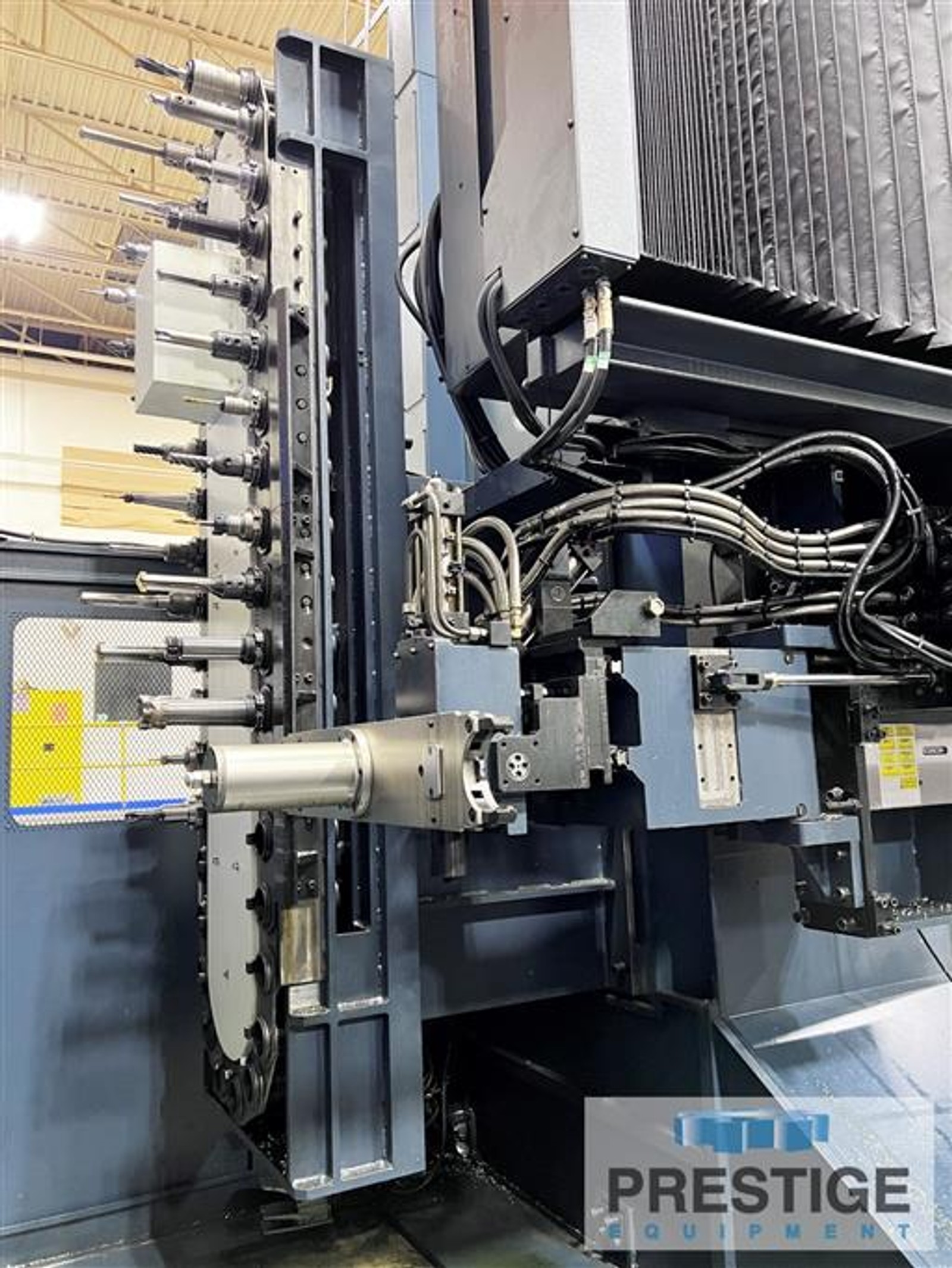

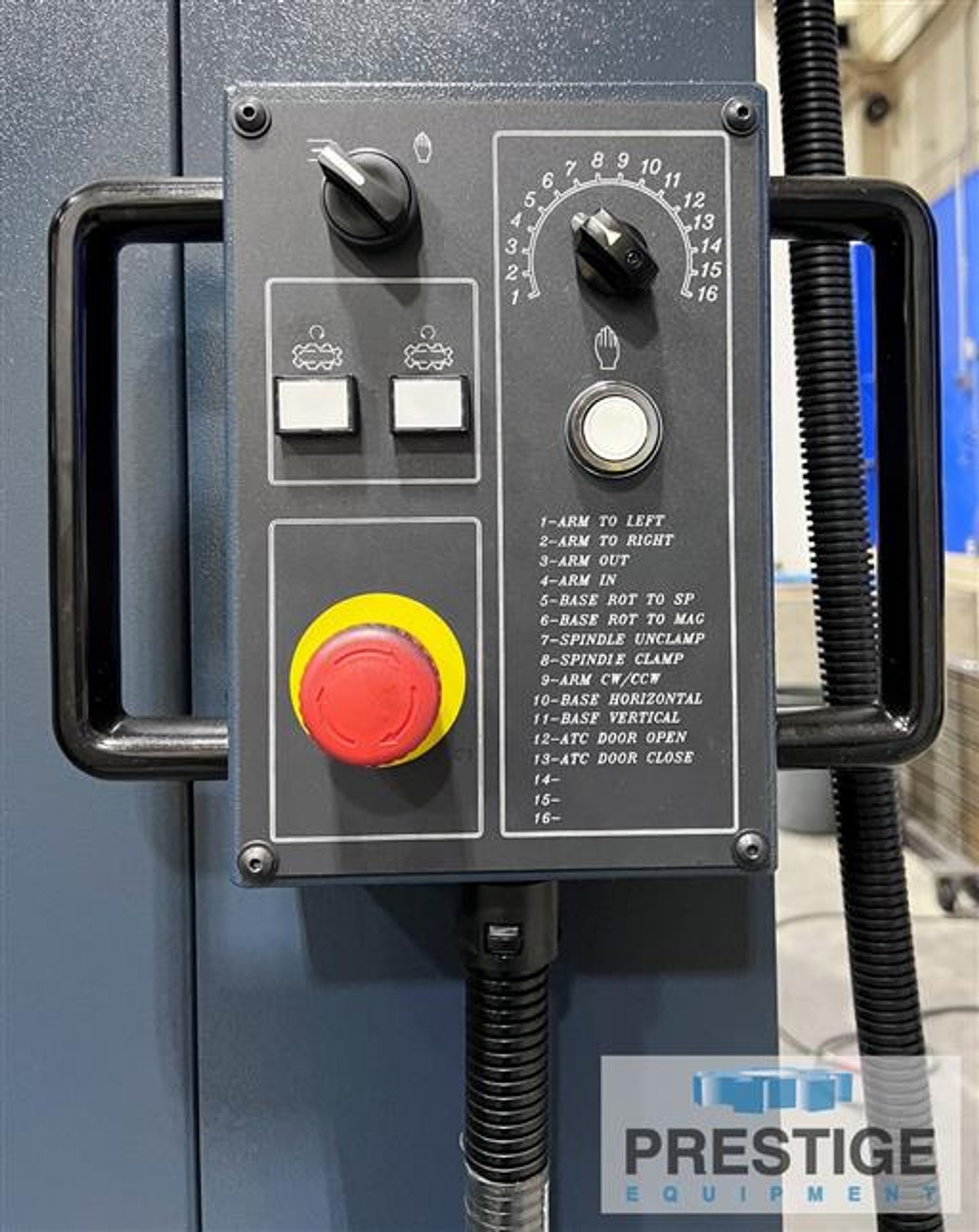

40-Station Automatic Tool Changers
472" x 86.6" T-Slotted Table
High Pressure Coolant thru Spindle 300 PSI
Flood Coolant System with Programmable Air Blast & Air Blast for Spindle
2 Speed Geared Head
Heidenhain Scales on X, Y & Z Axis,
Headstock Chiller

CAPACITY:
X-Axis, Longitudinal Gantry Travel .... 472"
Y-Axis, Head Travel ................... 141.6"
Z-Axis, Ram Vertical Travel ........... 55.1"
Distance Between Columns .............. 100"
Max/Min Height Under Ram .............. 0-97"
Spindle Speeds, 2-Ranges .............. 6,000 RPM
Spindle Motor ......................... 35 HP
Spindle Taper ......................... #50
Machine Weight ....................... 275,000 lbs.

EQUIPPED WITH:
Fanuc 31i 4-Axis CNC Control
Renishaw RTS Radio Tool Setter
Renishaw RMP-600 Radio Part Probe 3-D surfaces
High Speed Machining Function 600 Block Look Ahead
Auto Indexing Right Angle Head
40-Station Automatic Tool Changers
472" x 86.6" T-Slotted Table
High Pressure Coolant thru Spindle 300 PSI
Flood Coolant System with Programmable Air Blast & Air Blast for Spindle
2 Speed Geared Head
Heidenhain Scales on X, Y & Z Axis
Headstock Chiller
