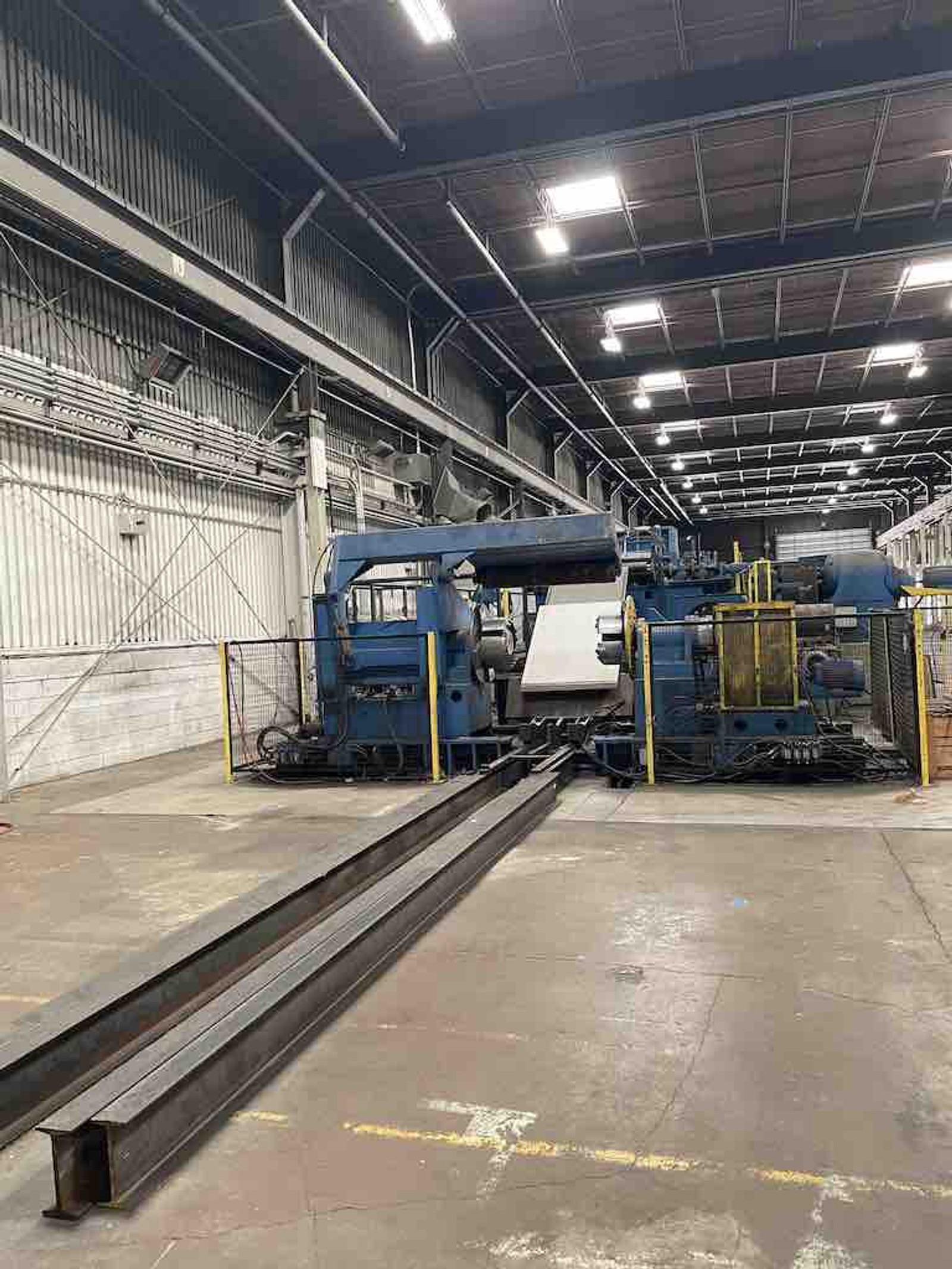

60" x .187" x 50,000Lbs Paxson Loop Slitting Line

Manufacturer

Paxson

Category

Slitters and Slitting Lines

Type

SLITTERS

Stock

19671

Model

None listed

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Make: Paxson
Material: Cold Rolled, Hot Rolled, Stainless, Galv.
Coil Width: 60"
Gauge Capacity: .020" - .187"
Weight Capacity: 50,000Lbs
Coil ID: 20" / 24"
Coil OD: 72"
Direction: Right to Left

3-Position Entry Coil Ramp
Mechanical Traverse & Push
Pit-Type Coil Car
Hydraulic Lift

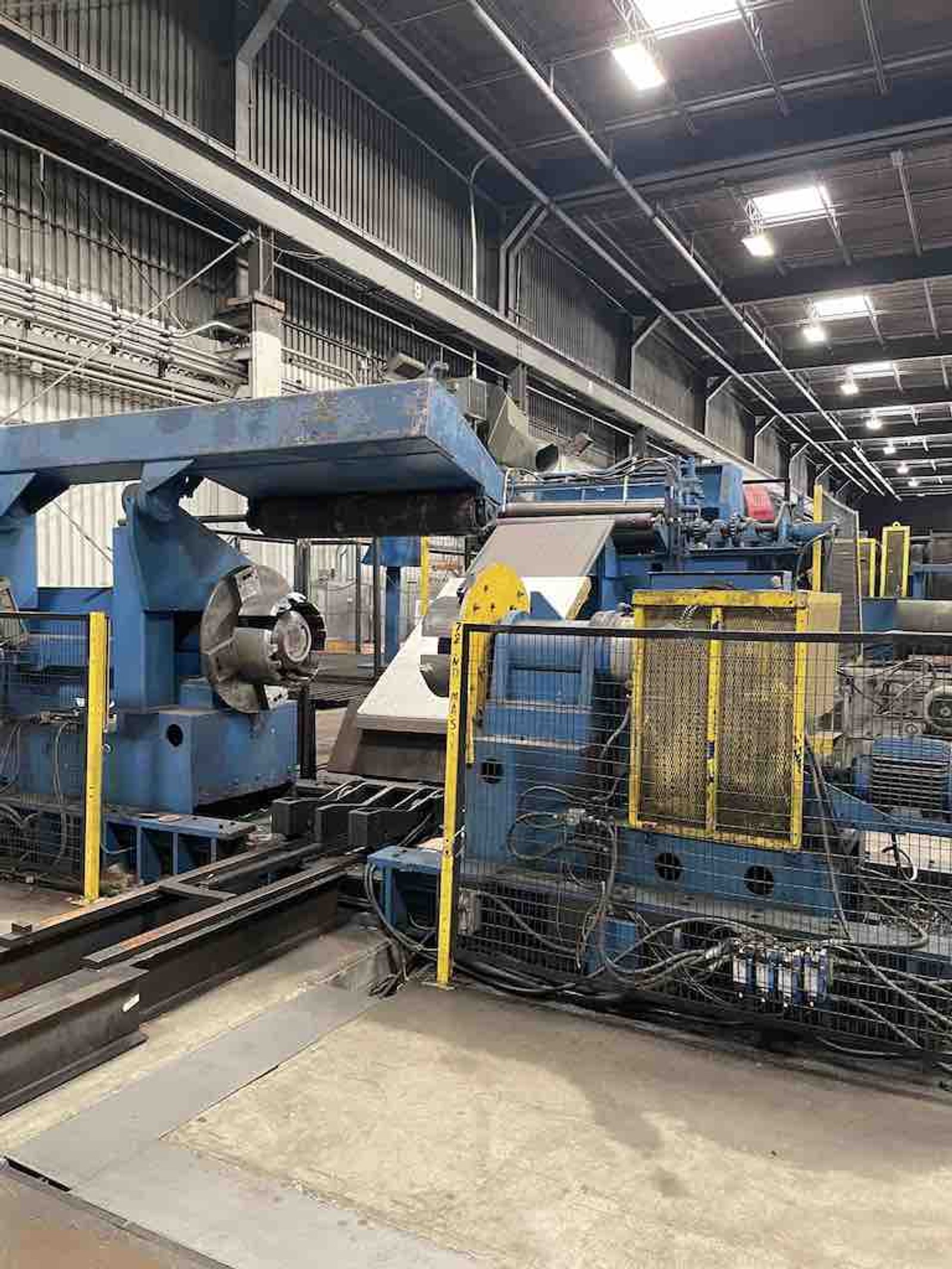

Double Stub Uncoiler
Sliding Base
Water Cooled Brake
Powered Stub Expansion
Powered Hold-Down Roll
AC Feed-Up Motor

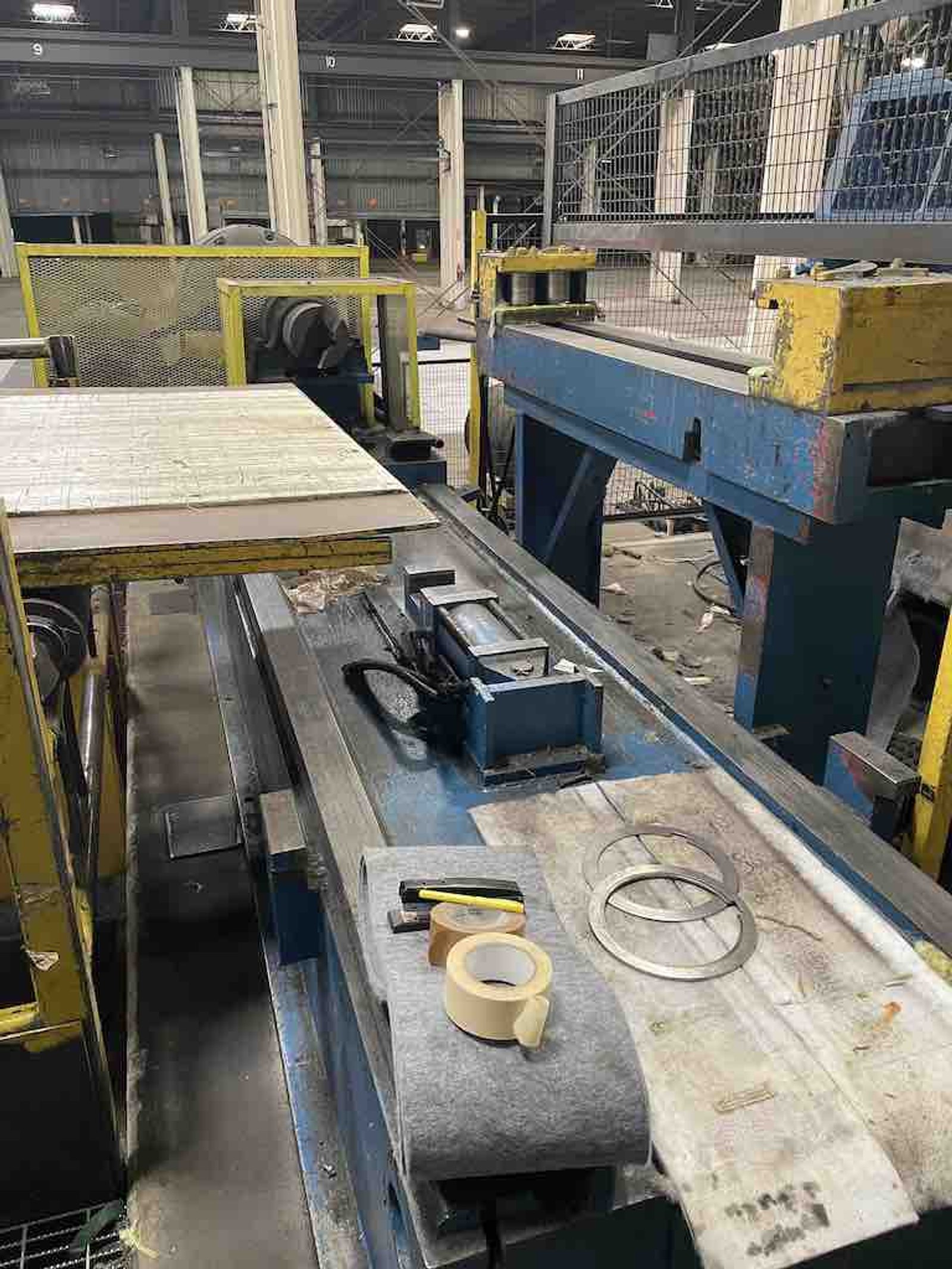

Hydraulic Peeling Table
Powered Open/Close

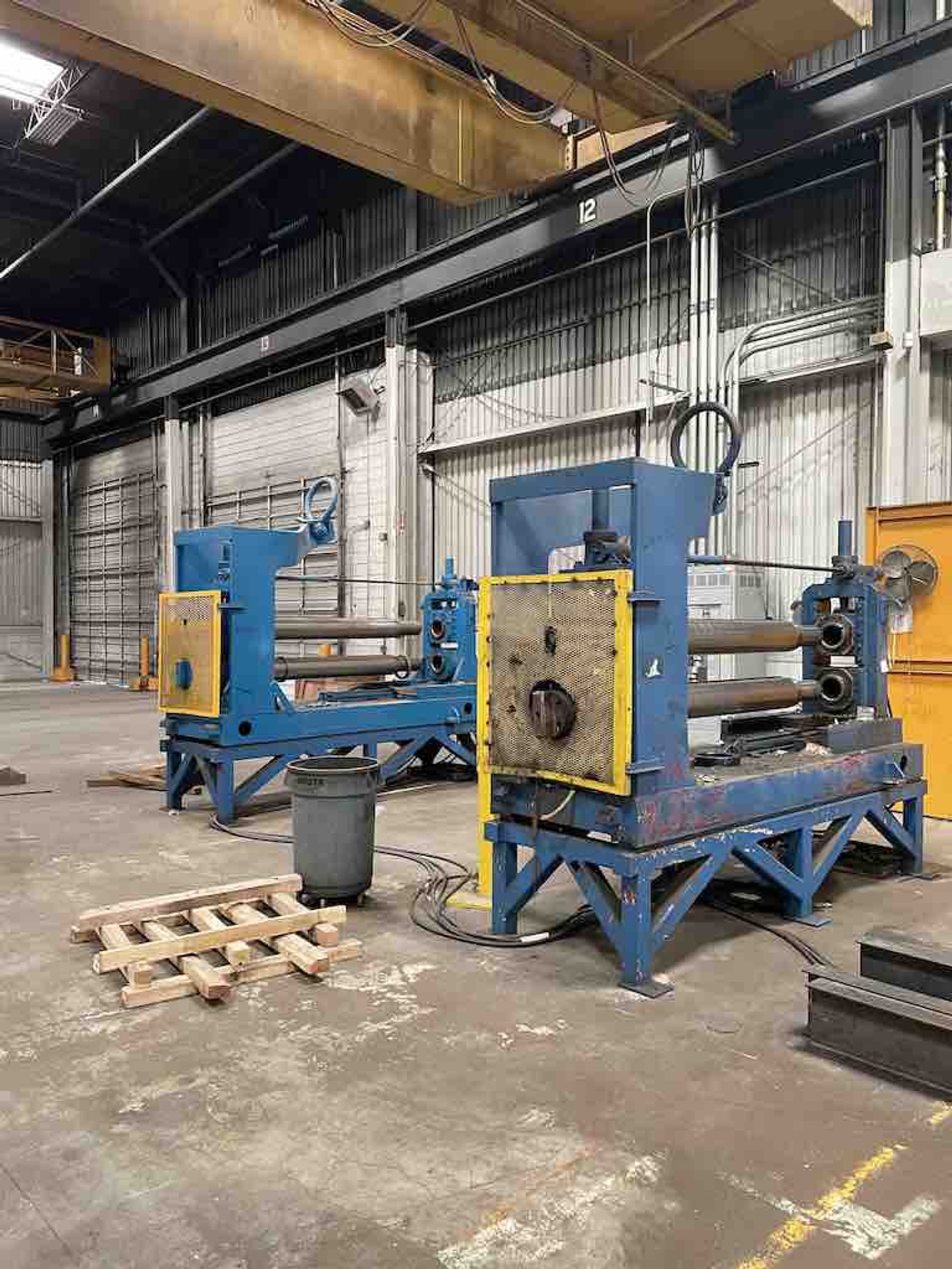

Two Sets of Powered Pinch Rolls
Entry Crop Shear
Hydraulic Down-Cut Blade

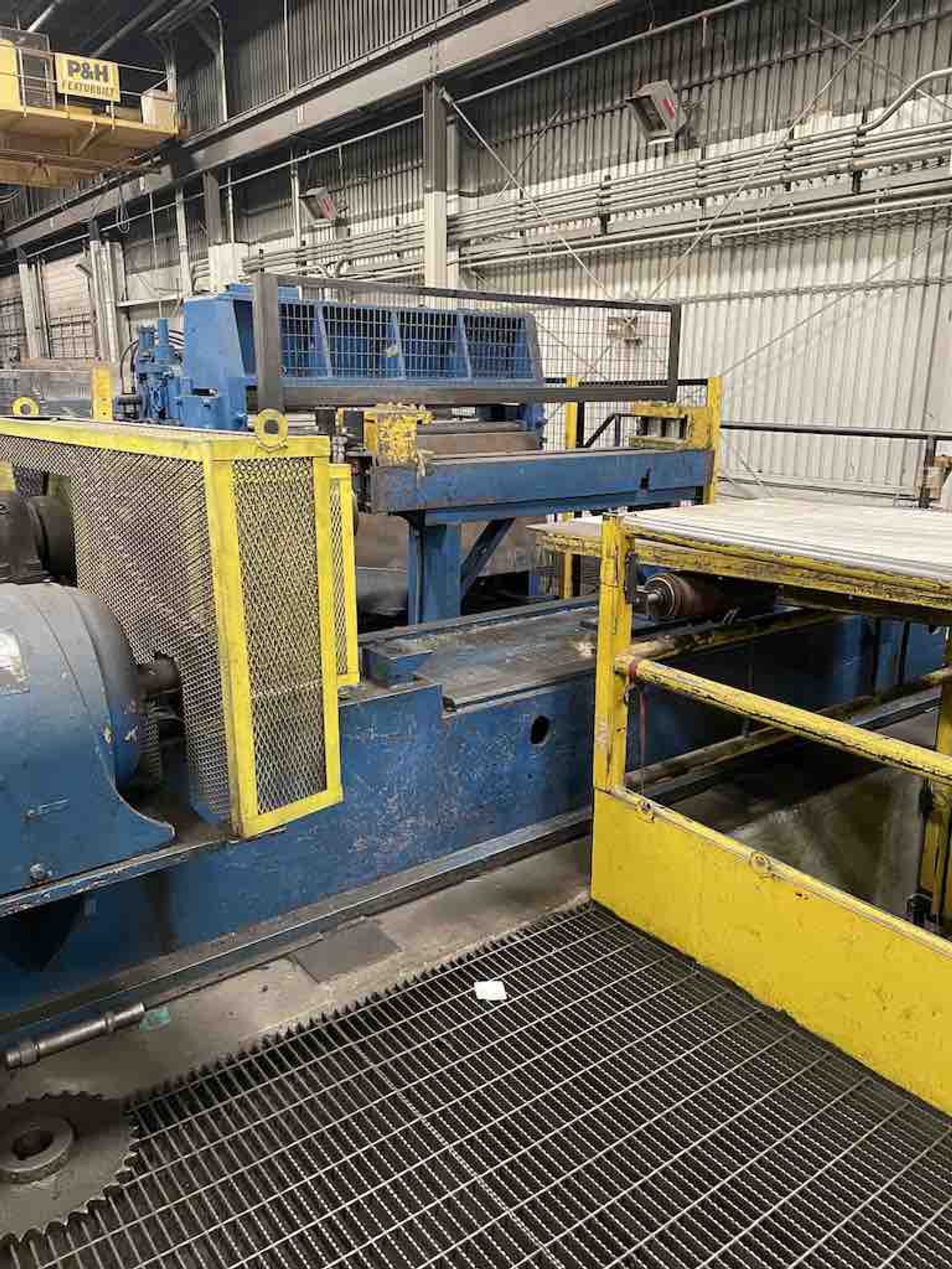

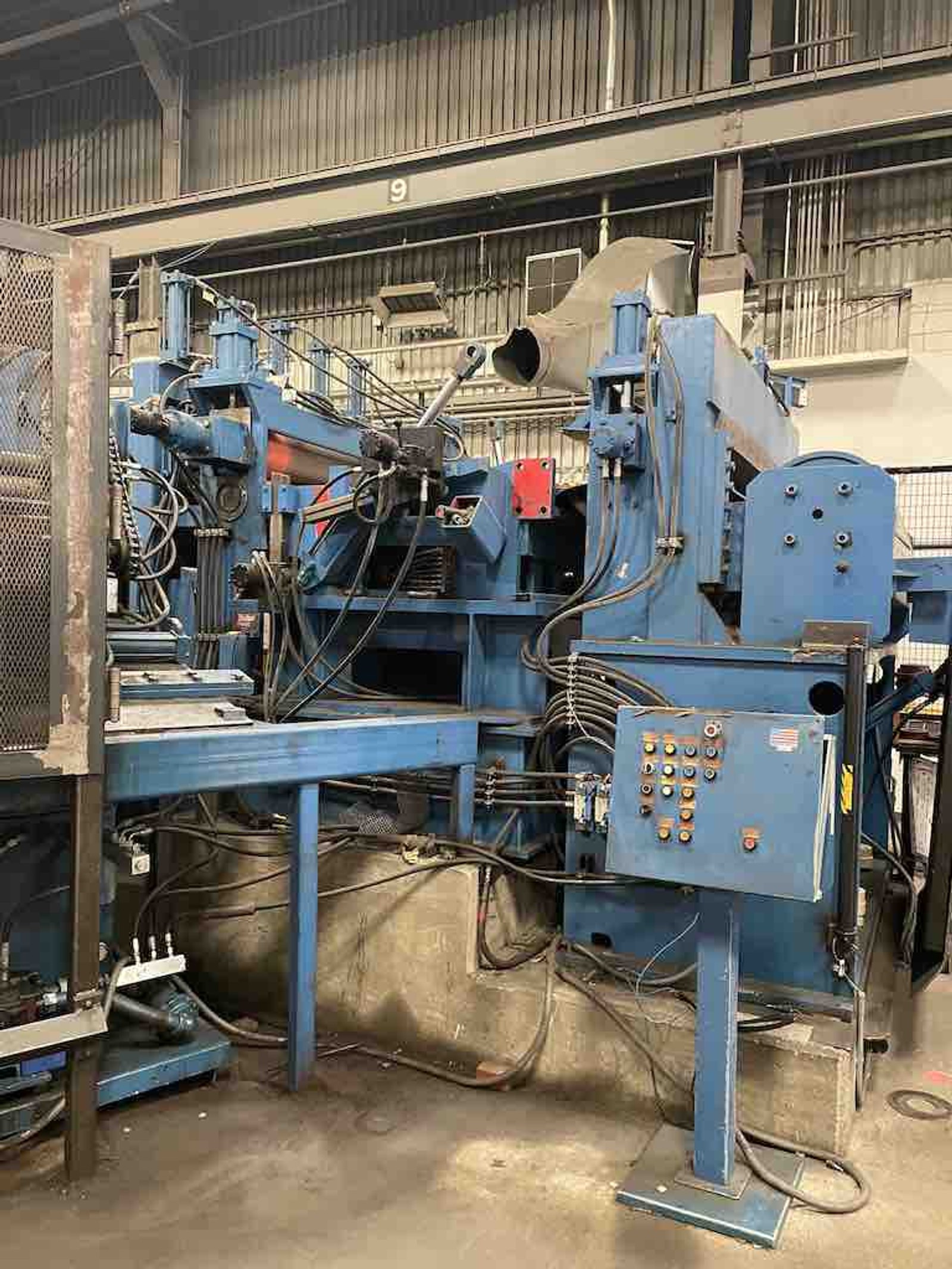

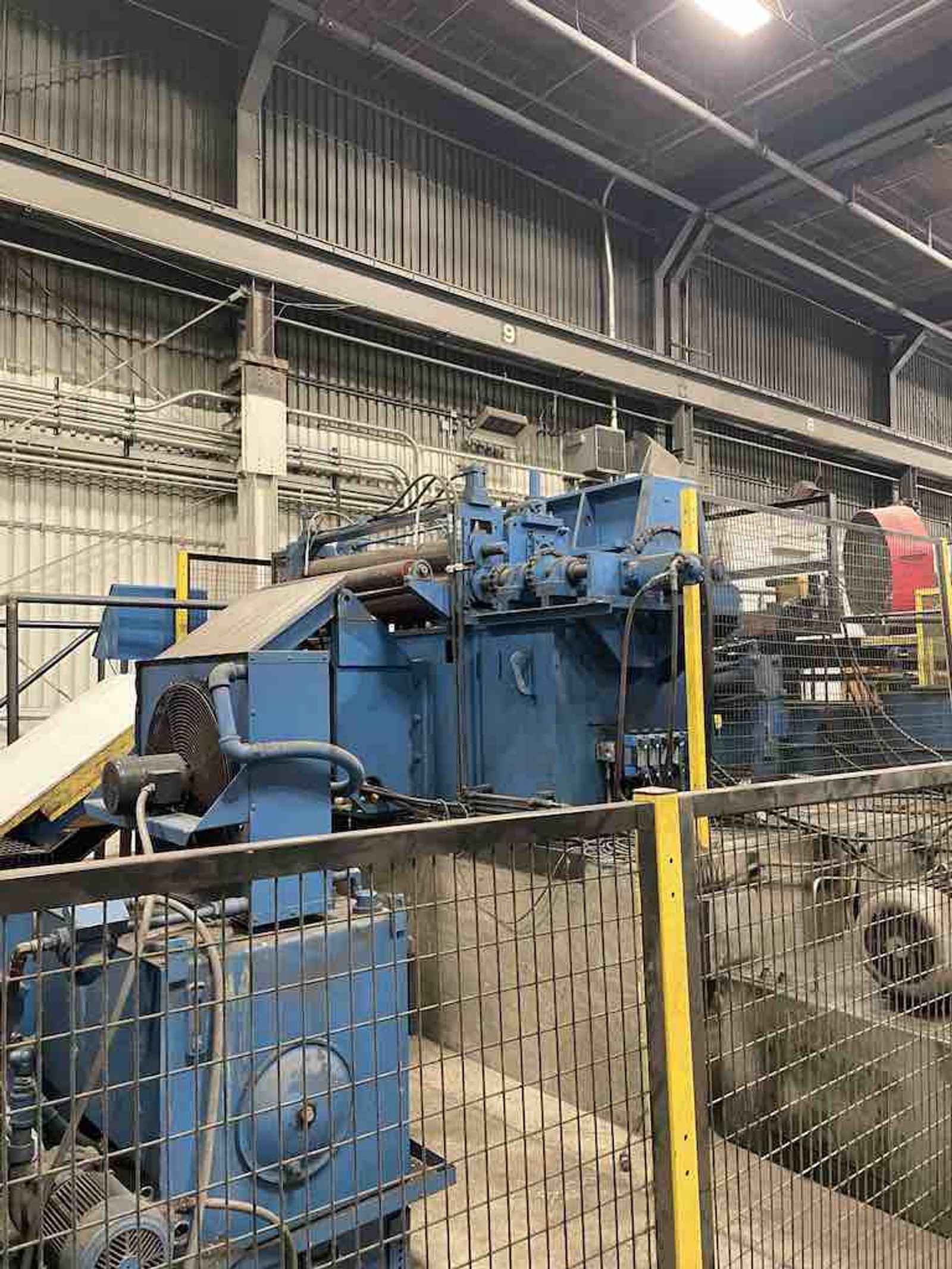

Two (2) Slitting Heads
Arbor Diameter: 8"
Crane Removable Design
Powered Arbor Adjustement
Sliding Outboard
Motor: 75HP DC 750/2100 RPM

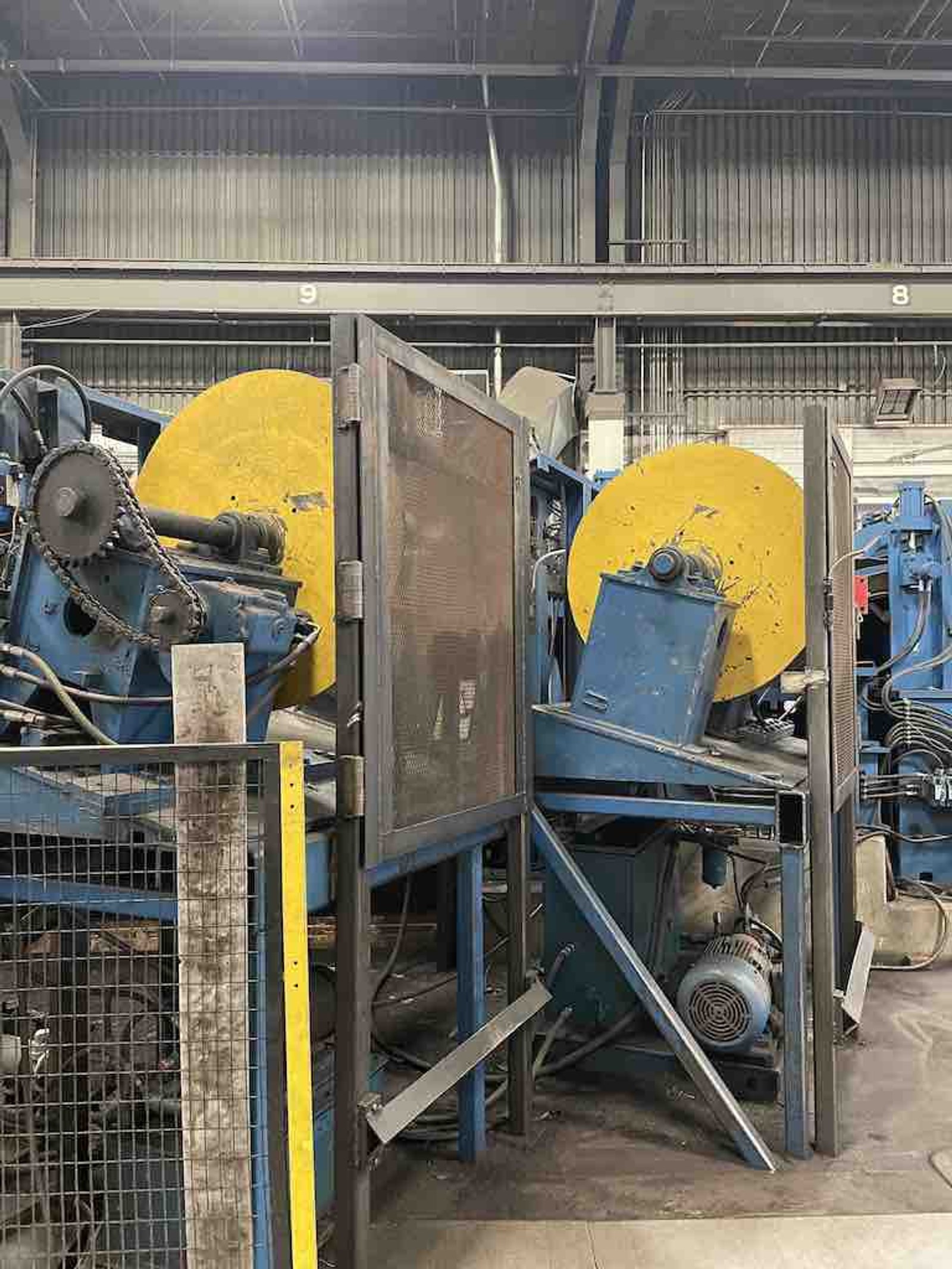

Two (2) Scrap Winders
Heavy Duty Design
Hydraulic Motor
Automatic Dumping

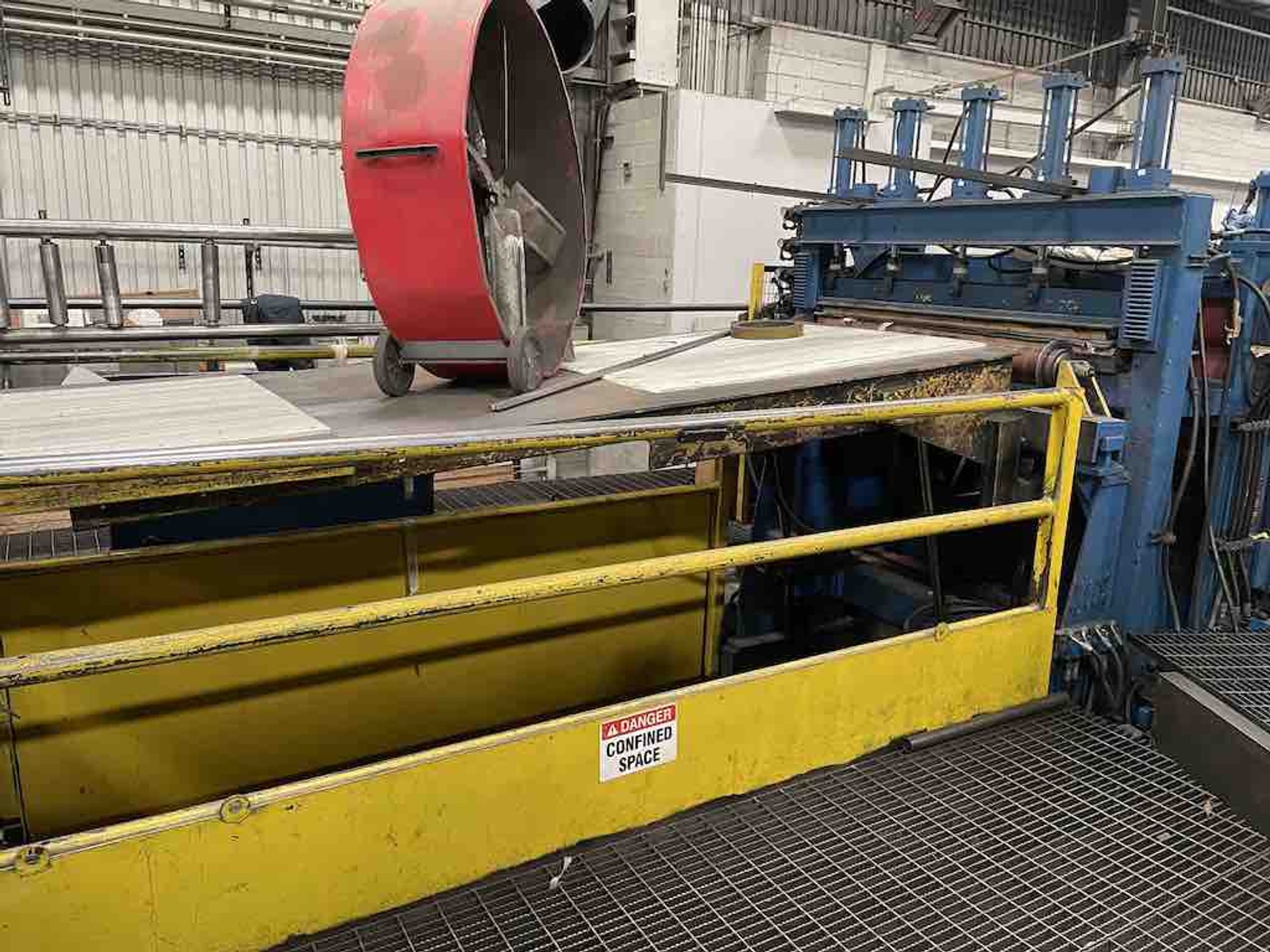

Pit Cross Over Table
Powered In & Out

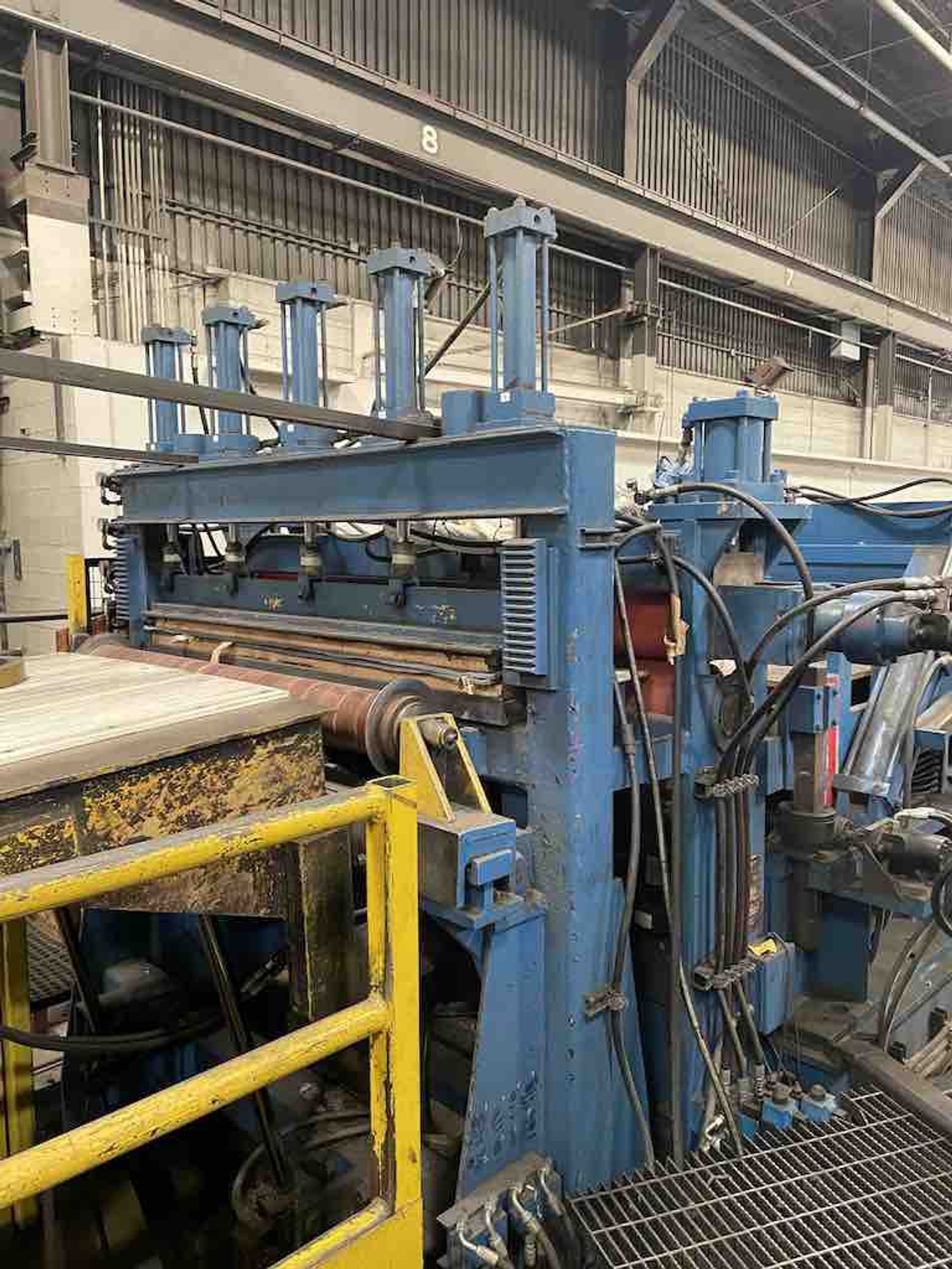

Drag Board Tension Stand
Air Activated Pads
Strip Separation Bar

Braner Cluster Leveler
Number of Work Rolls: 16
Adjustable Back-Up Flights
Hydraulic Motor Drive

Exit Crop Shear
Hydraulic Down-Cut Blade

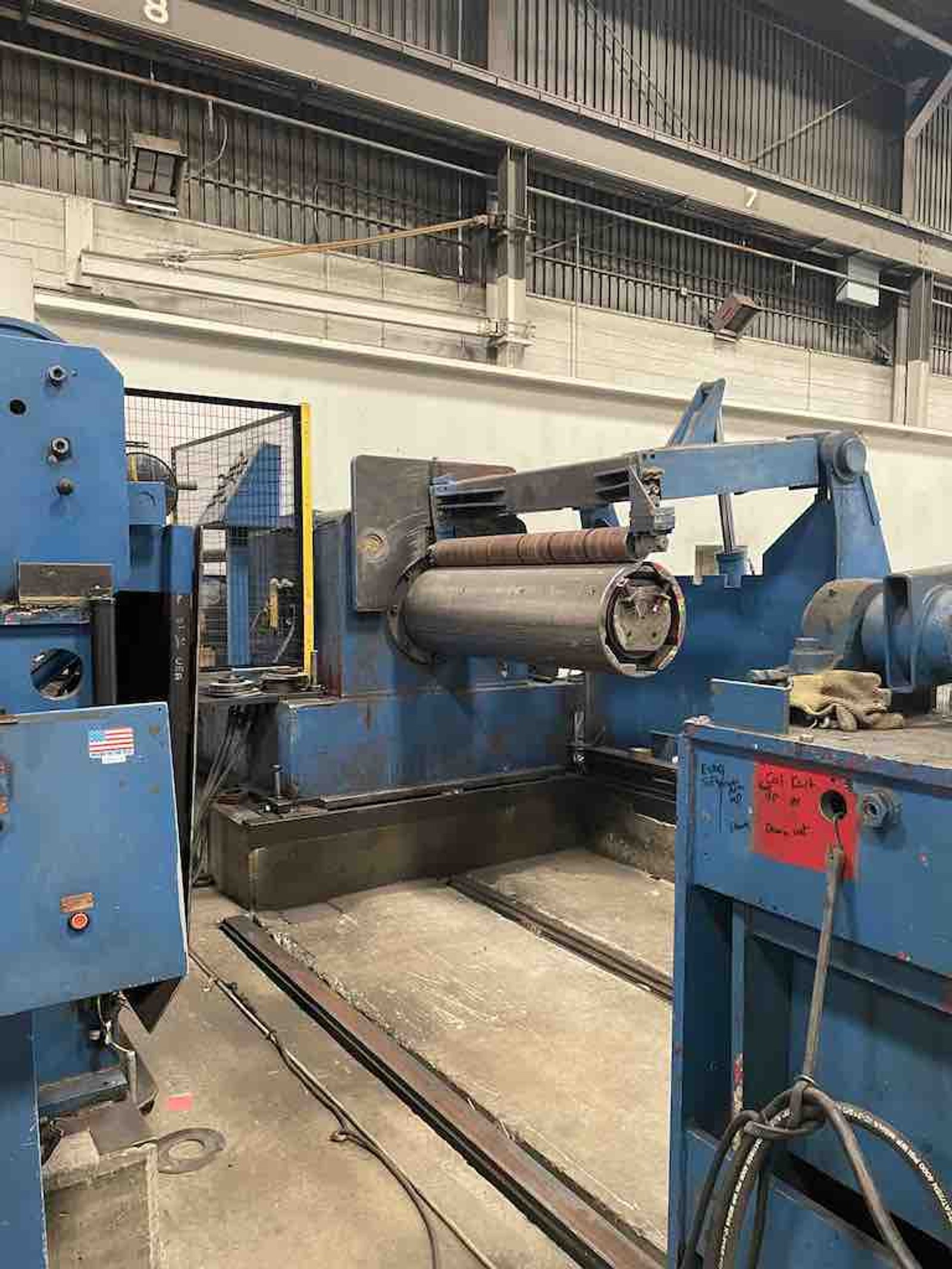

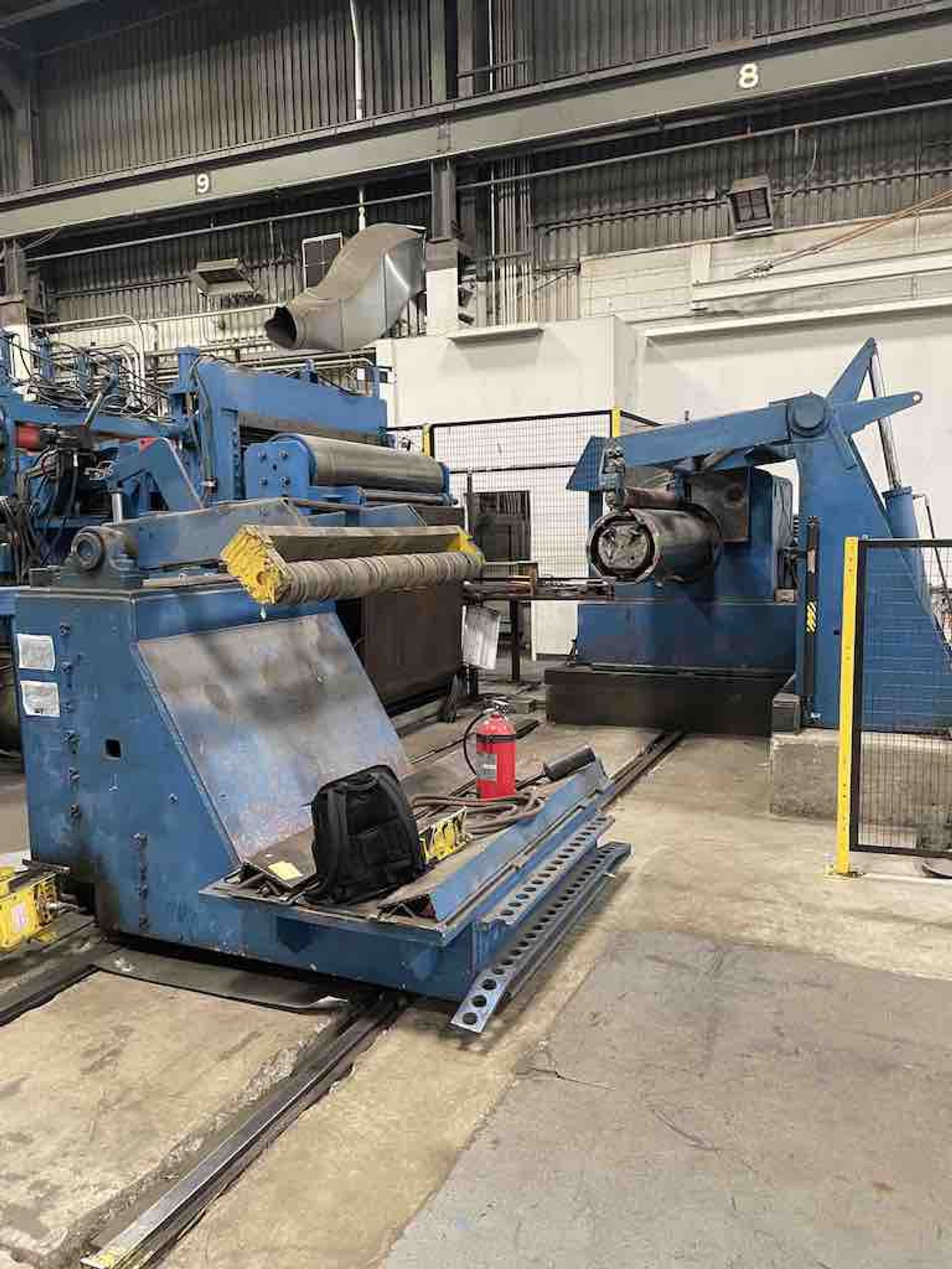

Recoiler
Hydraulic Drum
Hydraulic Push-Off
Powered Over-Arm Separator

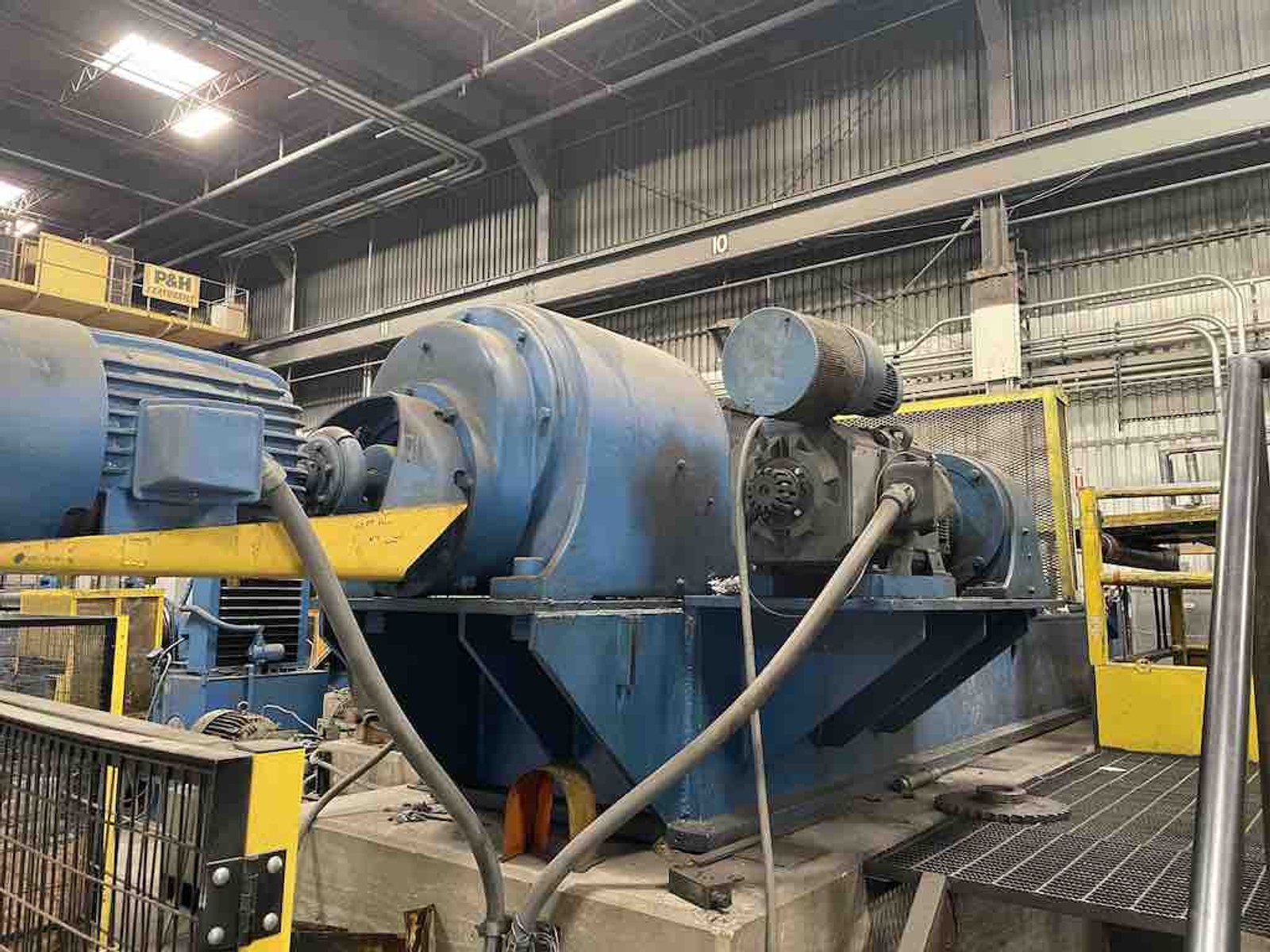

Motor: 125HP DC 400/1600 RPM
Multi Speed Gear Box

Exit Floor Standing Coil Car
L-Type Design
Hydraulic Lift & Traverse

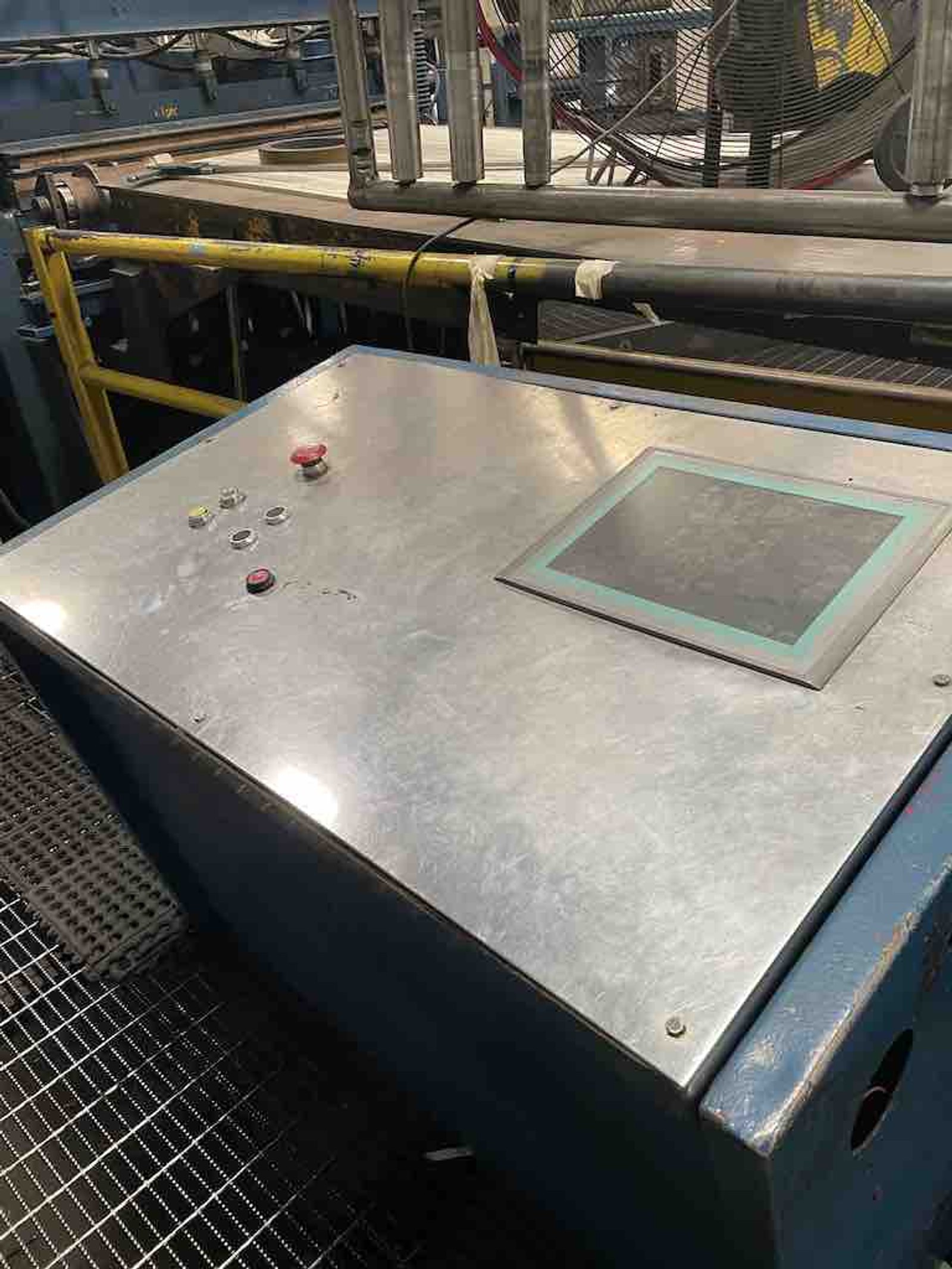

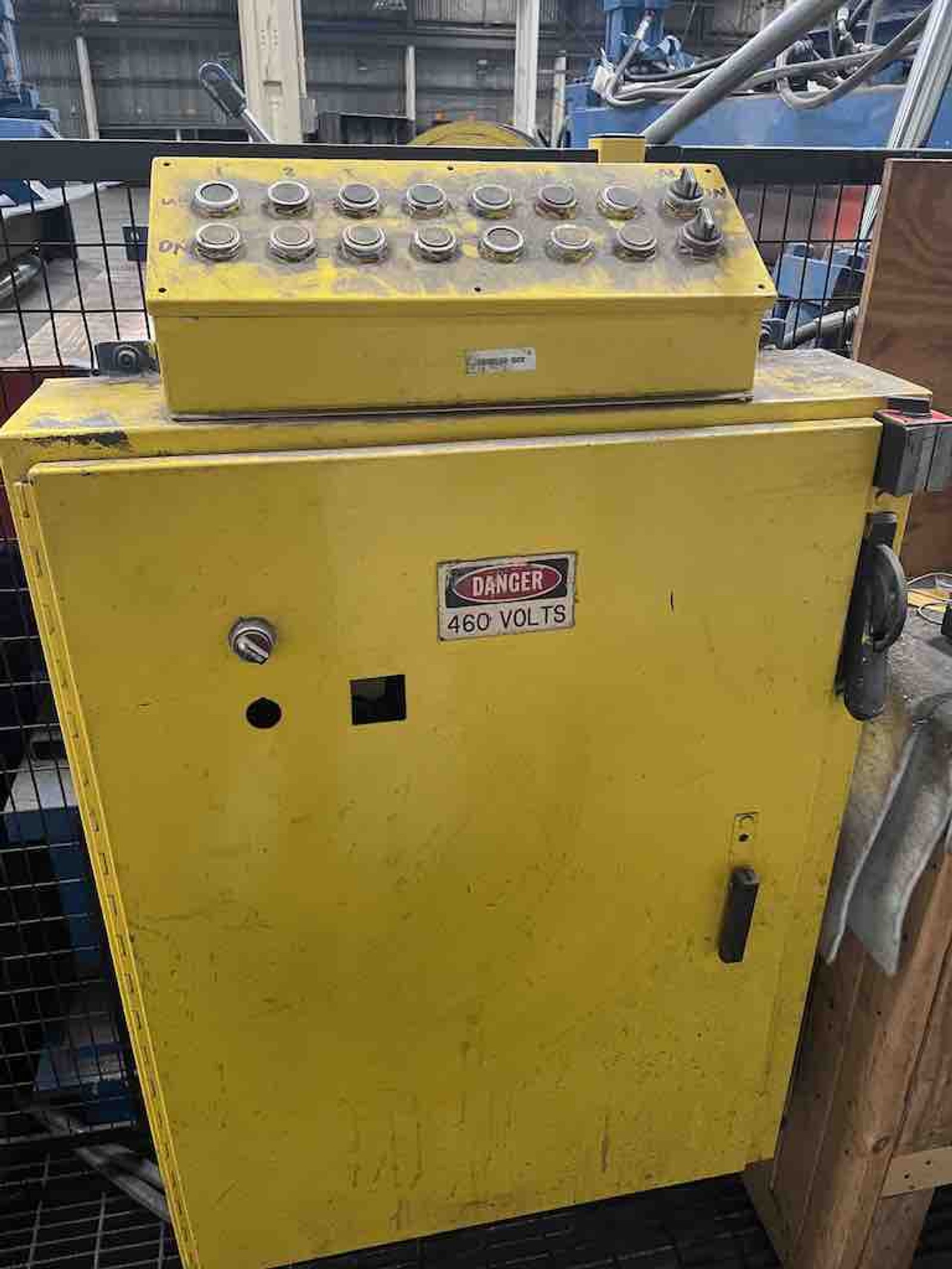

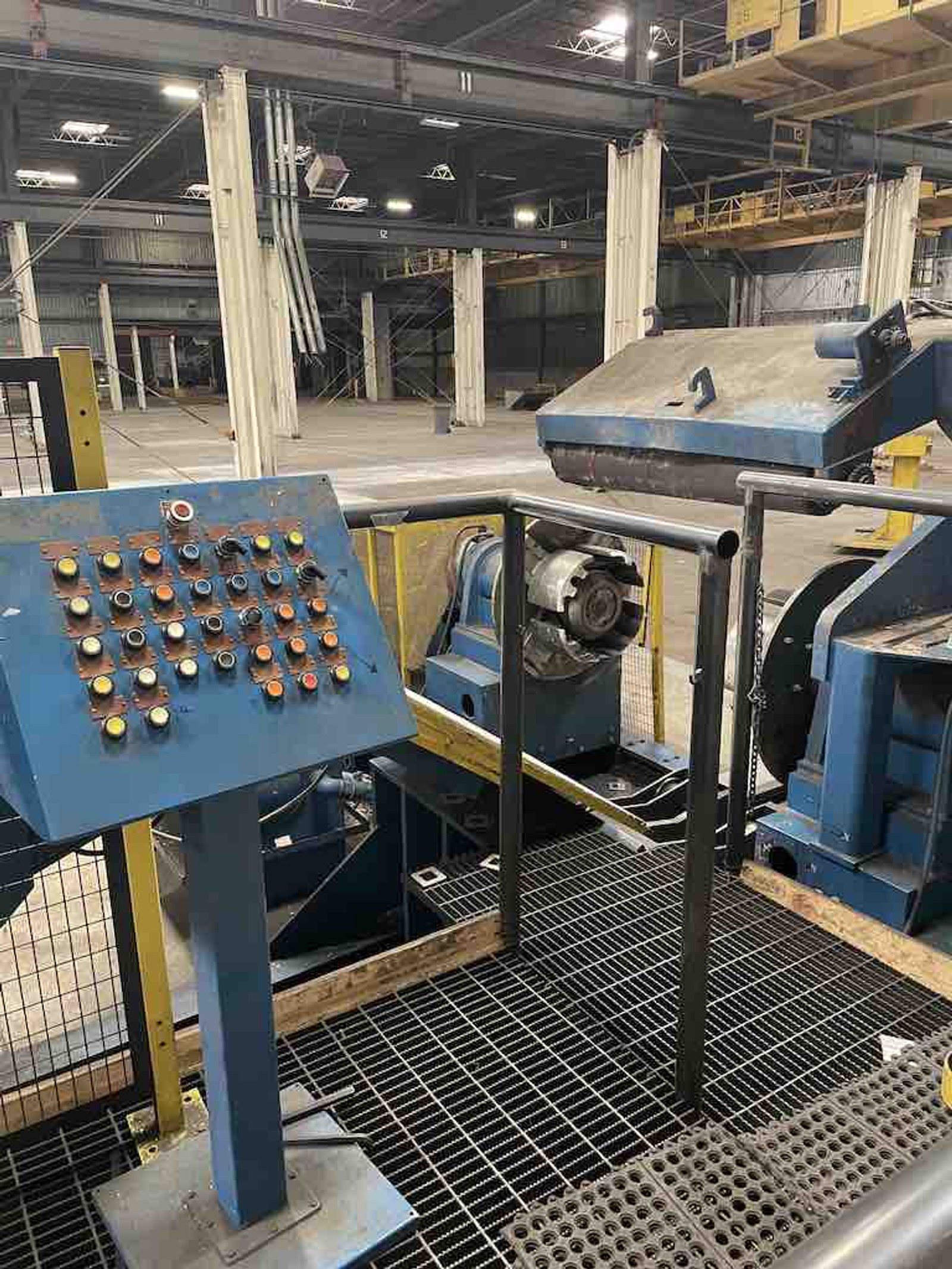

Complete Slitting Line with Electrics, Hydraulics, Controls
