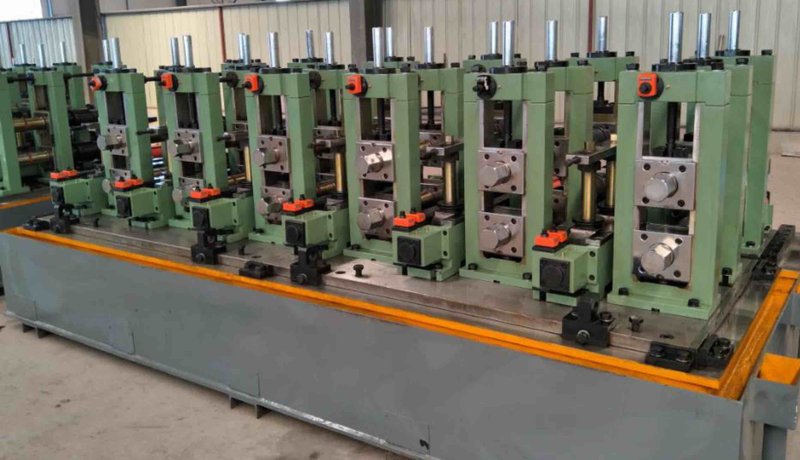

102mm x 4mm Aogang HF Tube Mill

Manufacturer

Aogang

Category

Tube Machinery

Type

TUBE MILLS

Stock

19662

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Make: Aogang
Condition: Brand New (Never Used)
Mill Diameter: 25mm - 102mm
Material Thickness: 0.8mm - 4mm
Square Tube: 20 x 20 - 80 x 80
Strip Width: 80mm - 320mm
Material: HR, CR, Galv,.
Tensile Strength: 520 Mpa / Yeild: 240Mpa
Mill Speed: 100 meters per minute
Direction: Left to Right

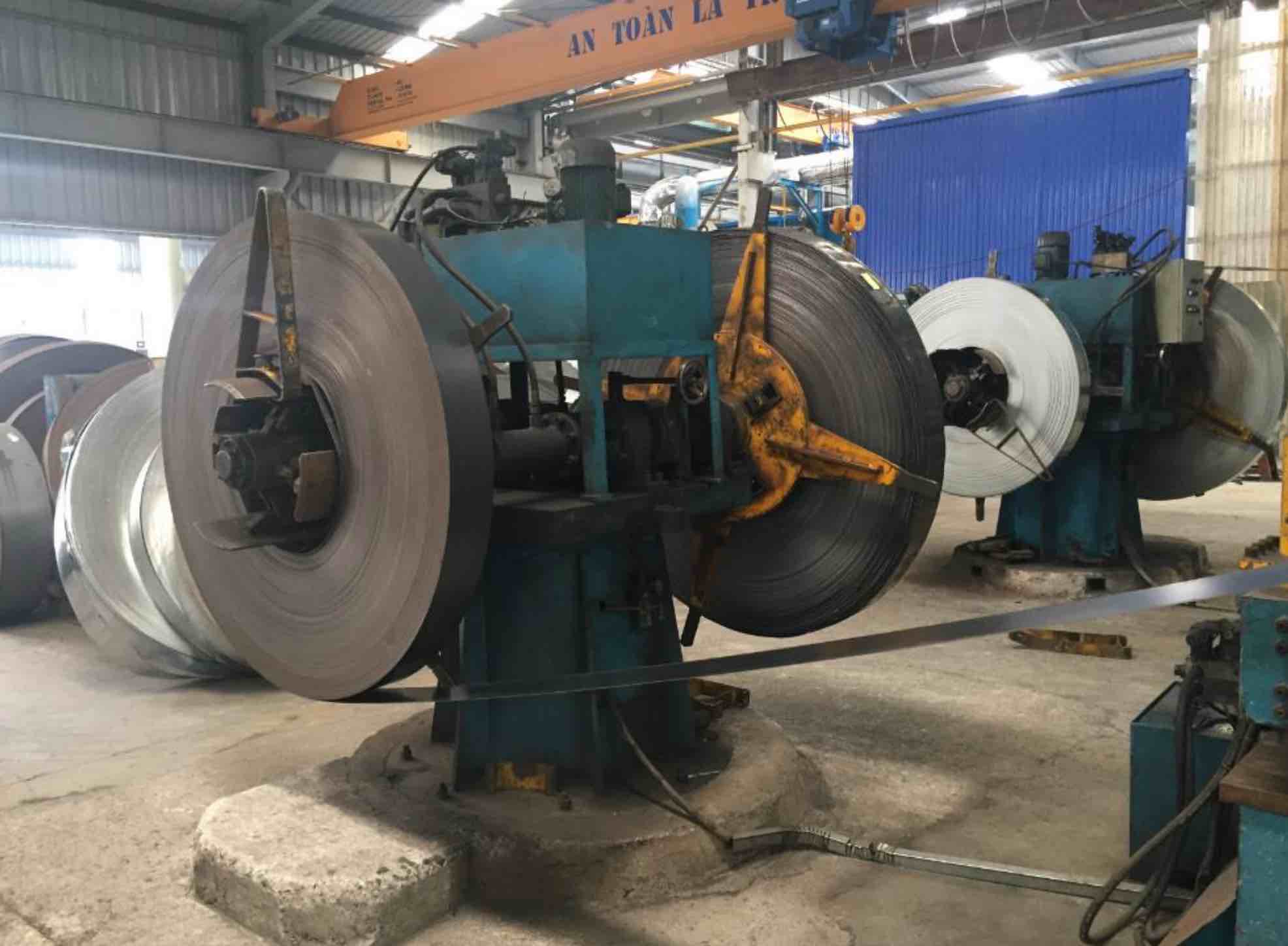

Double Mandrel Uncoiler
Powered Rotation
Coil ID: 480mm - 520mm
Coil OD: 1000mm - 1800mm
Coil Weight: 5,000kg

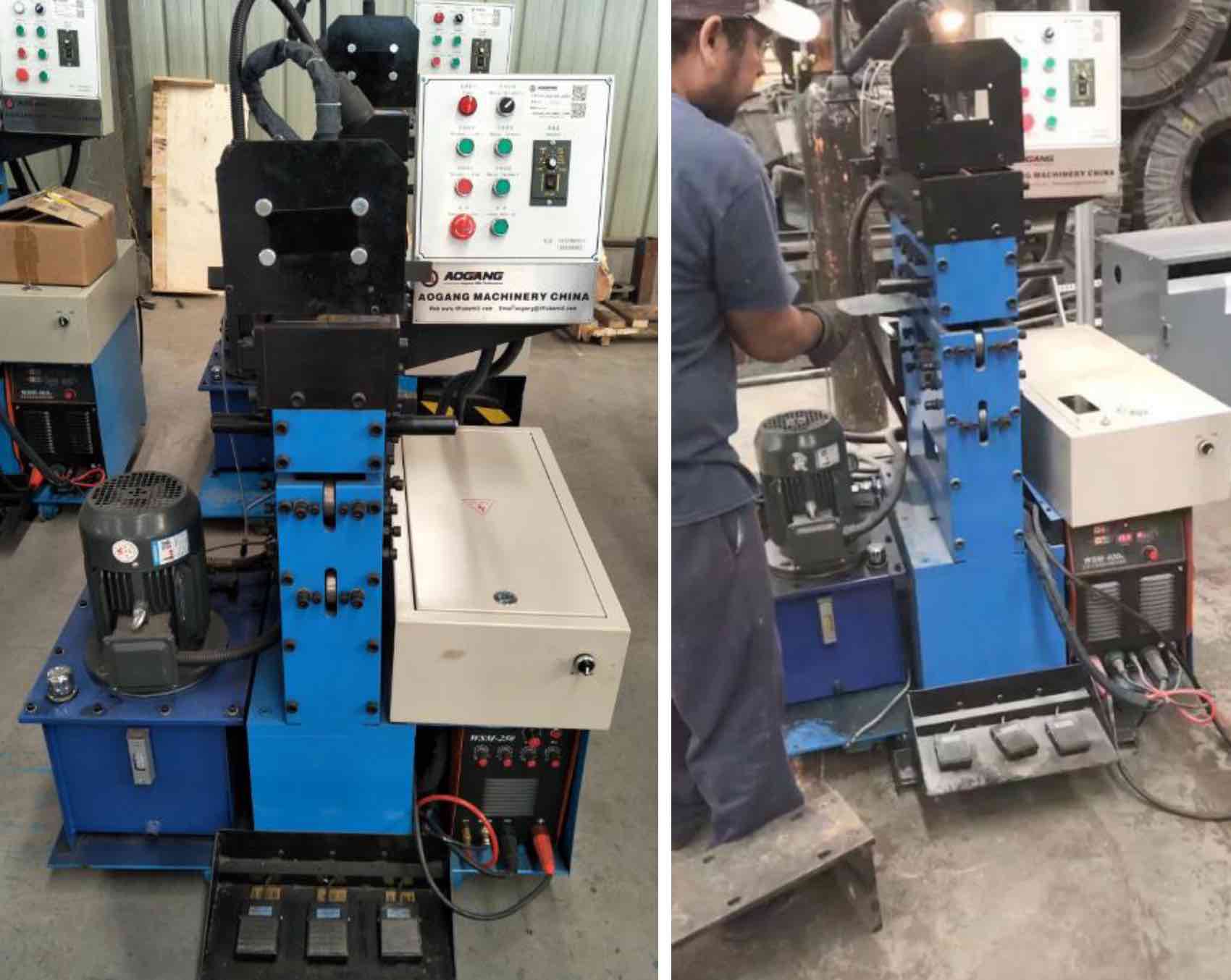

Shear & End Welder
Hydraulic Shearing
Automatic TIG Welding Unit

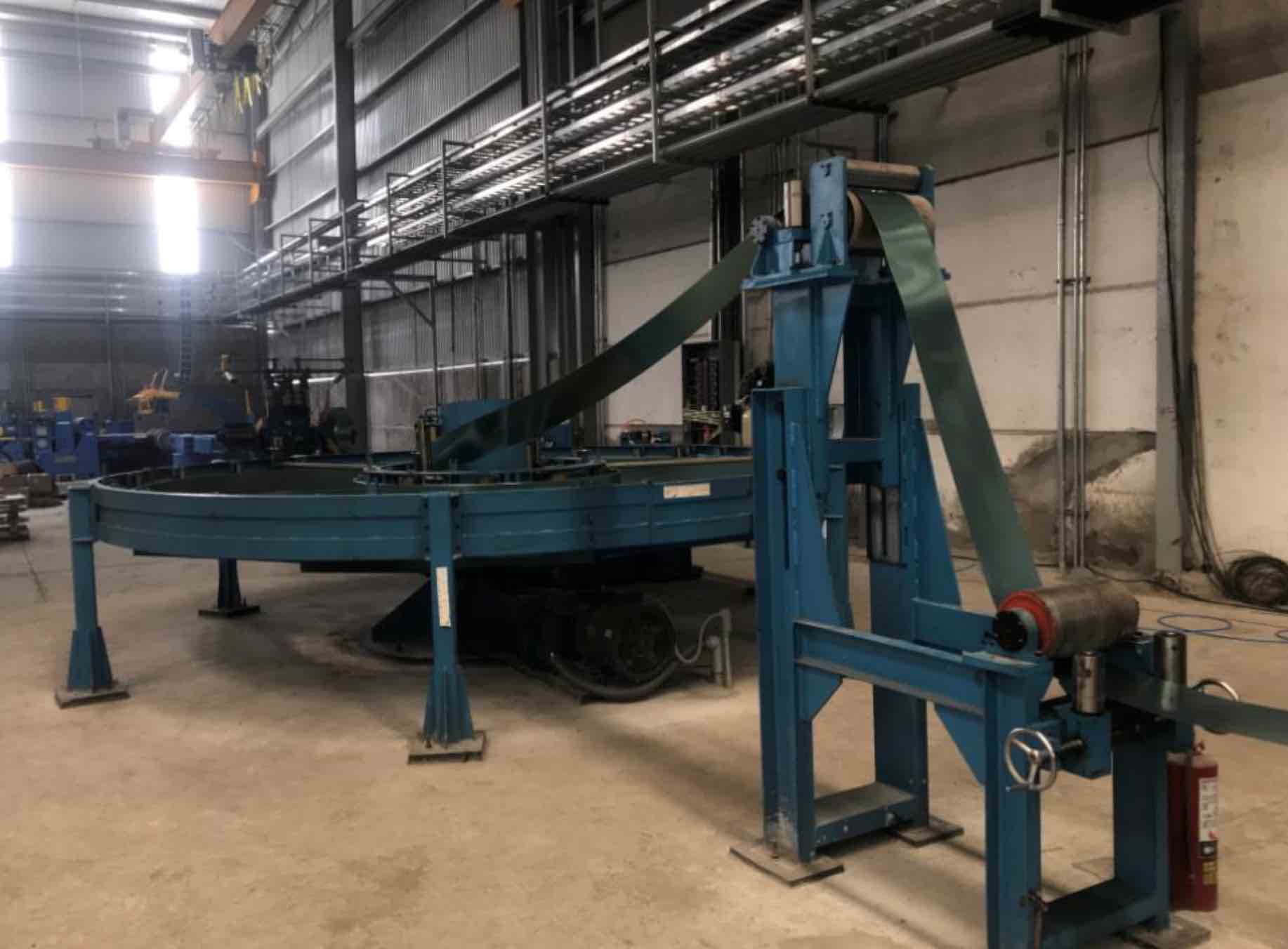

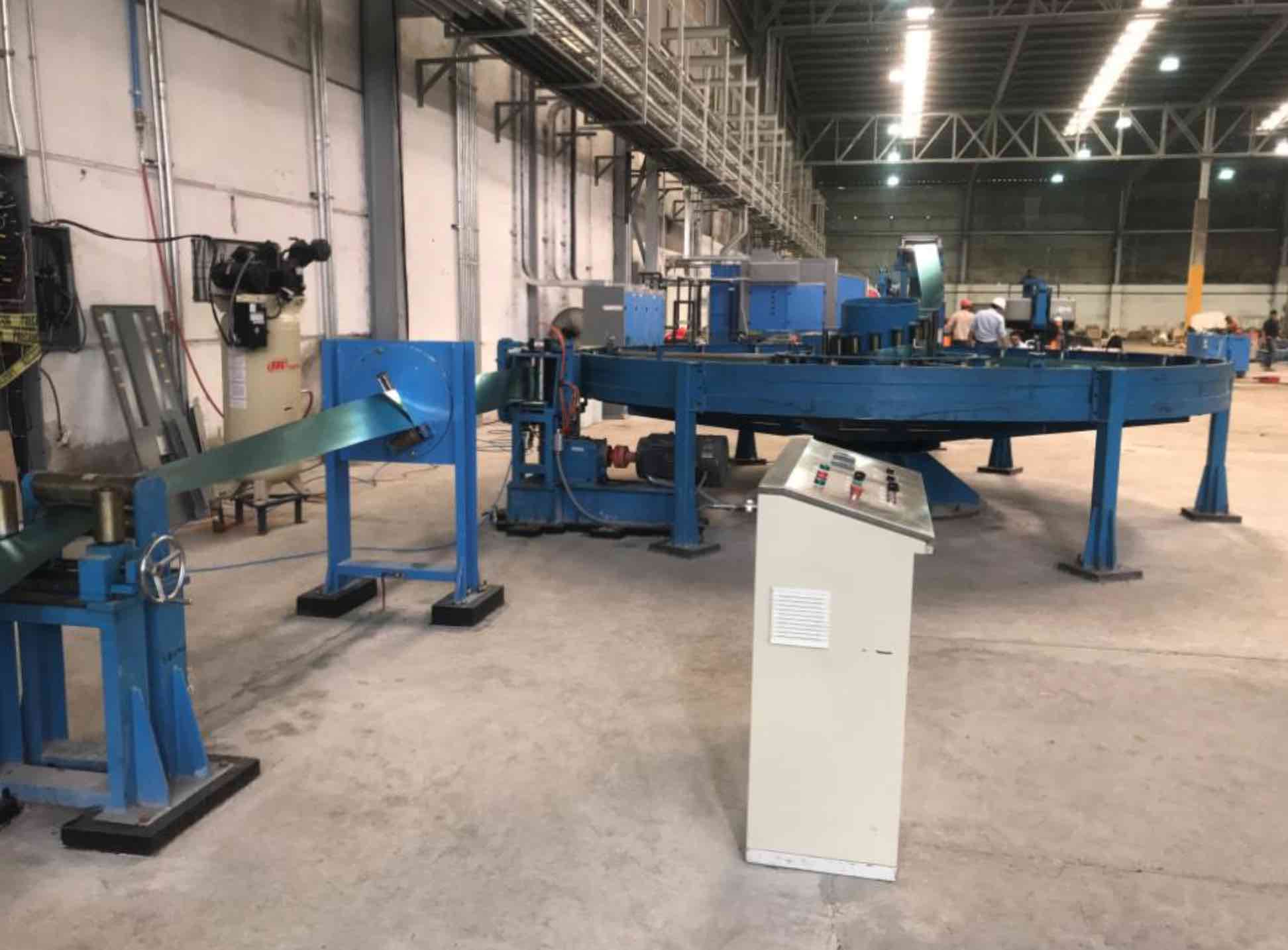

Coil Accumulator
Floor Standing Horizontal Type
Capacity: 700 meters
Speed: 200 meters per minute
Entry & Exit Pinch Rolls
AC Motor Drive


Strip Straightener
Number of Work Rolls: 7
Entry Guiding Rolls
Entry Pinch Rolls

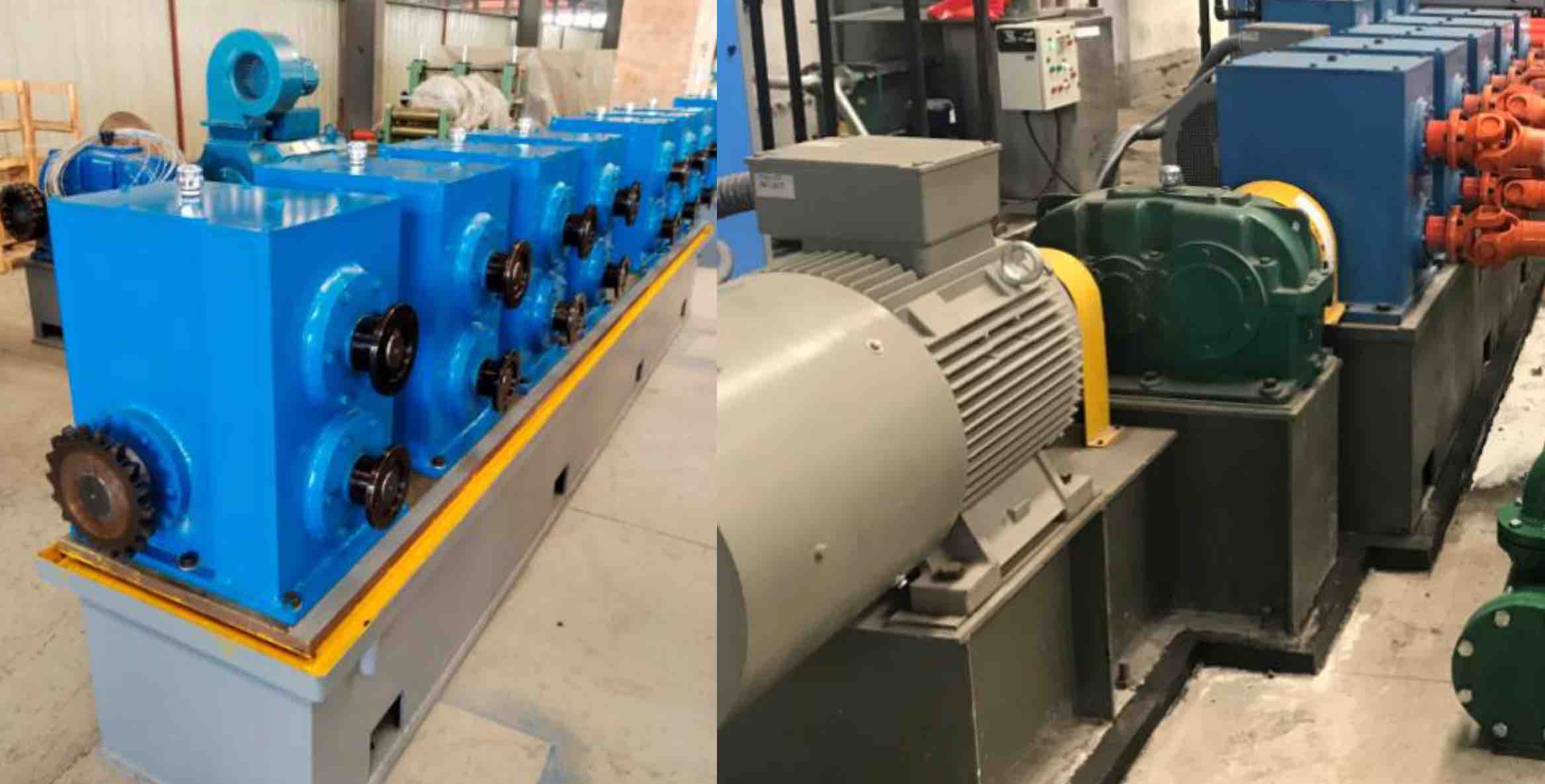

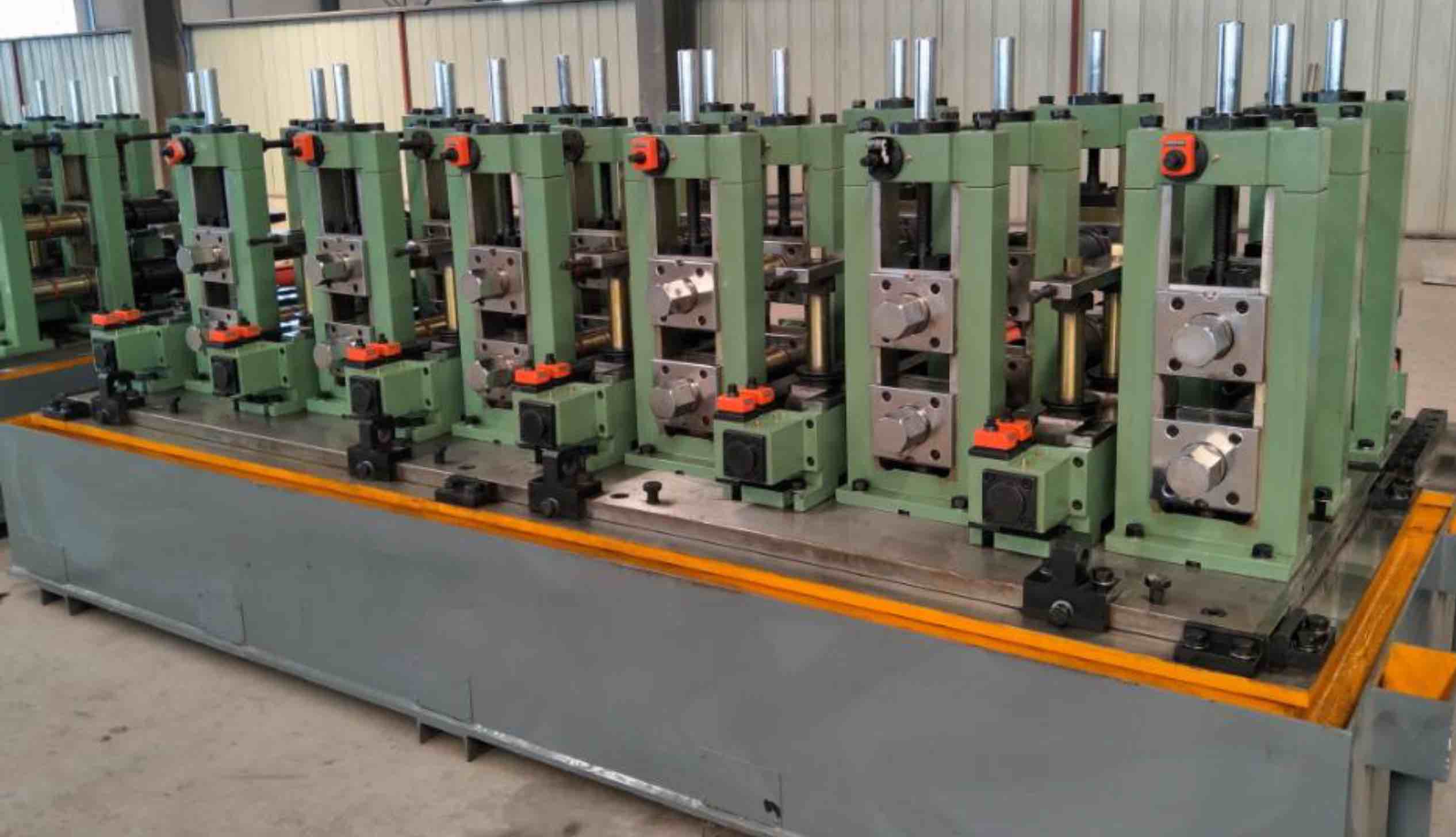

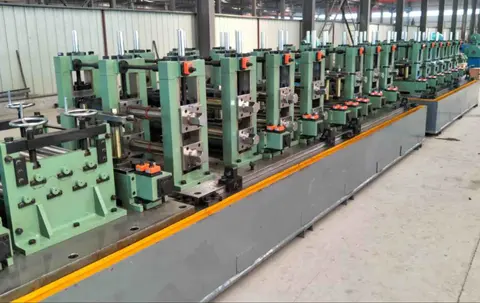

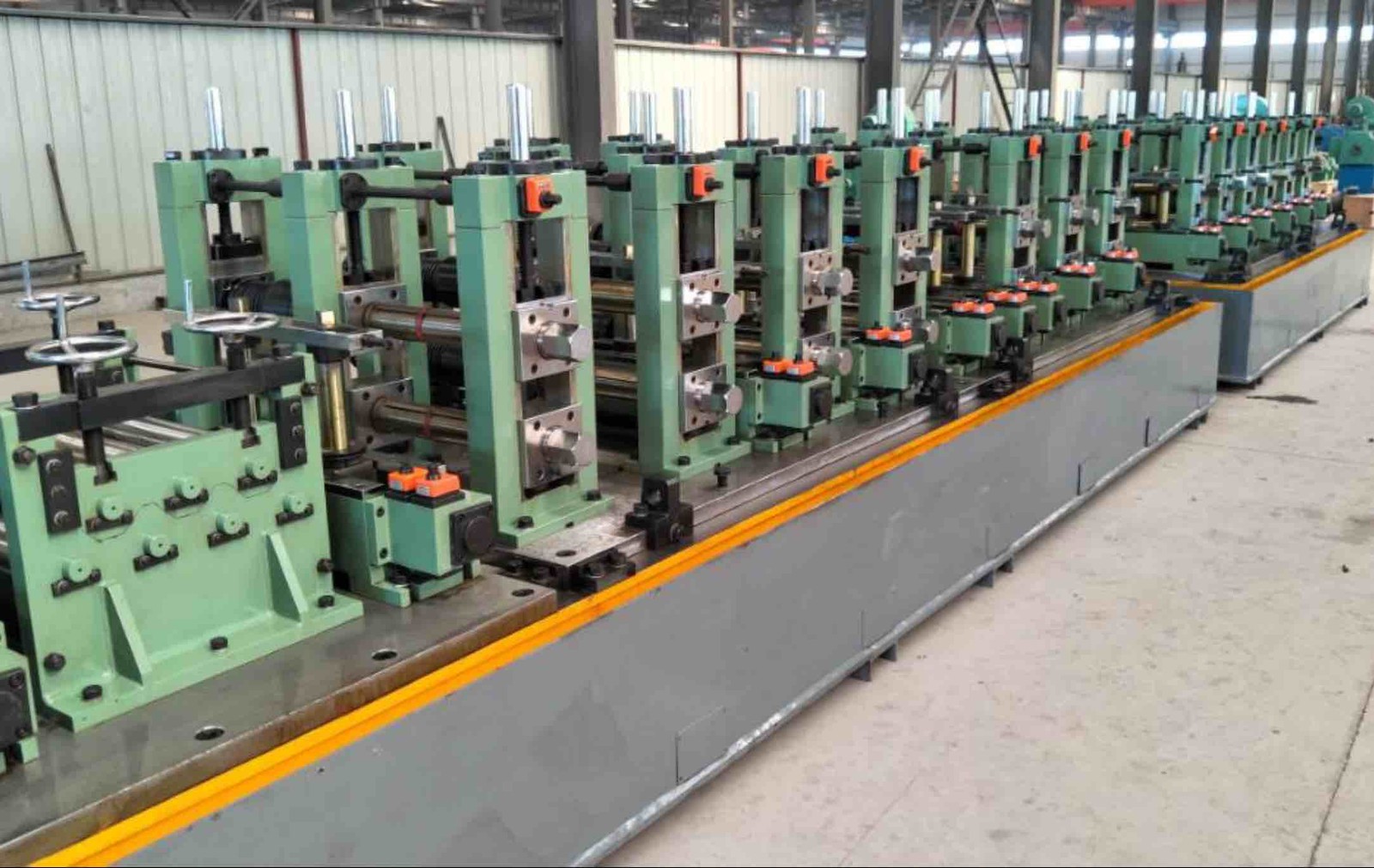

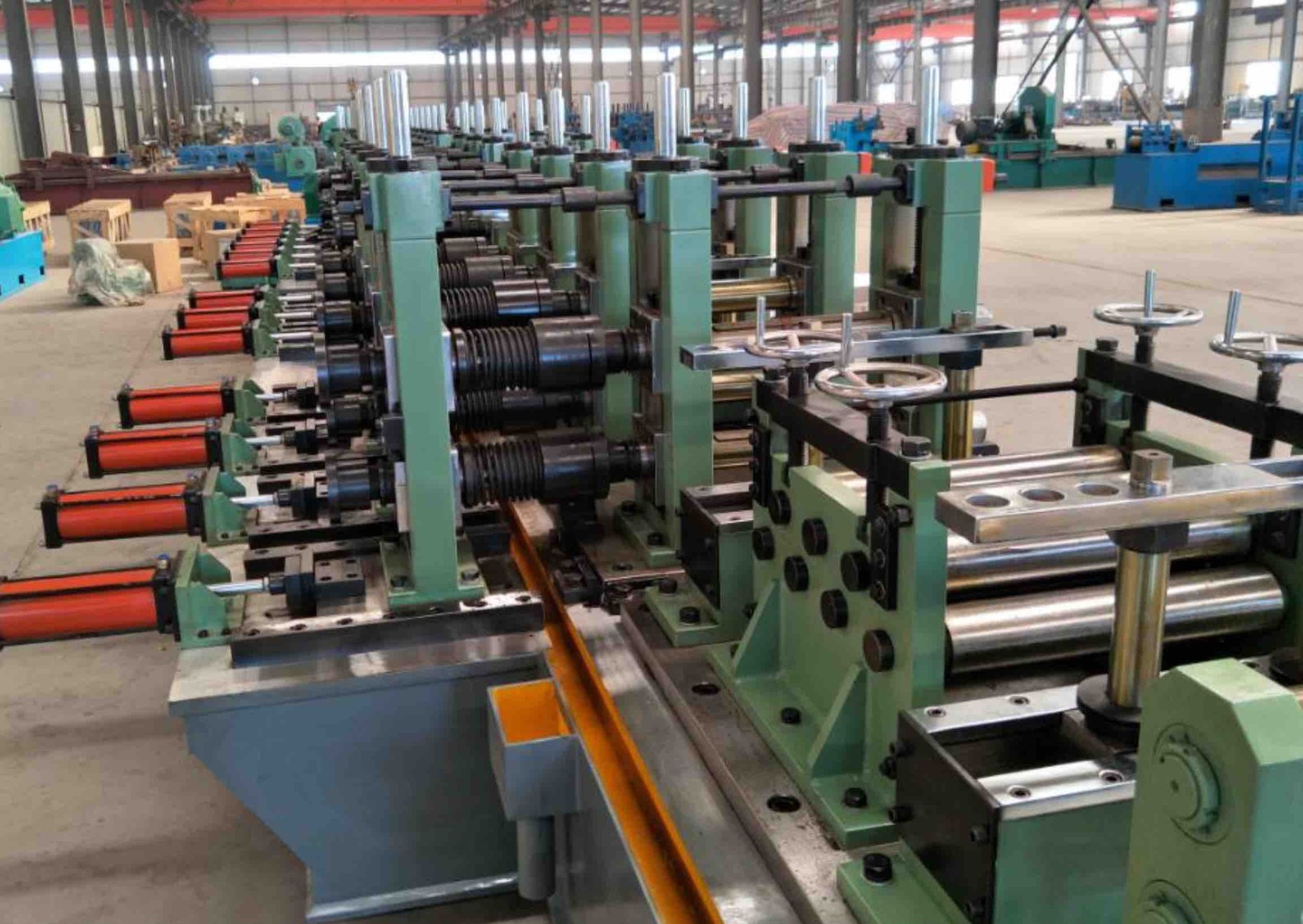

Forming Mill
Quick Change Design
Number of Forming Stands: 7
Number of Vertical Stands: 8
Shaft Diameter: 45mm
Individual Gear Boxes
Universal Drive
Adjustable Upper and Lower Shafts

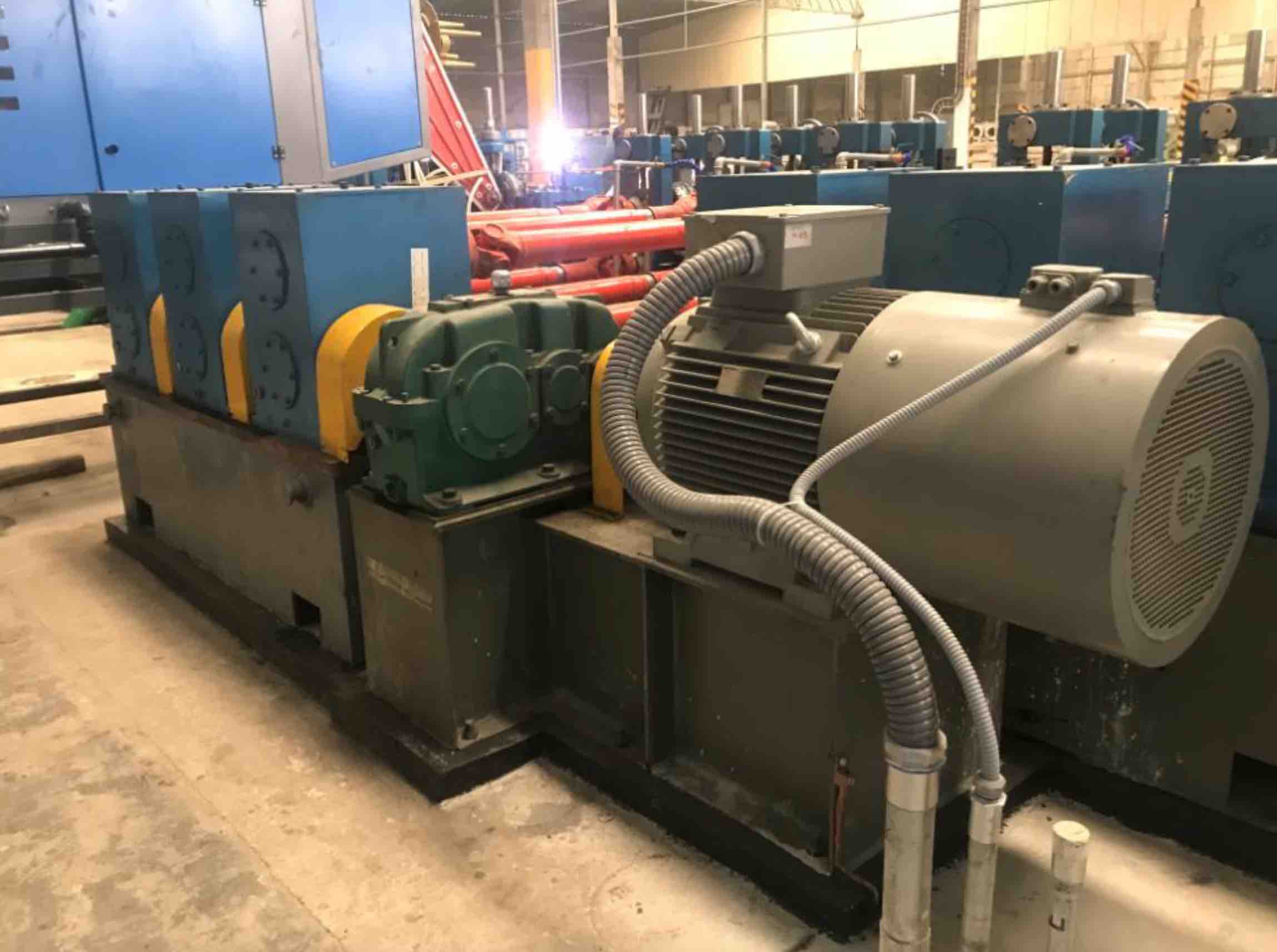

132Kw DC Motor Drive

Welding Section
3-Roll Squeeze Box
Top Roll Diameter: 40mm
Bottom Rolls Diameter: 60mm

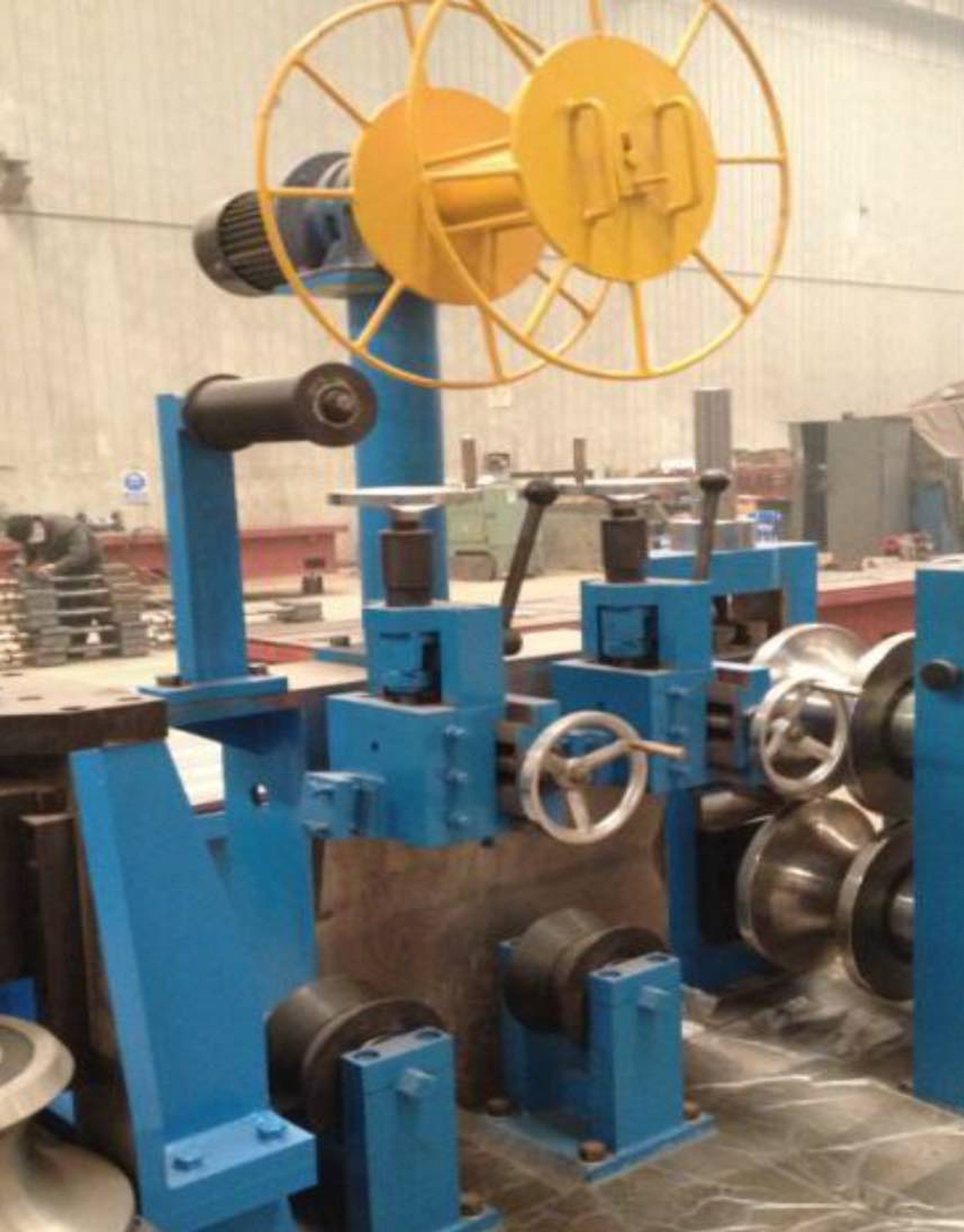

External Scarfing Head with Rewinder

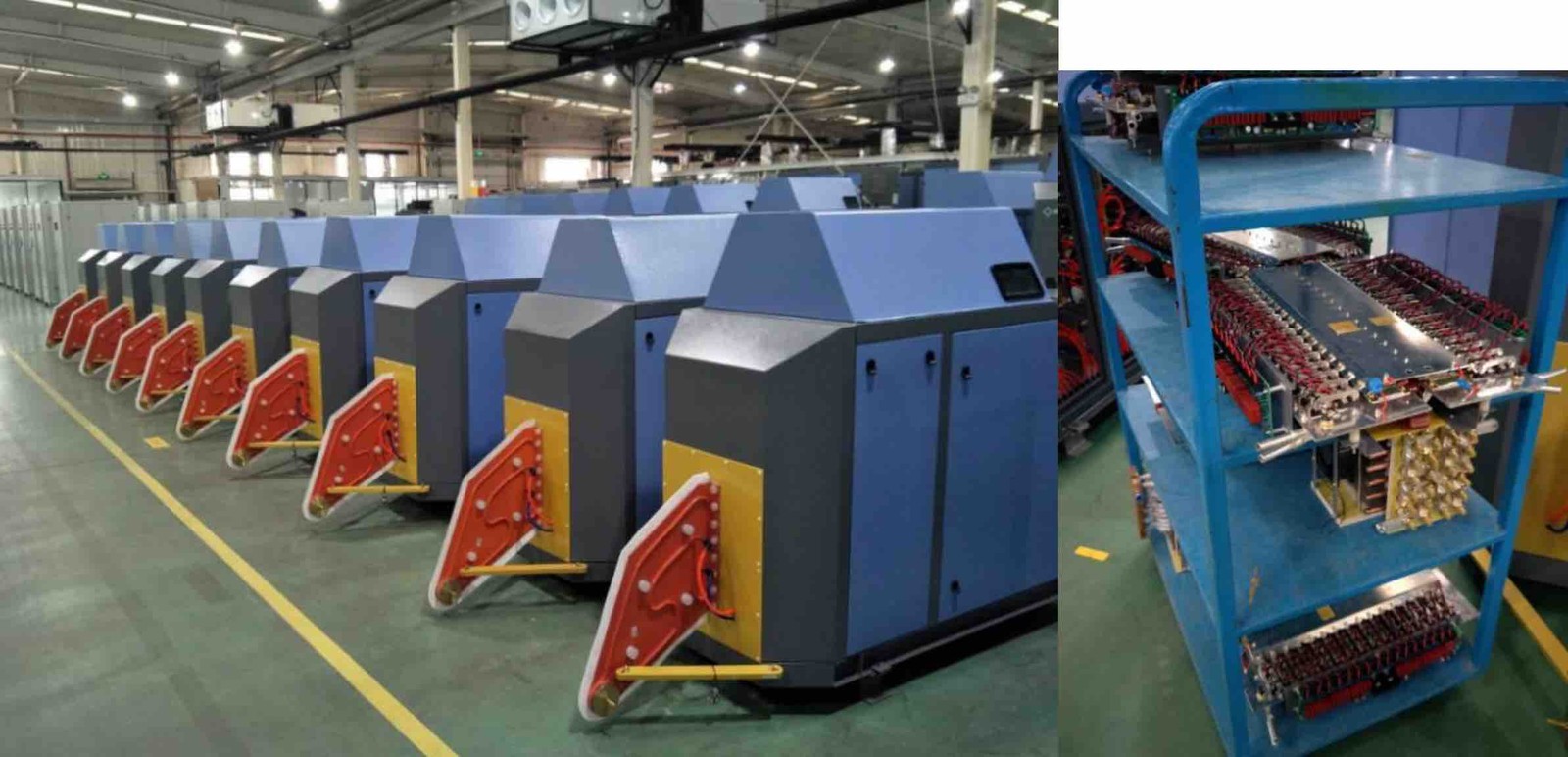

300 Kw HF Welder

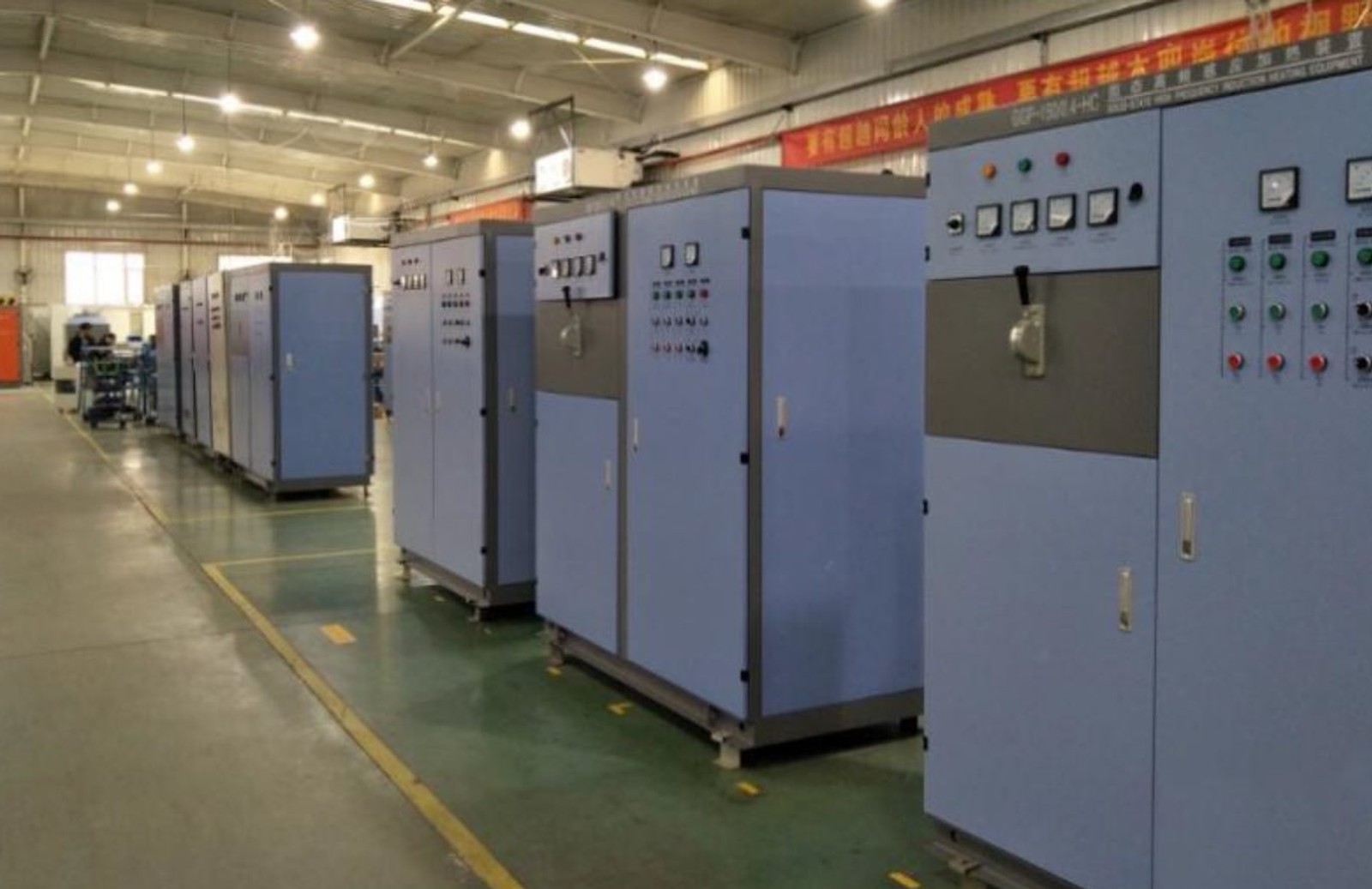

Rectifier Cabinet
Modular Inverter Cabinet

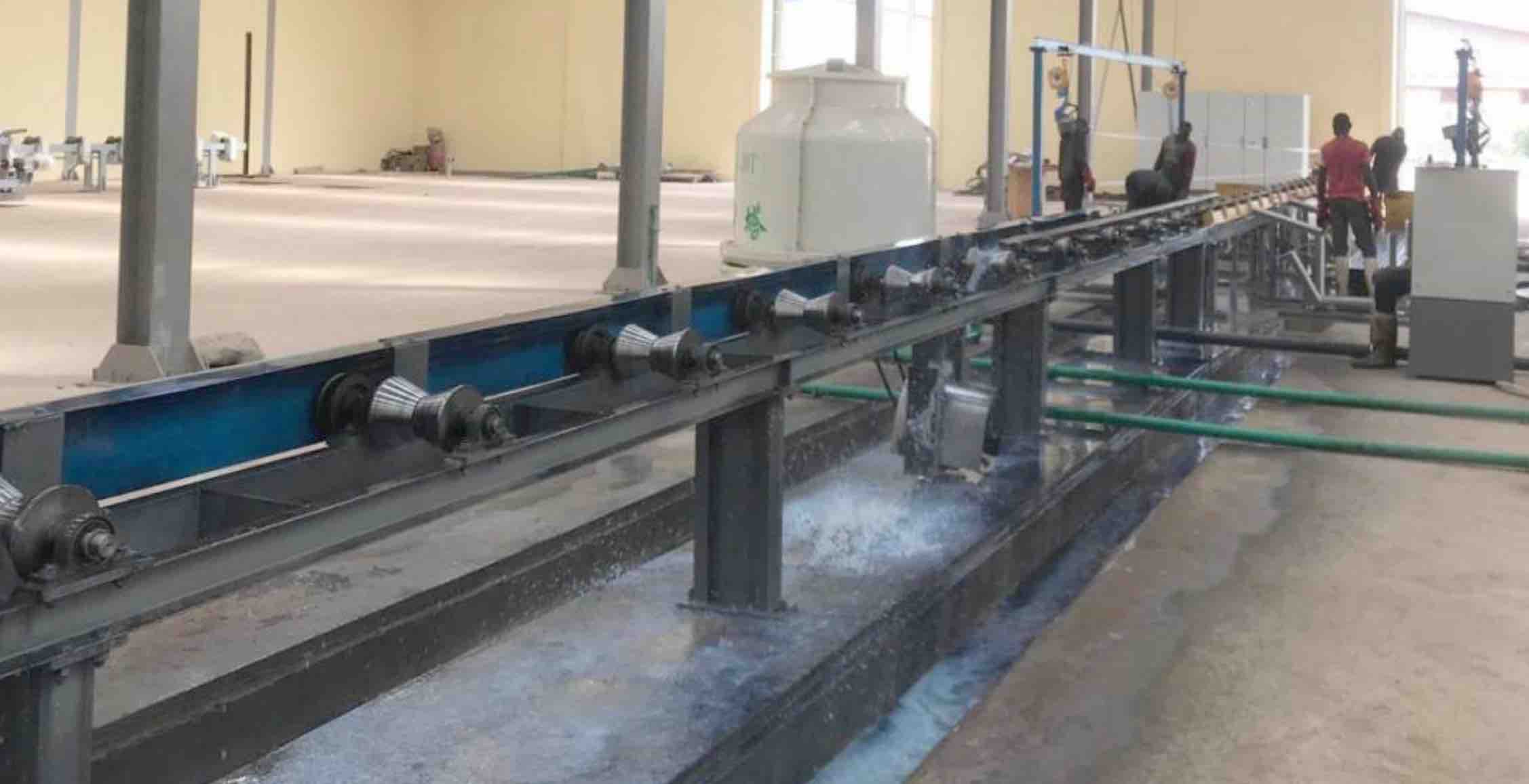

Extended Cooling Section

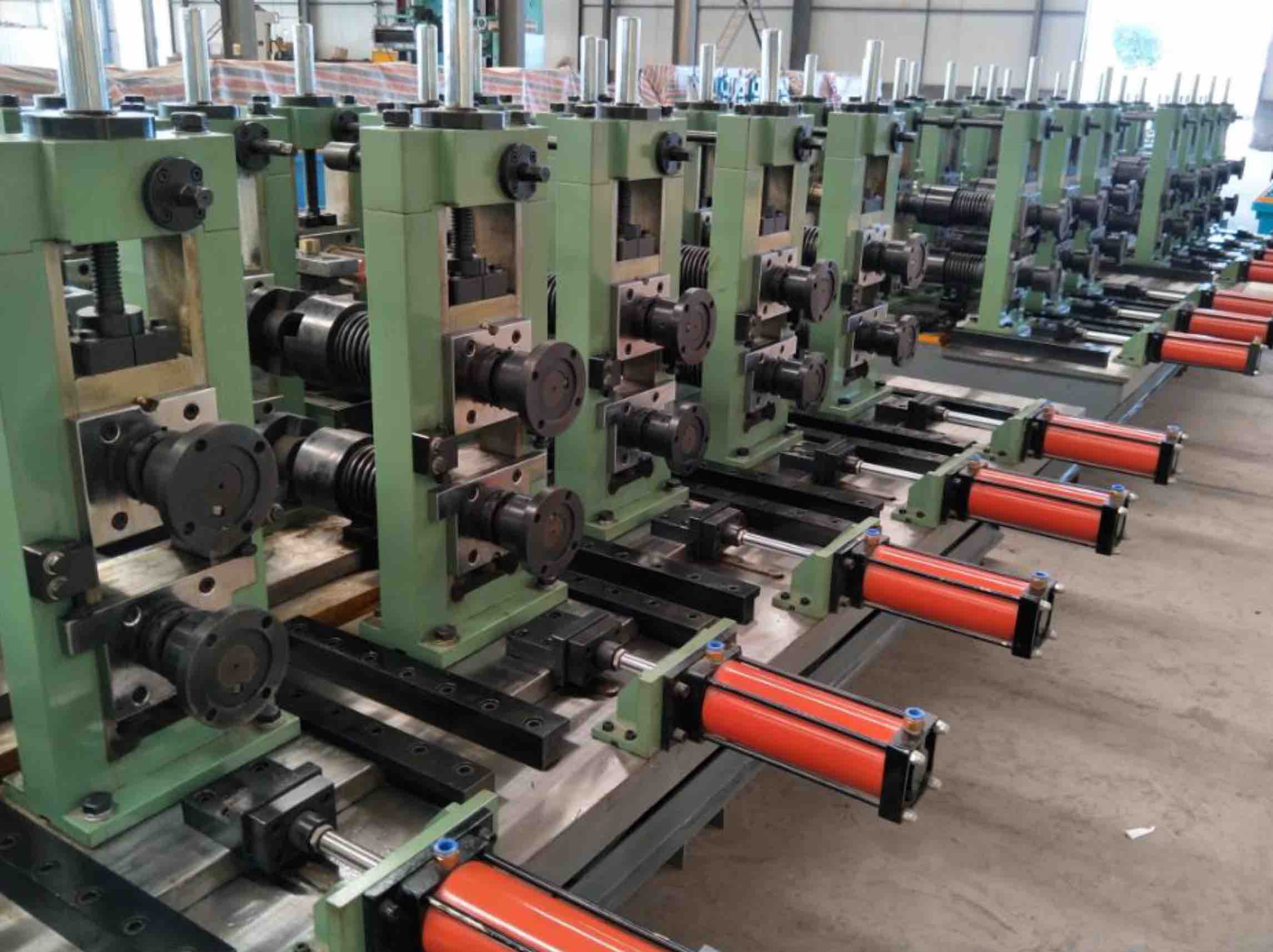

Sizing Mill
Number of Sizing Stands: 6
Number of Vertical Sizing Stands: 6
Individual Gear Boxes
Universal Drive
132Kw DC Motor Drive

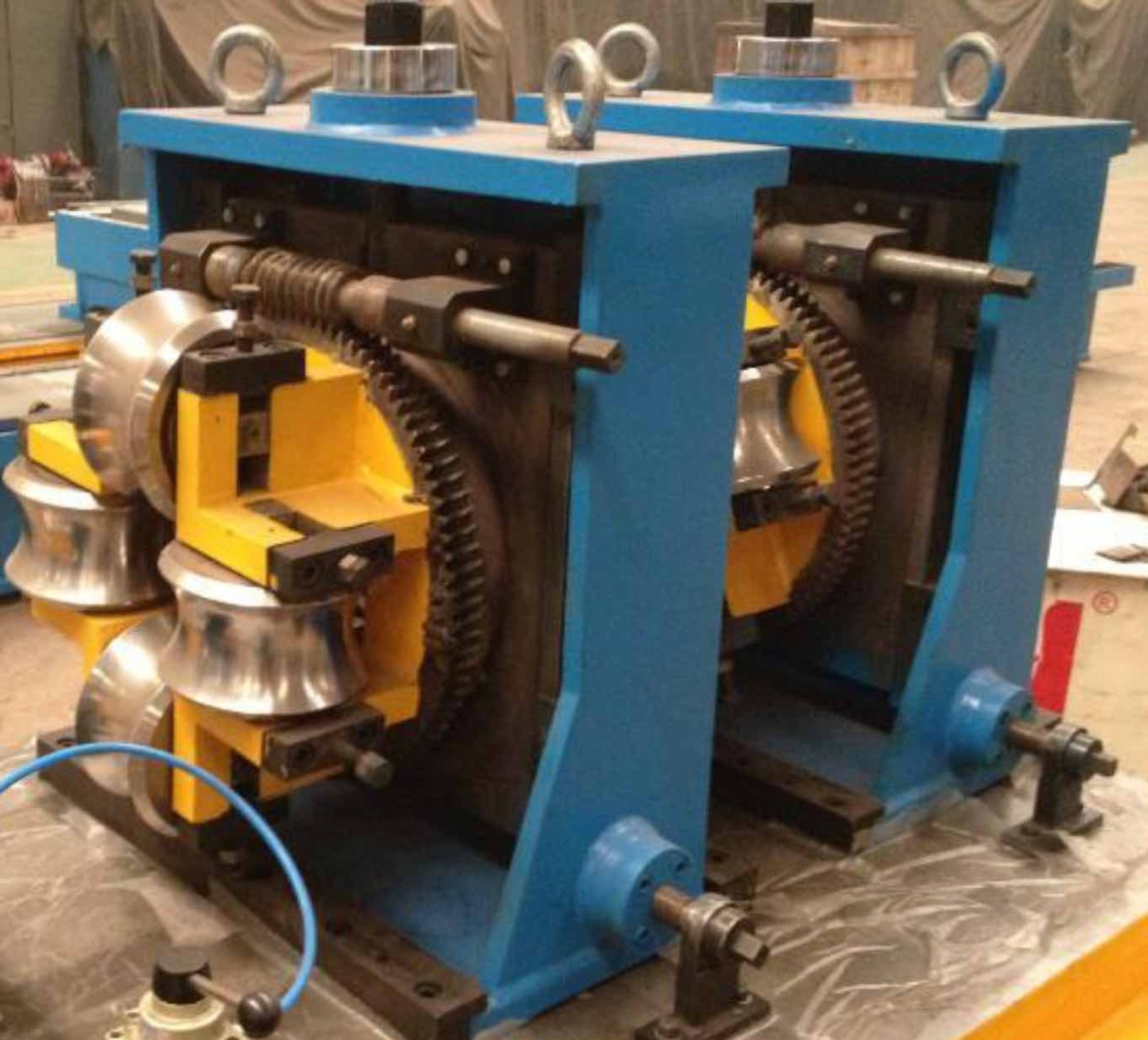

Two Double Sided Turk-Heads
Horizontal & Vertical Adjustment

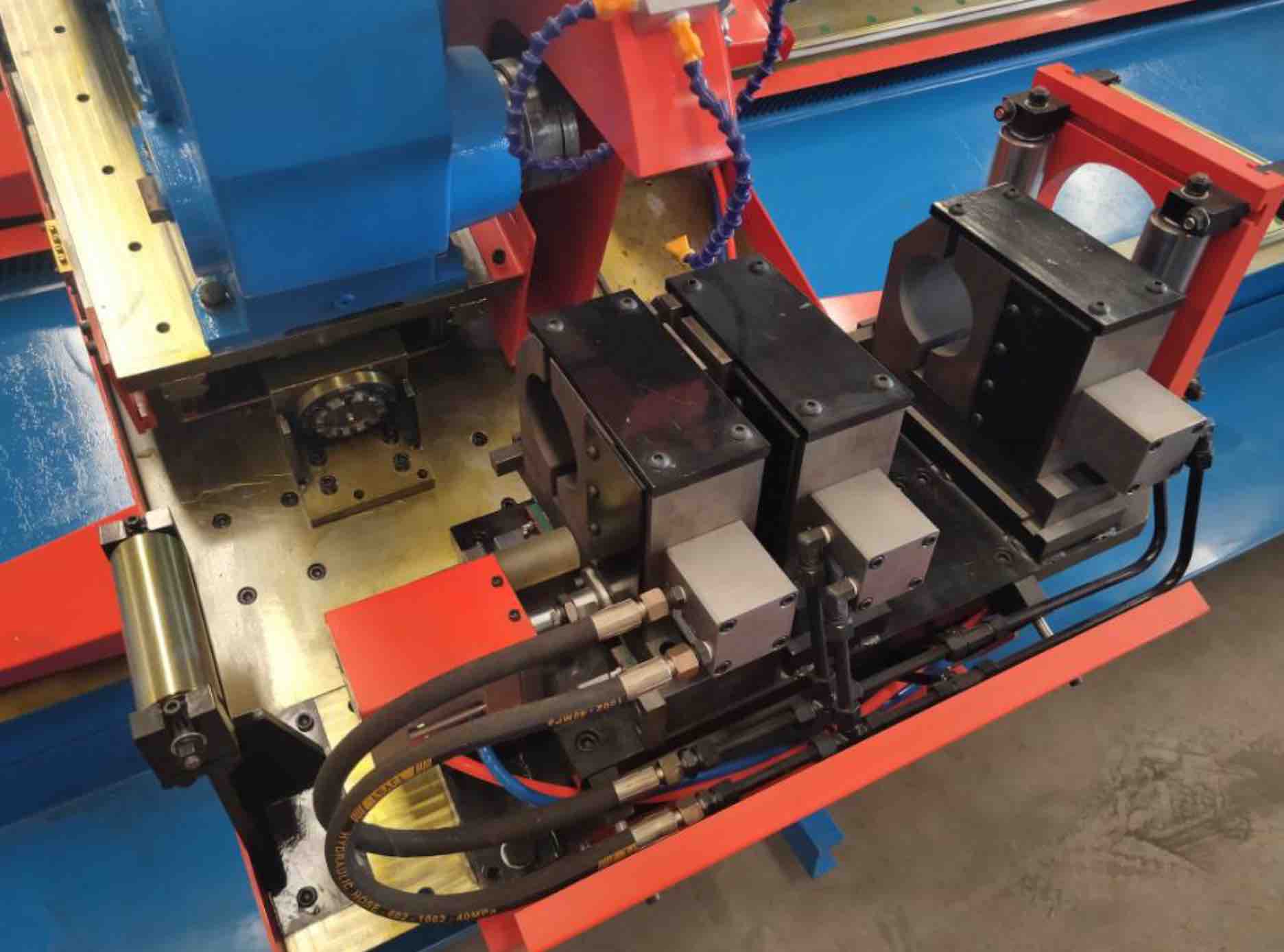

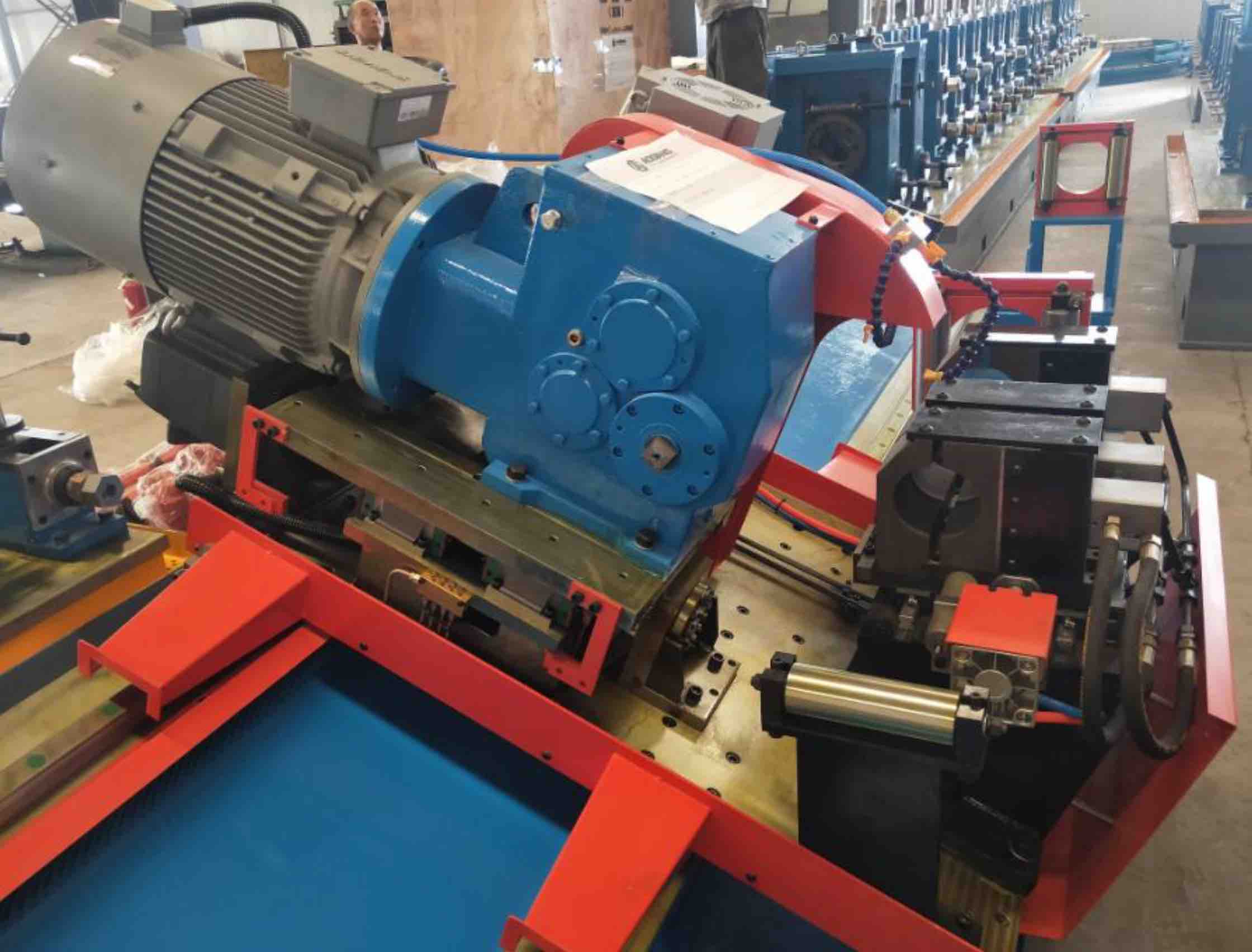

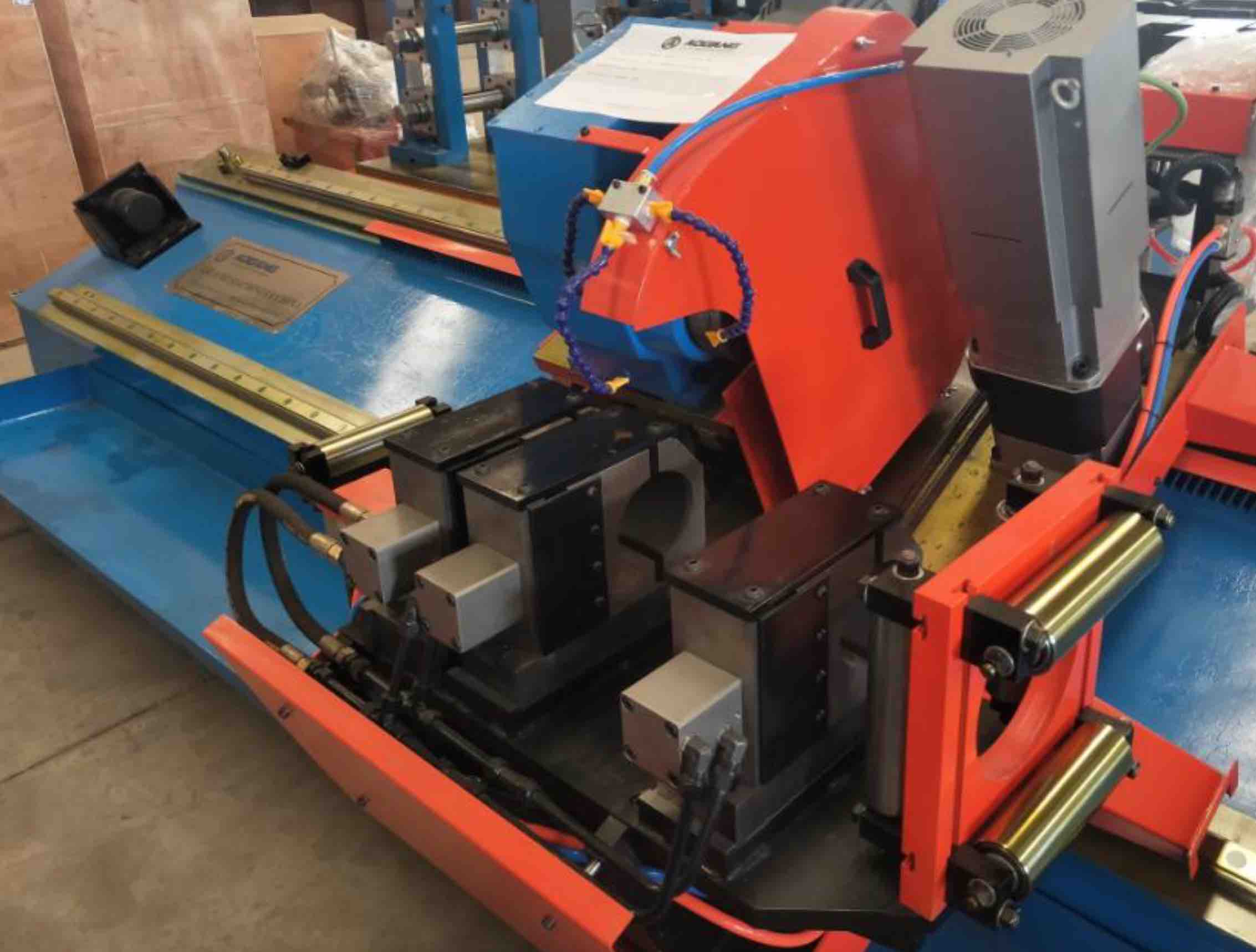

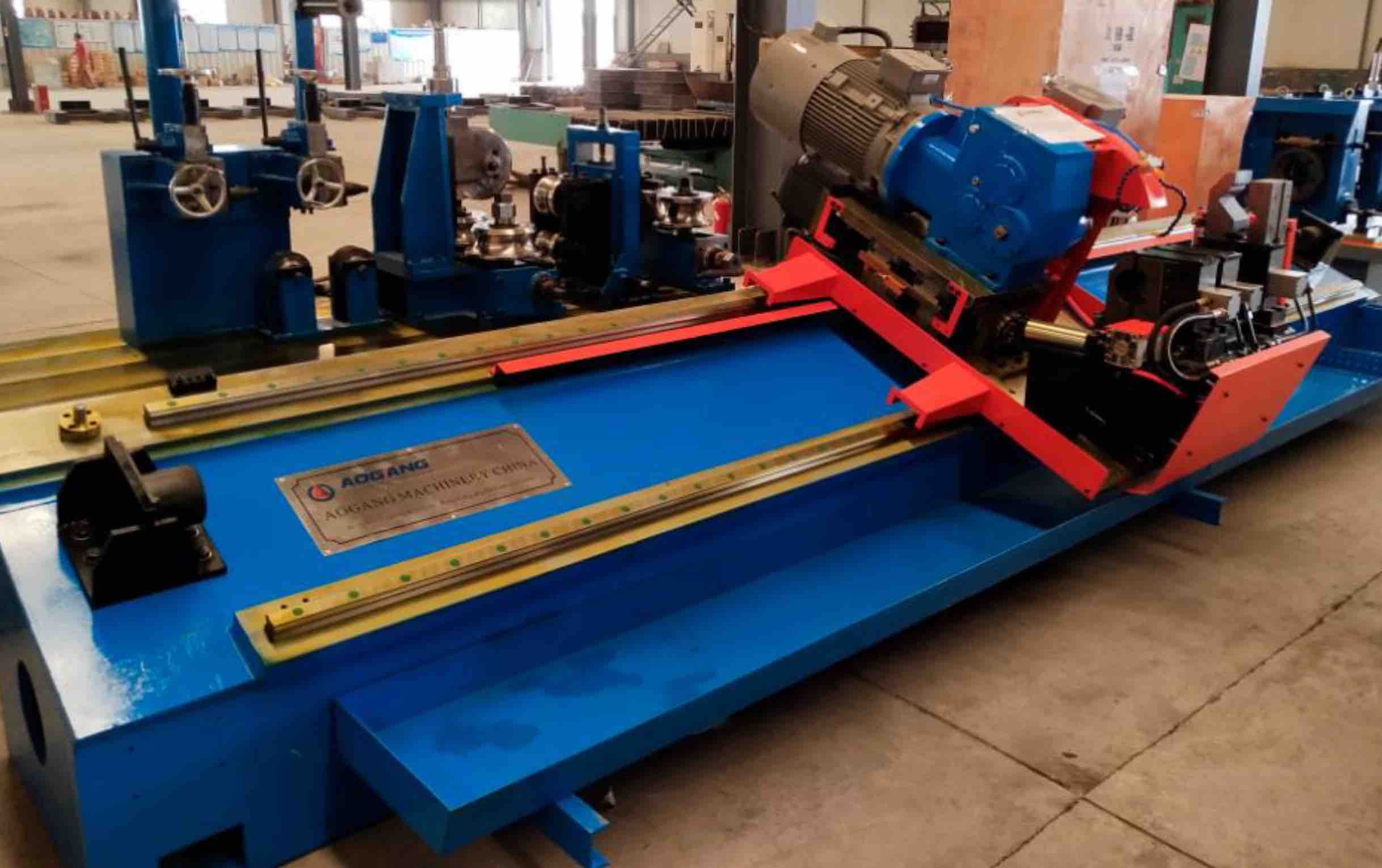

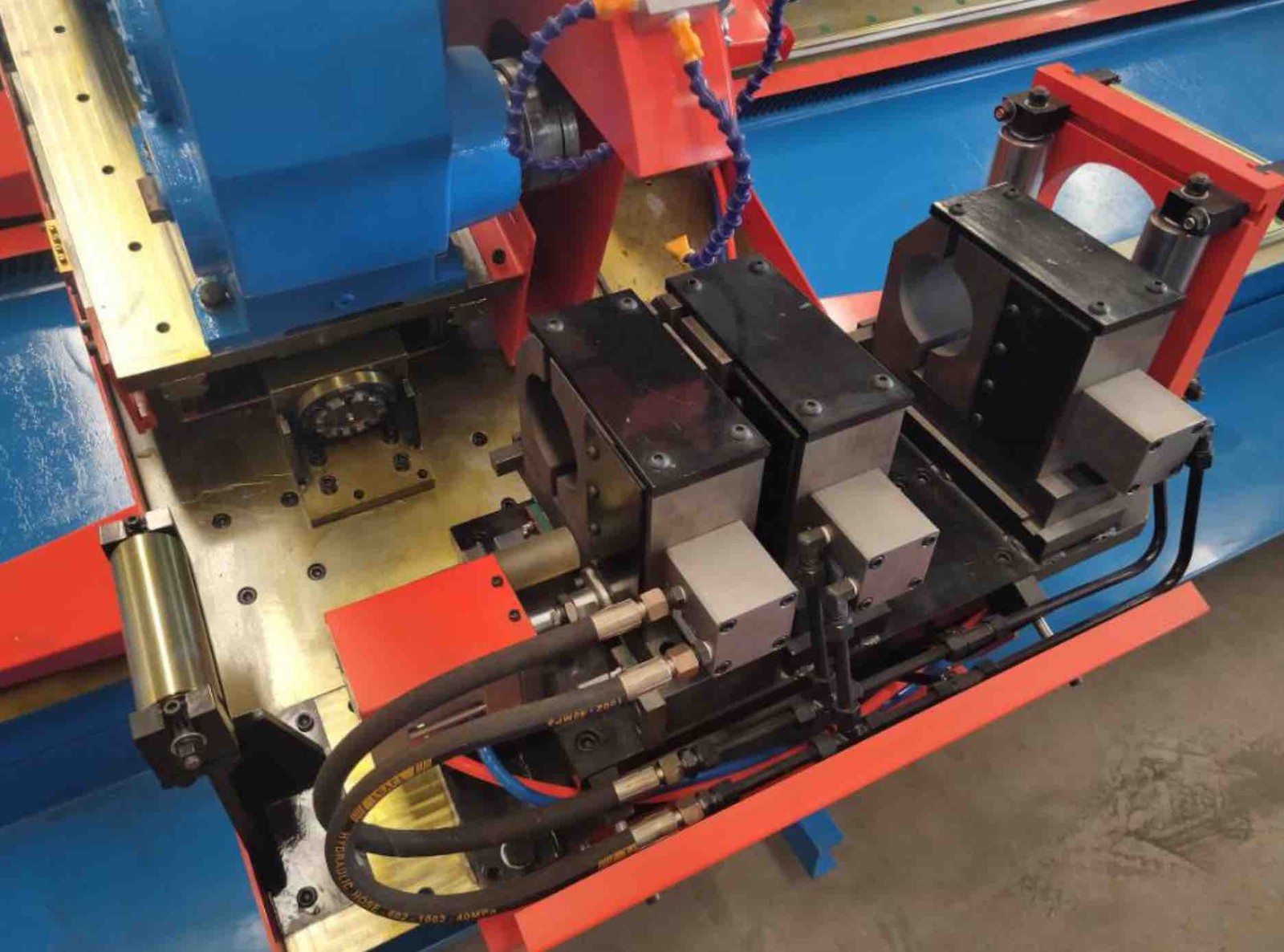

Flying Cut-Off Saw
Single Blade Cold Saw
Mechanical Traverse
Length Control System
18.5Kw Cut-Off Drive
Feeding Servo Motor: 4.4Kw

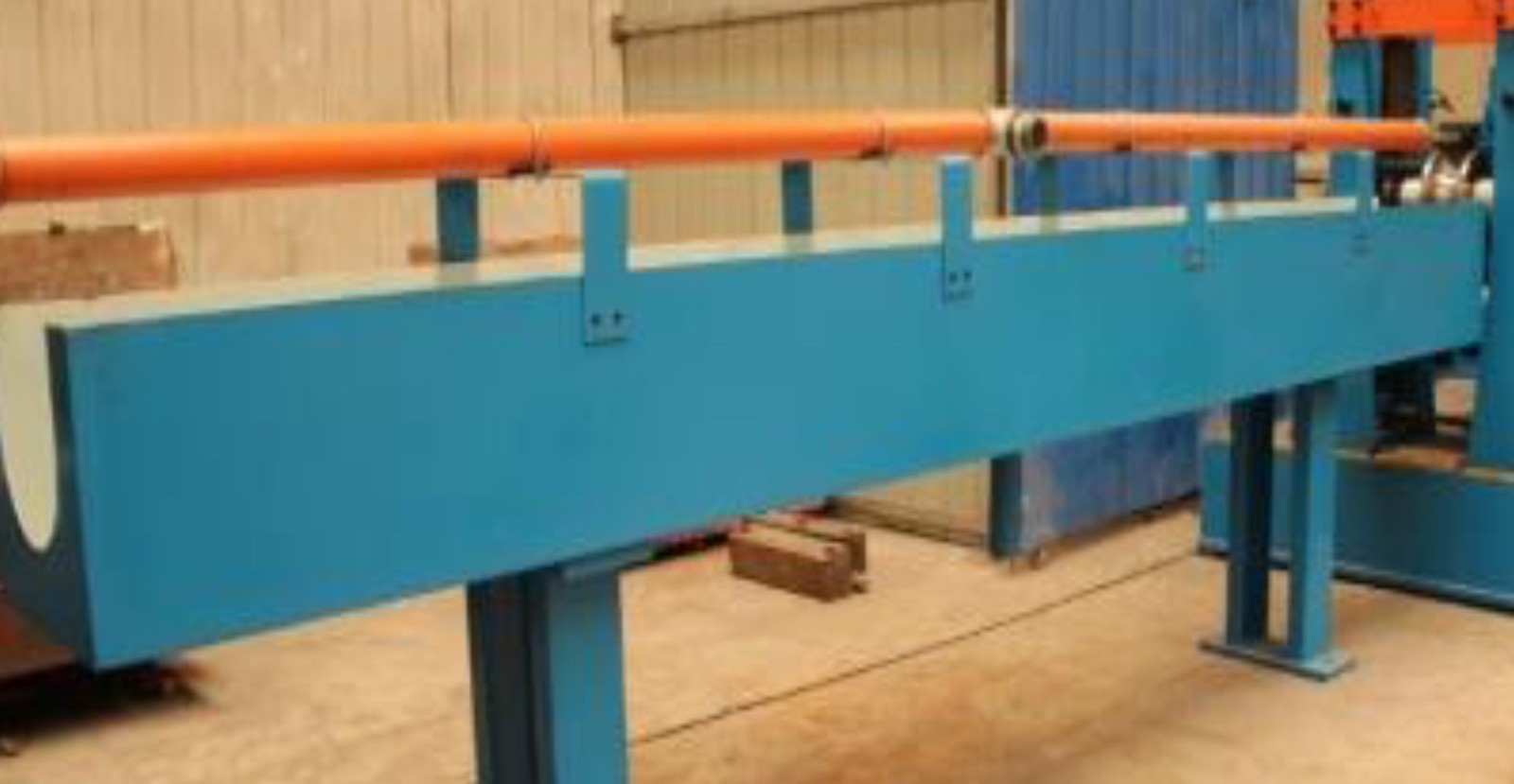

Driven Run-Out Table
Driven End Table

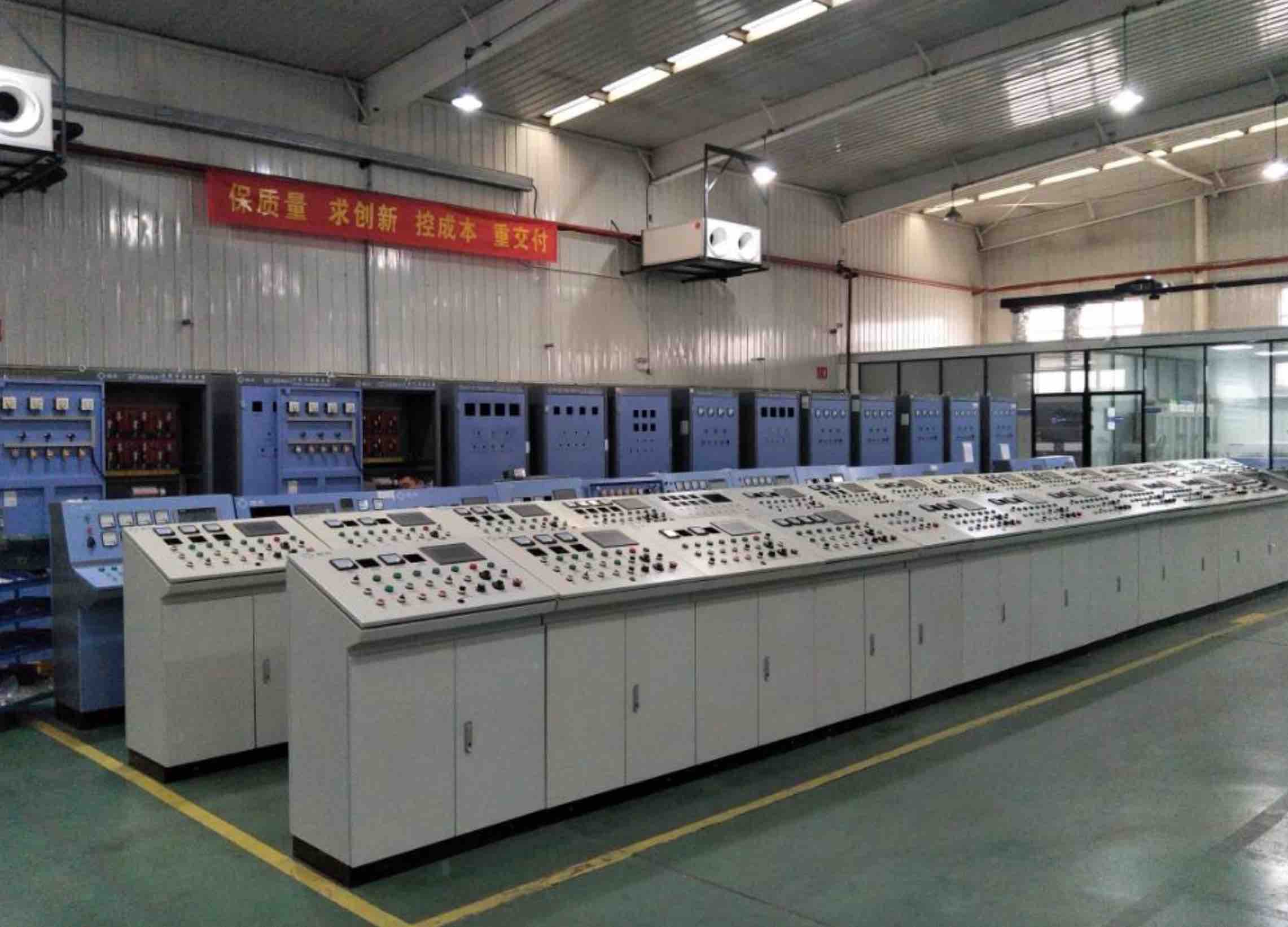

Electrics, Hydraulics, Controls, New Tube Mill, Ready for Loading
