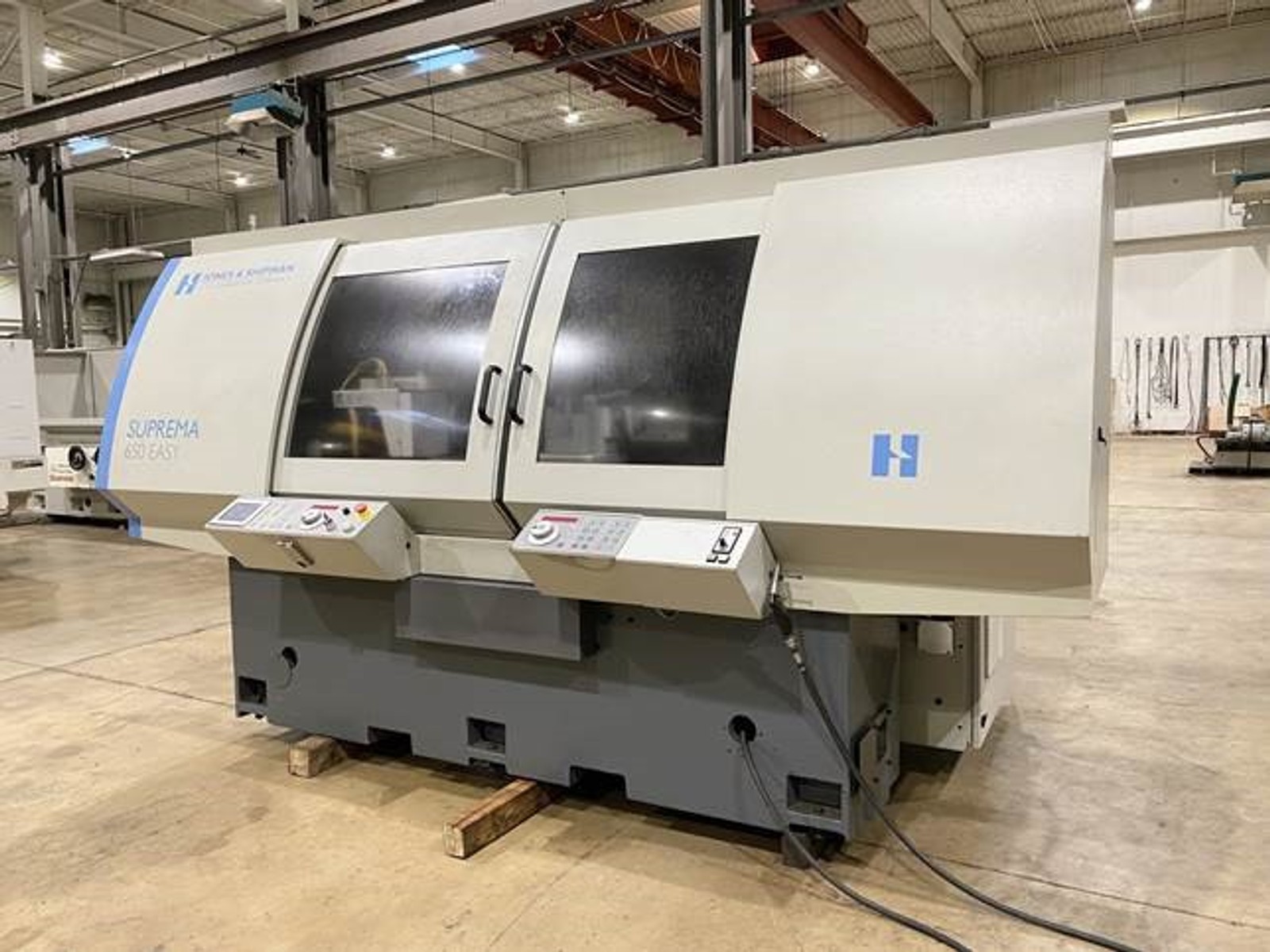

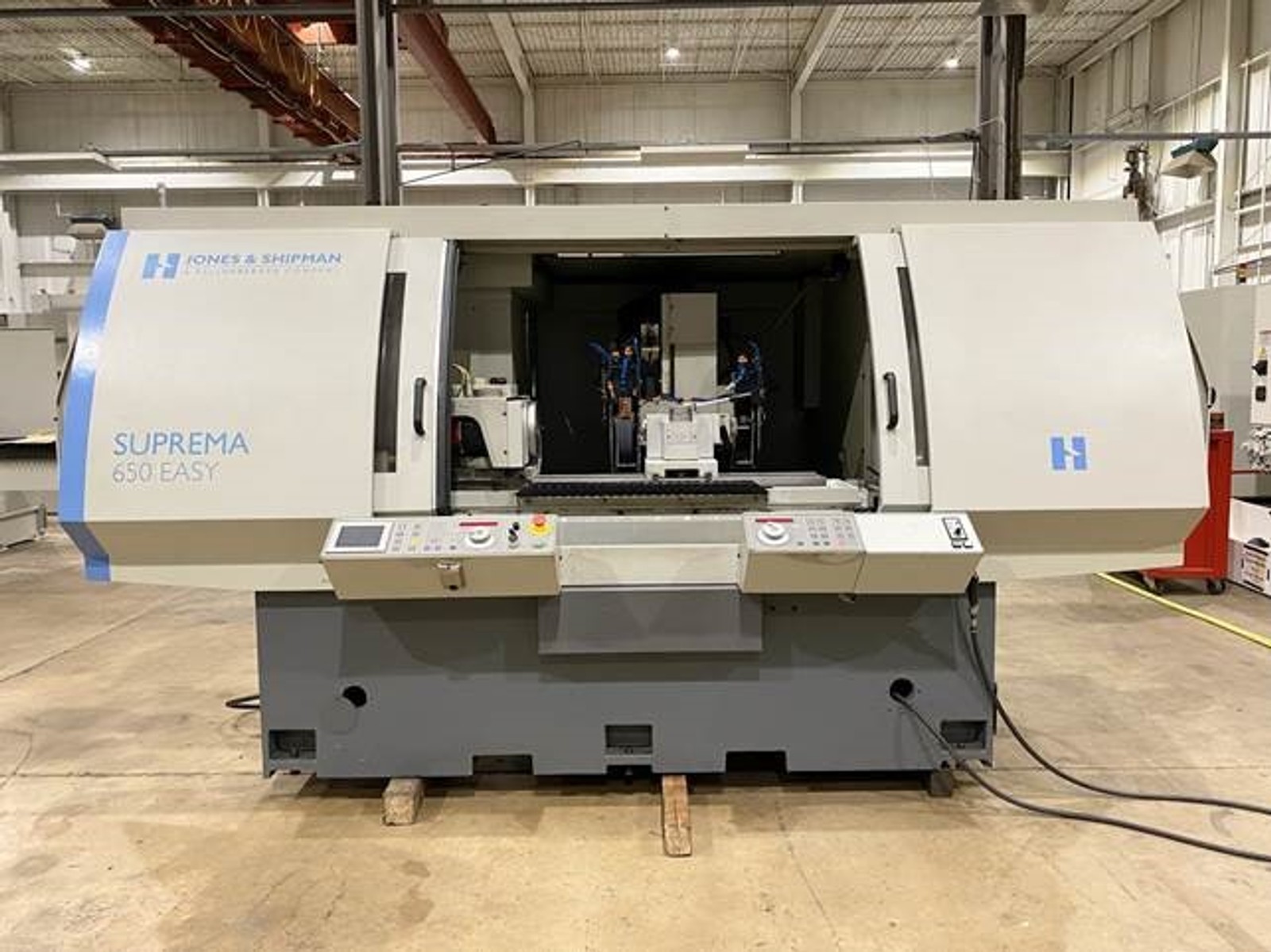

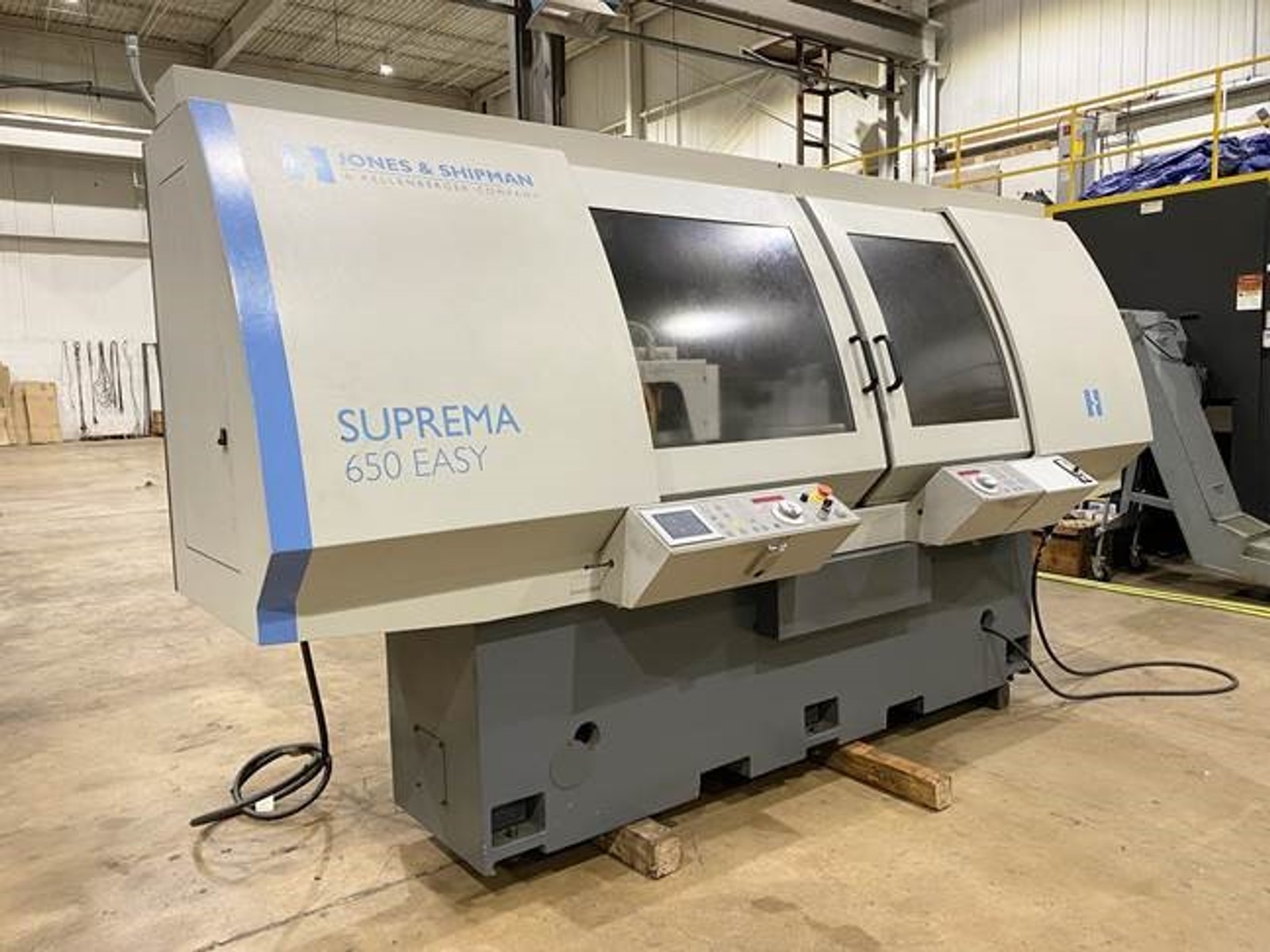

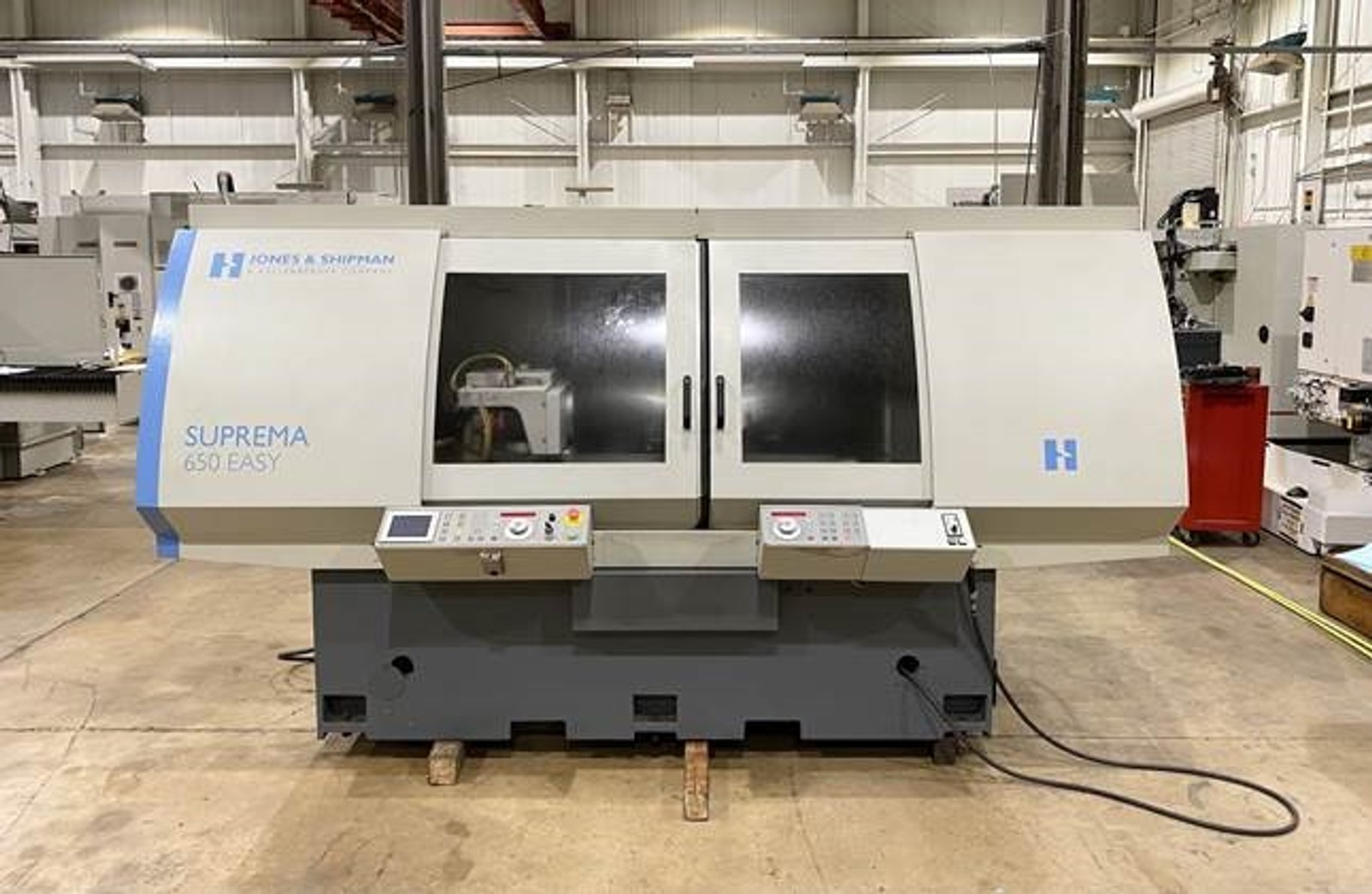

JONES & SHIPMAN SUPREMA EASY 650 M UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER, NEW 2011 INSATLEED 2012, 2-OD AND 1-ID SPINDLE DESIGN

Manufacturer

JONES & SHIPMAN

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, UNIVERSAL, CNC

Stock

None

Model

Suprema Easy 650M

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

JONES & SHIPMAN SUPREMA EASY 650 M UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER, NEW 2011 INSATLEED 2012, 2-OD AND 1-ID SPINDLE DESIGN

CATALOG SPECIFICATIONS:
Table:
Swing:....................................... 12.5"
Distance Between Centers:.................... 25.5"
Table Travel ................................ 29.5"
Max. Traverse Speed ......................... 472" IPM
HPG Increments .............................. 0.00005", 0.0005", or 0.005"
Table Swivel ................................ 18 Deg. CCW, 16 Deg. CW

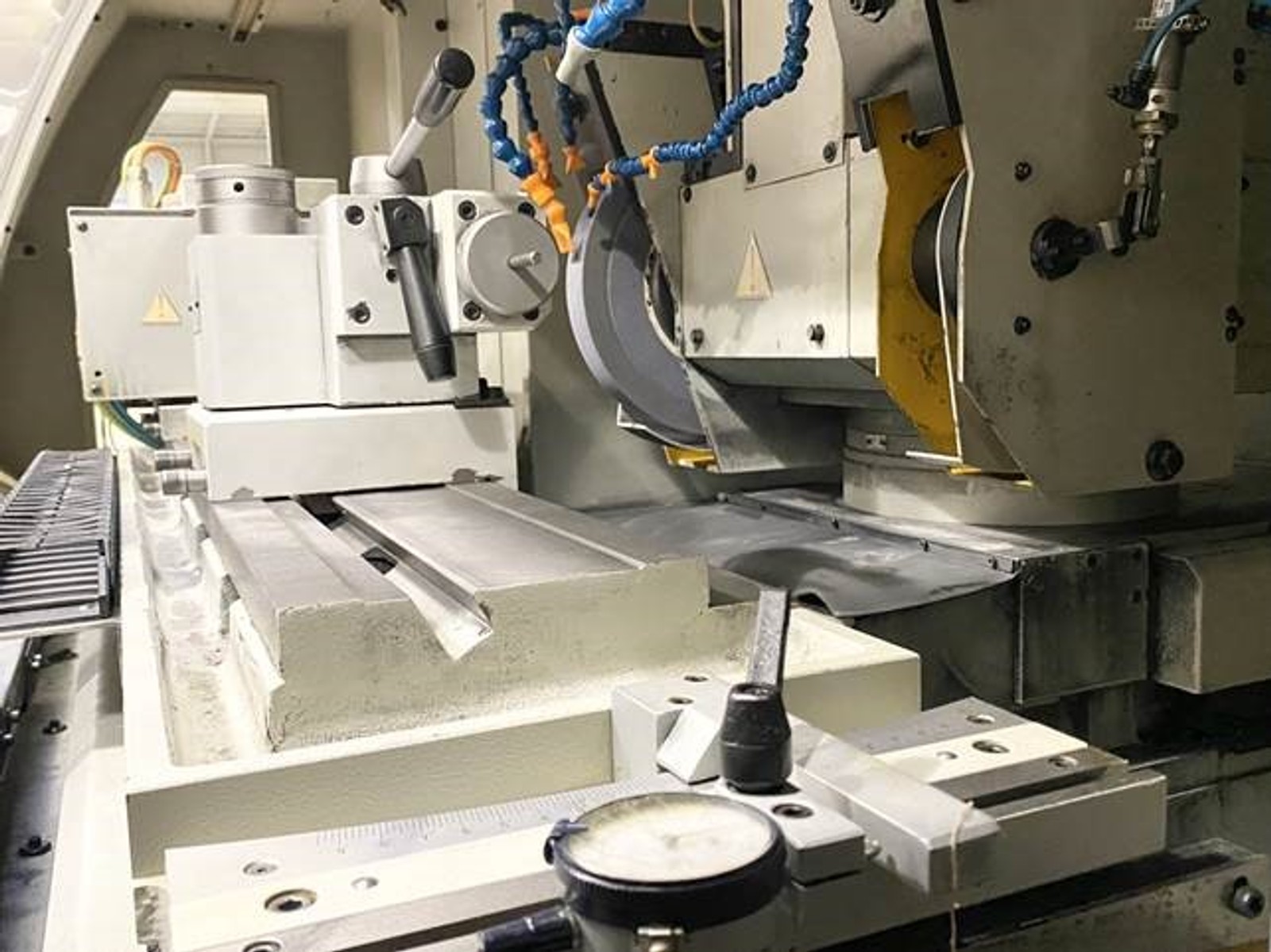

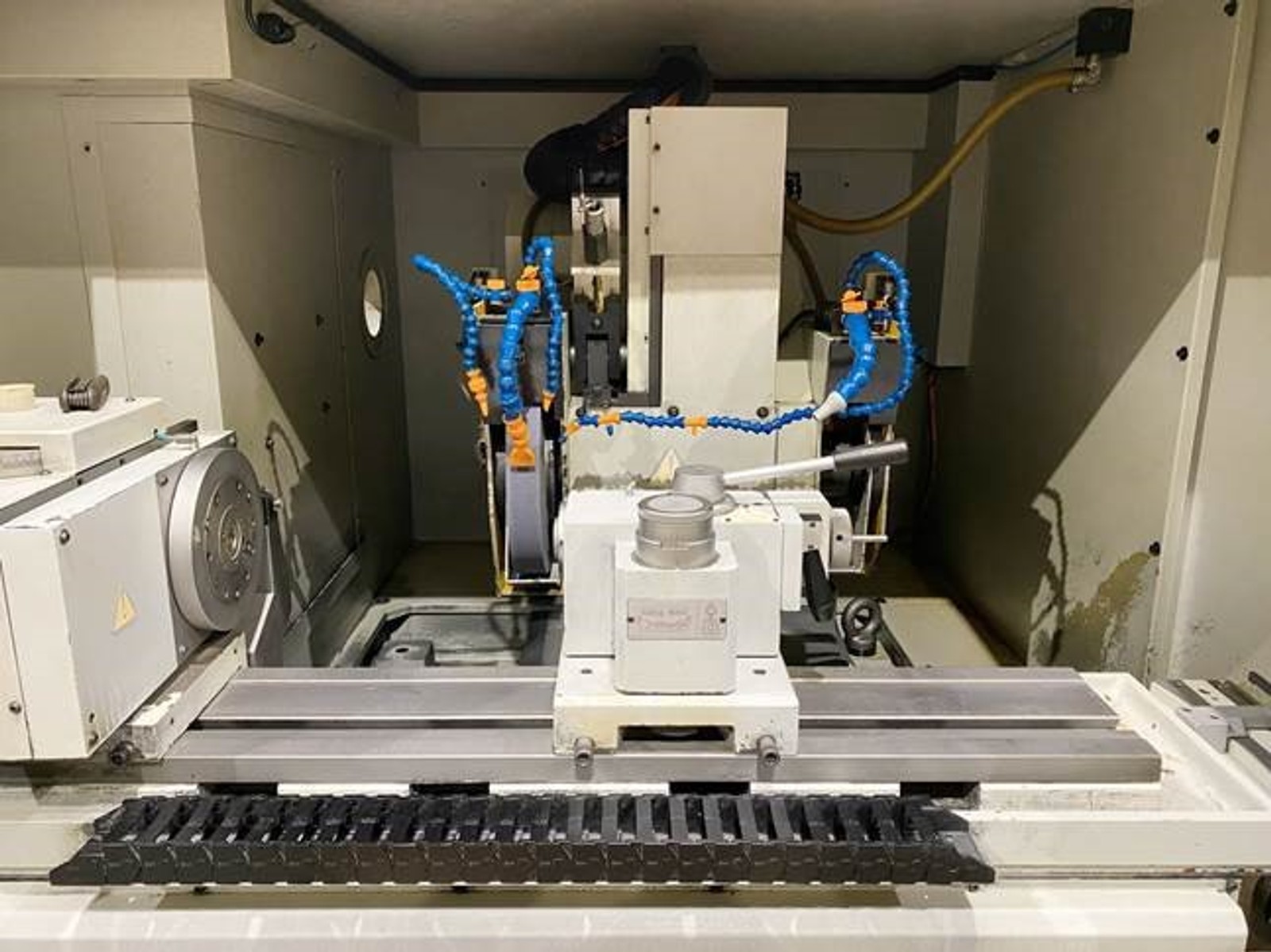

Wheelhead:
Total Infeed Travel:......................... 10.236""
Max. Speed .................................. 236" IPM
Minimum Programmable Increment .............. 0.00005"
HPG Increments .............................. 0.00005", 0.0005", or 0.005"
Swivel Range ................................ 190 Degrees CW
45 Deg. CCW

External Grinding Wheels:
Grinding Wheel Size, L.H. Standard:.......... 14" x 2"W x 5"B
R.H Standard: .......... 12" x 1"W x 5"B
Spindle Speeds (3):.......................... 1773, 2069 & 2400 RPM
Motor Power: ................................ 5.5 H.P.

Headstock:
Swivel:...................................... 15 Degrees CW
90 Deg. CCW
Speed, Infinitely Variable:.................. 30 to 450 RPM
Centers, Standard/Reduced ................... #5 MT/#3 MT

Approximate Weight: ......................... 11,000 Lbs.

Equipped with:
Full Software Pack, Linear Scales X/Z, and Easycomms
Variable Speed 4 kW External Wheelhead Drive
Variable Speed Internal Grinding Wheel
Lateral Locator (Shoulder) Gauge
Manual Grinding Wheel B-Axis Swivel Encoder for Accuracy
Coolant Clarifier 160 LTR X 60 Flow, with Magnetic Drum
Movomatic Gap Elimination

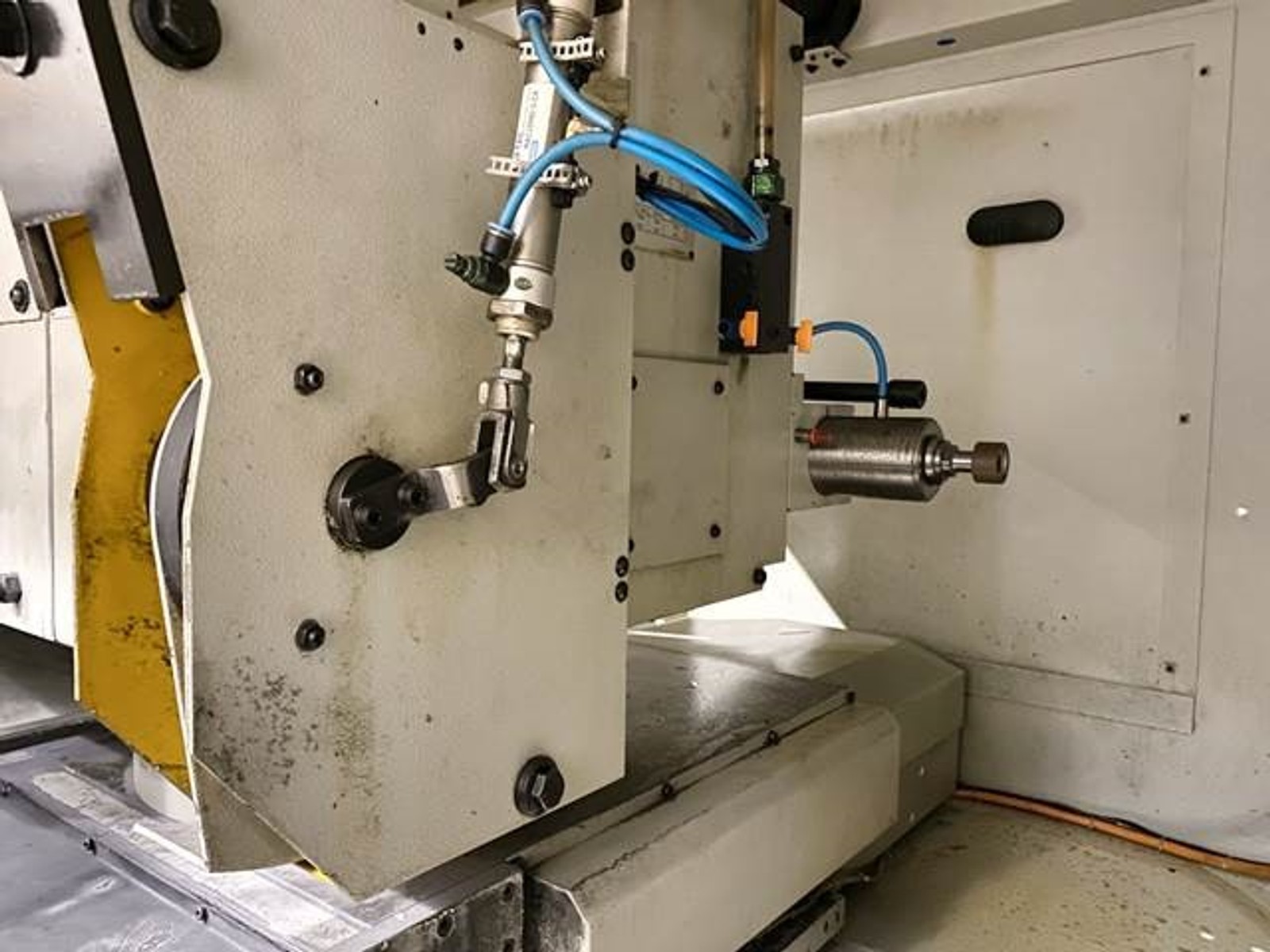

Tailstock

2-OD AND 1-ID SPINDLE DESIGN
