Rotab 84-2, 84" Table, 2-Axis, 6,500 Lb Weight Capacity, #31438

Rotab 84-2, 84" Table, 2-Axis, 6,500 Lb Weight Capacity, #31438

Name: Rotab 84-2, 84" Table, 2-Axis, 6,500 Lb Weight Capacity, #31438
Brand: ROTAB
SKU: 31438

Manufacturer

ROTAB

Spec Sheet

Reference #31438

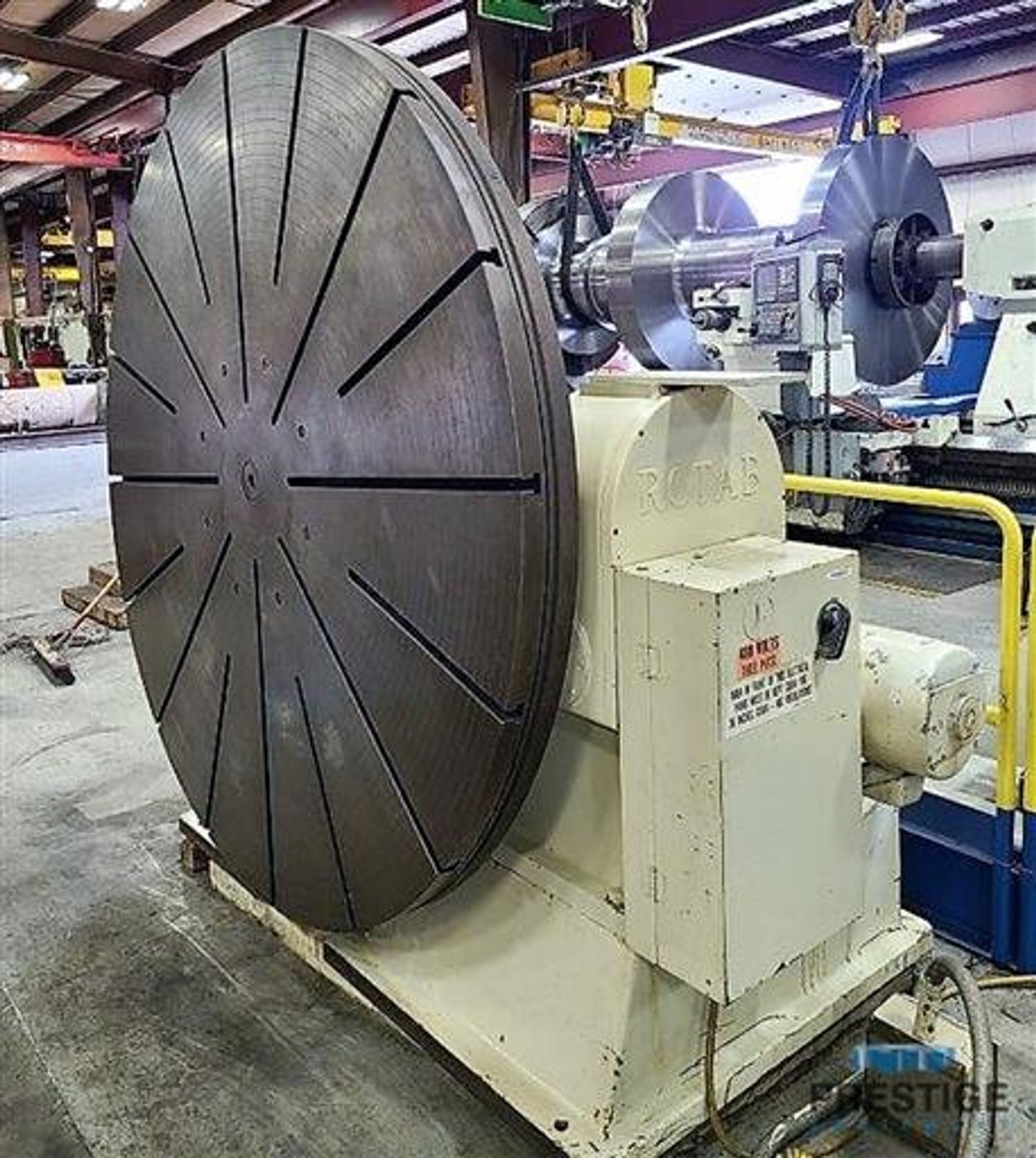

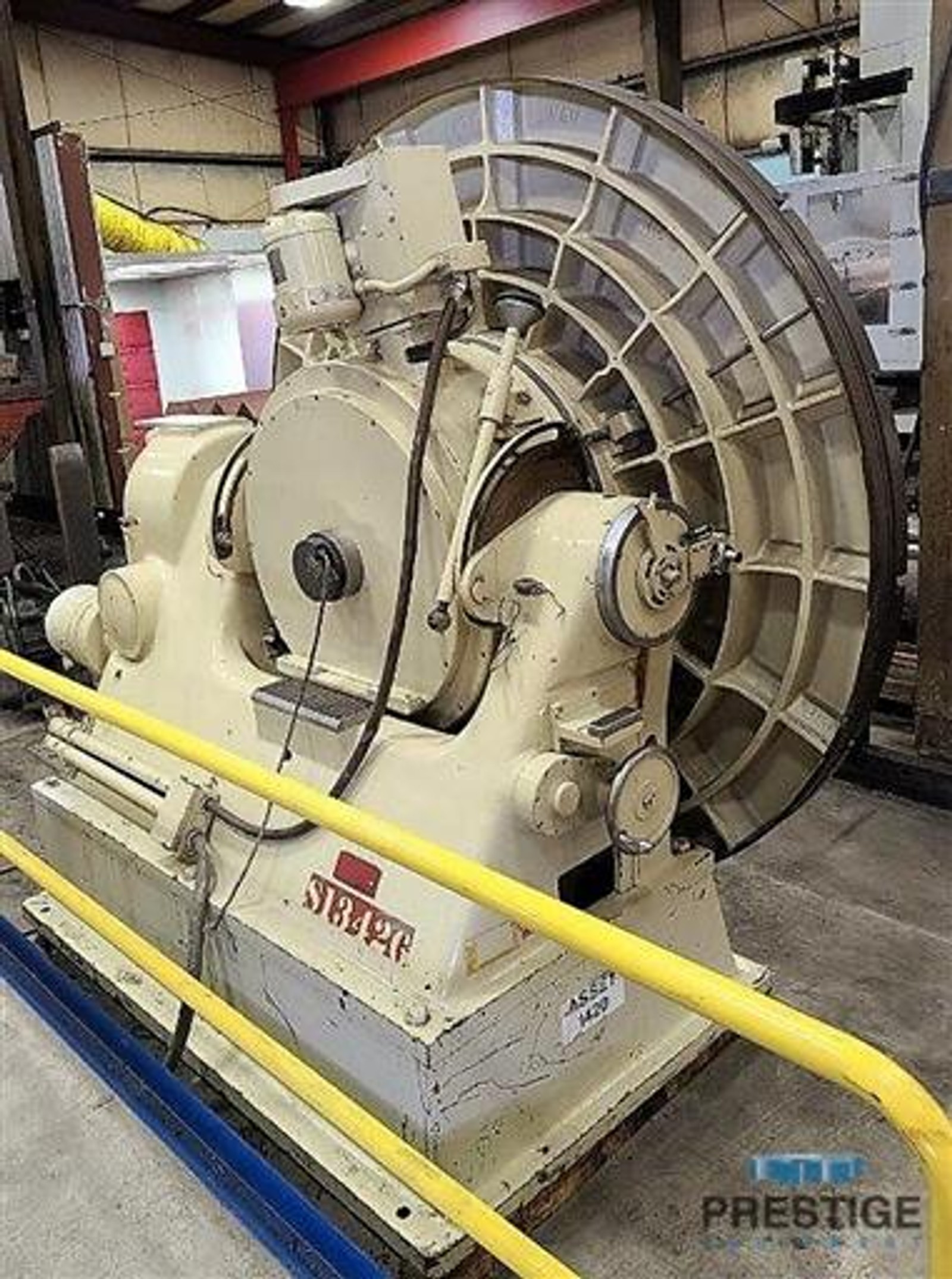

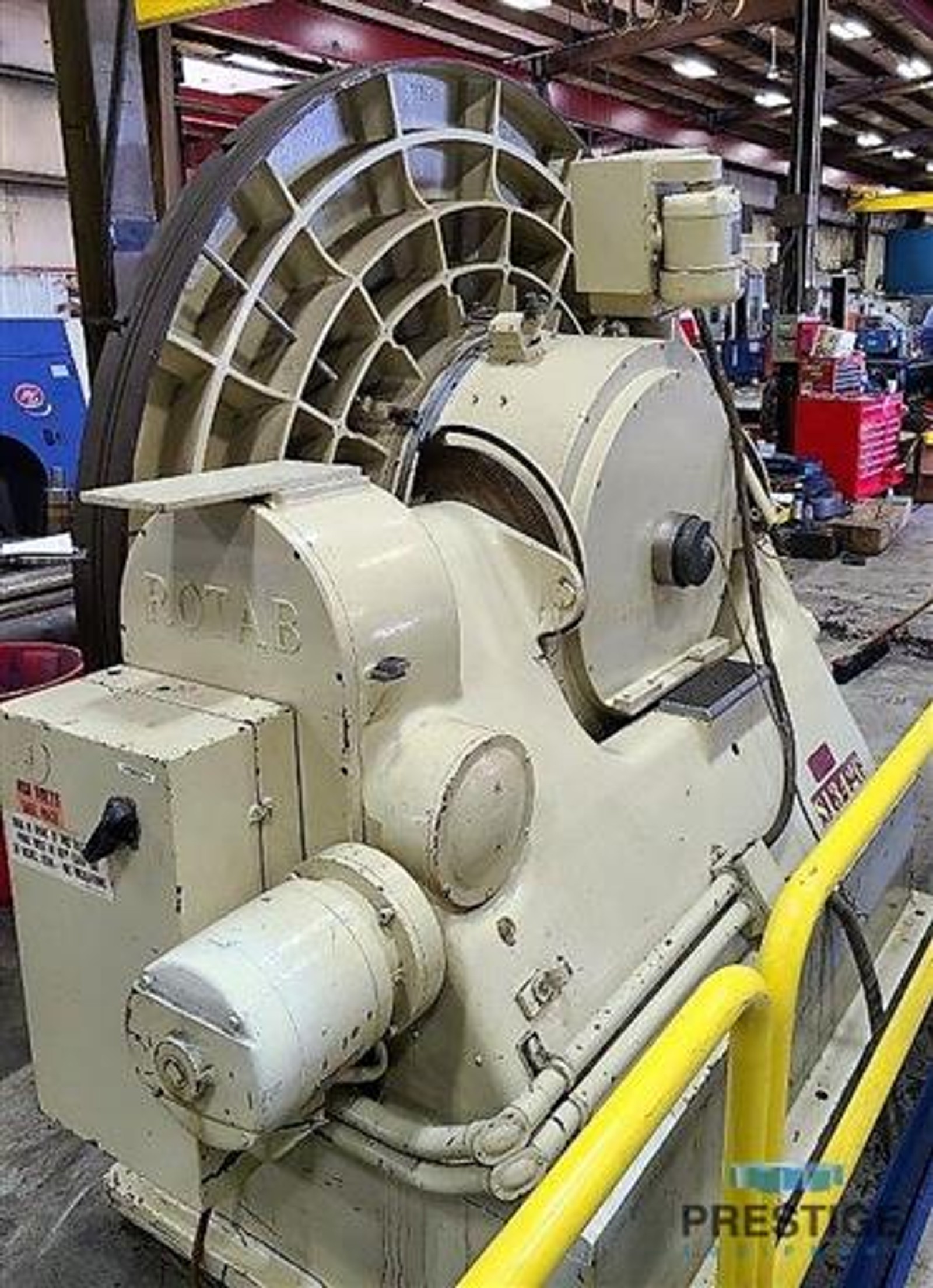

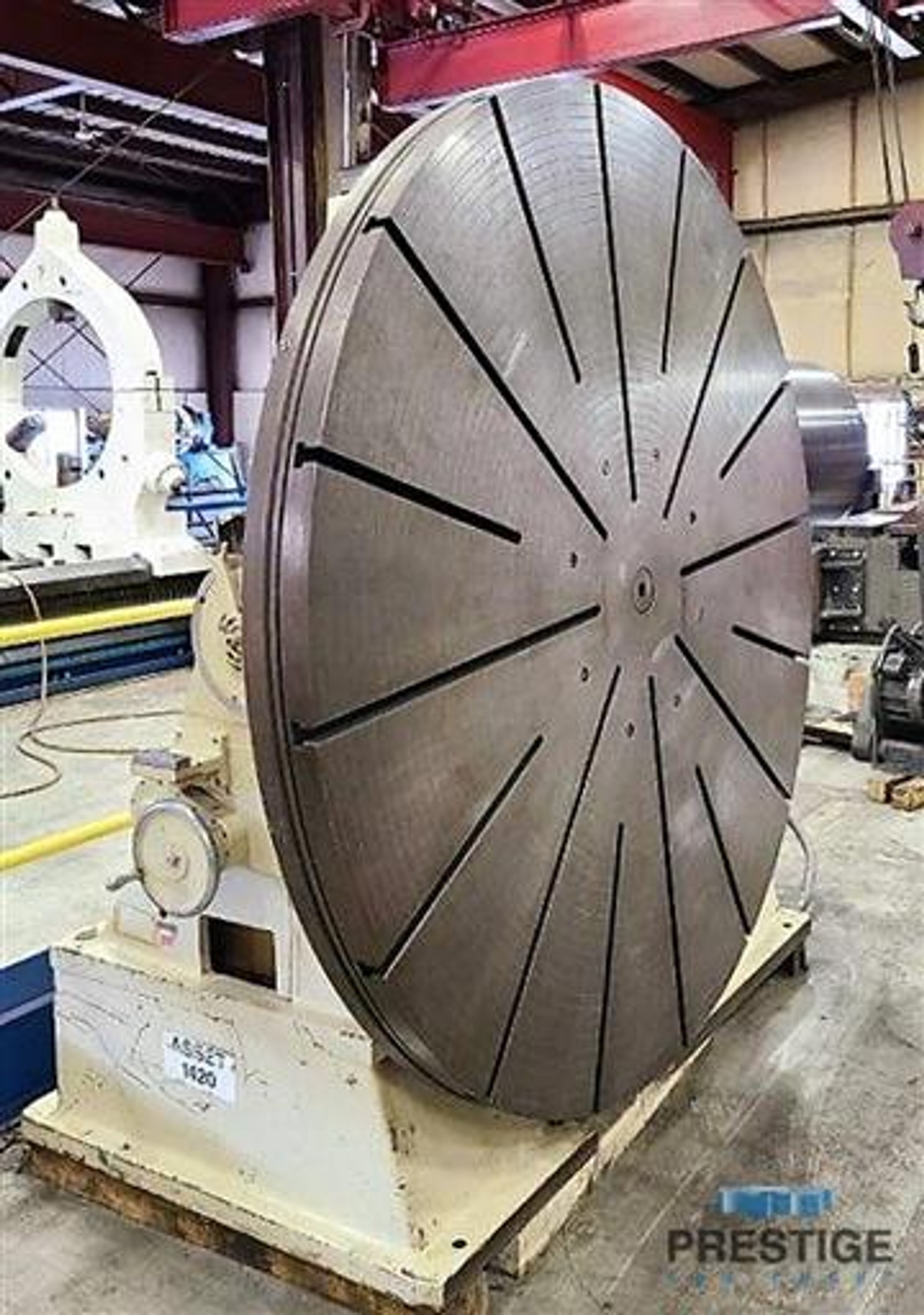

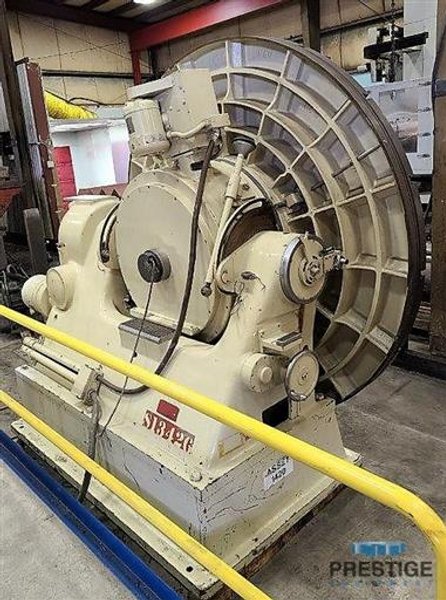

Rotab 84" 84-2 2-Axis CNC Tilting Rotary Table

FEATURES:
Heidenhain Rotary Encoder

CAPACITY:
Face Plate Diameter ................... 84"
Load Capacity ......................... 6,500 Lbs
Number of T-Slots ..................... 16
Center Line - Floor, Vertical ......... 46"
Distance Floor to Table Top, Horiz. ... 62"
Face Plate Flatness ................... .001"
Parallelism ........................... .0005"
Axial/Radial Run Out .................. .0003"
Approximate Table Weight .............. 14,100 Lbs

EQUIPPED WITH:
Pendant Control
Heidenhain Rotary Encoder
