EMAG Reinecker VSC-250-DDS, 10.23" Swing, 12-Sta. Turret, Grinding Spindle, Parts Loader, Siemens CNC, #32337

Manufacturer

EMAG

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32337

Model

VSC-250-DDS

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32337

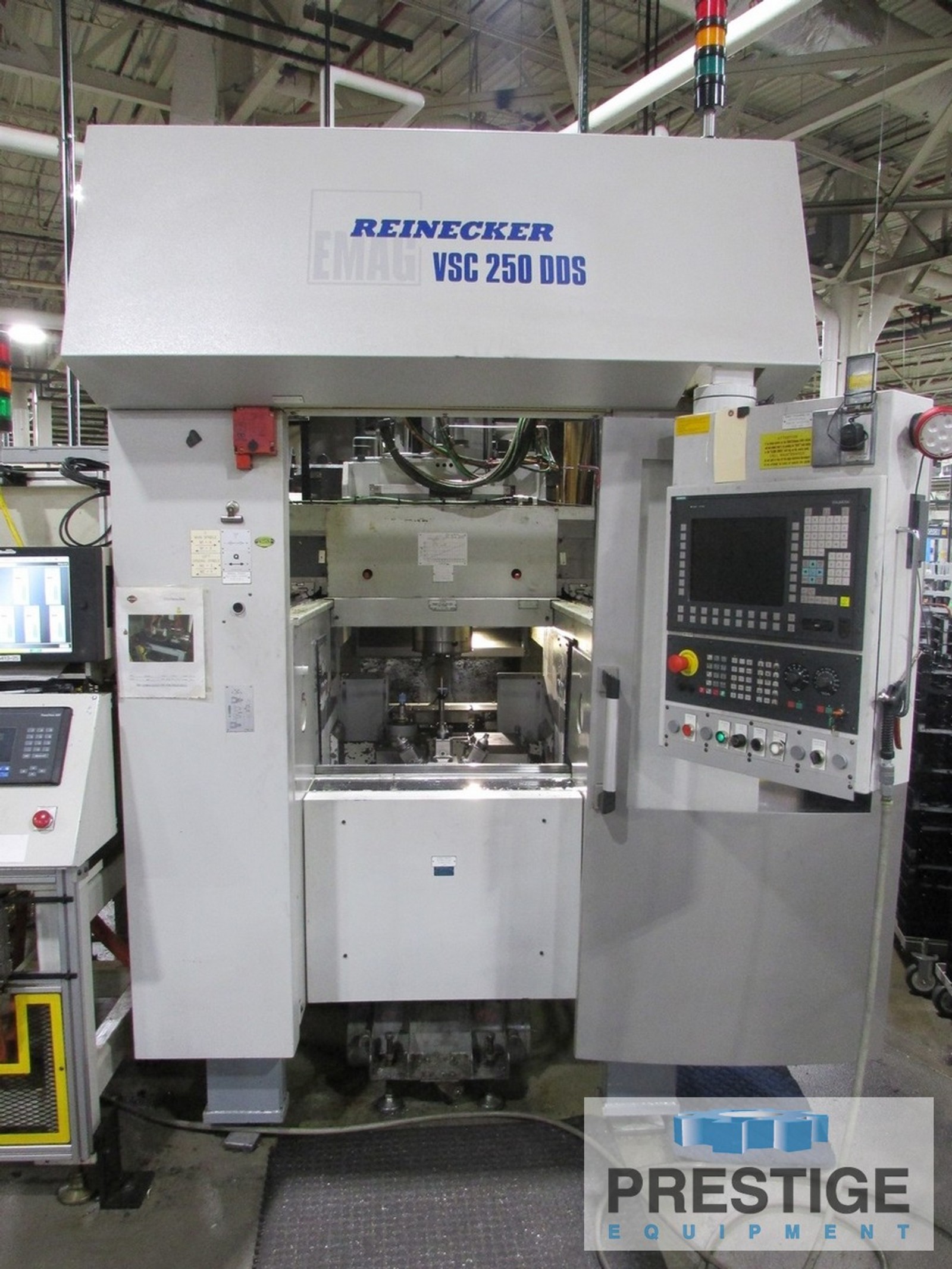

EMAG Reinecker VSC-250-DDS Vertical Hard Turning & Finishing Grinding Machine

FEATURES:

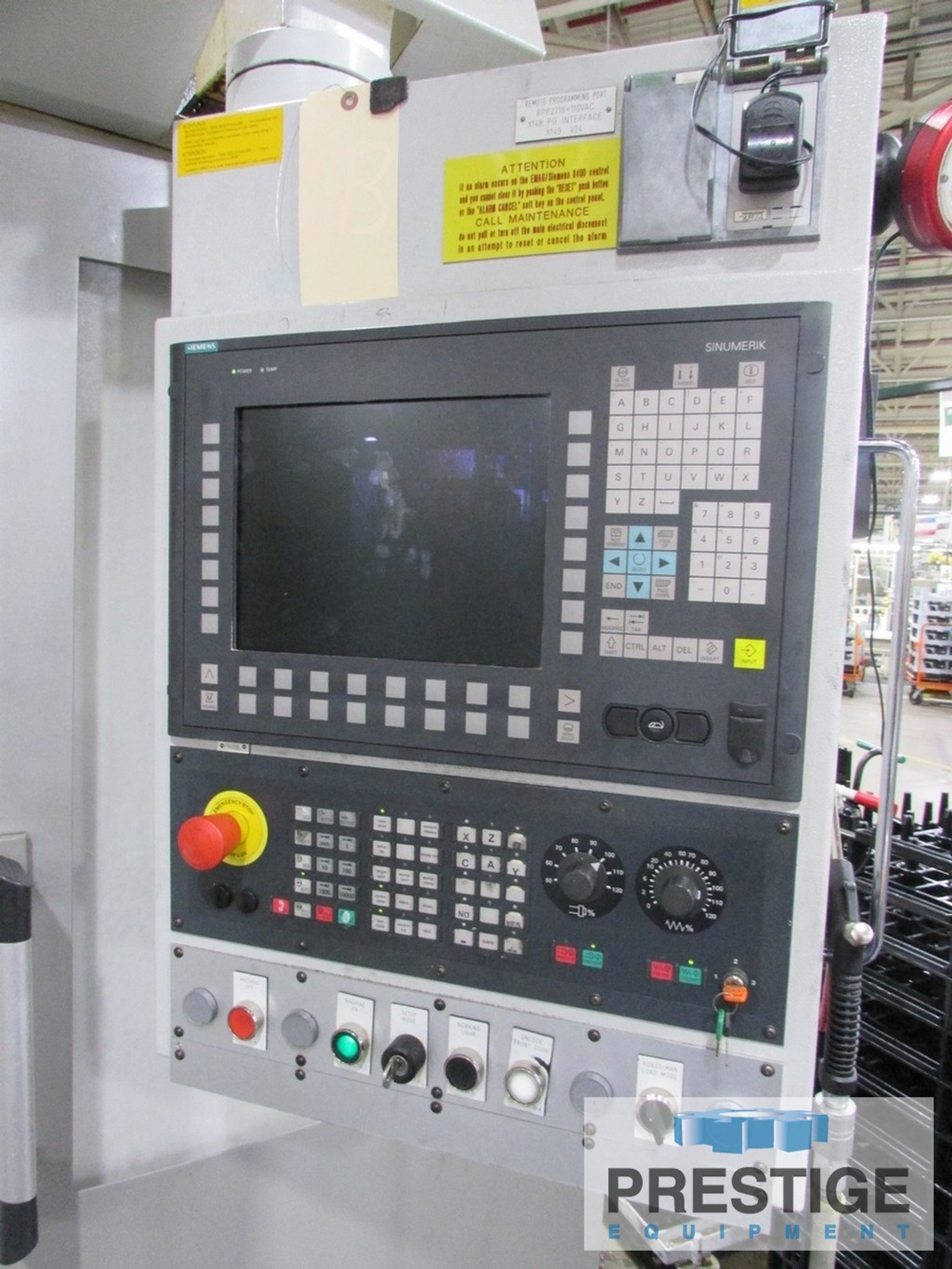

Siemens Sinumerik CNC Control

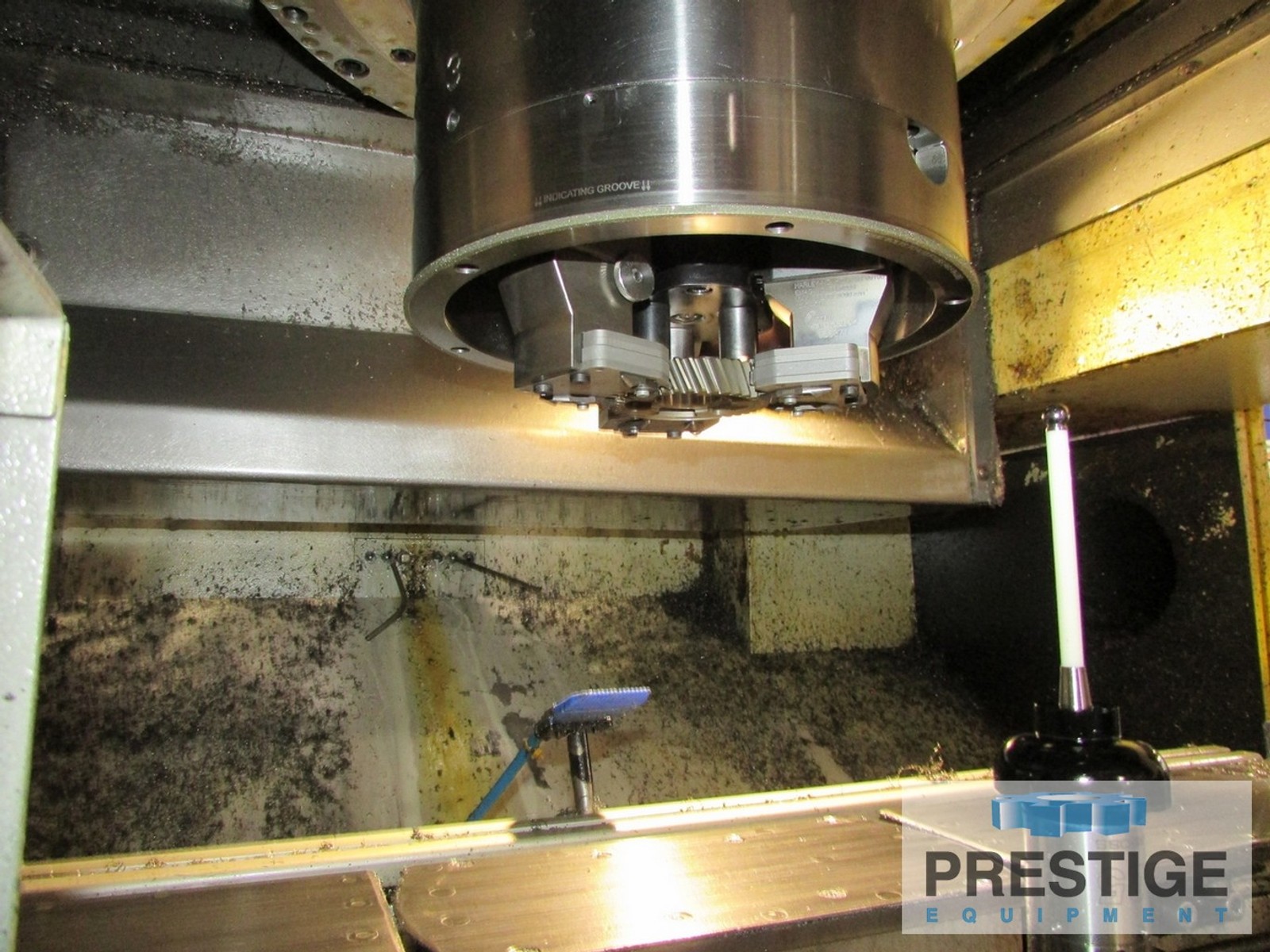

SMW Autoblok DFR-ABS Chuck

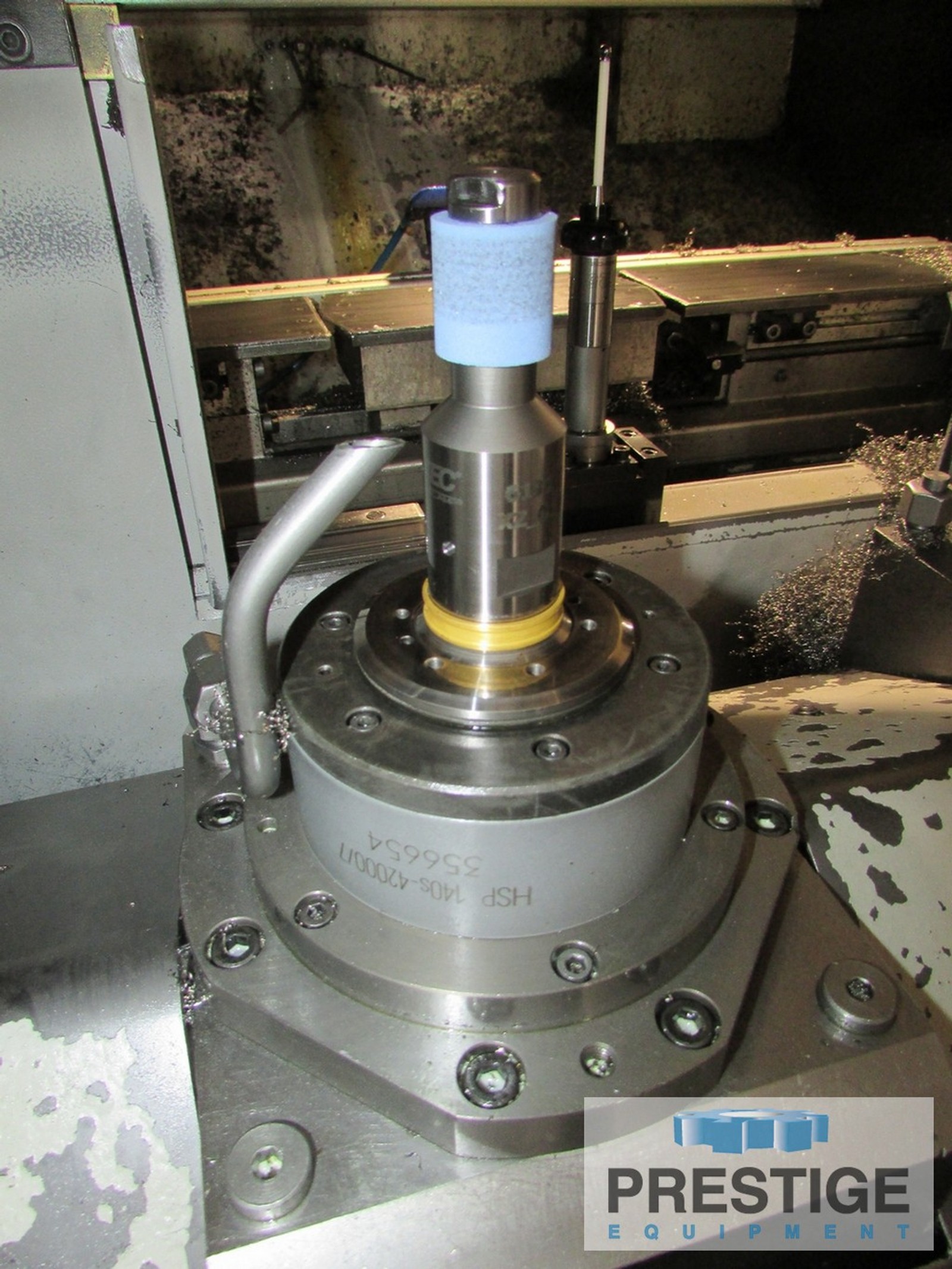

HSP 140S High Speed Grinding Spindle

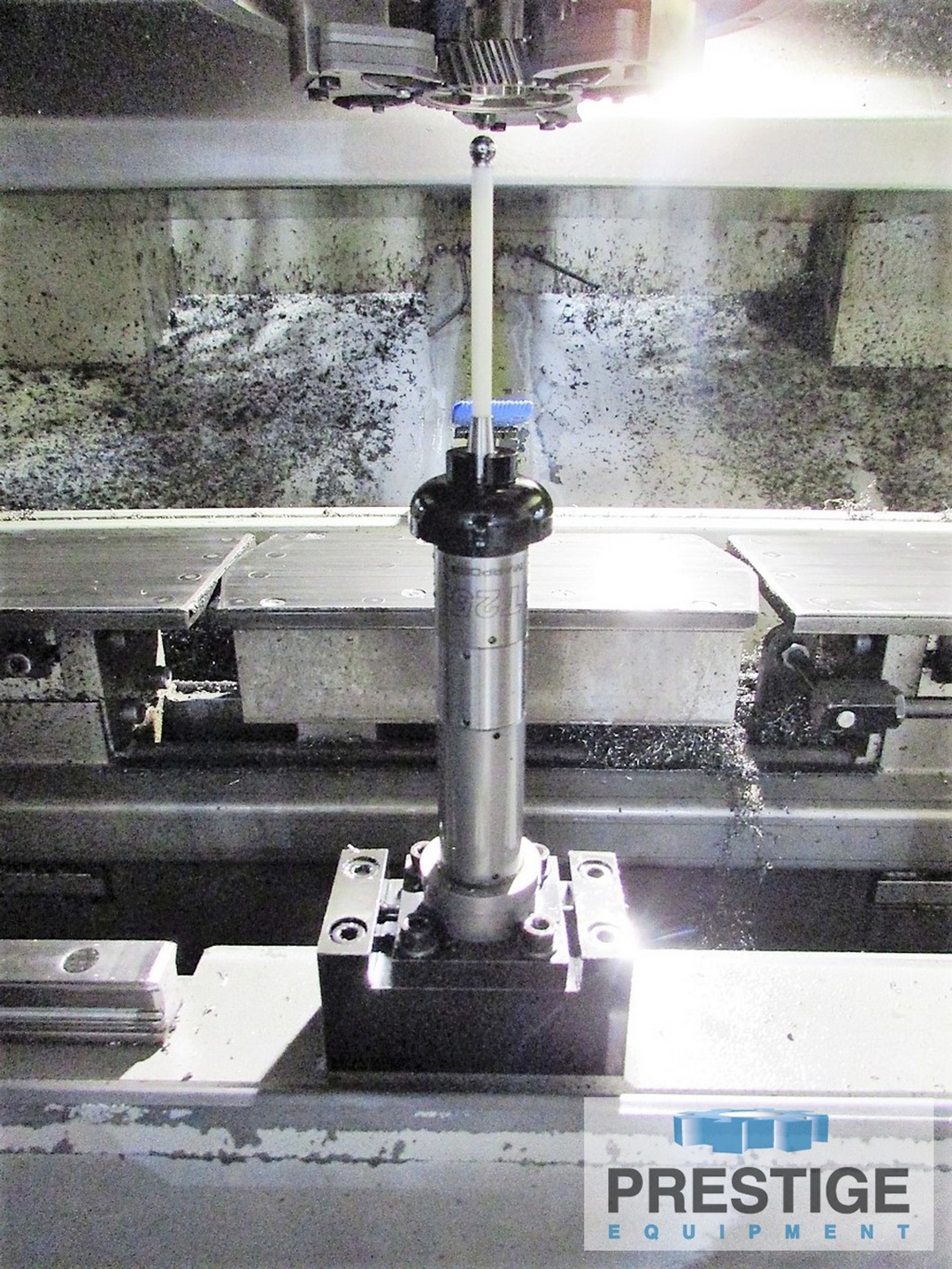

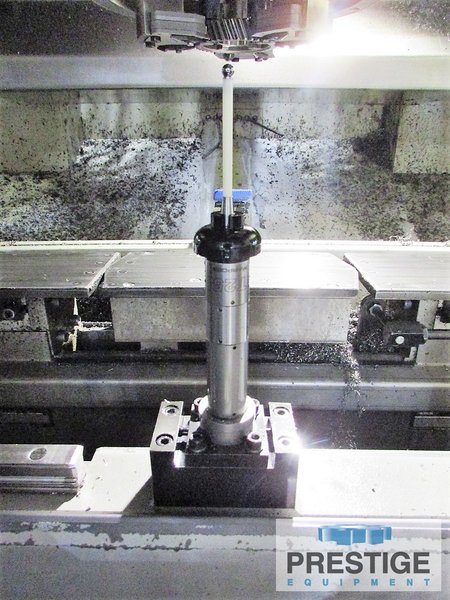

Marposs Probe

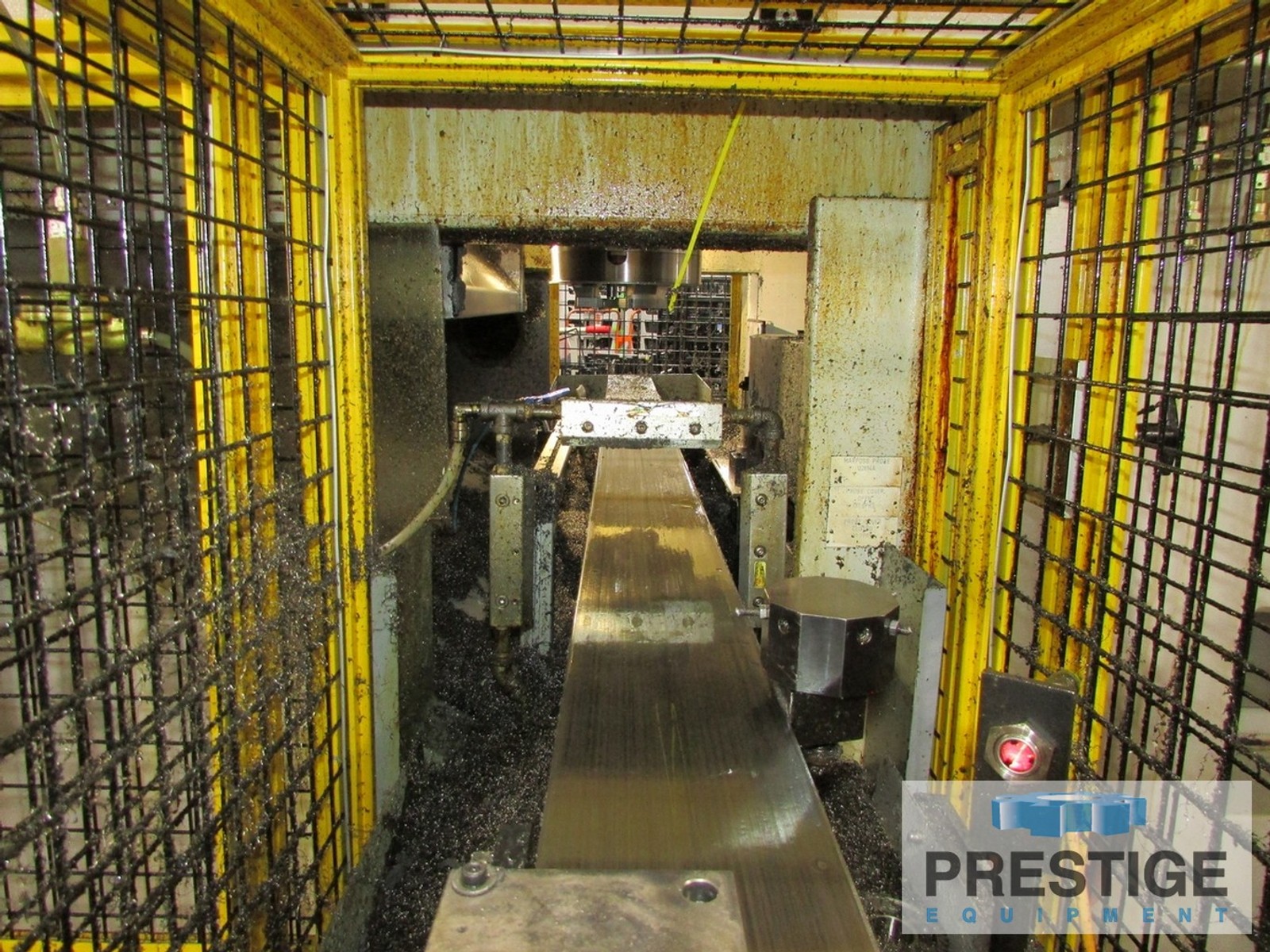

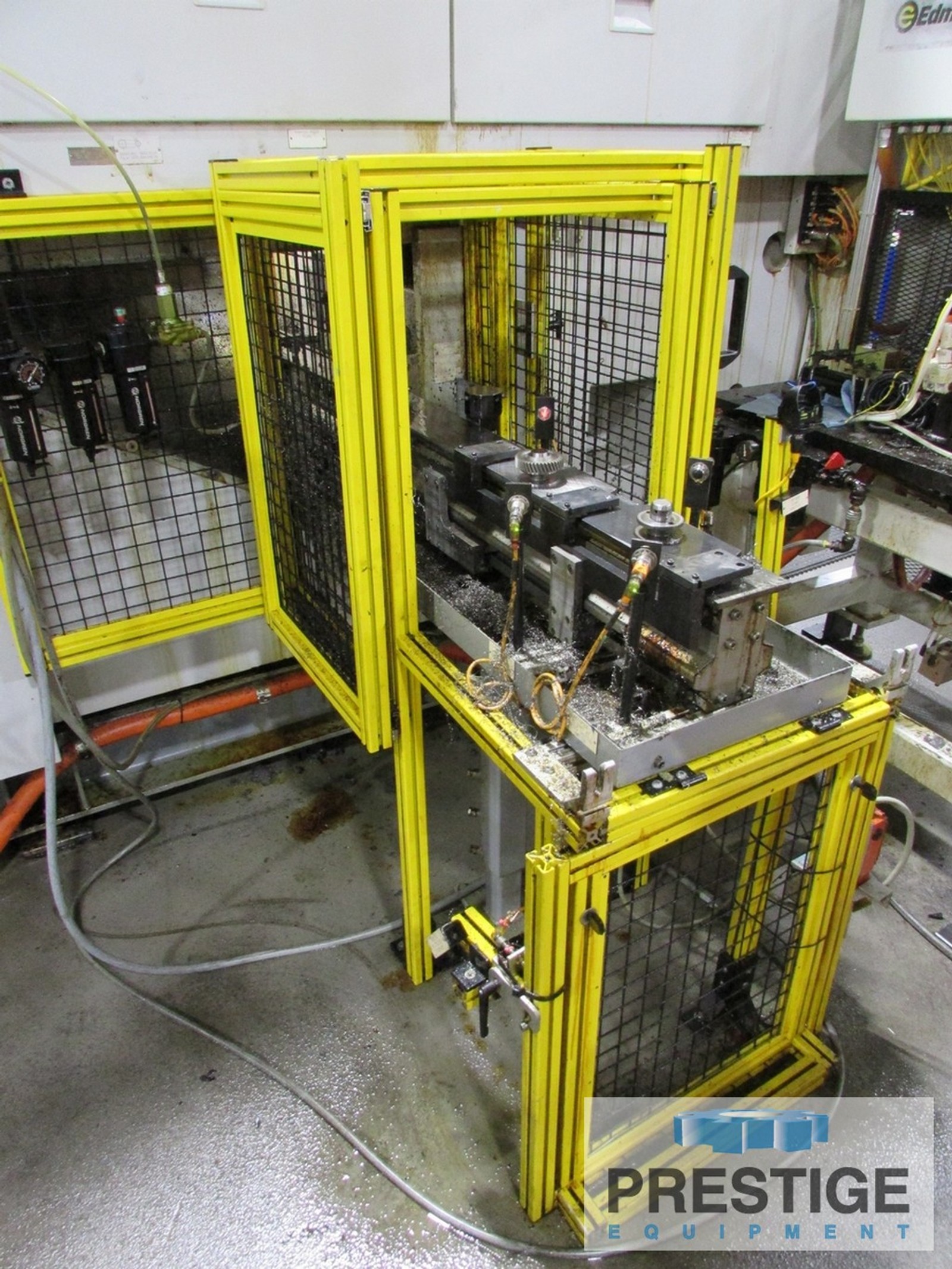

Parts Shuttle

SPECIFICATION:
Maximum Chuck Diameter ................ 9.84"
Max. Swing Diameter ................... 10.23"
X-Axis Travel ......................... 26.77"
Z-Axis Travel ......................... 7.87"
Spindle Nose, DIN55 026 ............... 6
Spindle Bearing ....................... 3.93"
Maximum Spindle Speed ................. 3,500 RPM
Main Drive Motor ...................... 54 HP
Max. Torque, Main Drive ............... 460 Nm
Rapid Traverse, X-Axis ................ 1,771 IPM
Rapid Traverse, Z-Axis ................ 1,181 IPM
Feed Force, X-Axis .................... 5.5 kN
Feed Force, Z-Axis .................... 11 kN

EQUIPPED WITH:
Siemens Sinumerik CNC Control
SMW Autoblok DFR-ABS Chuck
HSP 140S High Speed Grinding Spindle
Marposs Probe
Parts Shuttle

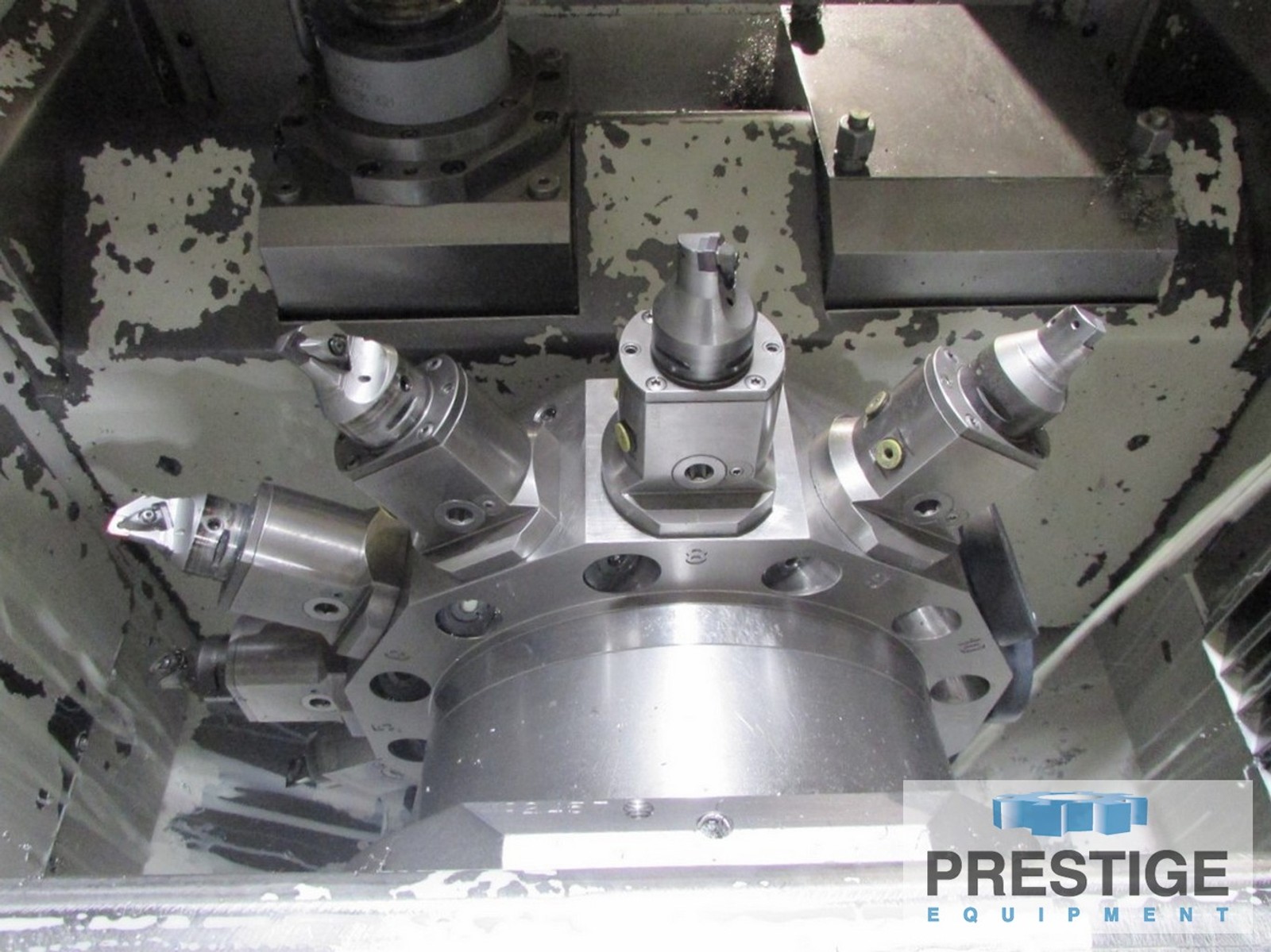

12-Station Auto Indexing Turret

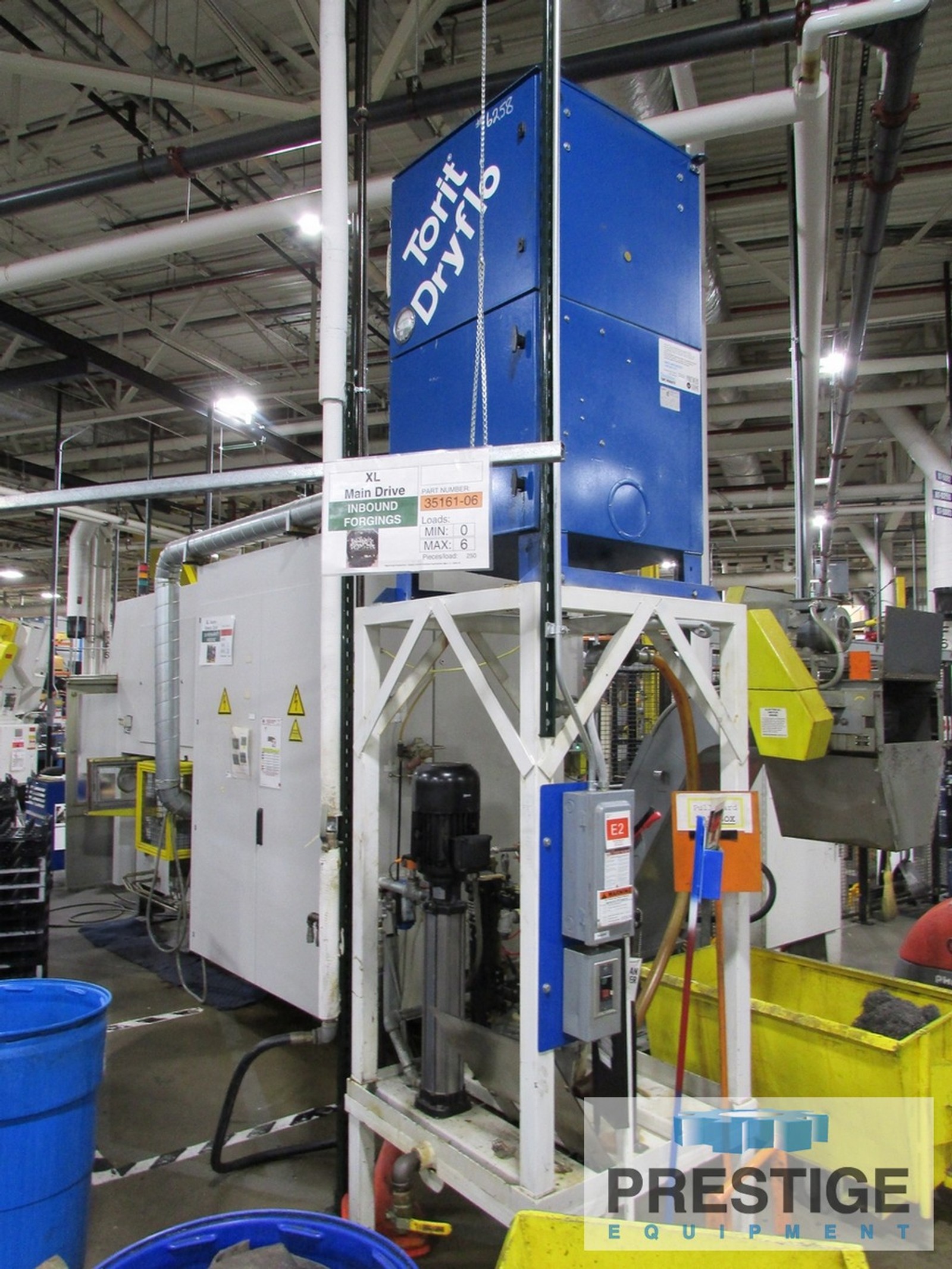

Torit DryFlo Mist Collector
Rosedale Bag Filtration
Coolant Reservoir Tank
Brinkmann Coolant Pump

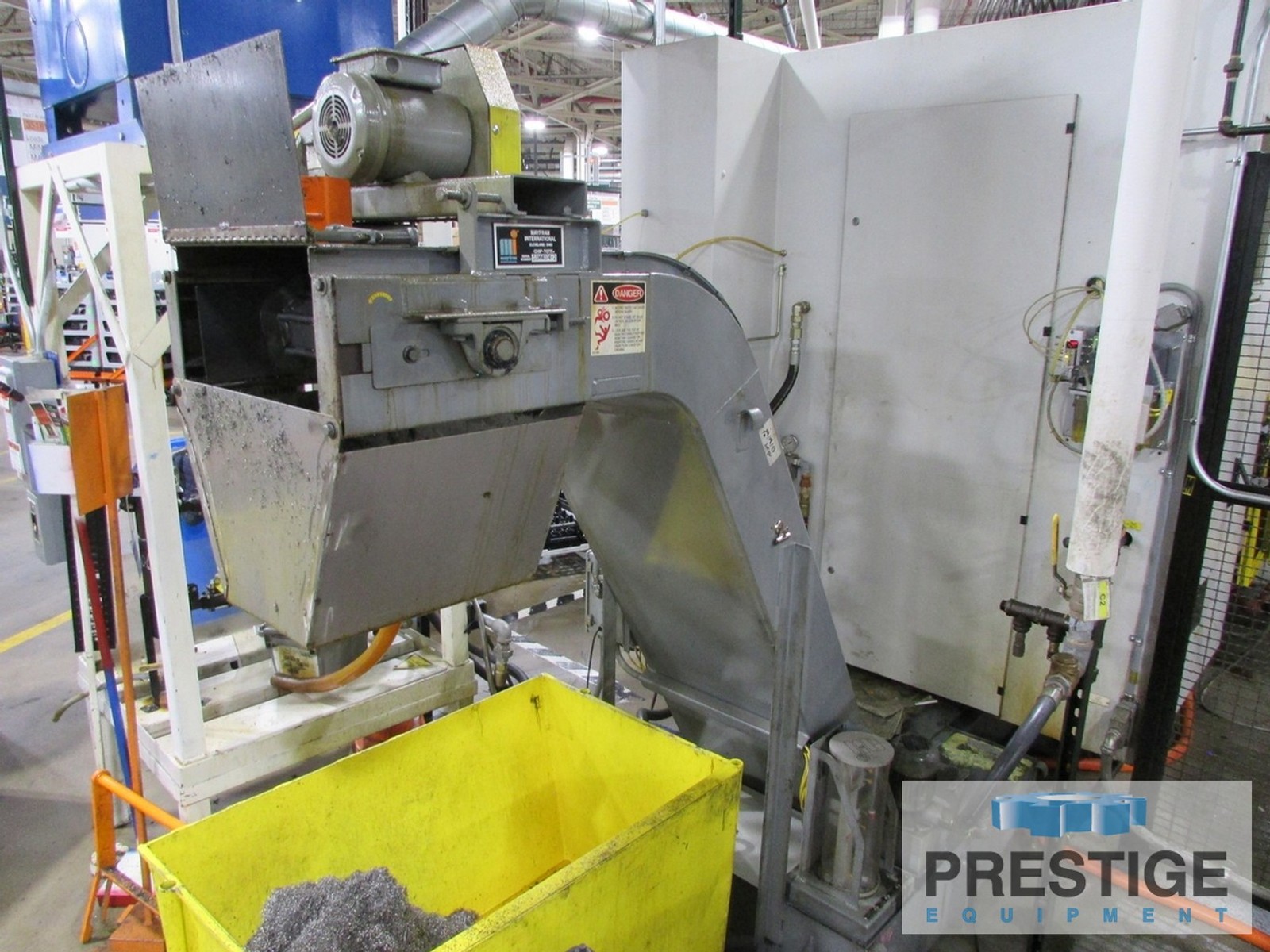

Chip Conveyor

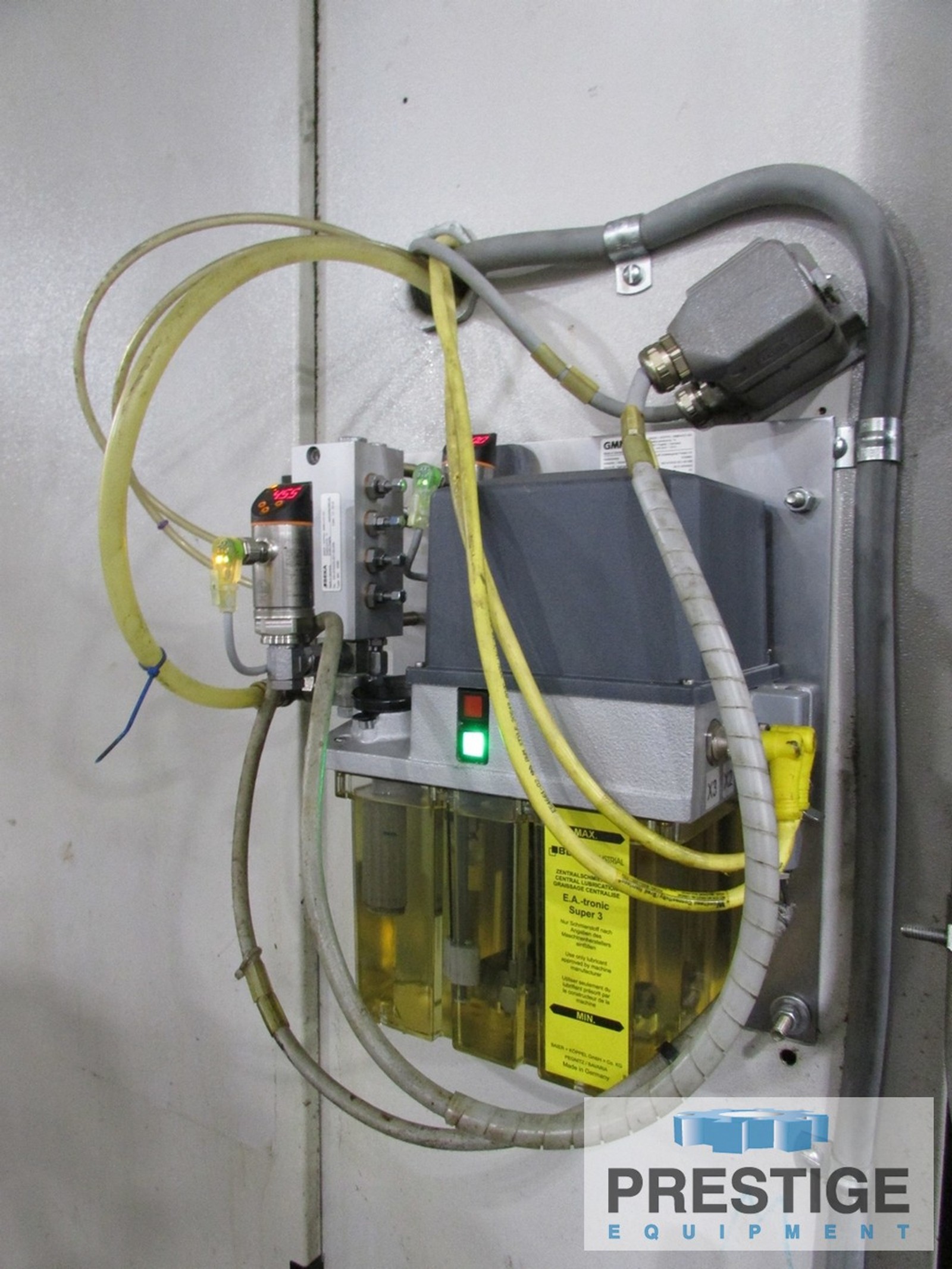

Beka Automatic Lubricator

LOCATION:
Milwaukee, WI
