Cincinnati Avenger 250S, 23" Swing, 19" C.C, 4000 RPM, Sub Spindle, Bar Feed, Acramatic 850SX, #32335

Manufacturer

CINCINNATI

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32335

Model

Avenger 250S

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32335

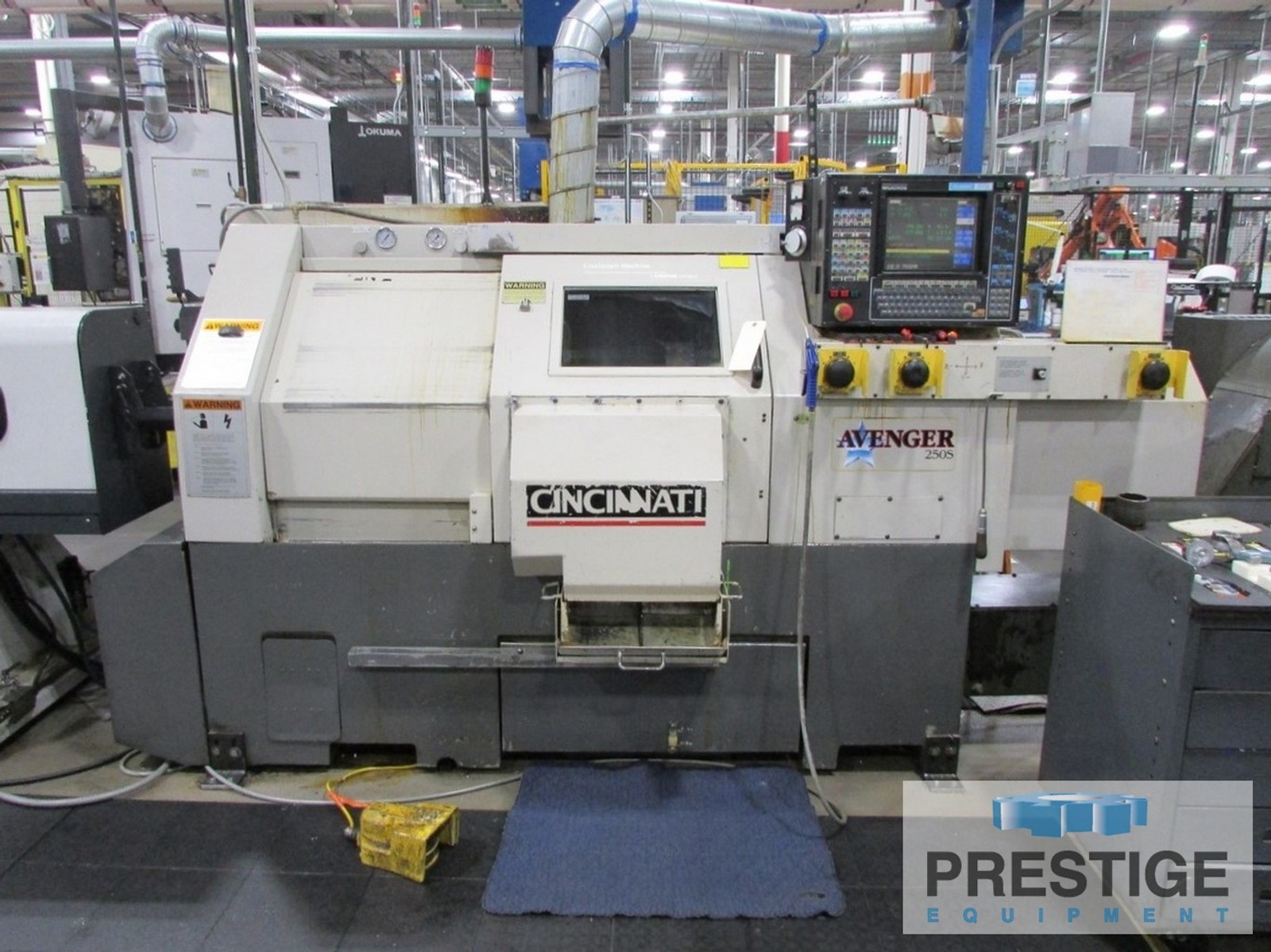

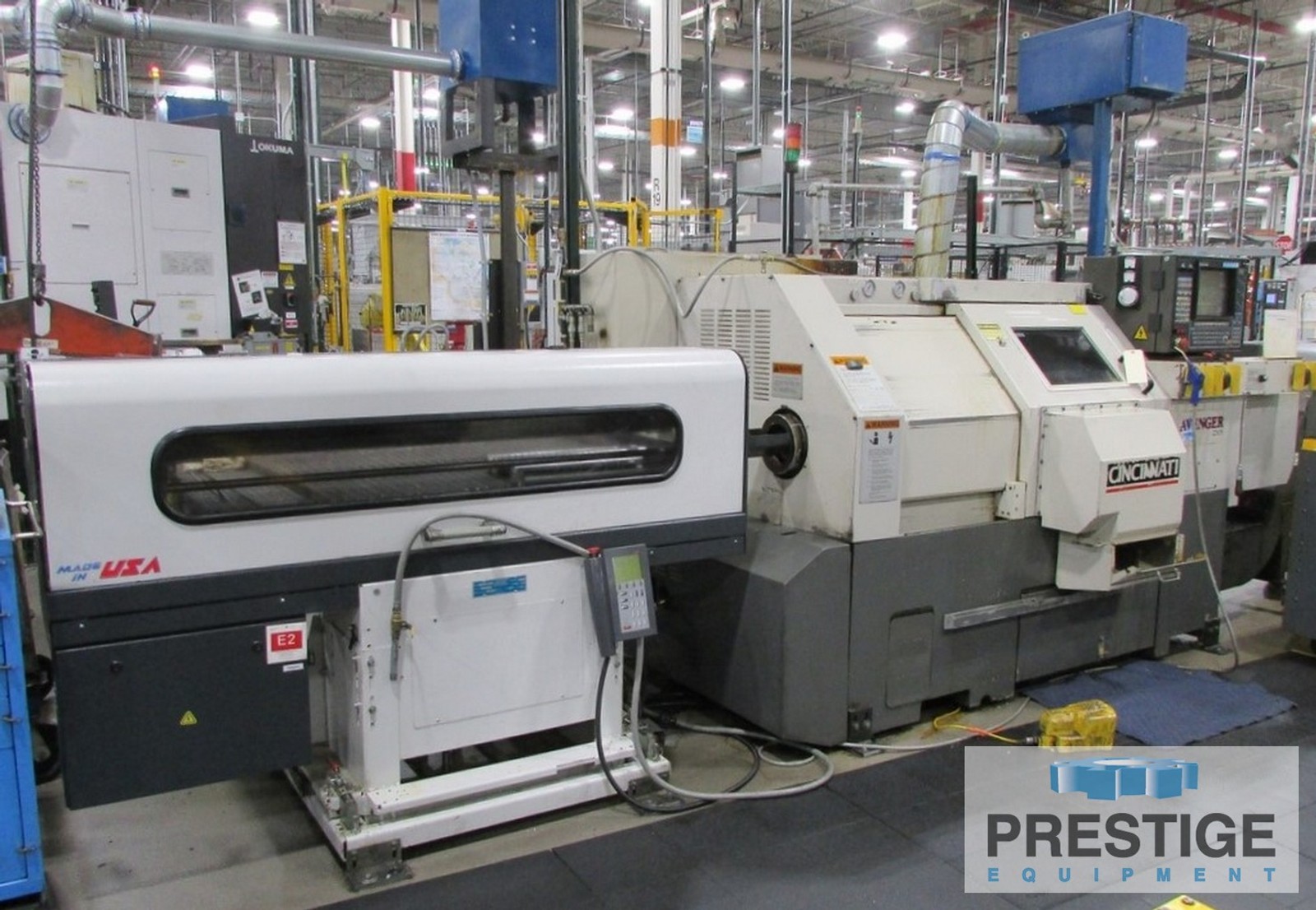

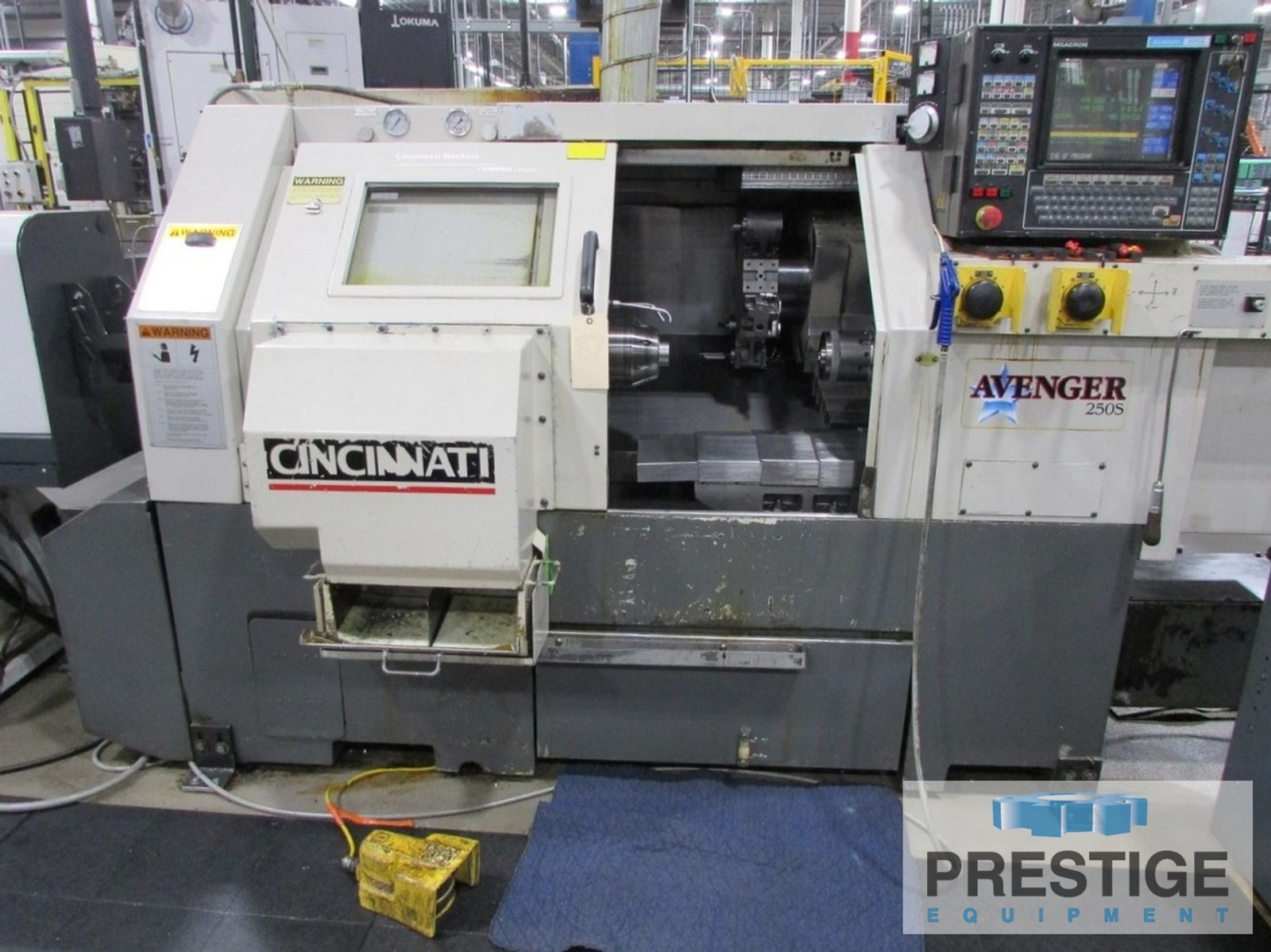

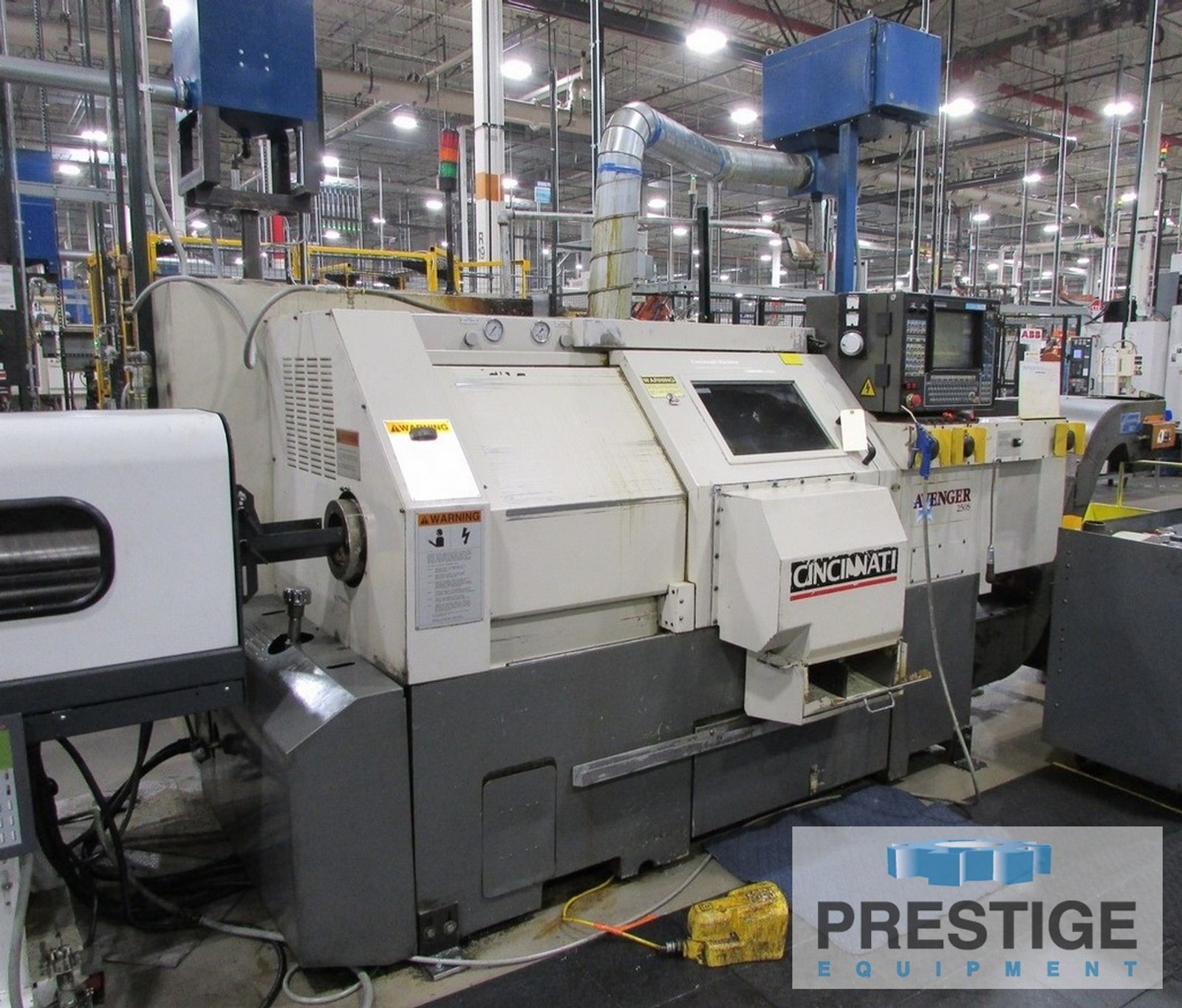

Cincinnati Avenger 250S CNC Horizontal Turning Center with Sub Spindle

FEATURES:

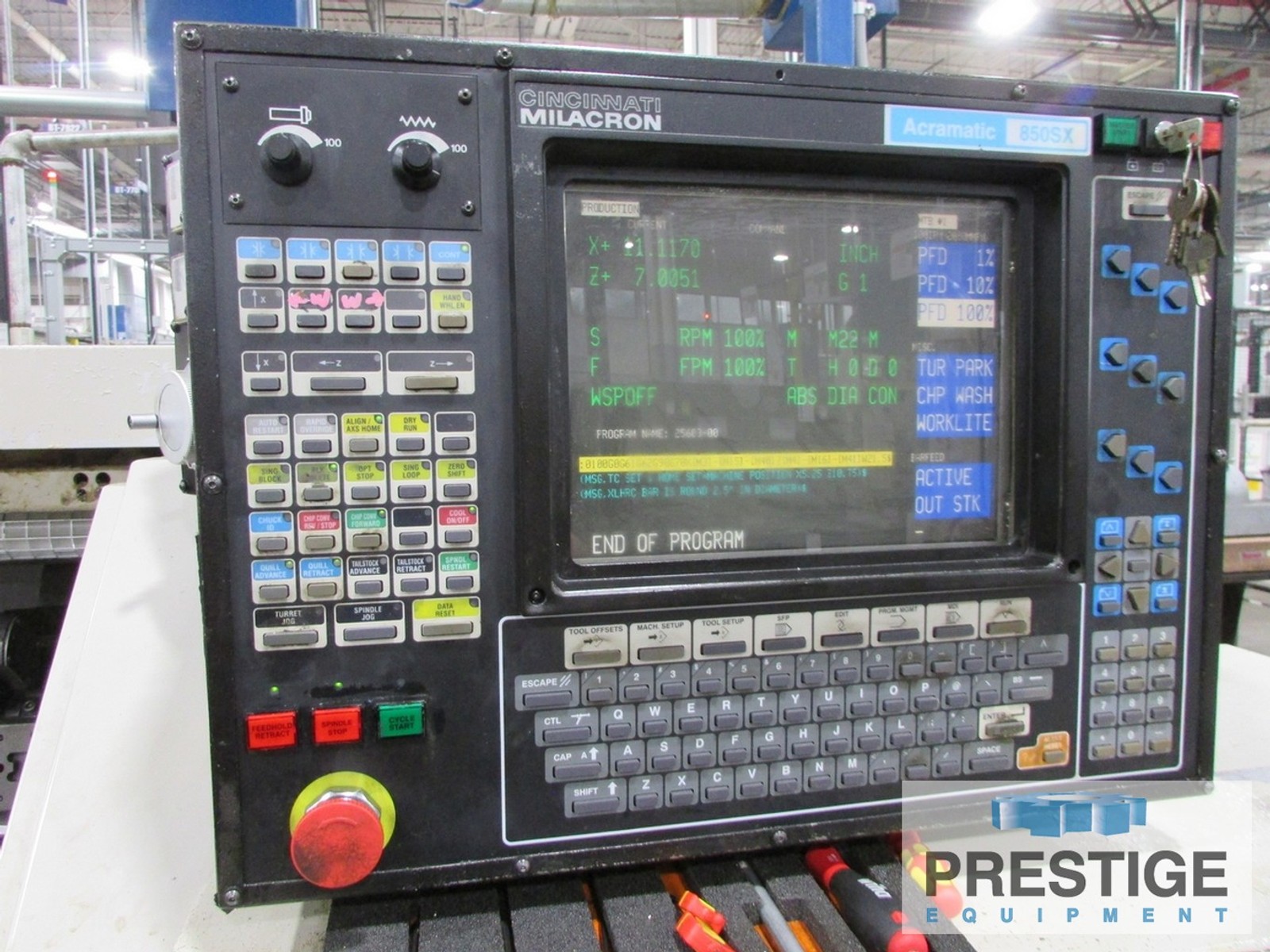

Acramatic 850SX CNC Control

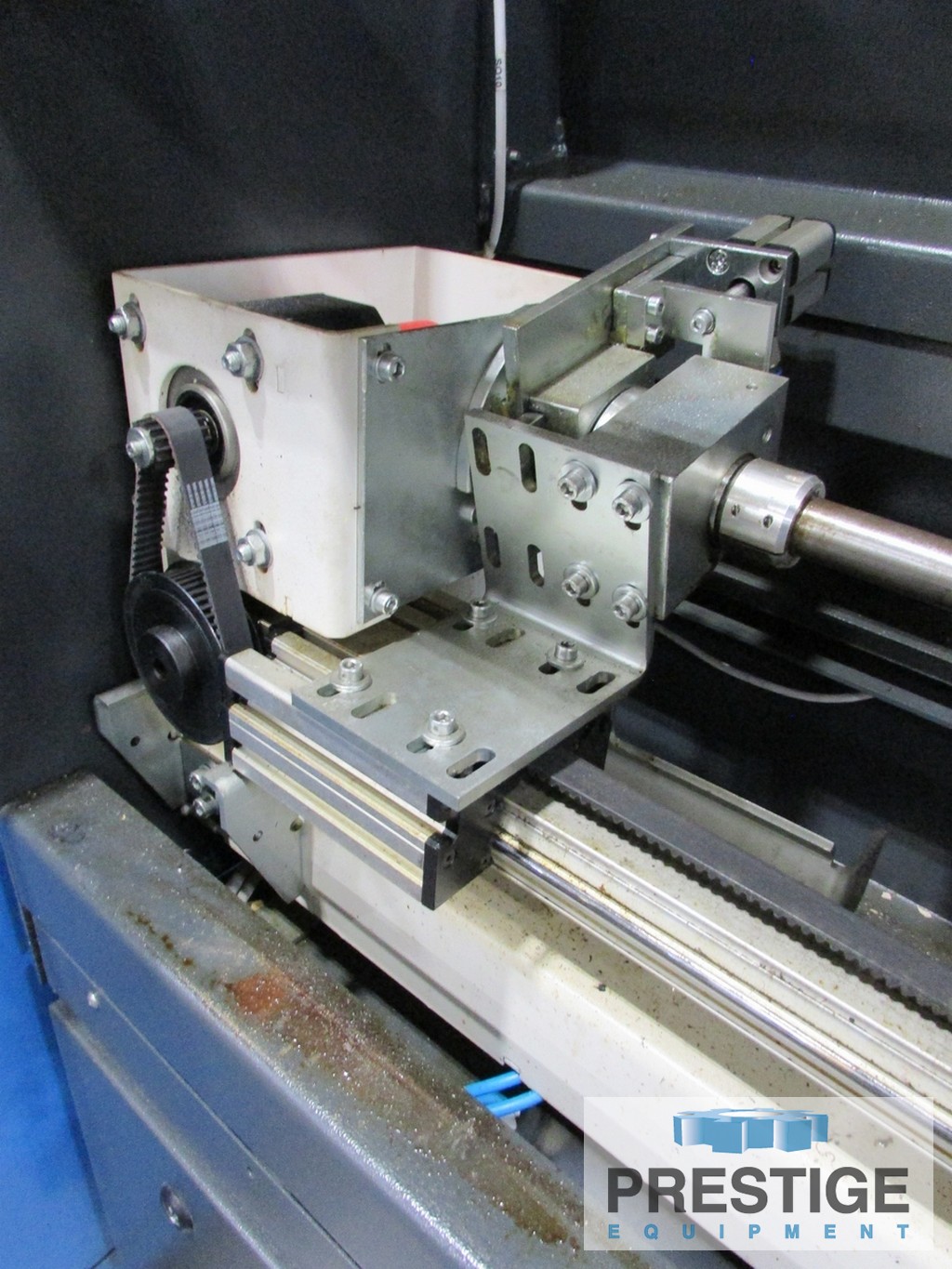

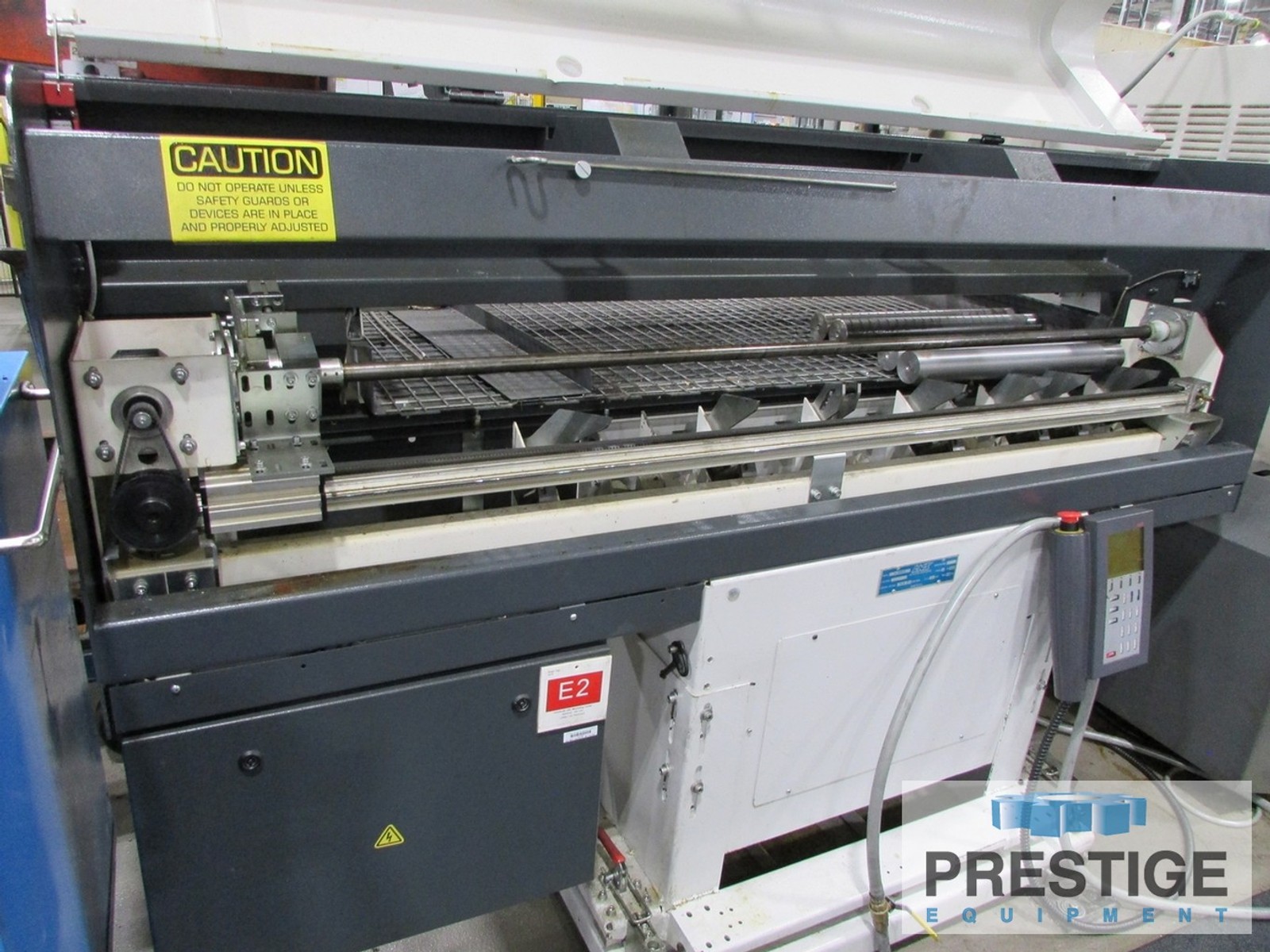

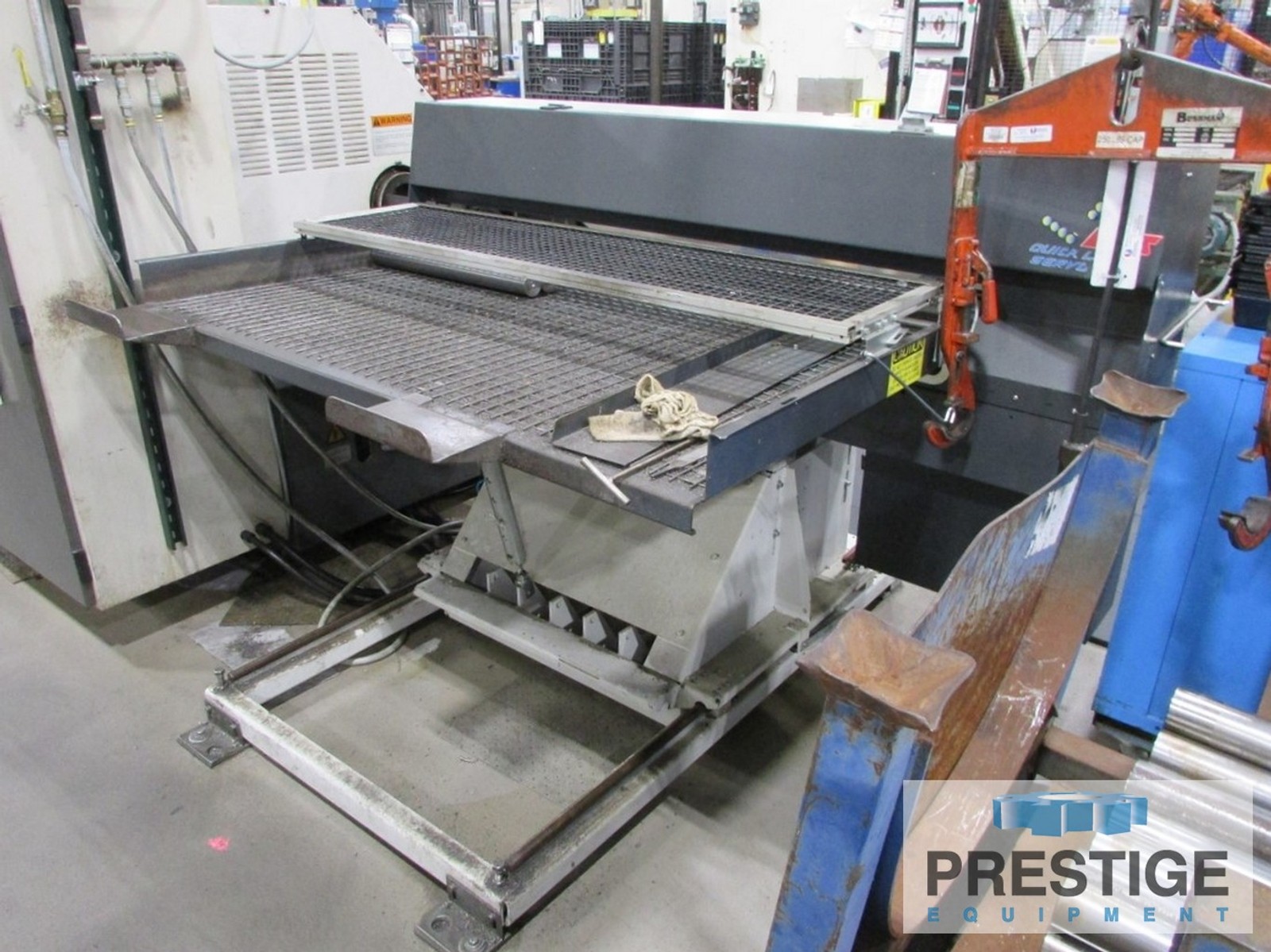

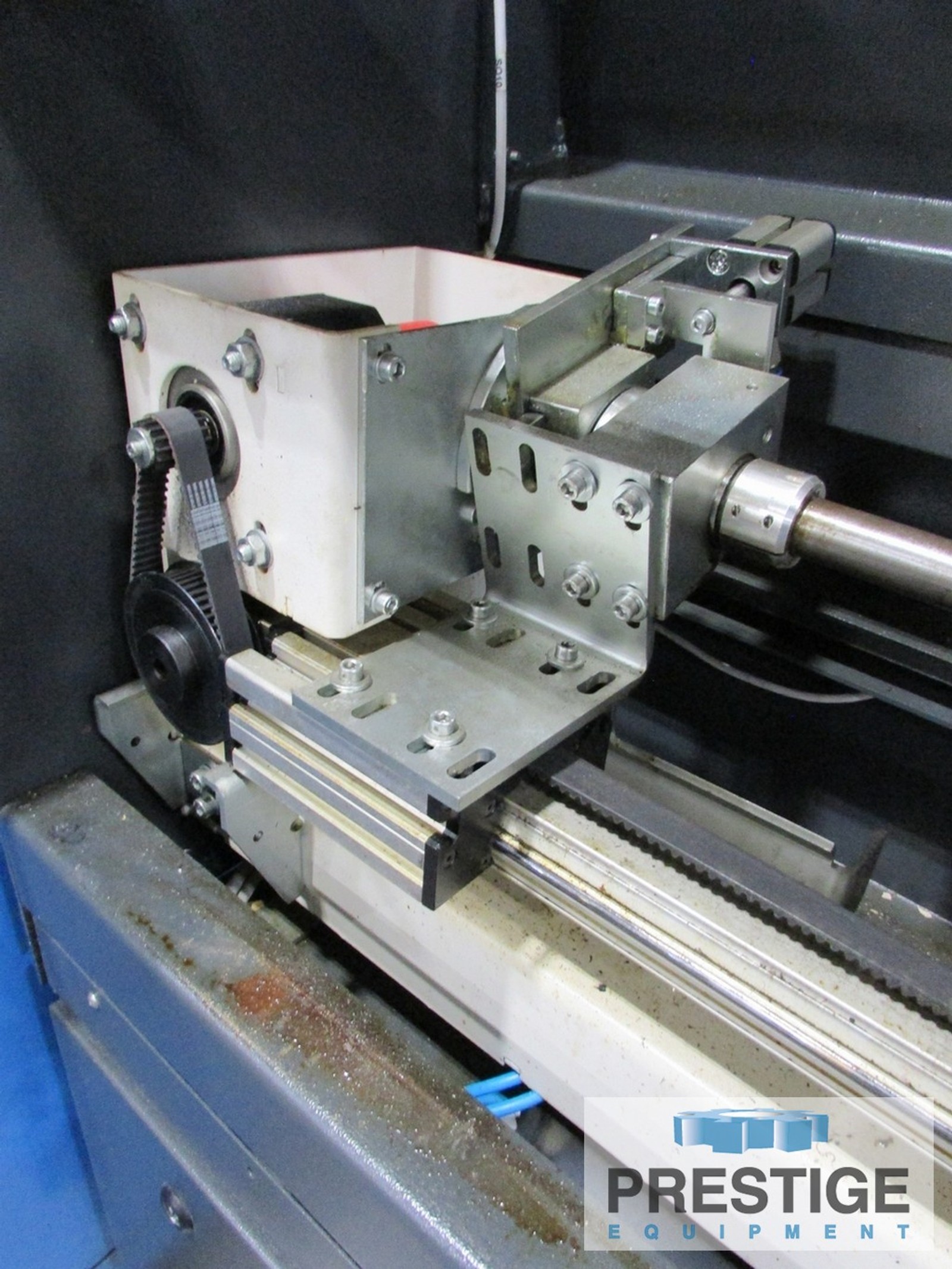

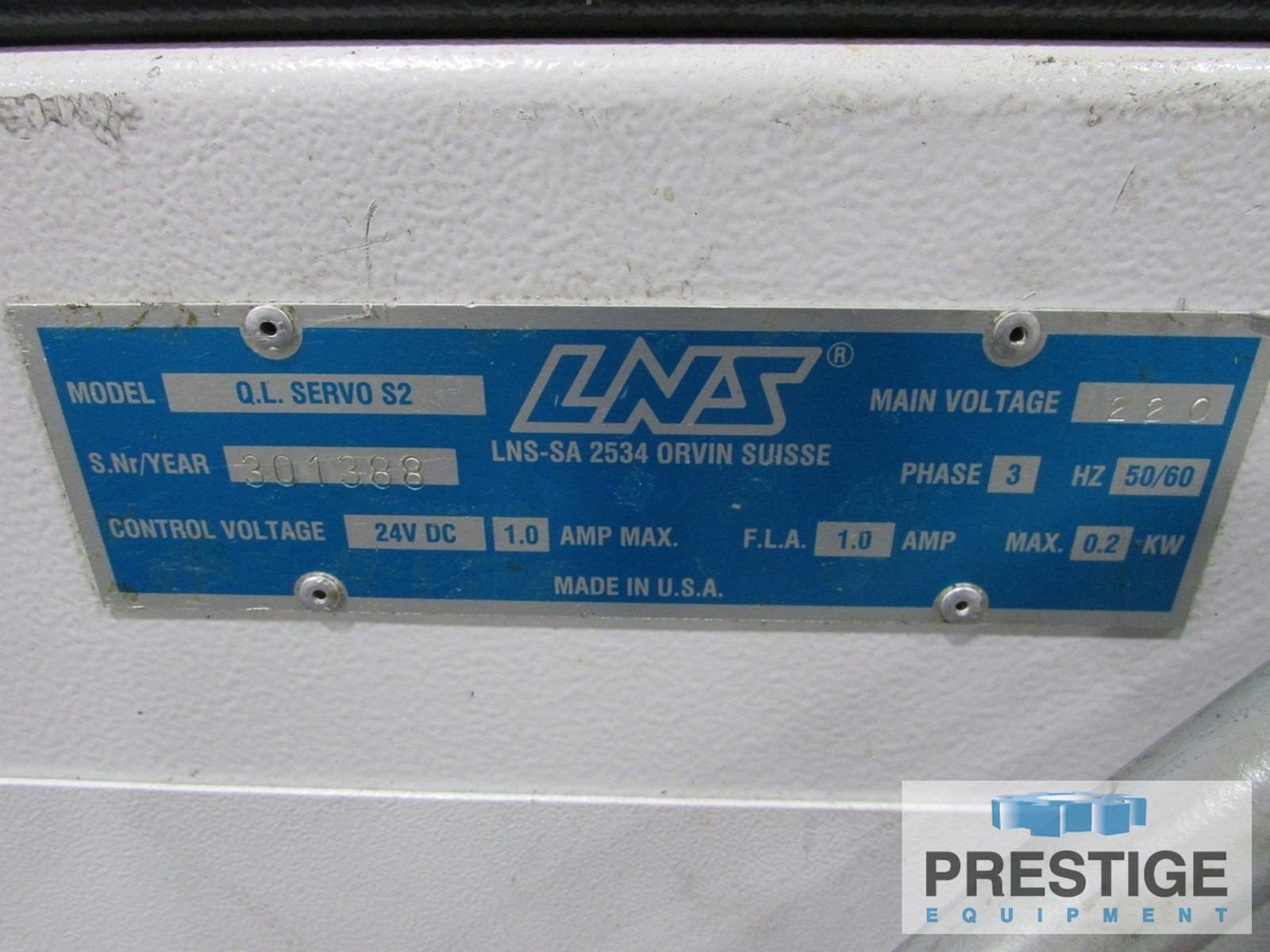

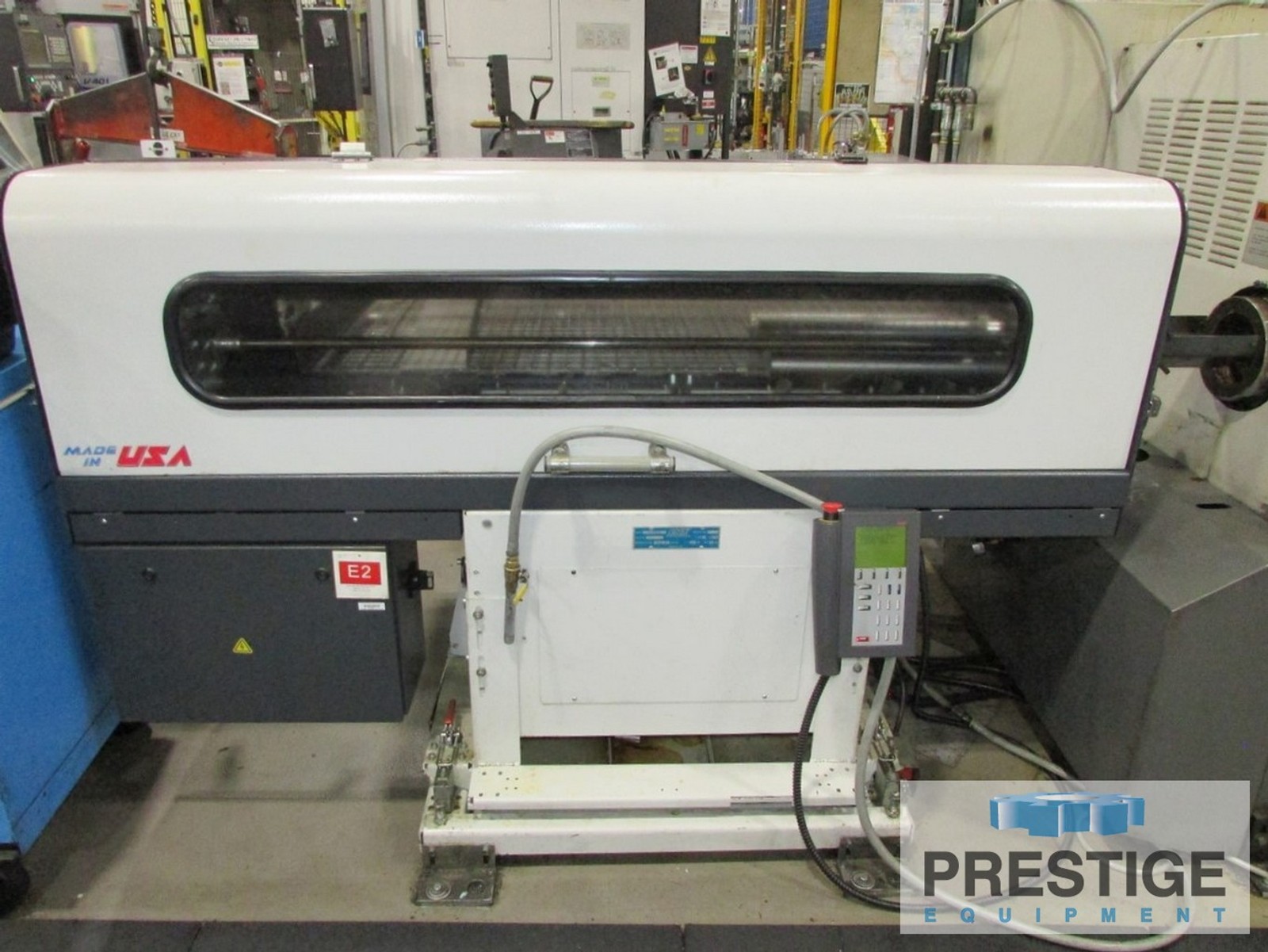

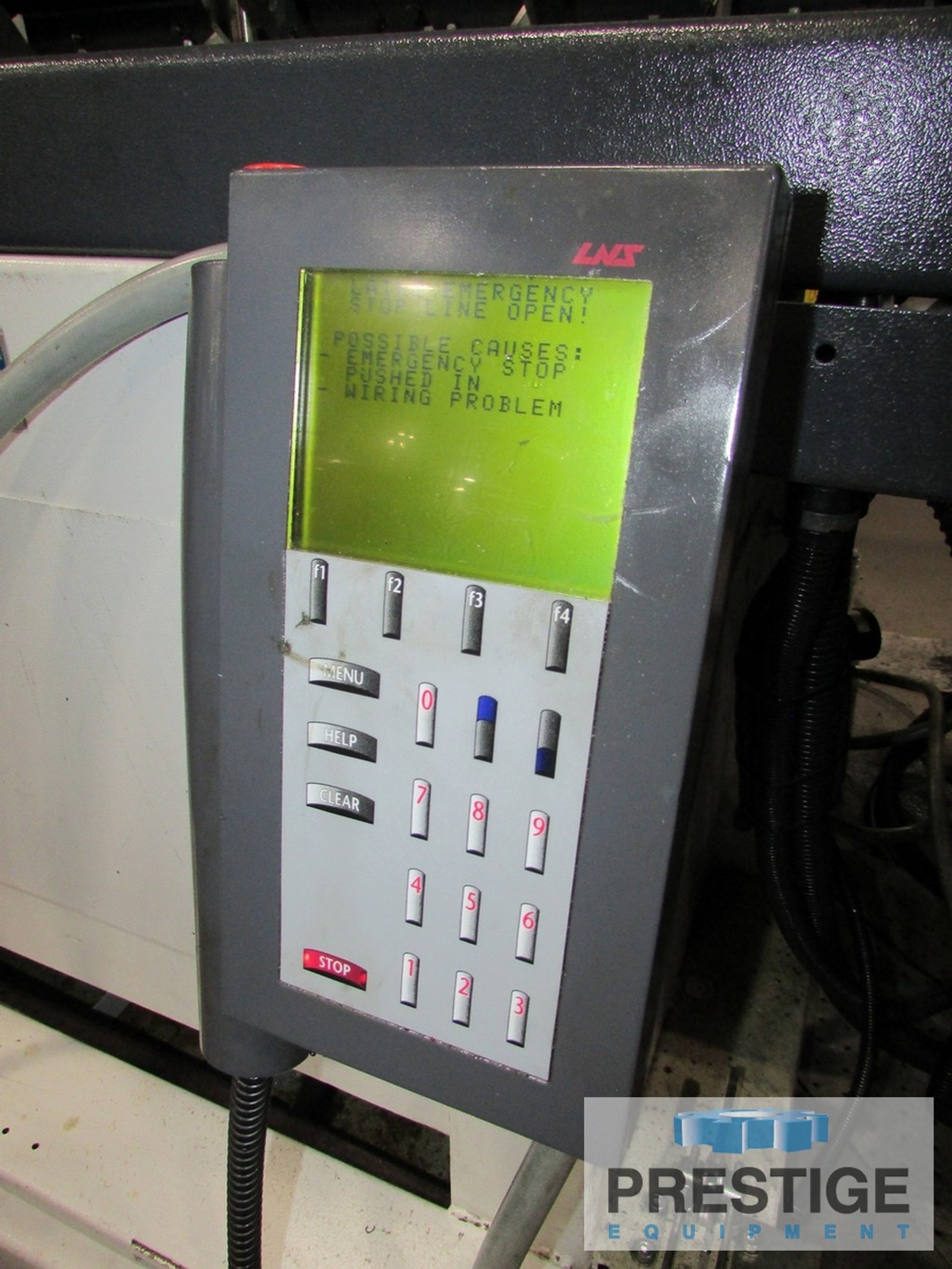

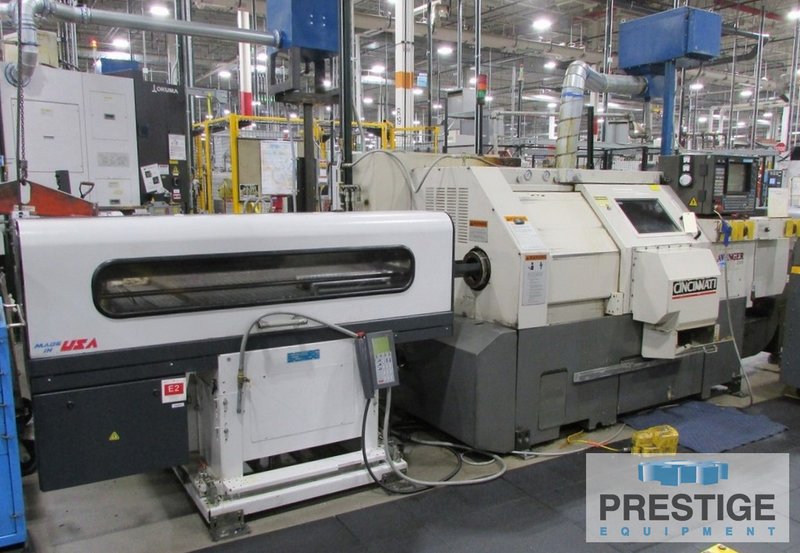

LNS QL Servo S2 Auto Bar Feeder with Control Pendant

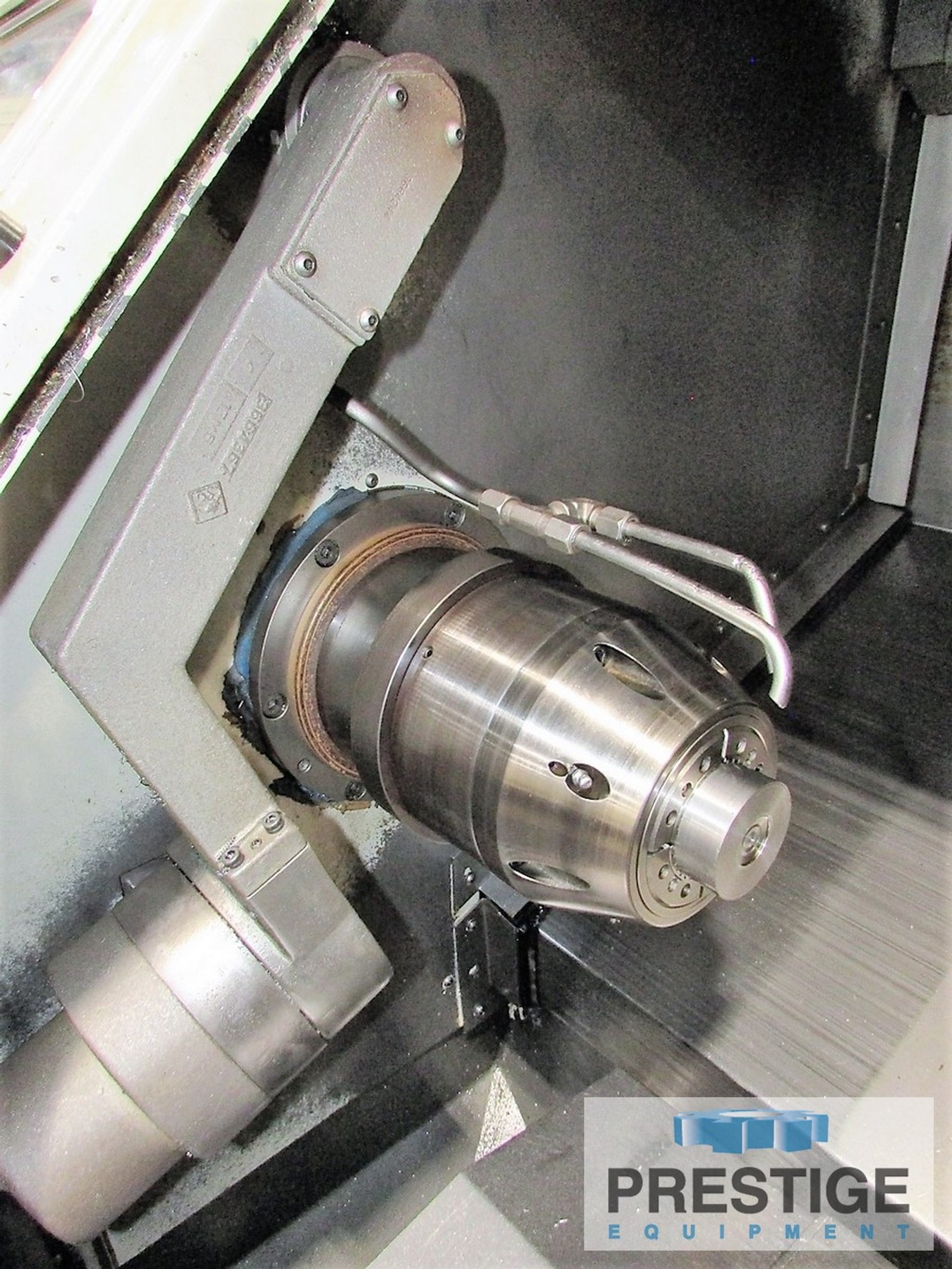

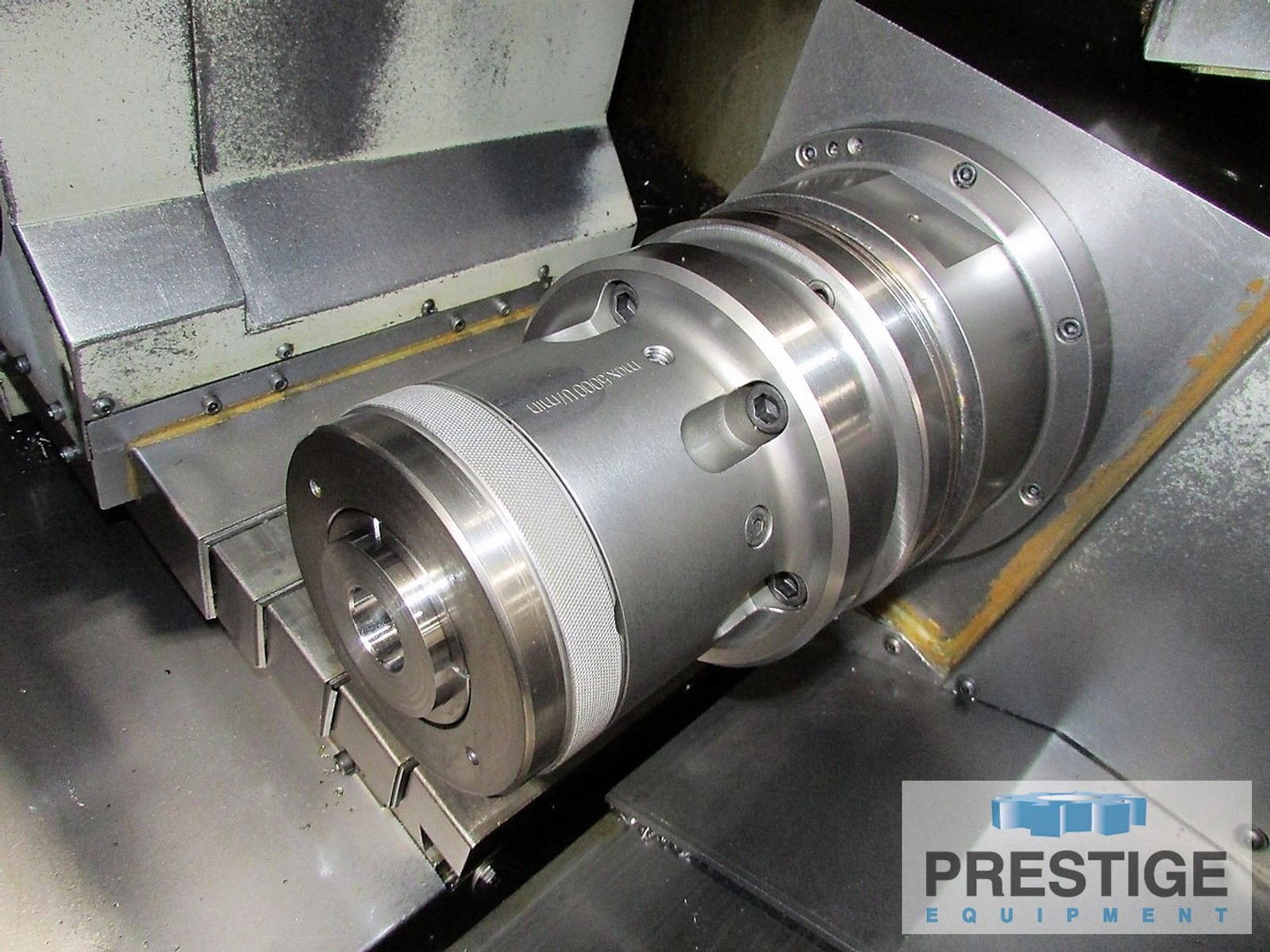

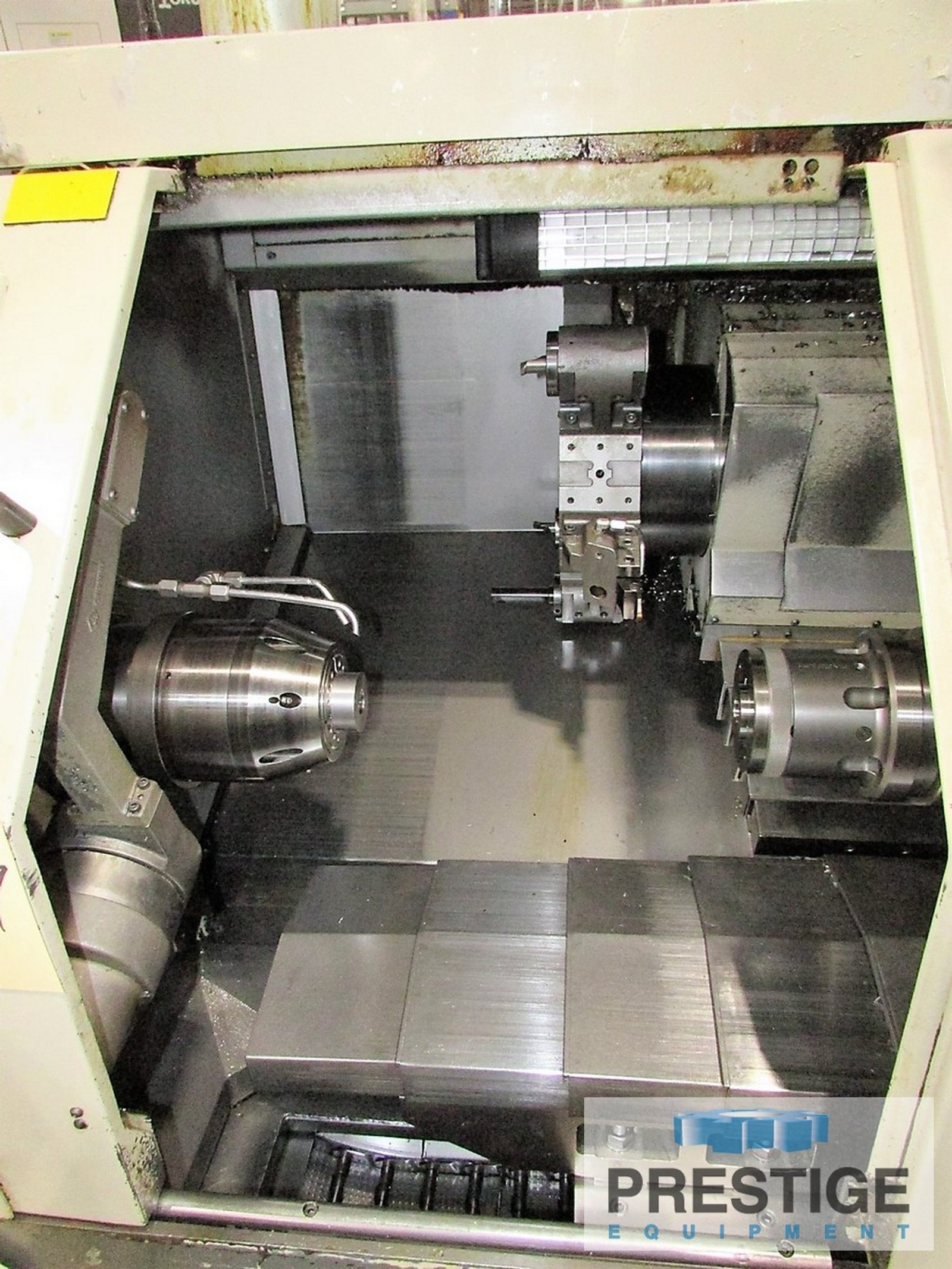

Main/Sub Spindle
Tool Eye
Parts Catcher

SPECIFICATION:
Maximum Swing Over Bed ................ 23.54"
Maximum Machining Diameter ............ 10.55"
Maximum Machining Length .............. 19.74"
Main Spindle Speeds ................... 24 - 4000 RPM
Spindle Bore .......................... 3.15"
Main Spindle Nose ..................... A2-6
X-Axis Travel ......................... 7.09"
Z-Axis Travel ......................... 20.87"
Sub Spindle Speeds .................... 24 - 5000 RPM
Sub Spindle Nose ...................... A2-5
Sub Spindle Travel, W-Axis ............ 21.65"
Spindle Motor ......................... 29 HP
Sub Spindle Motor ..................... 7.4 HP

EQUIPPED WITH:
Acramatic 850SX CNC Control
LNS QL Servo S2 Auto Bar Feeder with Control Pendant
Main/Sub Spindle
Tool Eye
Parts Catcher

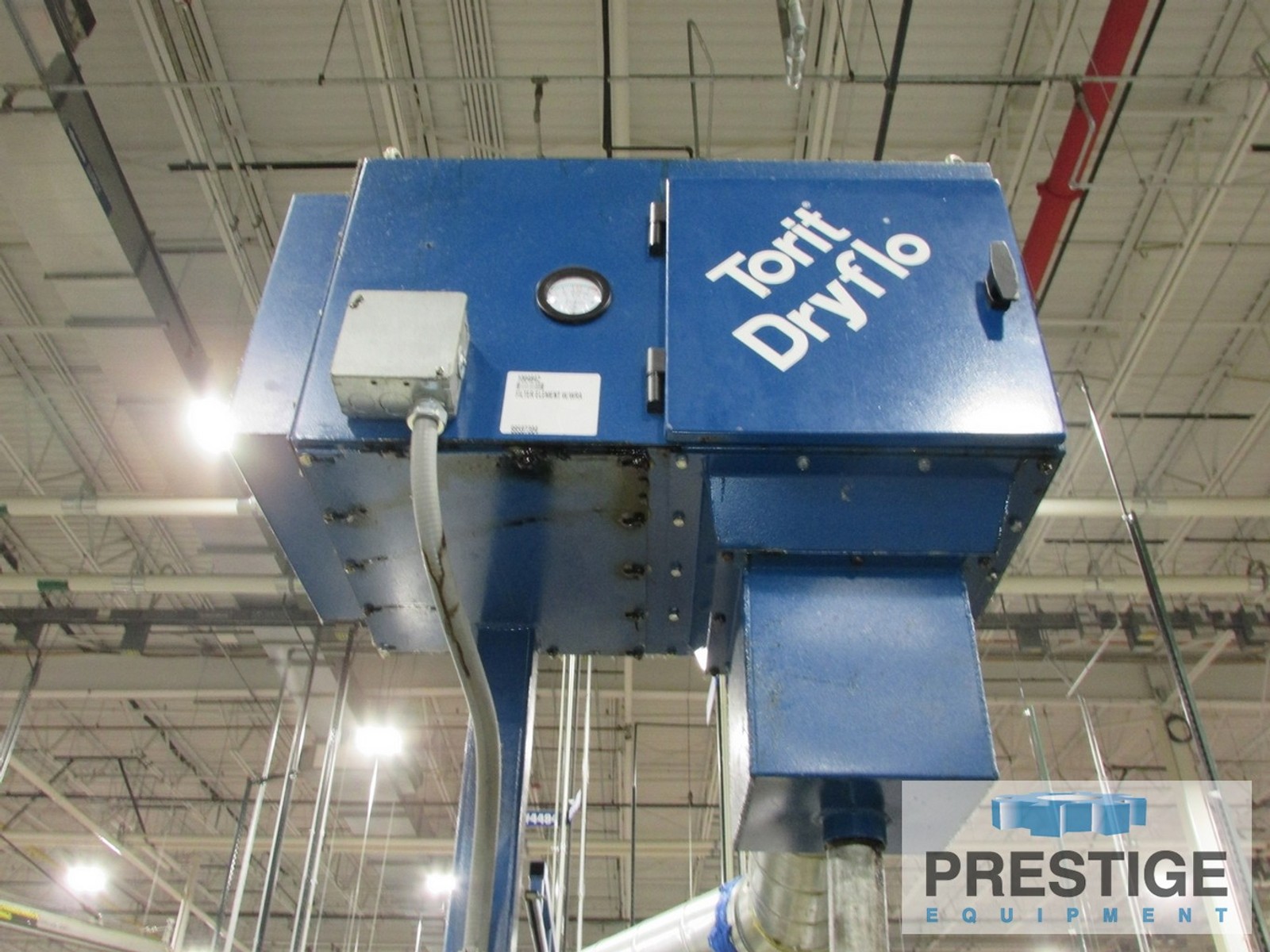

Torit Dryflow Mist Collector
