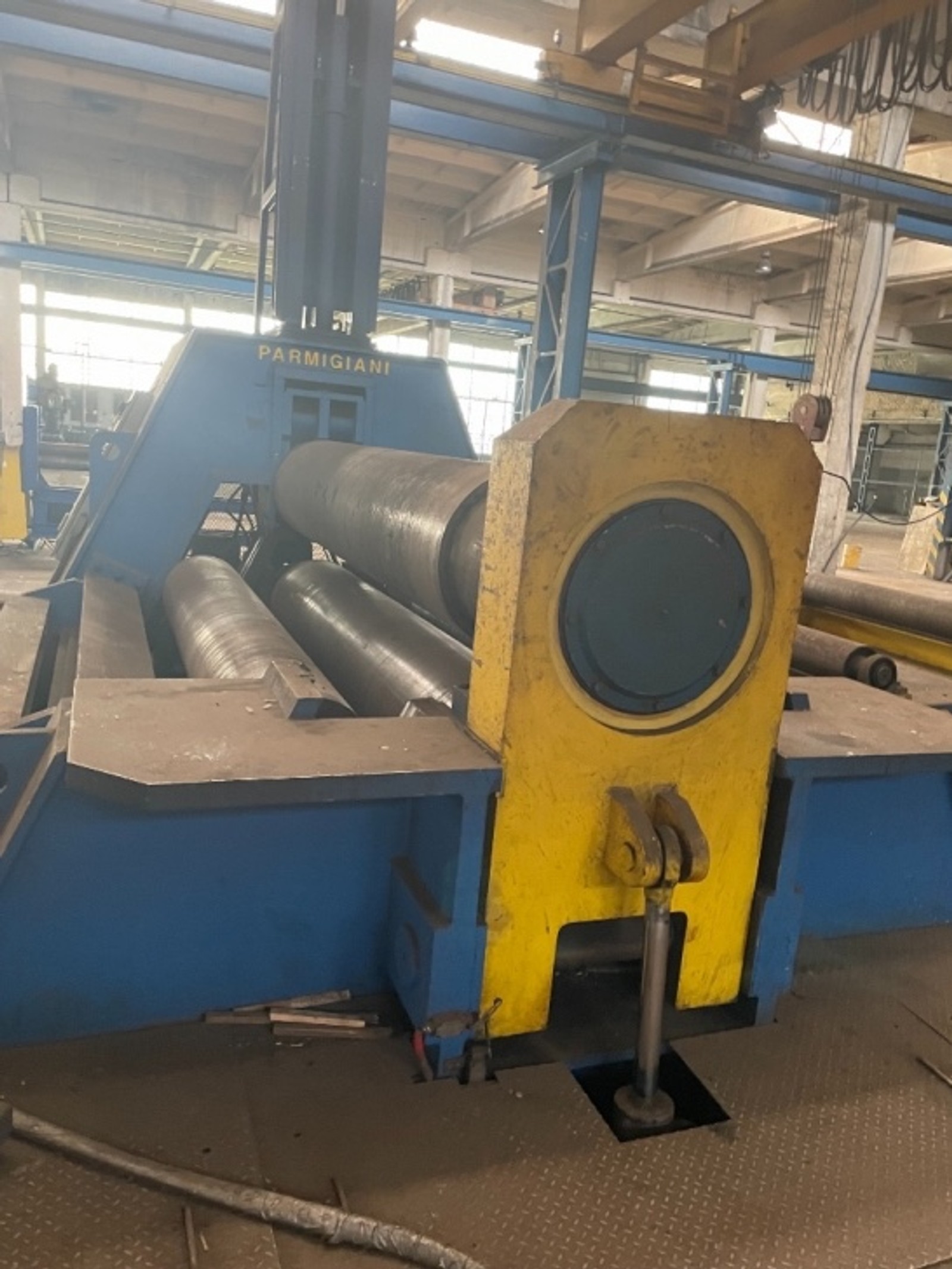

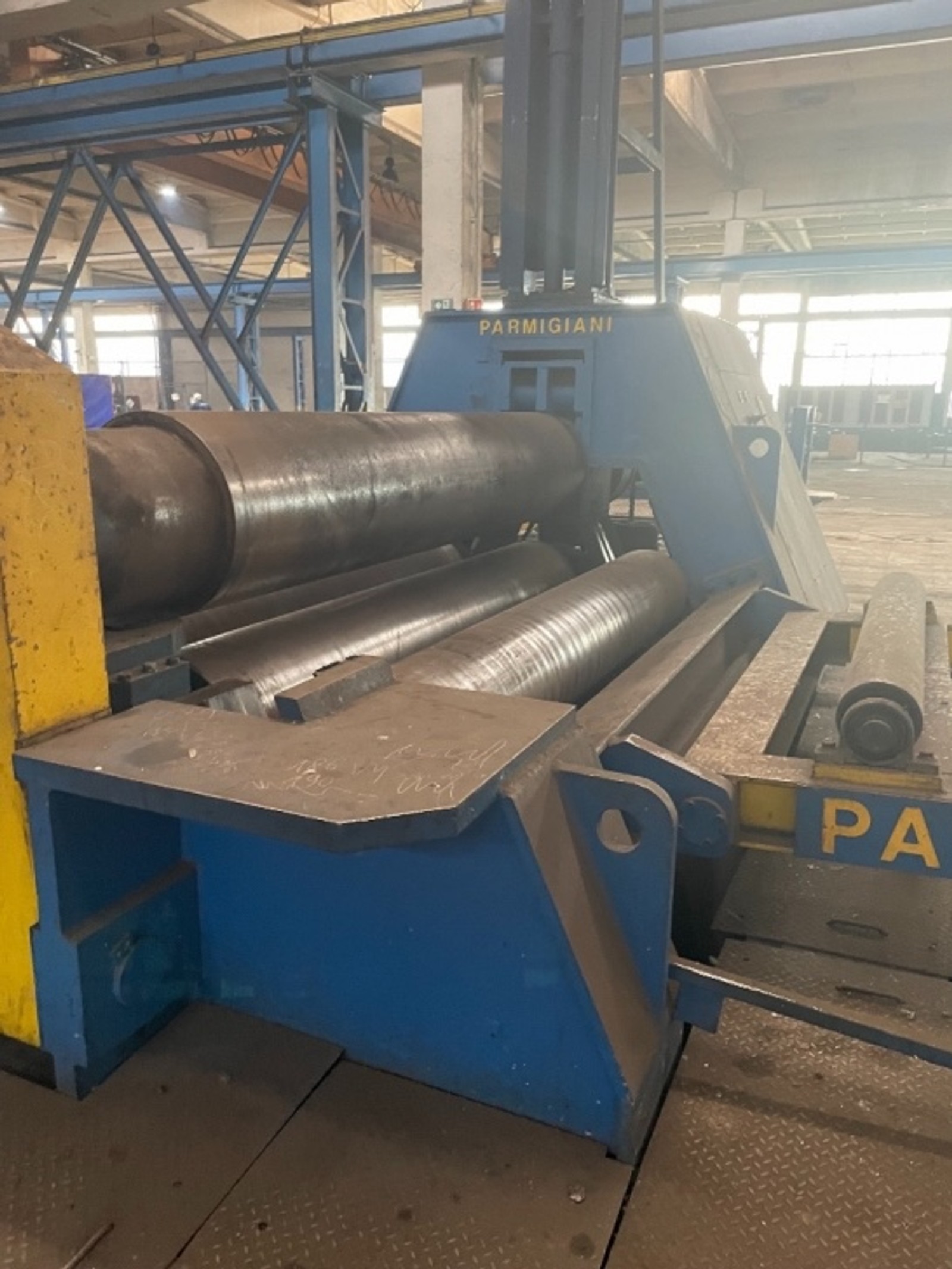

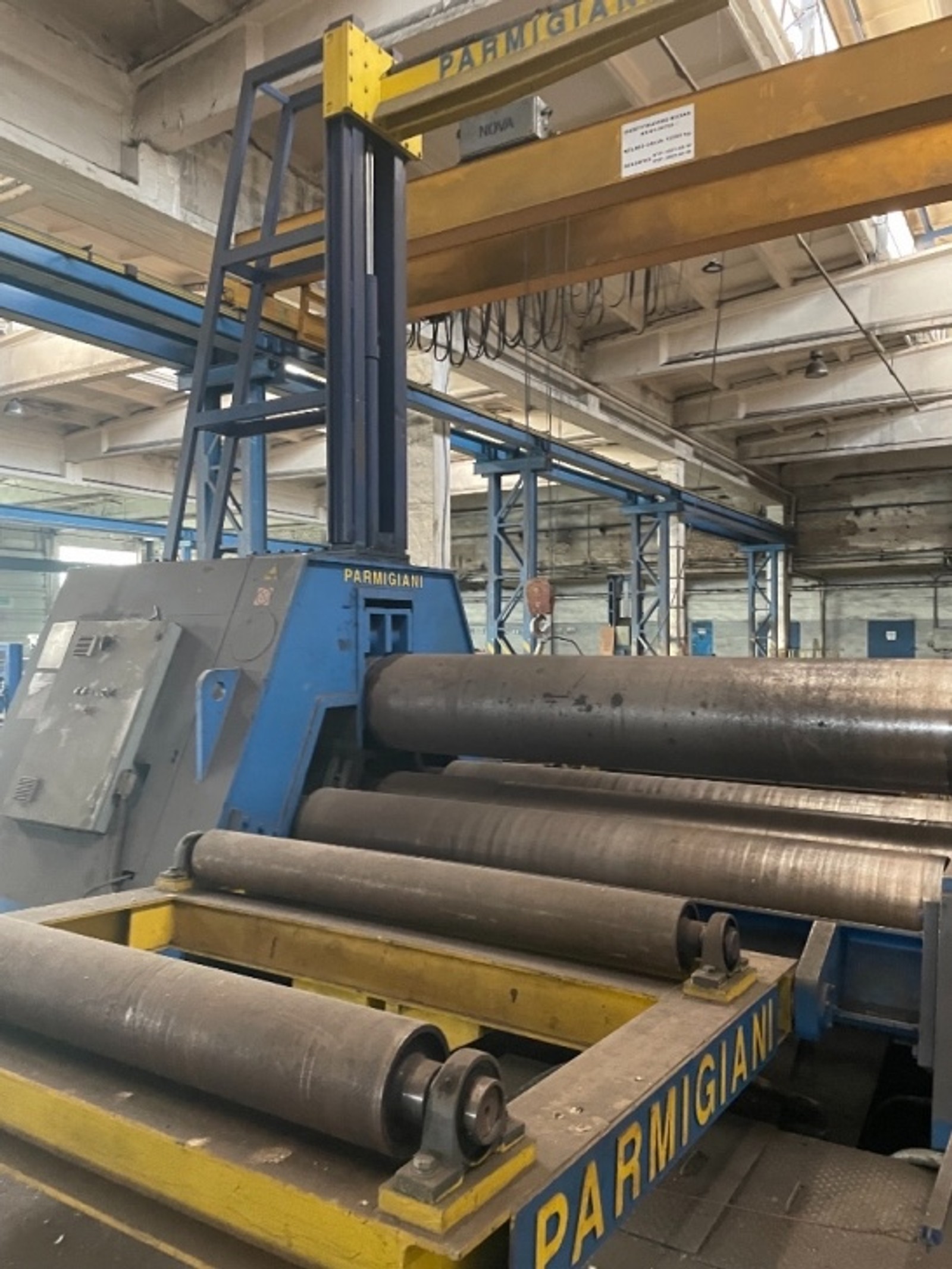

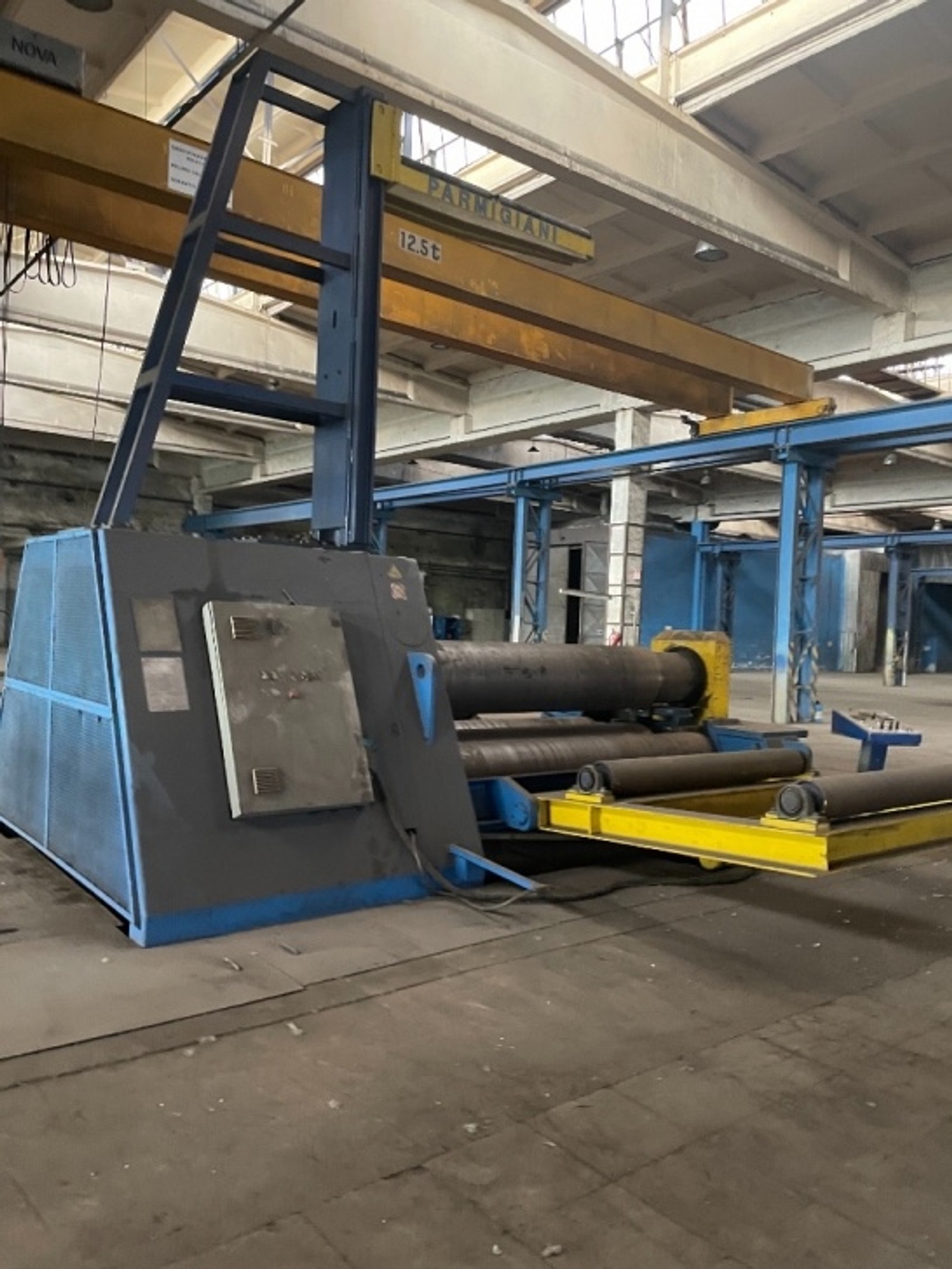

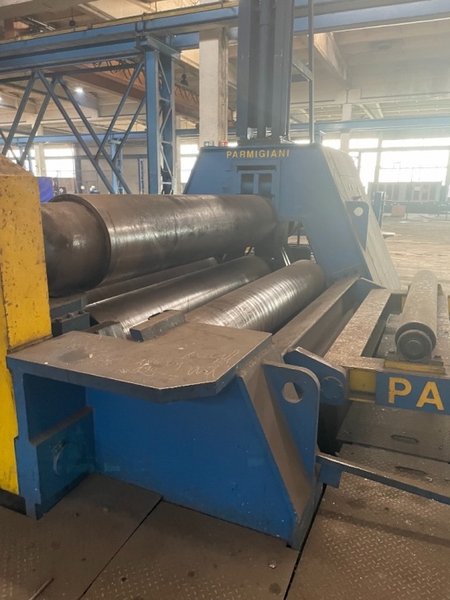

3100mm x 65mm Parmigiani 4-Roll Plate Bending Machine

Stock

None

Model

VBH 3100/65/54

Dealer Location

Michigan

Spec Sheet

Make: Parmigiani (Italy)
Model: VBH 3100/65/54/
Year New: 2004
Maximum Plate Thickness: 65mm
Work Rolls Length: 3100mm
Top roll diameter: 600 mm
Number of rolls: 4
Number of driving rolls: 2
Central lower roll diameter: 570
Side rolls diameter: 460
Main electrical supply: 400V/50Hz/3Ph
Total installed power: 88 Kw
Hydraulic unit oil tank capacity: 1000 liters
Machine dimensions (mm): 6300 x 3320 x 3400
Weight of the machine: 65000 kg
