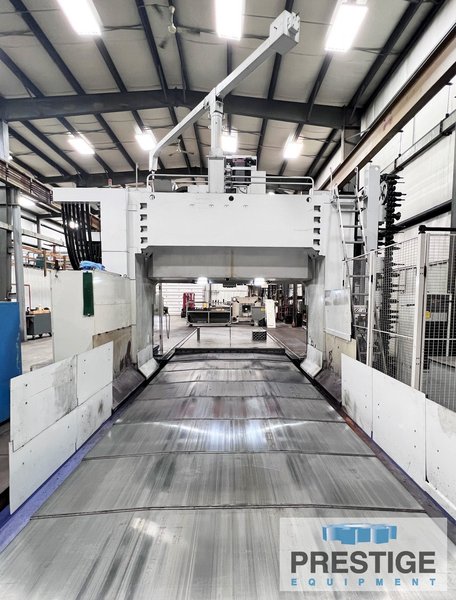

Mitsubishi MVR40, 5-Face, X-244", Y-165", Z-31", 147" B.C, 236" x 118" Tbl, 6,000 RPM, Fanuc 31i, 2014, #31496

Manufacturer

MITSUBISHI

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

31496

Model

MVR-40 5-Face

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31496

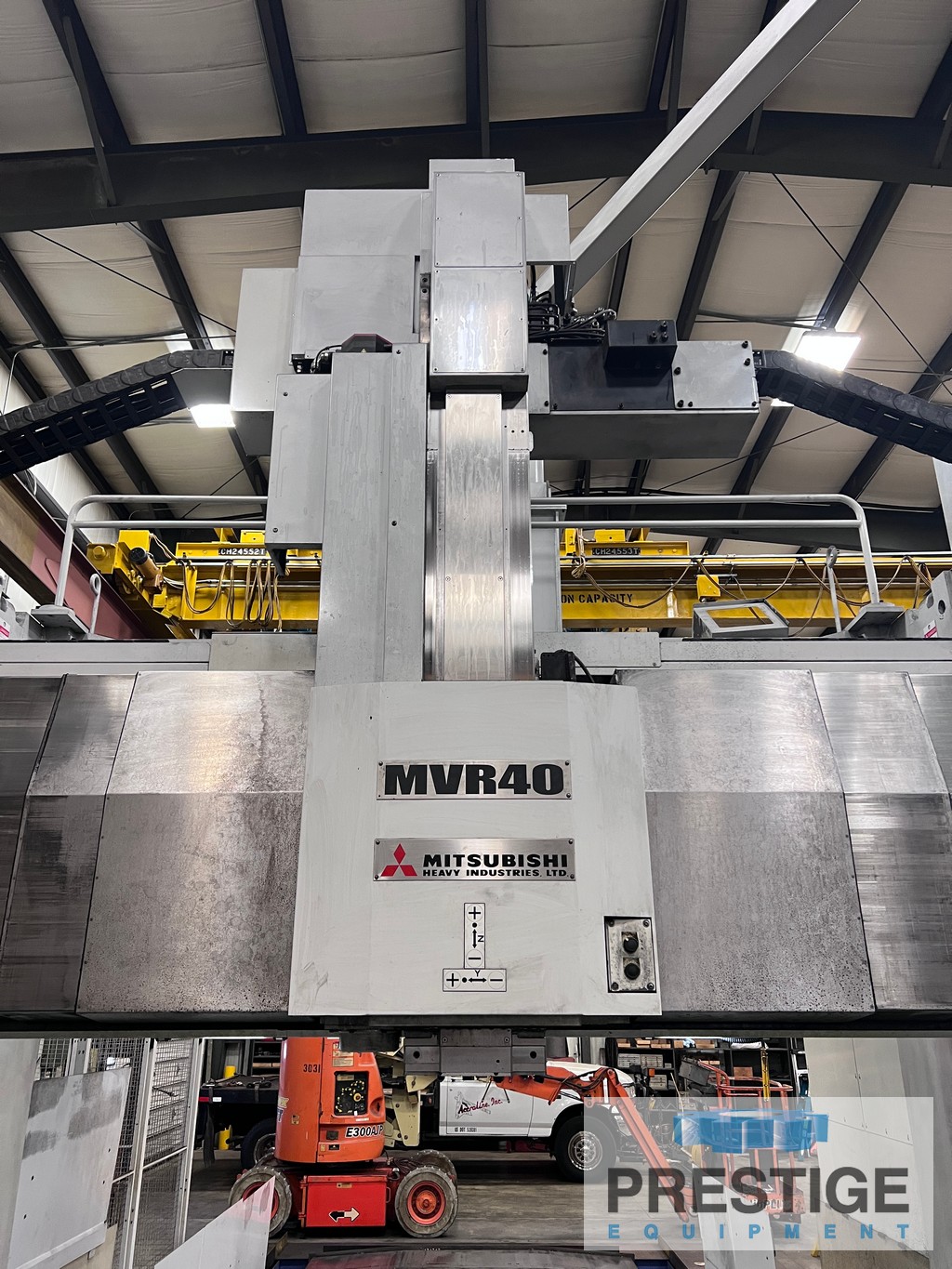

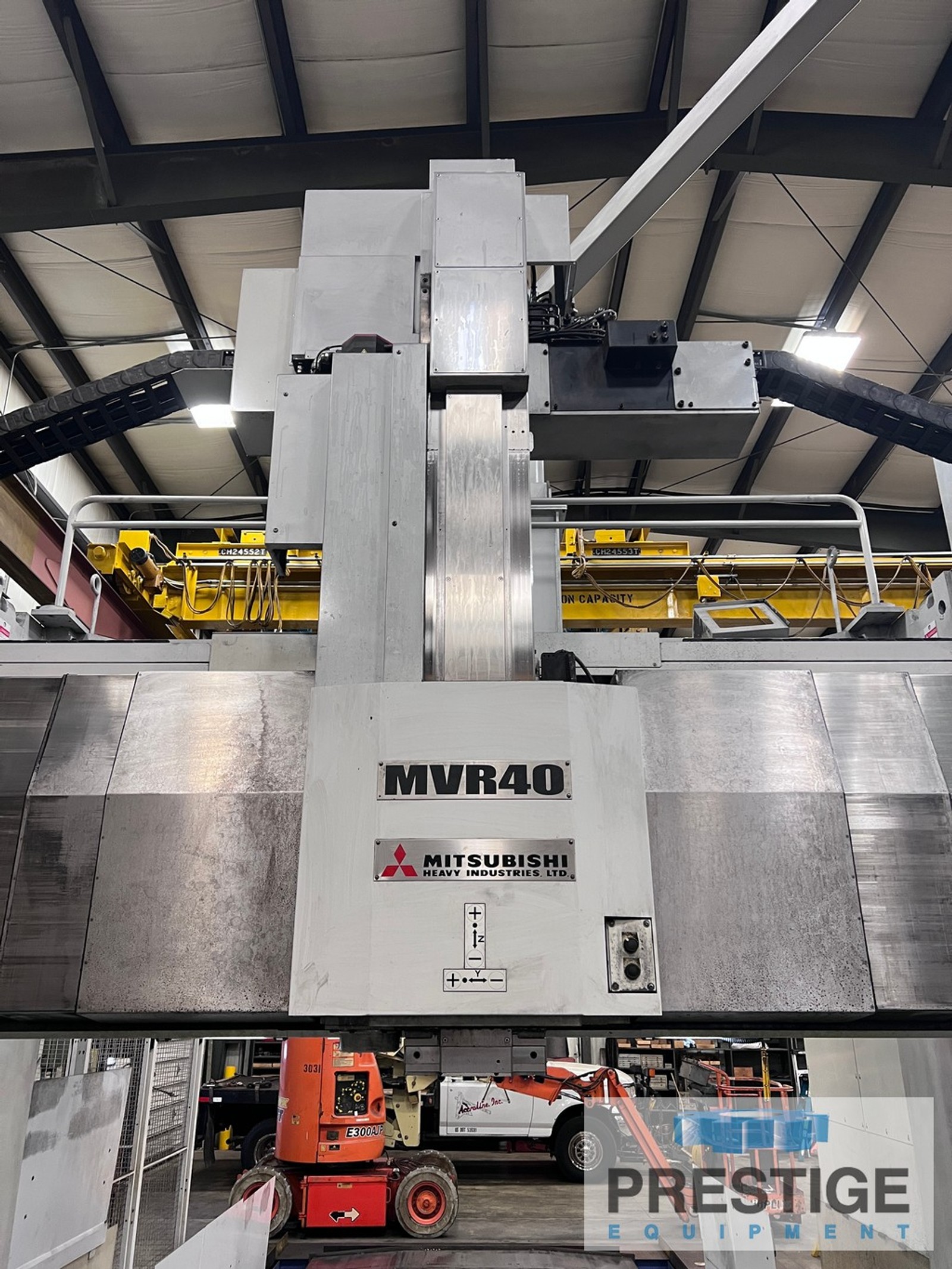

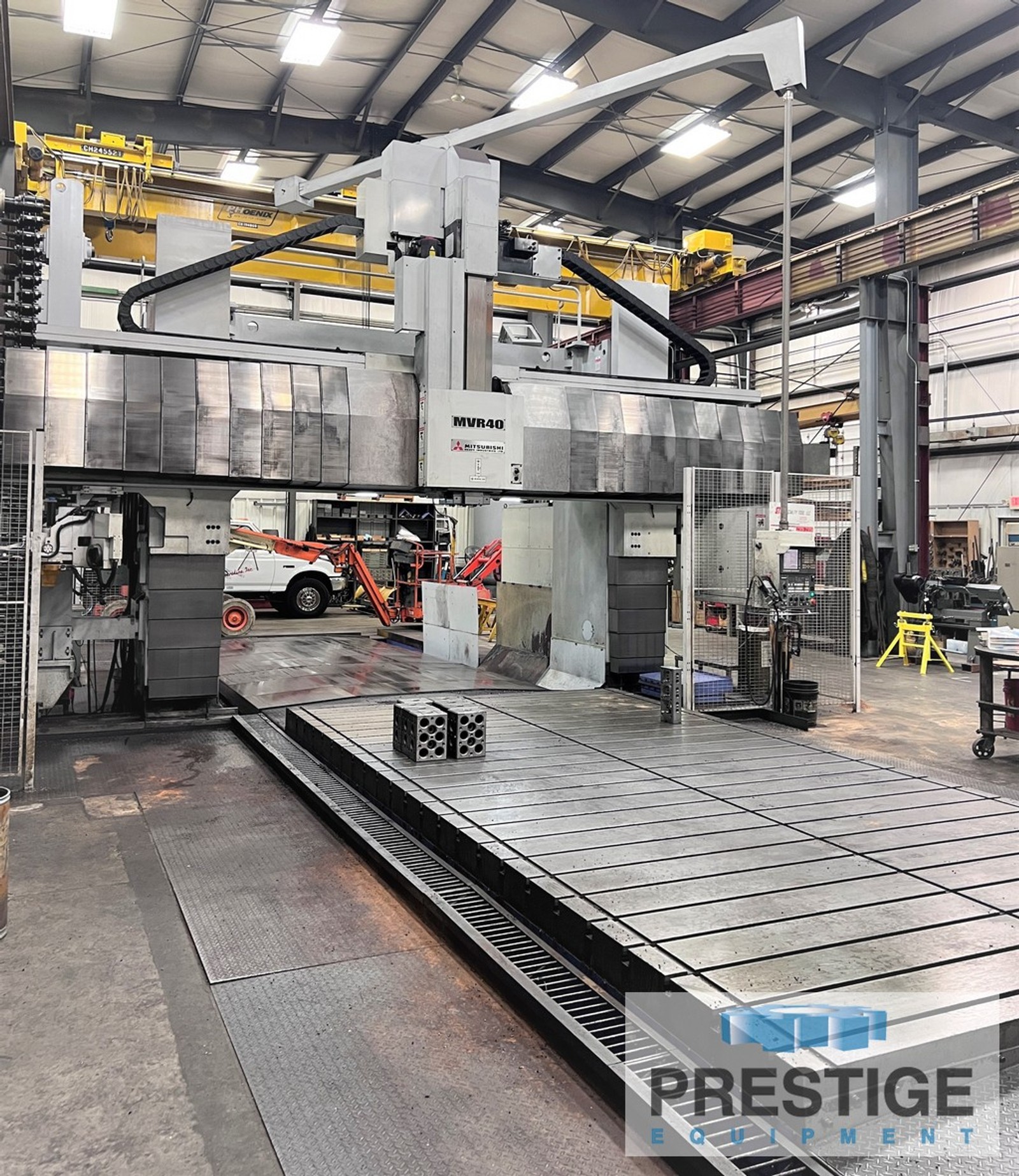

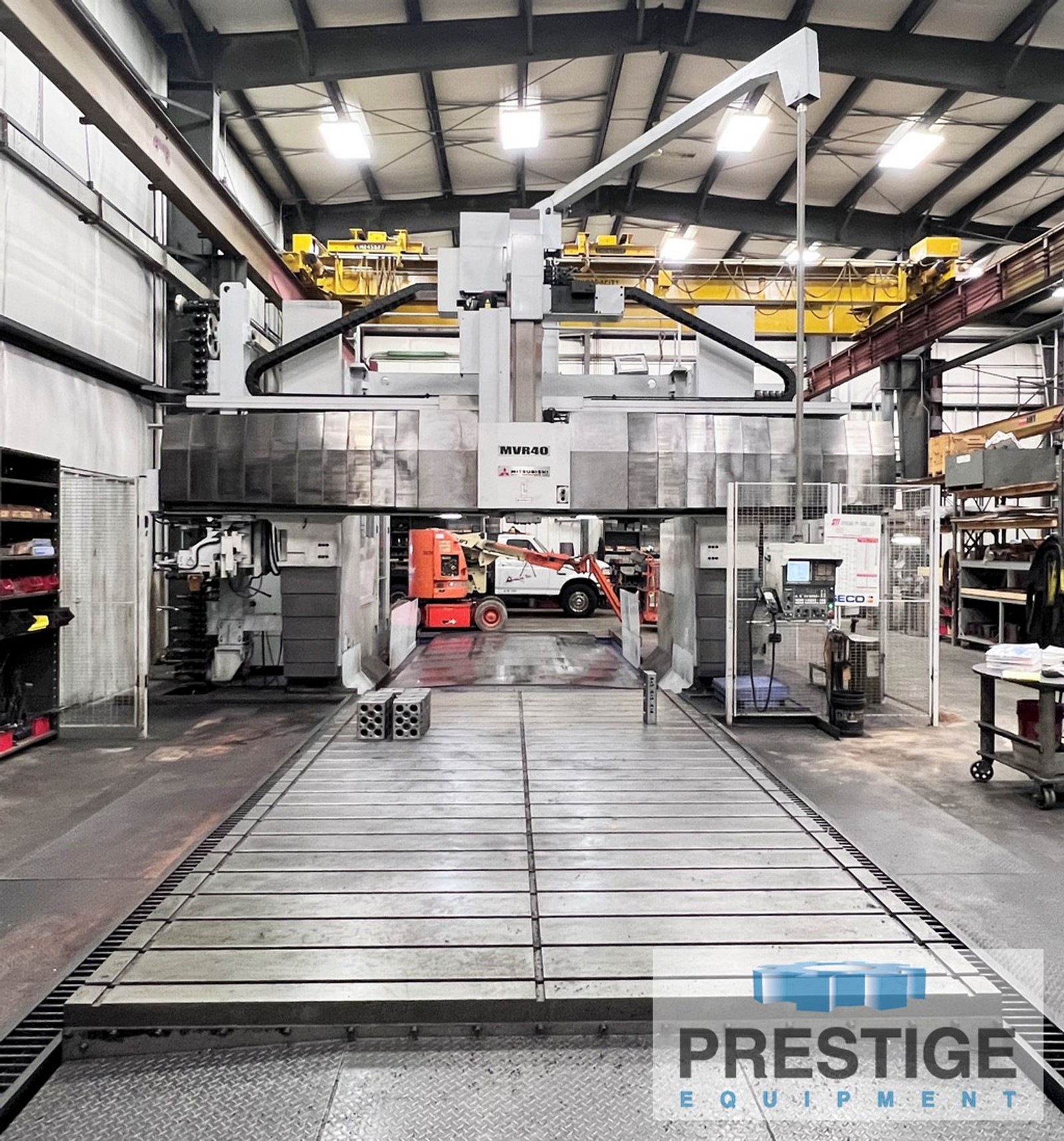

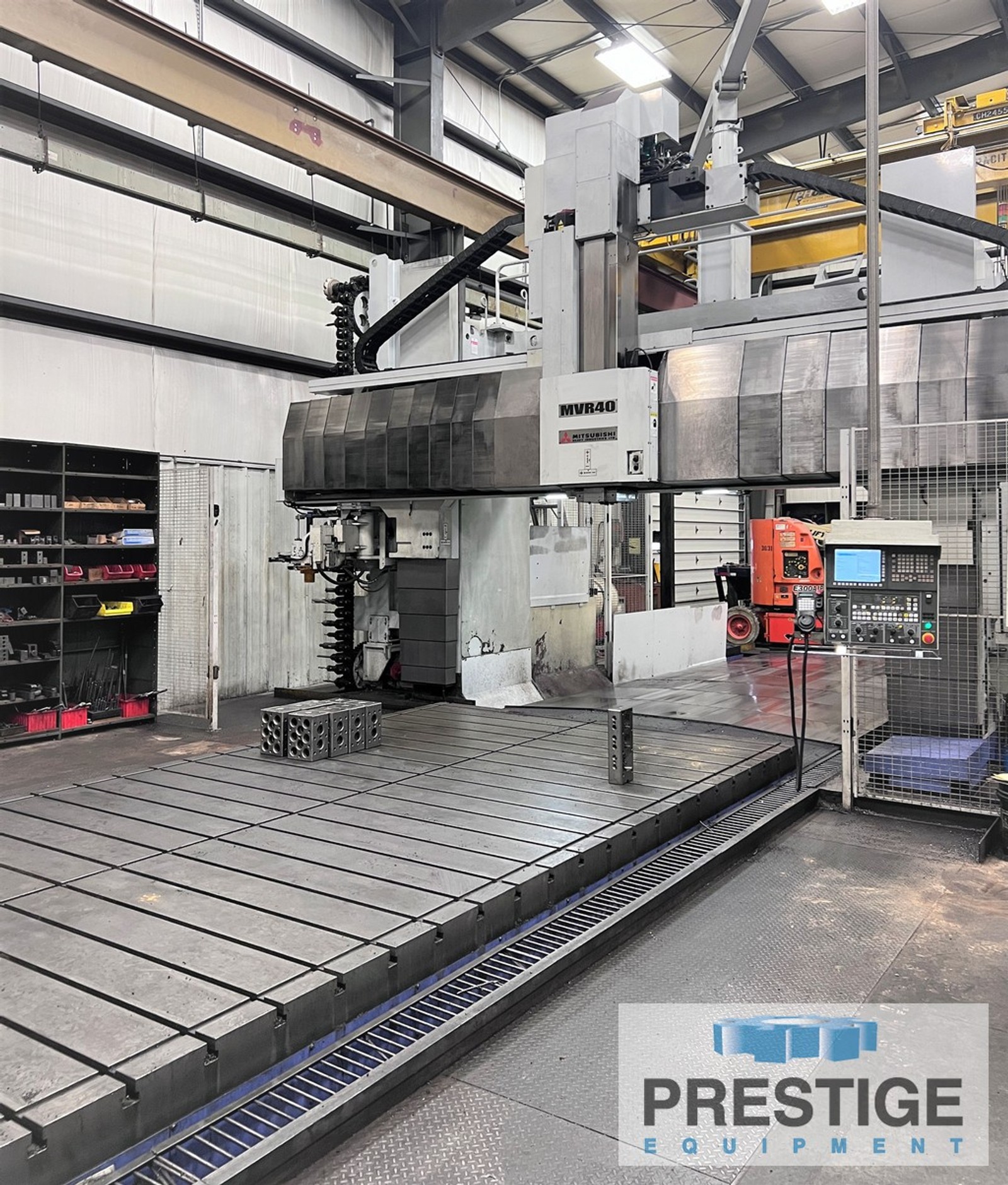

Mitsubishi MVR-40 CNC Double Column Vertical Machining Center

FEATURES:

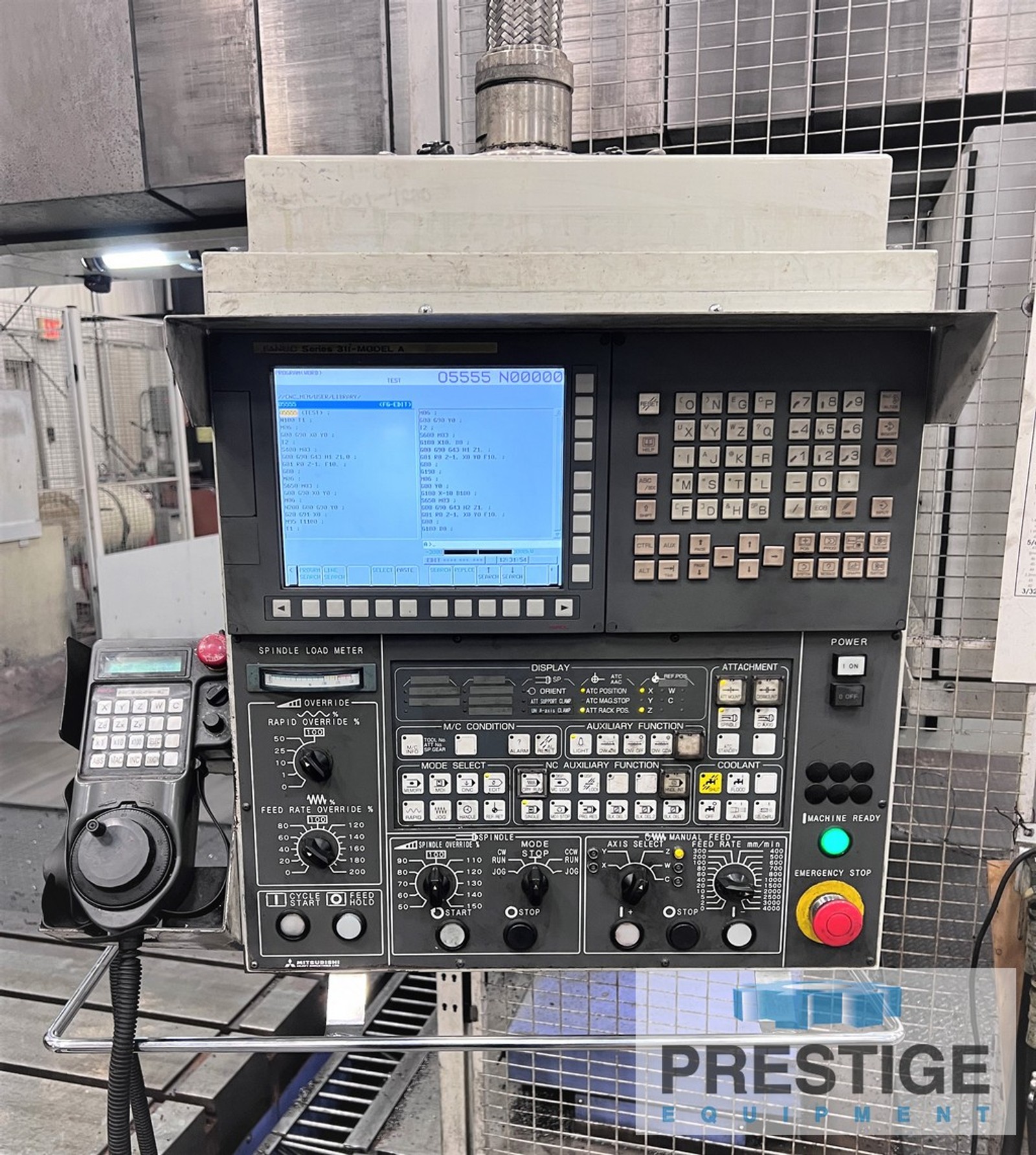

Fanuc 31i-A CNC Controls
CNC Auto Indexing Right Angle Head
5-Face Machining Software

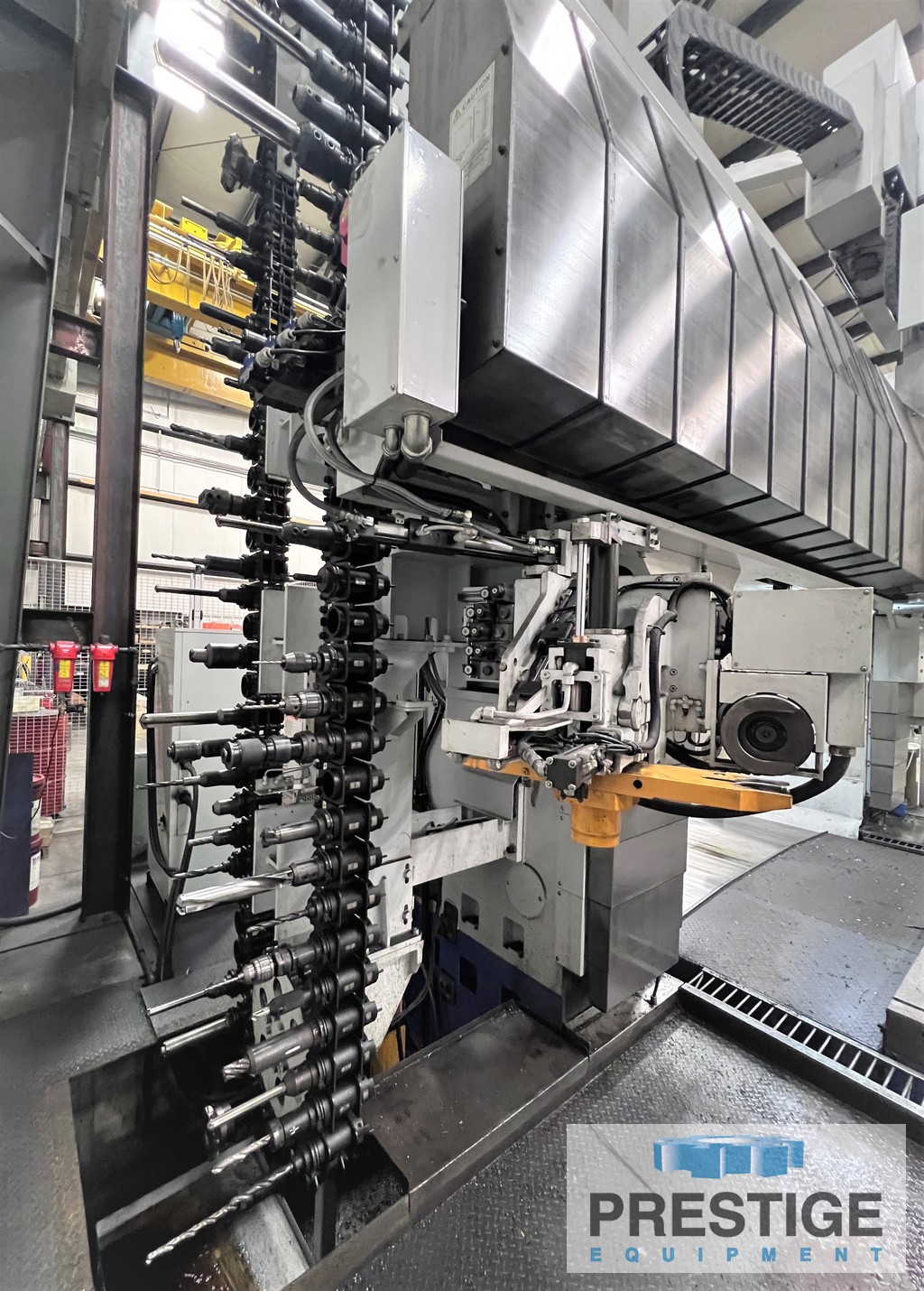

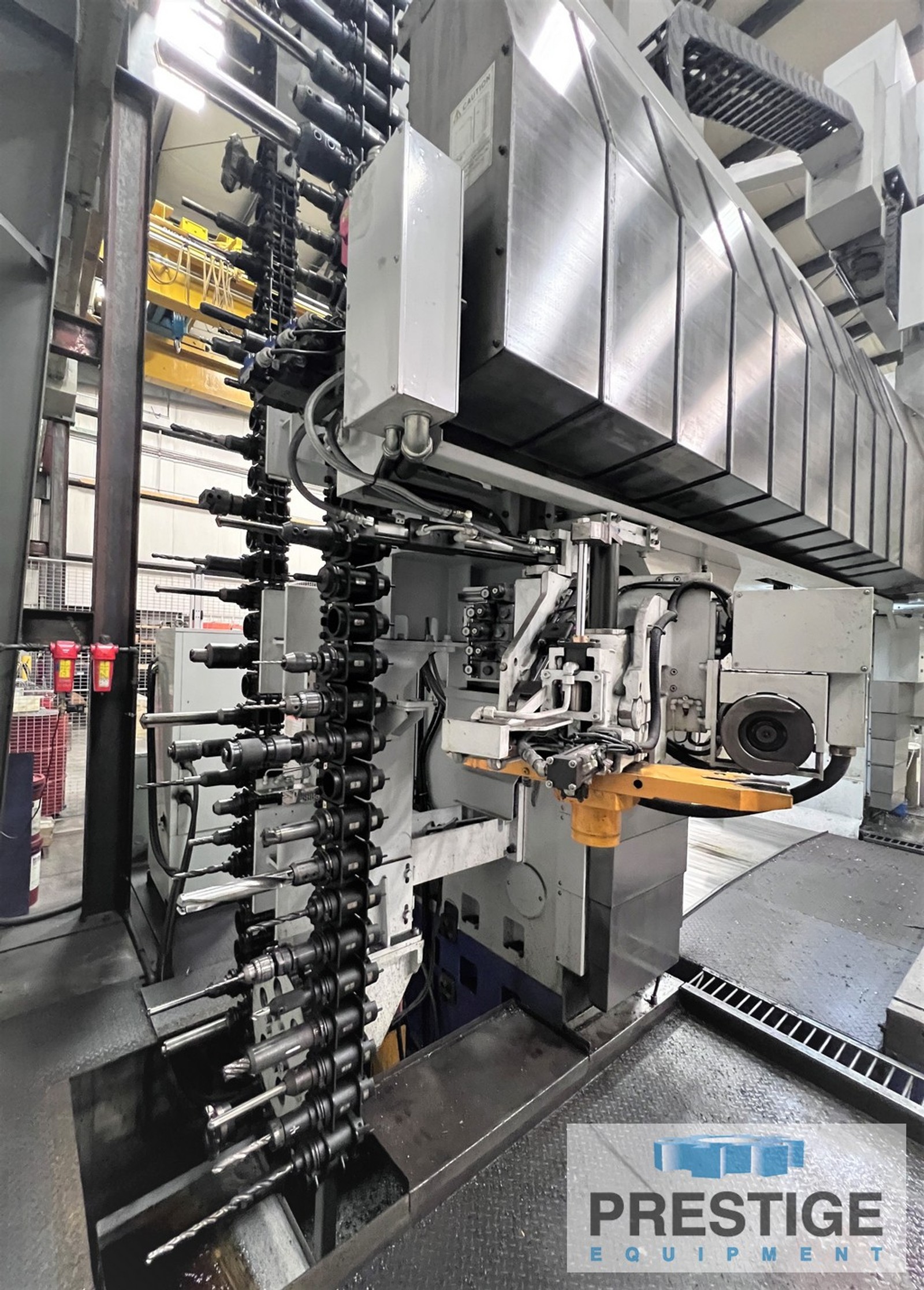

80 Position Automatic Tool Changer
Head Change Station

CAPACITY:
Table Size ............................ 236.22" x 118.11"

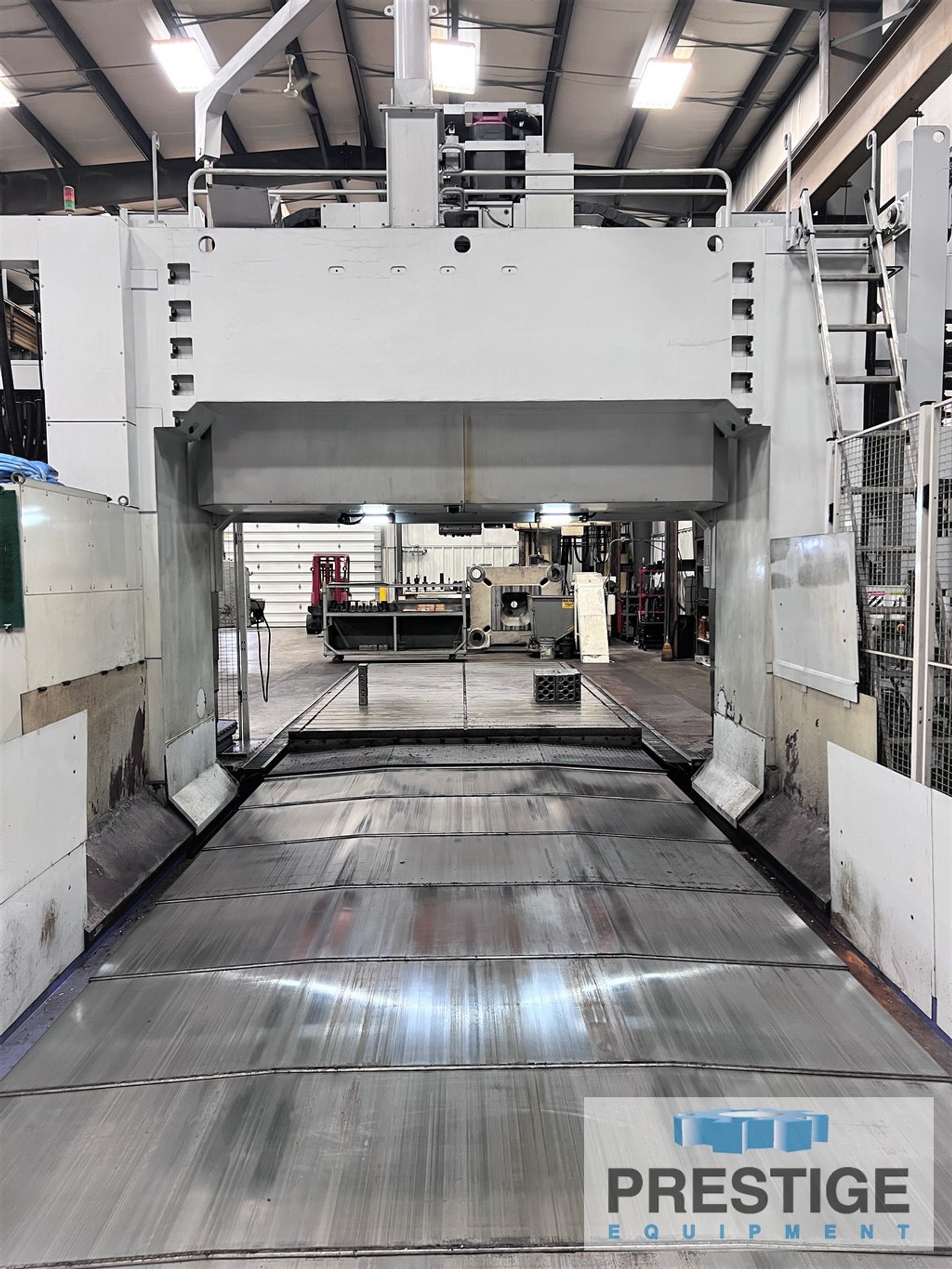

Distance Between Columns .............. 147.60"
Maximum Height Under Spindle Nose ..... 84.6"
X-Axis Travel, Table Longitudinal ..... 244.10"
Y-Axis Travel, Head ................... 165.35"
Z-Axis Travel, Spindle ................ 27.55"
W-Axis Travel, Crossrail .............. 31.49"

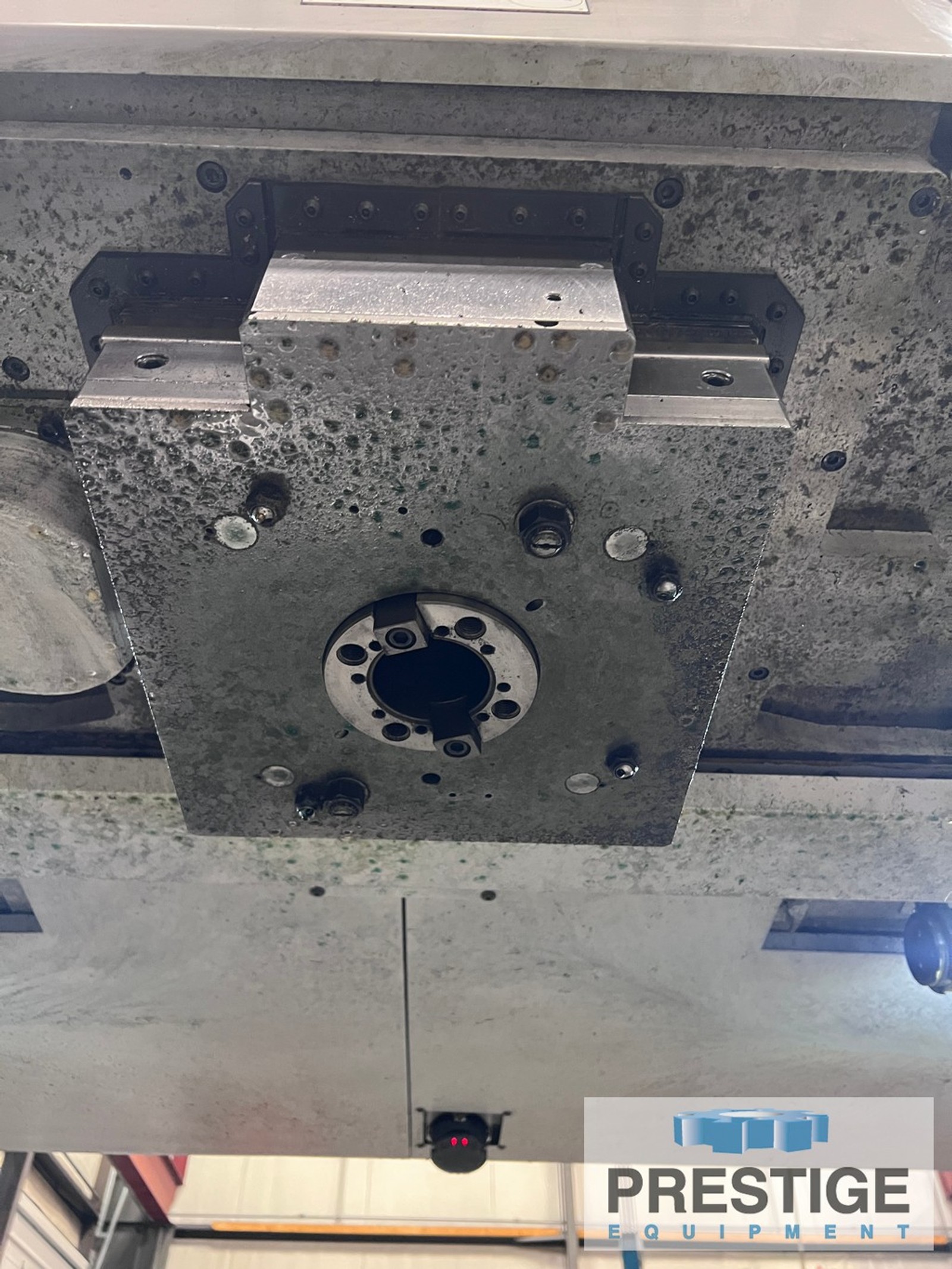

Ram Size .............................. 13.7" x 13.7"
Spindle Diameter ...................... 4.33"
Spindle Speeds ........................ 17-4000 RPM
Spindle Taper ......................... No. 50
Spindle Drive Motor ................... 40 HP
Cutting Feeds ......................... .039-393.7 IPM
X-Axis Positioning Accuracy ............ +/- 0.0010/244.1"
Y-Axis Positioning Accuracy ............ +/- 0.0008/157.5"
Z-Axis Positioning Accuracy ............ +/- 0.0002/31.5"
W-Axis Positioning Accuracy ............ +/- 0.0003/43.3"
Rapid Traverse, X-Axis ................ 590.55 IPM
Rapid Traverse, Y-Axis ................ 866.14 IPM
Rapid Traverse, Z-Axis ................ 393.70 IPM
Rapid Traverse, W-Axis ................ 118.11 IPM
Approximate Machine Weight ............ 130,000 Lbs

EQUIPPED WITH:
Fanuc 31i-A CNC Controls
80 Position Automatic Tool Changer

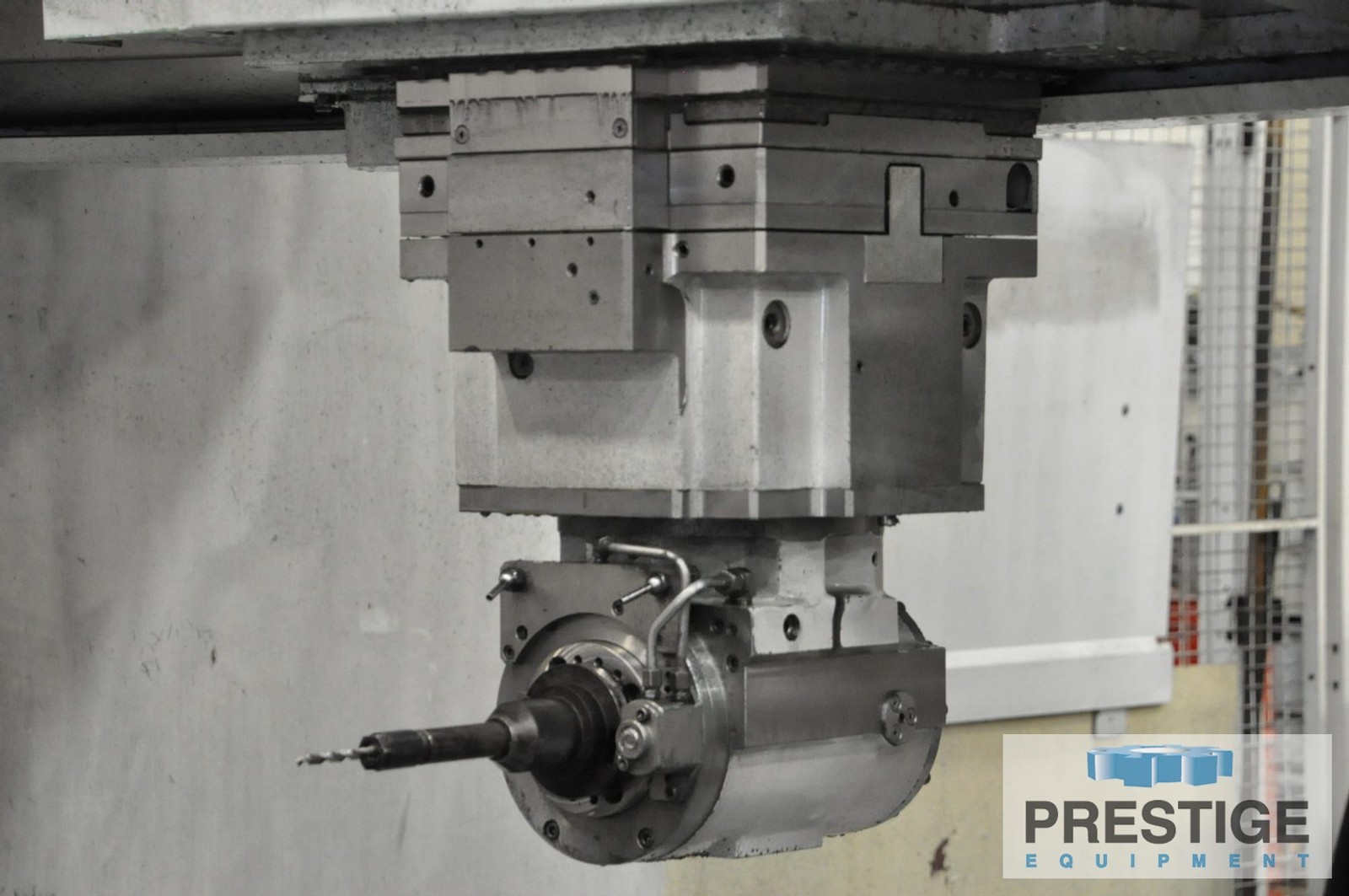

Mitsubishi VHRH-30-35-35P-AC CNC Right Angle Head with 1-Degree Indexing
5-Face Machining Software
Geared Head
Attachment Storage for Right Angle Head
Factory Column Riser for 84.6" Clearance Spindle Nose to Table
Rigid Tapping
MP Scales on X,Y,Z,W Axes
Coolant/Air Thru Spindle, 141 PSI
Telescoping Way Covers
Chip Conveyor

NOTE:
Inspect Under Power in Midwest Plant!
