Transfluid EDB 642CNC Servo Electric Tube Bender, 1.65" Capacity, Horizontal/Vertical Bending, New 2020, #32425

Manufacturer

TRANSFLUID

Category

Benders

Type

BENDERS, PIPE, TUBE & BAR, CNC

Stock

32425

Model

EDB 642-CNC-R/L

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32425

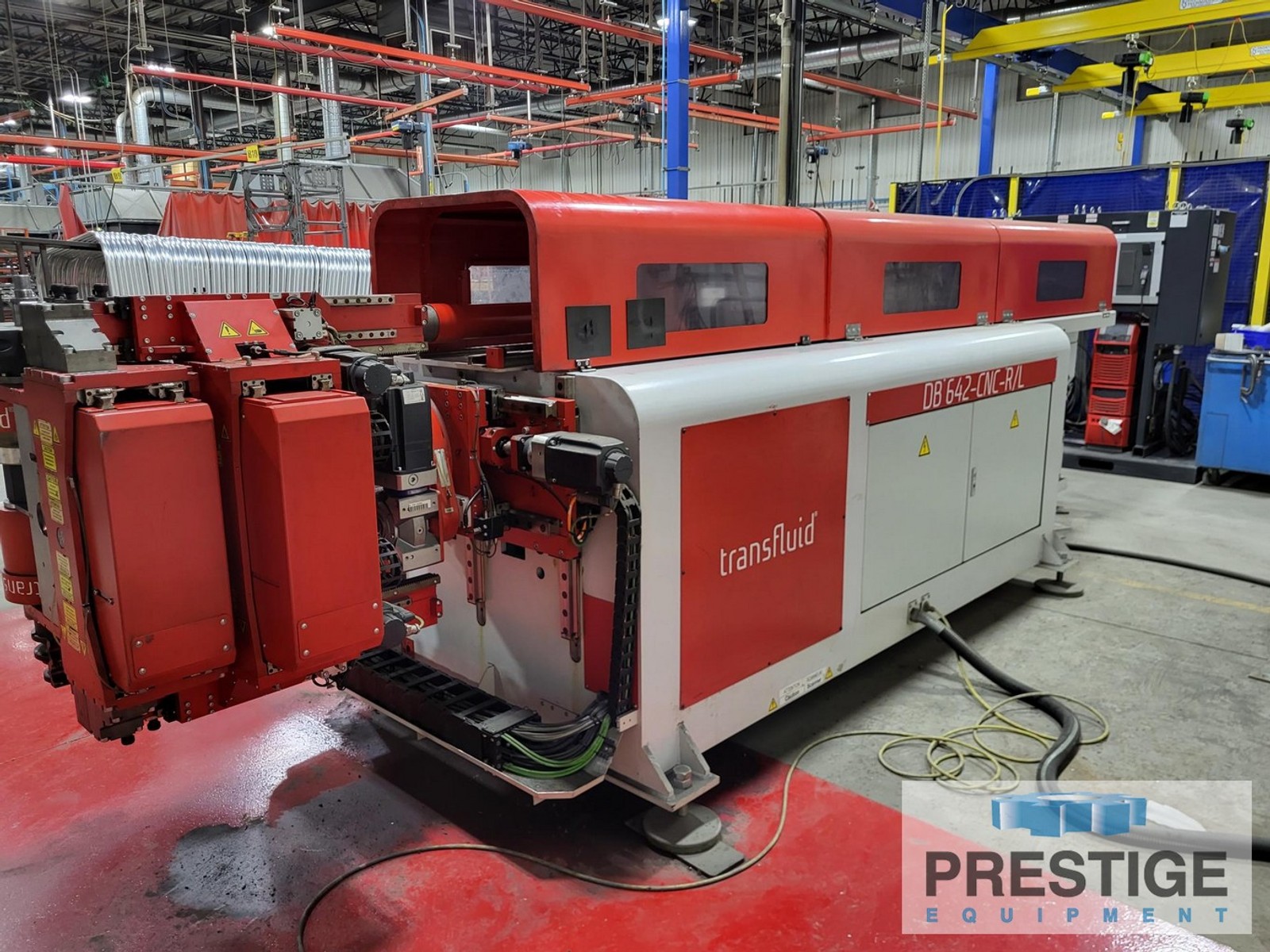

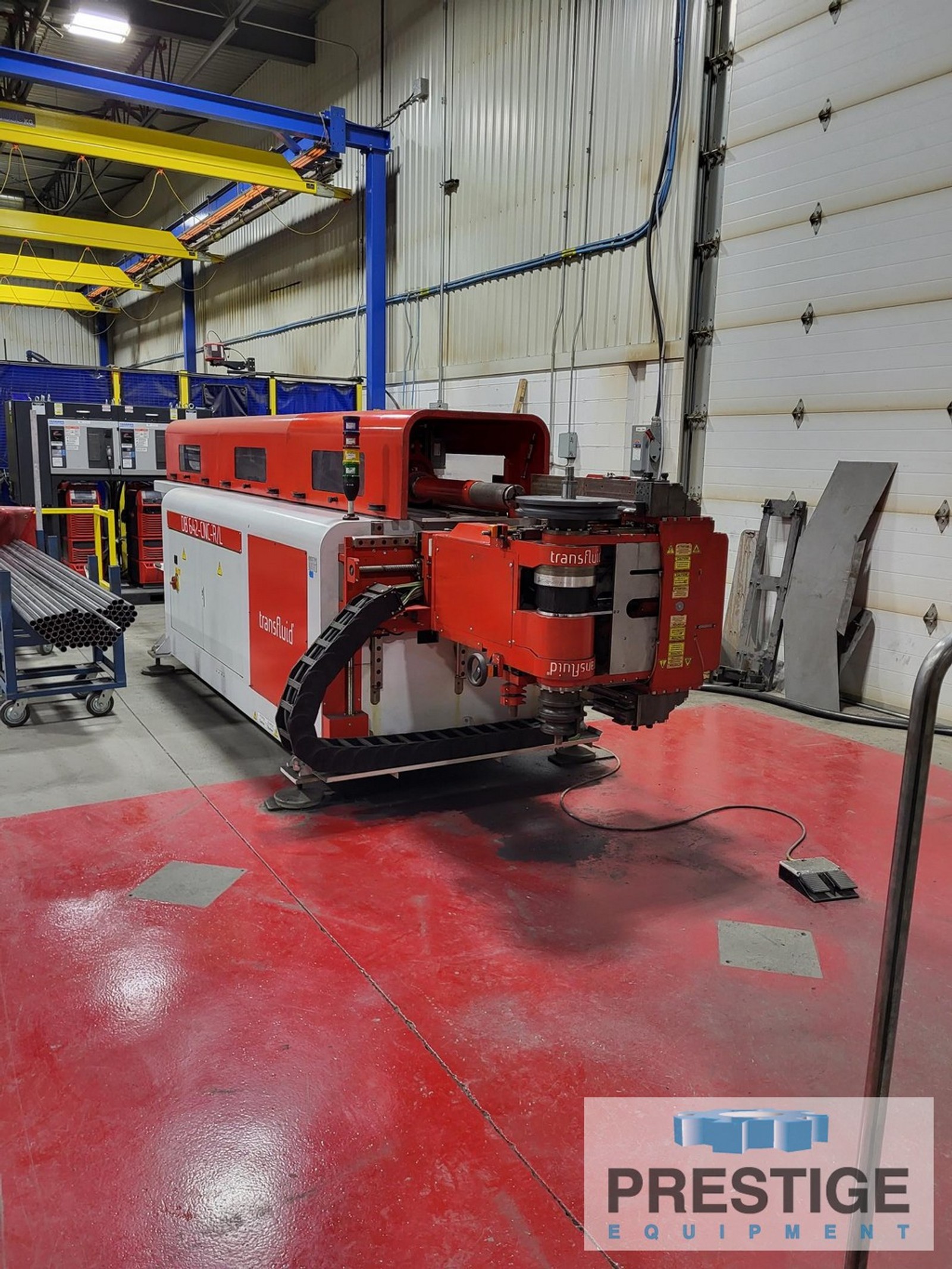

Transfluid EDB 642CNC Tube Bender

FEATURES:
Servo Electric Power Bending Axis
Servo Electric Positioning of the Rotation Length

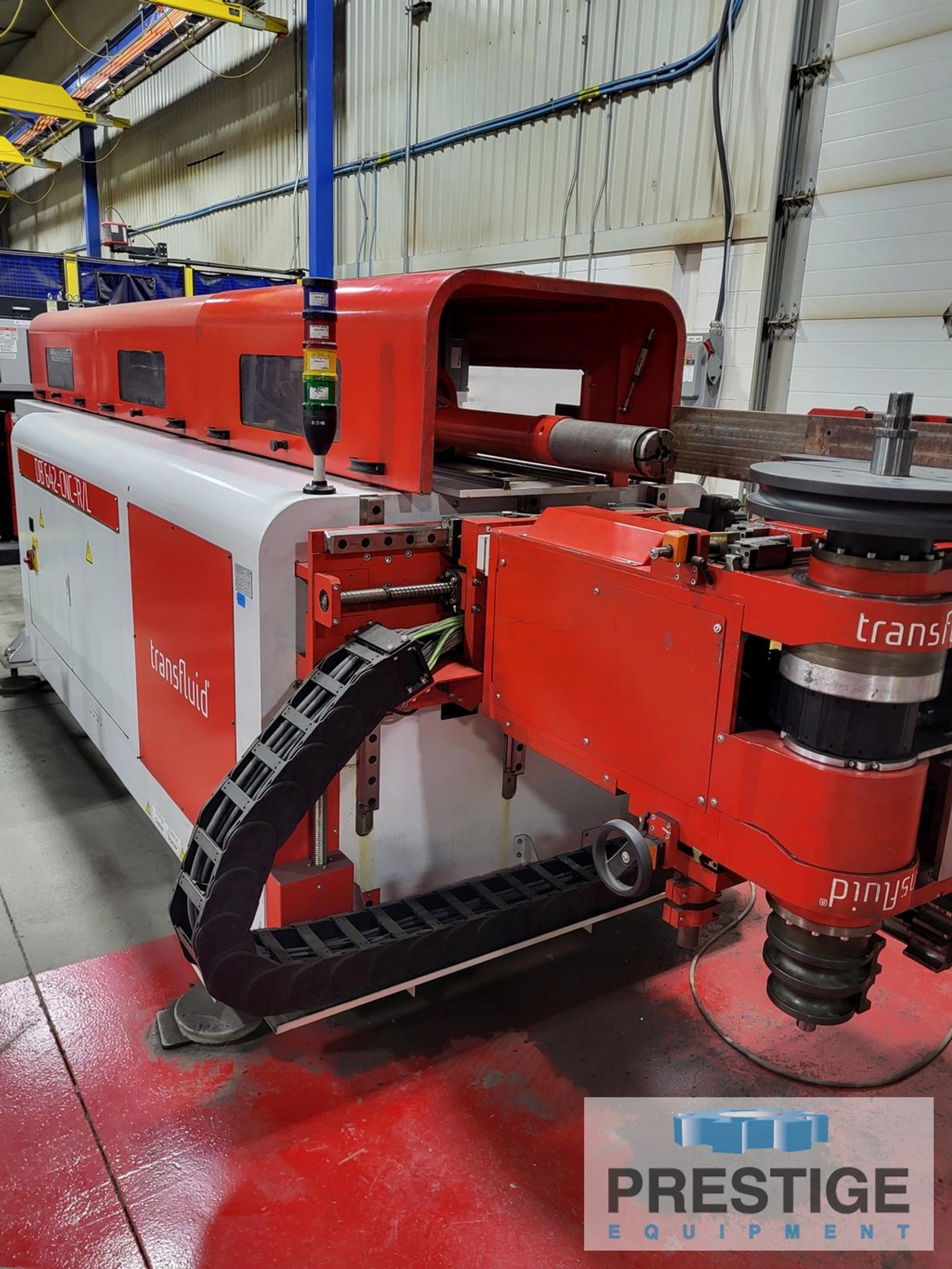

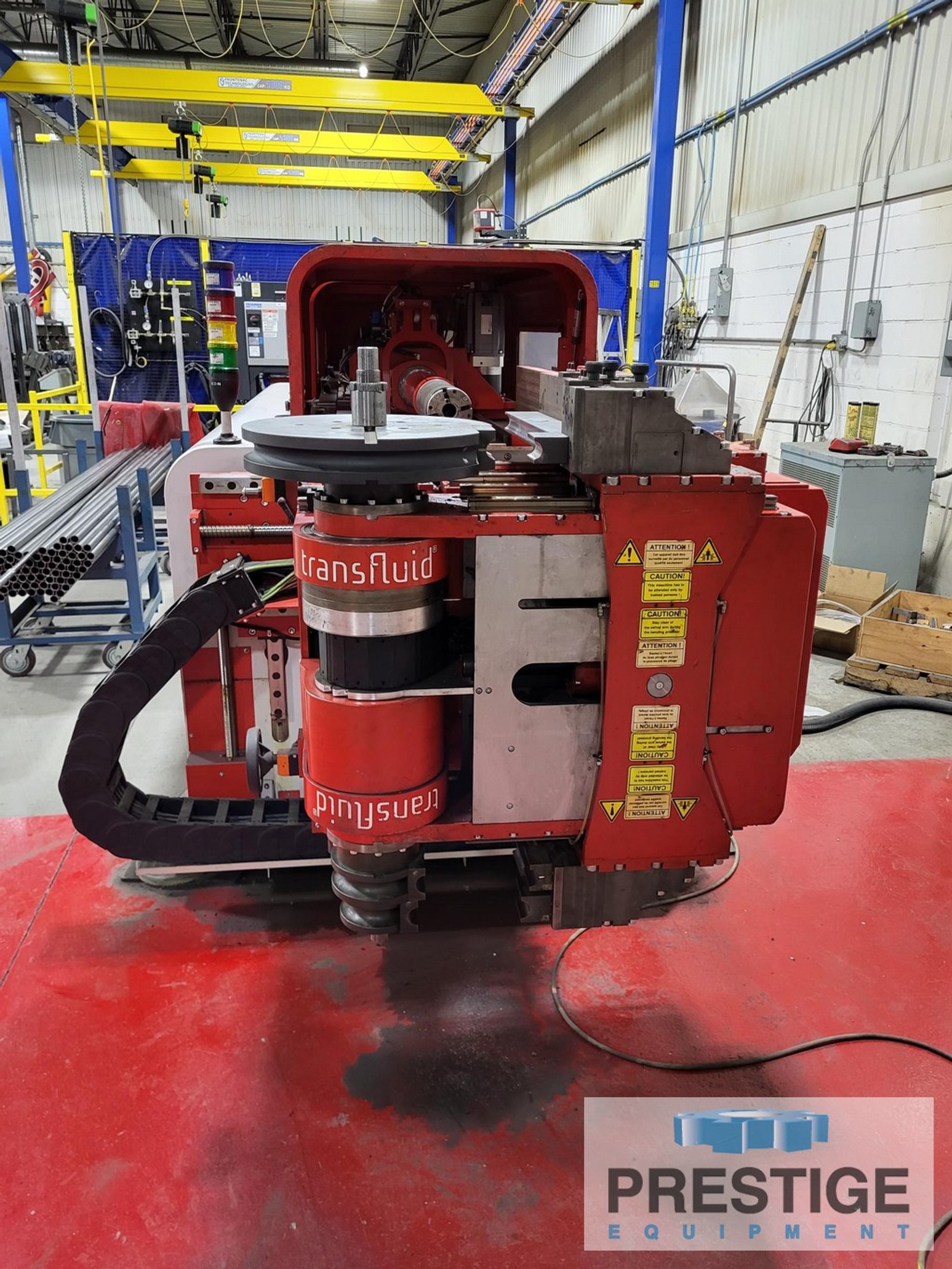

Bending Head For Right Hand/Left Hand with One Off Set Bend Device
Bending Head can be Horizontal & Vertical
Automatic Programmable Mandrel Withdrawal
Carriage For Wiper Die
Boosting Function


CAPACITY:
Round Tubing Mild Steel ................ 1.65" x 0.118"
Round Tubing Stainless Steel ........... 1.65" x 0.059"
Maximum Moment of Resistance ........... 3.4 cm3 (S235)
Bending Angle up To .................... 180 Degrees +10 Degrees Spring Back
Bending Time ........................... Maximum 180 Deg./Sec (Front Feed)
Speed of Front Feed .................... 1600 mm sec
Speed of Rotation ...................... Maximum 450 Degree/Second
Repetition Tolerance Bending ........... +/-0.05 Degrees
Repetition Tolerance Length ............ +-0.05 mm
Repetition Tolerance Rotation .......... +/-0.05 Degrees
Arbor Length/Usable Length ............. 120"
Radii .................................. Max. 6.61"
Bending Height ......................... 45.27"
Boosting Force Length Positioning ...... 2.5 kN
Approximate Dimensions ................. 296" x 63" x 63"
Approximate Weight ..................... 12,100 Lbs.

EQUIPPED WITH:

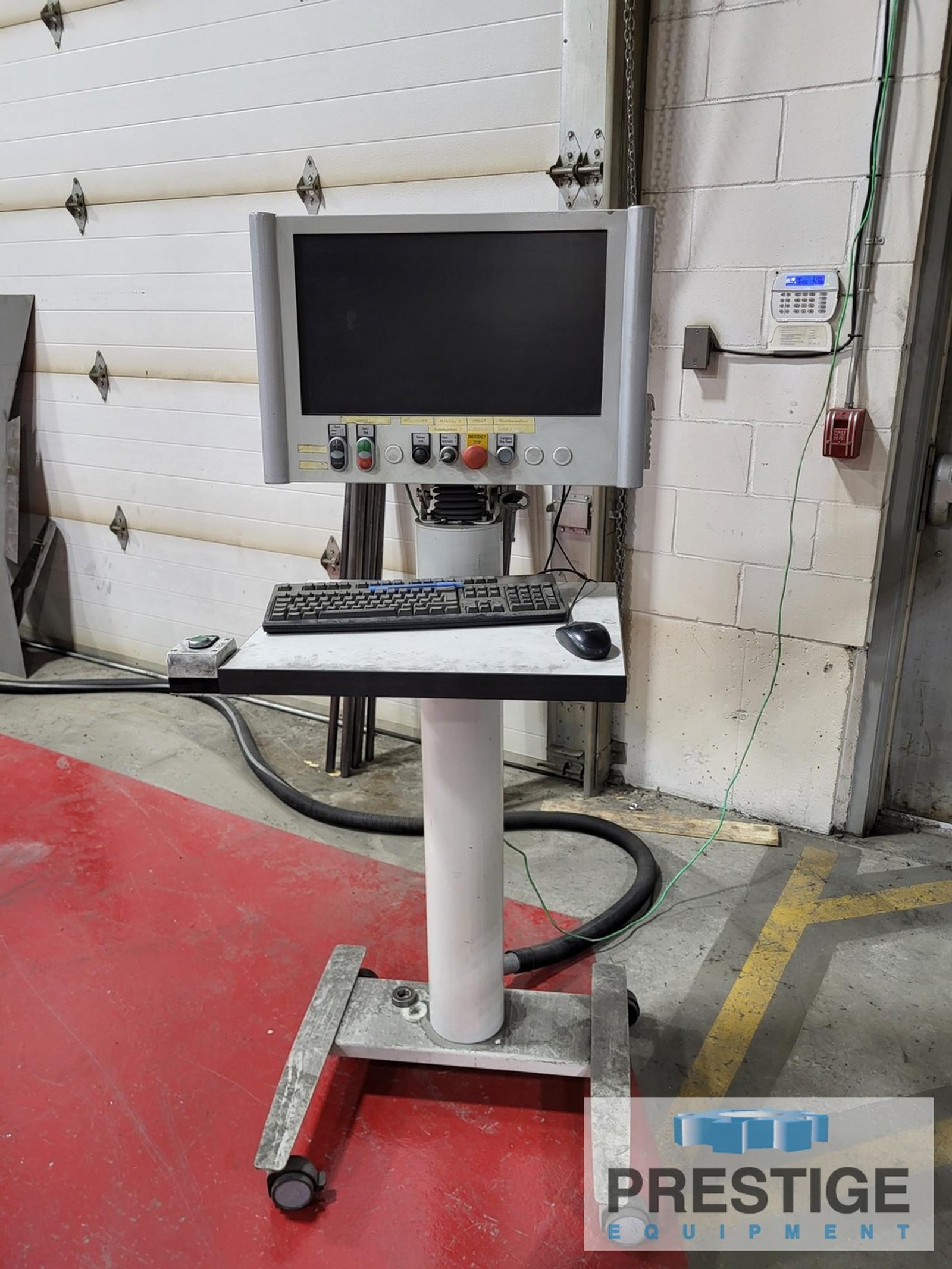

Transfluid CNC Control with Windows 10 Operating System and 22" Widescreen Monitor
Servo Electric Power Bending Axis
Servo Electric Positioning of the Rotation Length
All other axis Servo Electric (Clamping/Mandrel/Pressure Die...etc)
Bending Head For Right Hand/Left Hand with One Off Set Bend Device
Bending Head can be Horizontal & Vertical
Automatic Programmable Mandrel Withdrawal
Carriage For Wiper Die
Boosting Function
Remote Diagnostics Option
Automatic Mandrel Lubrication
Air Conditioning for Electrical Cabinet
