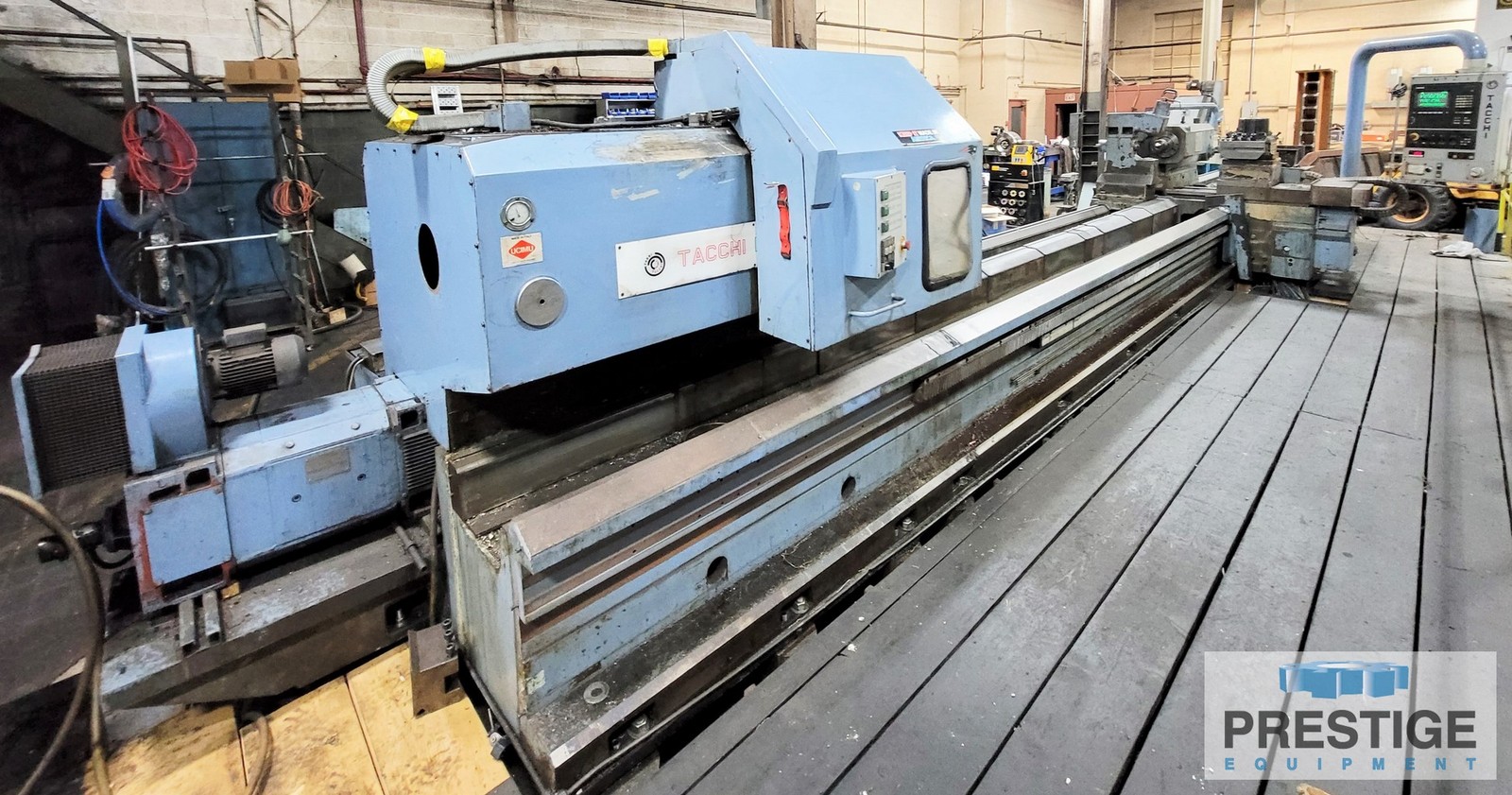

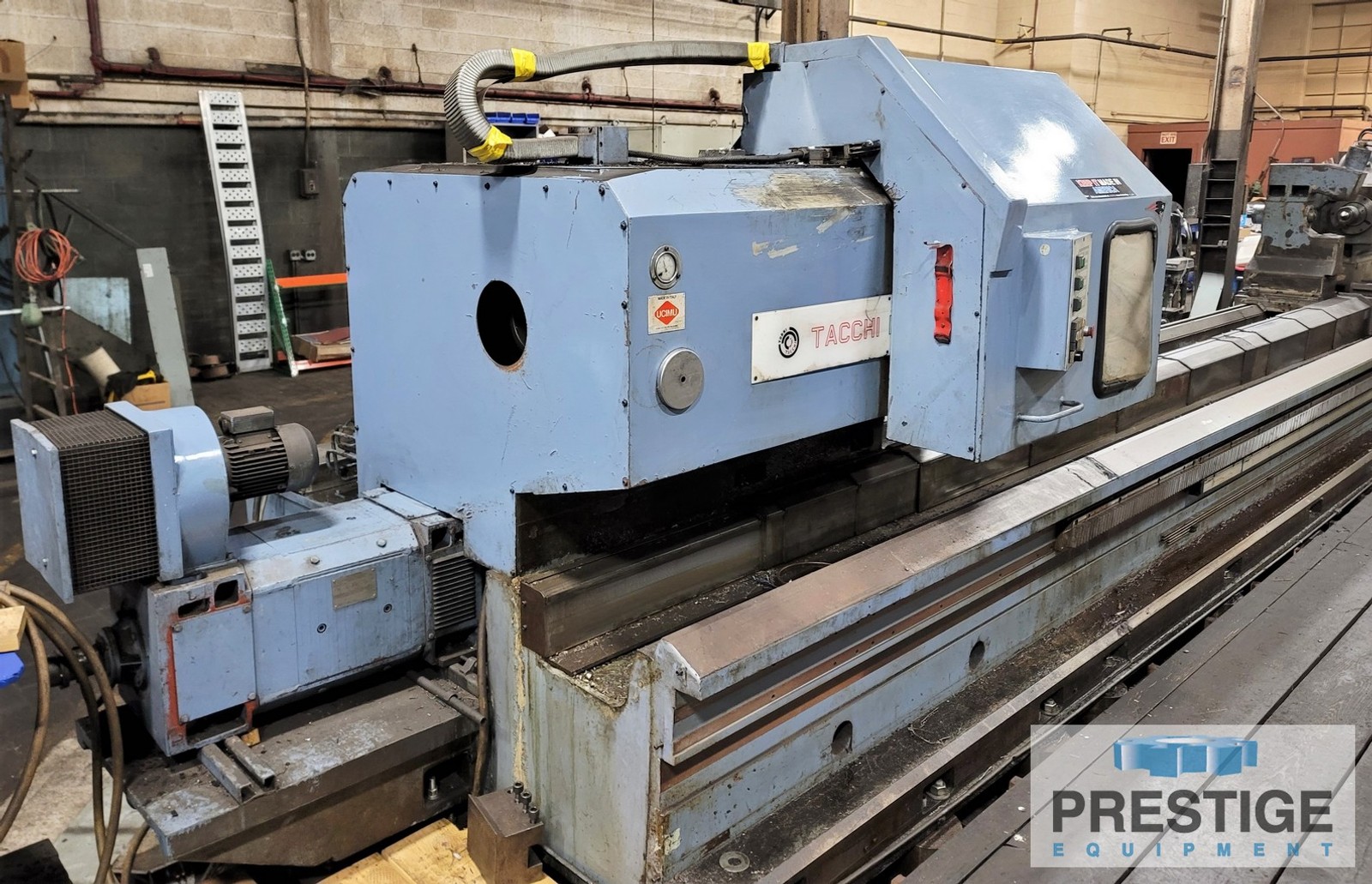

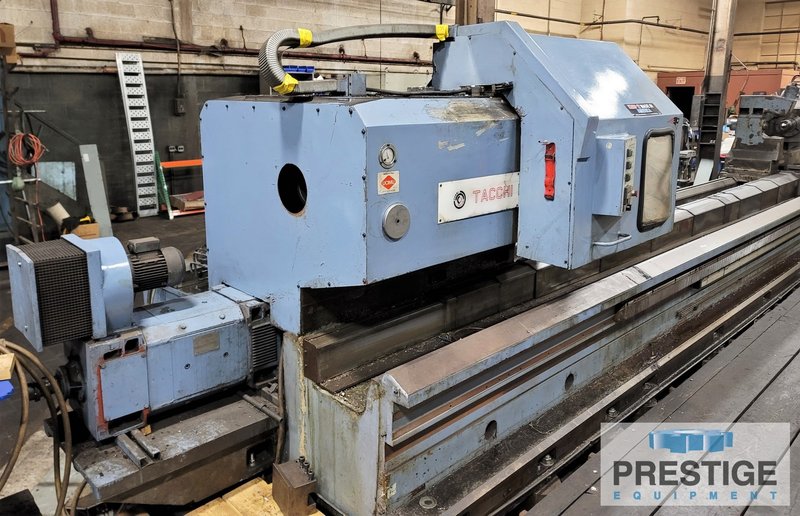

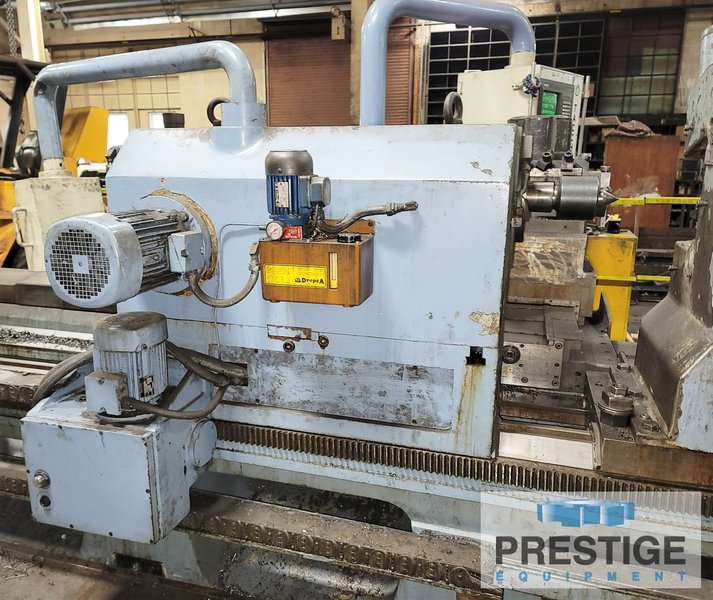

Tacchi HD/3 105L CNC Lathe, 45" Swing, 275" Centers, 80 HP, 3-Way Bed, Steady Rests, Chip Conveyor, Siemens CNC, #32421

Manufacturer

TACCHI

Category

Lathes

Type

LATHES, ENGINE

Stock

32421

Model

HD/3 105L x 7000

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32421
TACCHI HD/3 105L 45" x 275" CNC Lathe

FEATURES:
3-Way Bed, Carriage Can Pass Tailstock & Steady Rests

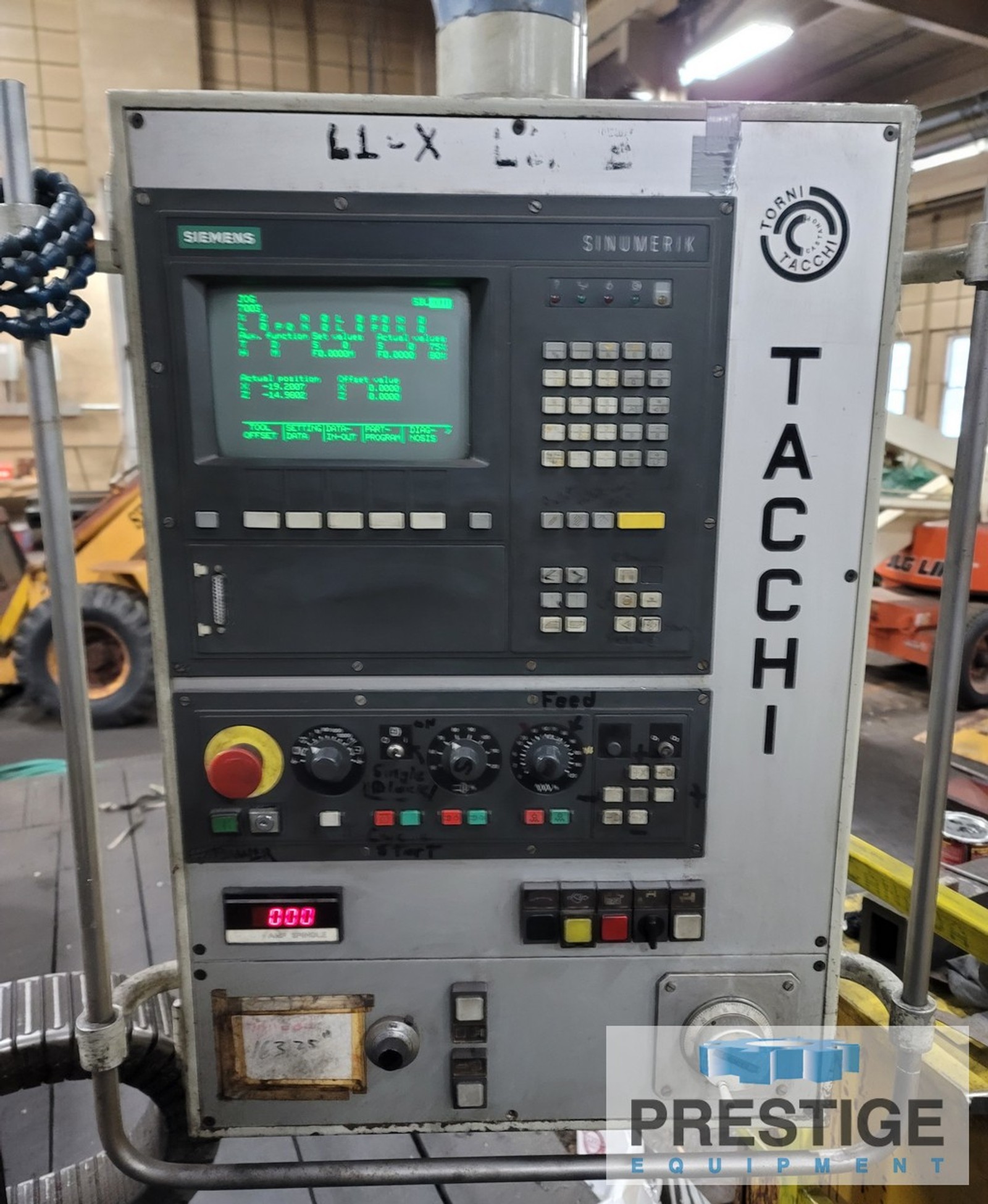

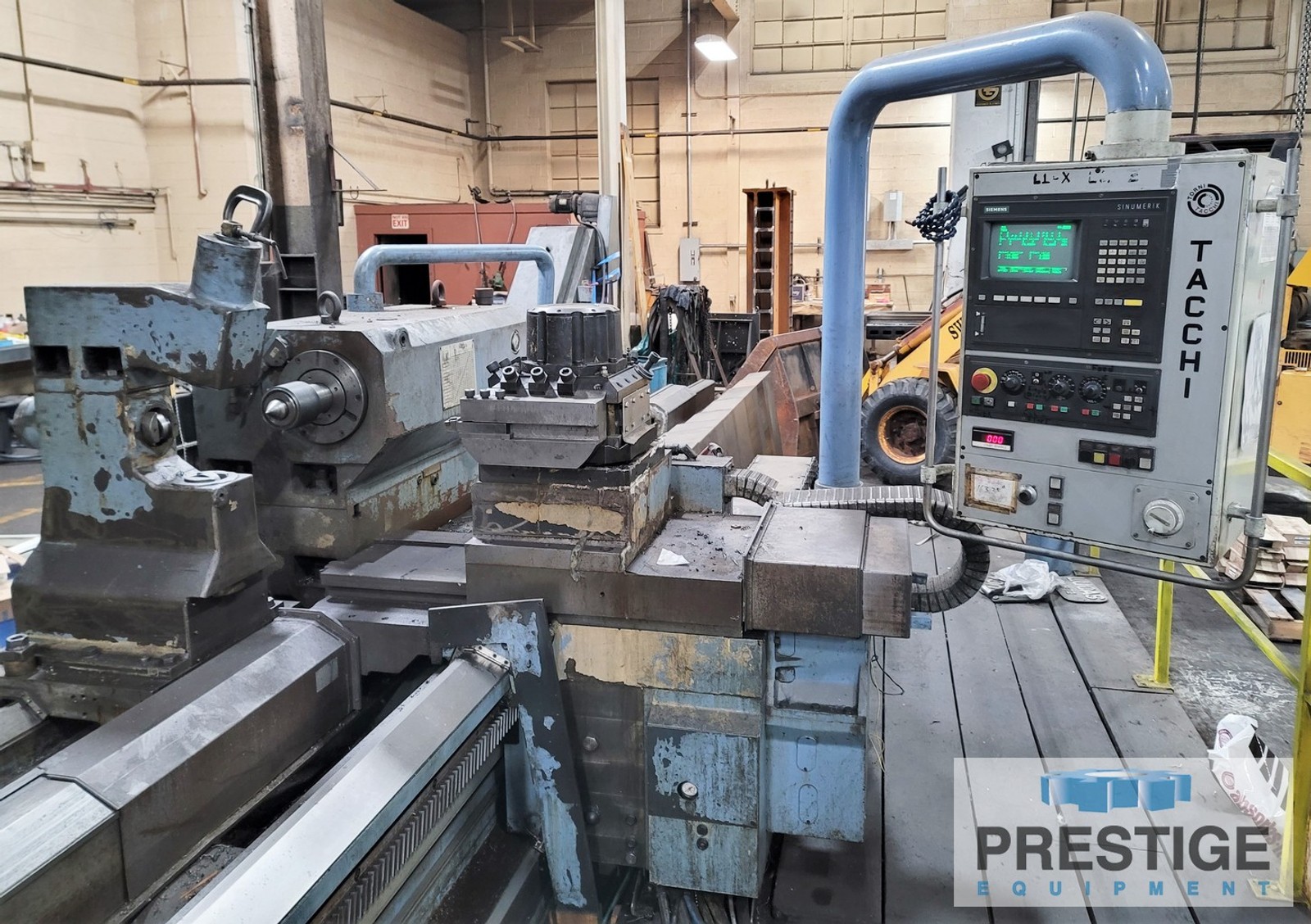

SIEMENS 810 CNC Control

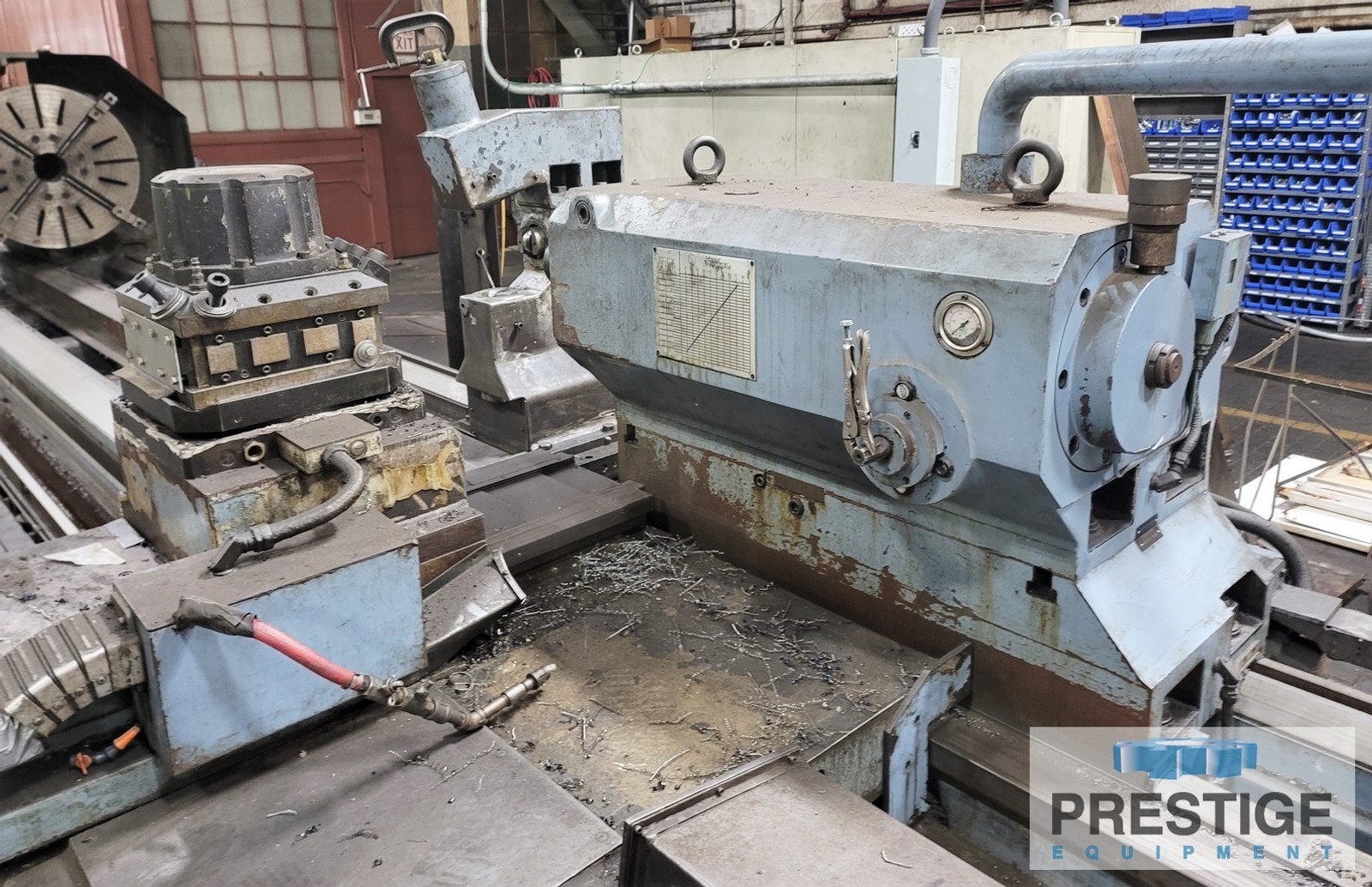

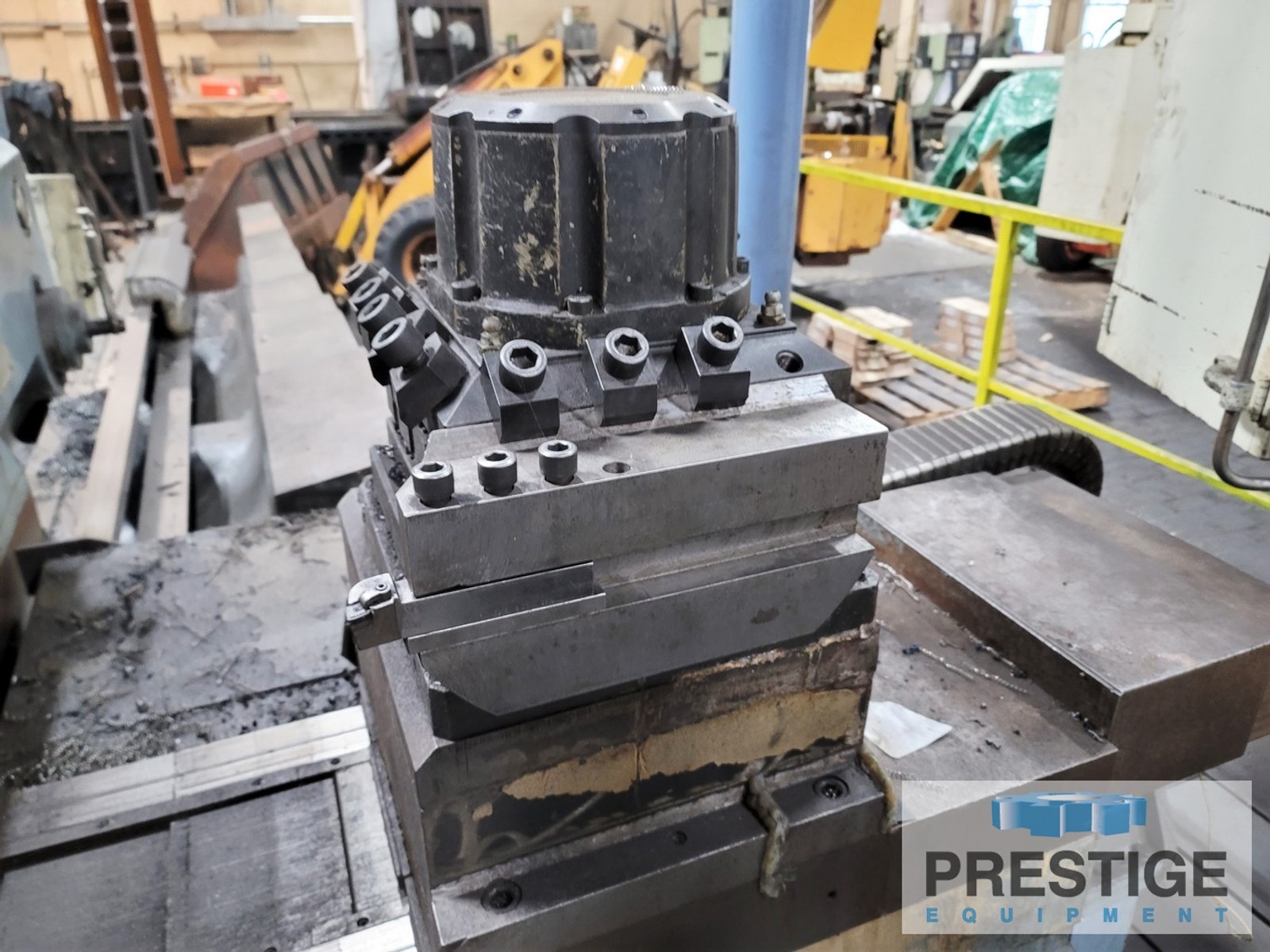

Duplomatic TRM-N 4-Position Turret

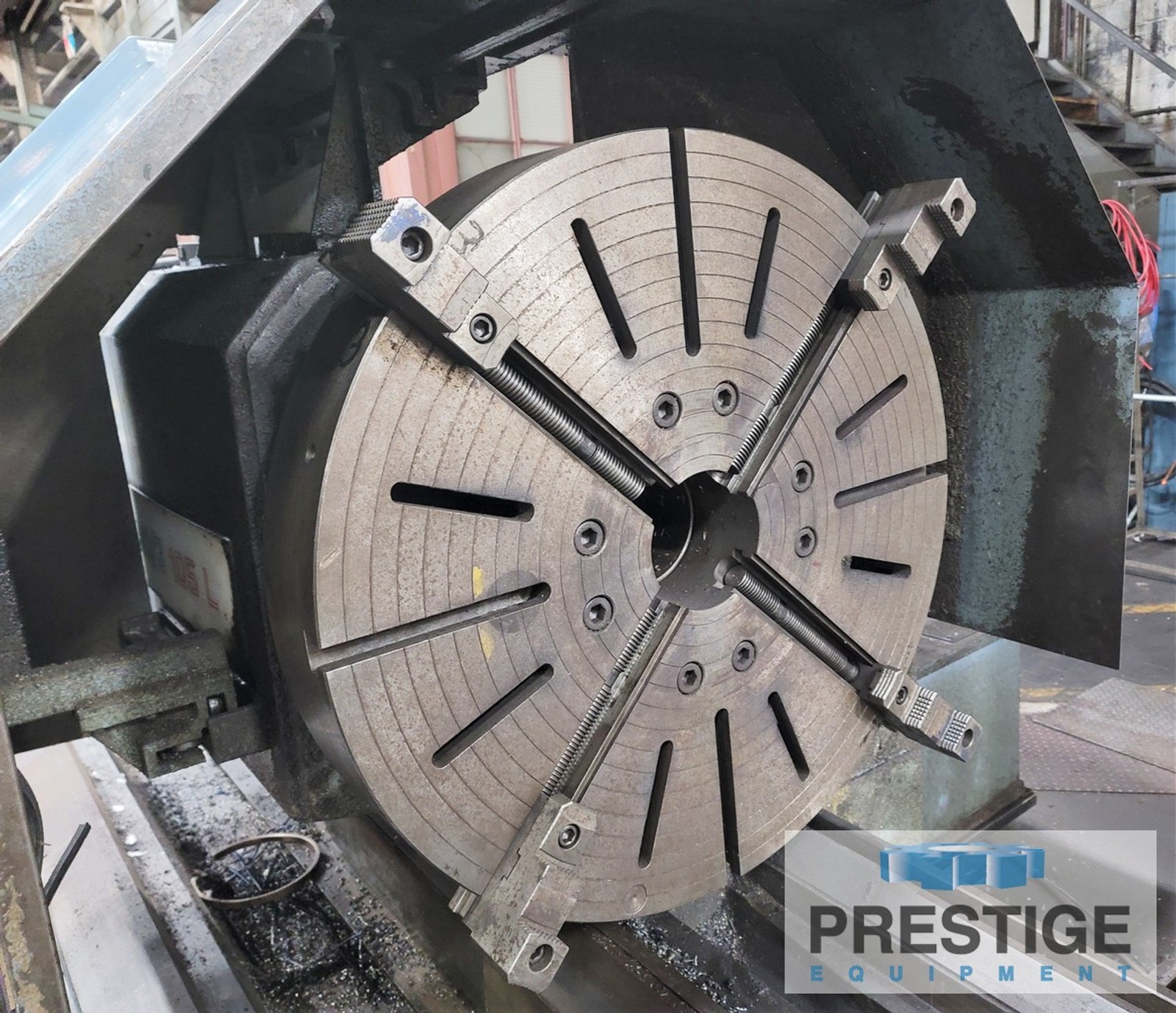

36" 4-Jaw Chuck

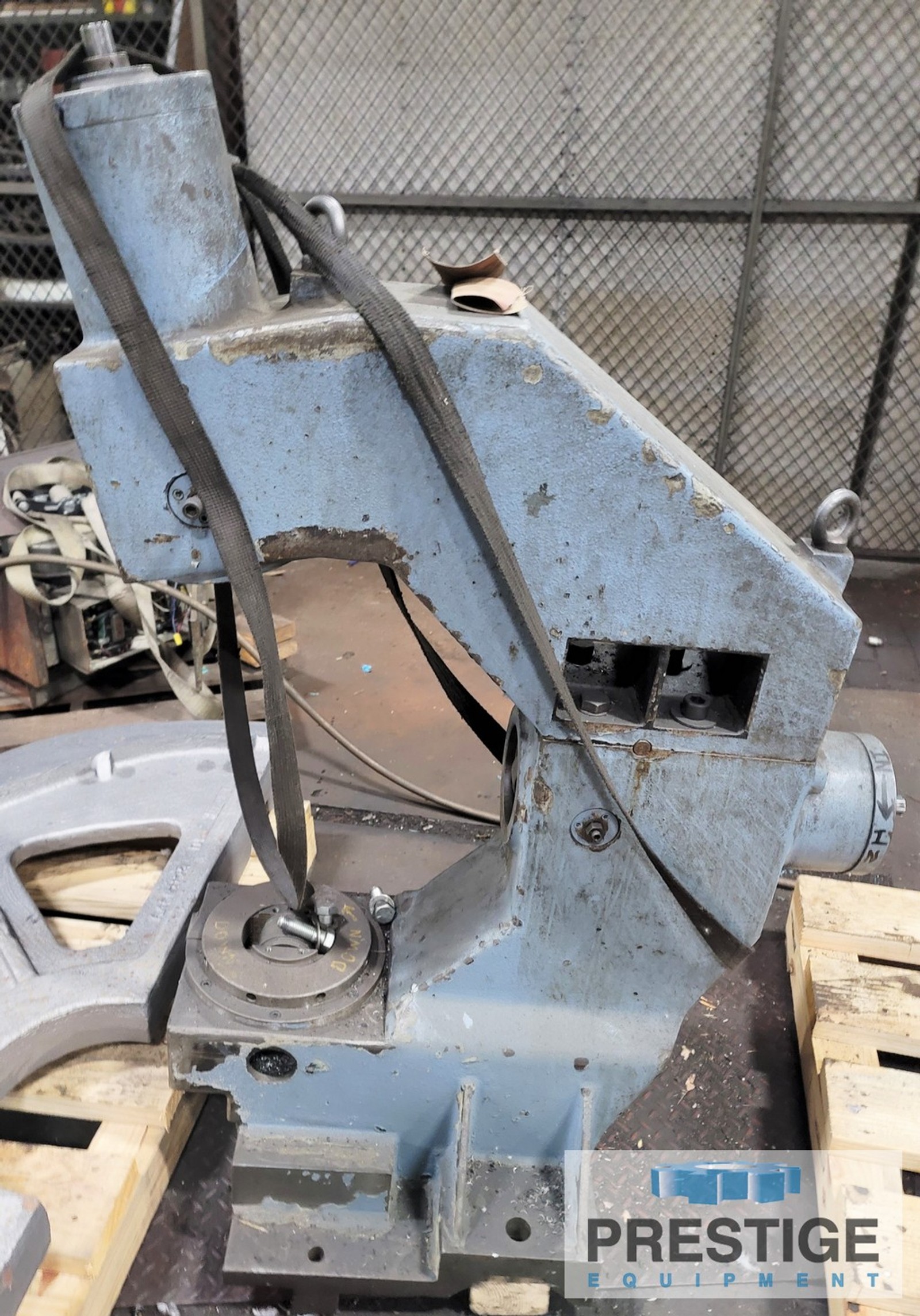

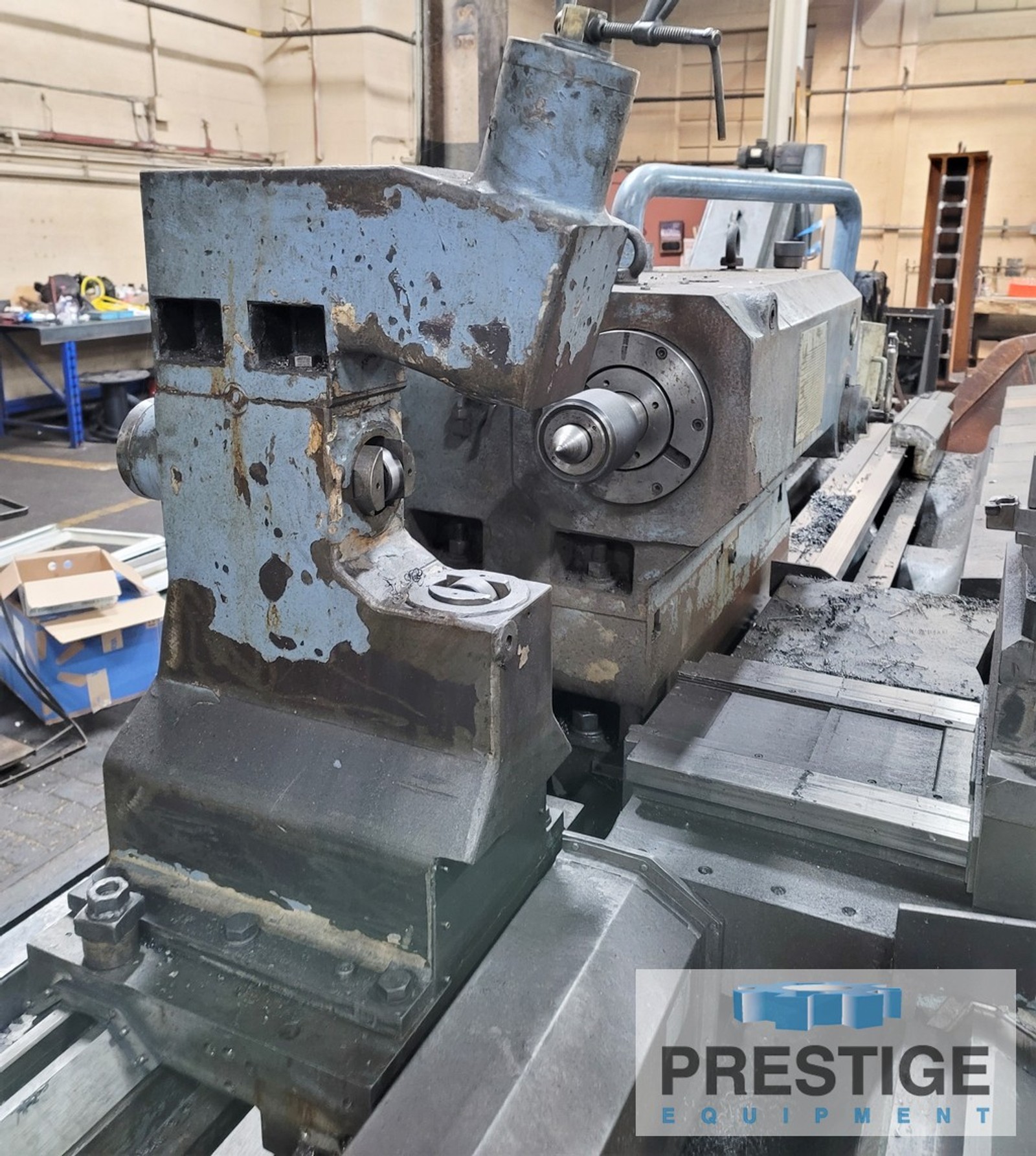

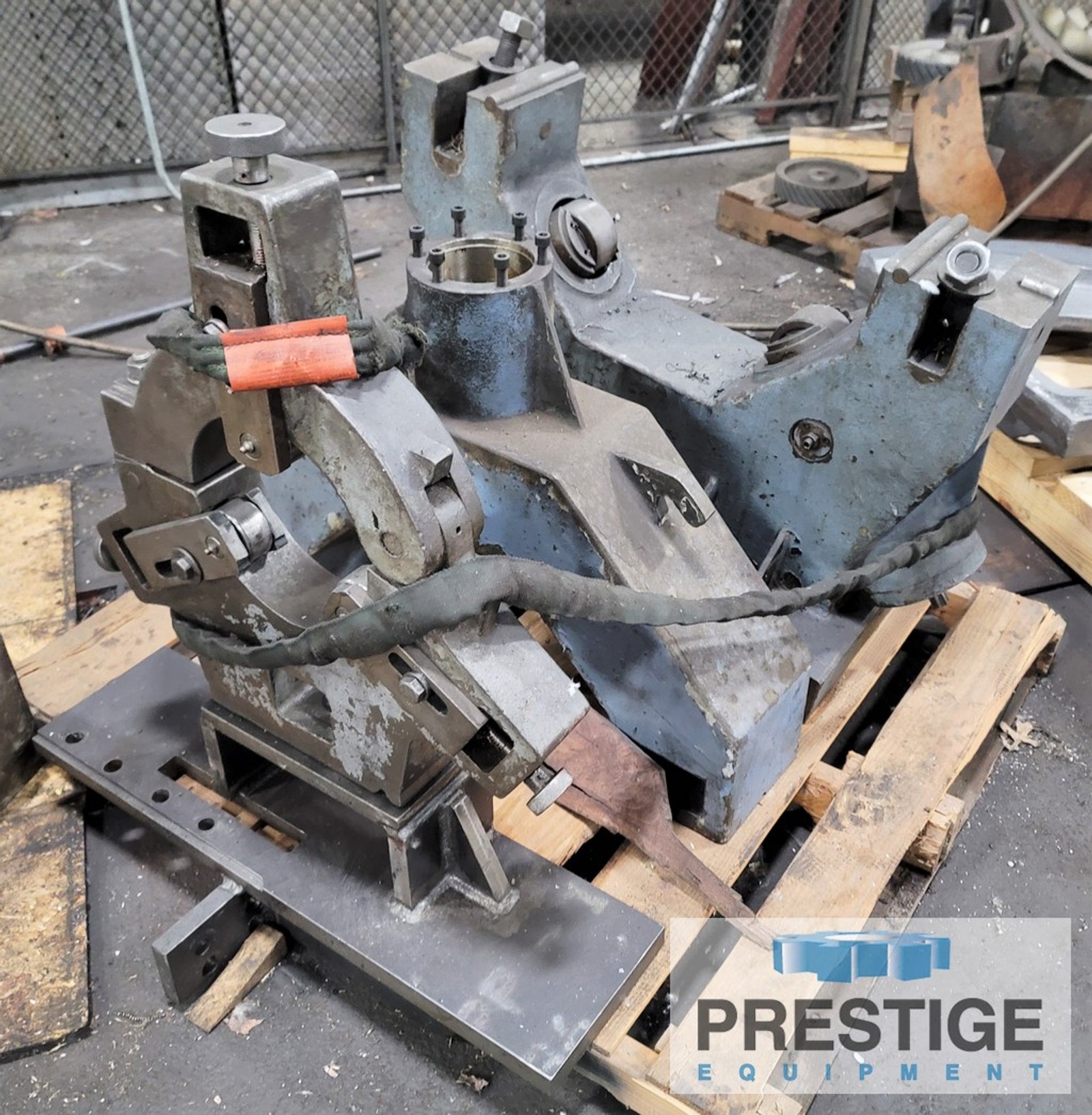

(3) Steady Rest
Chip Conveyor


Specifications:
Maximum Swing Over Bed ................ 45.27"
Maximum Swing Over Saddle ............. 31.49"
Distance Between Centers .............. 275.59"
Weight Between Centers without Rests .. 22,000 lbs
Spindle Speeds ........................ 2-720 RPM
Number of Speed Ranges ................ 3
Main Motor ............................ 80 HP (60 KW)
Maximum Torque ........................ 900 Kgm
Spindle Nose DIN 55021 ................ 11"
Spindle Hole Diameter ................. 4.13"
Longitudinal Feeds, Variable .......... 0-236 IPM
Cross Feeds, Variable ................. 0-236 IPM
Tailstock Quill Diameter .............. 5.51"
Tailstock Quill Travel ................ 11.81"
Internal Taper ........................ Morse #6
Machine Footprint ..................... 511" x 120"
Machine Height ........................ 83"

EQUIPPED WITH:
SIEMENS 810 CNC Control
Duplomatic TRM-N 4-Position Turret
36" 4-Jaw Chuck
(3) Steady Rest
Chip Conveyor

Note:
3-Way Bed, Carriage Can Pass Tailstock & Steady Rest
