52" x .250" x 40,000Lb Loopco Loop Slitting Line

Manufacturer

LOOPCO

Category

Slitters and Slitting Lines

Type

SLITTING LINES

Stock

19684

Model

None listed

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Make: Loopco
Material Width: 12" - 52"
Material Thickness: .040" - .269"
Coil Weight: 40,000Lb
Coil ID: 20" - 24"
Coil OD: 72"
Direction: Right to Left
Speed: 1,200 feet per minute

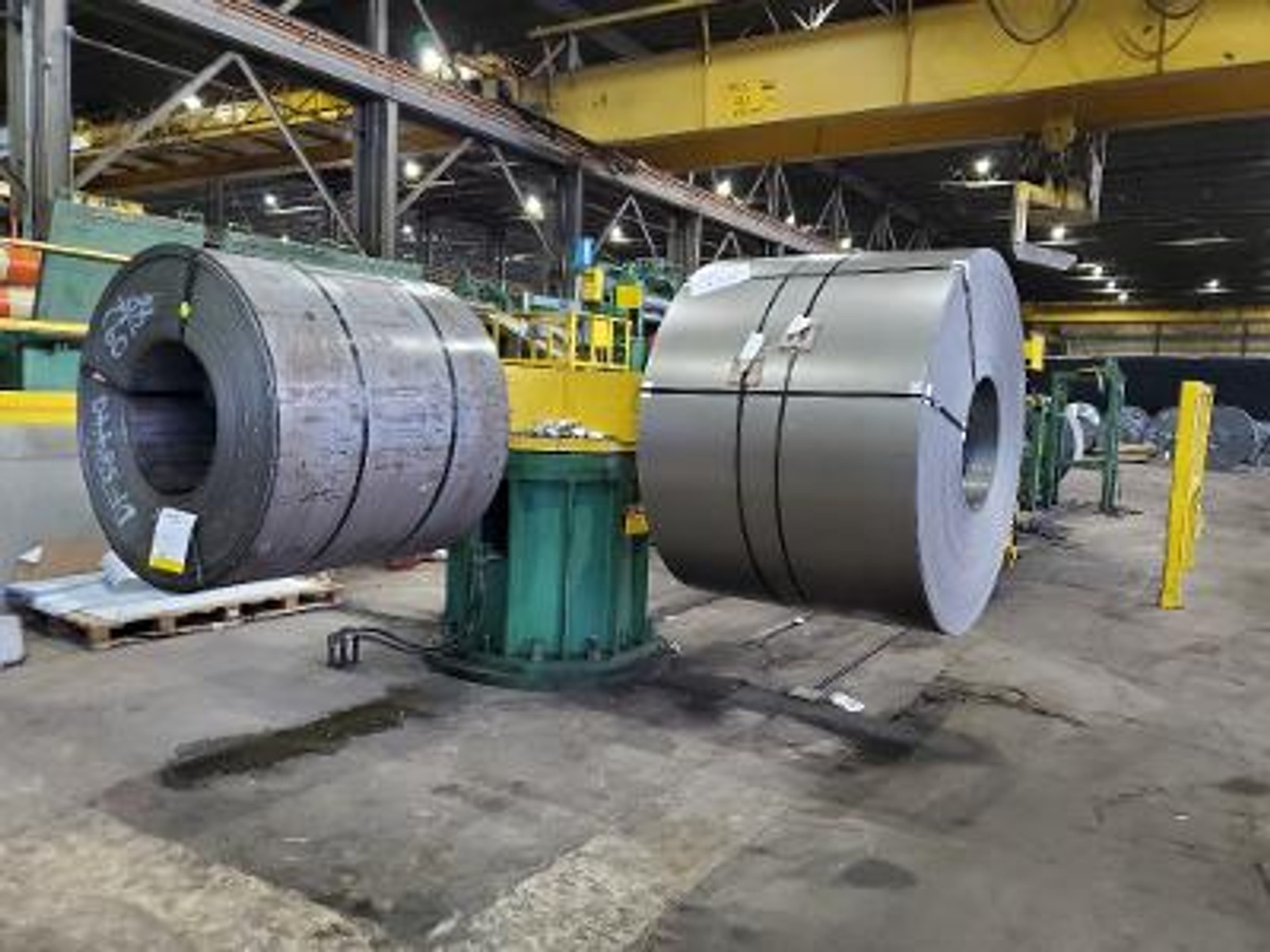

Entry 4-Arm Turnstile
Powered Rotation
ID Protective C-Hook Slot

Entry L-Type Coil Car
Make: Stamco
Weight: 50,000Lb
Maximun Width: 56"
Hydraulic Lift & Traverse
Self Contained Hydraulics
Hydraulic Cylinder: 8"
Pedant Controls

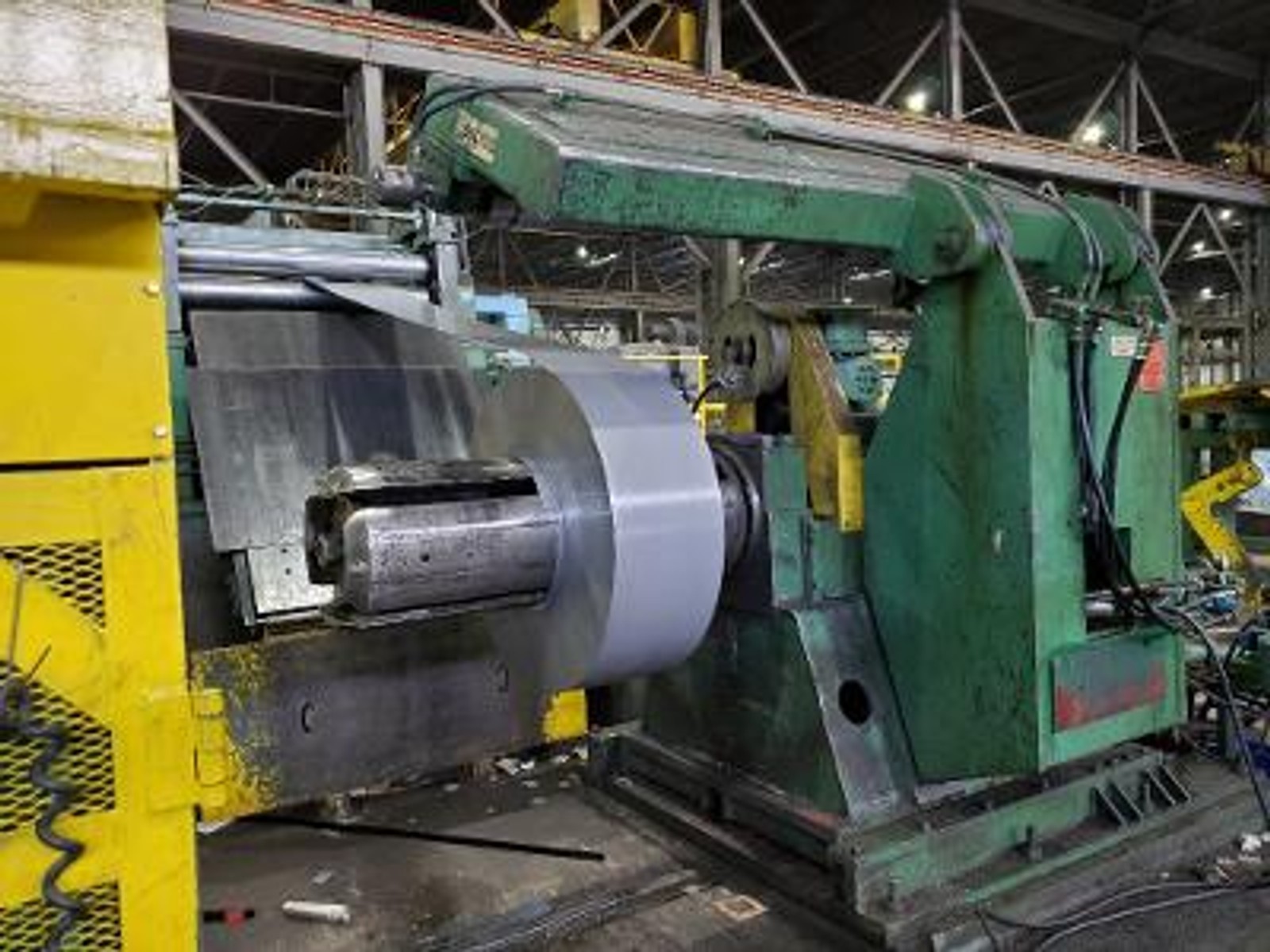

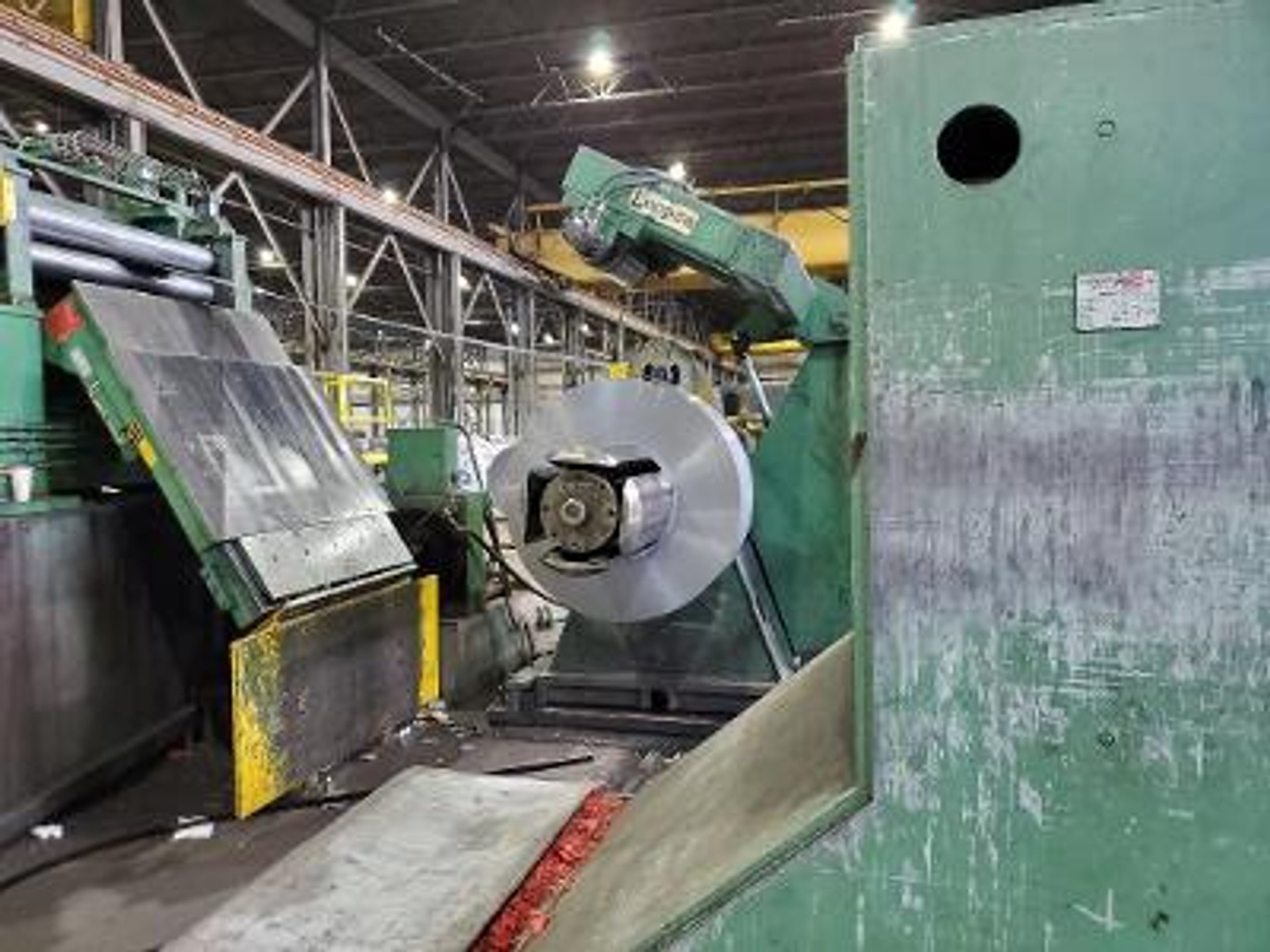

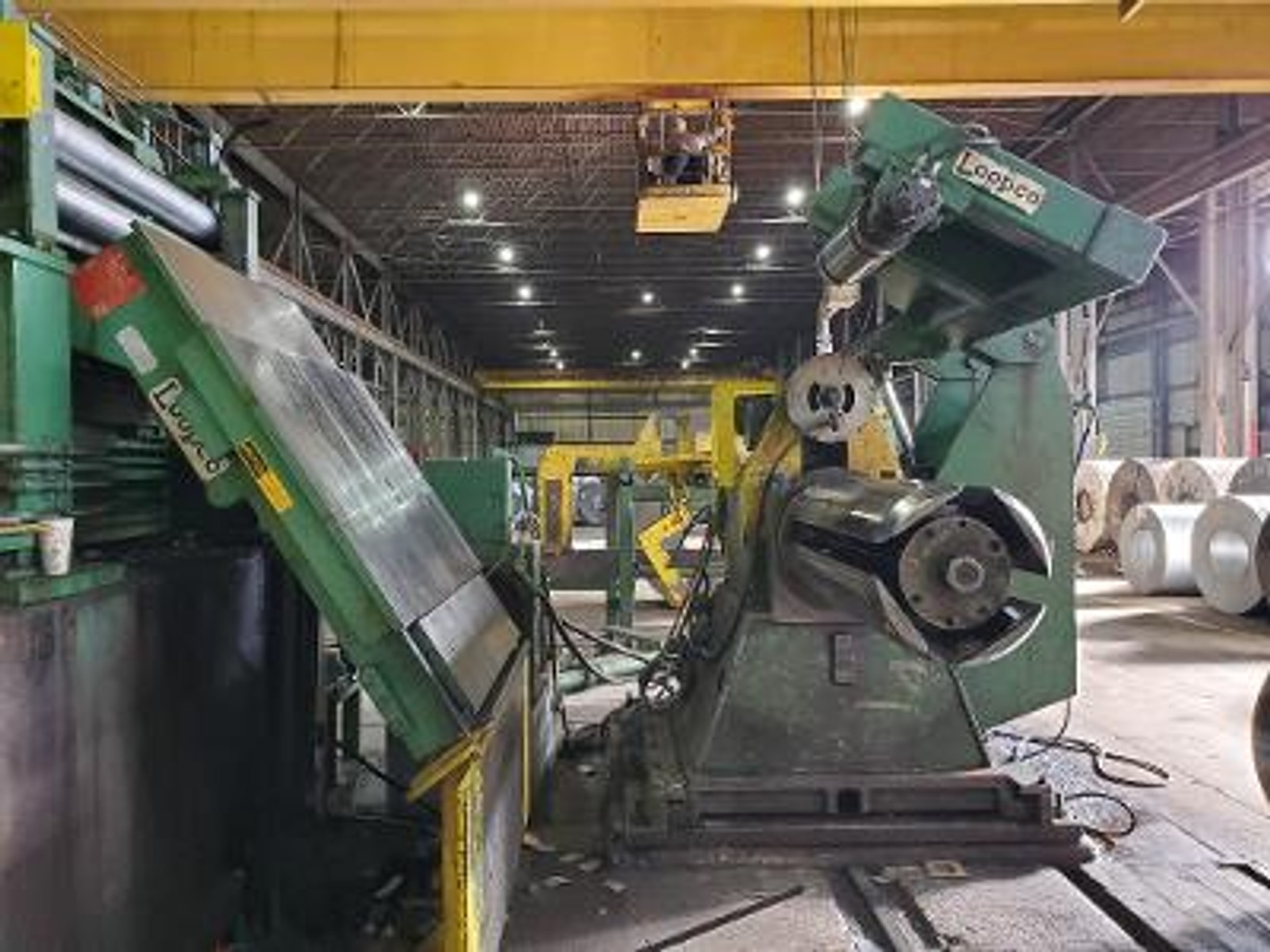

Mandrel Uncoiler
Powered Hold-Down Roll
Water Cooled Brake
Powered Expansion
Feed - Up Motor Drive

Hydraulic Peeling Table

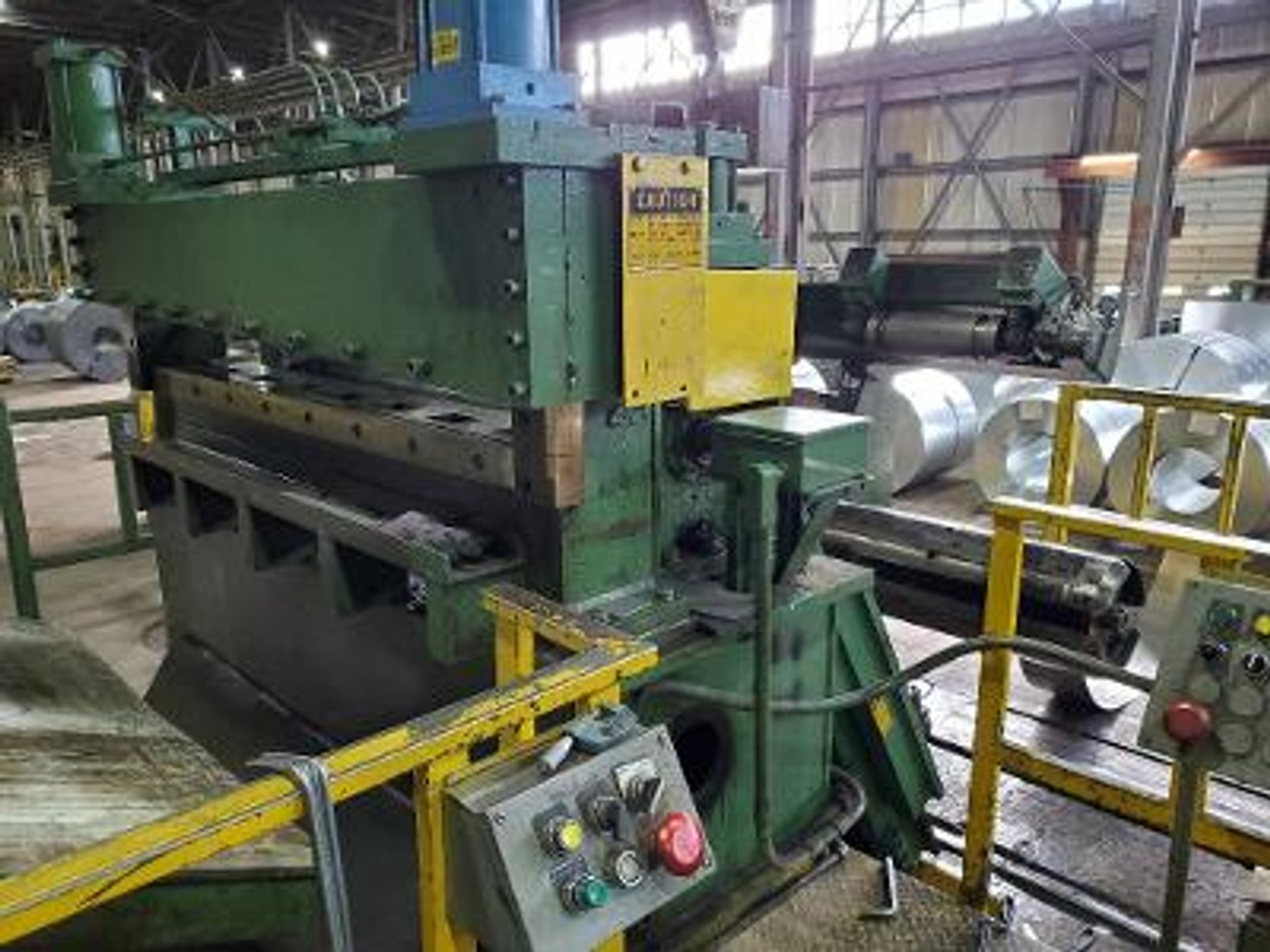

Entry Mechanical Crop Shear

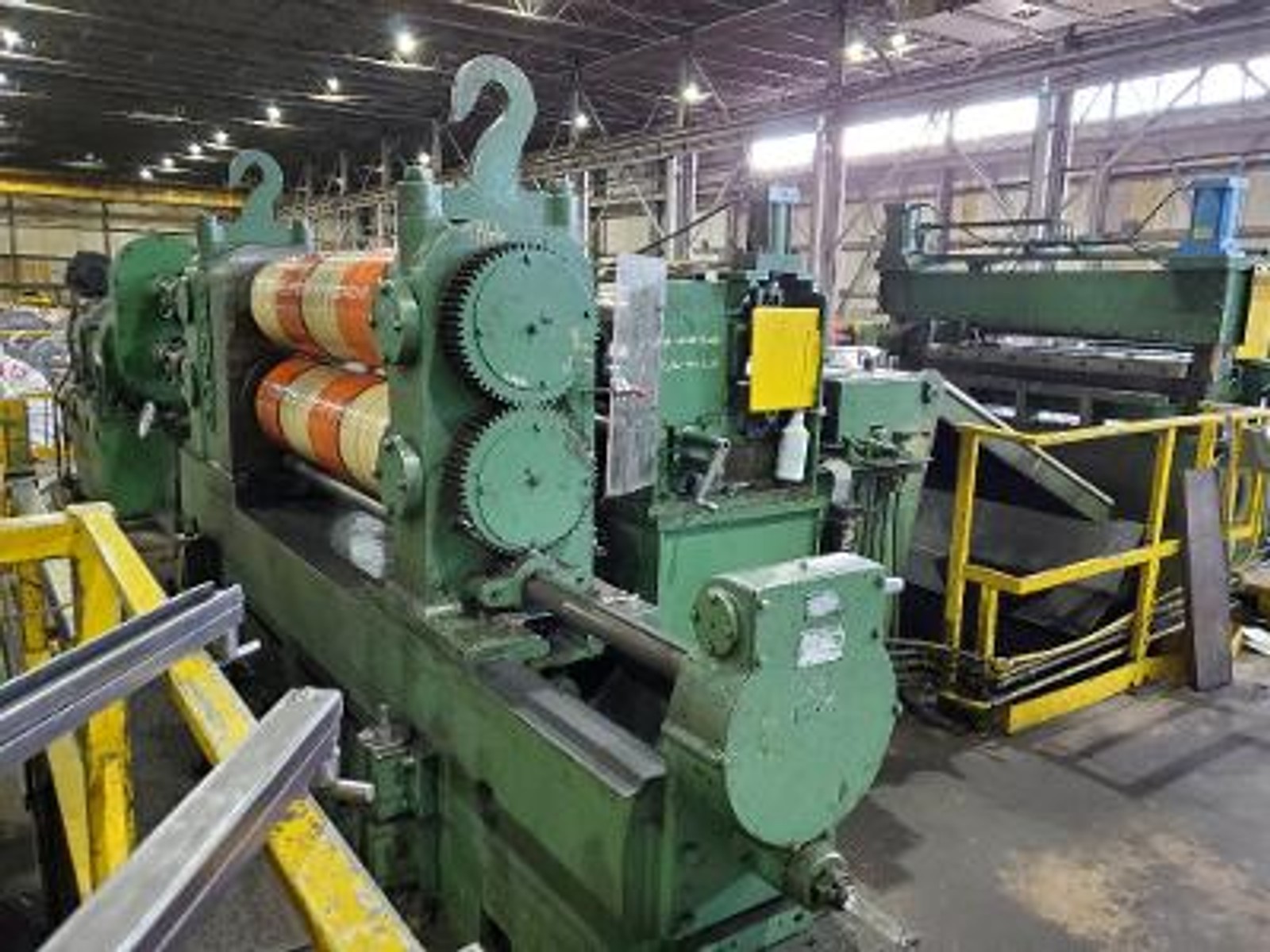

Driven Entry Pinch Rolls
Adjustable Edge Guides

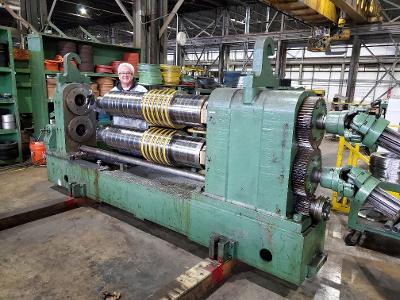

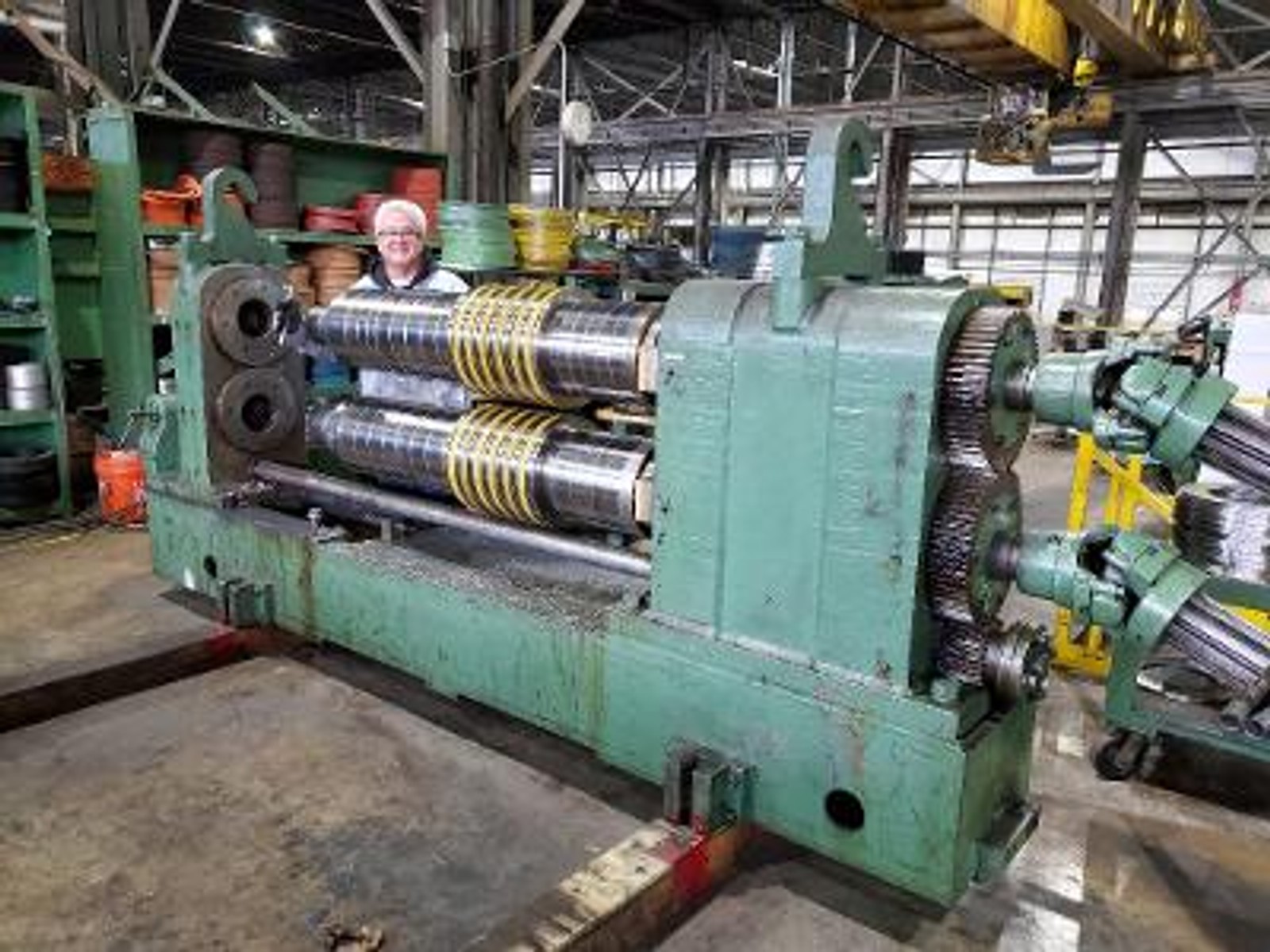

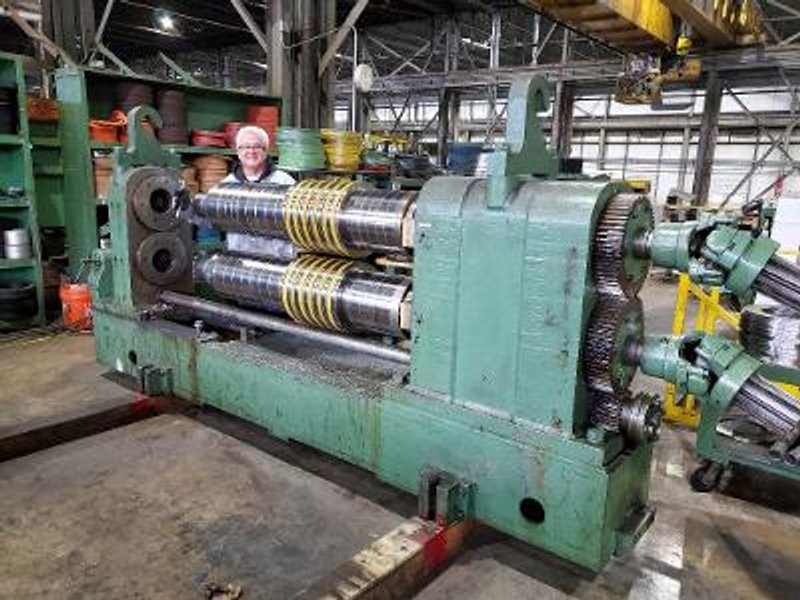

Two (2) Loopco Slitting Heads
Crane Removable Design
Arbor Diameter: 8.5"
Motor: 150HP DC 850/2600 RPM Baldor
Lots of Knives and Tooling

Two (2) Scrap Winders
Hydraulic Motor
Powered Open / Close

Drag Board Type Tension Stand
Strip Separating Bar with Tooling
Attached Over-Arm Separator

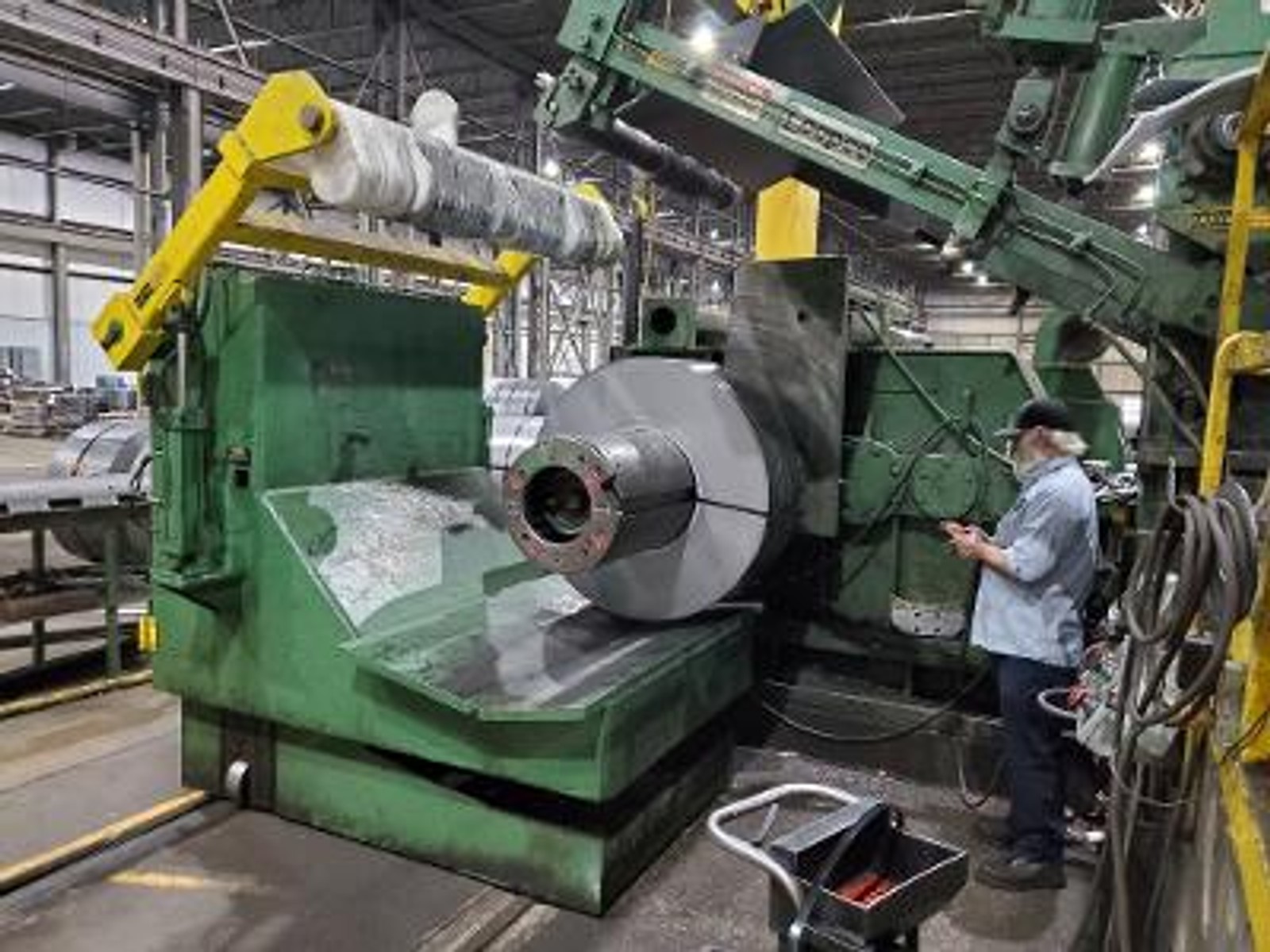

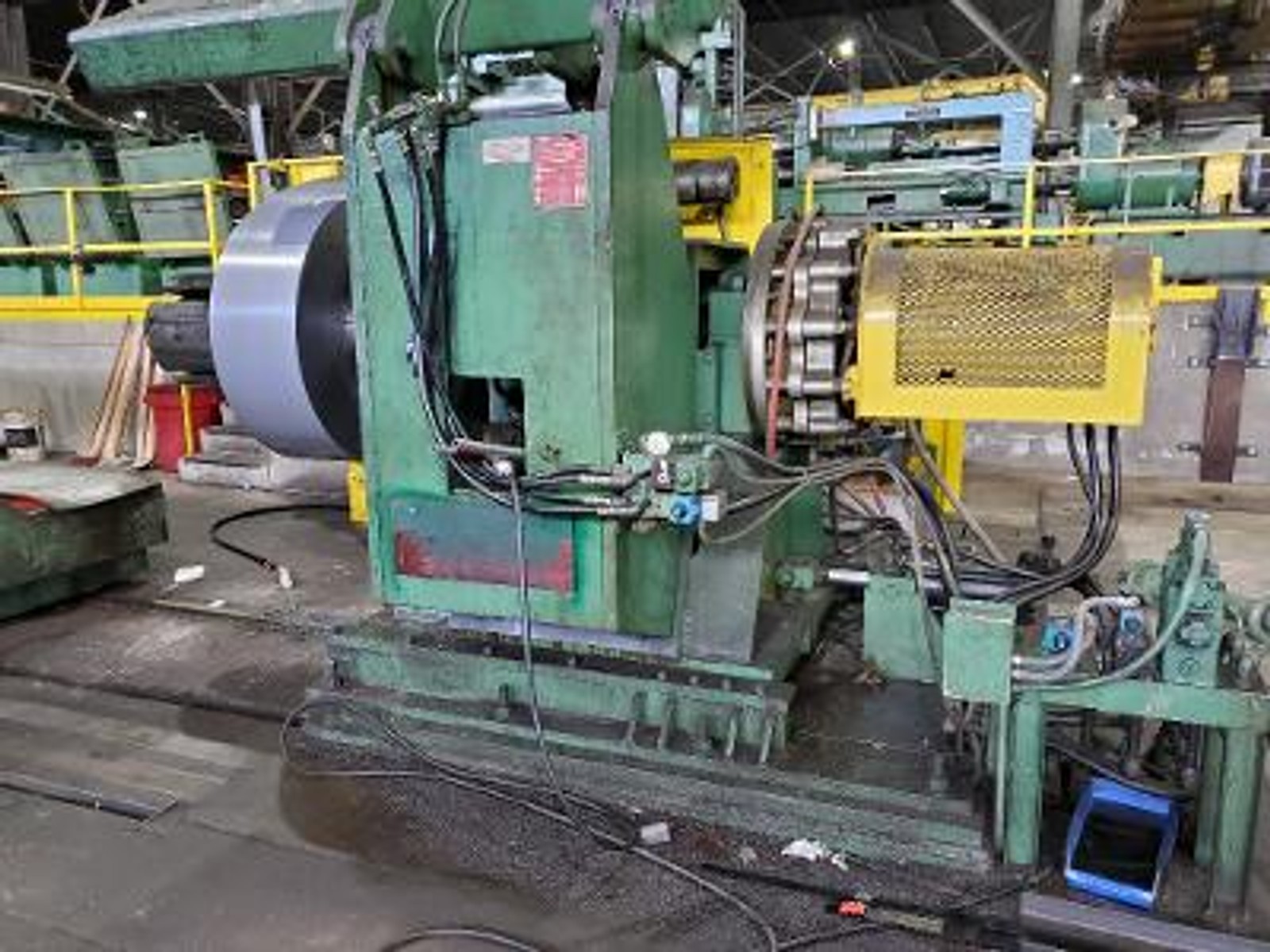

Recoiler
Powered Gripper
Hydraulic Push - Off
Motor: 150HP DC 400/1600 RPM
1 Ton Jib Crane for OverArm Change Over

Exit L-Type Coil Car
Hydraulic Lift and Traverse
Self Contained Hydraulics

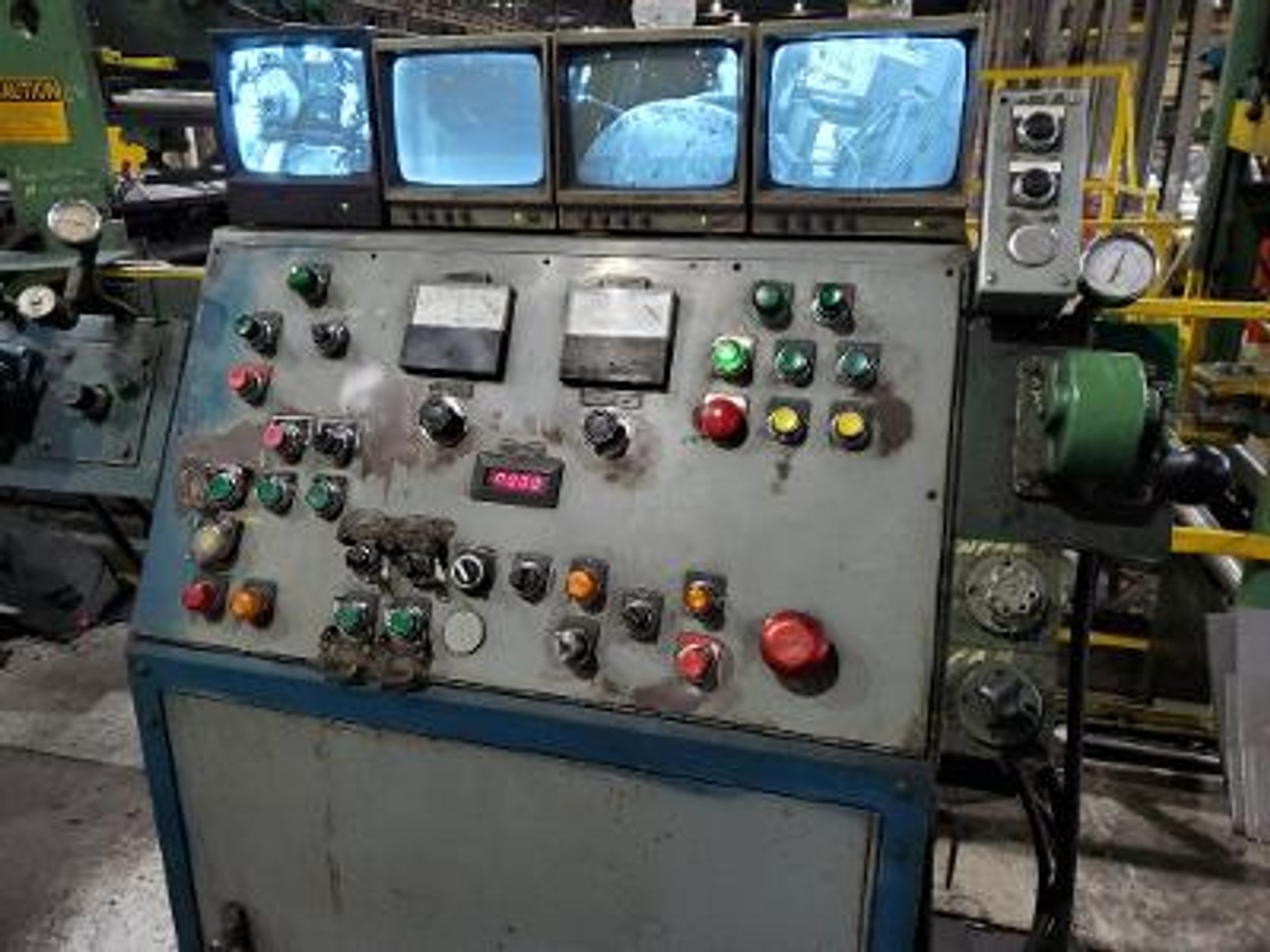

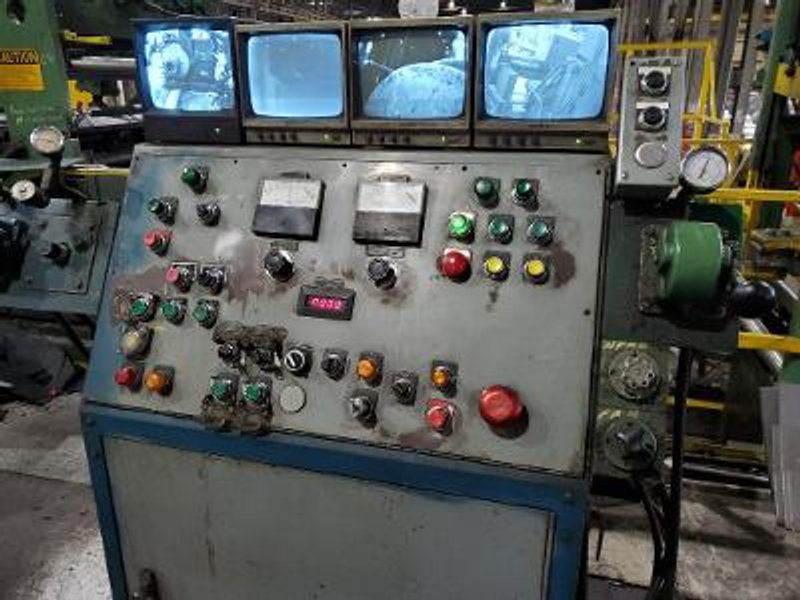

Electrics, Hydraulics, Controls, Lots of Knives & Tooling
