Haas ST-40L, 34.5" Swing, 80 Centers, Live Milling, 15" Chuck, 12-Pos. Tailstock, Chip Conveyor, Presetter, 2013 #32450

Manufacturer

HAAS

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32450

Model

ST-40L

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32450
Haas ST40L CNC Lathe

FEATURES:

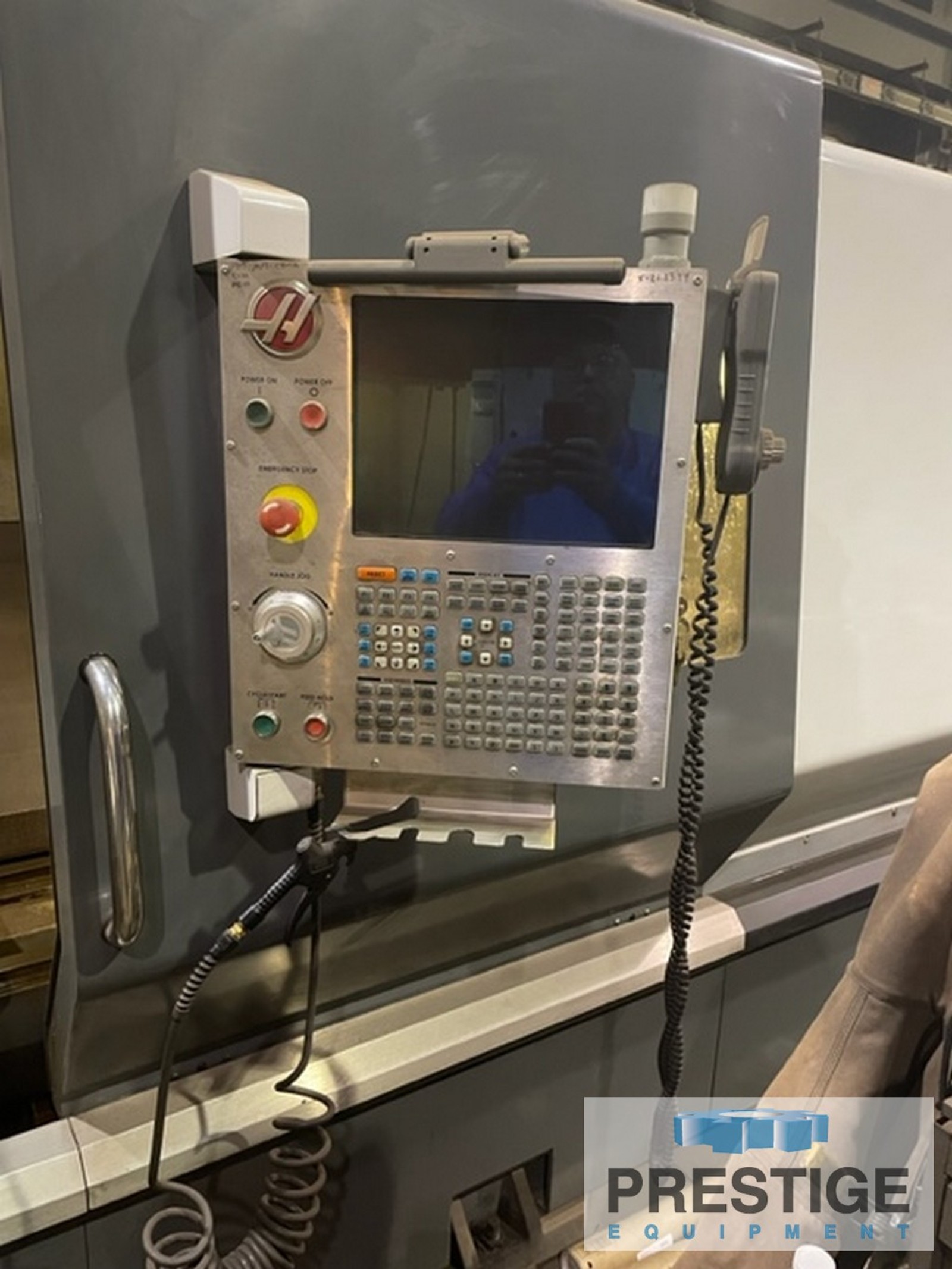

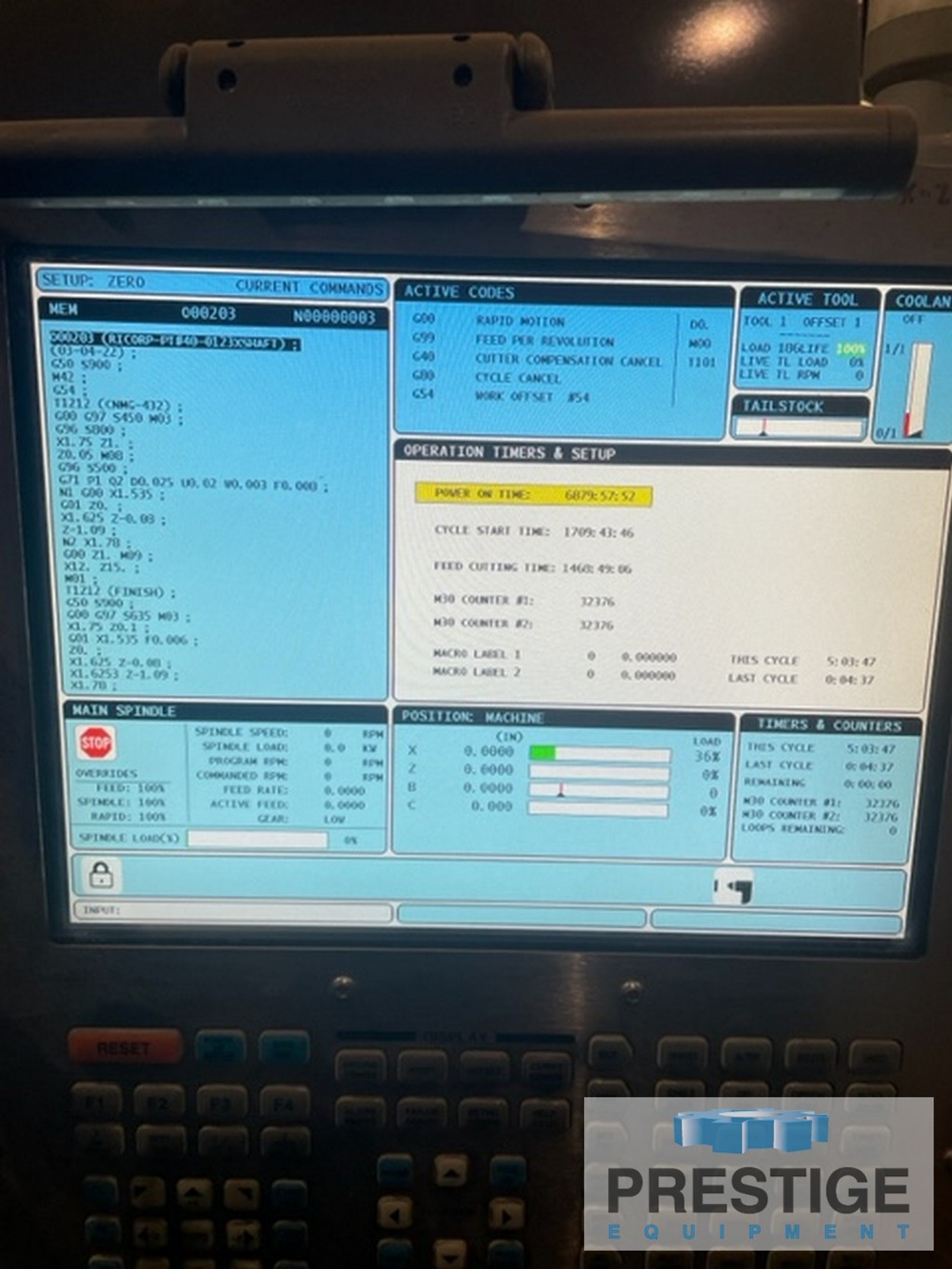

Haas CNC Control w/ MPG Remote

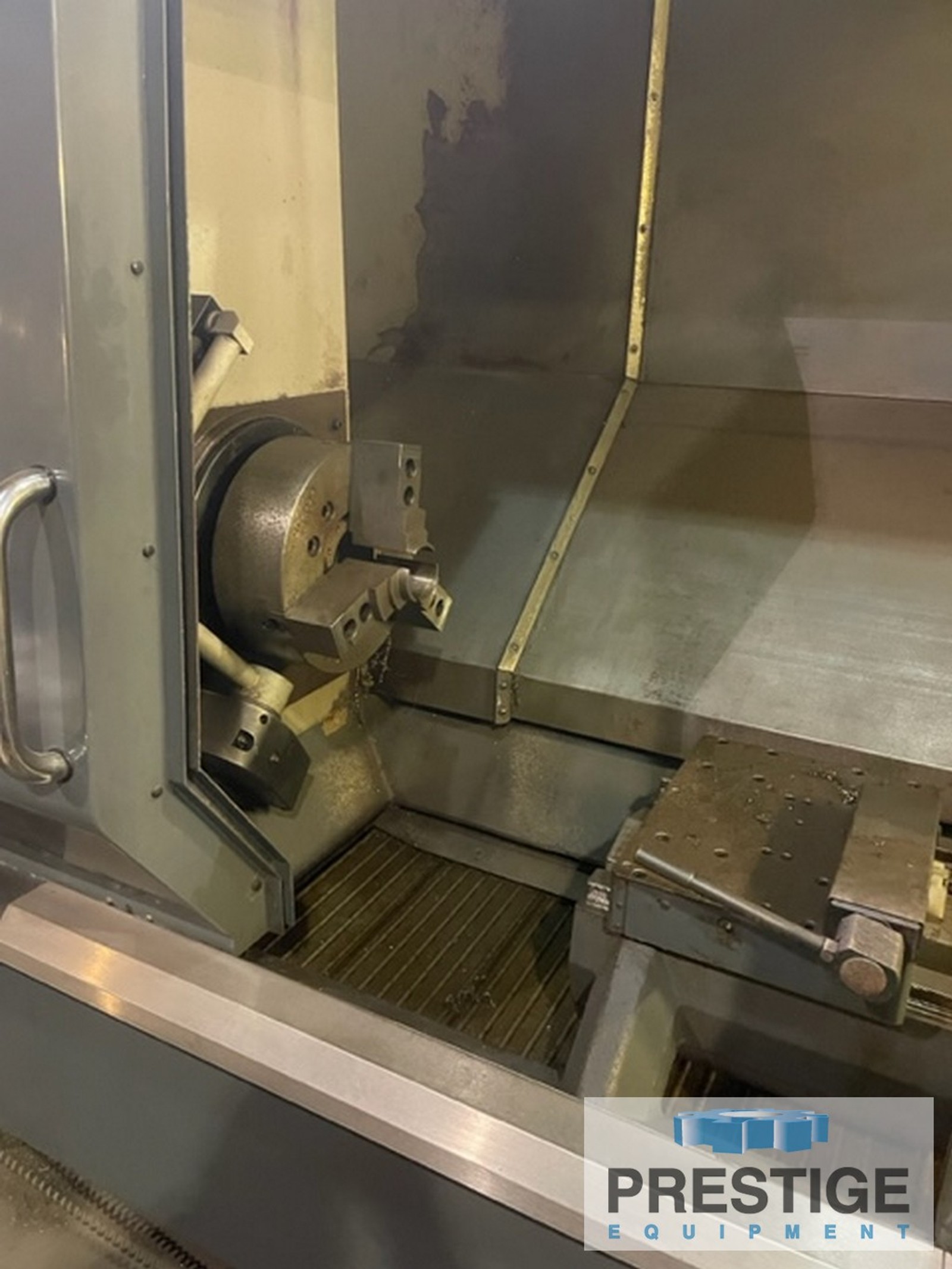

15" 3-Jaw Chuck
Live Milling
C-Axis
Hydraulic Tailstock
Steady Rest
Tool Pre-Setter

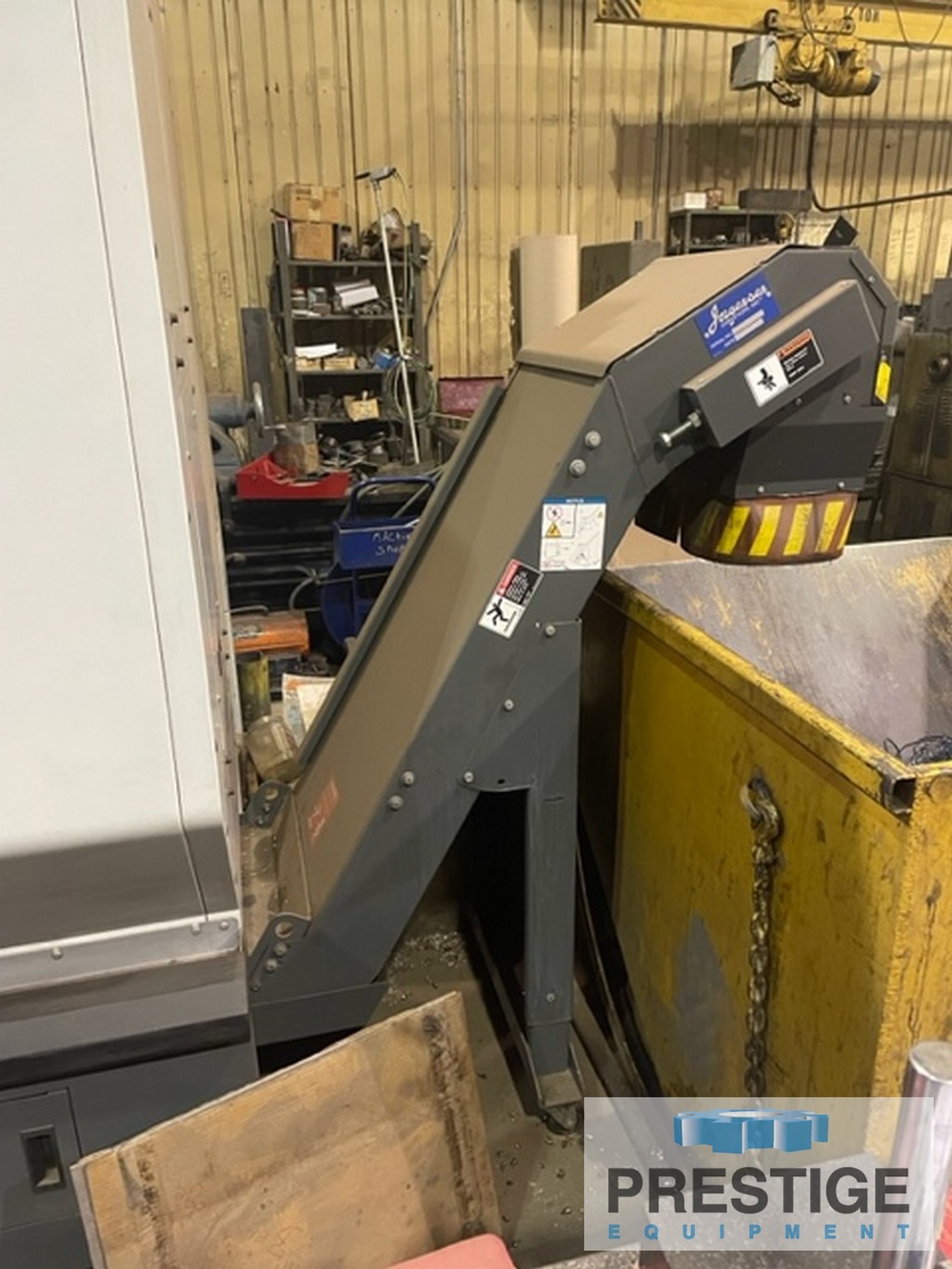

Chip Conveyor

SPECIFICATIONS:
Swing Over Front Apron ................ 34.5"
Swing Over Cross Slide ................ 25.5"
Maximum Cutting Diameter .............. 25.5"
Maximum Cutting Length ................ 80"
Spindle Speeds ........................ 2,400 RPM
Spindle Motor ......................... 40 HP
X-Axis Travel ......................... 17"
Z-Axis Travel ......................... 80"
Spindle Nose .......................... A2-8
Spindle Bore .......................... 4.62"
Bar Capacity .......................... 4.0"
X-Axis Rapids ......................... 710 IPM
Z-Axis Rapids ......................... 320 IPM
Approximate Machine Weight ............ 25,900 Lbs

EQUIPPED WITH:
Haas CNC Control w/ MPG Remote
15" 3-Jaw Chuck
Live Milling
C-Axis
Hydraulic Tailstock

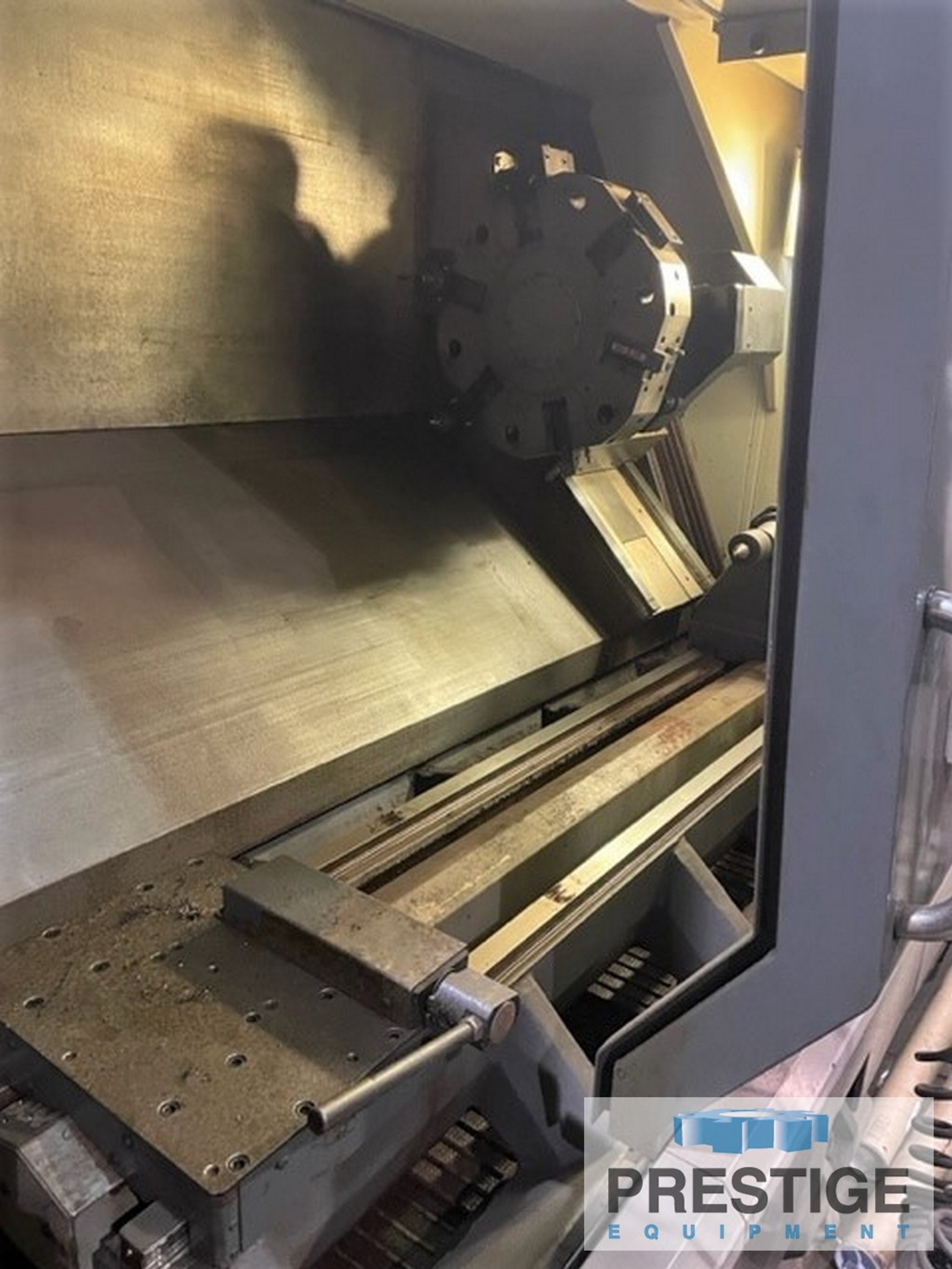

12-Station Turret
Steady Rest
Tool Pre-Setter
Chip Conveyor

LOCATION:
In Plant Under Power
