Name: BLM Adige LT712D Tube Laser, 5" Max. Dia., 335" In-Feed, 2.5 KW Rofin CO2 Resonator, 2006 #32411
Brand: BLM ADIGE
SKU: 32411

Manufacturer

BLM ADIGE

Spec Sheet

Reference #32411
BLM Adige 2500 Watt LT 712D CNC Tube Laser

SPECIFICATIONS:
Rated Laser Output .................... 2500 Watts
Maximum Bar Length .................... 236.22"
Minimum Bar Length for Auto Bundling .. 125.98"
Tube Weight ........................... 10.1 Lbs/Ft.
Maximum Outer Circle Diameter.......... 5"
Infeed ................................ 334.64"
Outfeed ............................... 255.90"

EQUIPPED WITH:

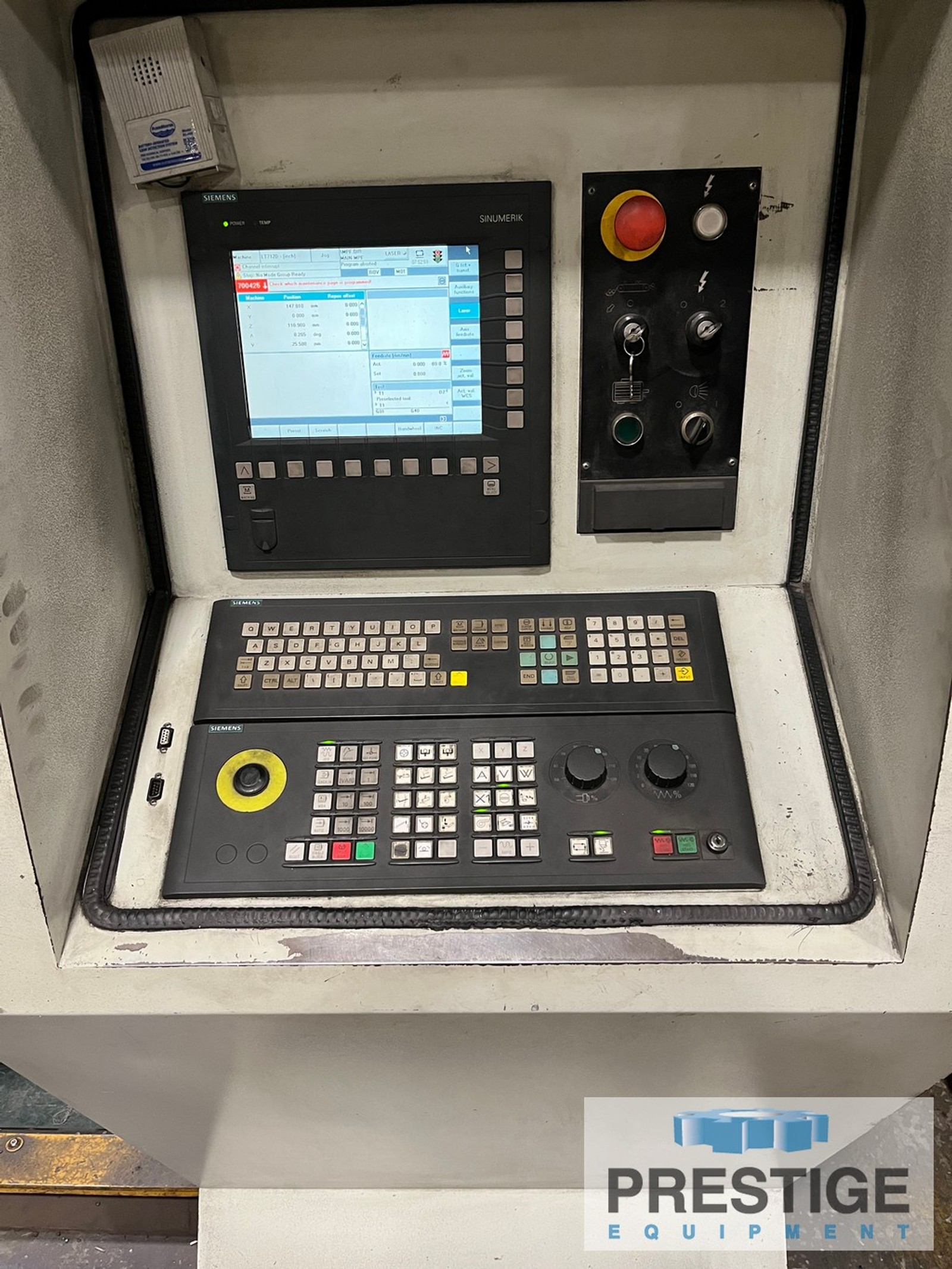

Siemens 840D CNC Control
Rofin Sinar DC025, 2,500 Watt CO2 Laser

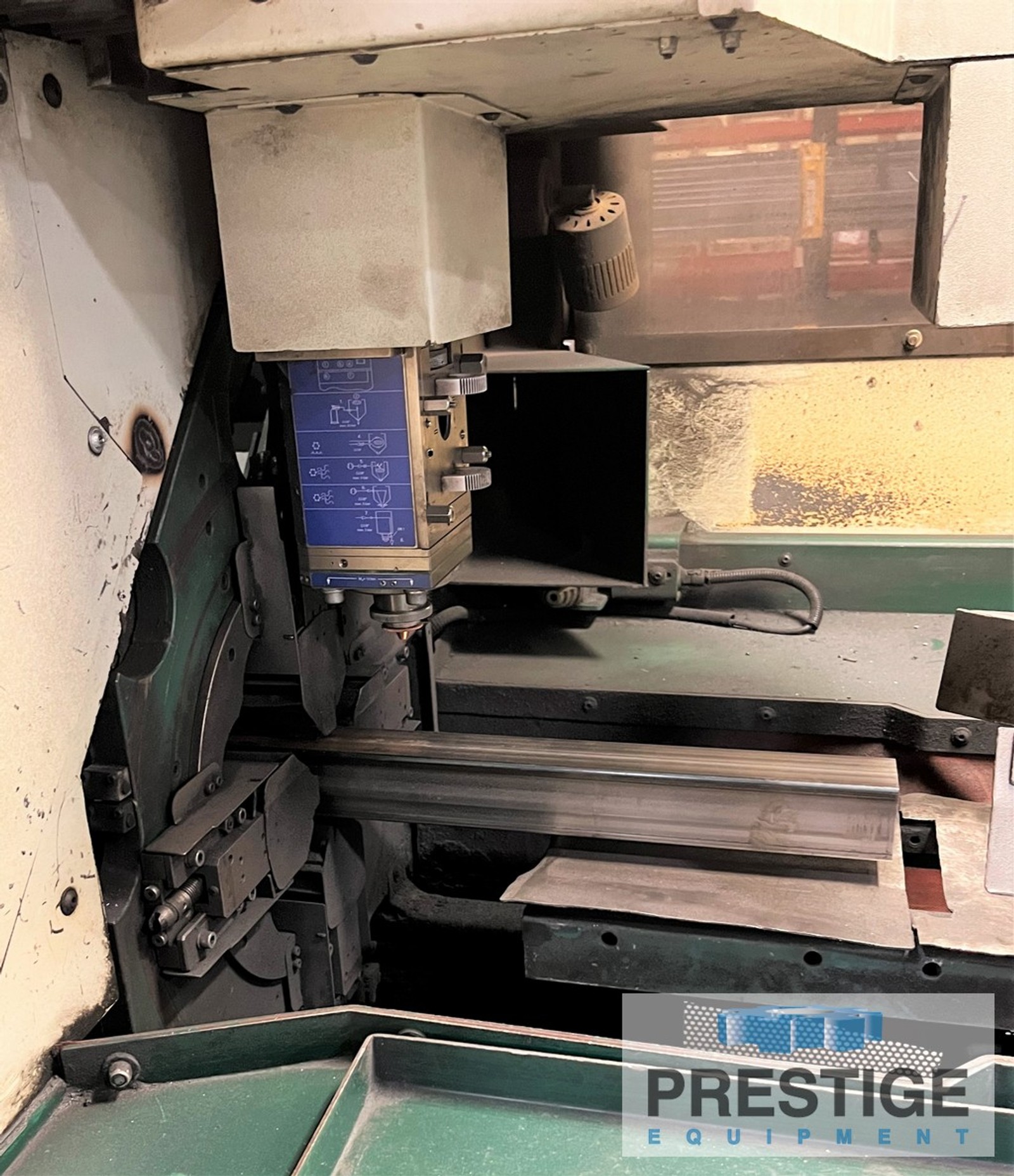

Precitec Cutting Head
2D Weld Line Identification
4500mm Length Discharge Table Module (Unloader)
Automatic Bundle Loader, 8,800 Lb. x 27'8" Length
Koolant Kooler Model HCV Chiller
Donaldson Torit Model ADF4 Dust Collector

NOTE:
Inspect Under Power in Plant
This laser was fully reconditioned when it as put into service in 2019 as a used machine.
Laser and Resonator have been maintained in excellent condition.
This Laser is offered for sale to make rom for a new Laser due in April 2023.
