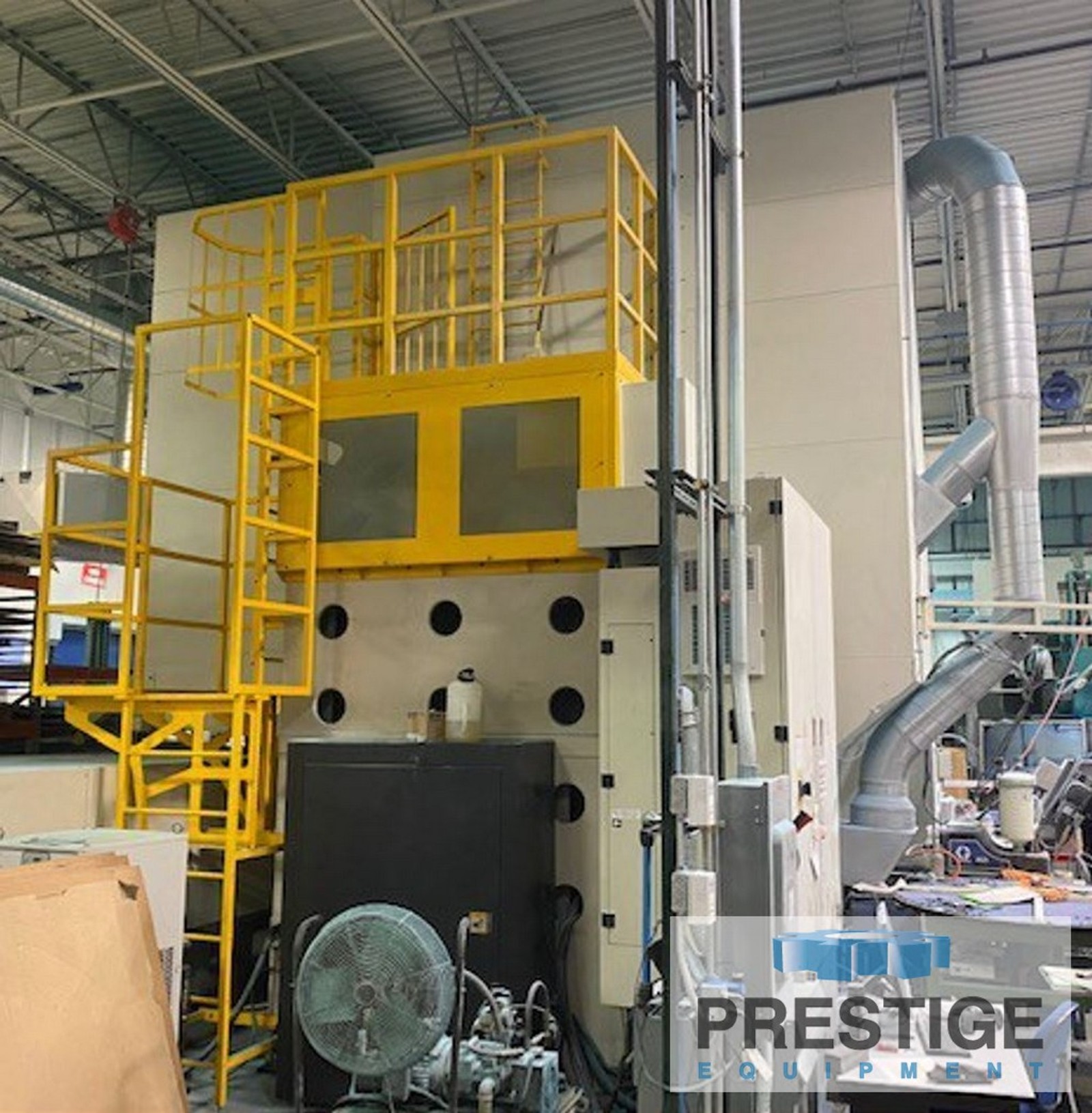

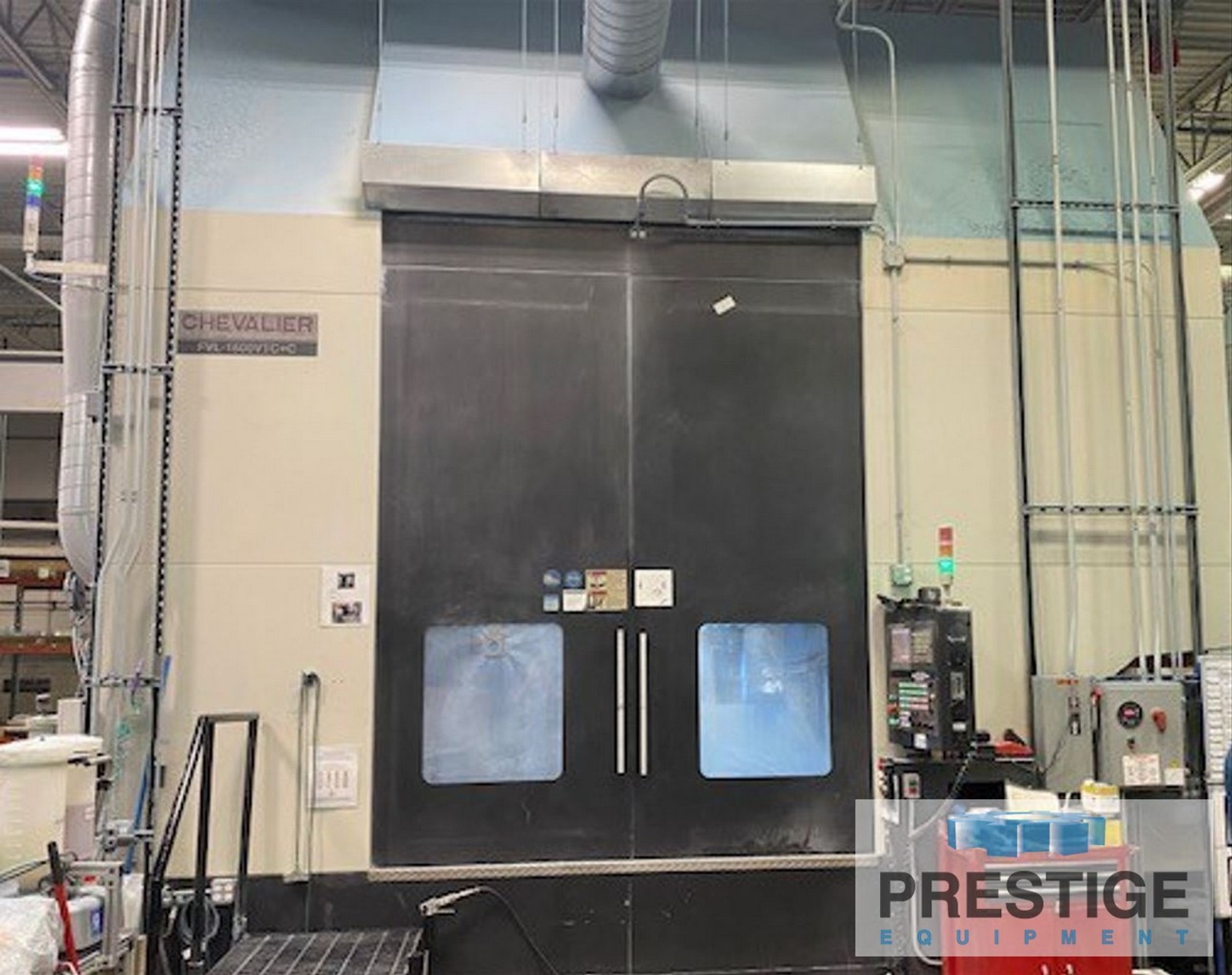

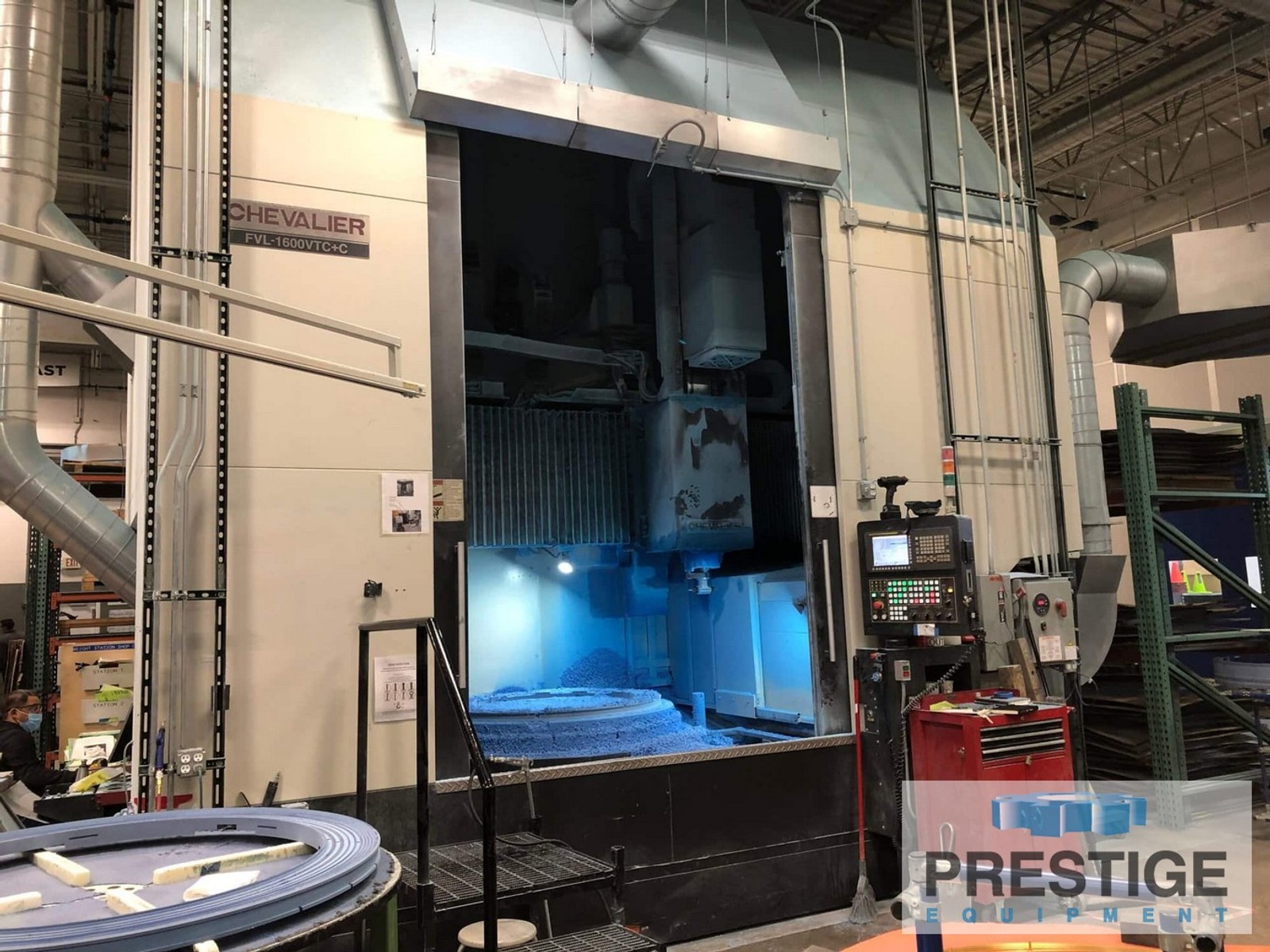

CHEVALIER FVL-1600VTC-C, 63" 4-Jaw Chuck, 78" Swing, Milling, C-Axis, Milling, 48 ATC, Fanuc Oi-TF, 2015, #32513

Manufacturer

CHEVALIER

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32513

Model

FVL-1600VTC-C

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32513
CHEVALIER FVL-1600VTC-C 63" CNC VBM w/ Live Spindle

FEATURES:

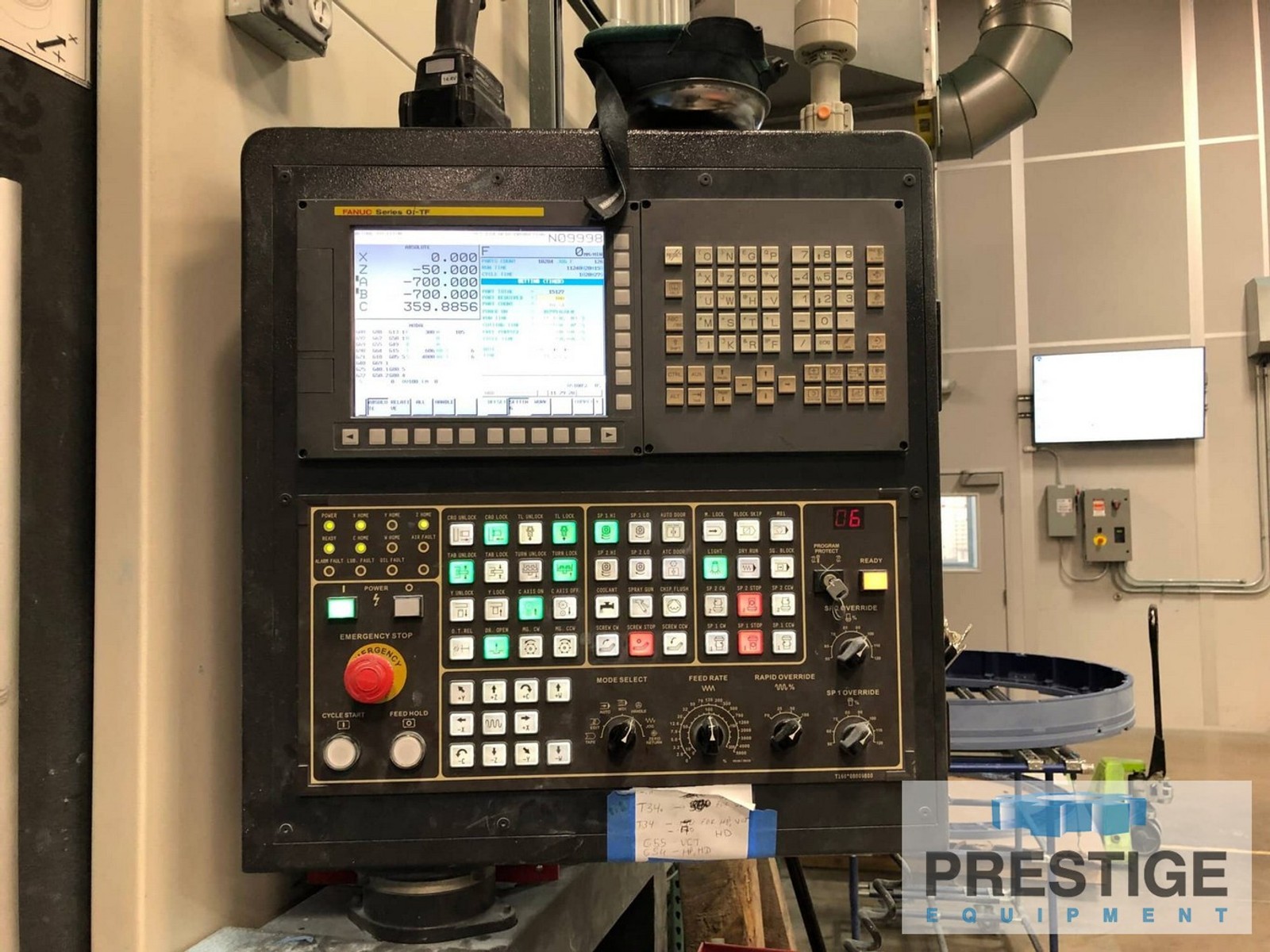

Fanuc Oi-TF CNC Control
Live Milling
C-Axis Indexing
63" 4-Jaw Chuck
48-Station Tool Changer
Wireless Renishaw Part Probe & Tool Setter
Plumbed for Coolant
Auto Doors


SPECIFICATIONS:
Table Diameter ........................ 63"
Max Swing ............................. 78.7"
Max Distance Spindle Nose to Table .... 60.2"
X-Axis Travel ......................... 78.8"
Z-Axis Travel ......................... 35.4"
Table Speed, Max ...................... 250 RPM
Table Indexing, C-Axis ................ .001 degrees
Table Motor ........................... 60 HP
Footprint ............................. 284" x 248"
Machine Height ........................ 226.4"

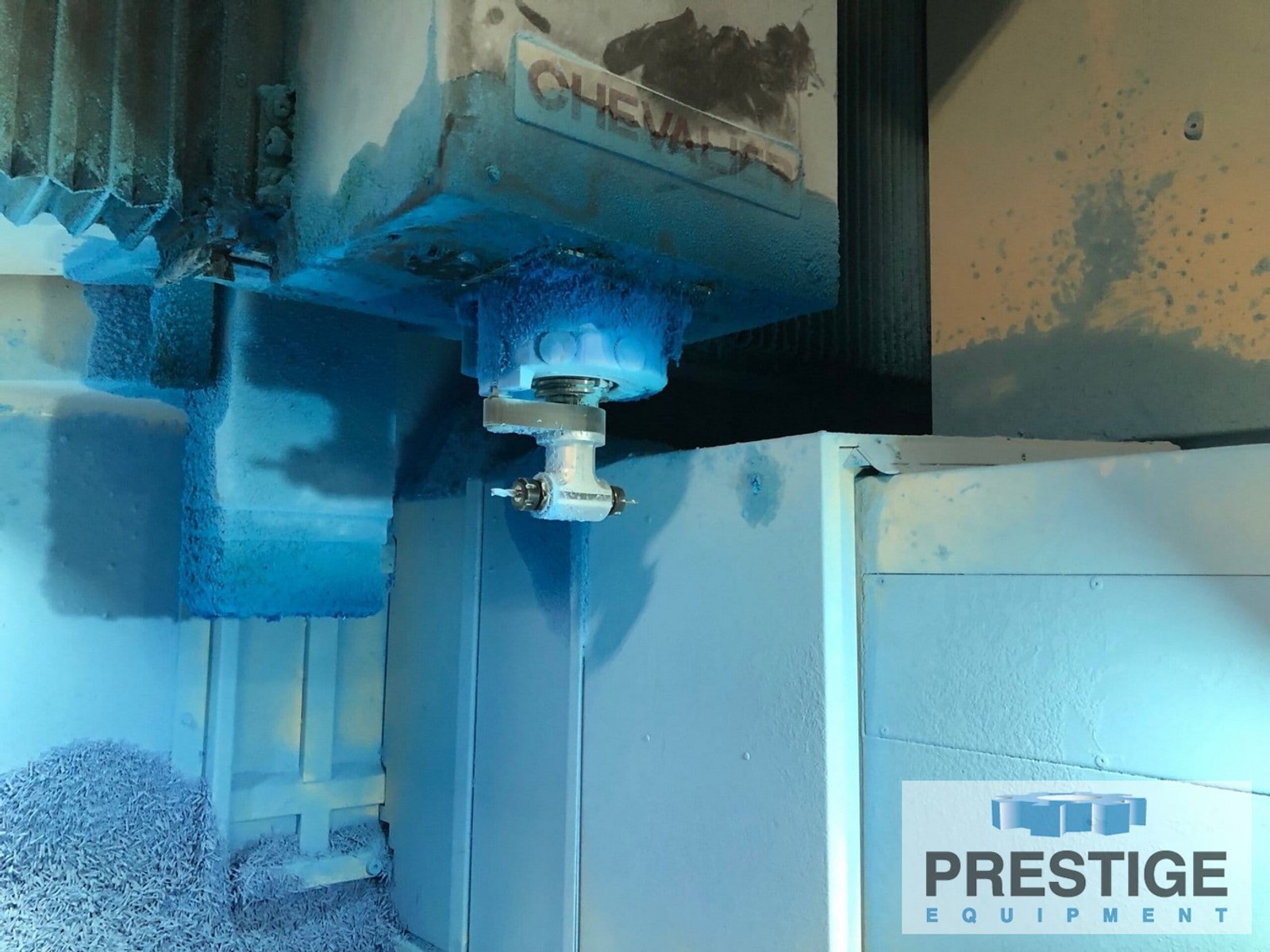

LIVE SPINDLE:
Spindle Speeds ........................ 25-2,500 RPM
Spindle Taper ......................... #50
Spindle Motor ......................... 20 HP


EQUIPPED WITH:
Fanuc Oi-TF CNC Control
Live Milling
C-Axis Indexing
63" 4-Jaw Chuck
48-Station Tool Changer
Wireless Renishaw Part Probe & Tool Setter
All Turning Blocks
Plumbed for Coolant
Auto Doors

Note:
Machine Was Being Used to Cut Plastic
