Wele 5" HB1620-130, X-157", Y-82", #50, Fanuc OiMF CNC, 60 ATC, B-Axis Rotary Table, New 2018, #32501

Manufacturer

WELE

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32501

Model

HB1620-130

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32501

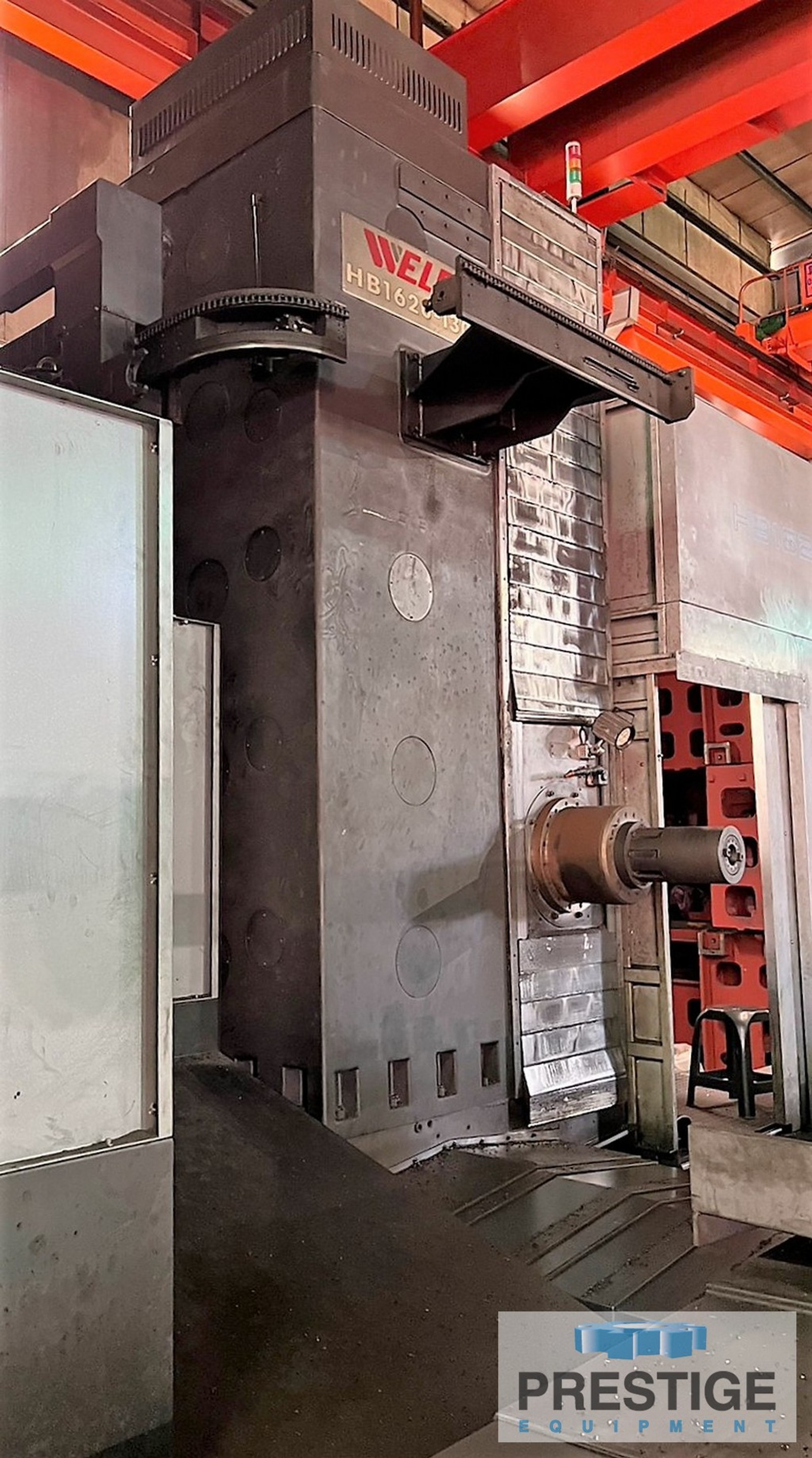

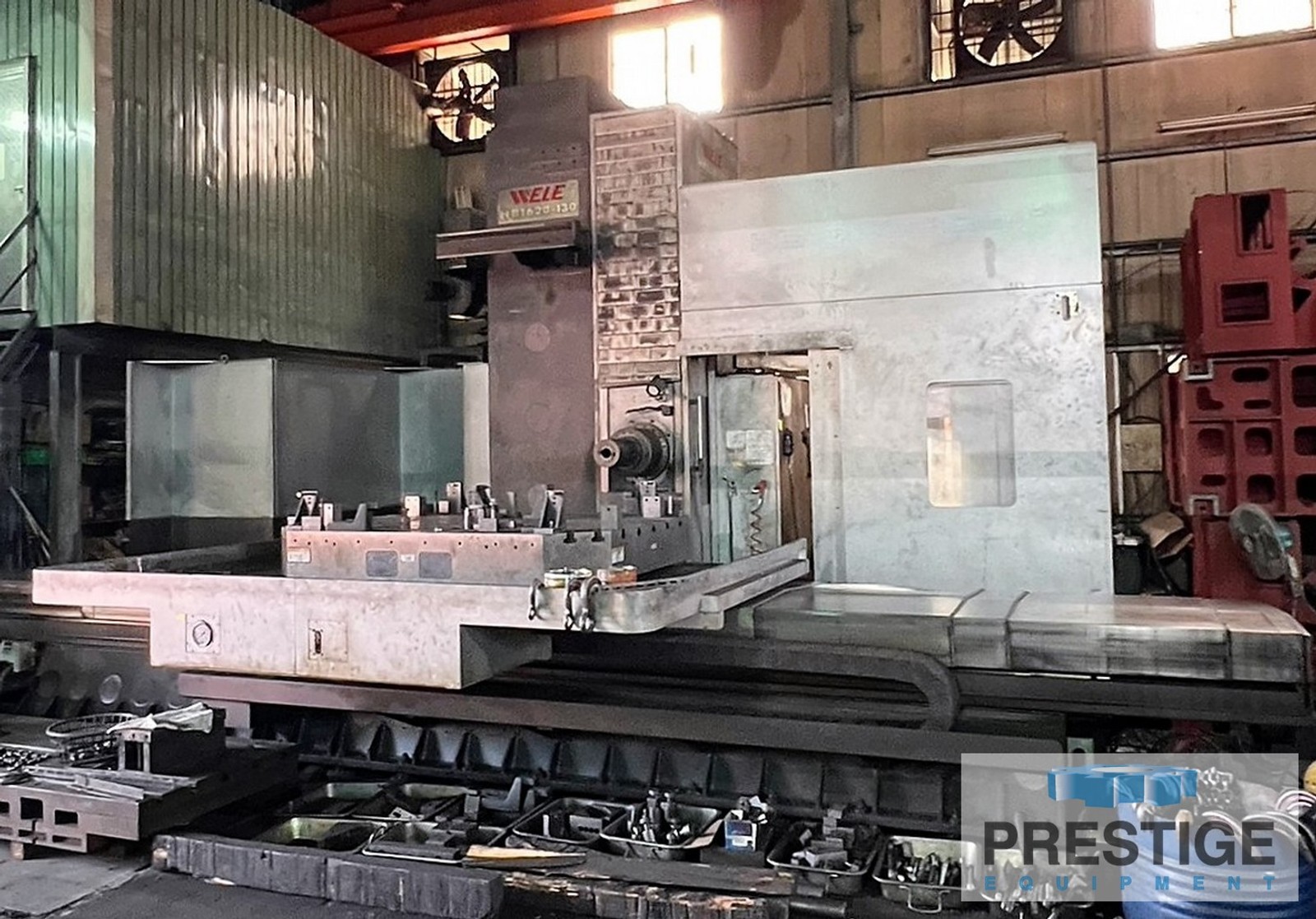

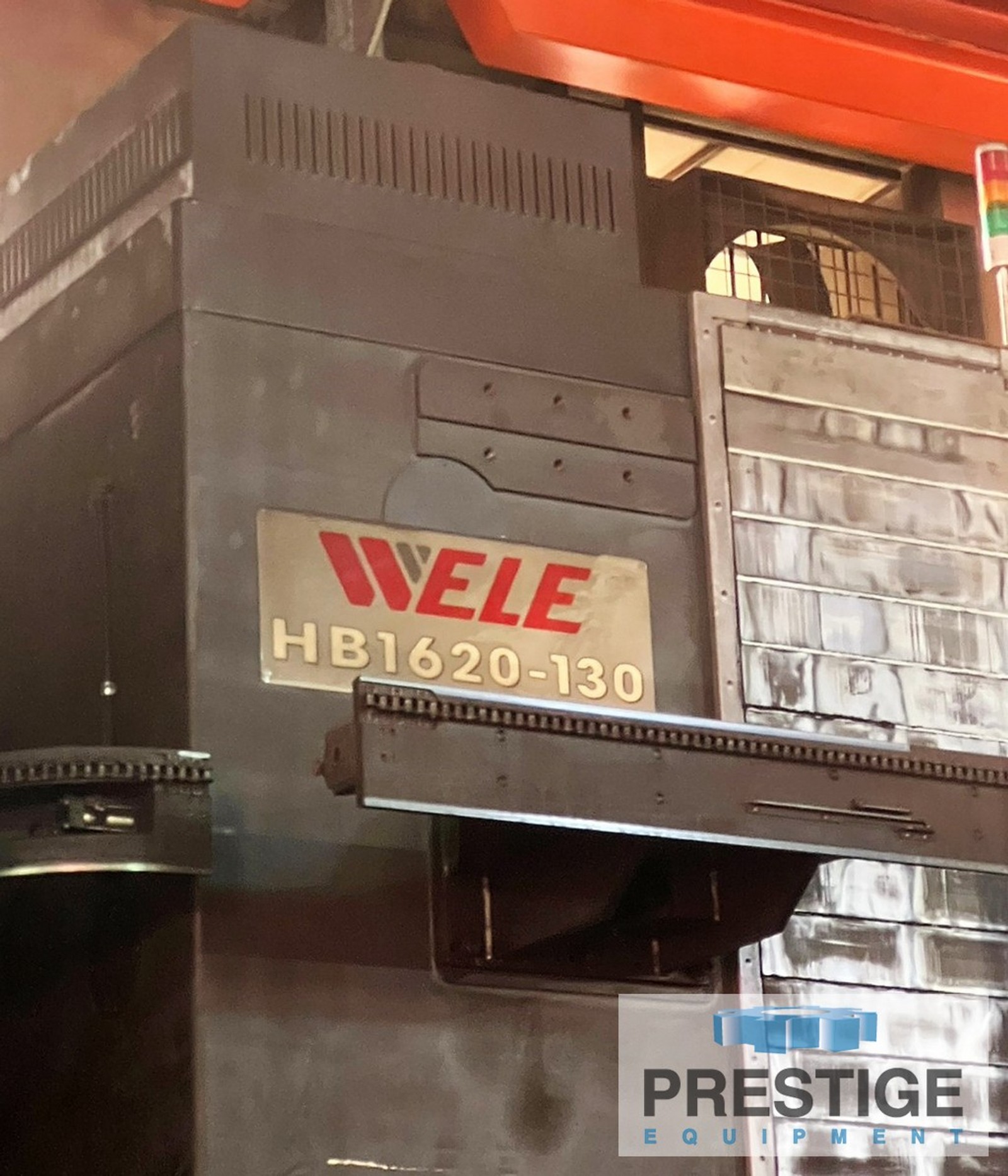

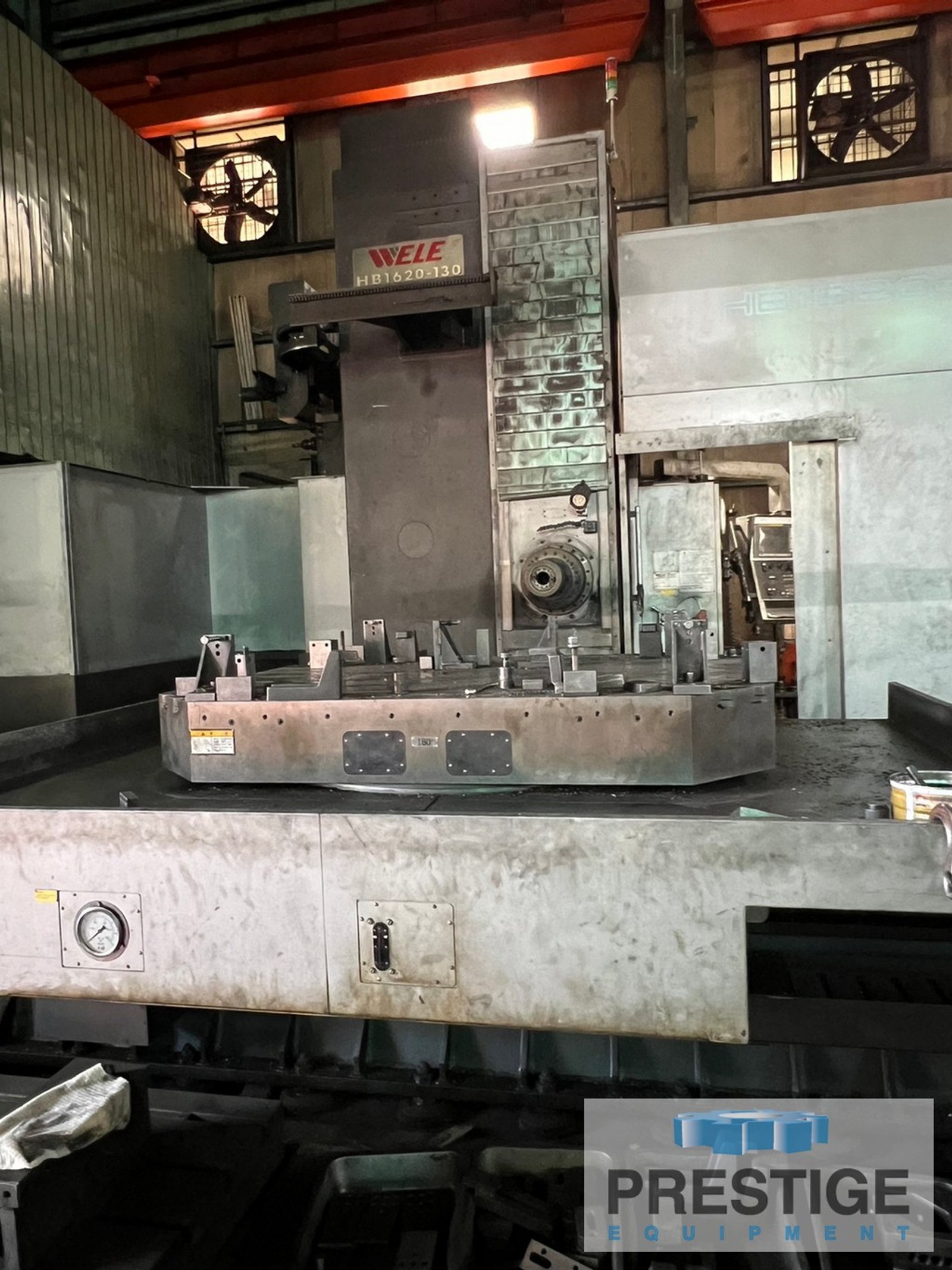

Wele HB1620-130 CNC Horizontal Boring Mill

FEATURES:

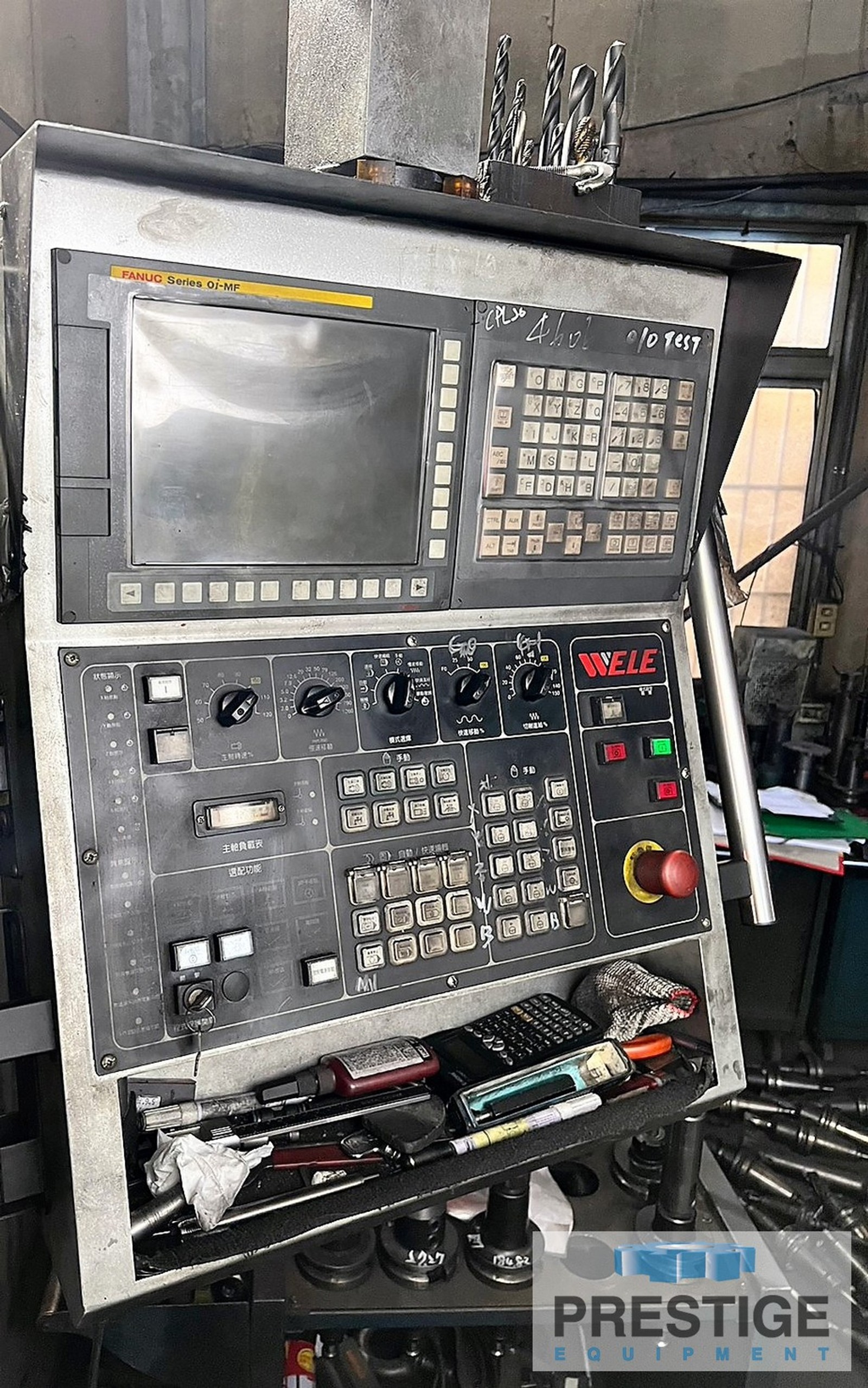

FANUC OiMF CNC Control

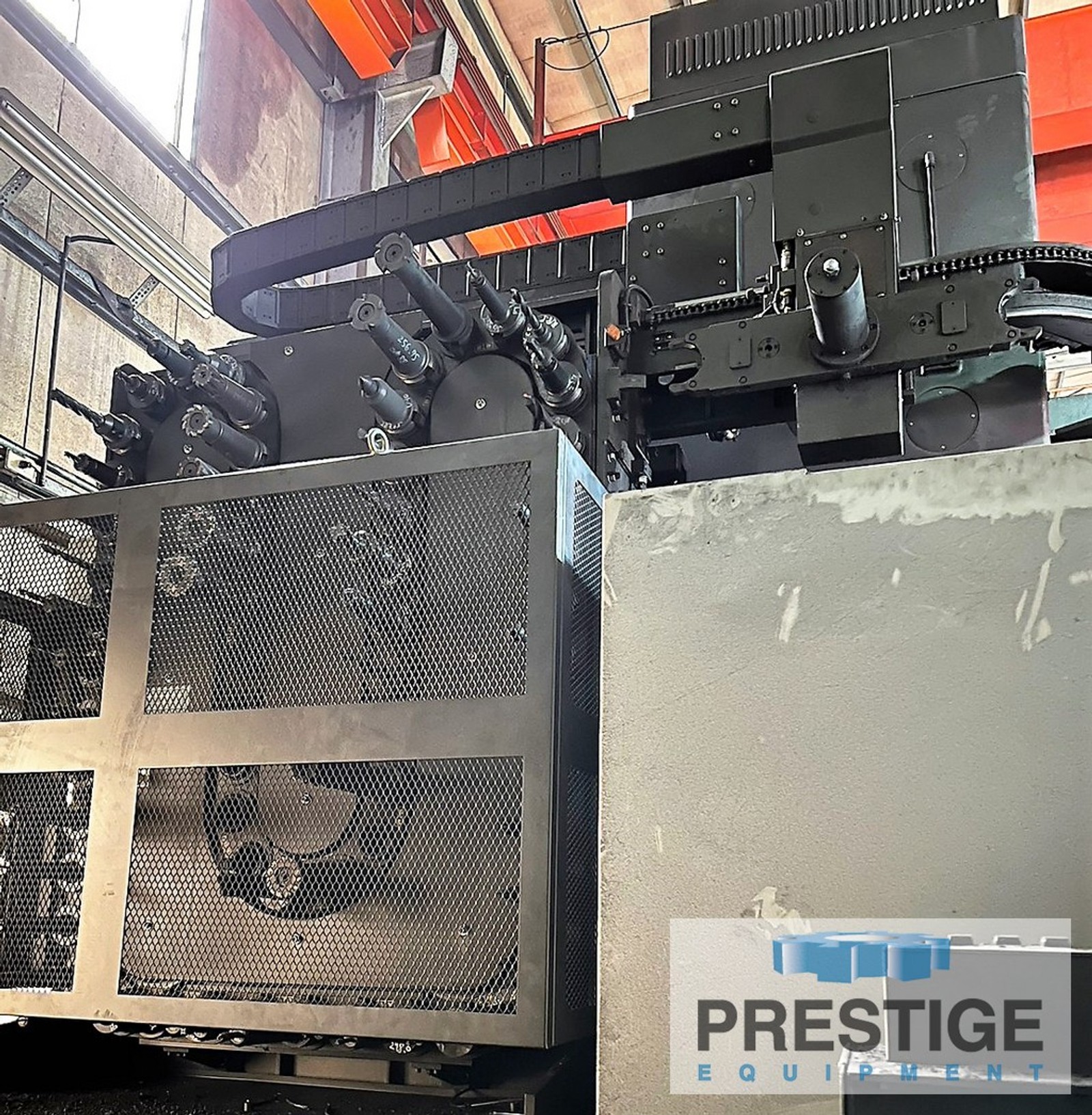

60-Station Automatic Tool Changer
Built In Rotary Table 0.001 table indexing (Full B-axis)
Centralized Lubrication System
Flood Coolant System
Rigid Tapping

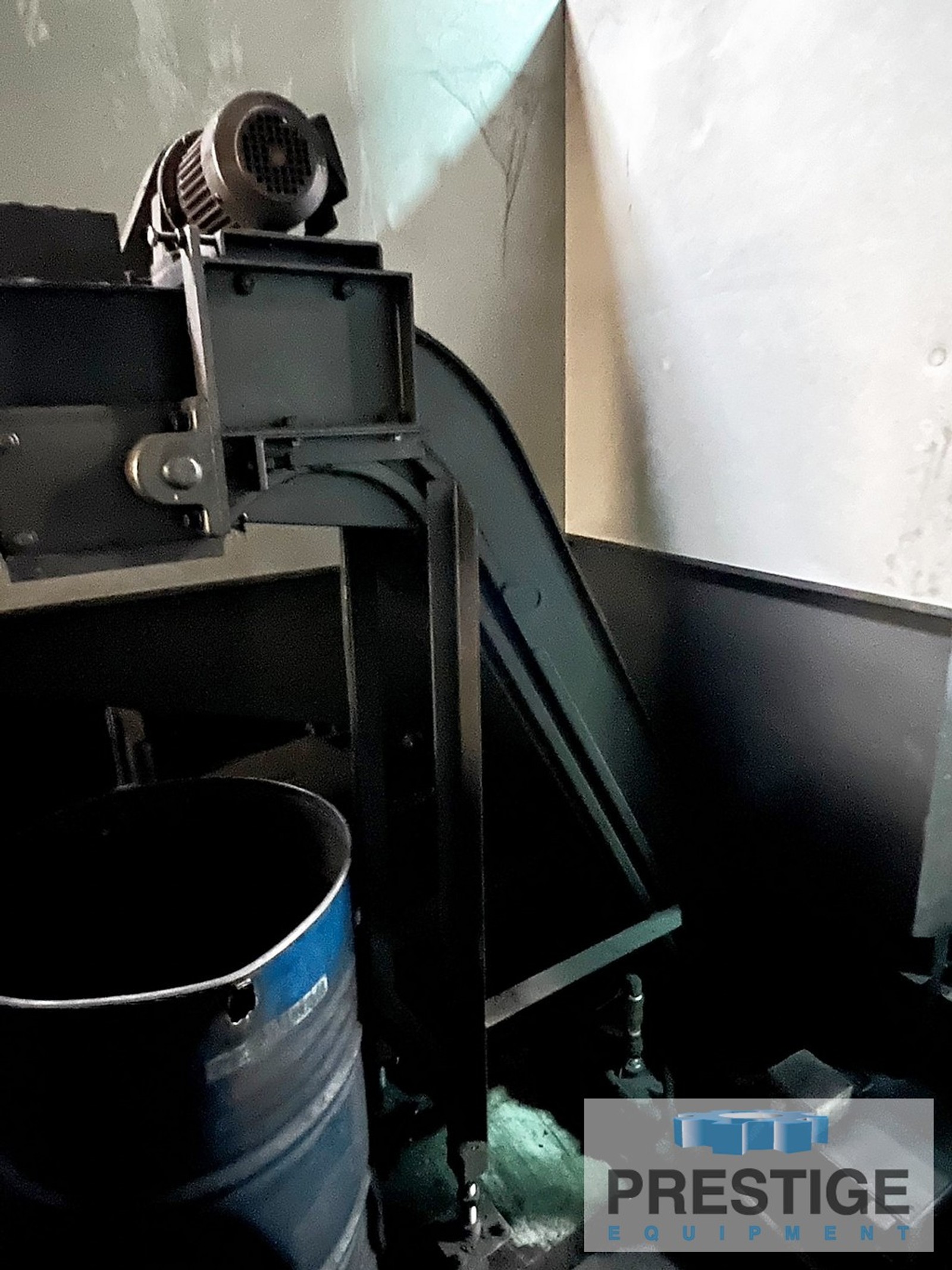

Chip Conveyor

CAPACITY:

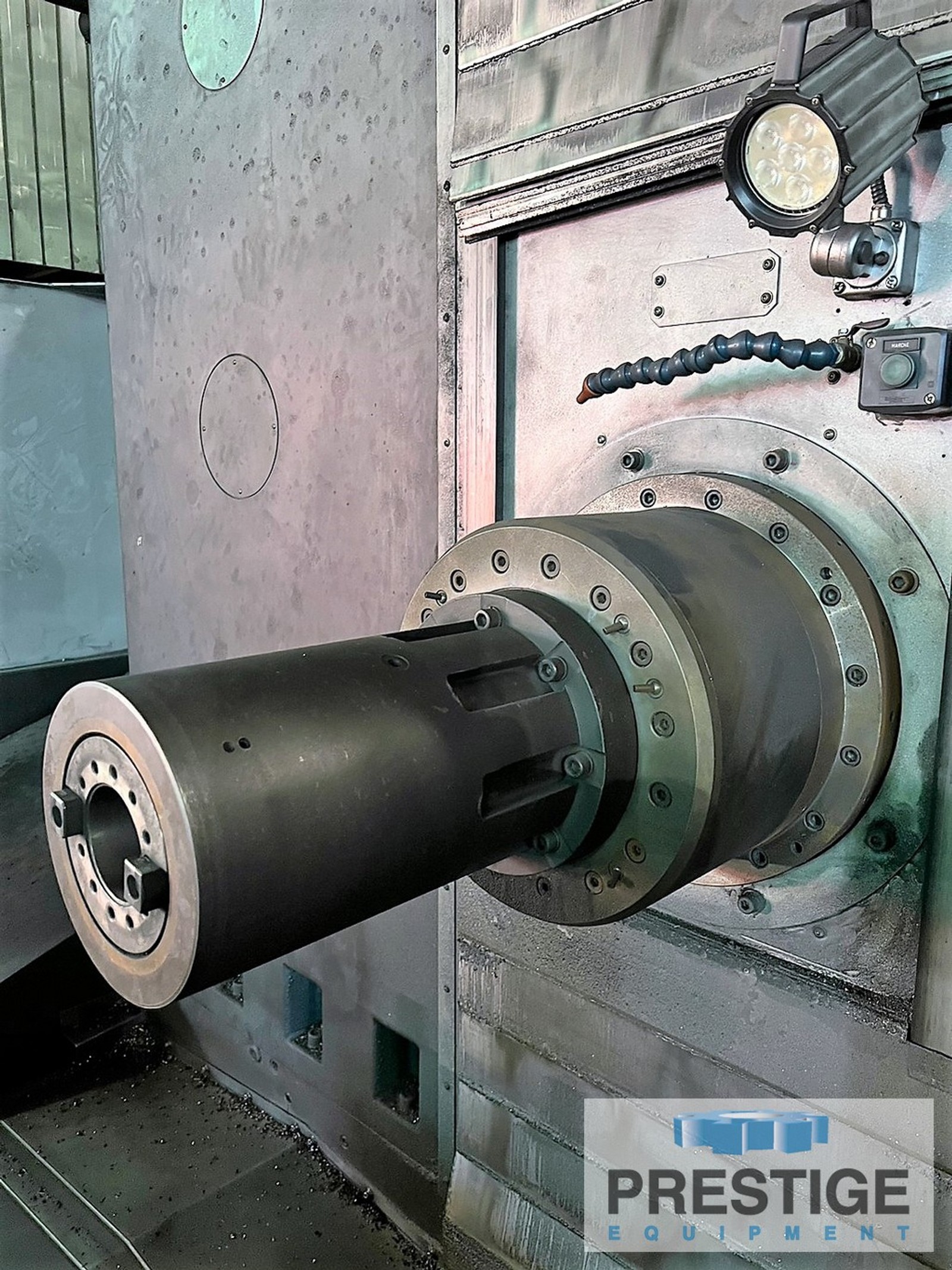

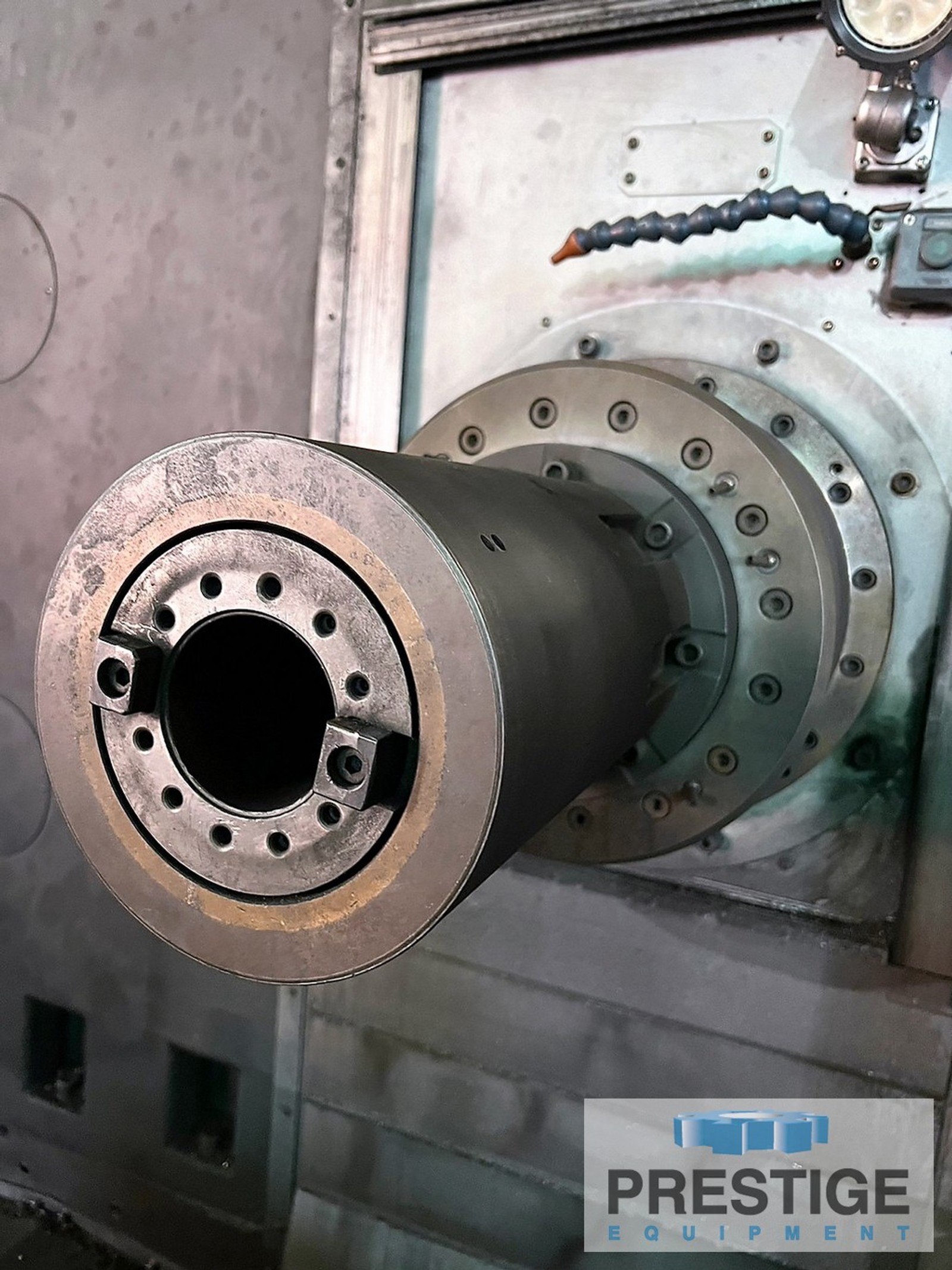

Spindle Diameter ...................... 5.12"
Spindle Taper ......................... BT #50
Vertical Head Travel, Y-Axis .......... 82.67"
Column Travel,(Left & Right), X-Axis .. 157.48"
Spindle Travel, W-Axis ................ 27.55"
Table Travel, (In & Out), Z-Axis ...... 59.05"

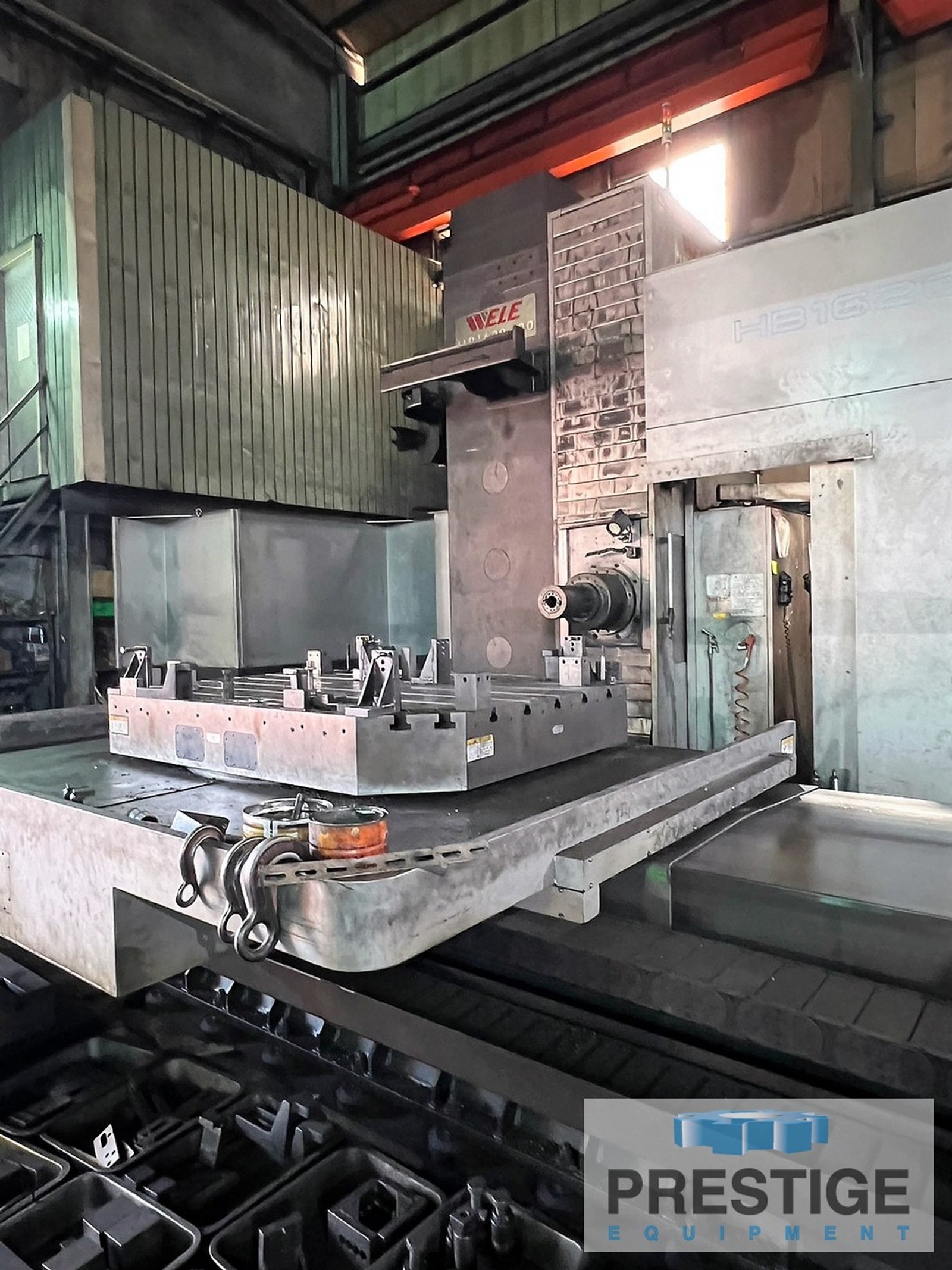

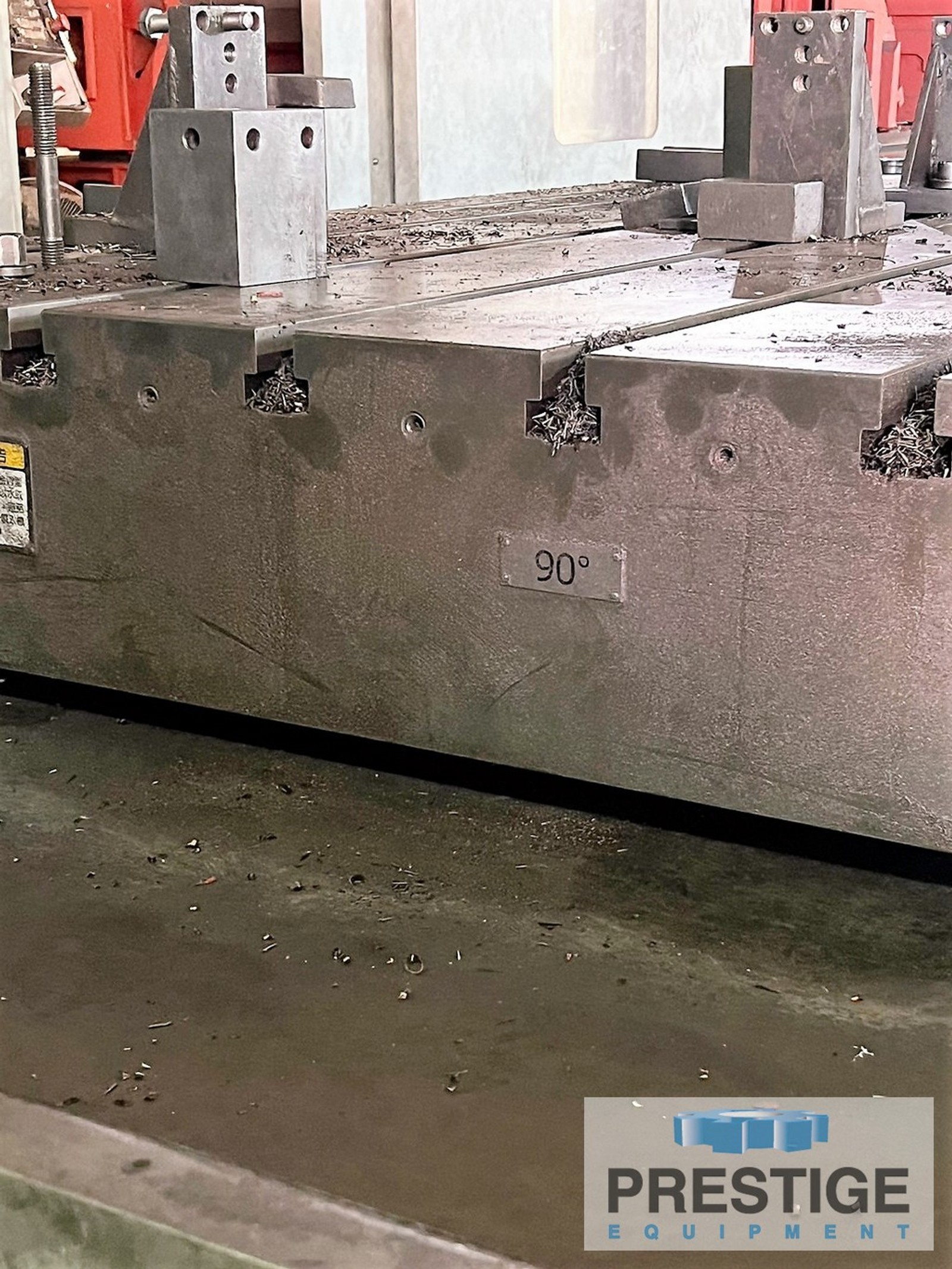

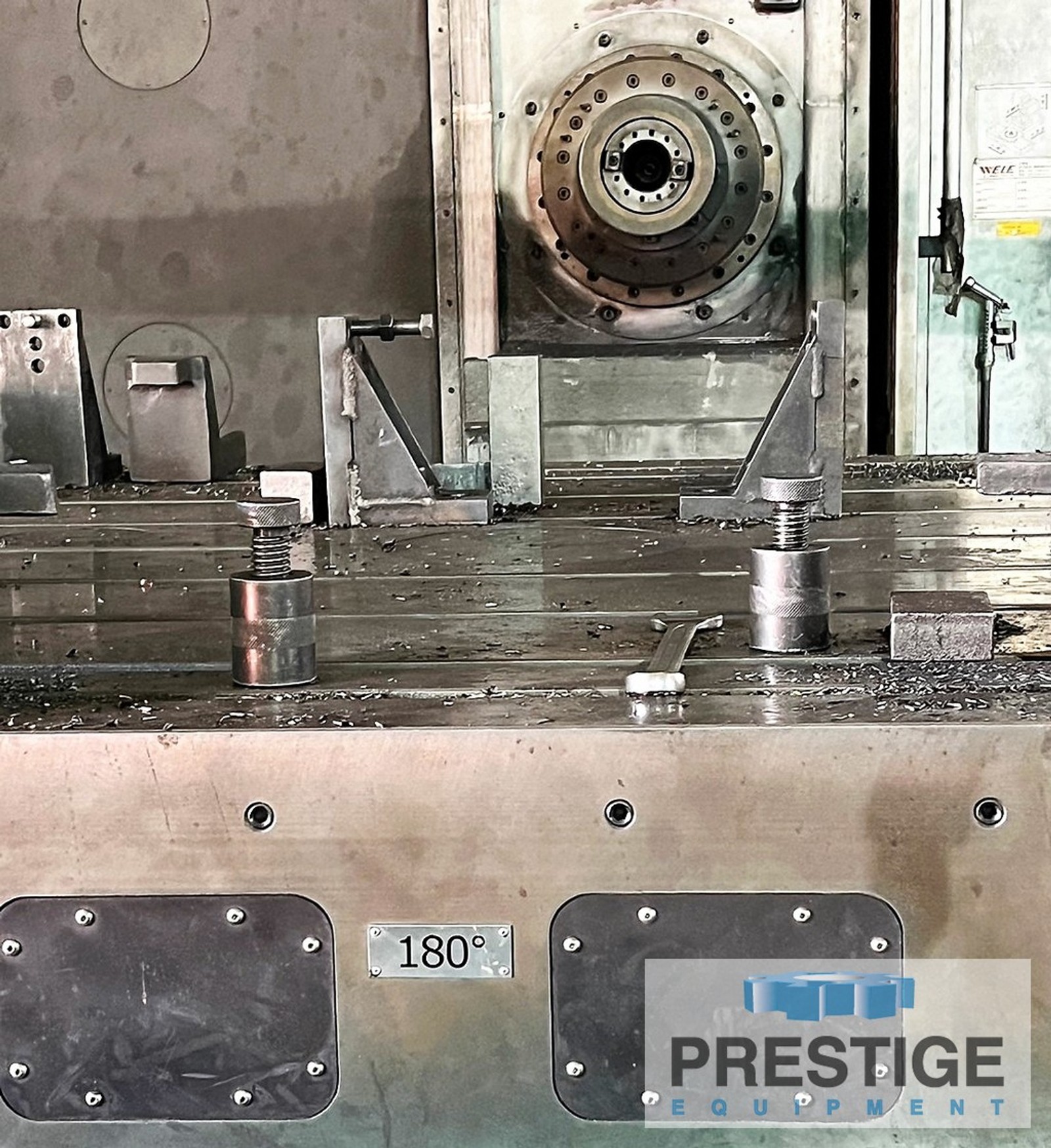

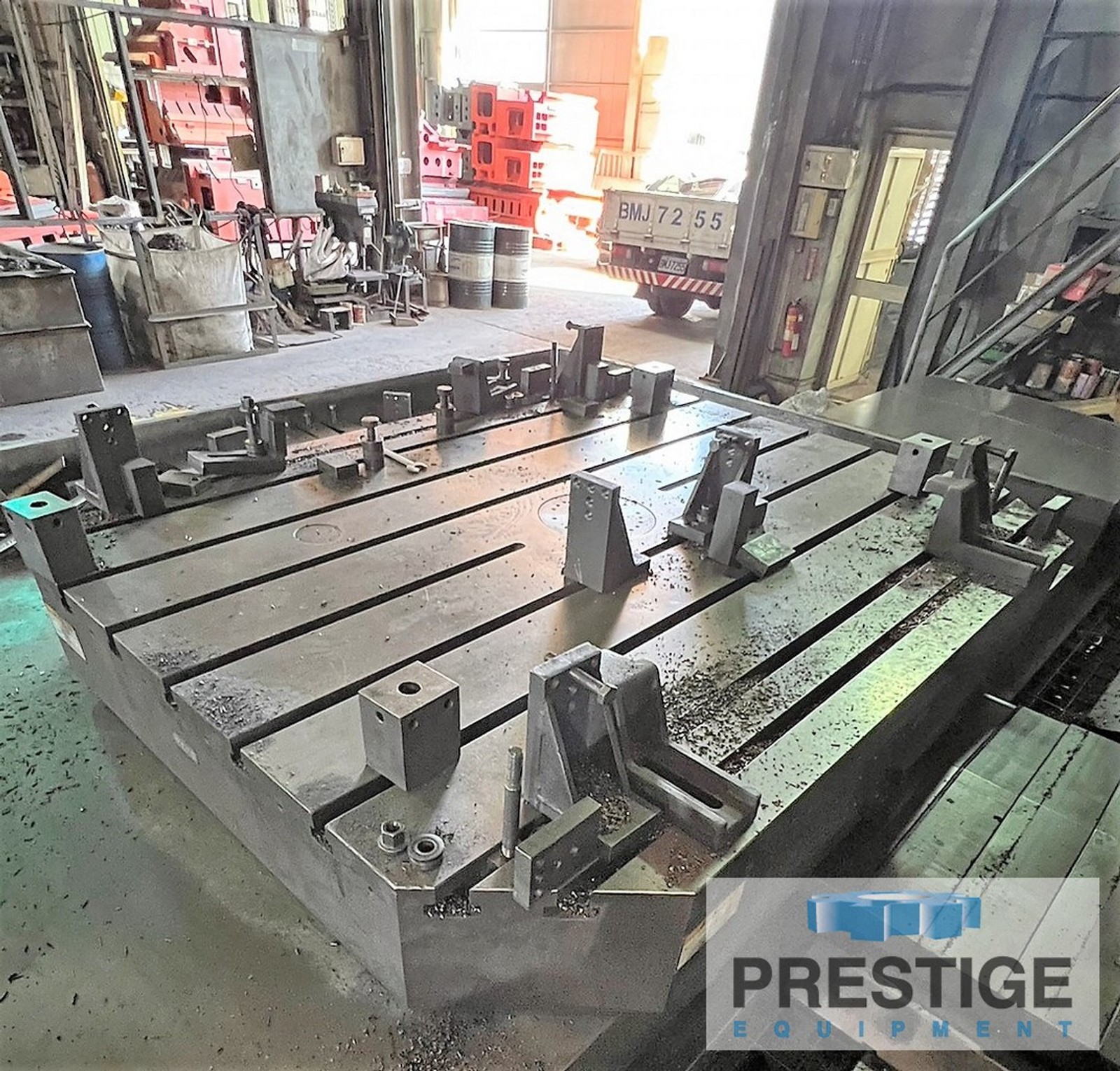

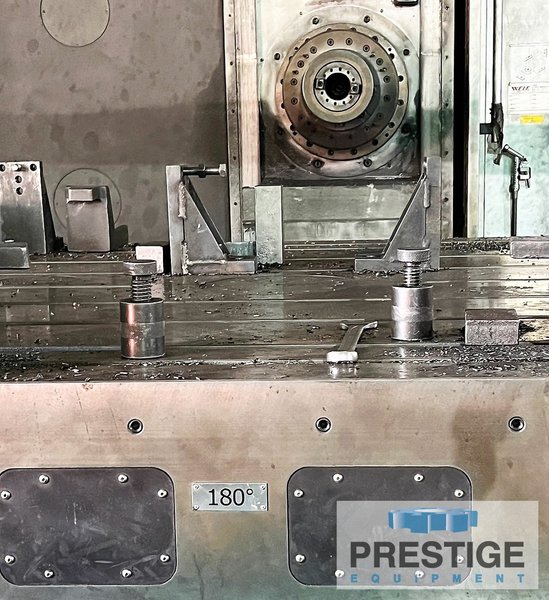

Built in Rotary Table ................. 70.86" x 78.74""
Table Index ........................... .001
Distance from Spindle to Table Top .... 3.1"-30.7"
Table Load Capacity ................... 26,400 lbs.
Spindle Speeds, Max .................. 2,500 RPM
Spindle Motor ......................... 30 HP / 35 HP
Rapid Traverse Rate (X/Z) ............. 590.55 IPM
Rapid Traverse Rate (Y) ............... 472.44 IPM
Cutting Feed Rate ..................... 0.039-196.85 IPM
Approximate Dimensions ................ 296"x 264" x 175"
Approximate Weight .................... 77,200 Lbs.

EQUIPPED WITH:
FANUC OiMF CNC Control
60-Station Automatic Tool Changer
Built In Rotary Table 0.001 table indexing (Full B-axis)
Centralized Lubrication System
Flood Coolant System
Rigid Tapping
Chip Conveyor
