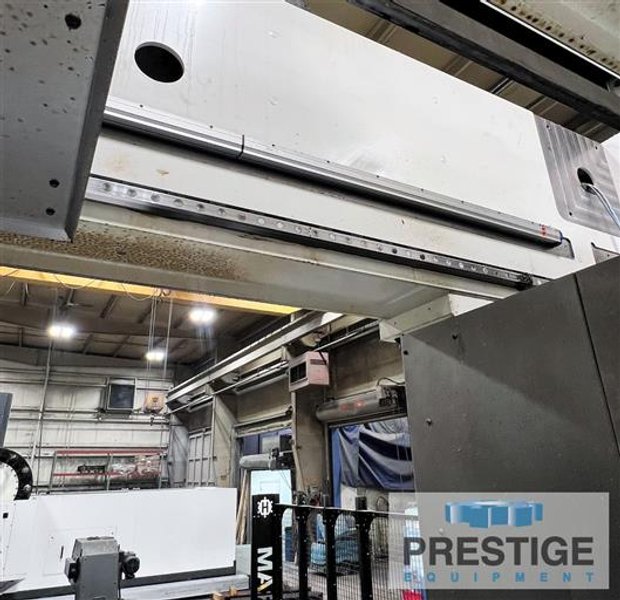

Hexram MP1024 5-Axis, X-289", Y-131", Z-47.5", 120" x 288" Tbl, 2-Axis Head, 13K RPM, Fanuc iH Pro CNC, 2018, #32458

Manufacturer

Hexram

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32458

Model

MP 1024

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32458

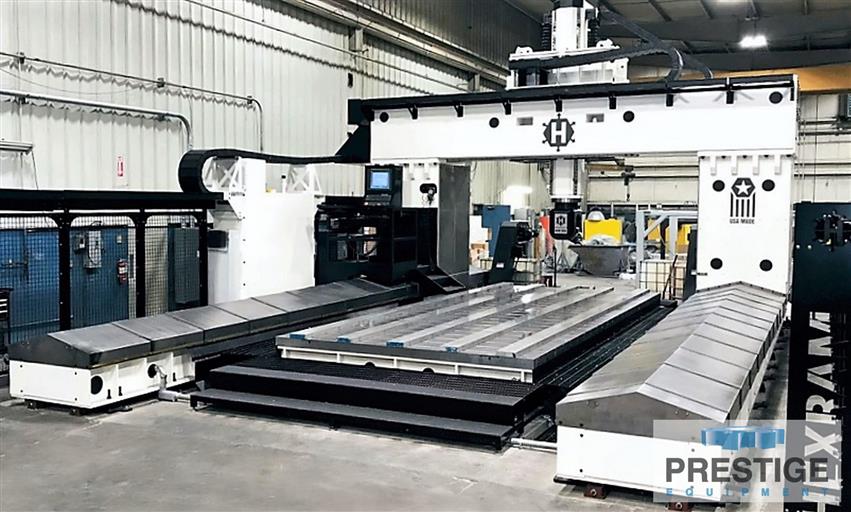

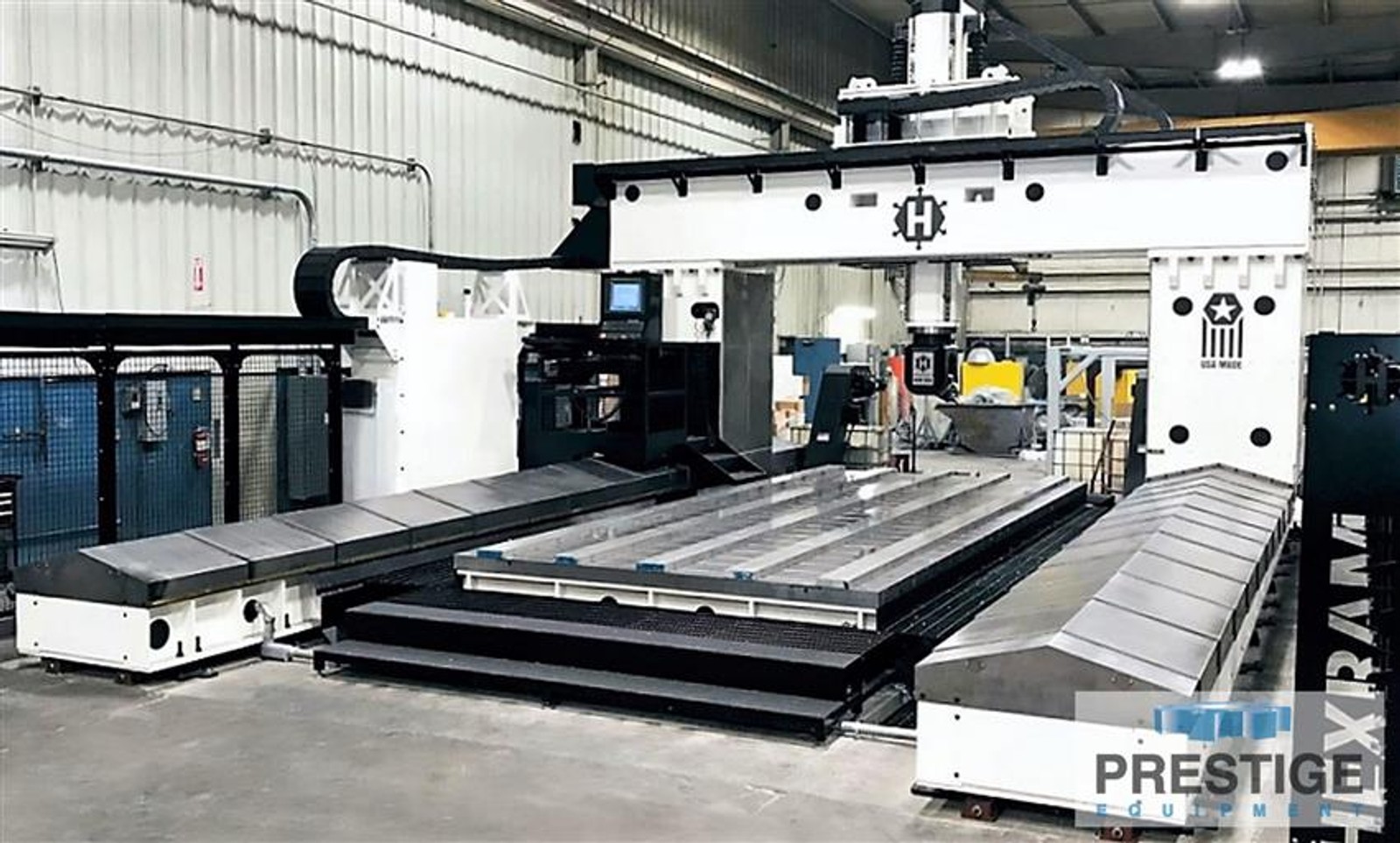

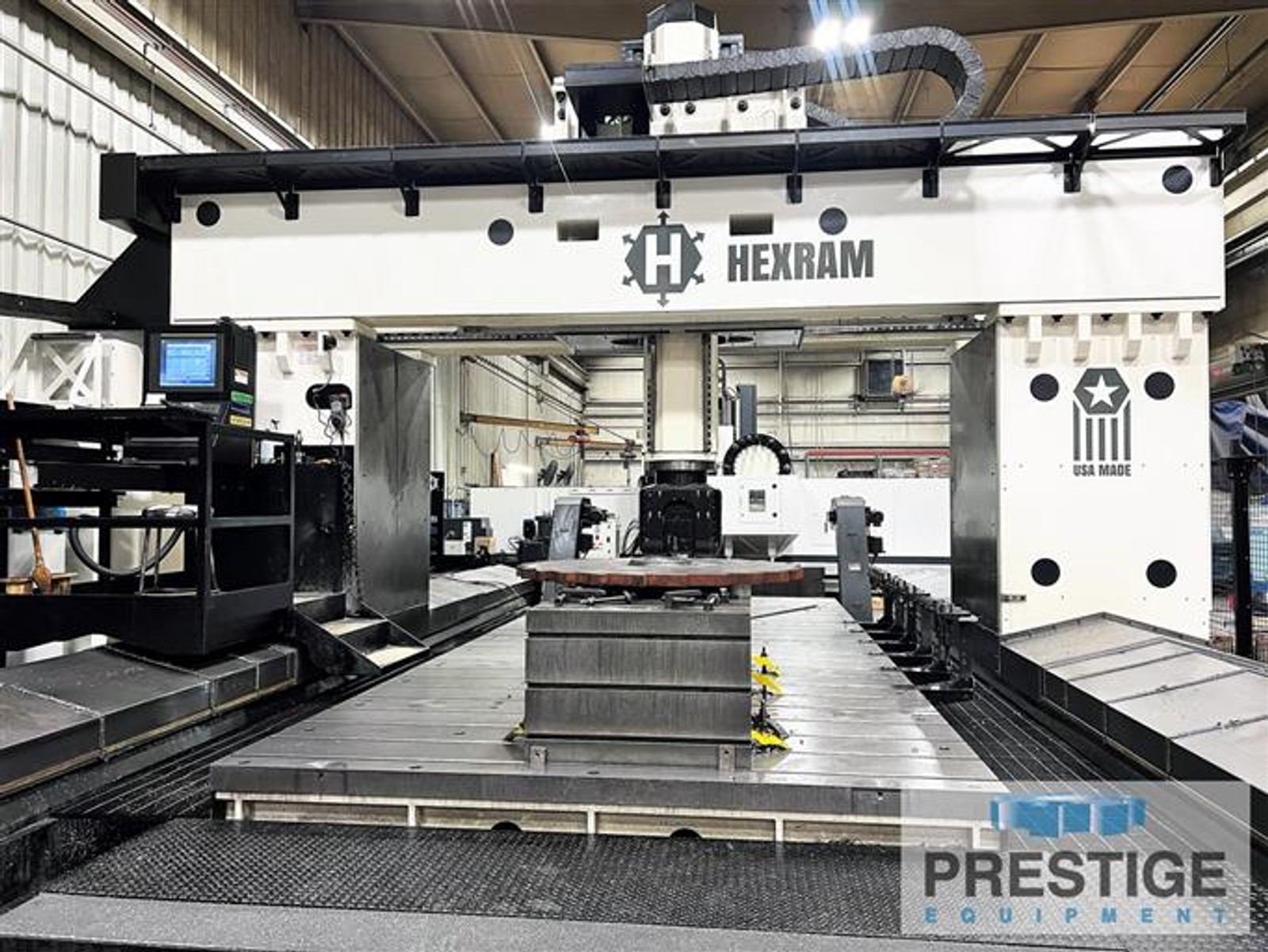

Hexram MP 1024 5-Axis CNC Portal Milling Machine

FEATURES:

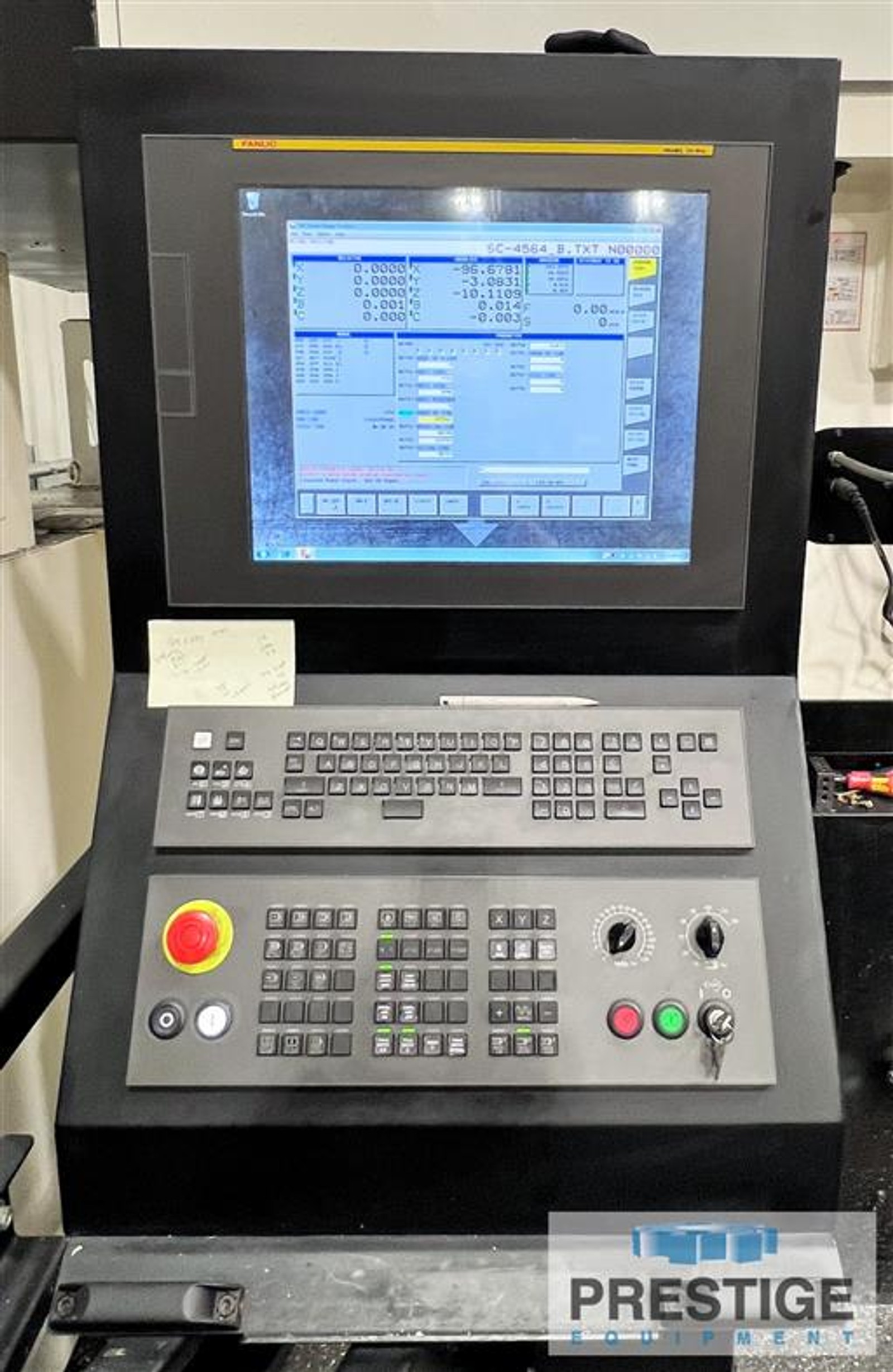

Fanuc iH Pro CNC Control

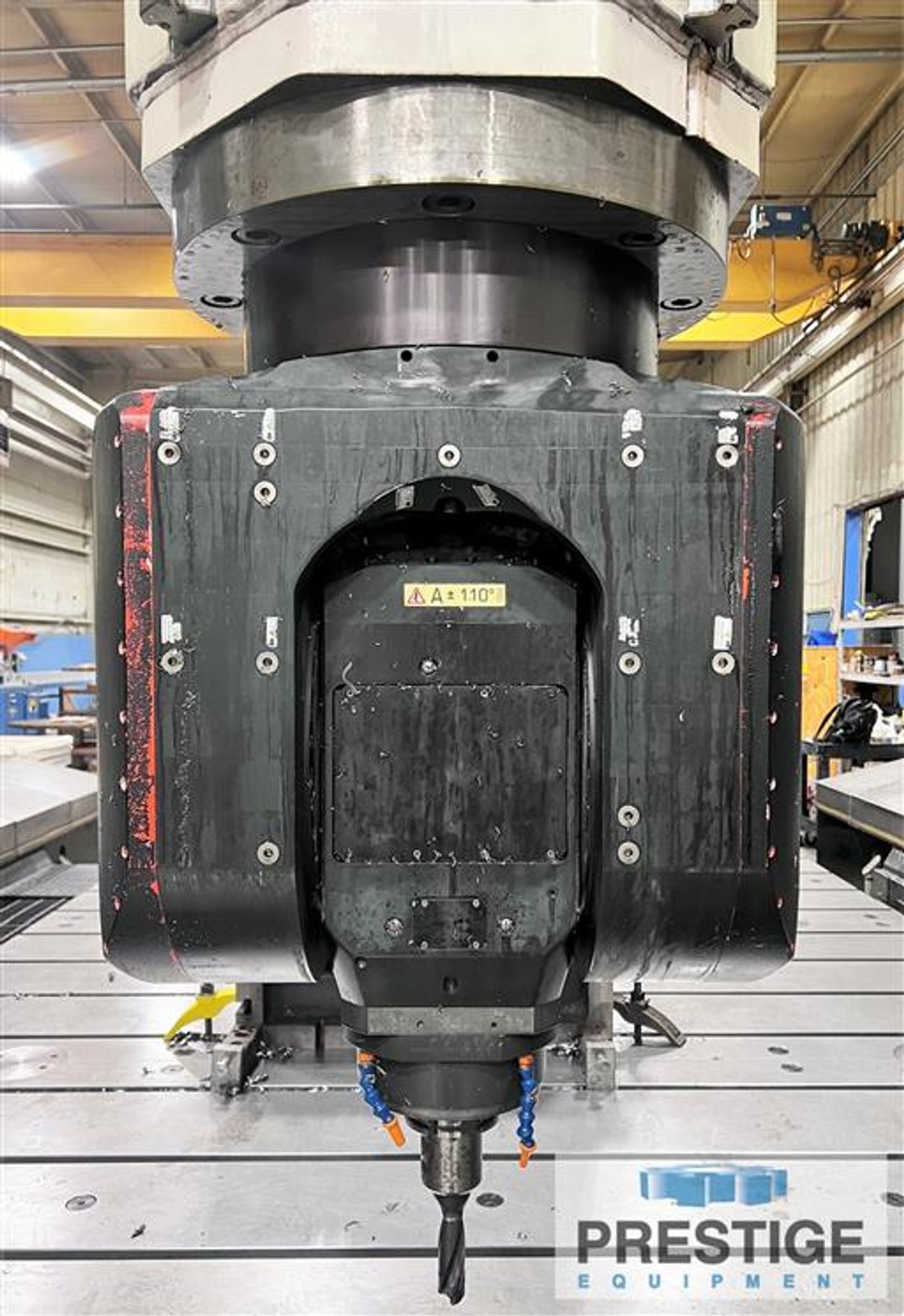

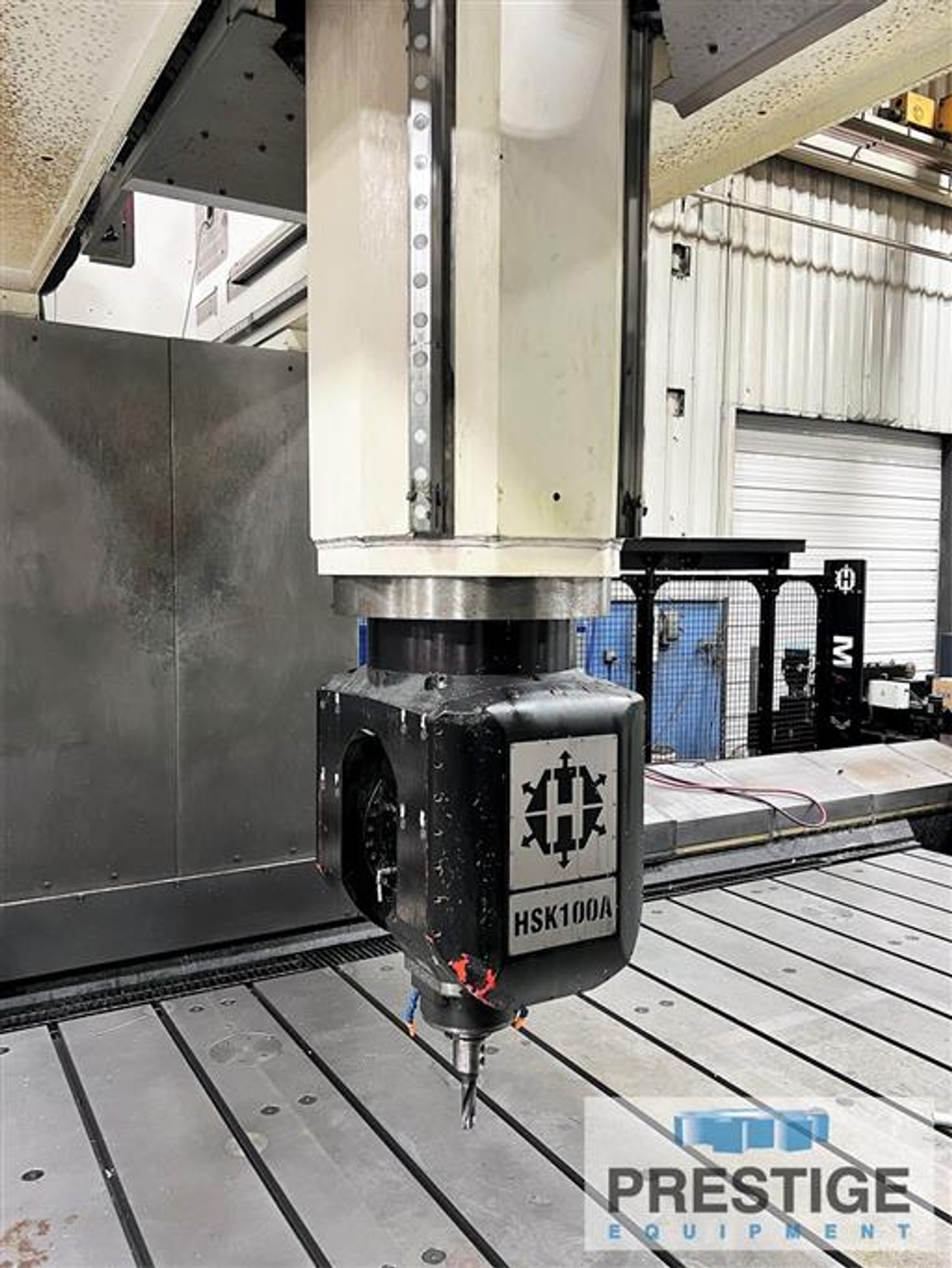

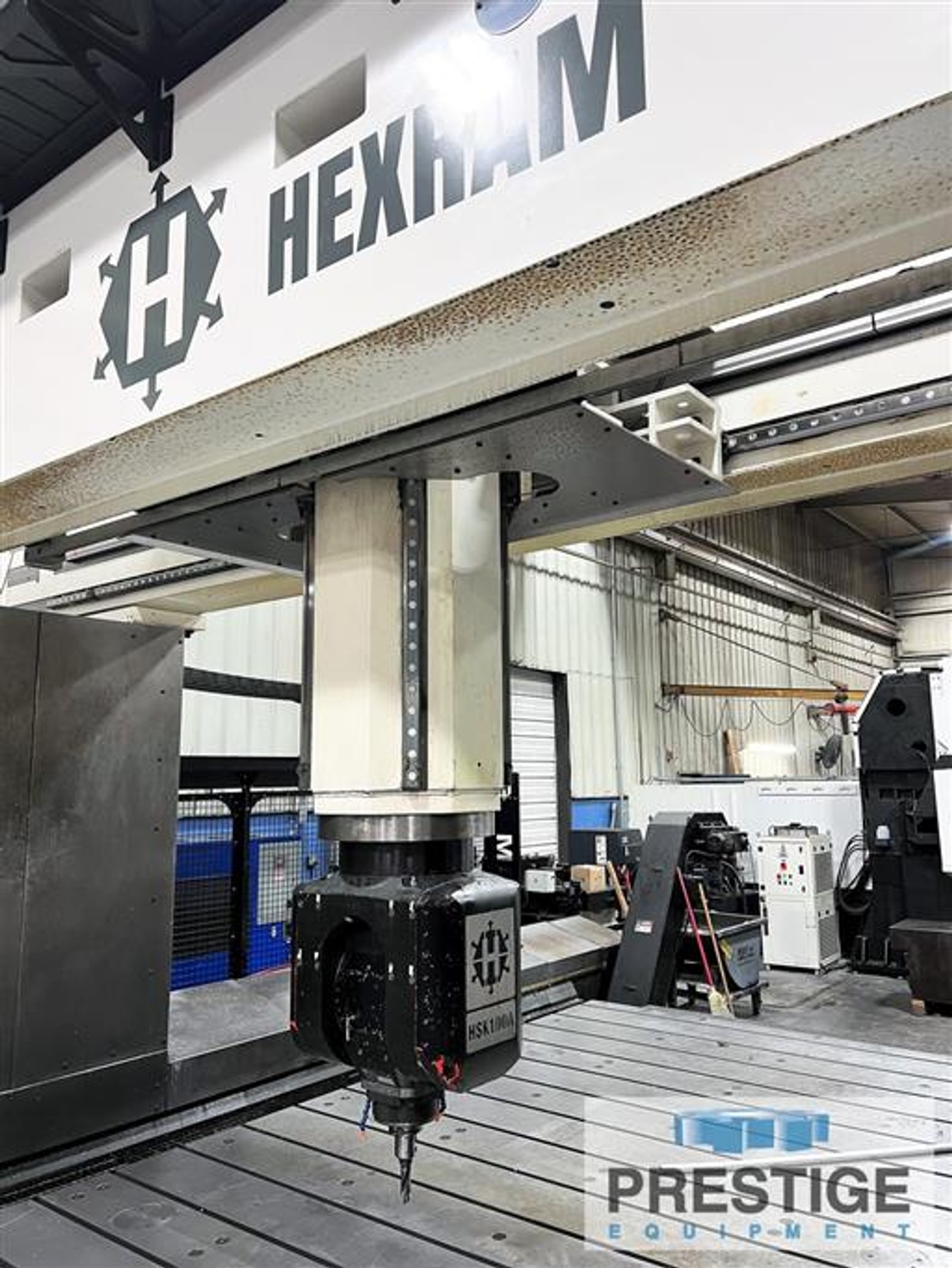

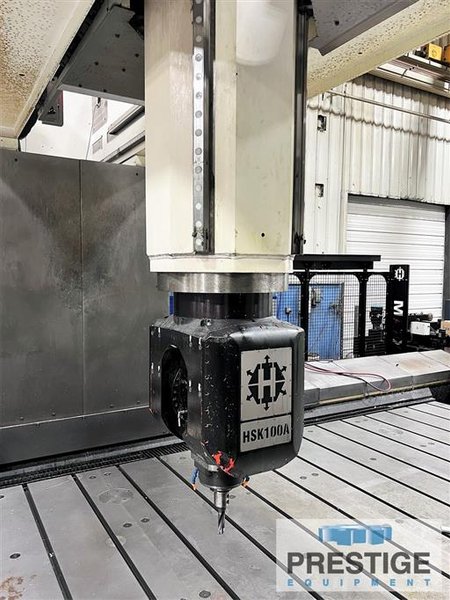

A/C Axis Continuous Milling Head
16-Station Pick Up Tool Changer
Coolant Through Spindle

SPECIFICATION:

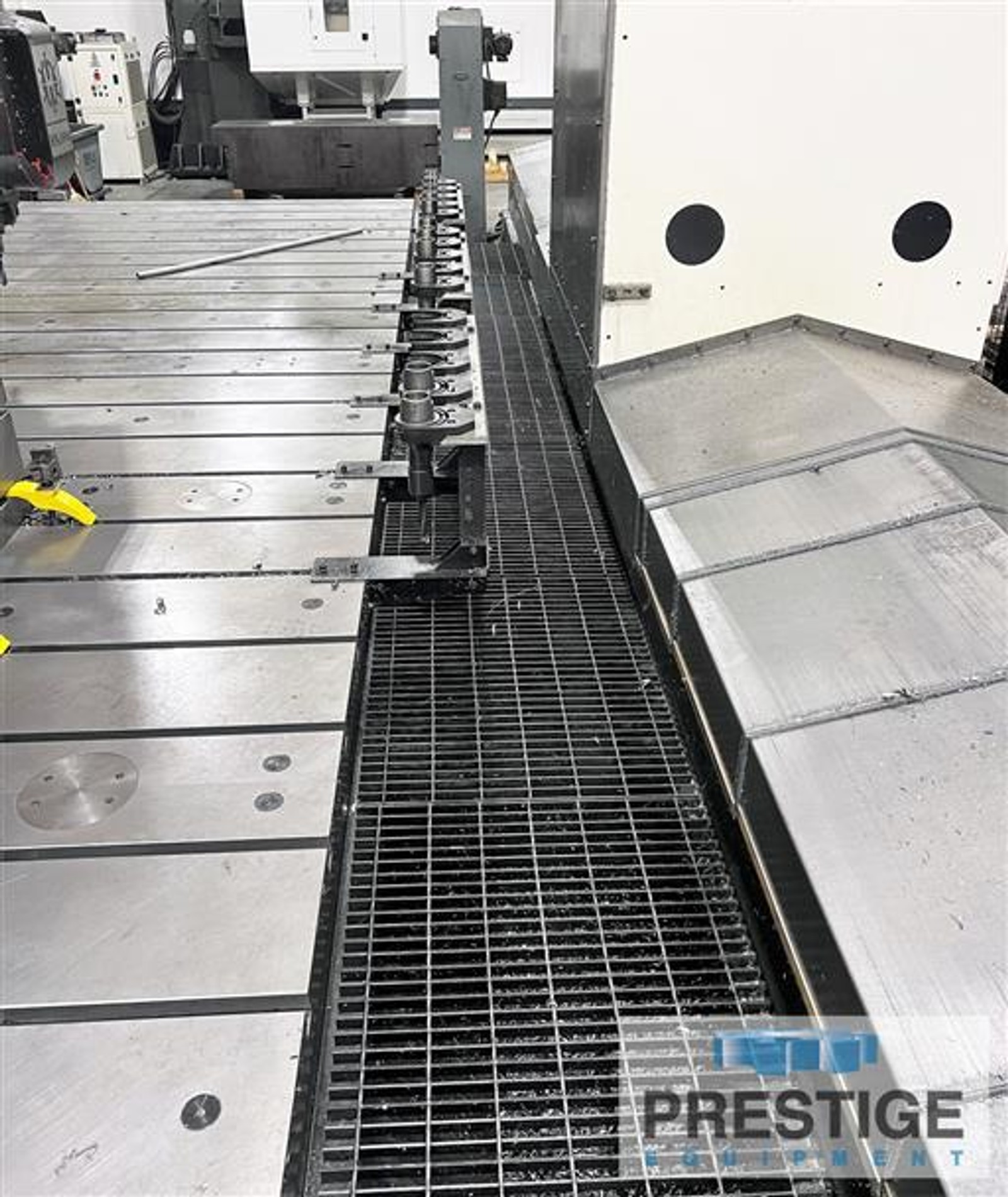

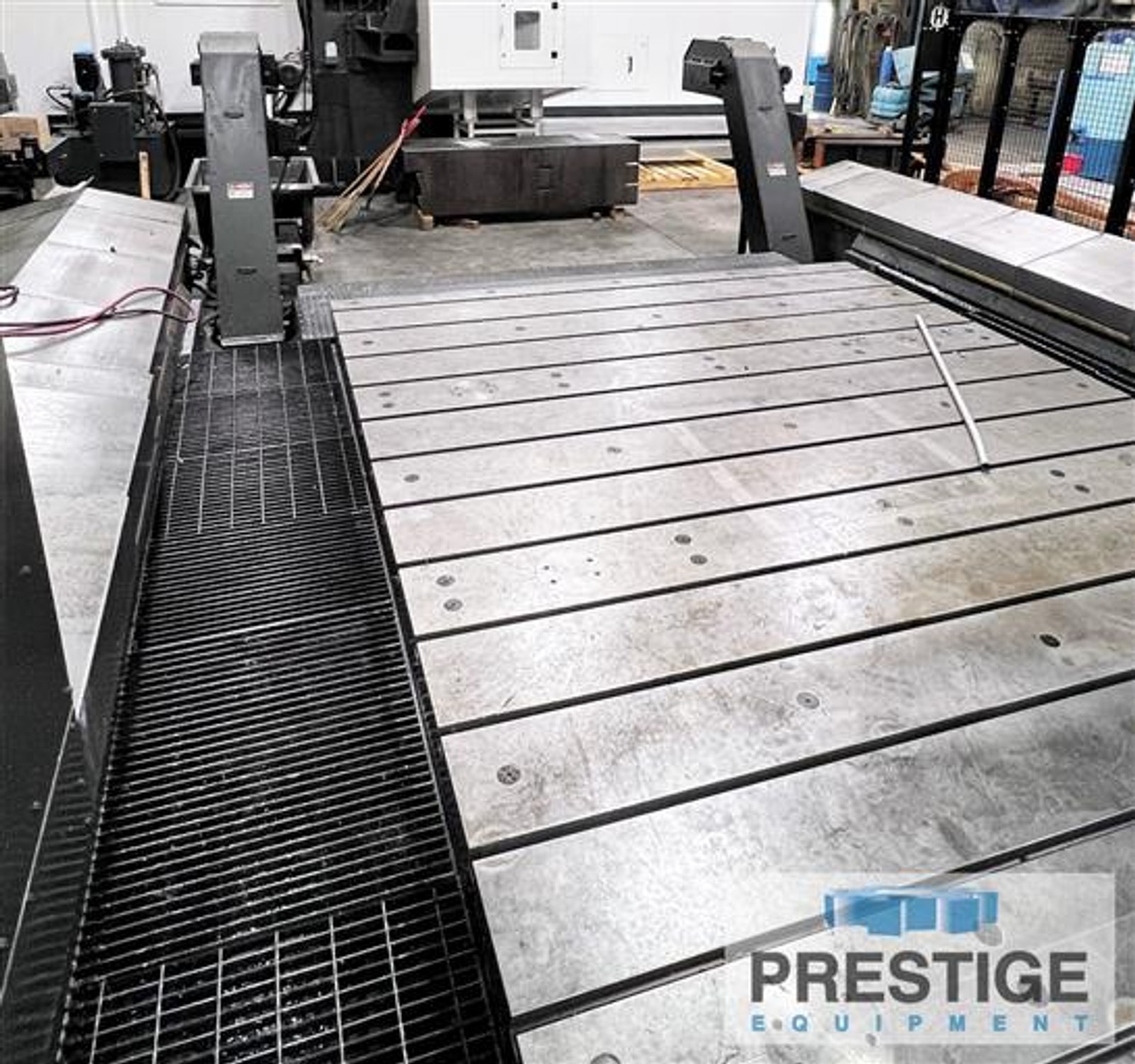

Table Dimensions, T-Slotted............ 288" x 120"
Distance Between Columns .............. 174.5"
X-Axis Travel ......................... 289.5"
Y-Axis Travel ......................... 131.5"
Z-Axis Travel ......................... 47.5"
Table to Spindle in Vert. Position .... 59"
A-Axis Head Travel .................... +/- 110 Deg.
C-Axis Head Rotation, Cont. ........... 360,000 Position
Spindle Taper ......................... HSK-100A
Spindle Speed ......................... 13,000 RPM
Spindle Motor, 30 Min. / Cont. ........ 62 HP/85 HP
Floor Space ........................... 283" x 303"
Machine Height, Max ................... 238"

EQUIPPED WITH:
Fanuc iH Pro CNC Control
A/C Axis Continuous Milling Head
15-Station Pick Up Tool Changer
Coolant Through Spindle
Dual Chip Conveyors


NOTE:
ATC can be expanded to 25-Tools. Inspect in Plant Under Power
