Ibarmia ZVH58 L4000 5-Axis , X-157", Y-39.4", 6000 RPM, 39" Dia. Rotary, Heidenhain 530 CNC, #32457

Manufacturer

Ibarmia

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32457

Model

ZVH58 L4000

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32457

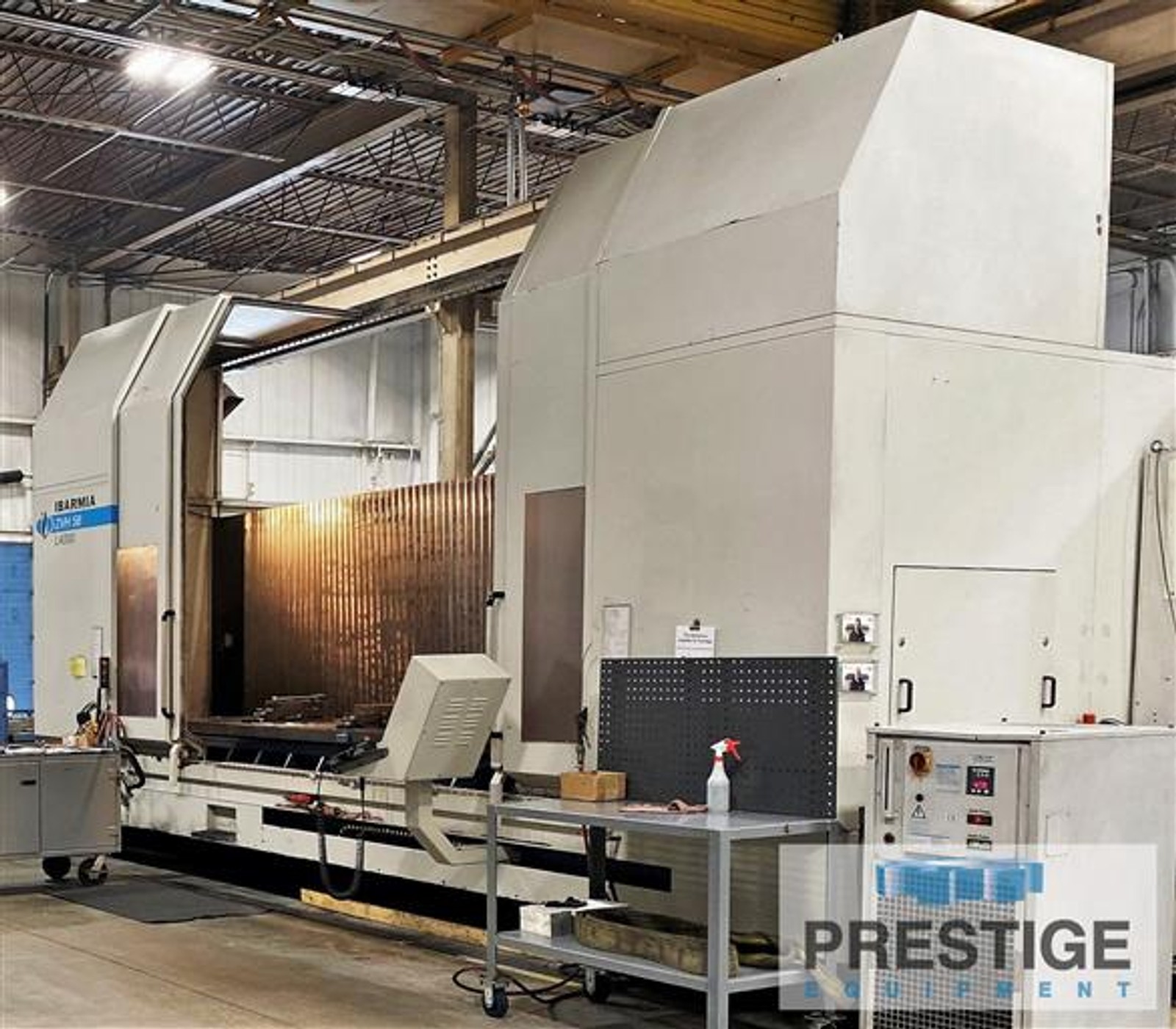

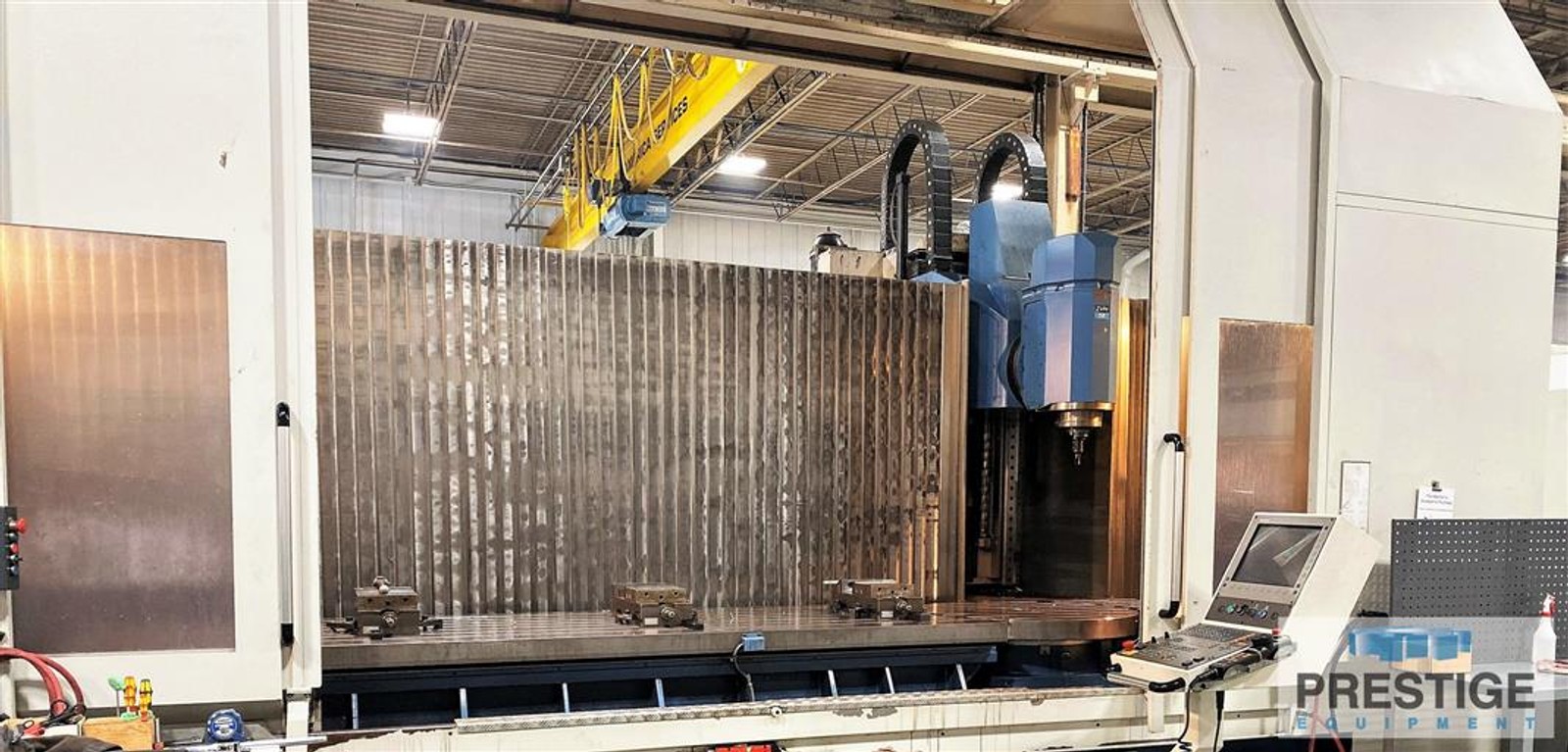

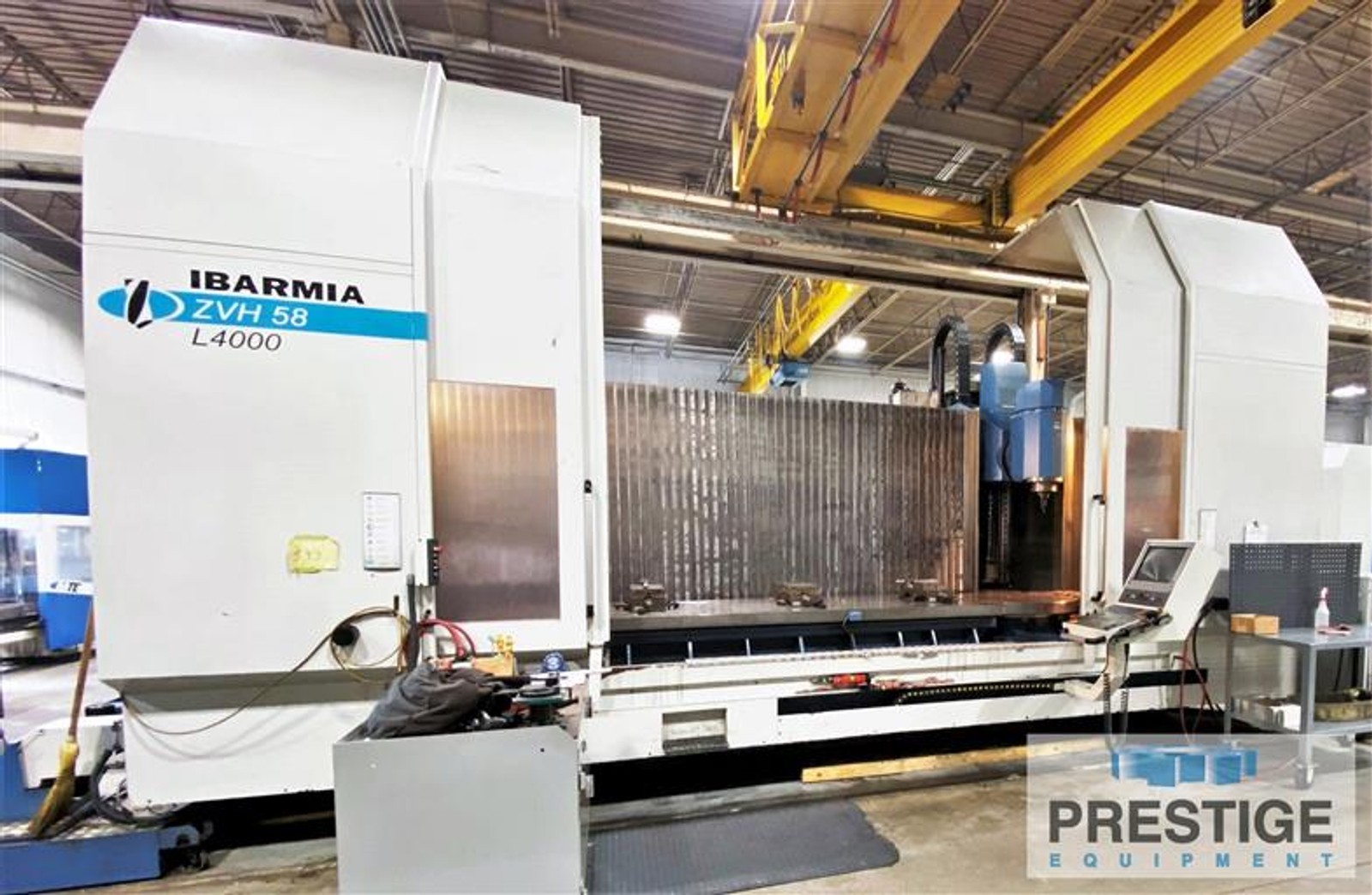

Ibarmia ZVH58 L4000 5-Axis Traveling Column Universal Machining Center

FEATURES:

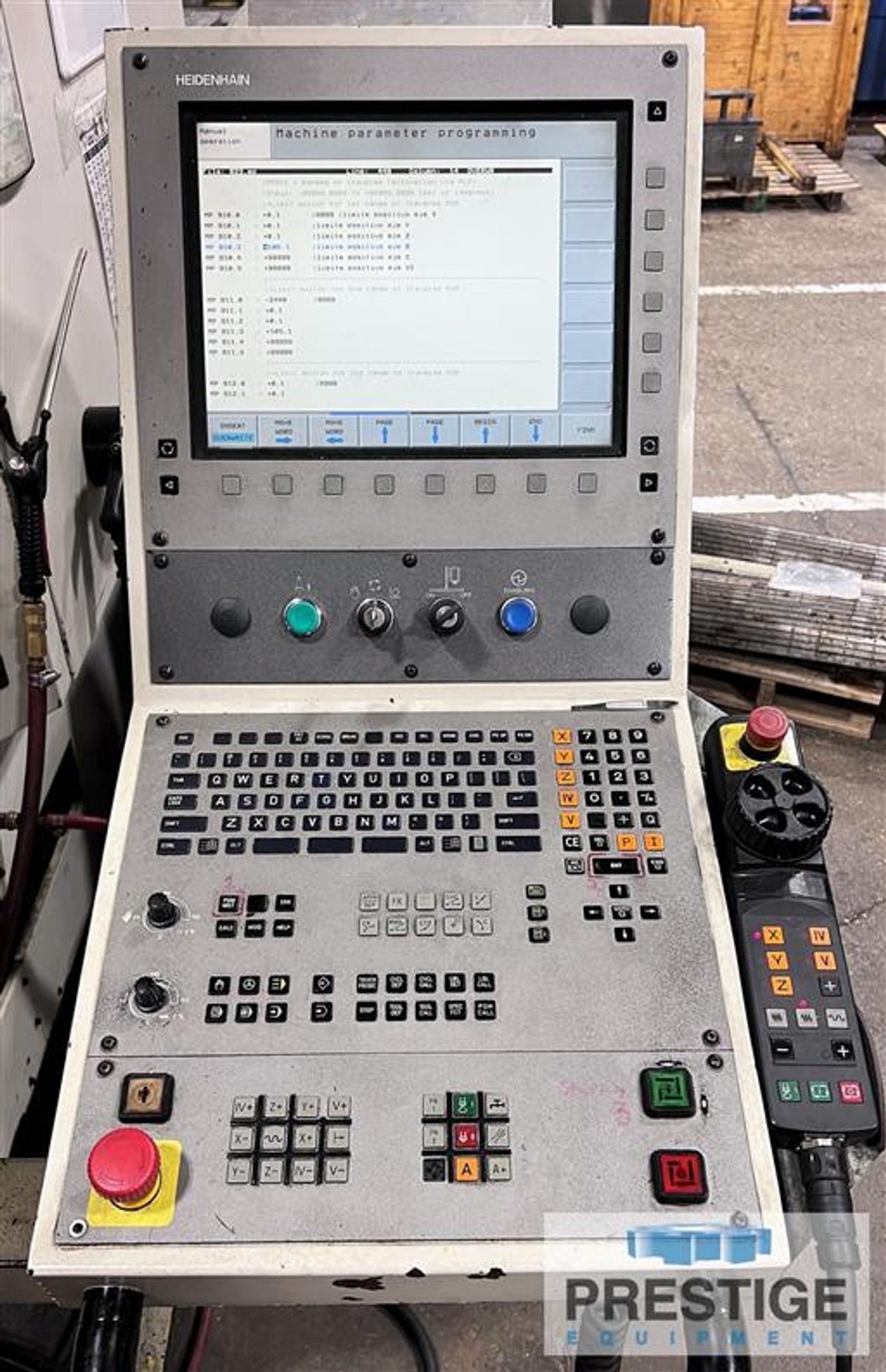

Heidenhain iTNC530 CNC Control
Heidenhain Scale Feedback

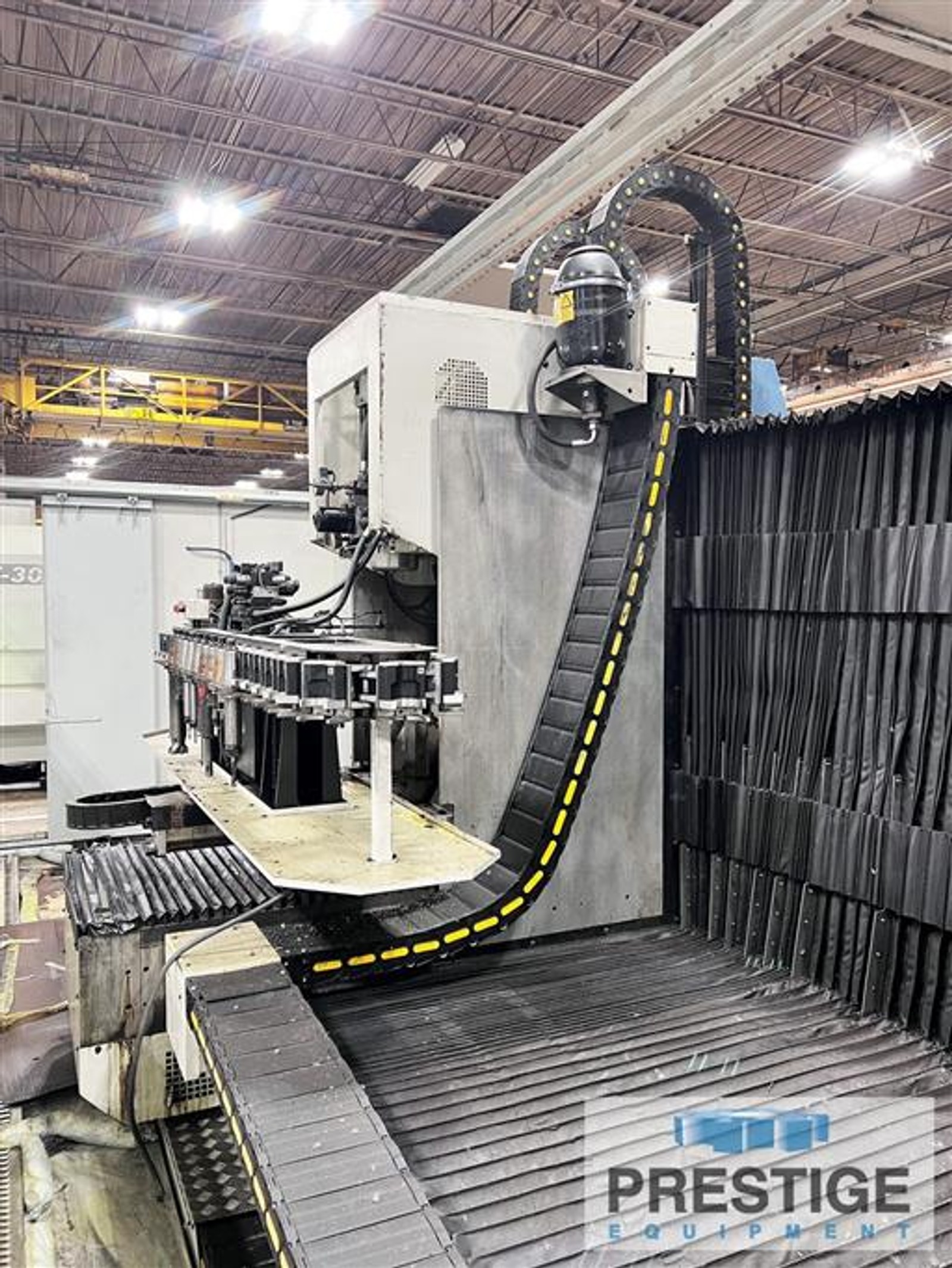

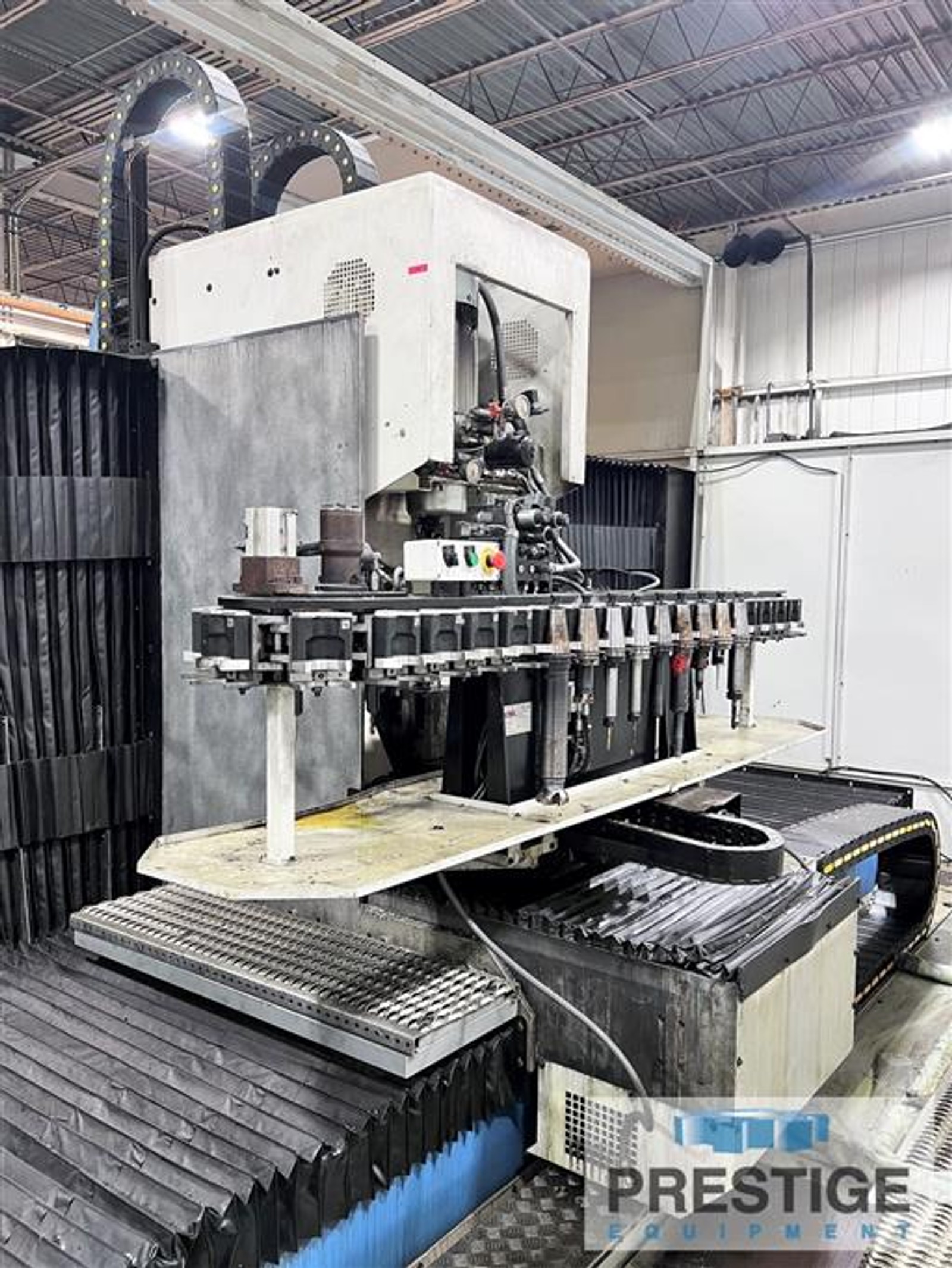

40-Station Automatic Tool Changer
Full Chip and Splash Enclosure Including Roof
Through Spindle Coolant, 360 PSI
Coolant Filtration System
Coolant Guns
Spindle Air Blow
Divider Wall With Interlocks for 2 Station Machining
Any And All Available Manuals

SPECIFICATION:
X-Axis Travel ......................... 157.48"
Y-Axis Travel ......................... 39.4"
Z-Axis Travel ......................... 33.9"
Table Size ............................ 180" x 41.3"

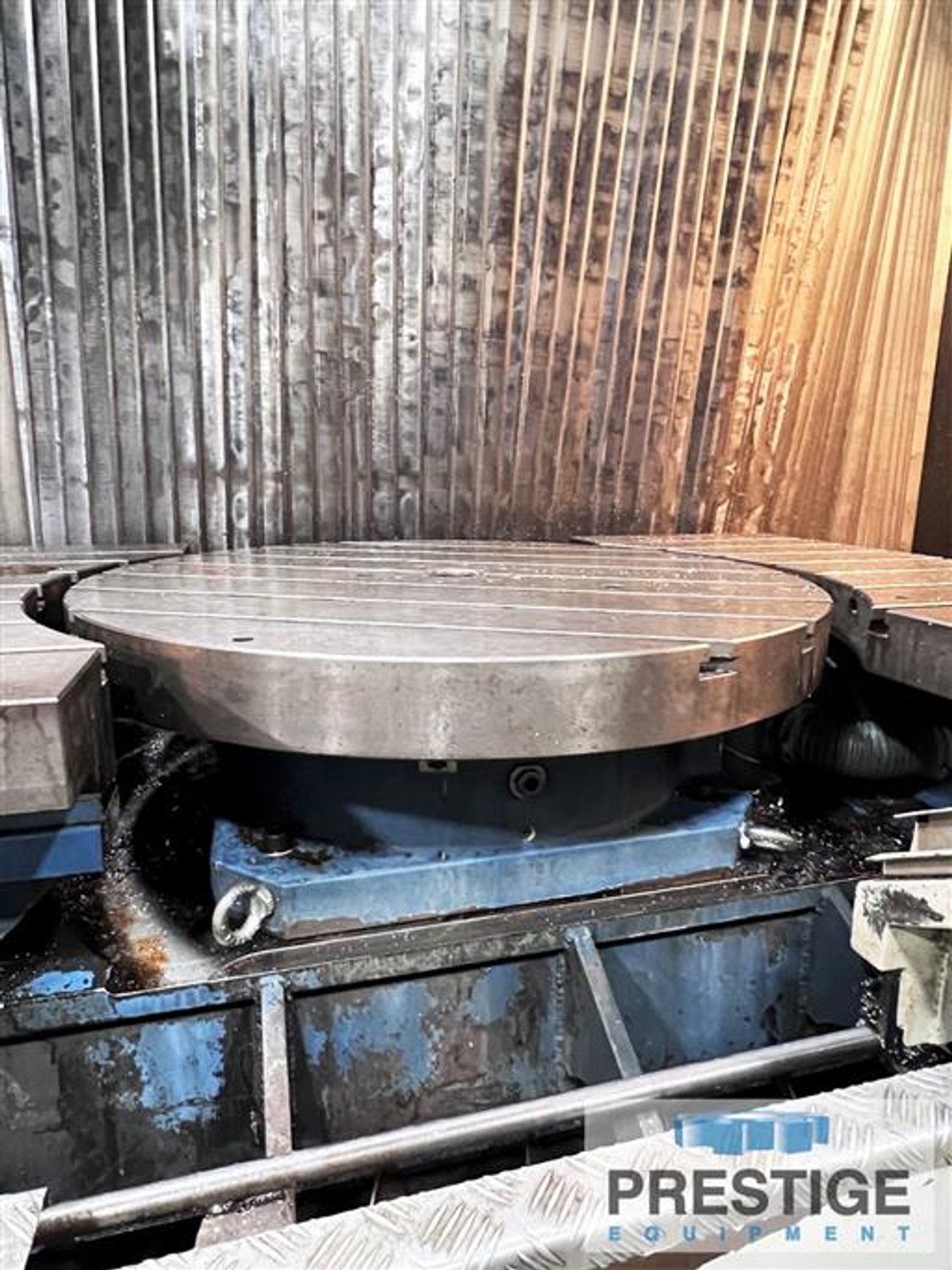

Integrated Rotary Table .............. 39.4" Dia.
Rotary Table Weight Capacity ......... 5,500 lbs
Plain Table Weight Capacity ........... 8,000 Lbs

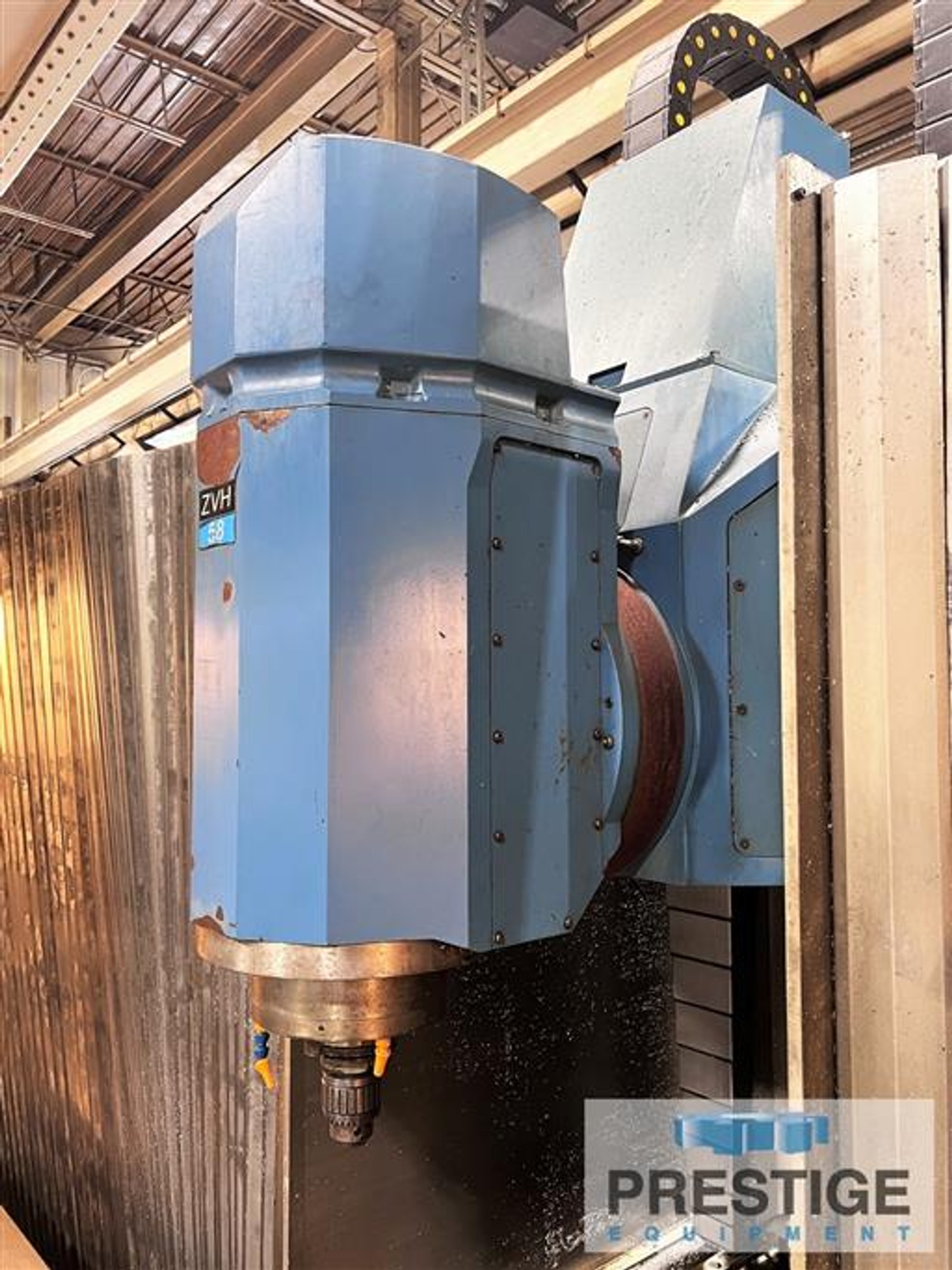

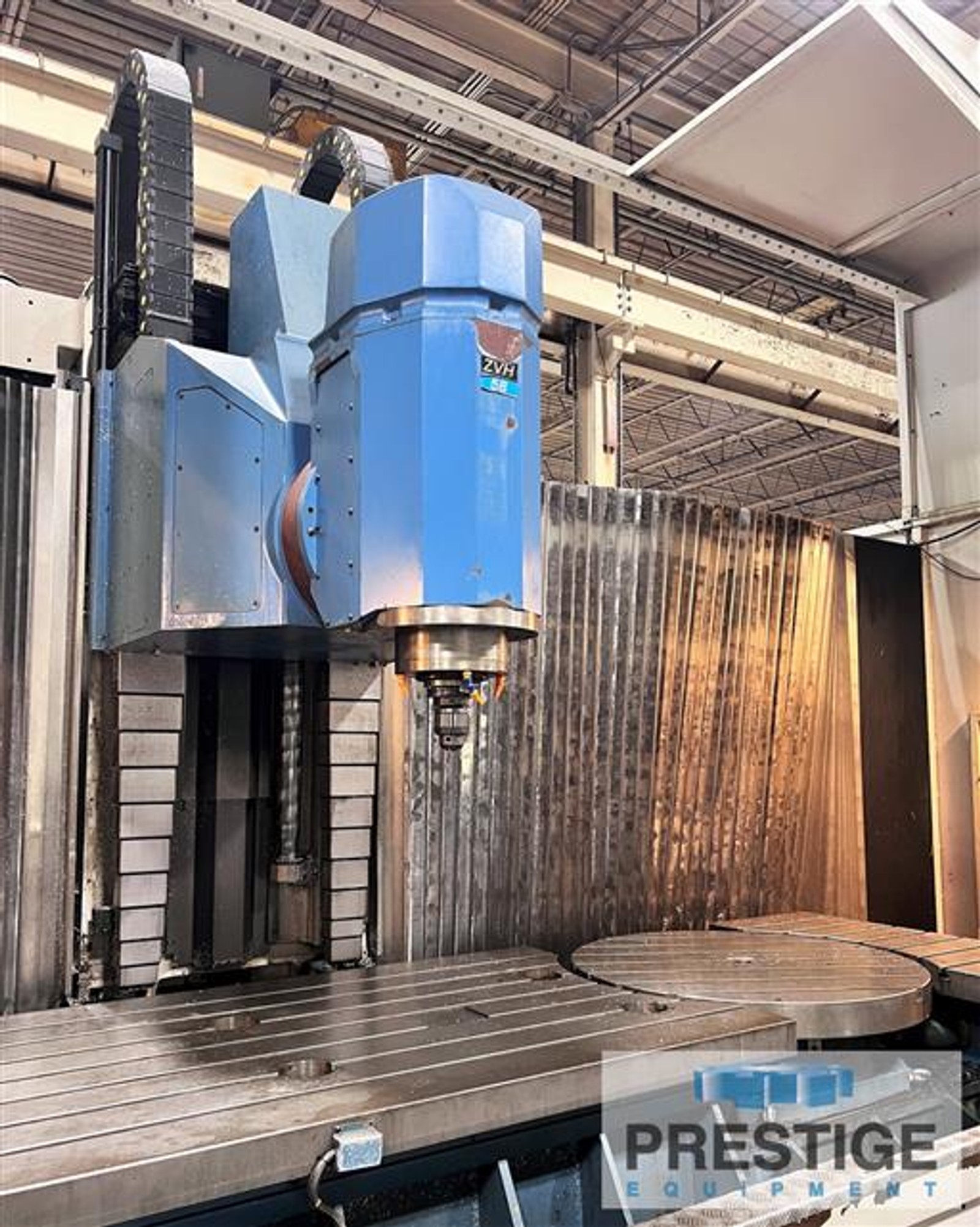

Spindle Swivel, A-Axis ................ +/- 105 Degrees
Rotary Table, B-Axis ................. 360 Degrees
Spindle Taper ......................... #50 CAT
Spindle Speed ......................... 6000 RPM
Spindle Drive Motor ................... 50 HP
Rapid Traverse ....................... 1200 IPM
Automatic Tool Changer ............... 40-Stations


EQUIPPED WITH:
Heidenhain iTNC530 CNC Control
Heidenhain Scale Feedback
40-Station Automatic Tool Changer

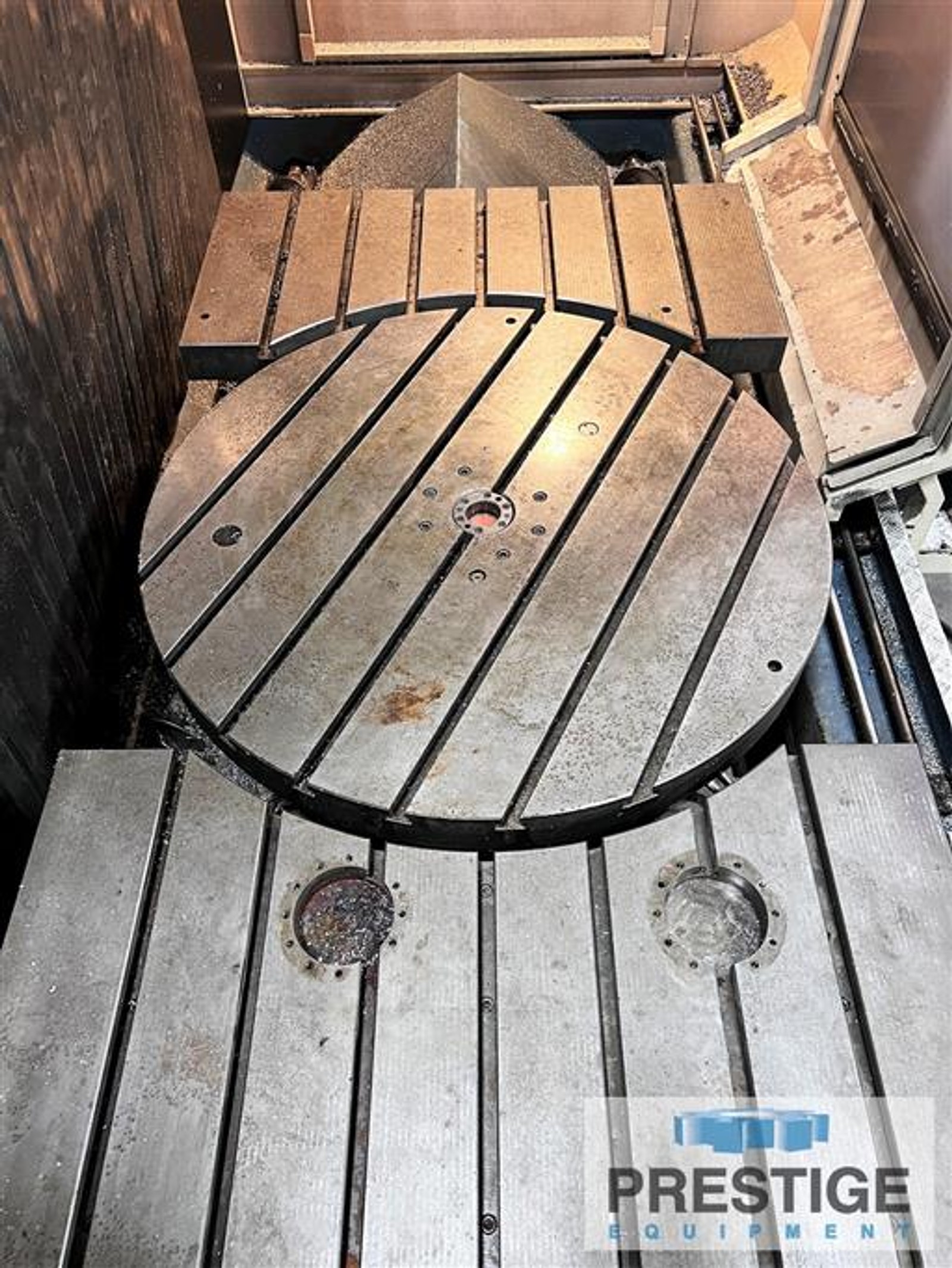

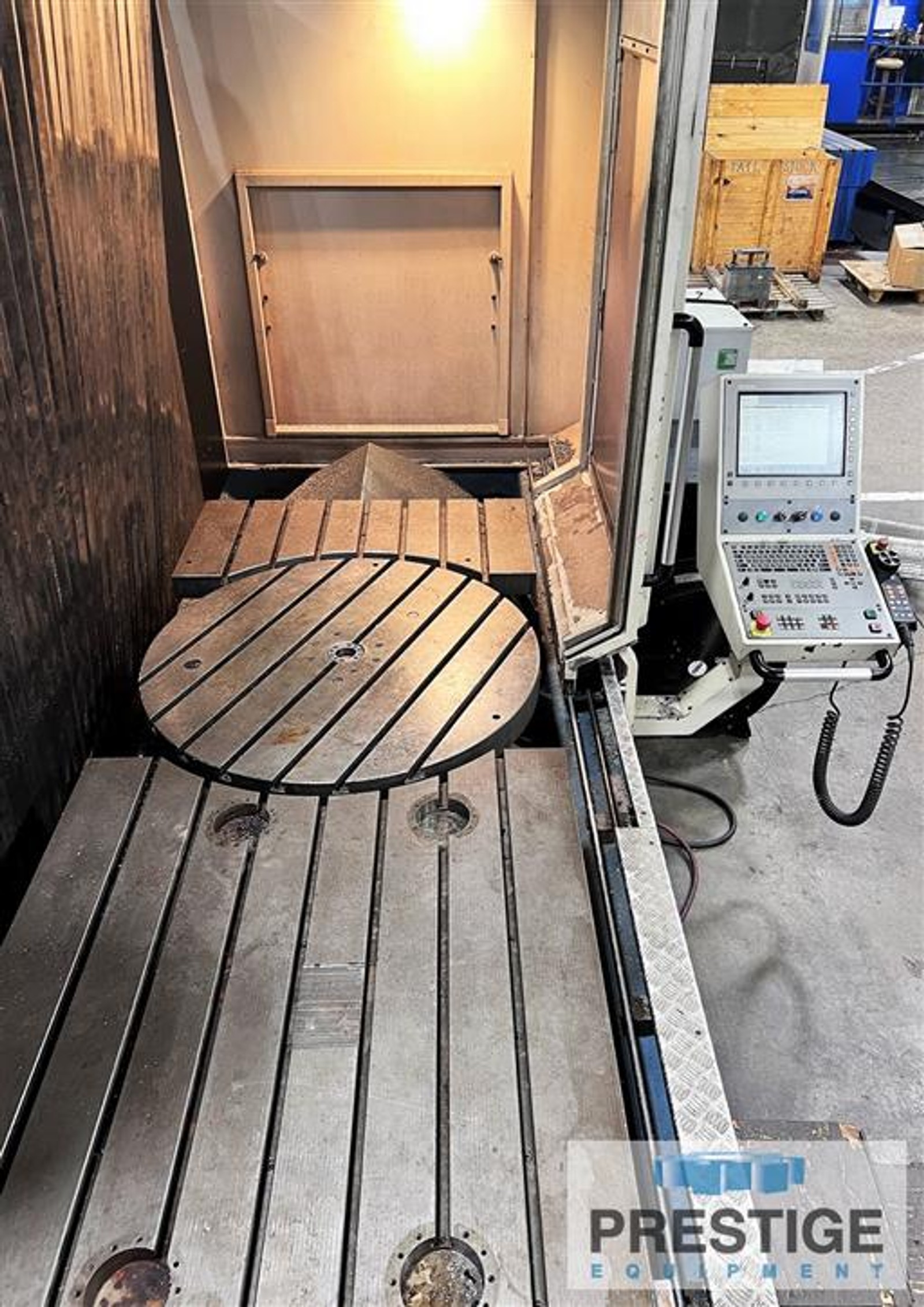

39.4" Integrated Rotary Table

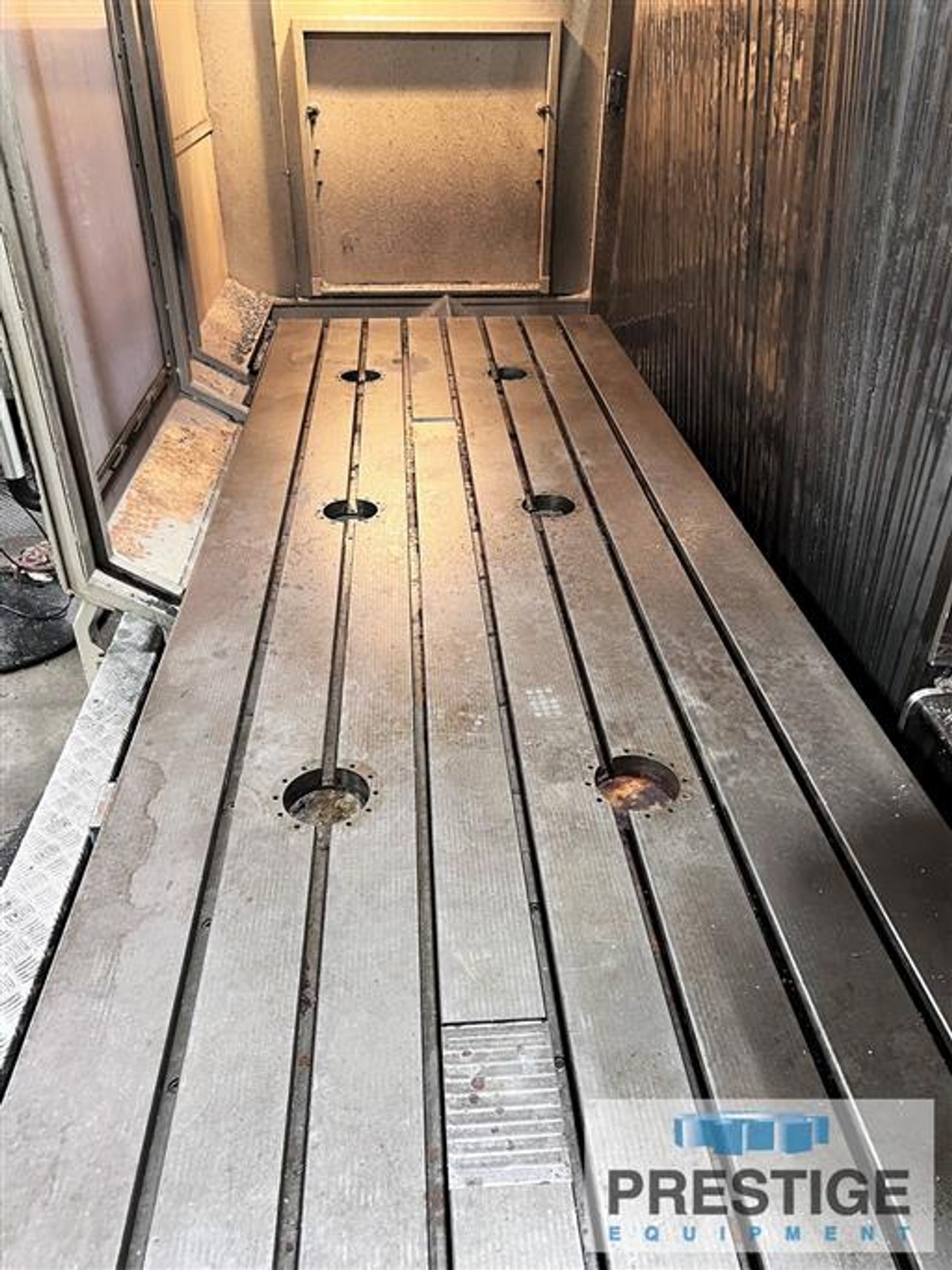

180" x 41.3" Plain Table
Full Chip and Splash Enclosure Including Roof
Through Spindle Coolant, 360 PSI
Coolant Filtration System
Coolant Guns
Spindle Air Blow
Divider Wall With Interlocks for 2 Station Machining

NOTE:
Inspect In Plant Under Power
