Toshiba TSS 30/55A CNC, 118" Table, 216" Swing, 50 HP, Sliding Table, Fanuc CNC, #32559

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32559

Model

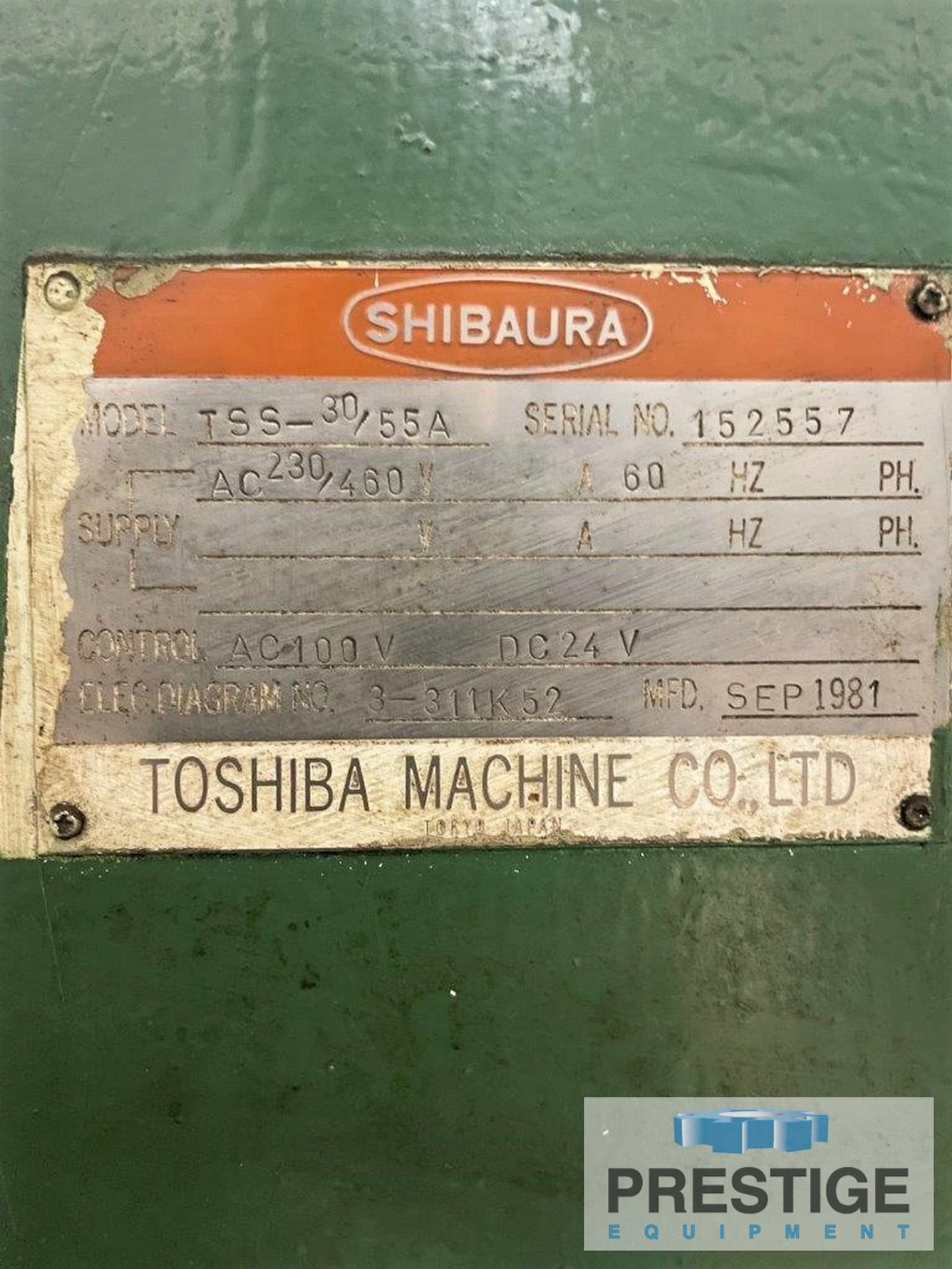

TSS30/55A

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32559

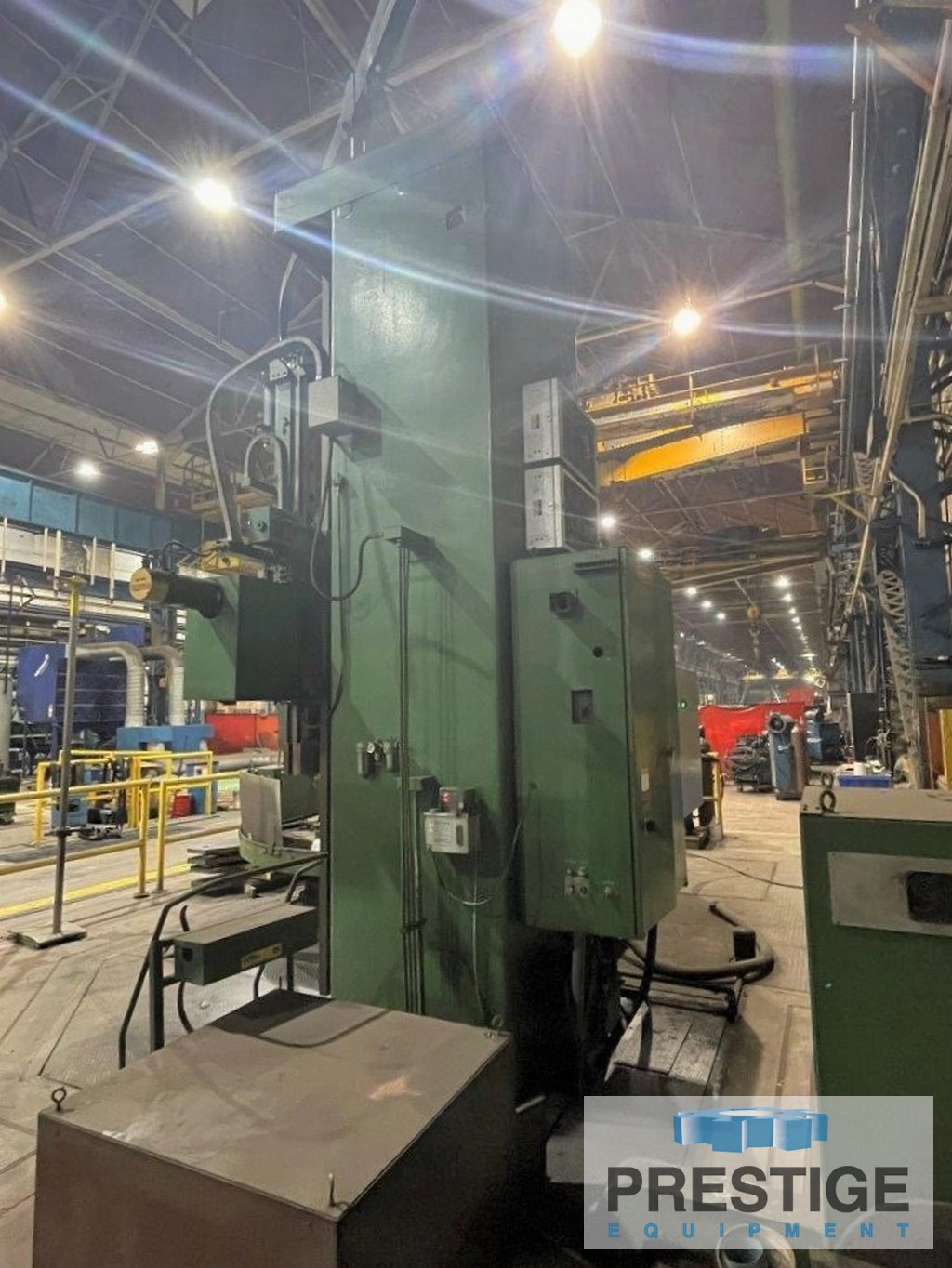

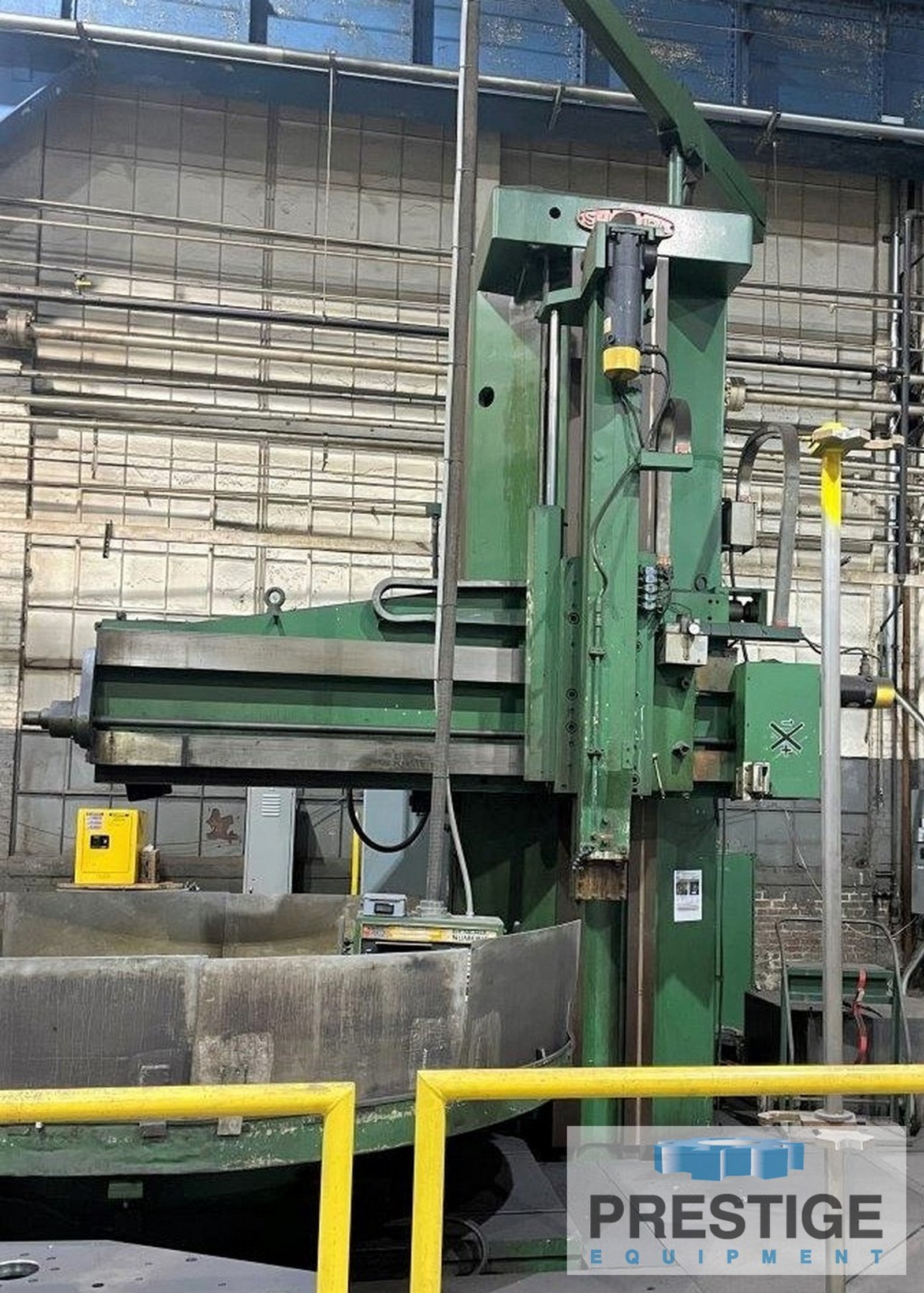

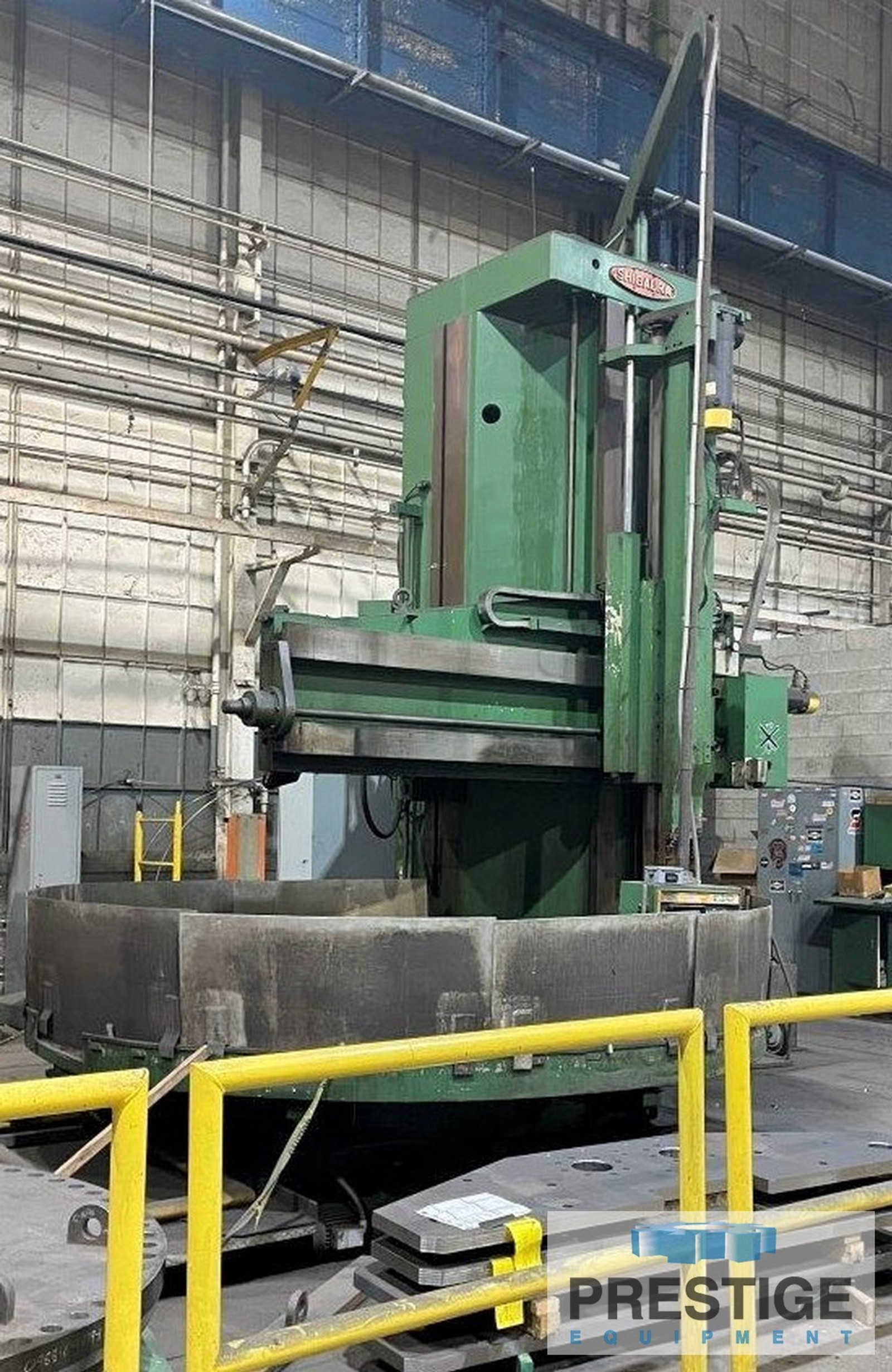

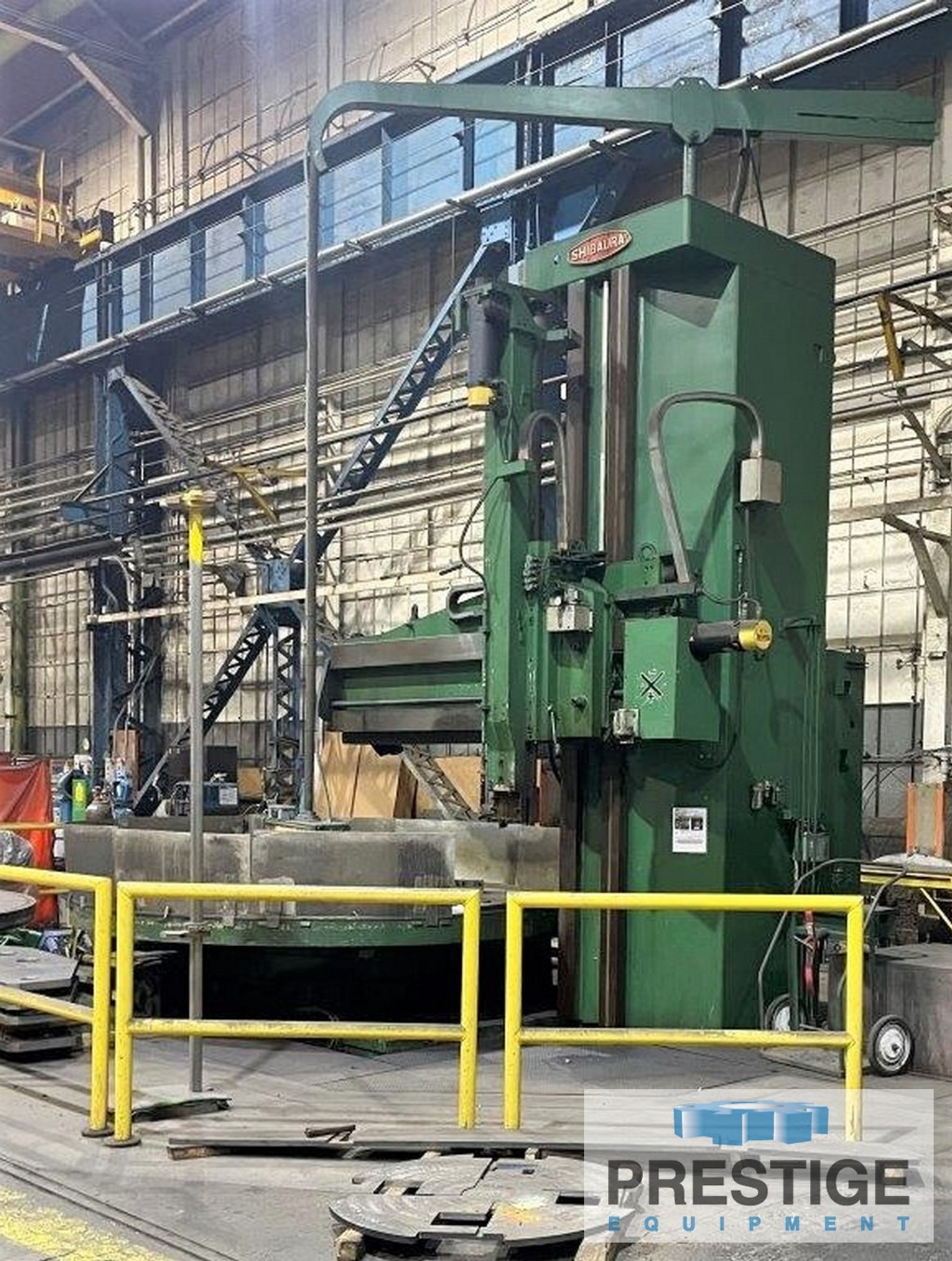

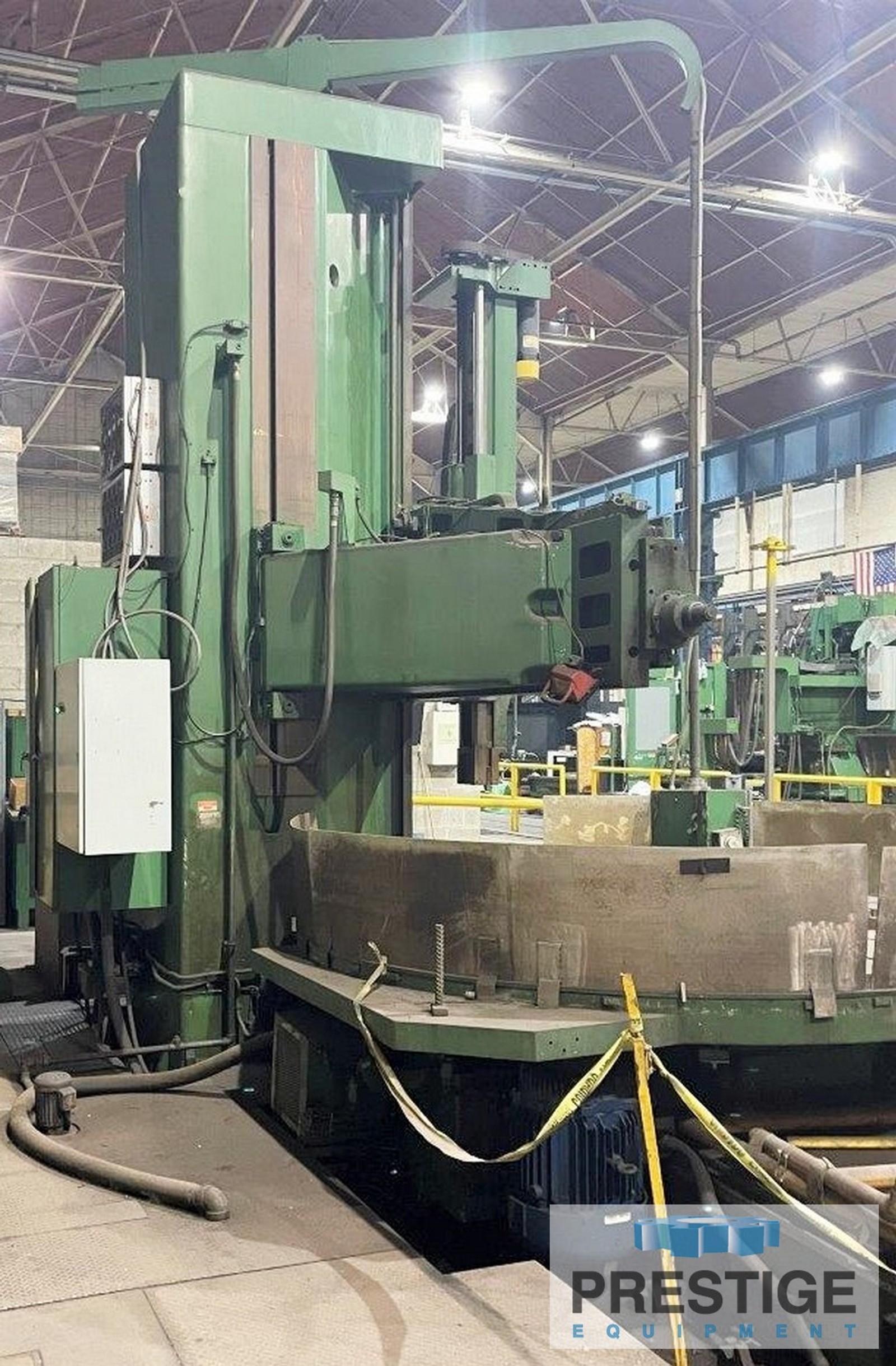

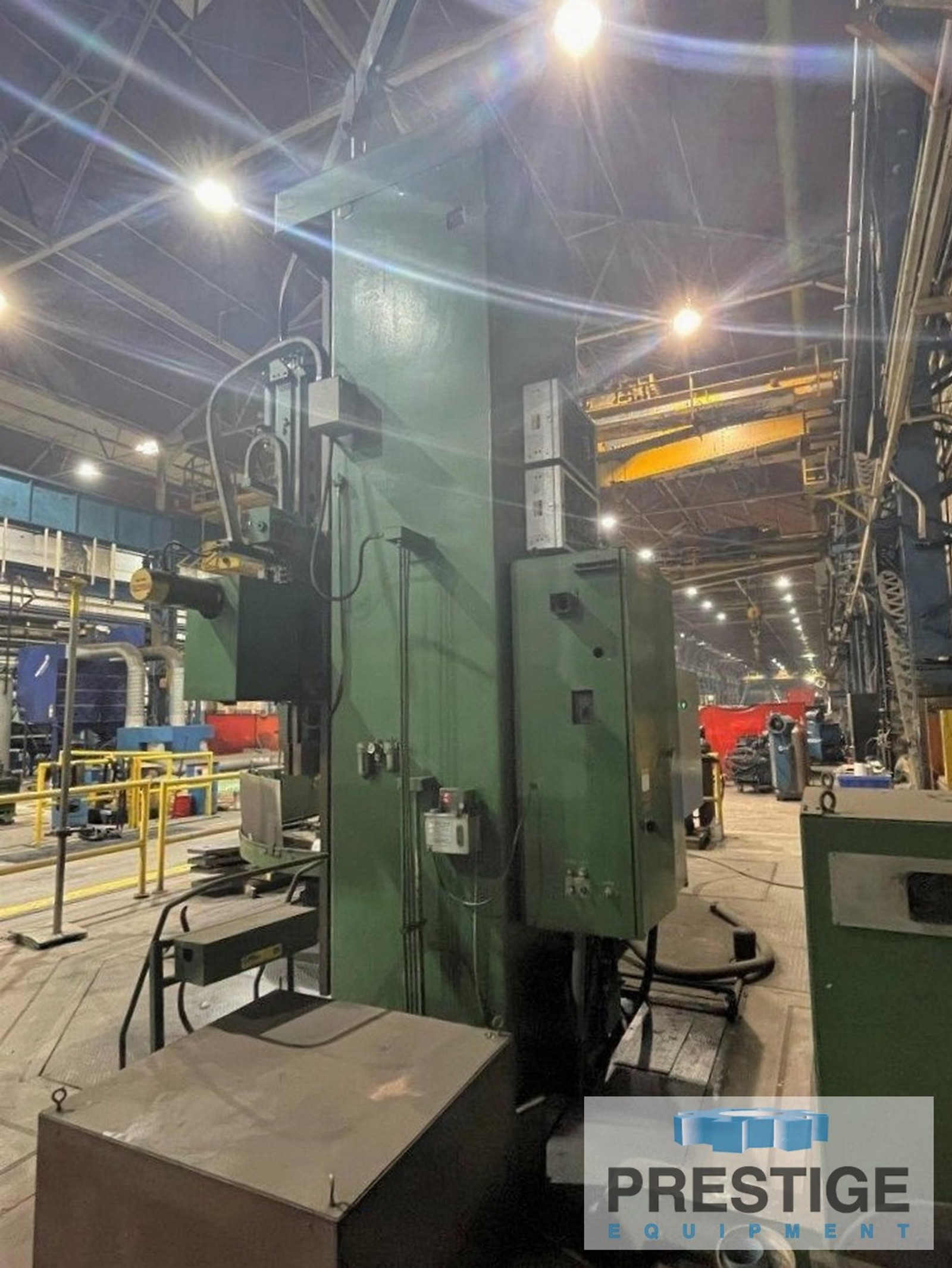

Toshiba TSS 30/55 A CNC Vertical Boring Mill w/Sliding Column

FEATURES:
Openside with Sliding Table

Table Diameter ....................... 118.12"
Maximum Swing ........................ 216.53"
Maximum Swing For Center Turn ........ 157.48"
Maximum Height Under Rail ............ 109.8"
Vertical Travel of Cross Rail......... 61.02"
Ram Stroke ........................... 39.4"
Table Speeds ......................... 2.5 to 80 RPM
Feeds ................................ .0008-.8 IPR
Table Weight Capacity ................ 35,300 Lbs
Machine Weight Approx: ............... 85,000 Lbs

EQUIPPED WITH:

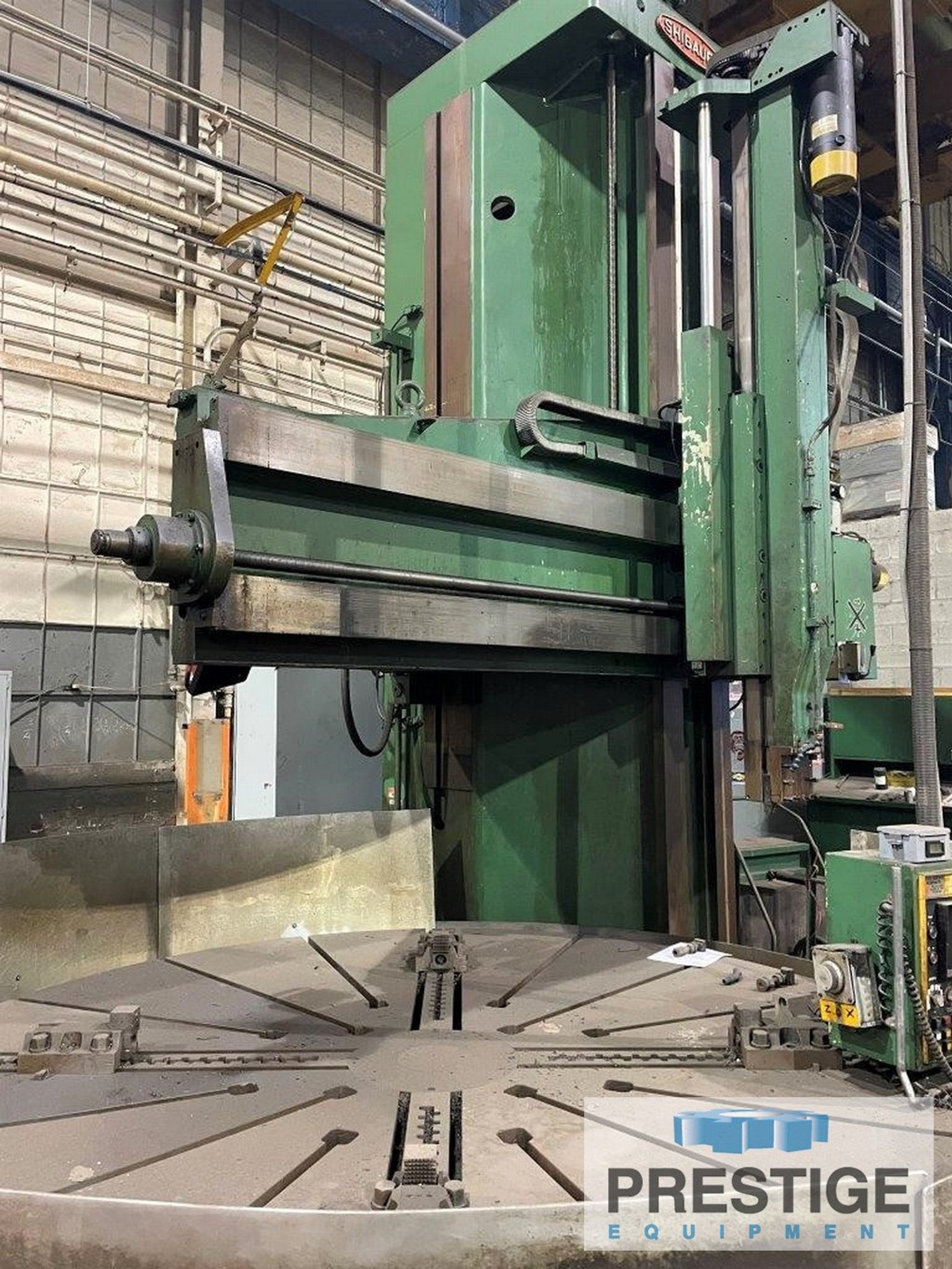

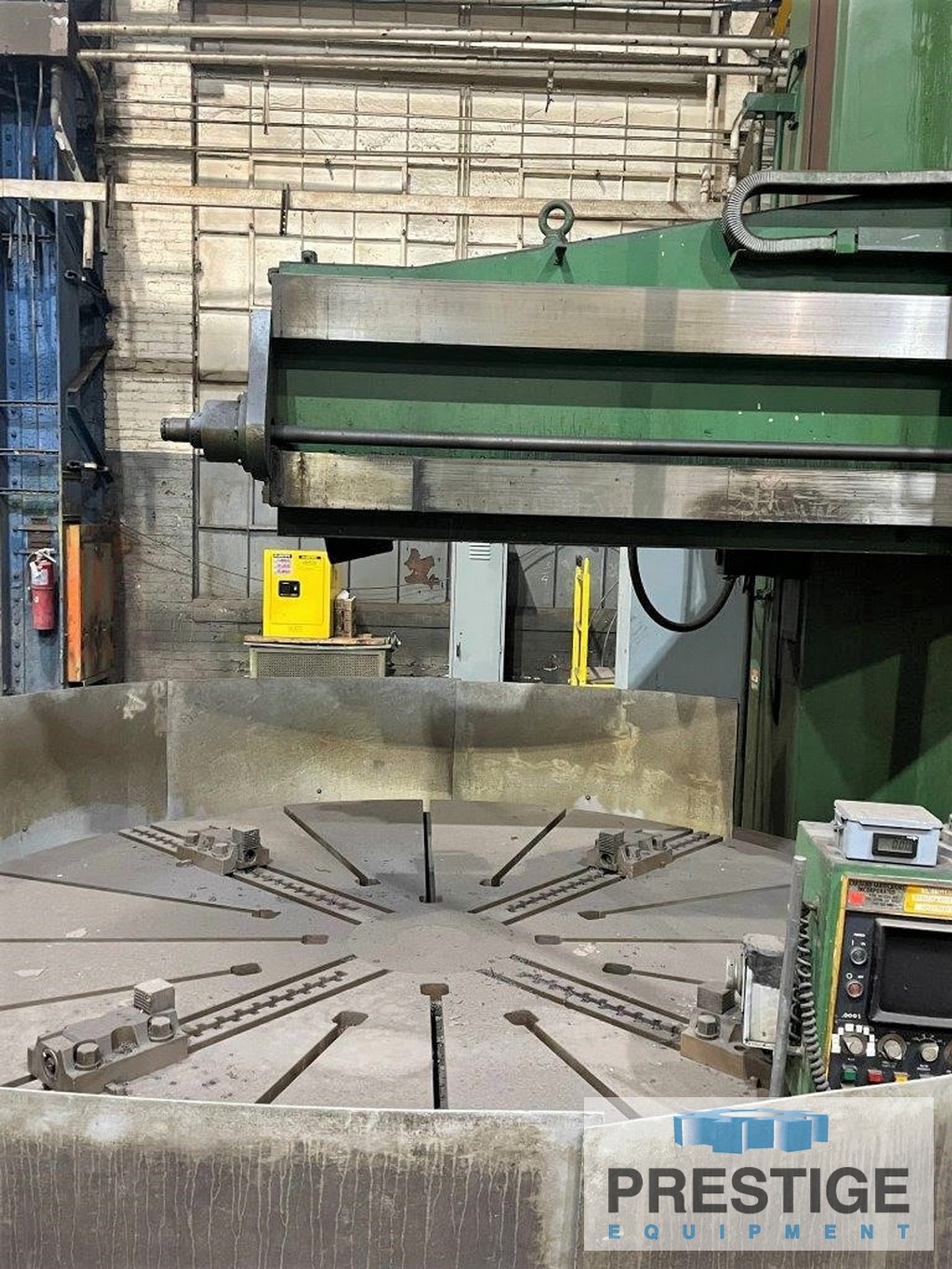

118.11" T-Slotted Table W/4-Face Plate Jaws

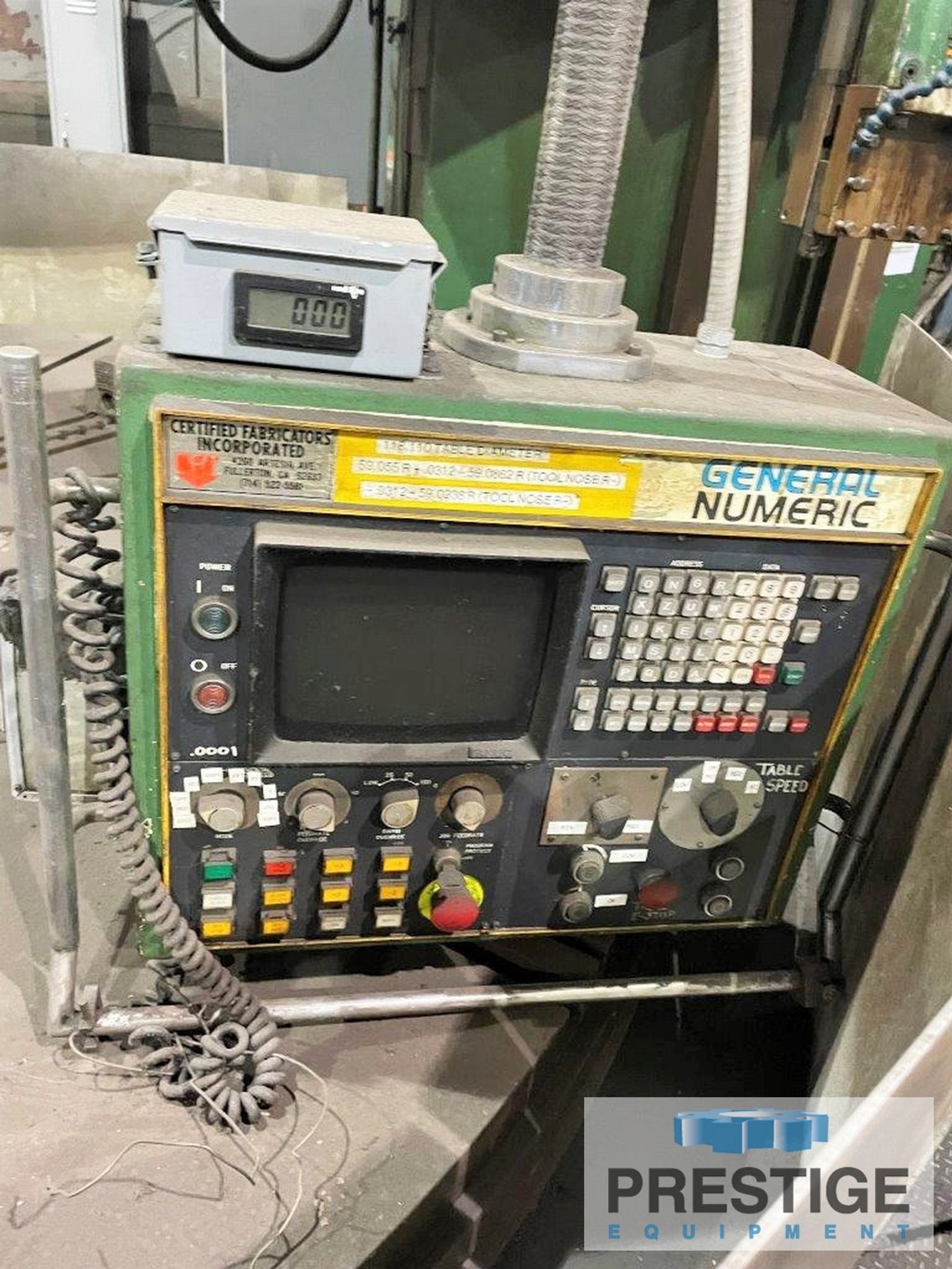

General Numeric GN6 CNC Controls

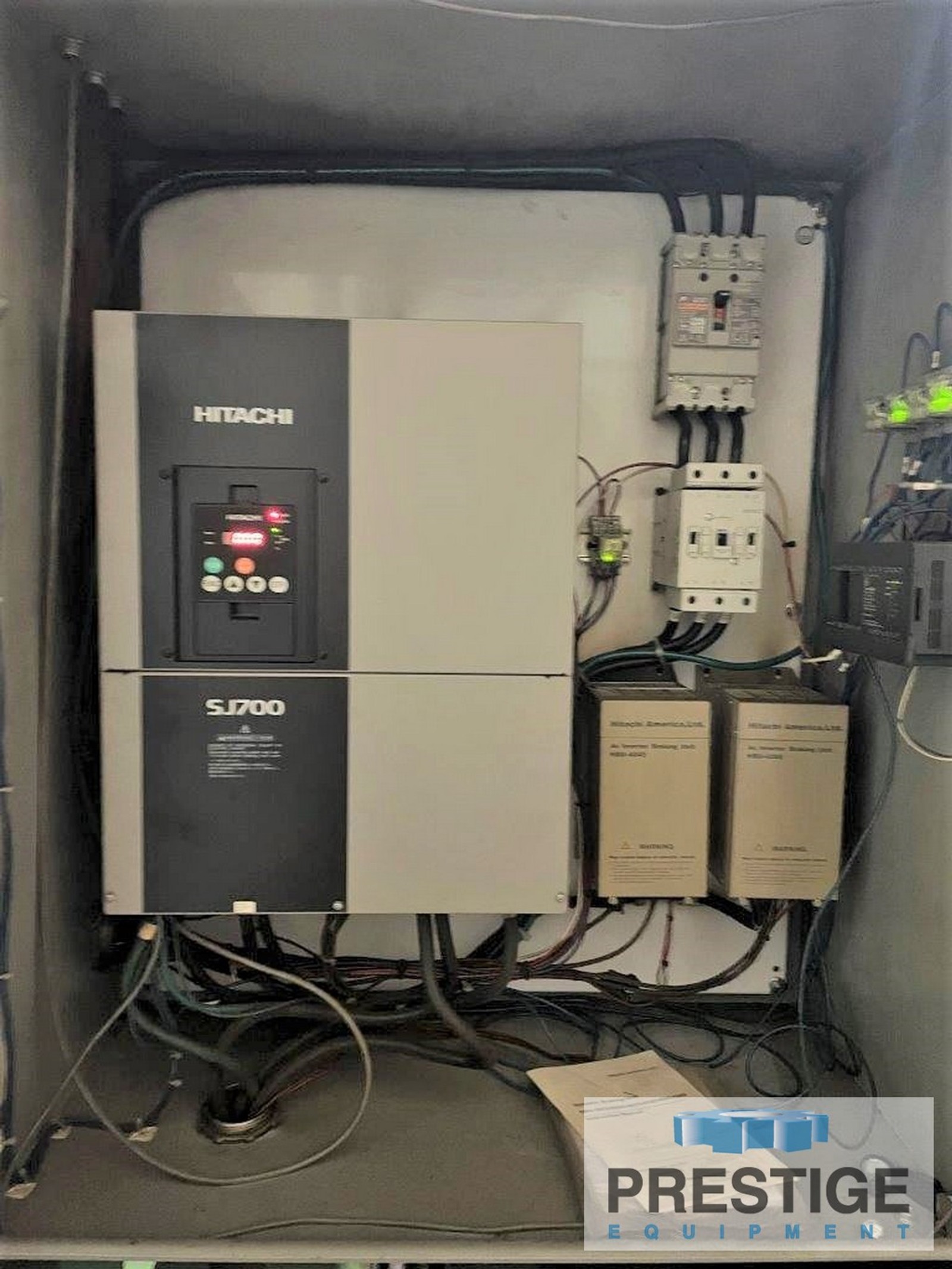

Hitachi SJ700 Drives (Updated)
Fanuc Servo Drive Motors
Pendant Mounted CRT
50 HP Table Drive 3/60/440 Volt
