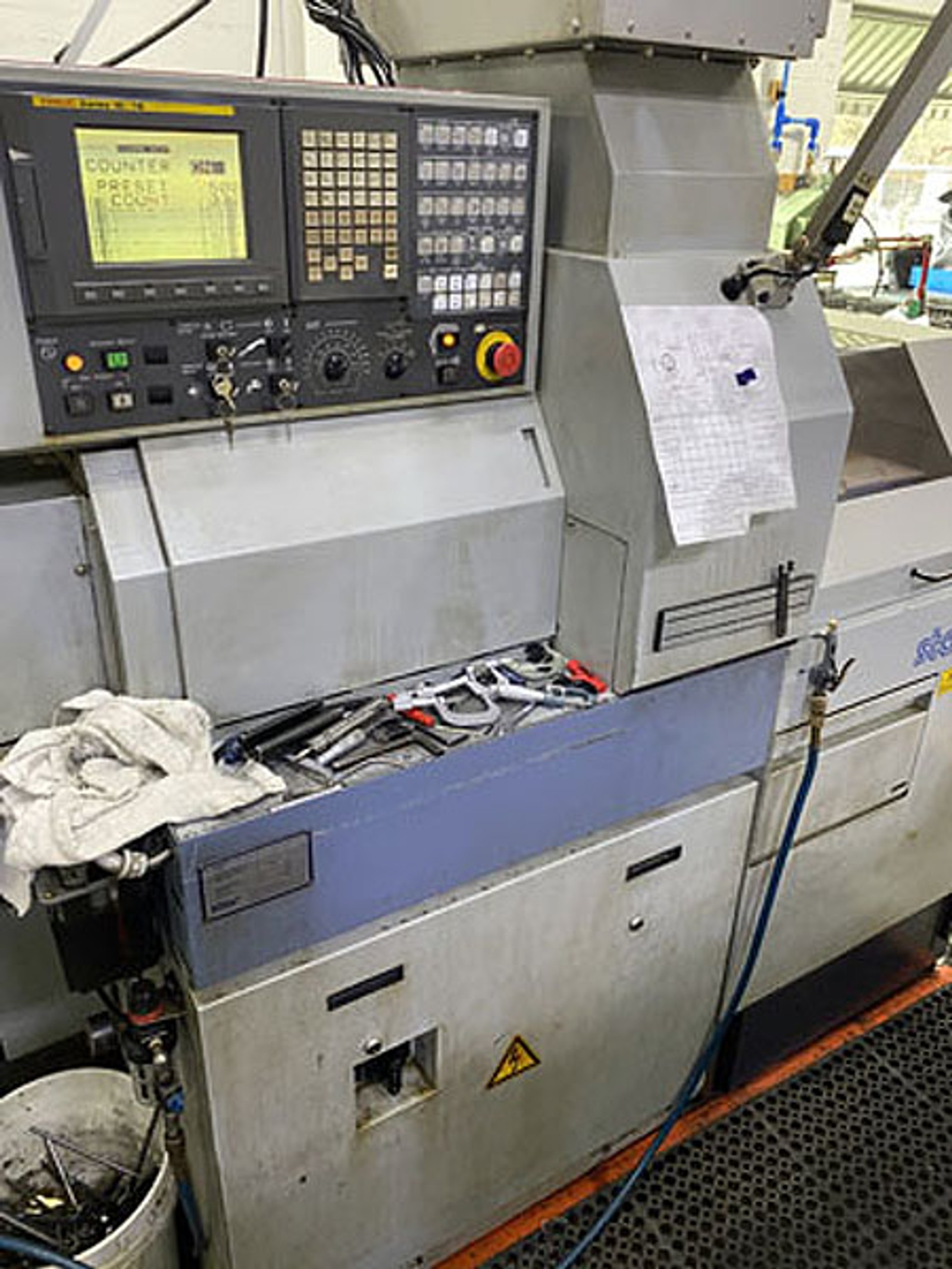

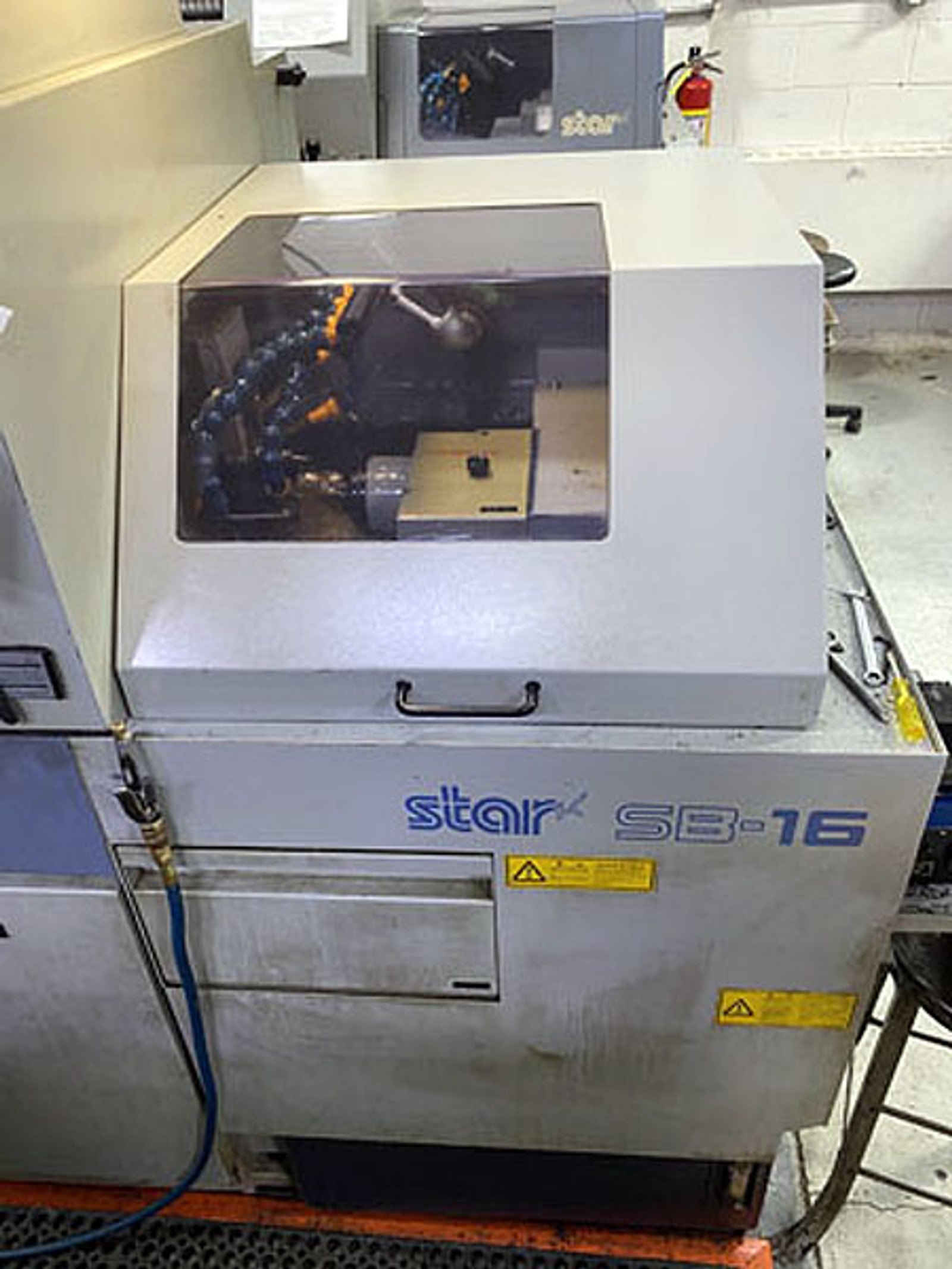

Star SB-16 Type C CNC Swiss Type Lathe, New 2005

Manufacturer

Star

Category

Lathes

Type

LATHES, CNC

Stock

3162

Model

SB16C

Dealer Location

Connecticut

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

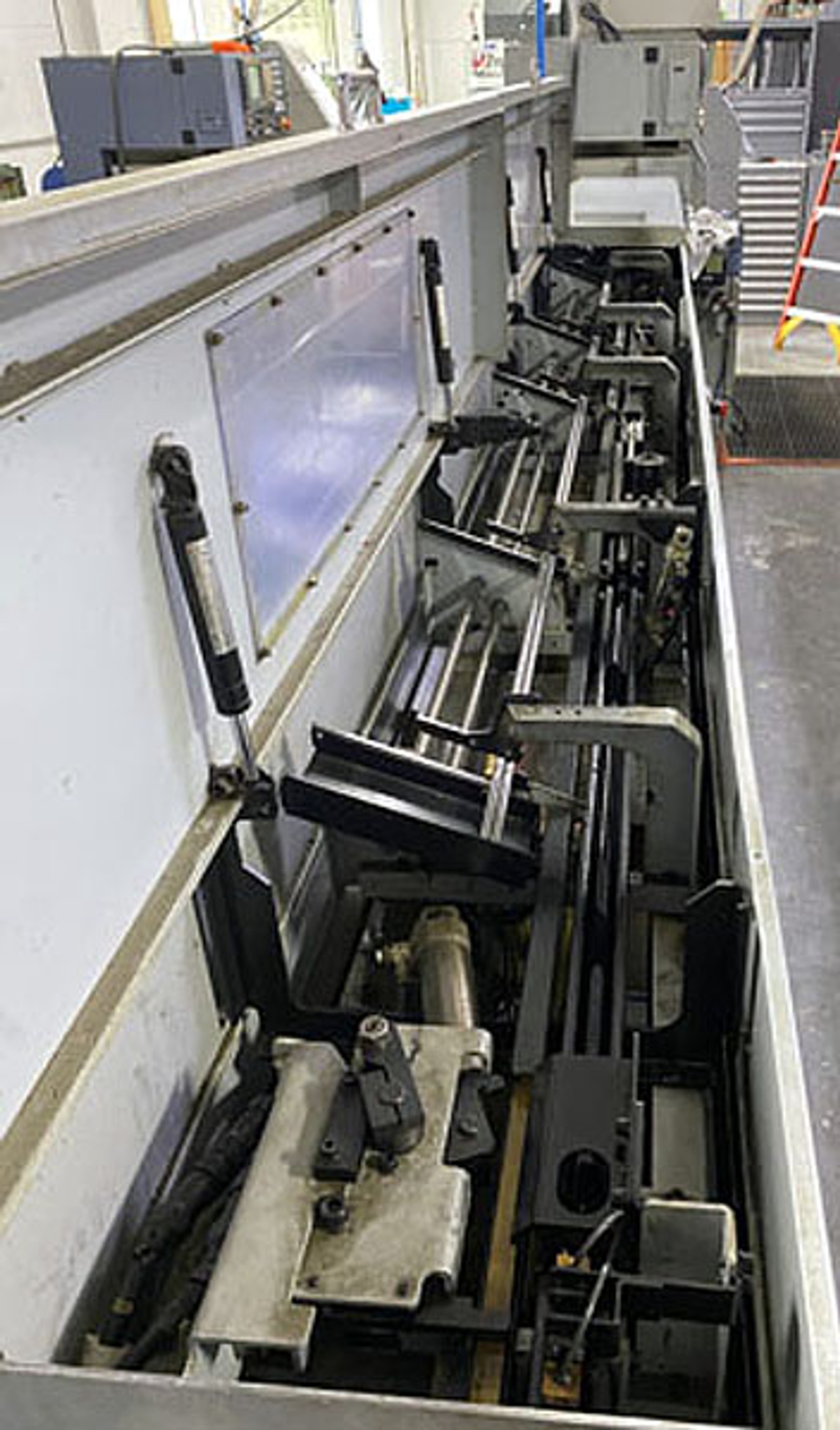

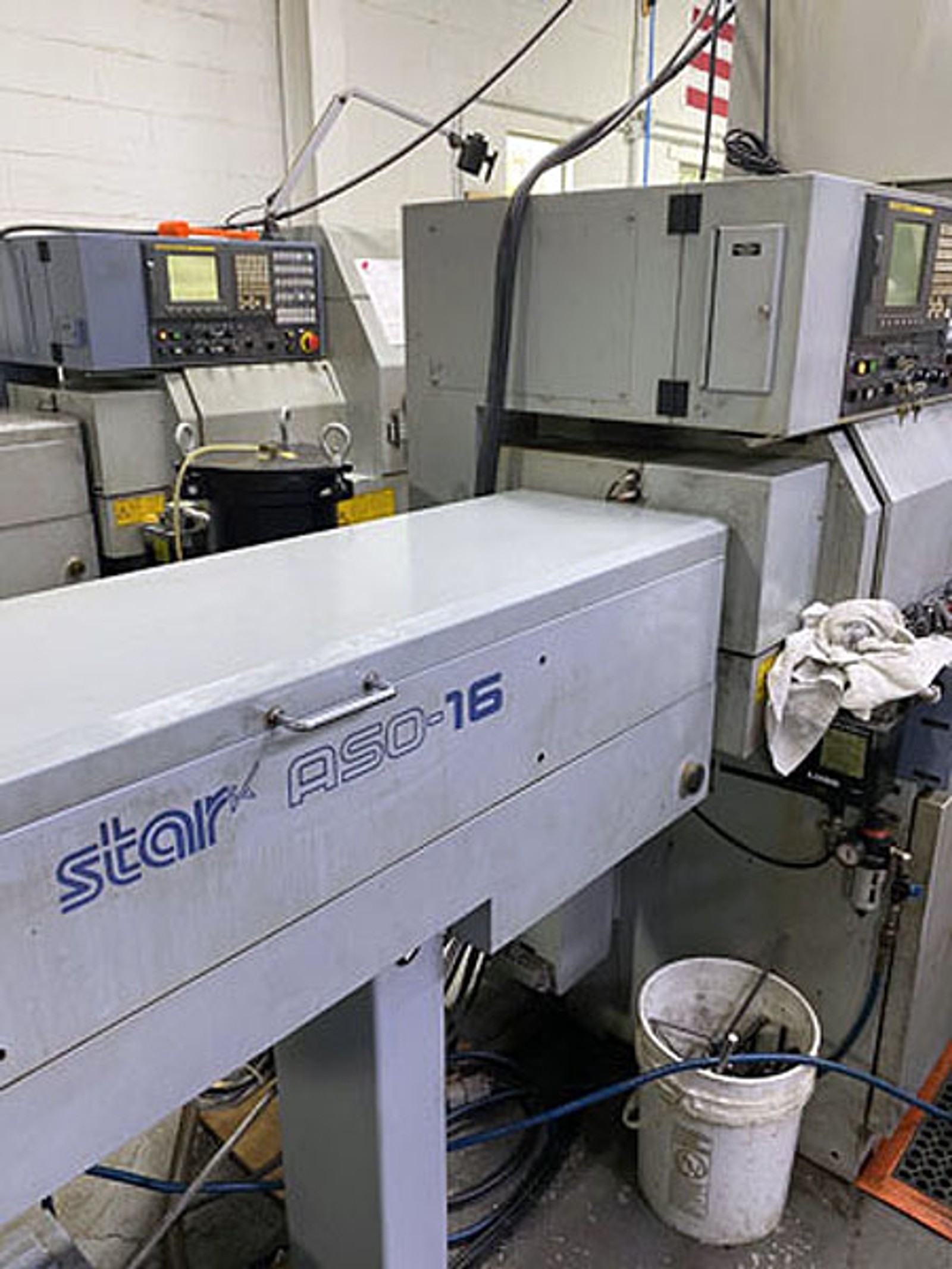

Star ASO 12' Bar Loader
New Enland Tool 500 PSI 4-line HP Pump.

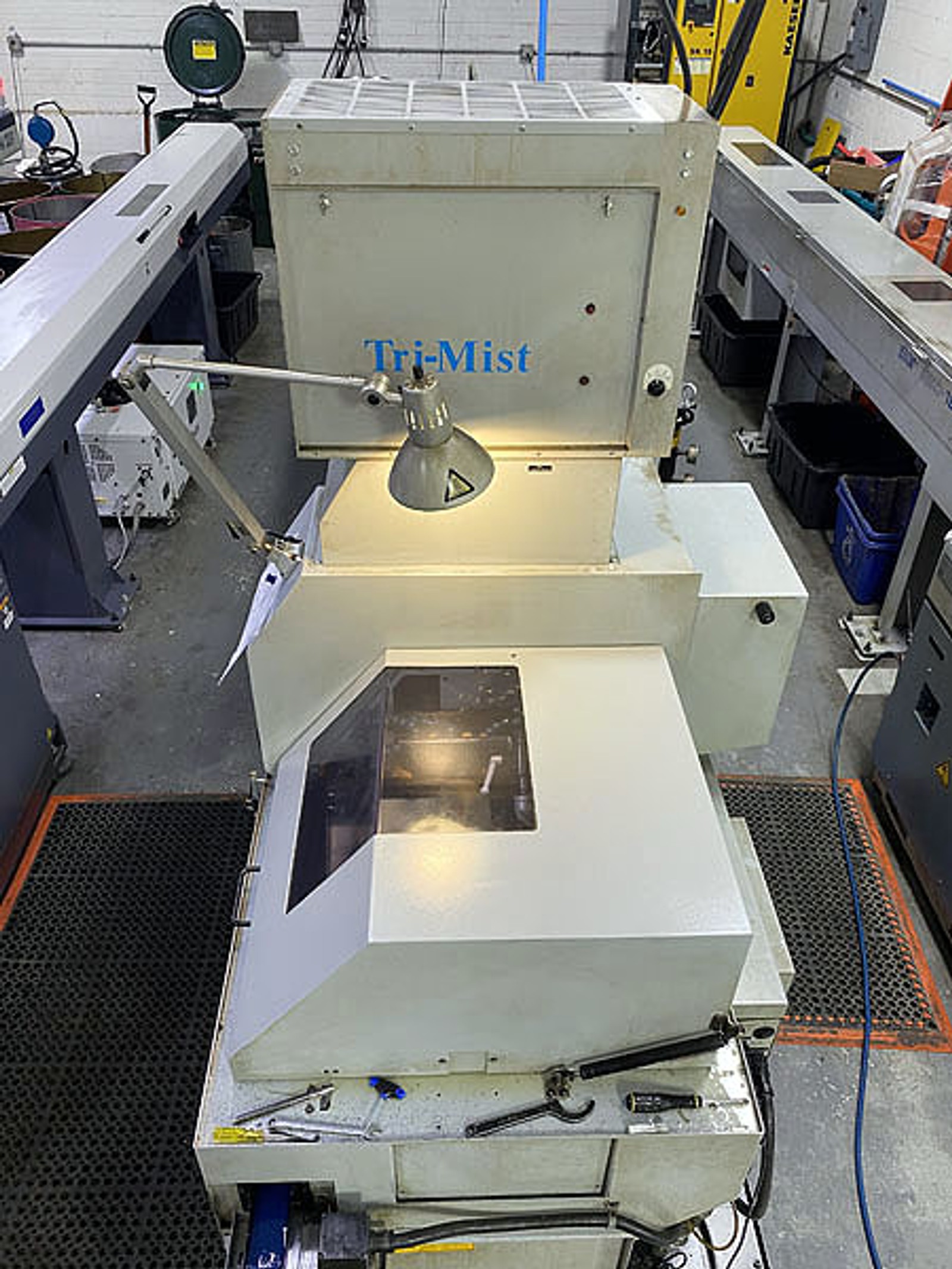

Tri-Mist Mist Collector.
Long Parts Ejector Kit
CAPACITY 0.675"
POWER 3.7 kW
RPM 10,000 RPM
# AXIS 5
SWISS, CHUCKER OR CONVERTIBLE? Swiss
MAIN SPINDLE INDEXING 15 degree

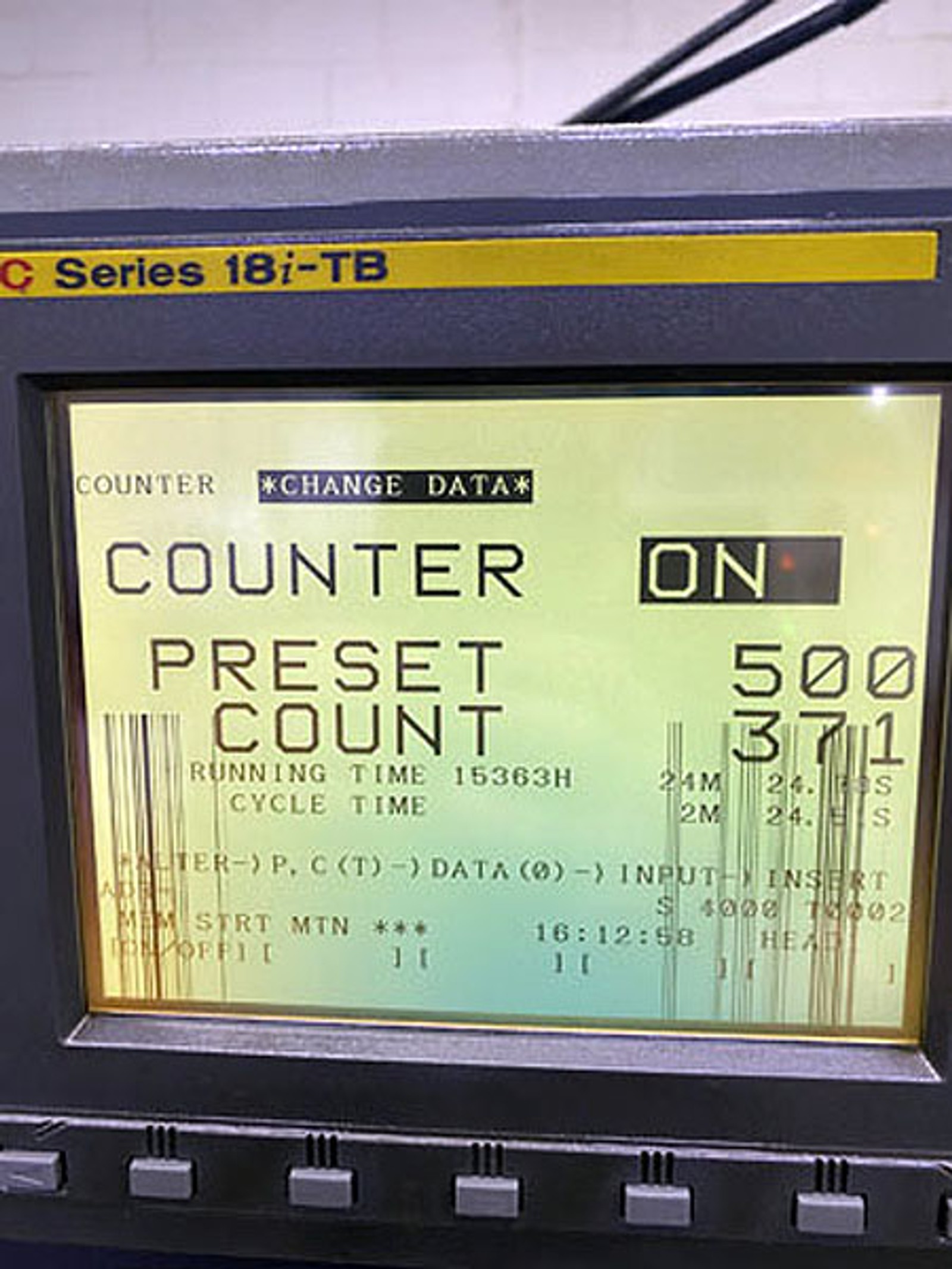

CONTROL CNC (FANUC 18ITB)
GENERAL SPECIFICATIONS FOR A STAR SB-16

CONTROL: FANUC 18ITB
MAX. MACHINING DIAMETER: 5/8"
Spindle indexing: main: 15 deg
MAX. HEADSTOCK STROKE:
STD: 8"
REVOLVING GUIDE BUSHING: 6.7"

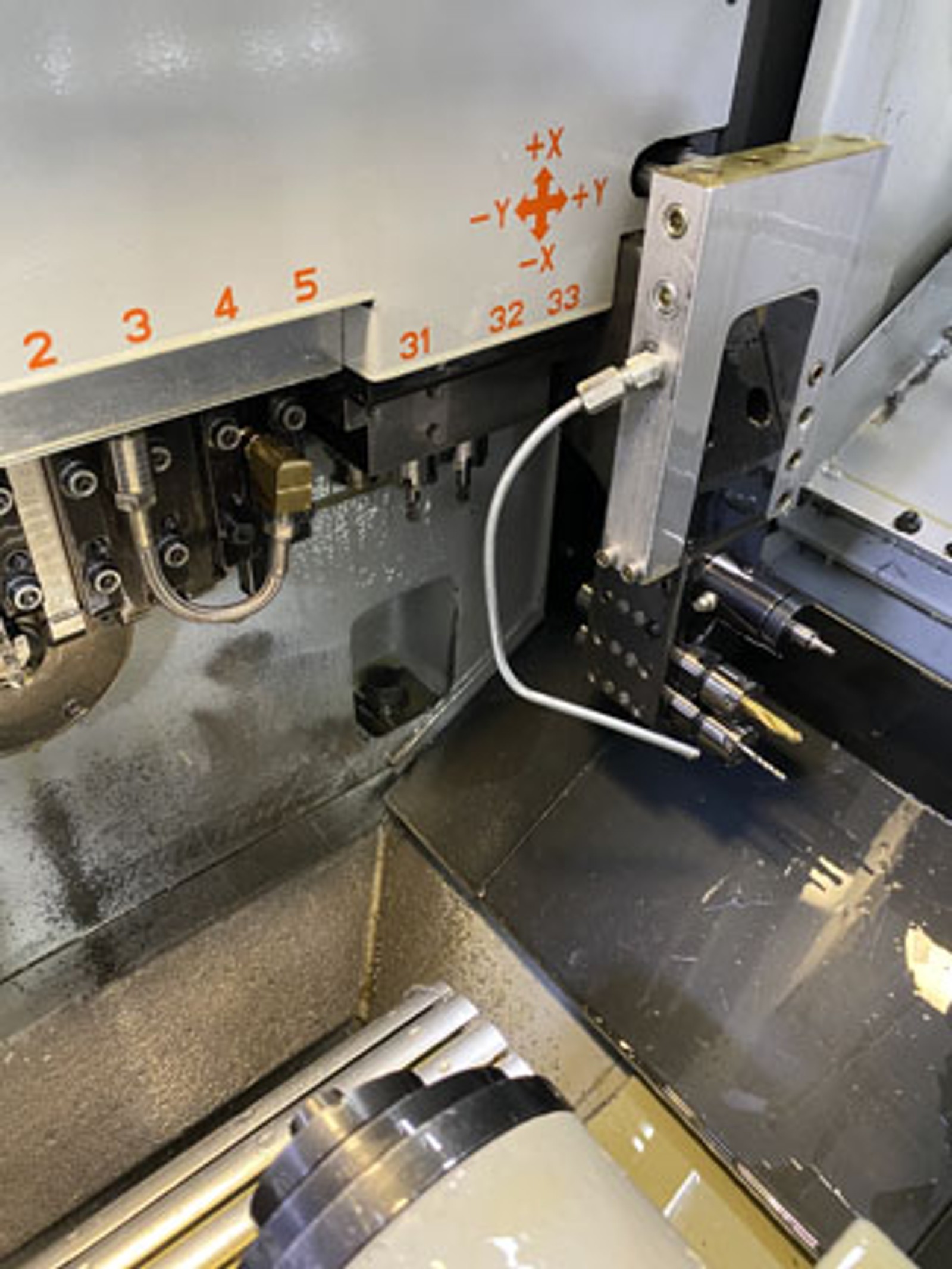

TOOLING: 3 LIVE/5OD OR 2 LIVE/6OD
4ID / 2 BACKWORKING
MAIN SPINDLE:
MAX SPEED: 10,000 RPM
MOTOR: 2.2KW / 3.7 KW
LIVE TOOLS:
MAX. SPEED: 7,500 RPM
MOTOR: 0.4KW

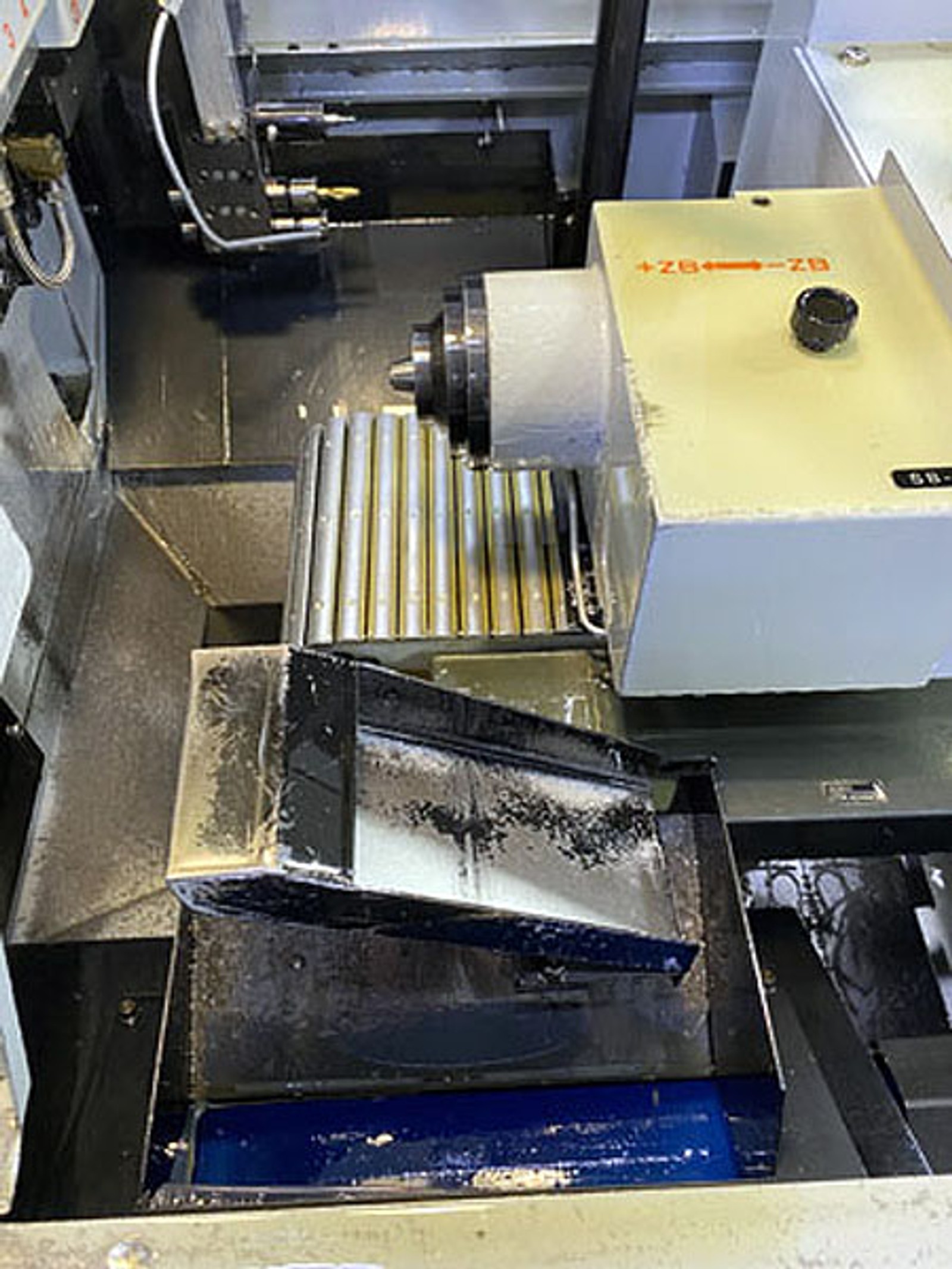

SUB-SPINDLE:
MAX. DIAMETER: 5/8"
MAX. LENGTH FOR EJECTION: 3 5/32"
MAX. PARTS PROJECTION LENGTH: 1 3/16"
MAX. SPEED: 6,000 RPM
MOTOR: 0.5KW
DIMENSIONS (L X W X H, APPROX): 73" X 42" X 69"
WEIGHT (APPROX): 3600 LBS
