80" x 118" Tru-Turn, 2040/3M, 64" Over C/S, 315 RPM, 15 Ton Cap, Steady Rests, Inch/Metric Thread, 40 HP, NEW, #32599

Manufacturer

TRU-TURN

Category

Lathes

Type

LATHES, ENGINE

Stock

32599

Model

2040/3M

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32599

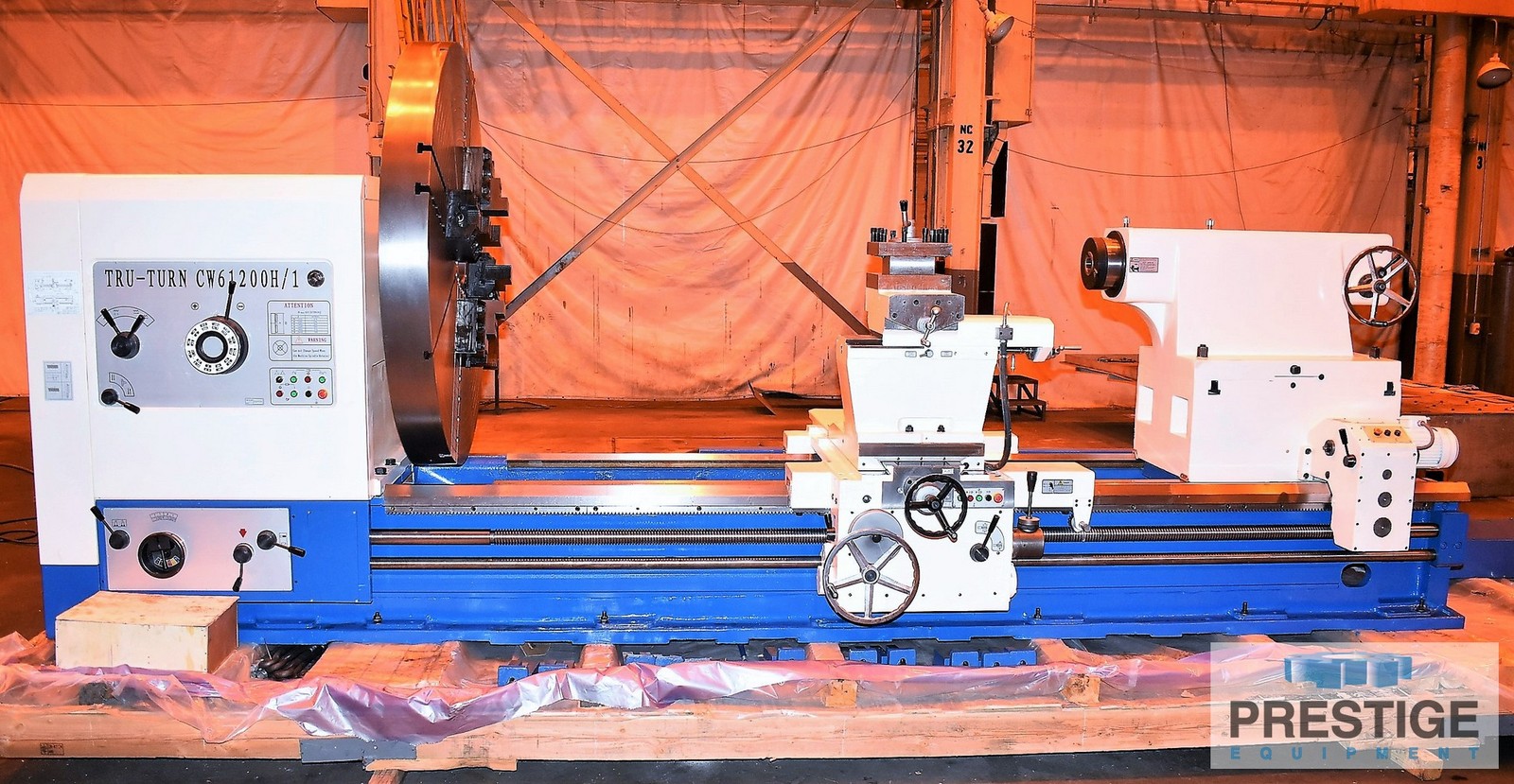

Tru Turn 80.31" x 118" Manual Lathe, Brand New

Features:

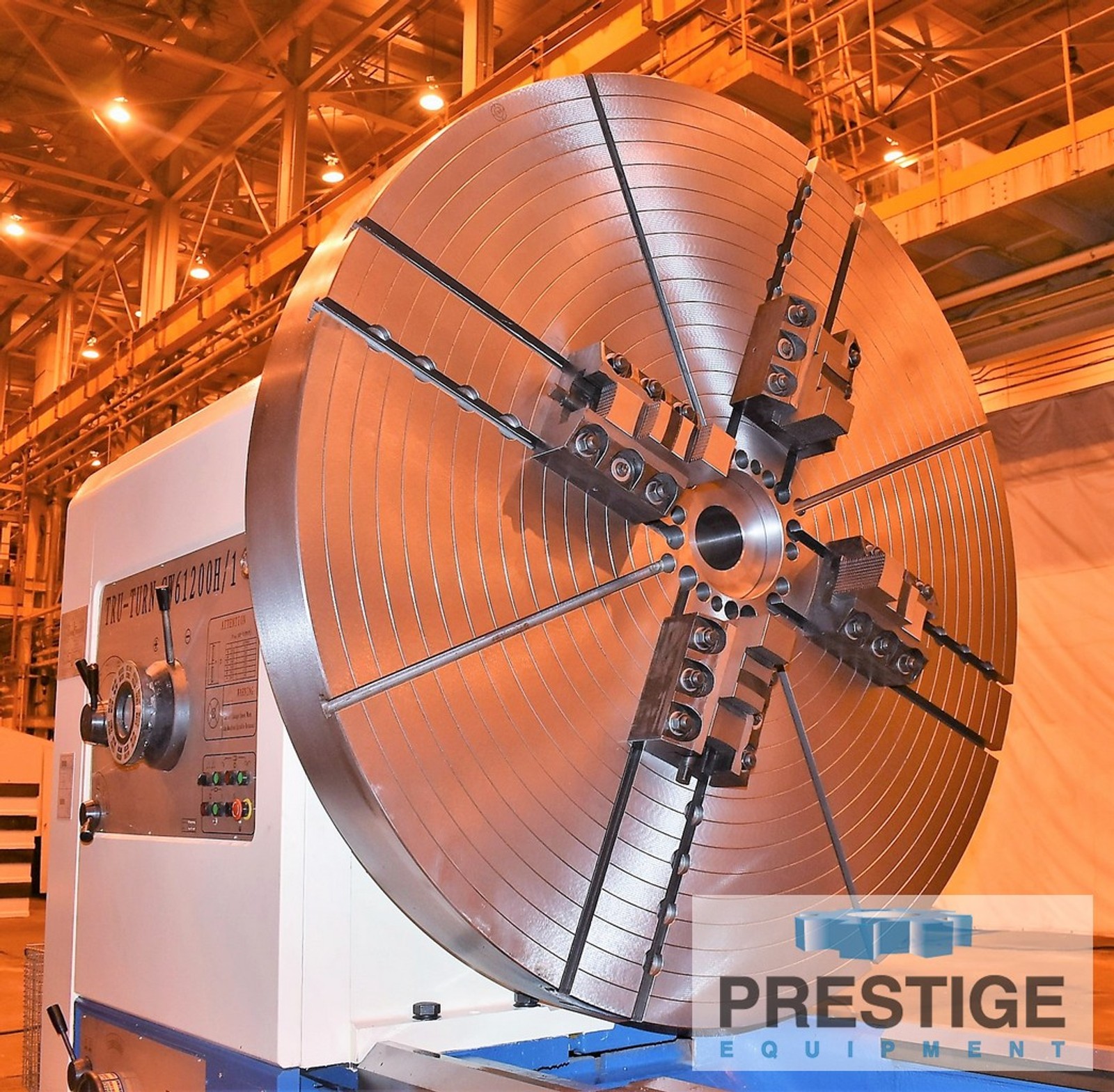

78.74" Diameter Face Plate with 4-Top Jaws

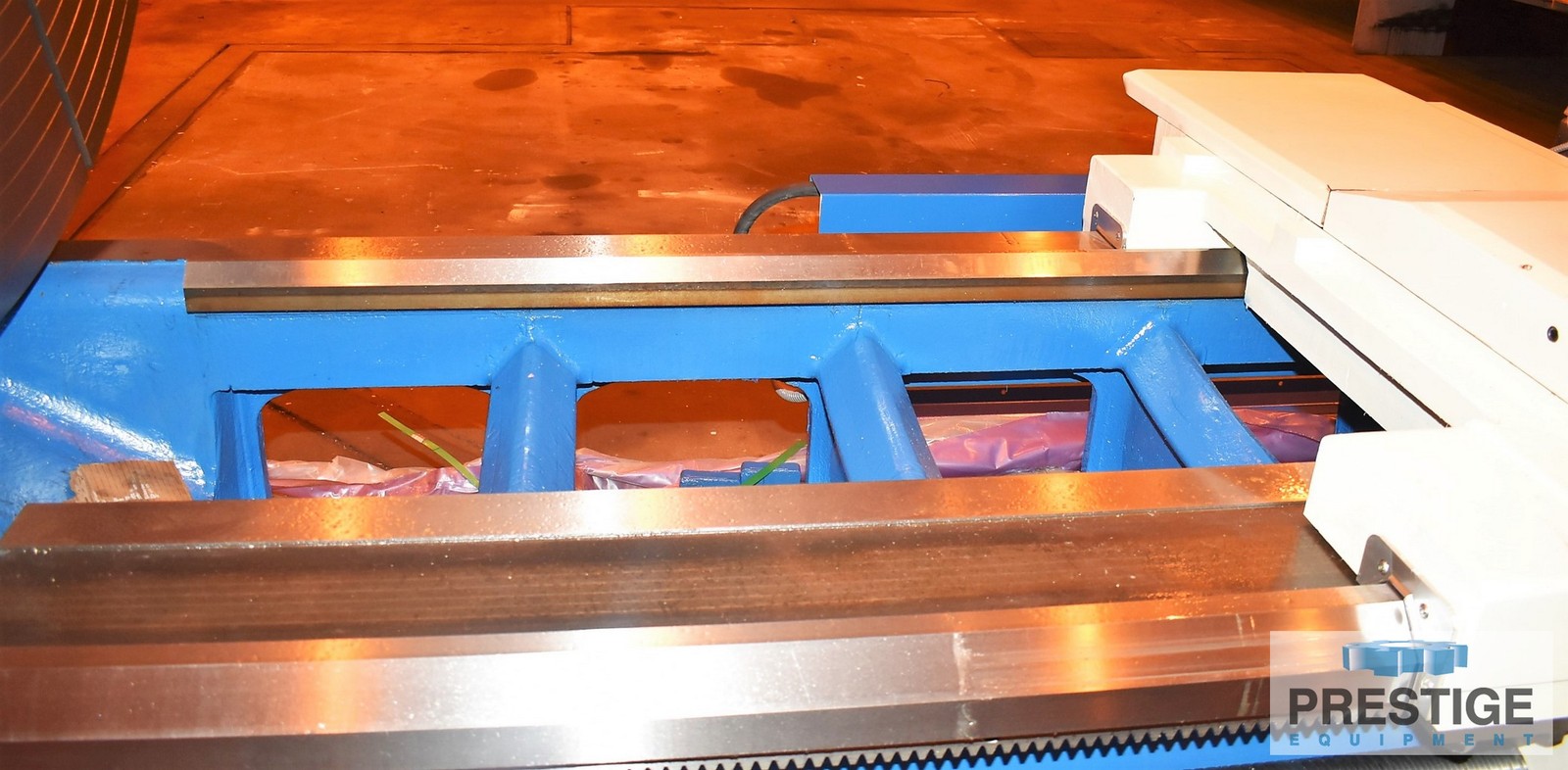

Flame Hardened Bed Ways
(2) Roller Type Steady Rest: 27.5" & 15.75"
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Inch / Metric Threading

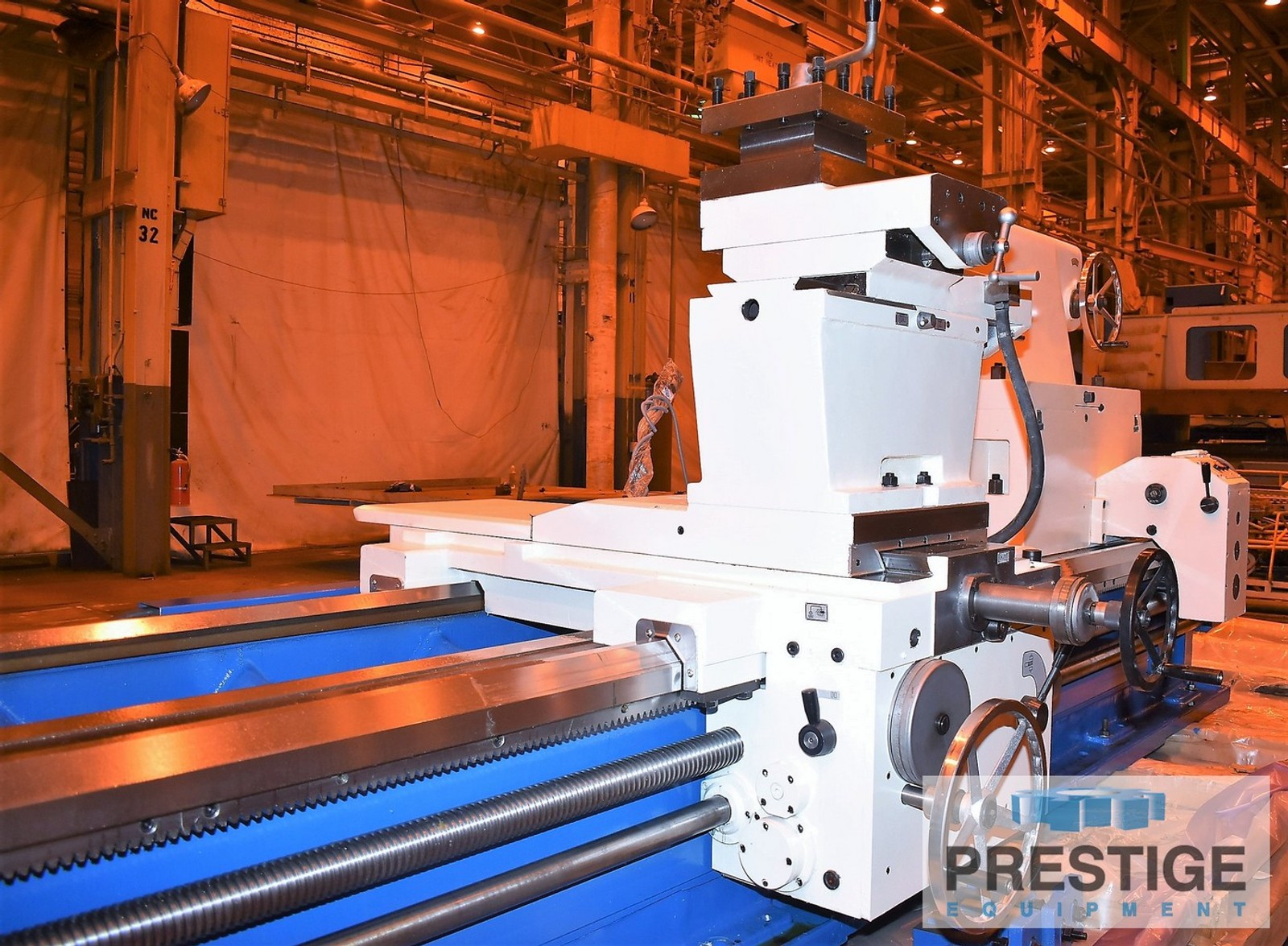

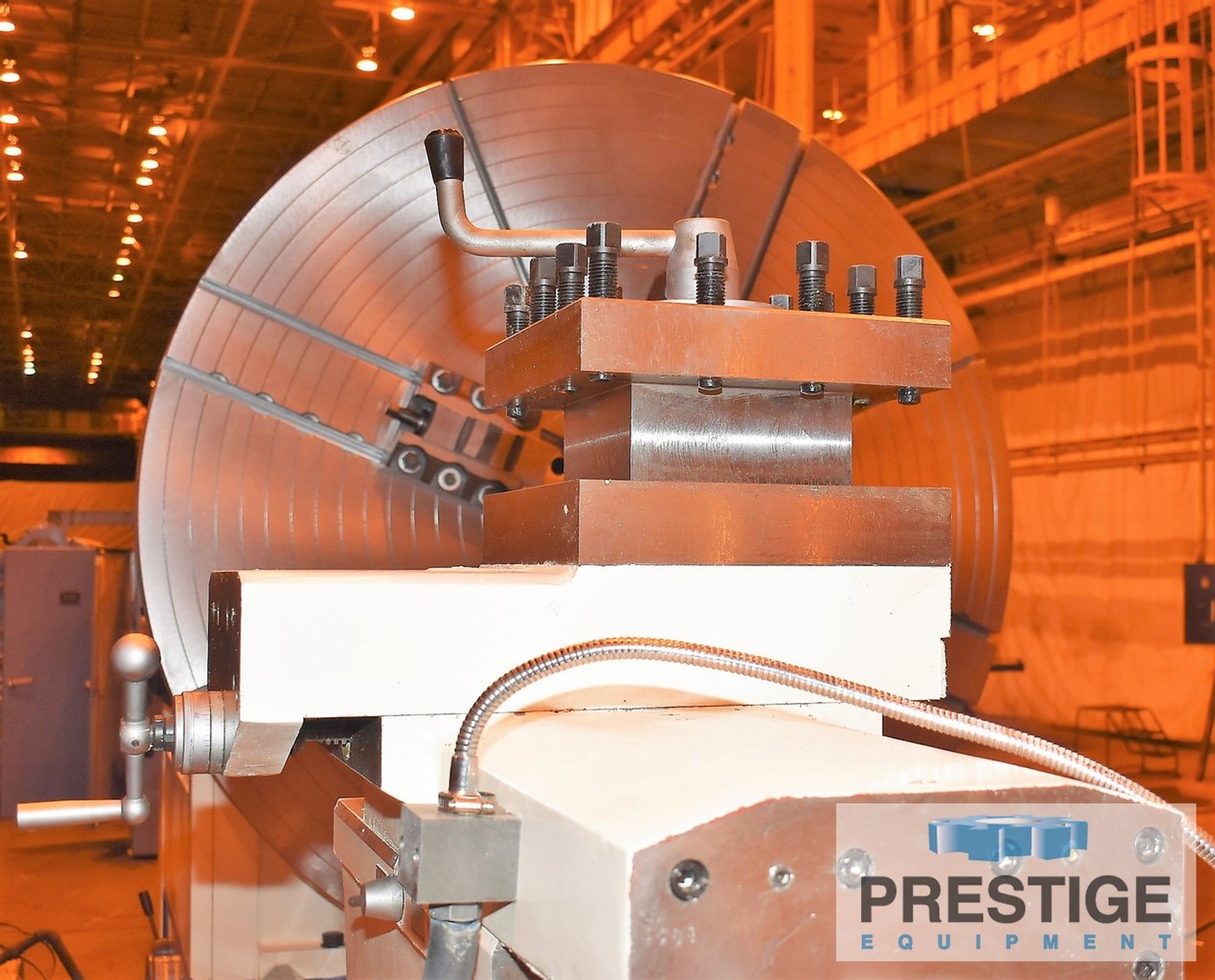

Built in 4-Way Tool Post
Pan Bed and Coolant System
Live Quill in Tailstock

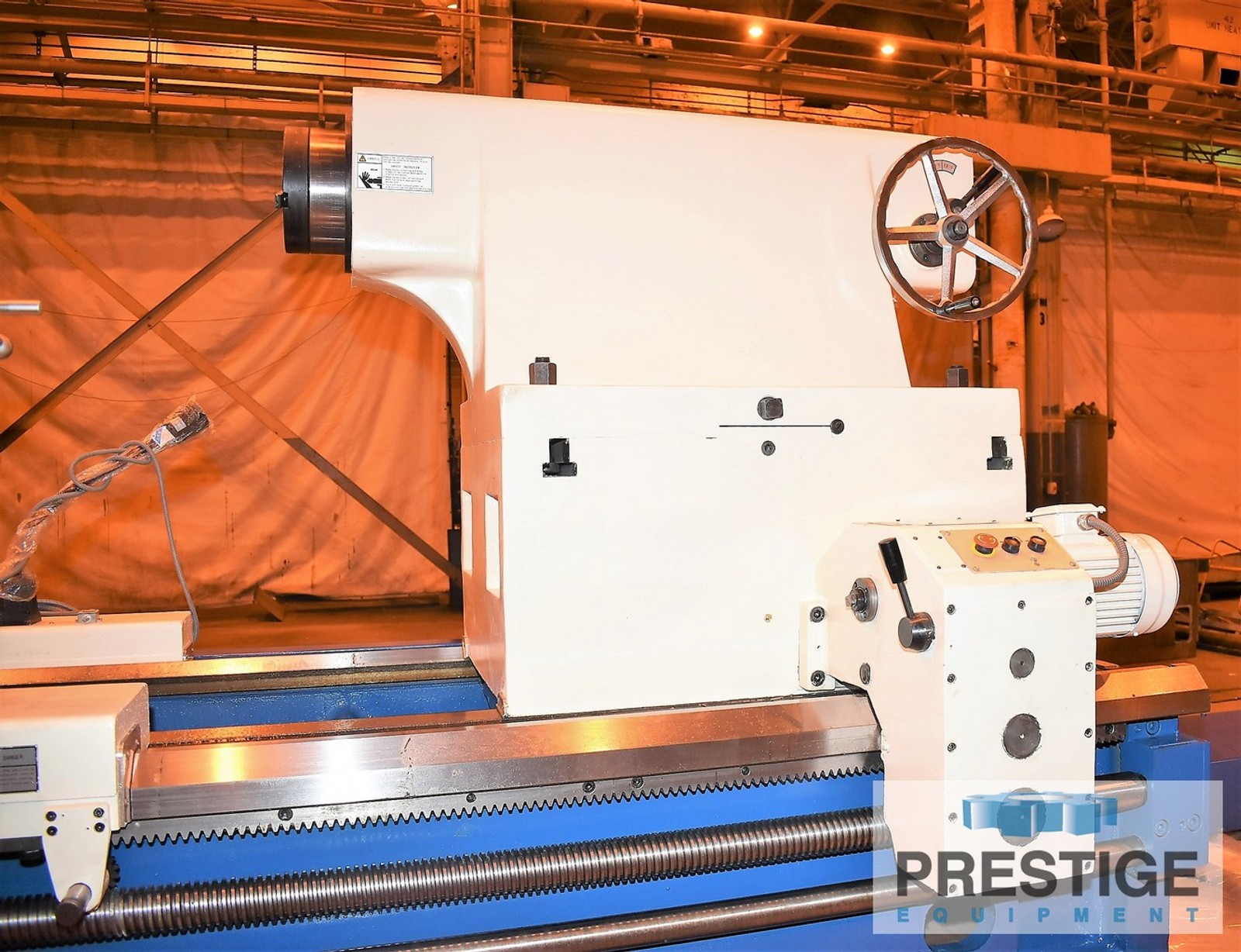

Motorized Tailstock

Specification:
Swing Over Bed ....................... 80.31"
Swing Over Cross Slide ............... 64.96"
Width of Guide Way ................... 43.30"
Distance Between Centers ............. 118.11"
Spindle Speeds (21 Speeds) ........... 3.15-315 RPM
Spindle Bore ......................... 5.12"
Spindle Nose ......................... A-15
Tailstock Diameter ................... 11.02"
Tailstock Travel ..................... 11.81"
Taper of Tailstock Bore .............. 140 Metric
Weight Capacity ...................... 33,000 lbs

EQUIPPED WITH:
78.74" Diameter Face Plate with 4-Top Jaws
Flame Hardened Bed Ways
(2) Roller Type Steady Rest: 27.5" & 15.75"
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Inch / Metric Threading
Built in 4-Way Tool Post
Pan Bed and Coolant System
Live Quill in Tailstock
Motorized Tailstock
40 HP Drive Motor With Controls

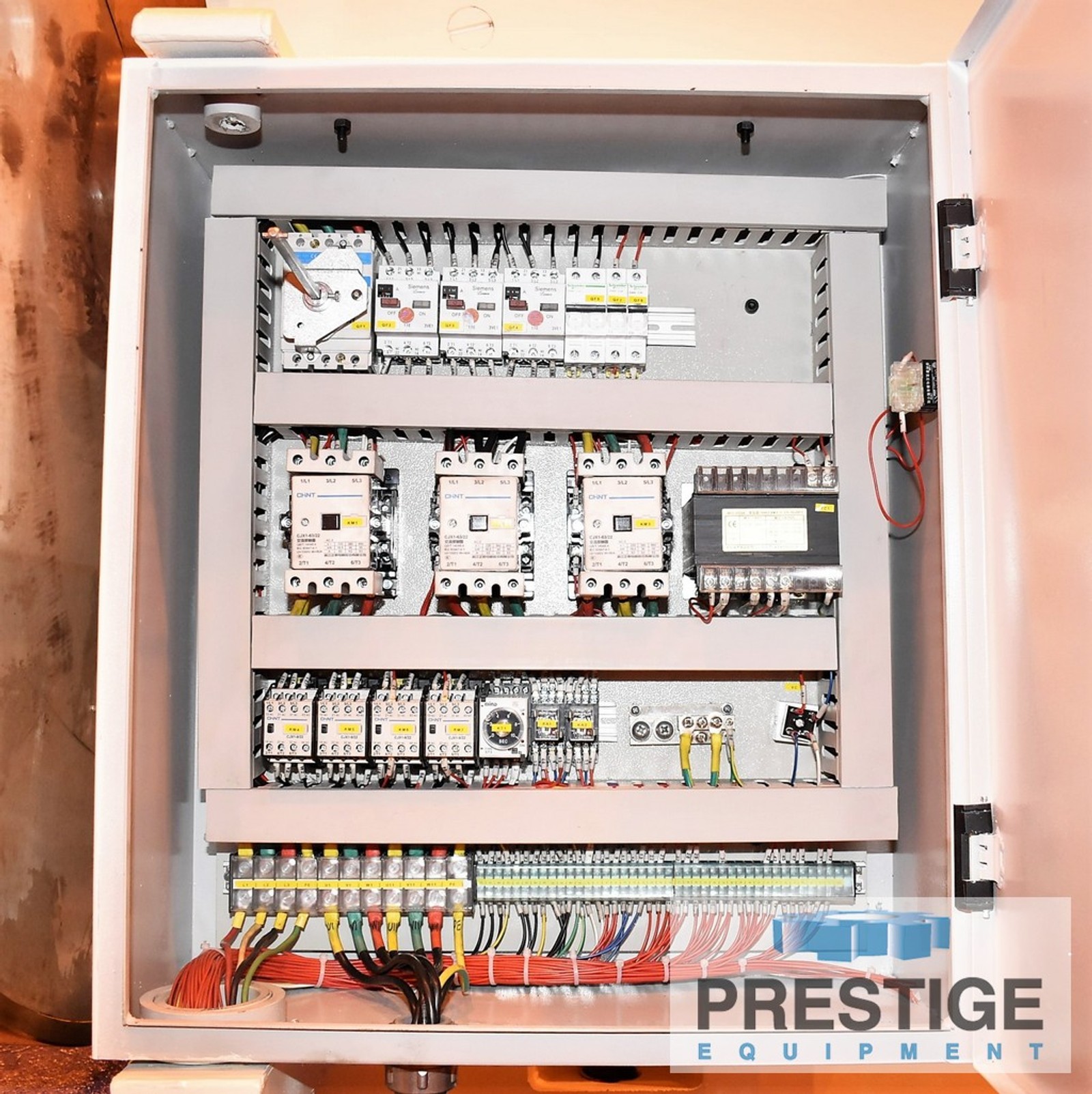

3/60/440 Volt Electrics
1-Year Parts Warranty

DELIVERY:
5-Months From Order
