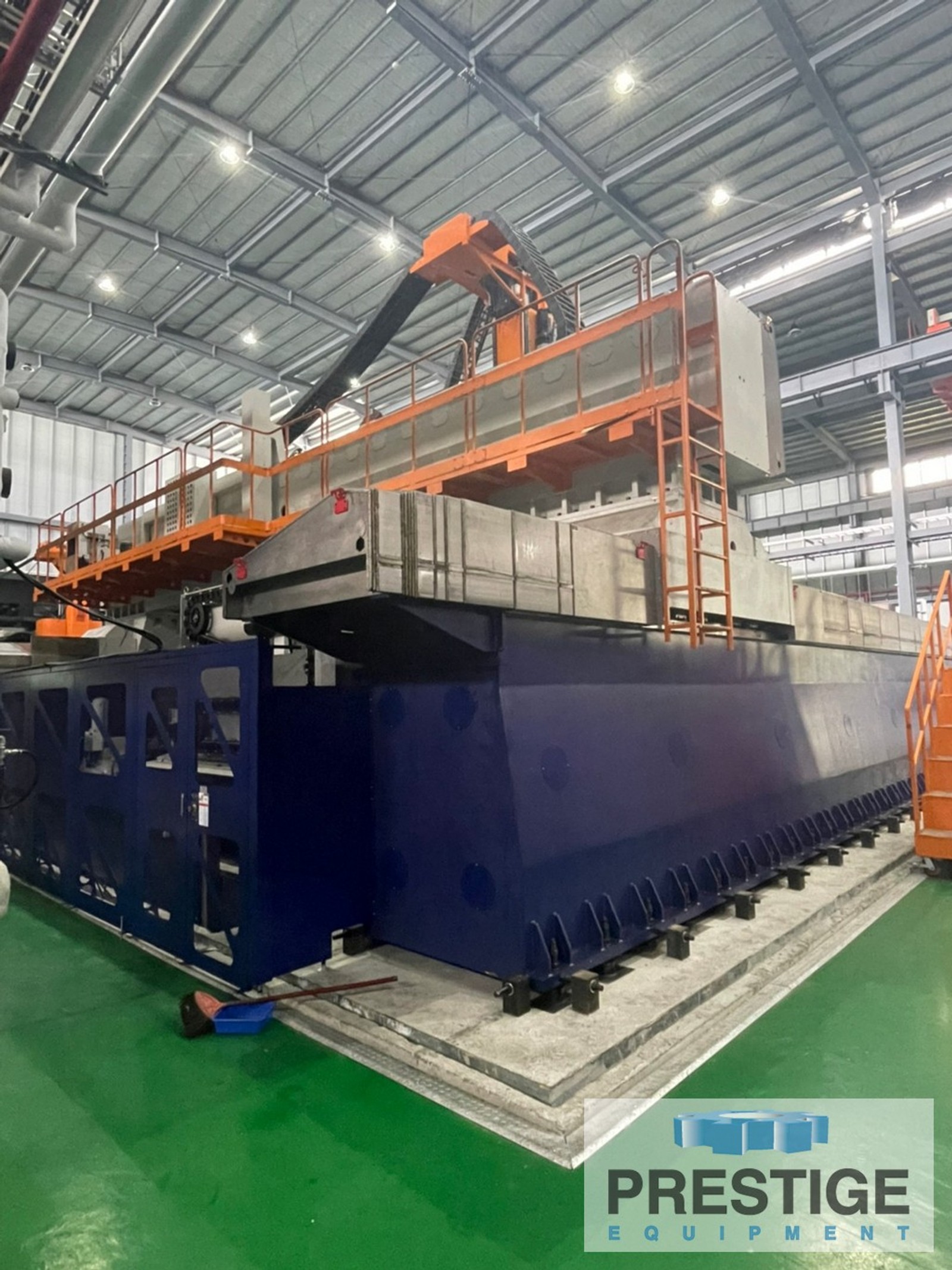

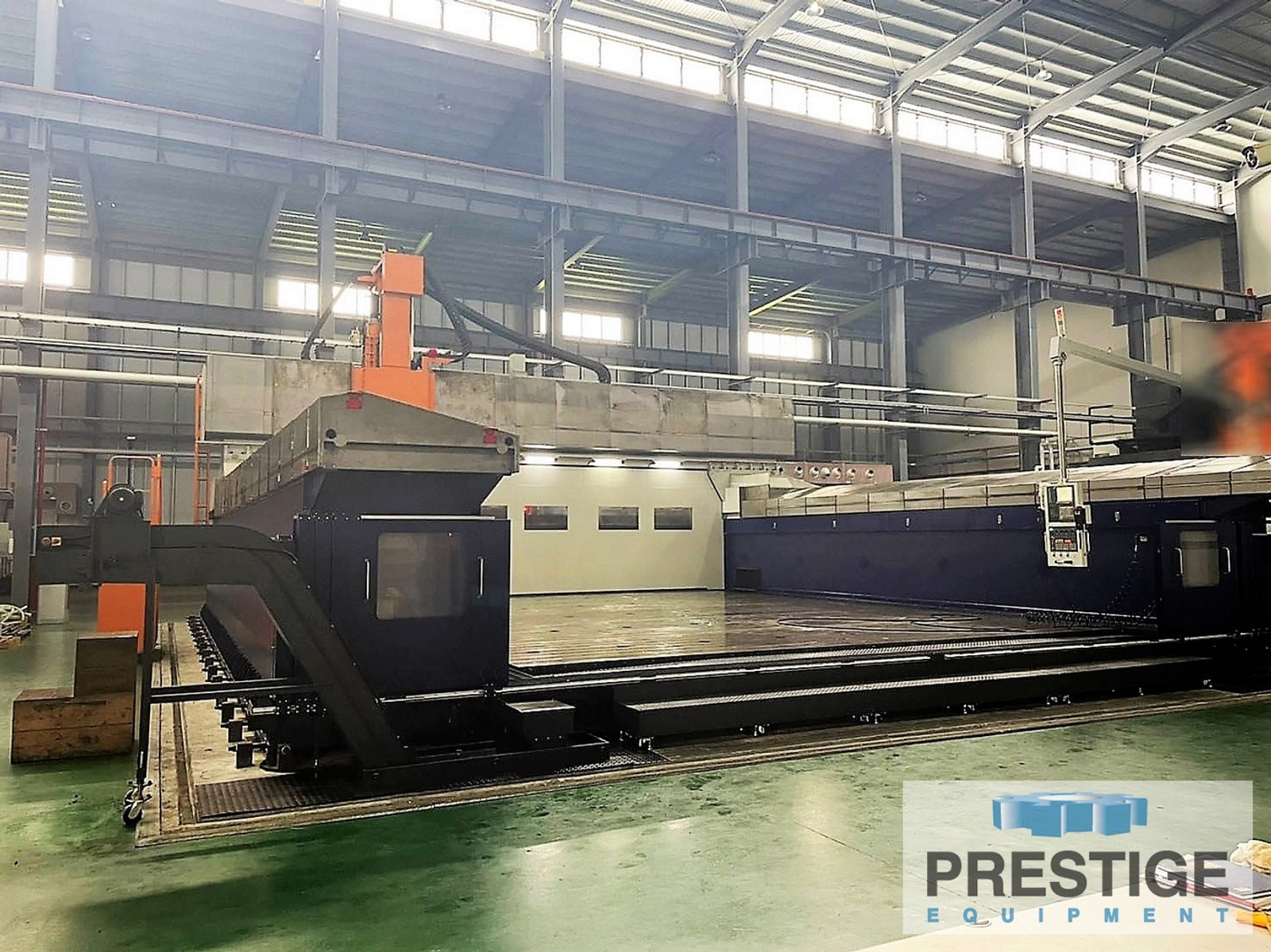

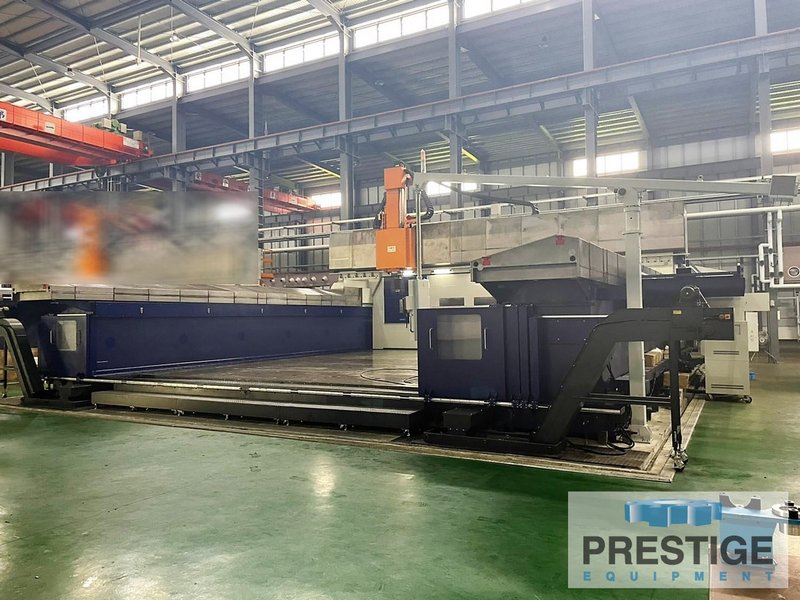

KAFO KG 10080 5-Face DMC, X-393", Y-315", BT-50, Fanuc 31iMB, 90 ATC, 90 Deg. Head, Probe, TSC, 2020, #32596

Manufacturer

KAFO

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32596

Model

KG 10080

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32596

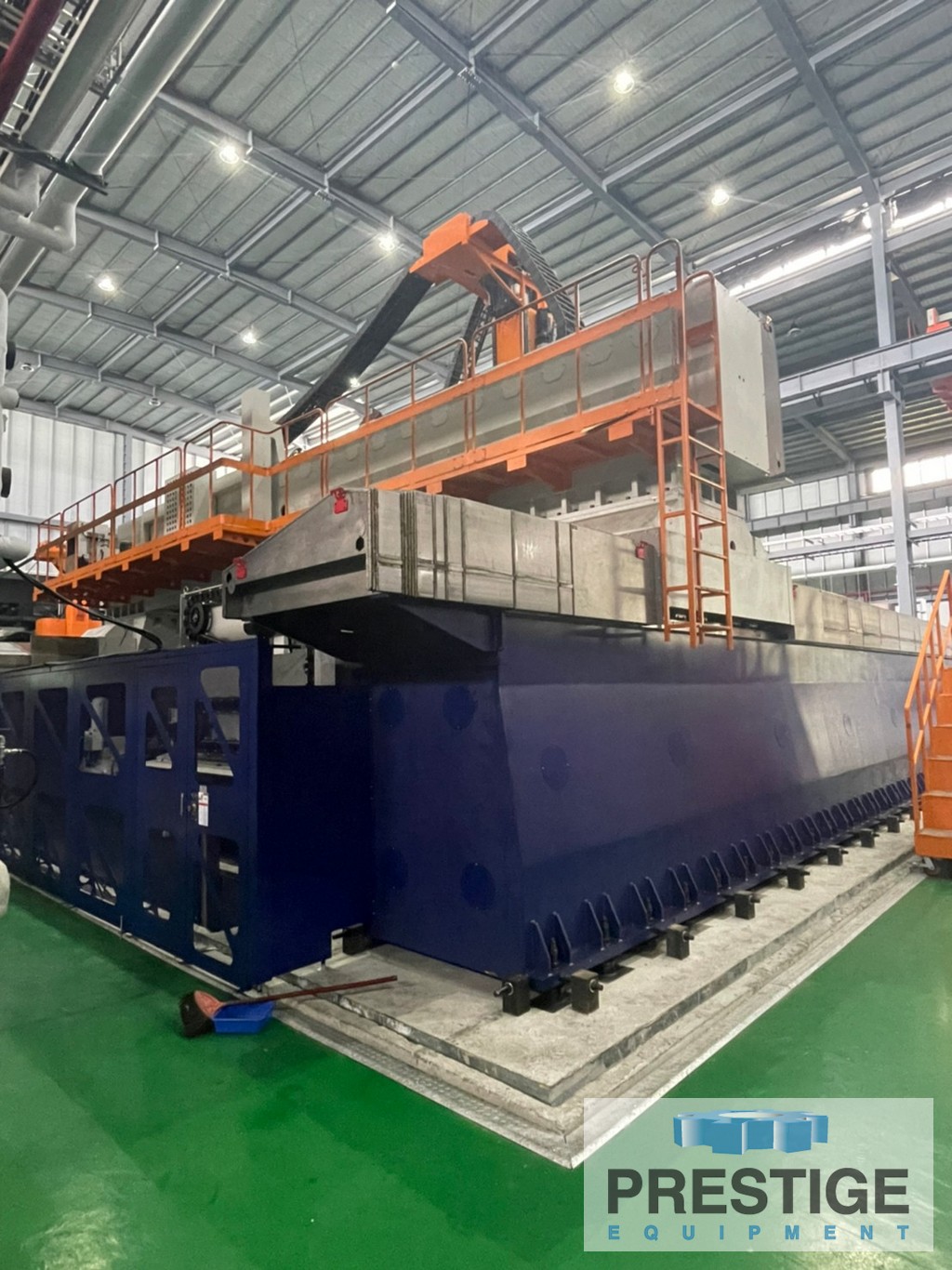

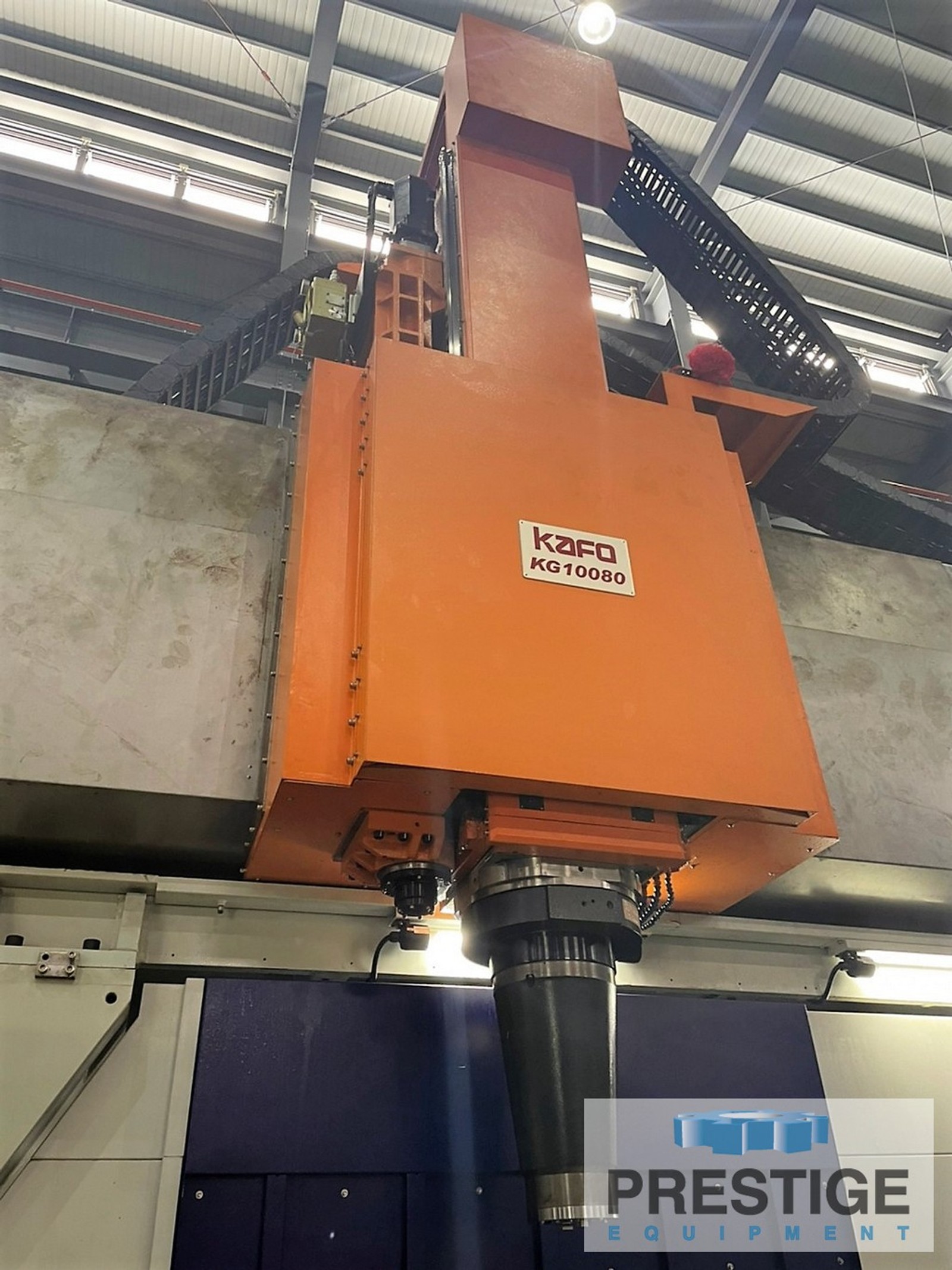

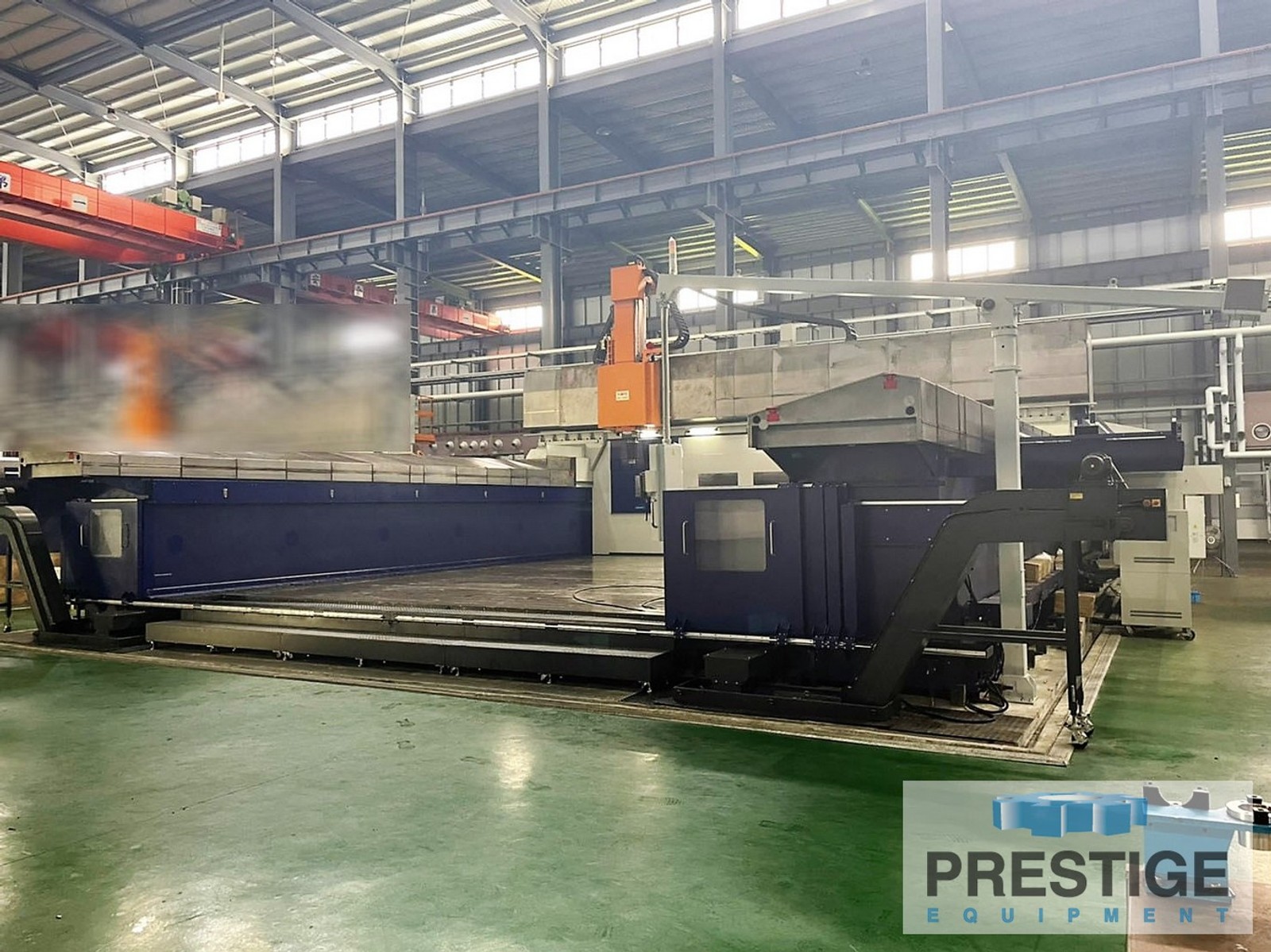

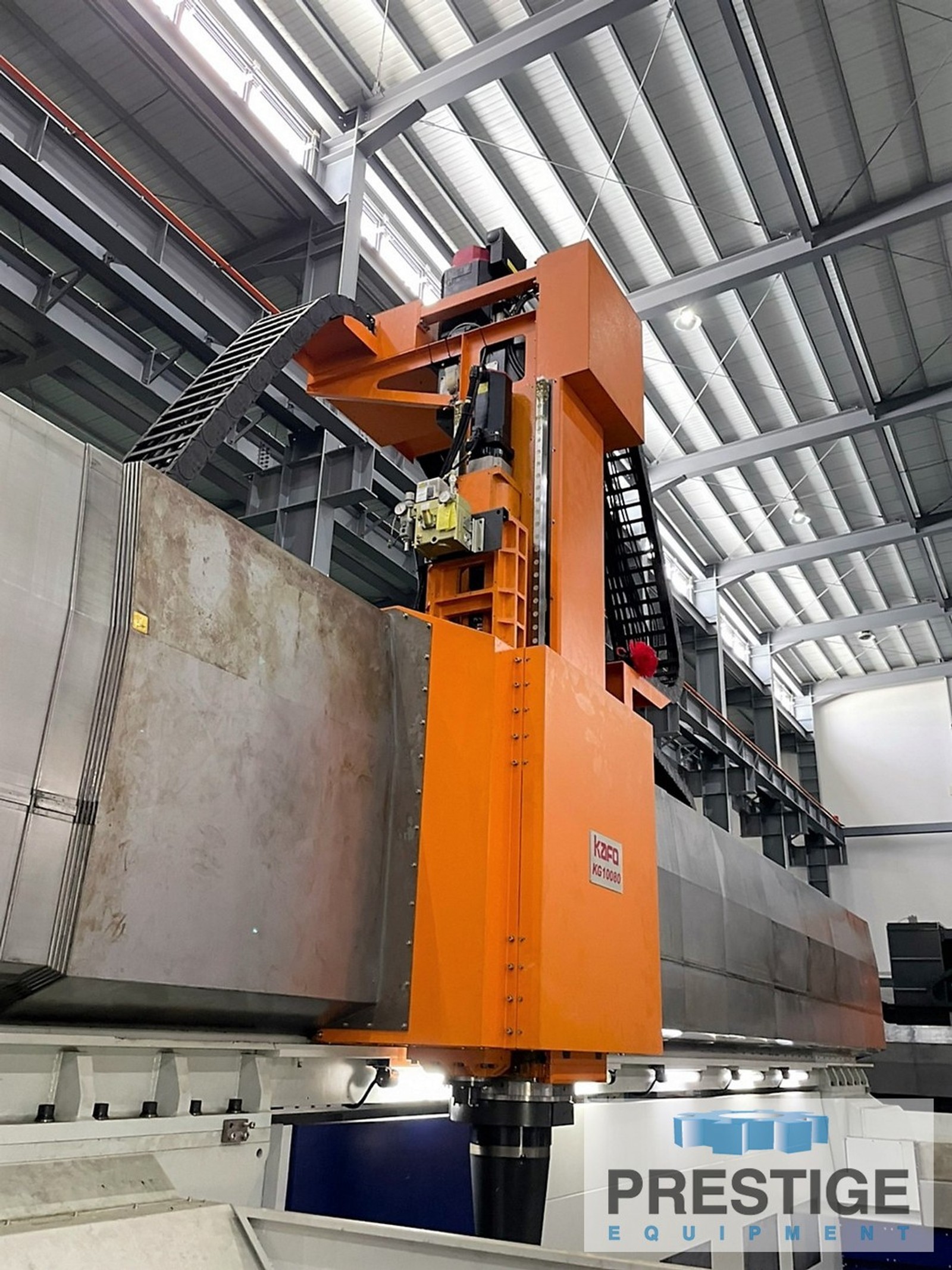

KAFO KG 10080 5-Face Double Column Machining Center

FEATURES:

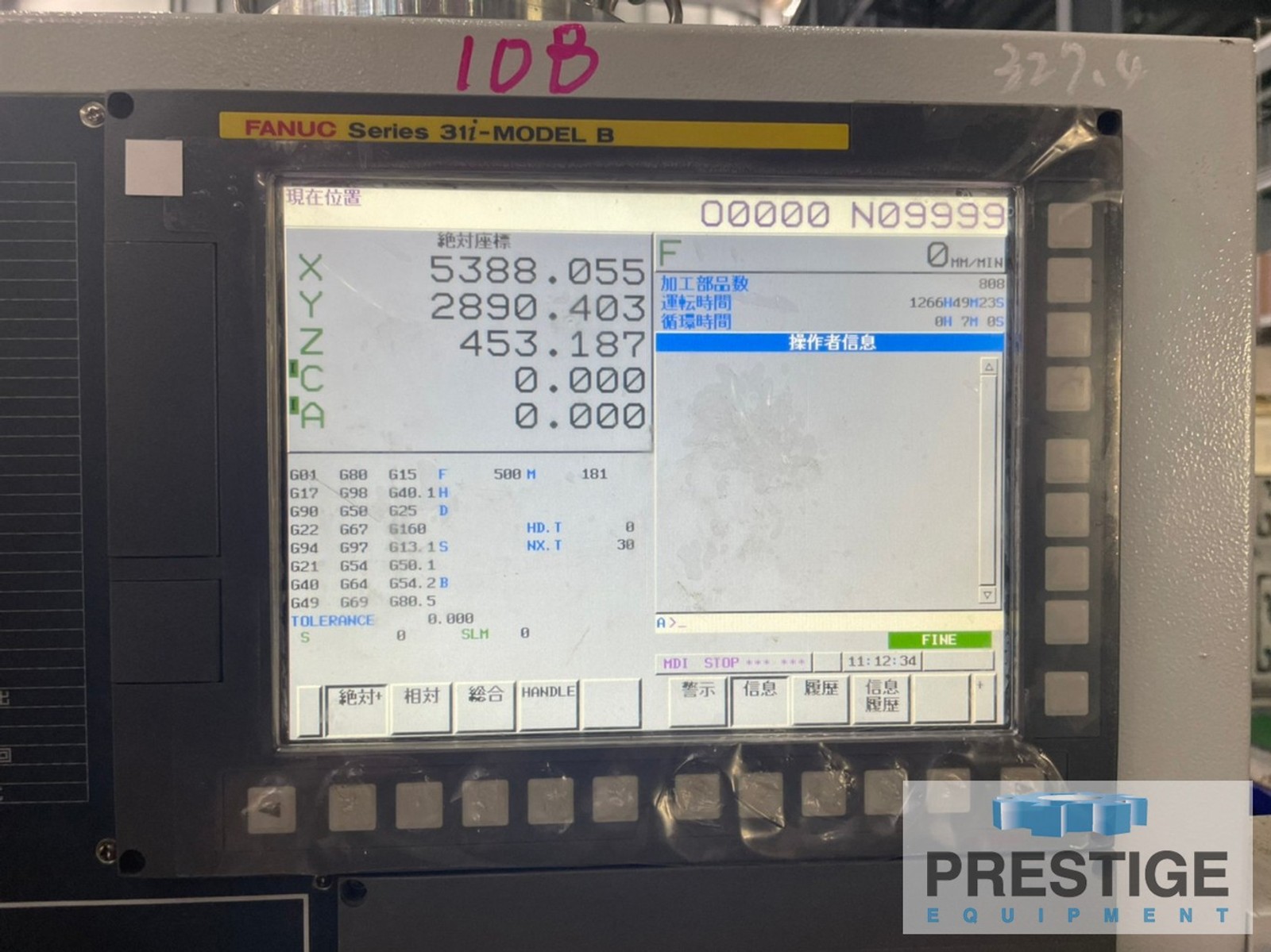

Fanuc 31iMB CNC Control with 10.4" LCD

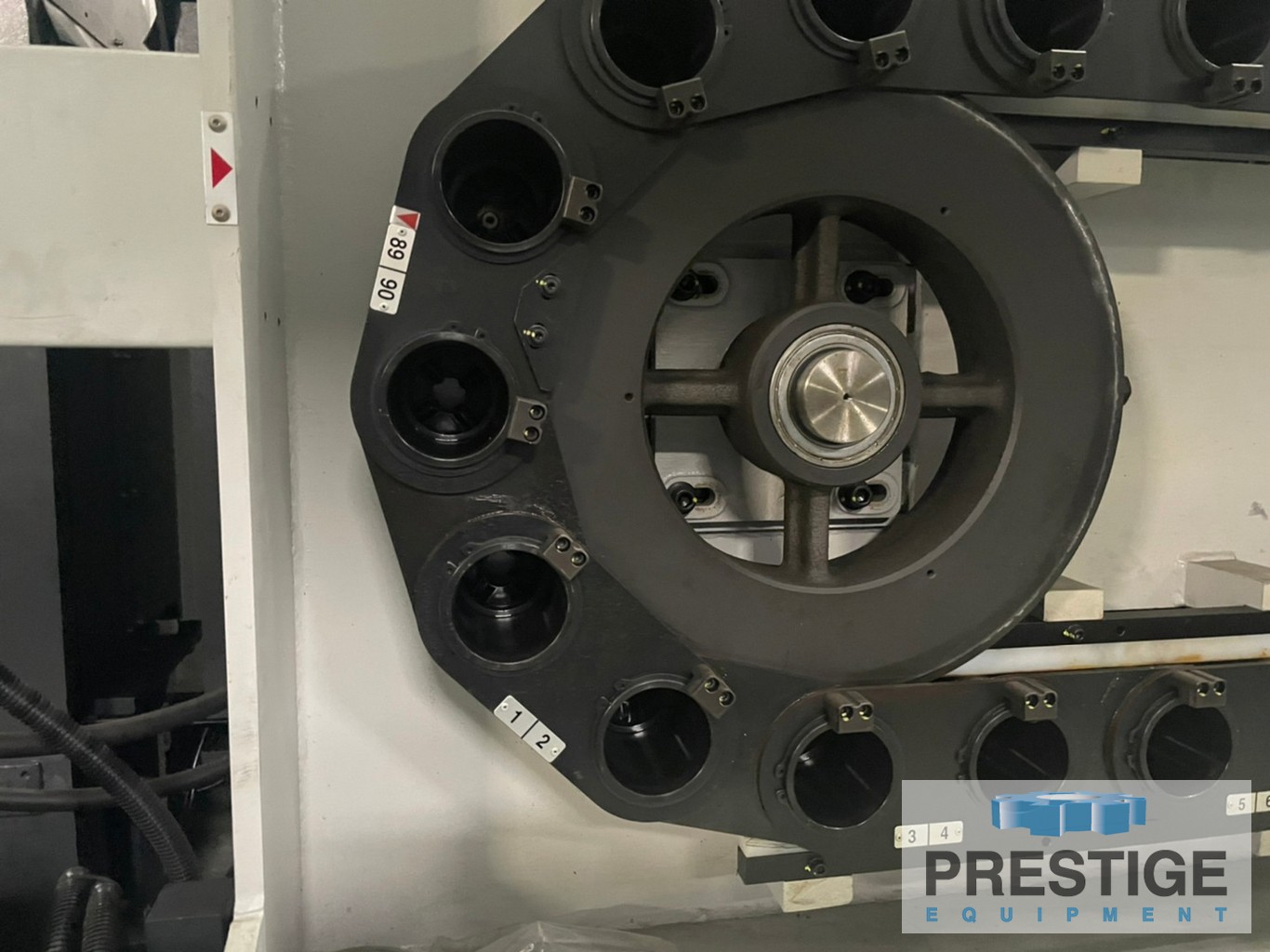

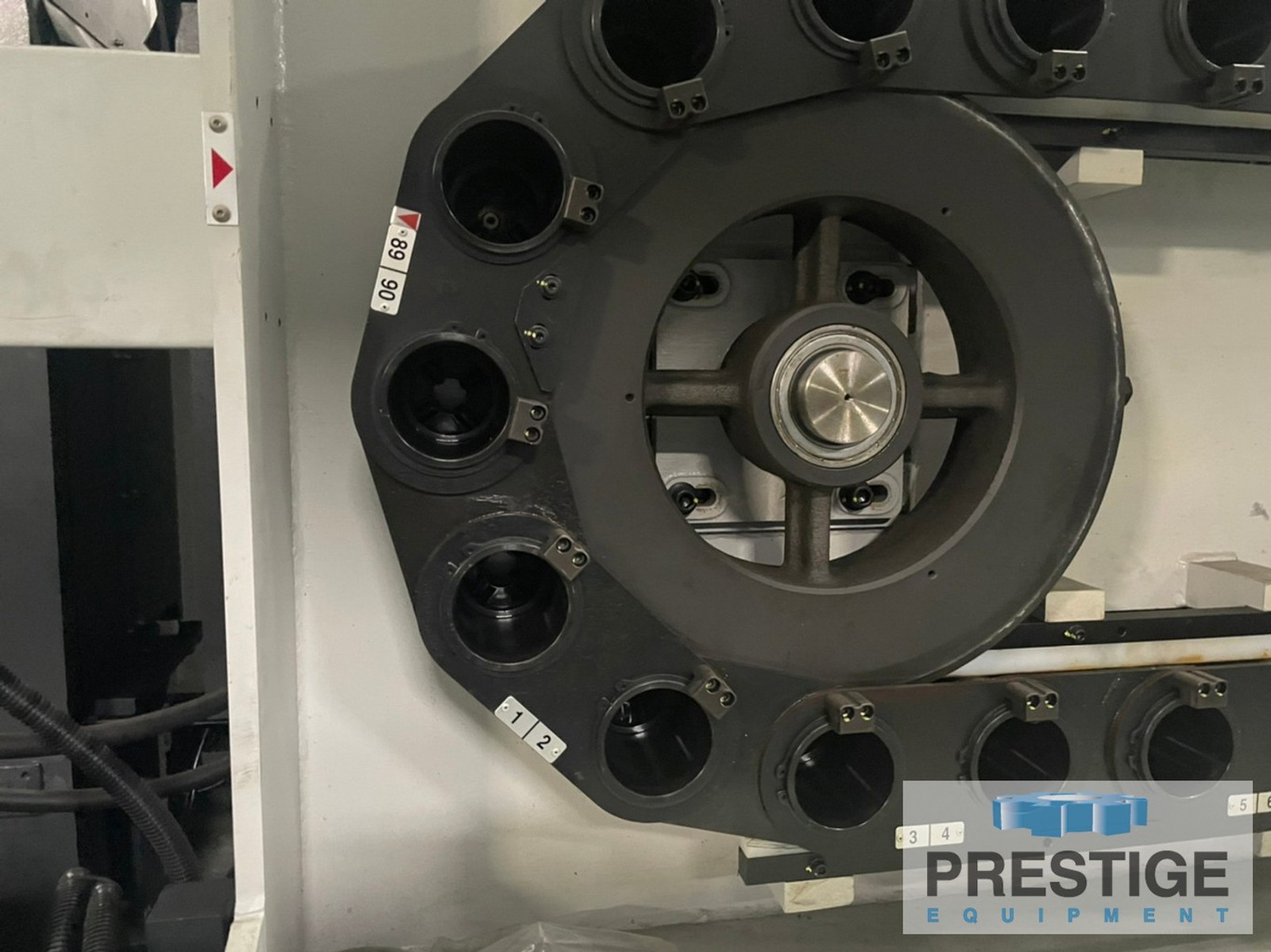

90-Station Automatic Tool Changer
Thru Spindle Coolant
Heidenhain Linear Scales (X,Y,Z)

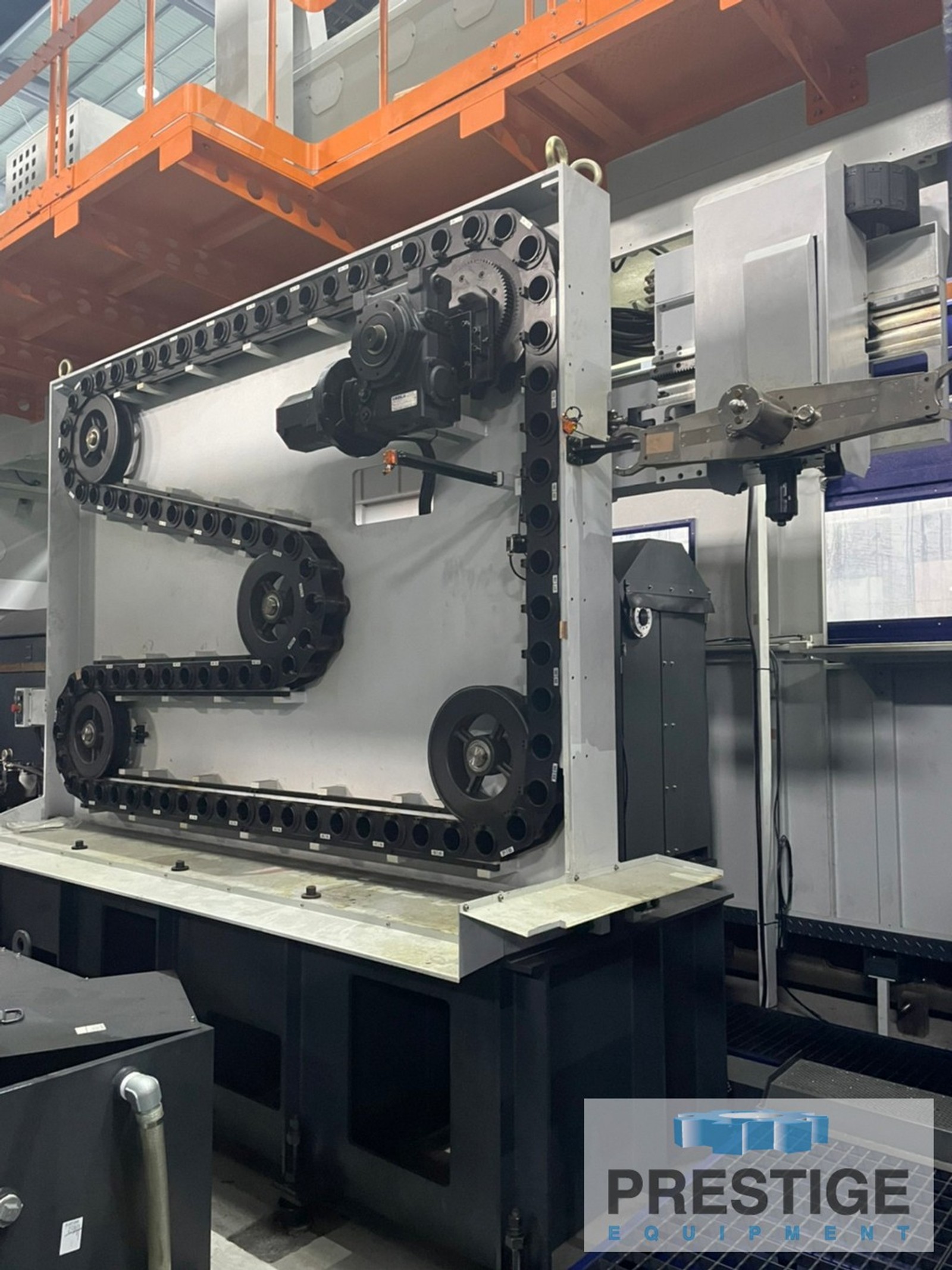

Auto Head Storage (Auto Tool Changing Coolant Thru Spindle)
90 Degree Head with Auto 5 Degree Indexing
Extension 200 mm 90 Degree Head w/ Auto 5 Degree Indexing
Extension Head 400 mm
Extension Head 500 mm
Universal Head (A/C Axis Auto Indexing)
Renishaw Measuring System

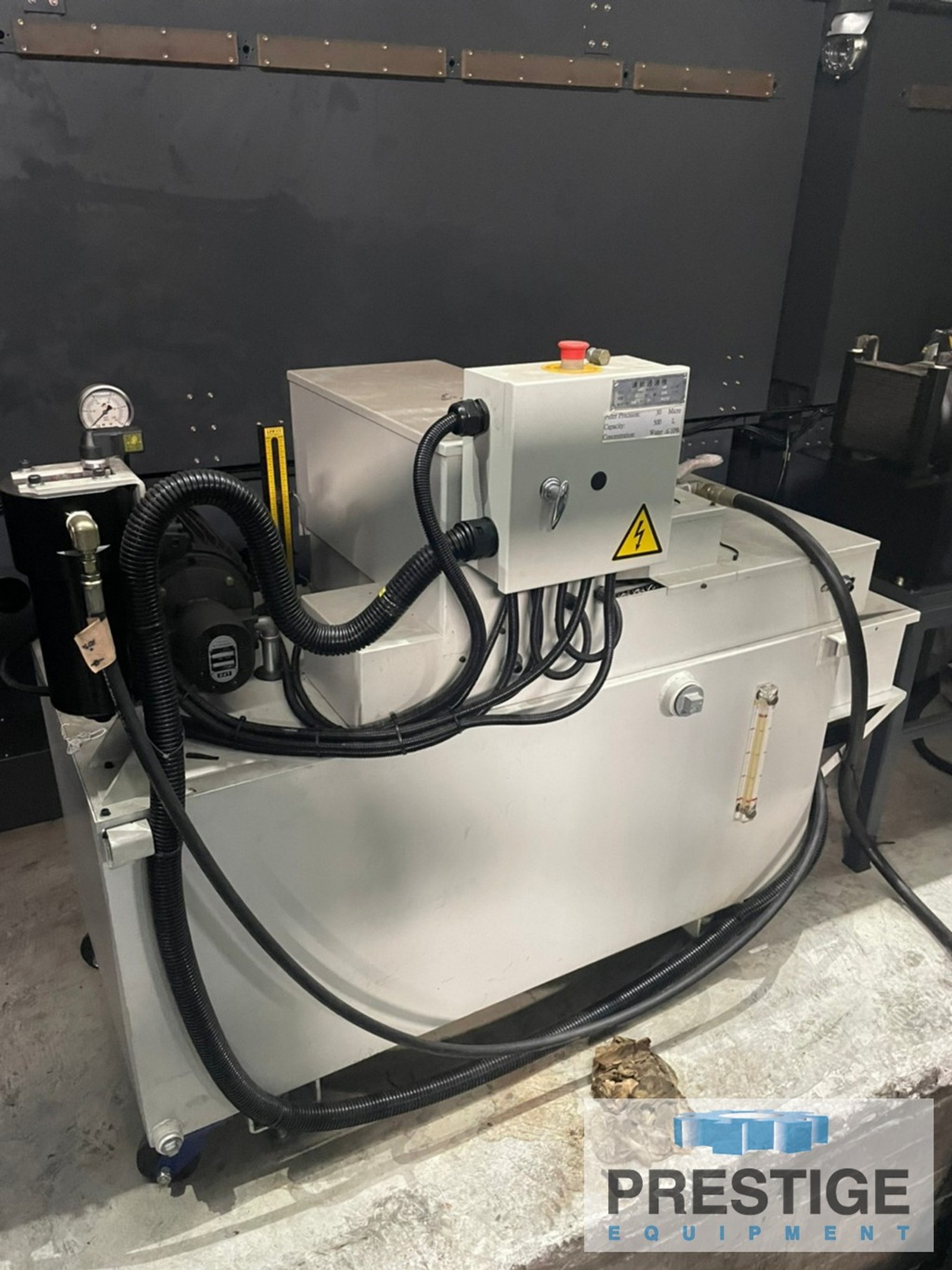

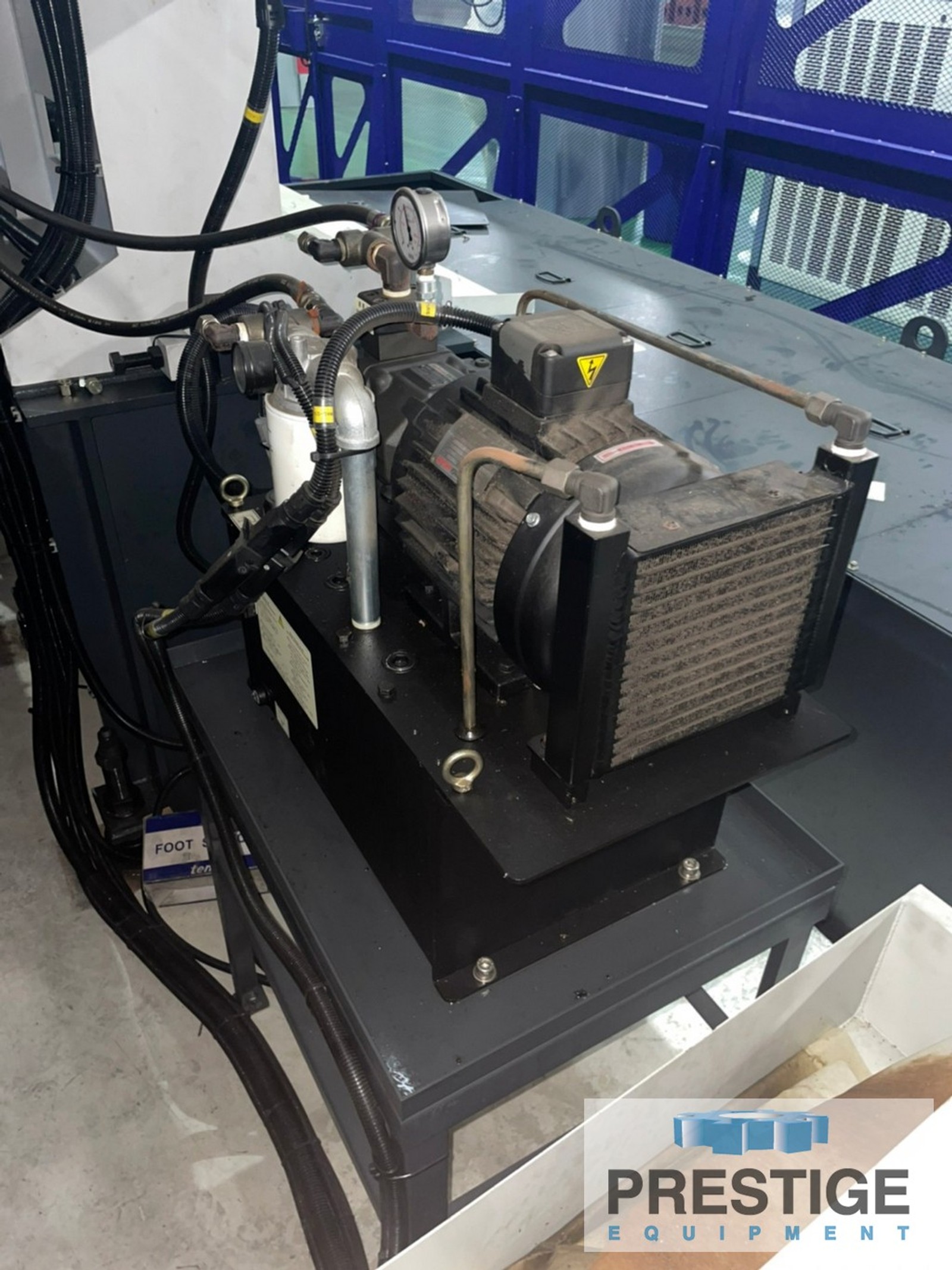

Hydraulic Tank Cooling System
Tool Pre-Setter
Spindle Oiler Cooler

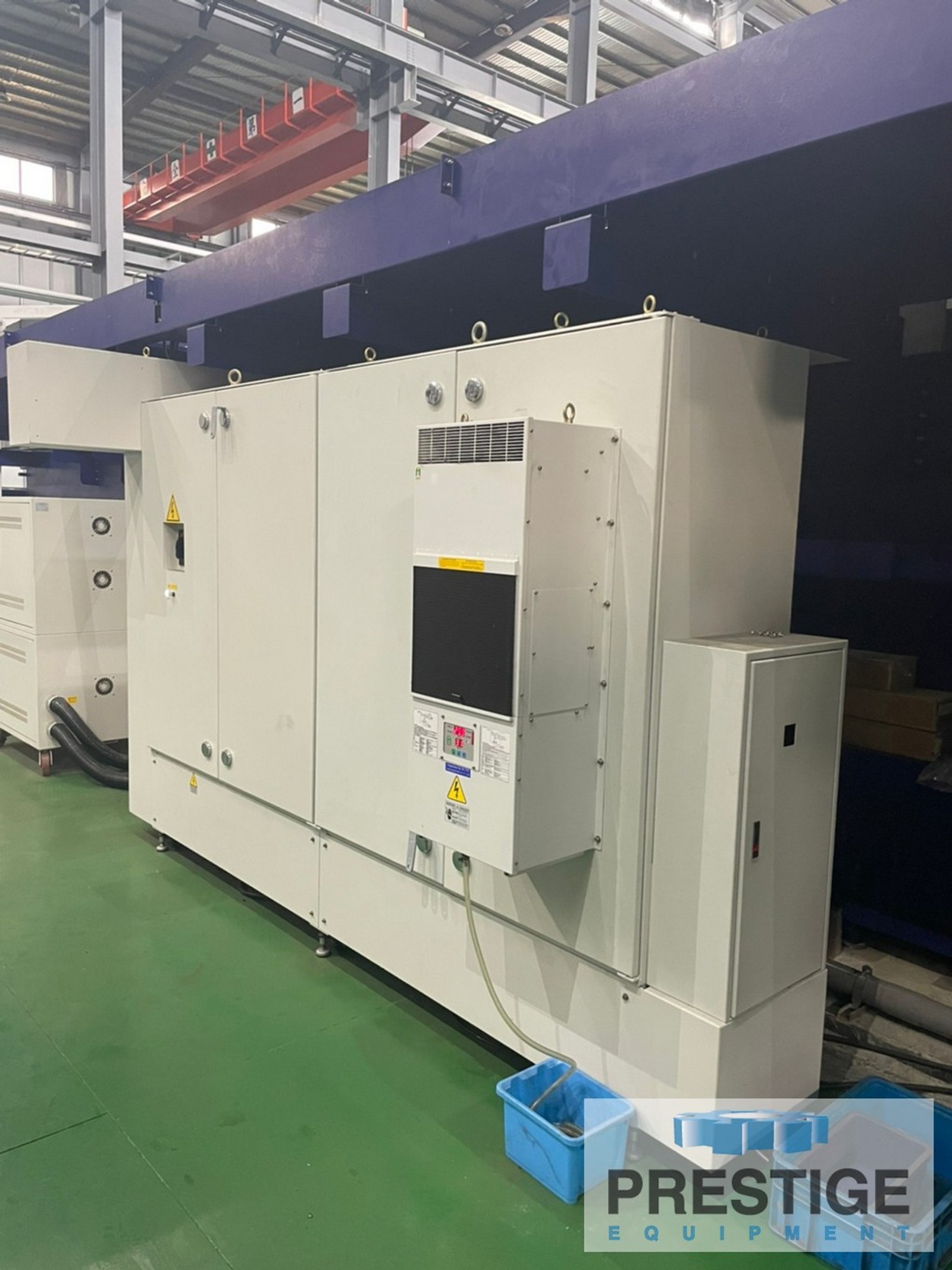

Air Conditioner for Electrical Cabinet
Chip Conveyor

CAPACITY:

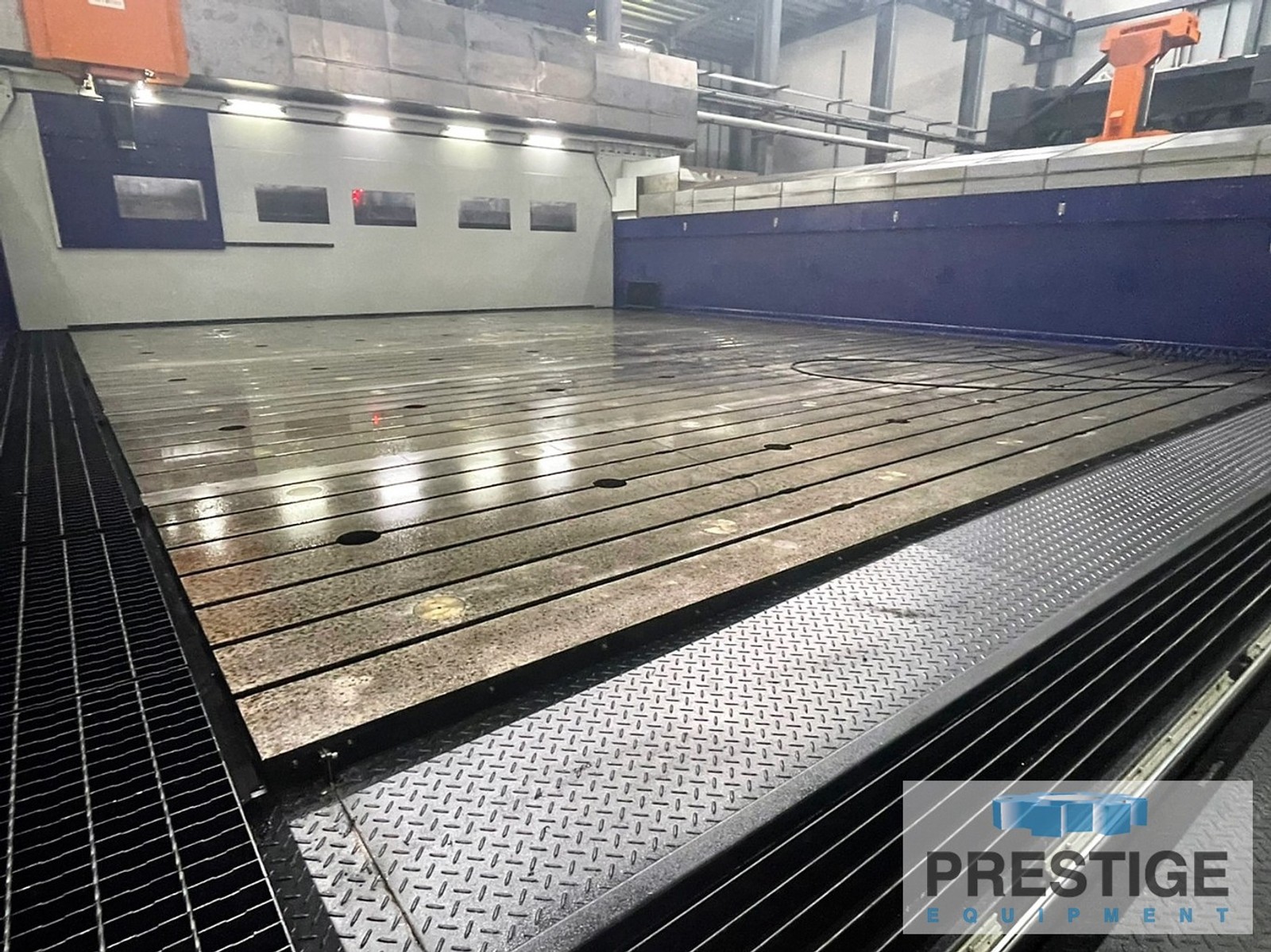

Table Size ............................ 393.70" x 314.96"
Distance From Spindle to Nose.......... 51.18-106.29"
X-Axis Travel (Table Longitudinal) .... 393.70"
Y-Axis Travel (Head) .................. 314.96"
Z-Axis Travel (Spindle) ............... 55.11"
Daylight Under the Spindle ............ 106.29"
Distance From Spindle Nose to Table ... 7.87"-59.05"
Distance Between Housing .............. 314.96"
Spindle Speeds (Gear Driven)........... 3000 RPM
Spindle Taper ......................... BT-50
Spindle Drive Motor ................... 49 HP/40 HP
Approximate Weight .................... 625,000 Lbs.

EQUIPPED WITH:
Fanuc 31iMB CNC Control with 10.4" LCD
90-Station Automatic Tool Changer
Thru Spindle Coolant
Heidenhain Linear Scales (X,Y,Z)
Auto Head Storage (Auto Tool Changing Coolant Thru Spindle)
90 Degree Head with Auto 5 Degree Indexing
Extension 200 mm 90 Degree Head w/ Auto 5 Degree Indexing
Extension Head 400 mm
Extension Head 500 mm
Universal Head (A/C Axis Auto Indexing)
Renishaw Measuring System

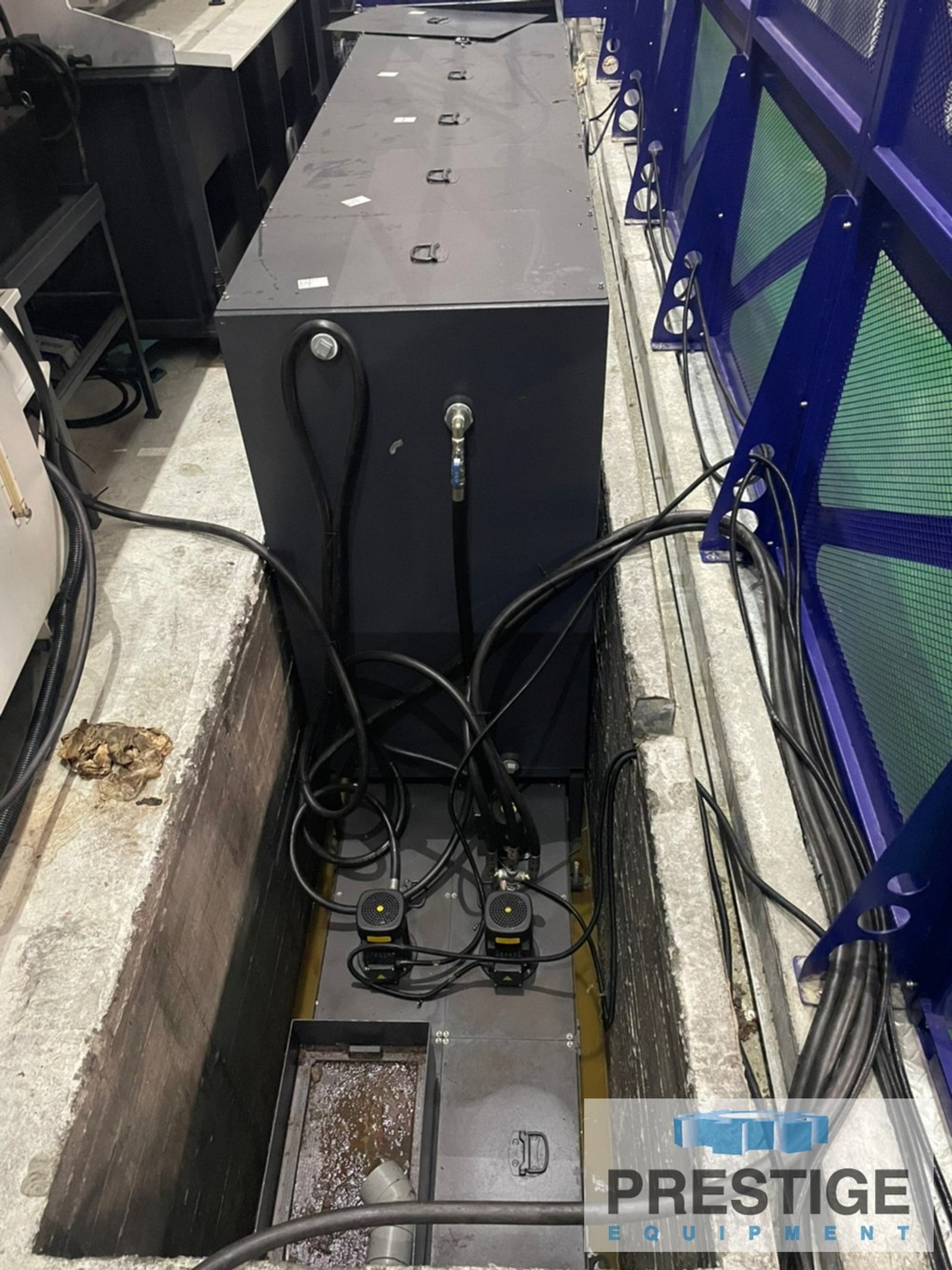

Hydraulic Tank Cooling System
Tool Pre-Setter
Spindle Oiler Cooler

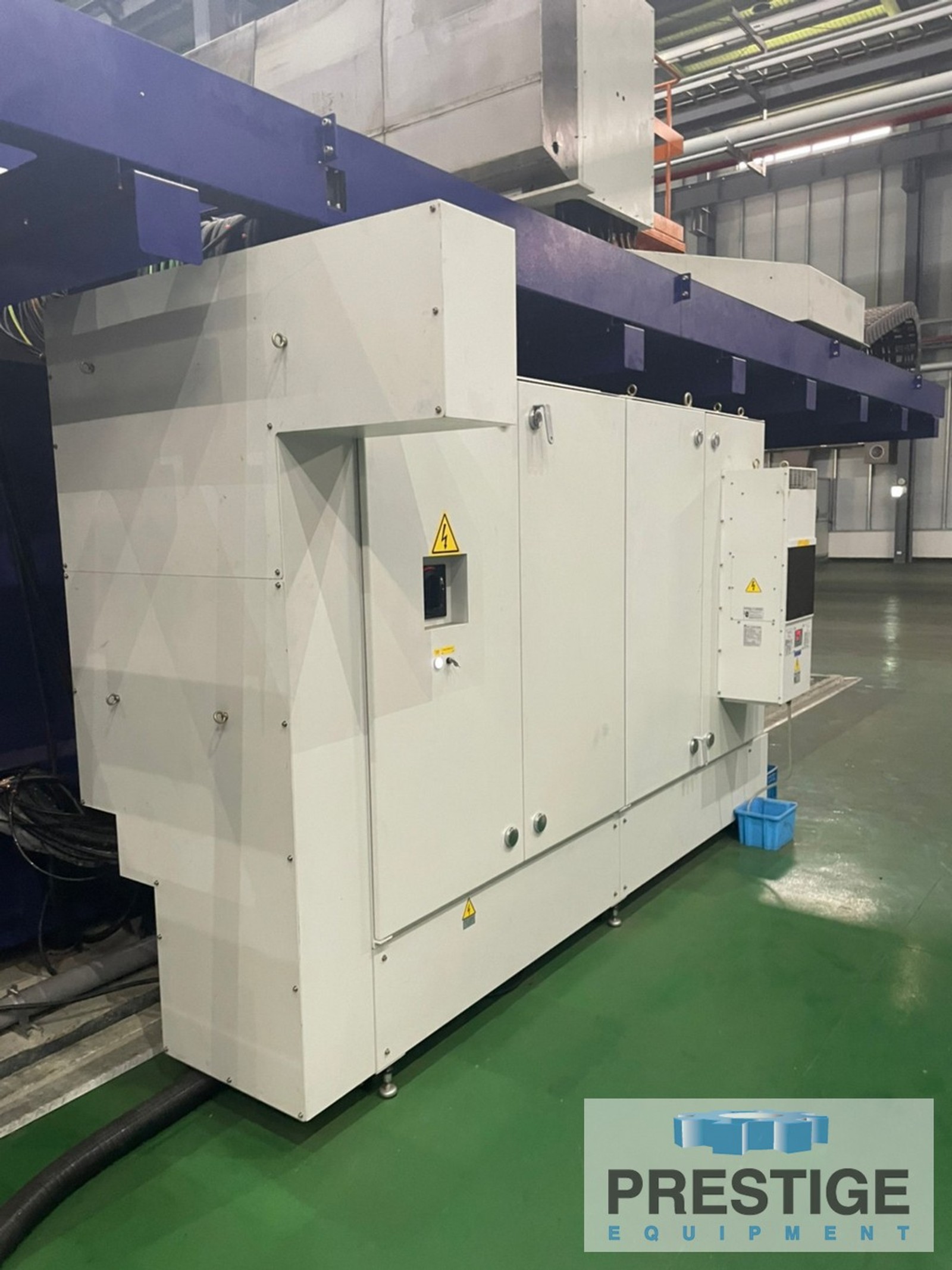

Air Conditioner for Electrical Cabinet

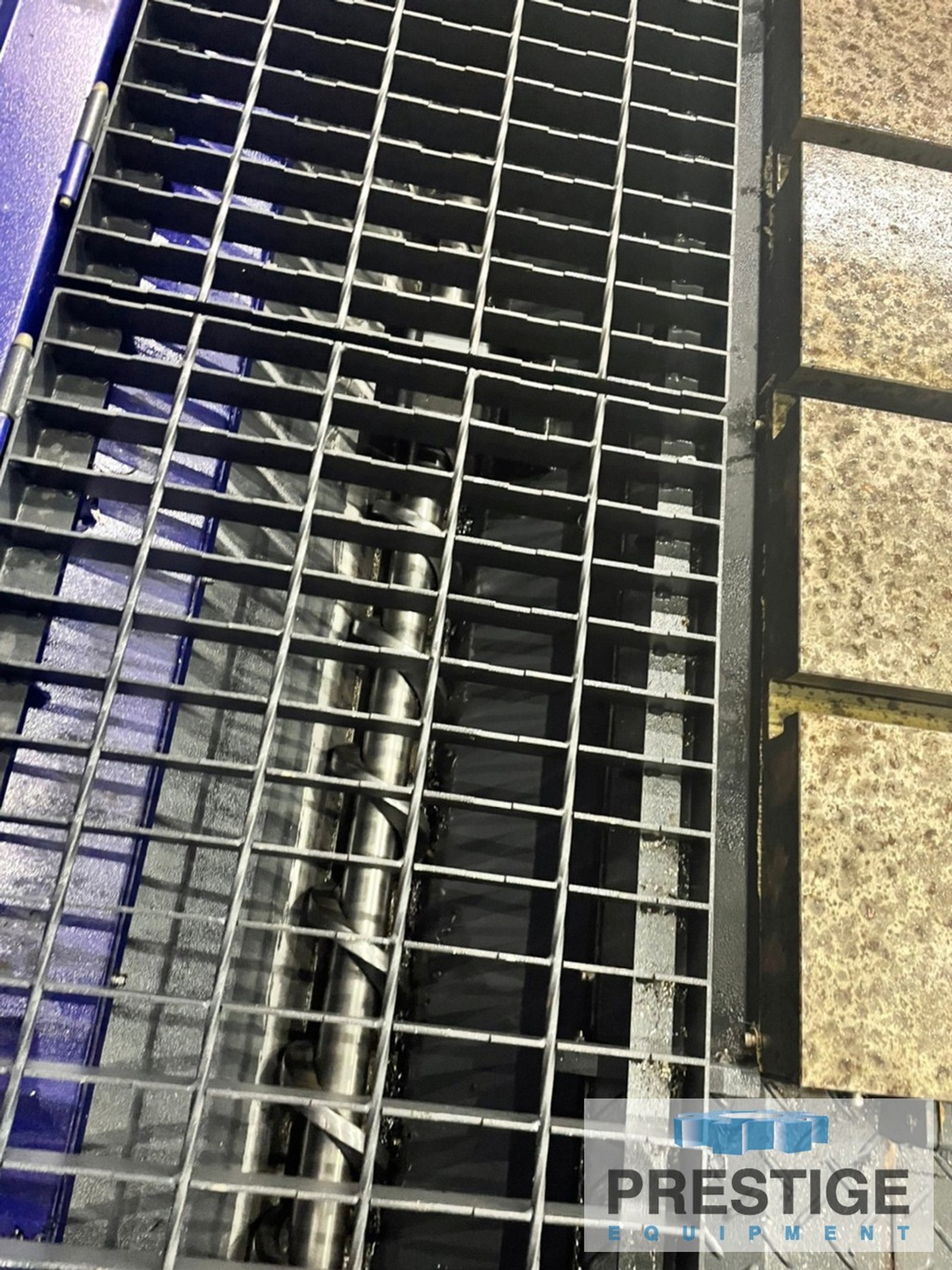

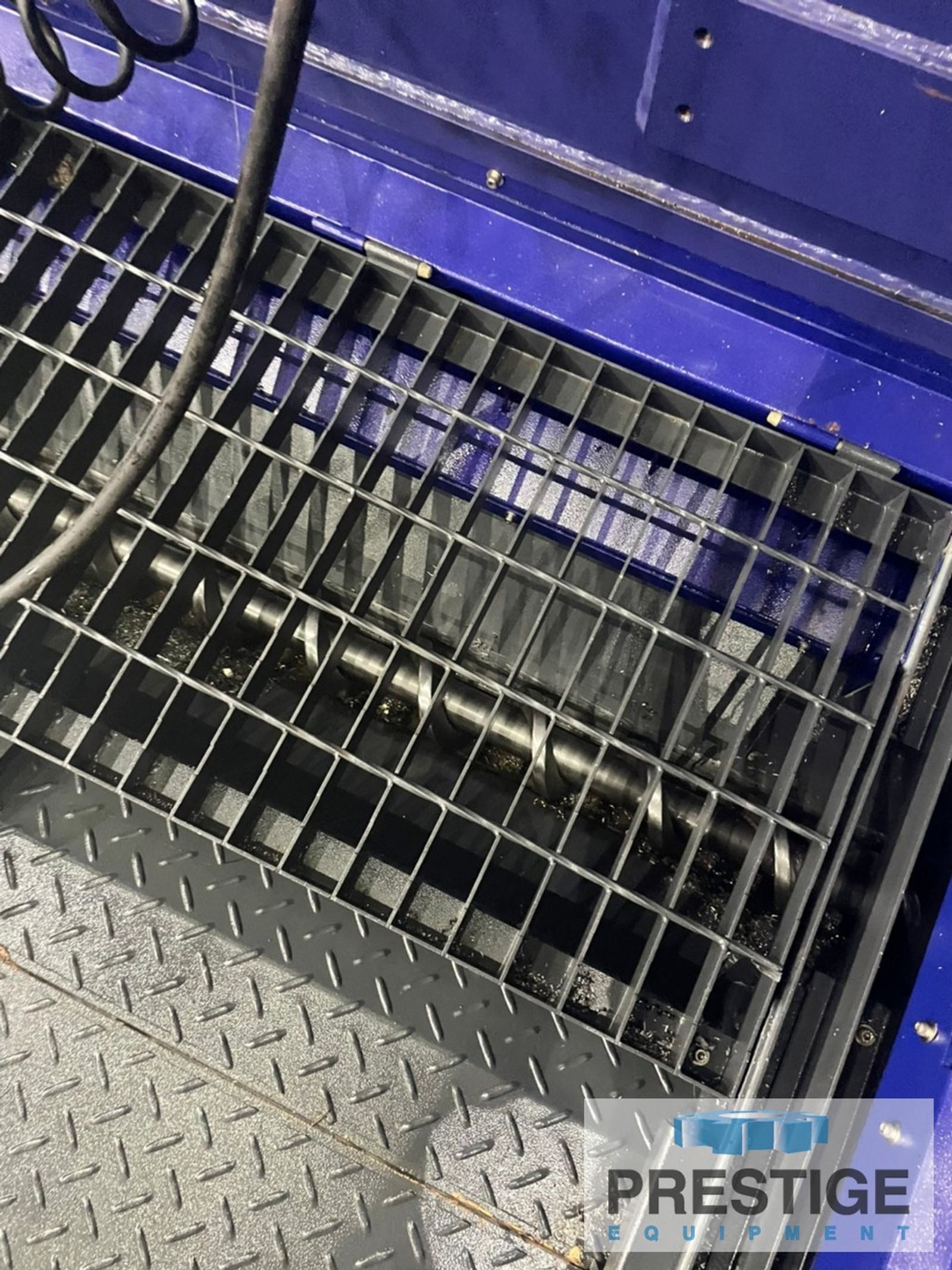

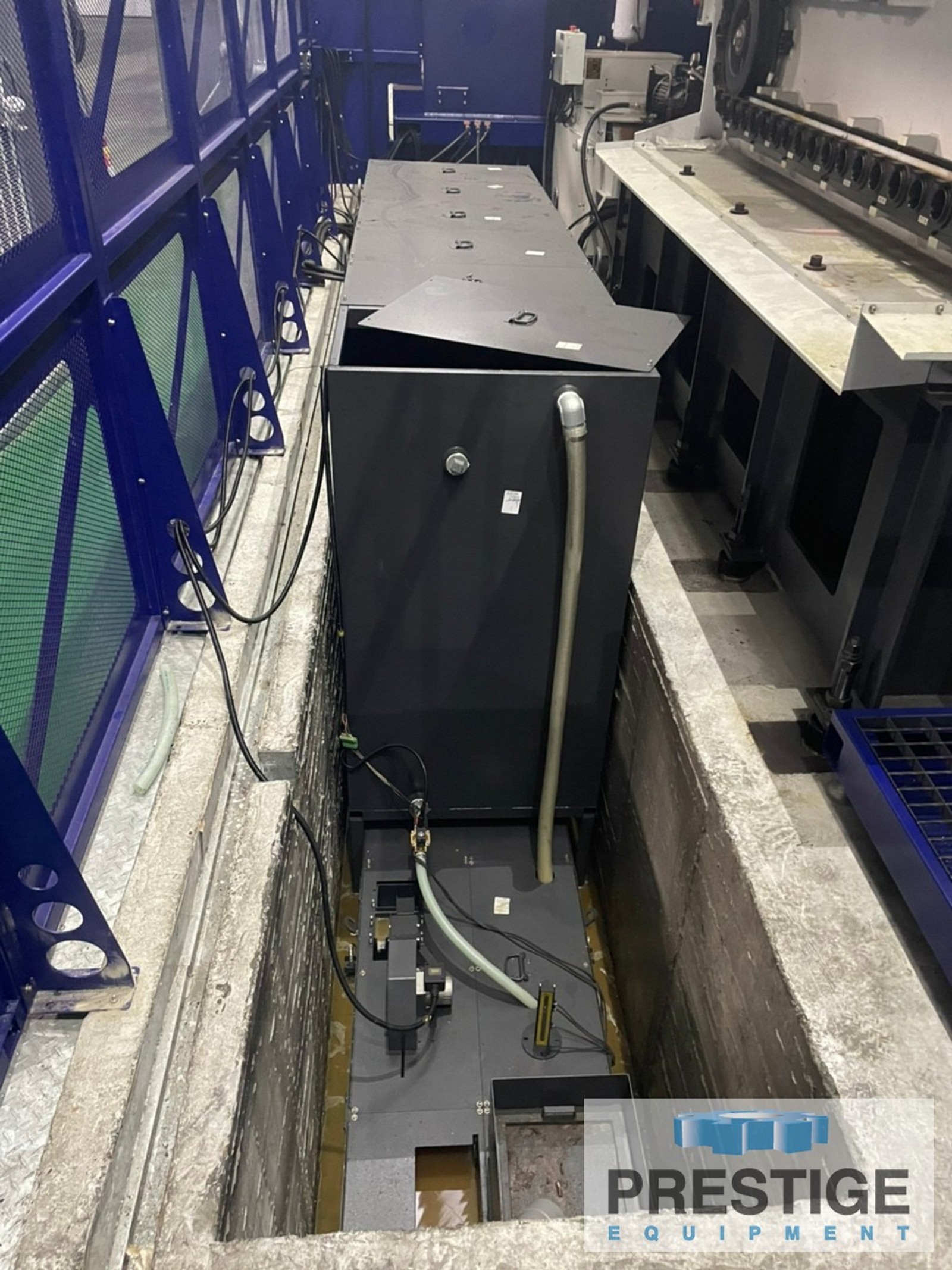

Dual Chip Conveyors

NOTE:
Inspect In Plant Under Power
