Toshiba MPC-3180B 5-Face Mill, X-354", Y-154", (2) 106" x 315" Pallets, Fanuc 30iB, 180-ATC, 3 Angle Heads, 2012 #32565

Manufacturer

Toshiba

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

32565

Model

MPC-3180B 5-Face

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32565

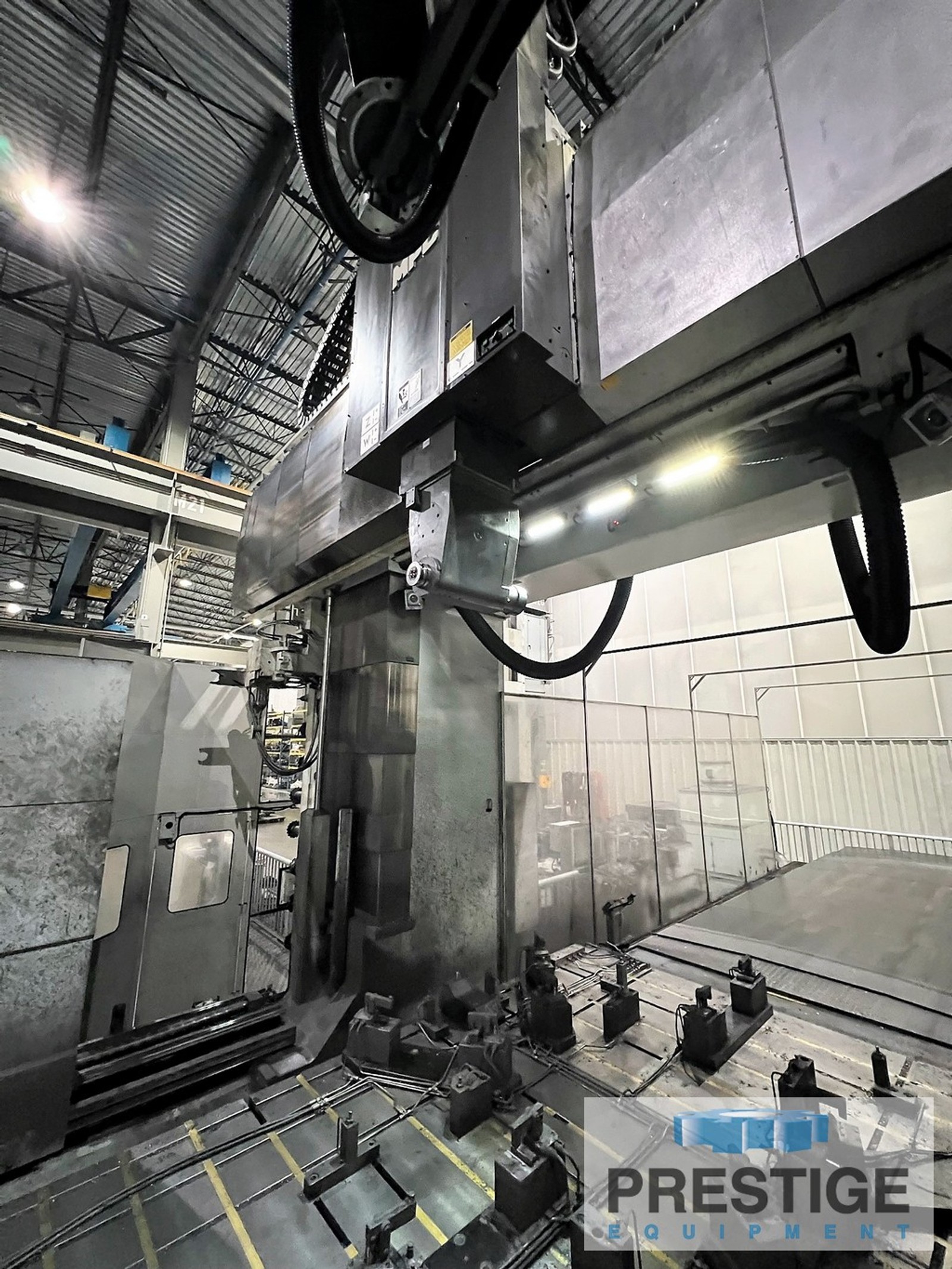

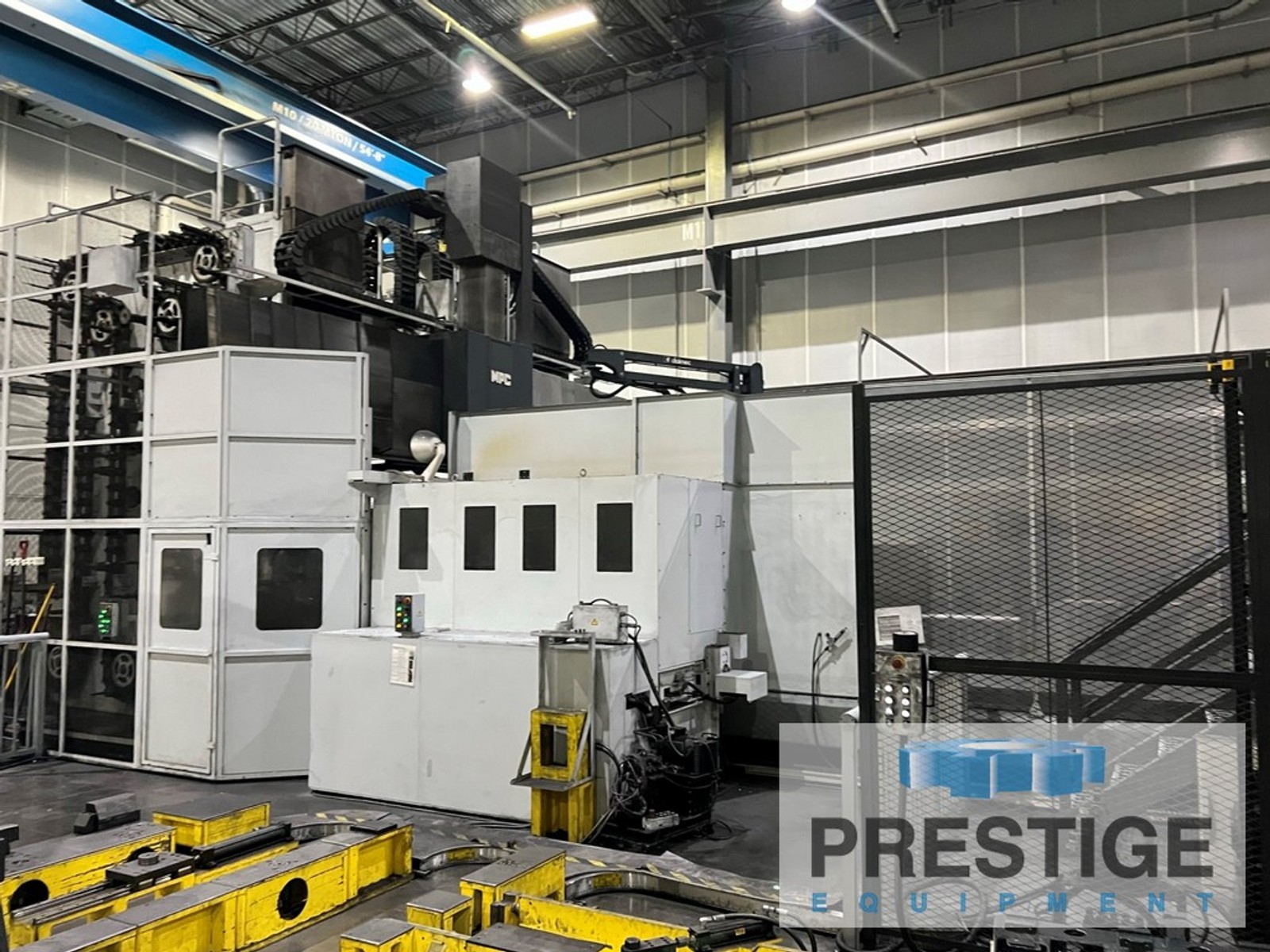

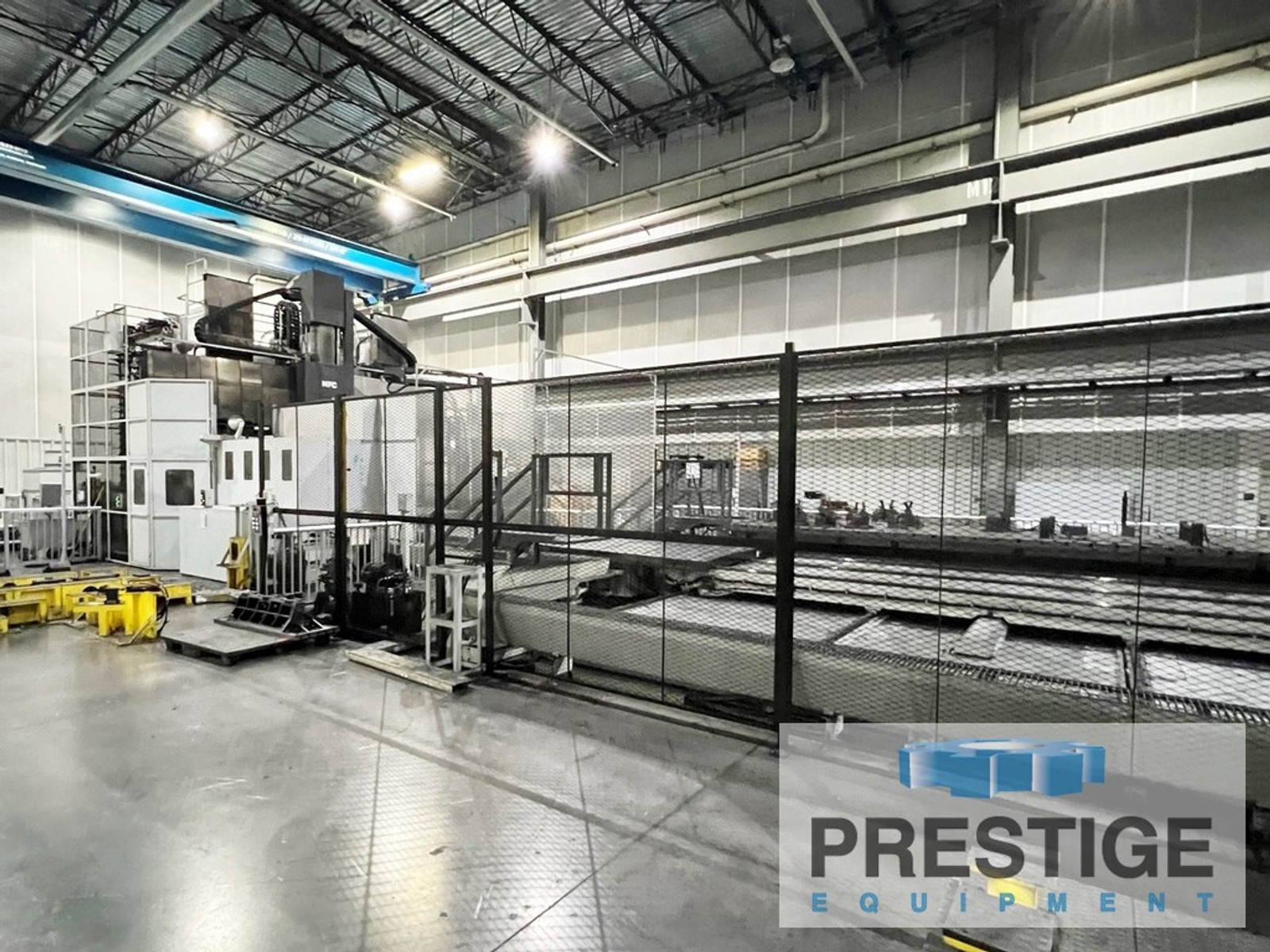

Toshiba MPC-3180B 5-Face CNC Vertical Bridge Mill

FEATURES:

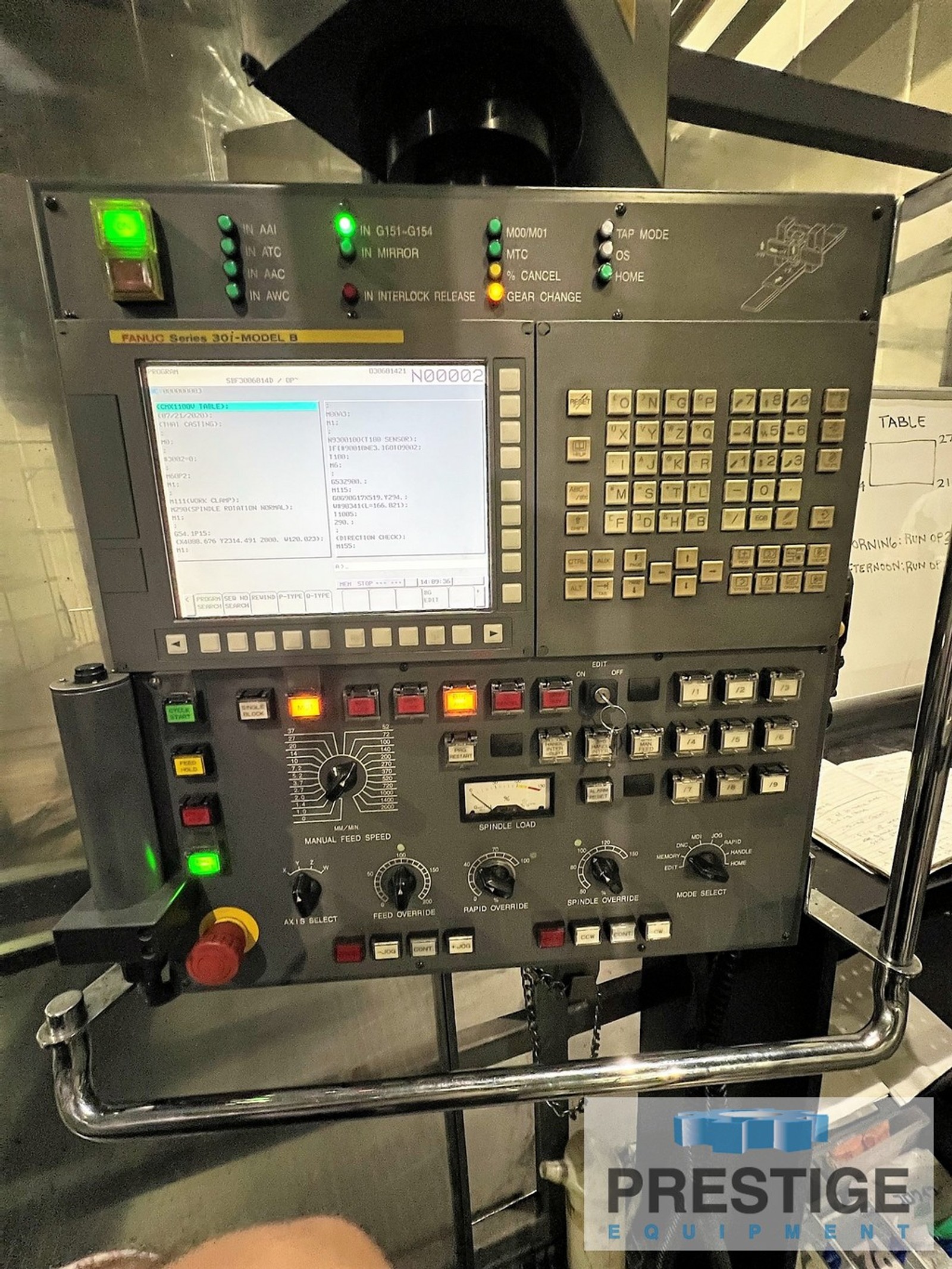

Fanuc 30i-B CNC Control

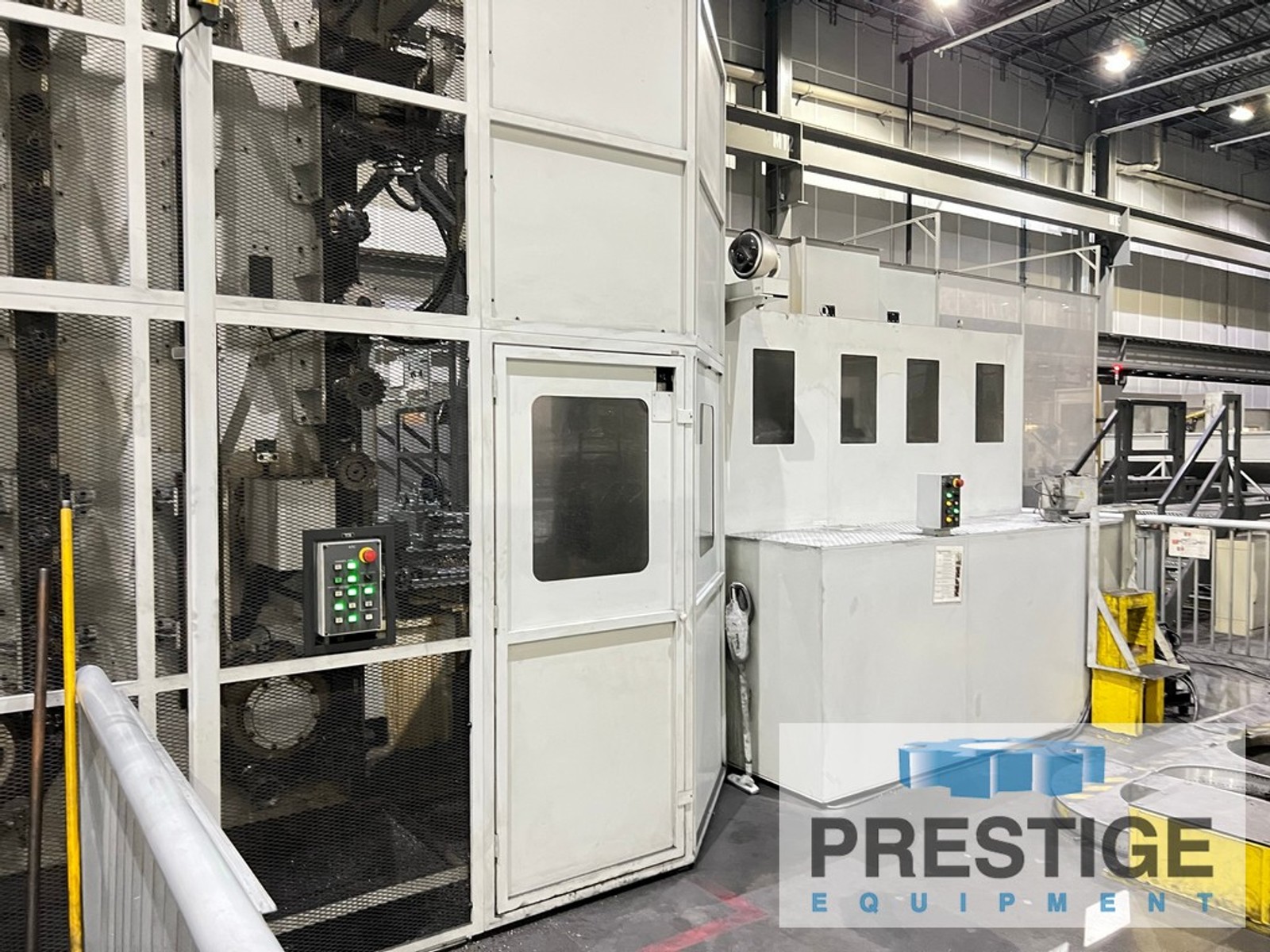

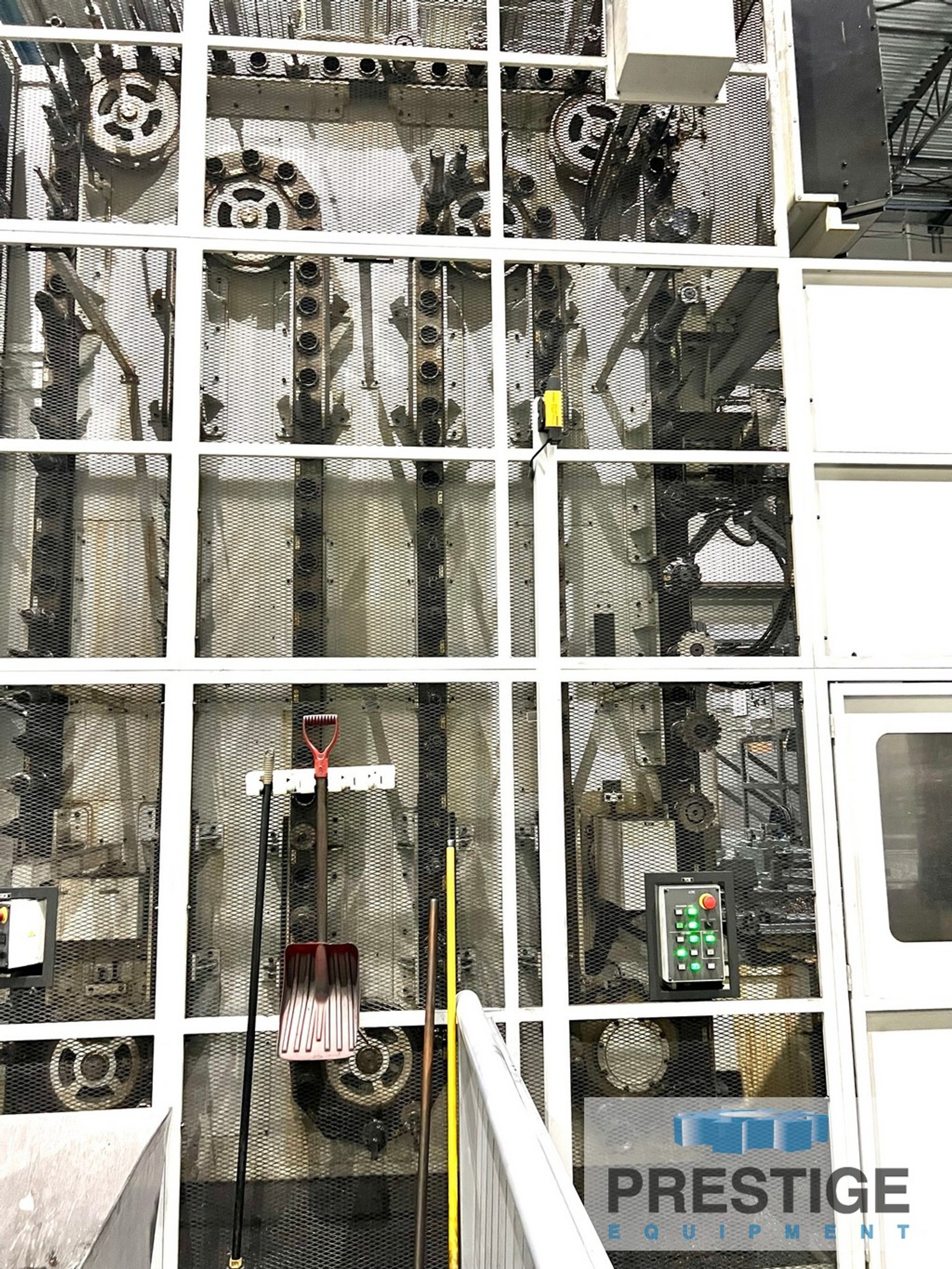

180-Station Automatic Tool Changer
Automatic Tool Change to Vertical or Horizontal Spindle

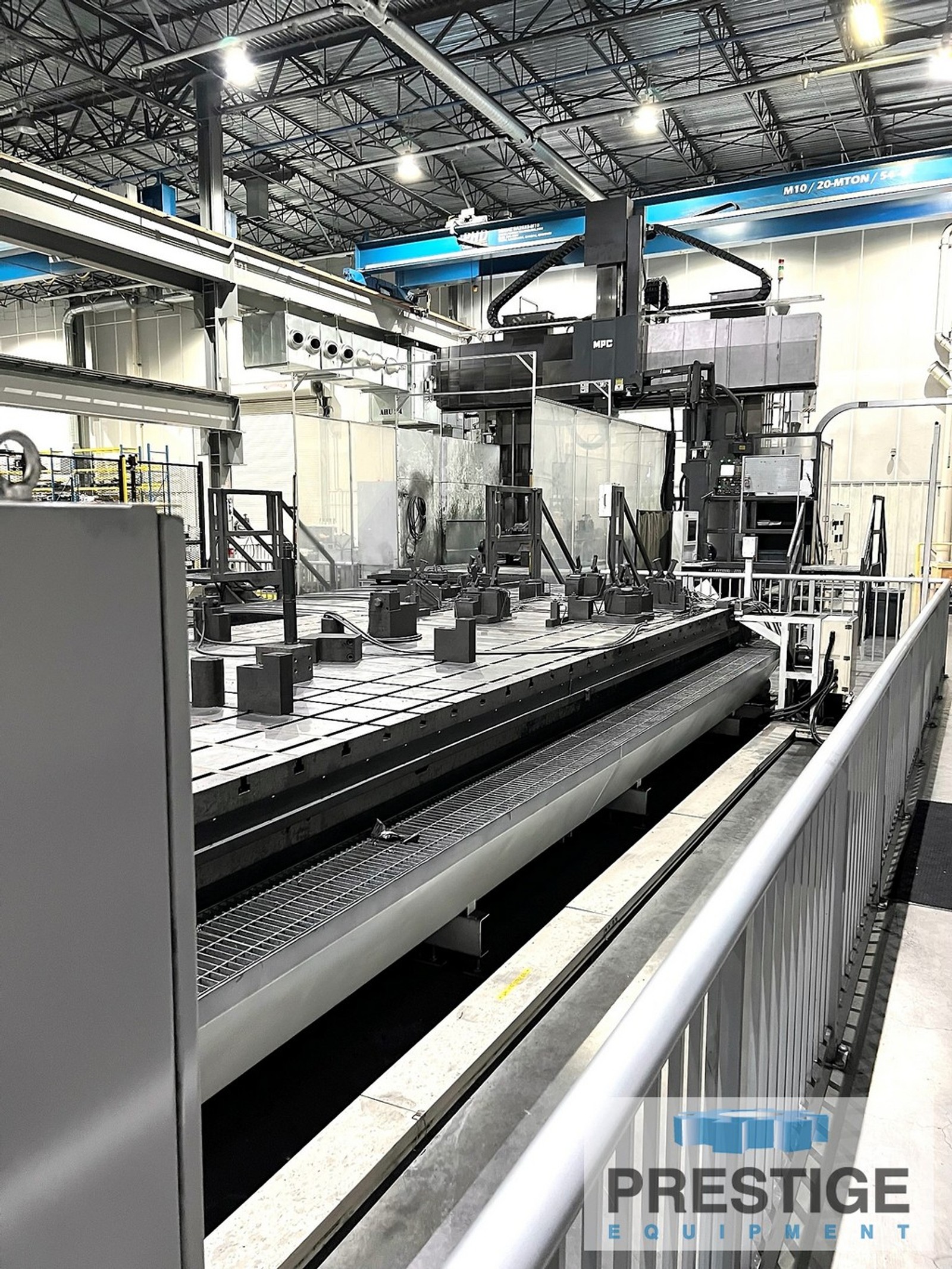

2-Station Automatic Pallet Changer
(2) 315" x 106" Pallets

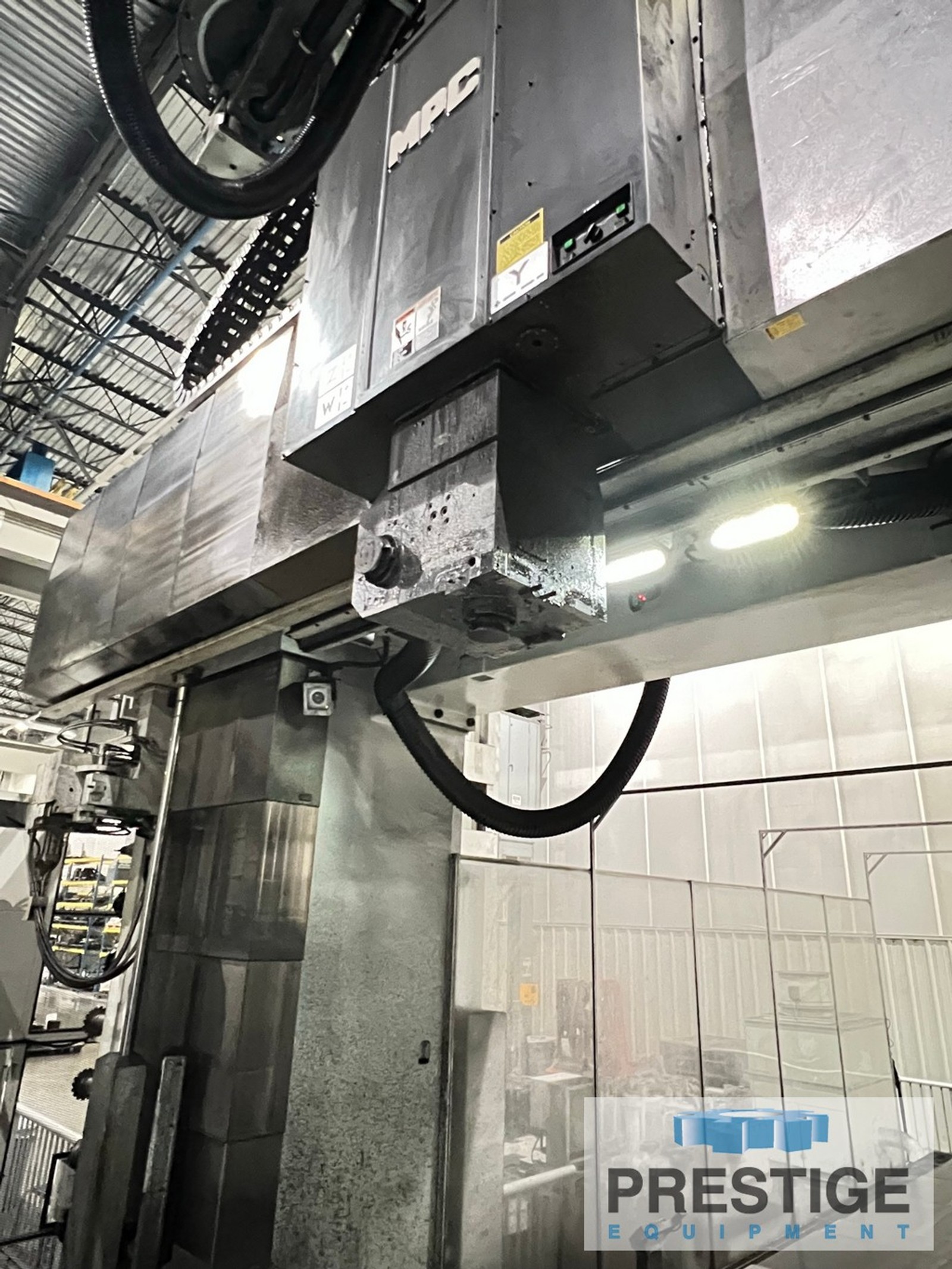

4-Station Automatic Attachment Changer
Automatic Attachment Indexing

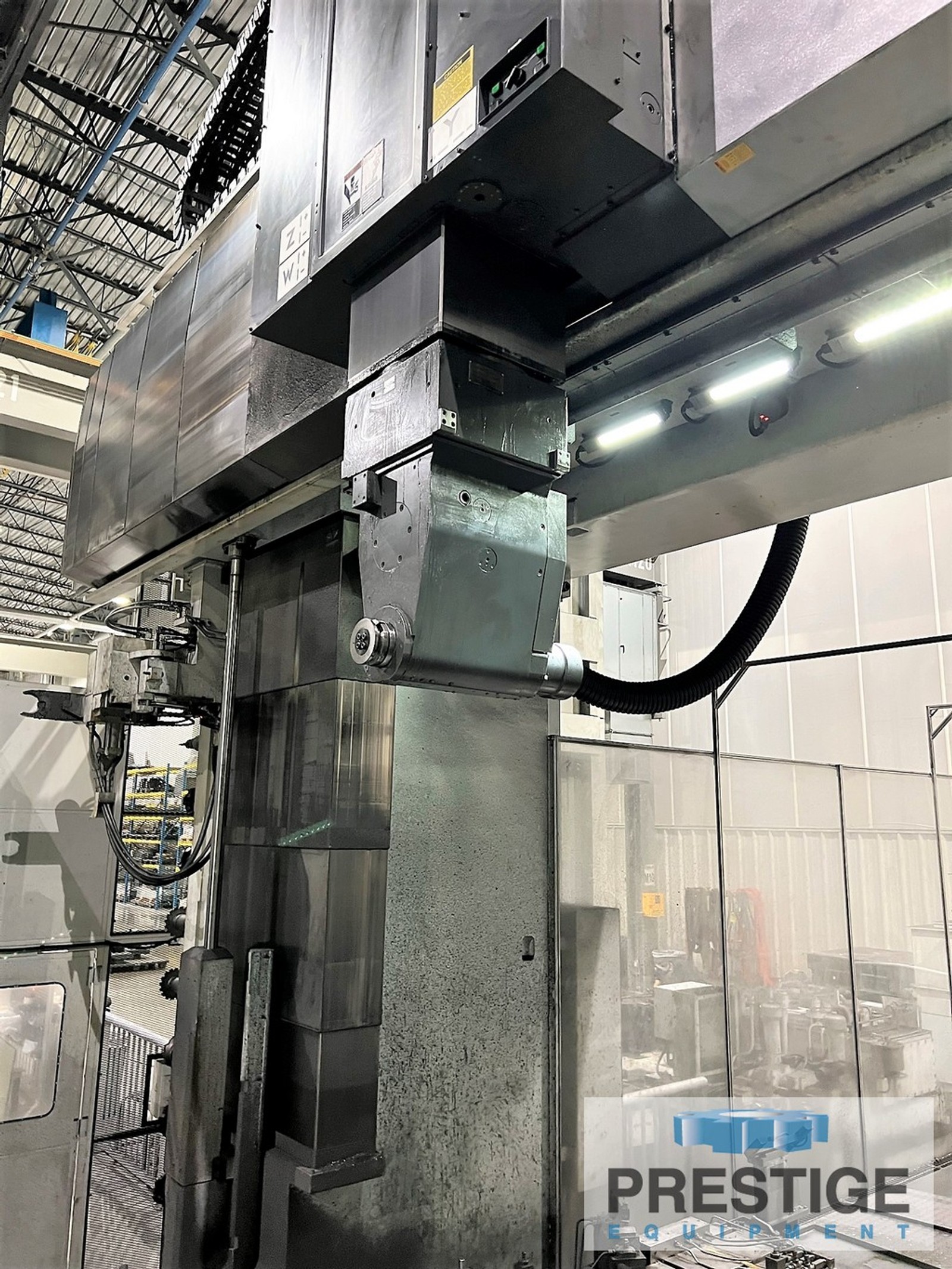

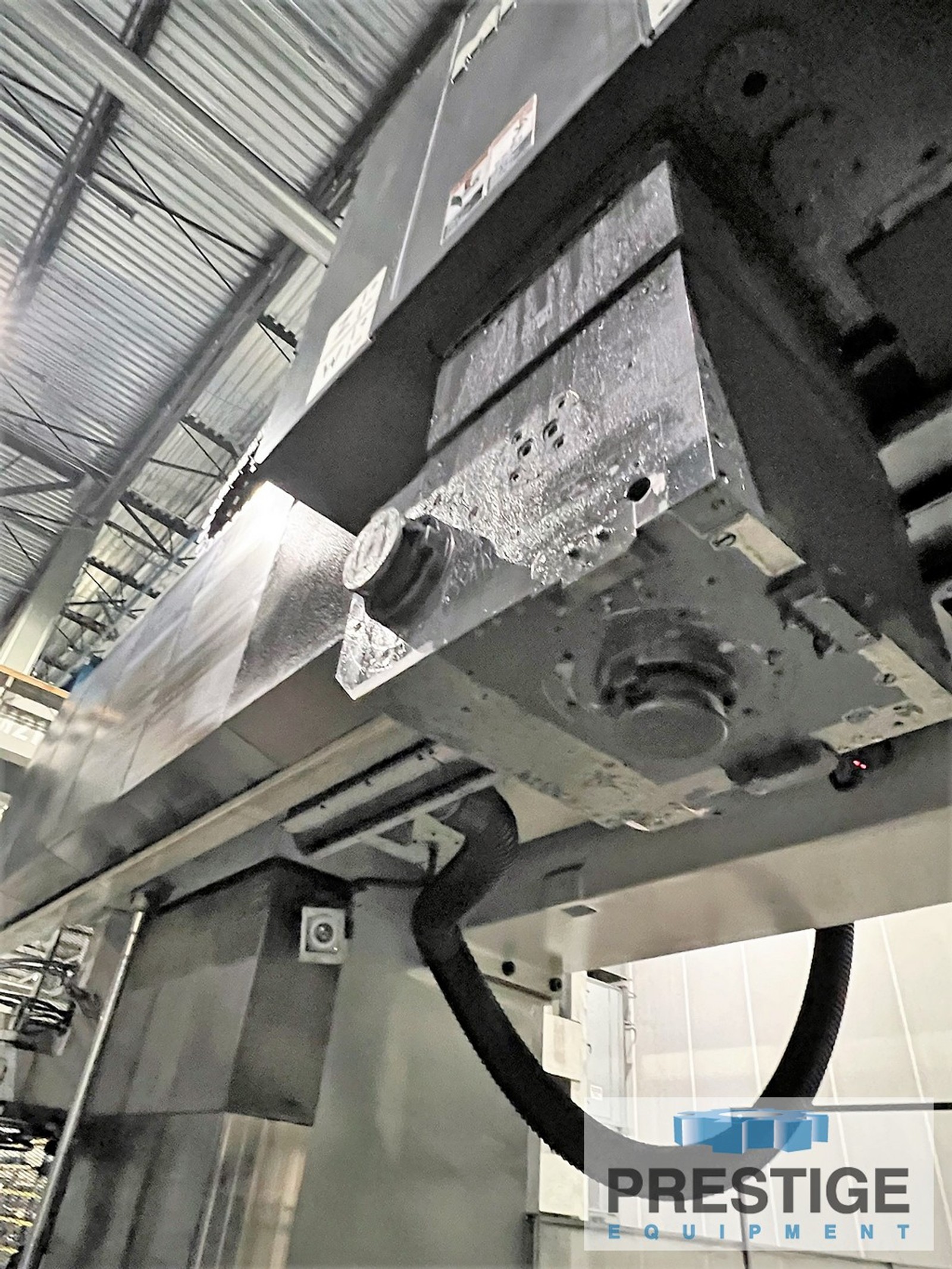

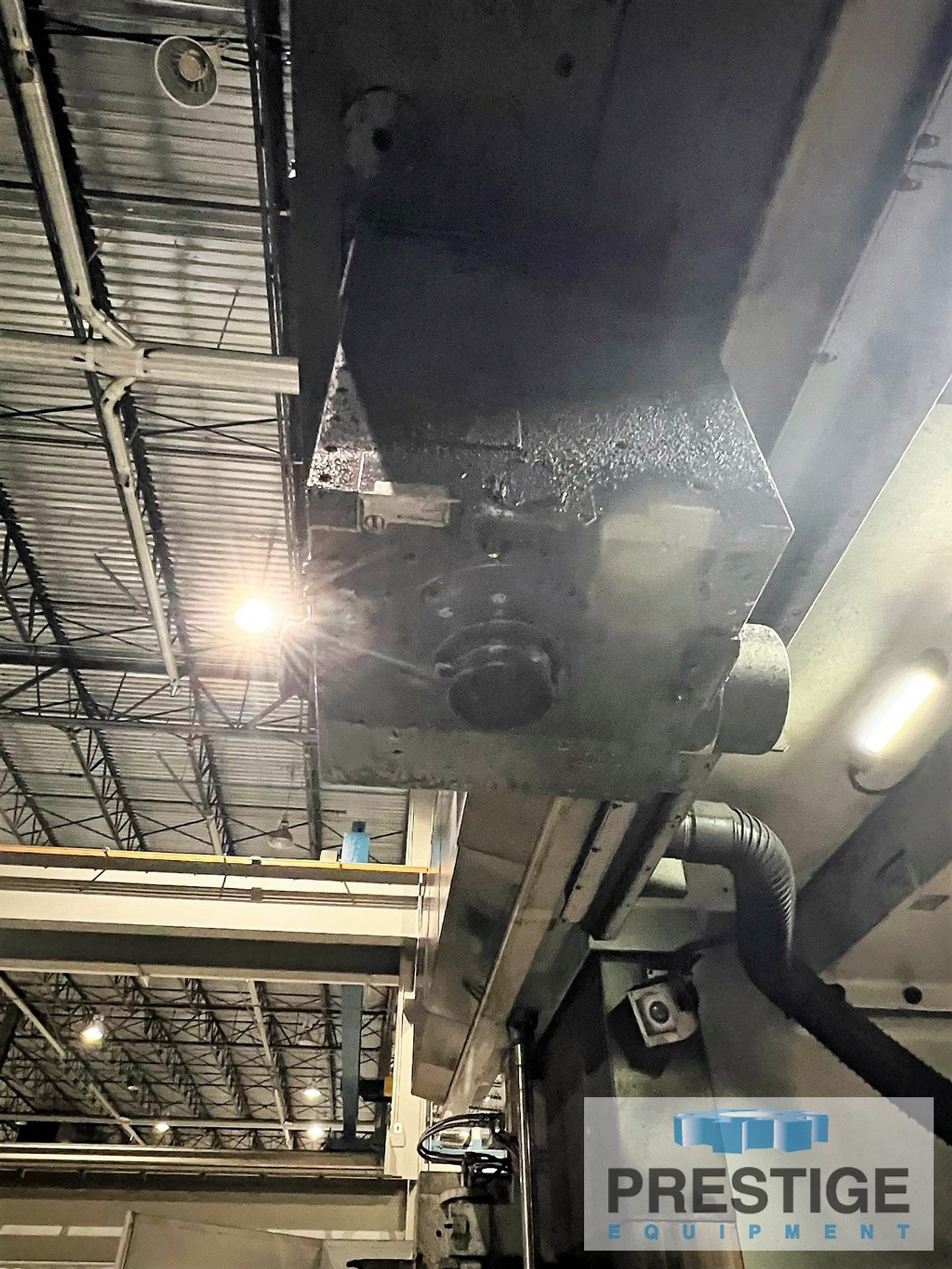

(1) 5-Face (Vertical/Right Angle) Attachment with Auto Indexing: 1 Deg.

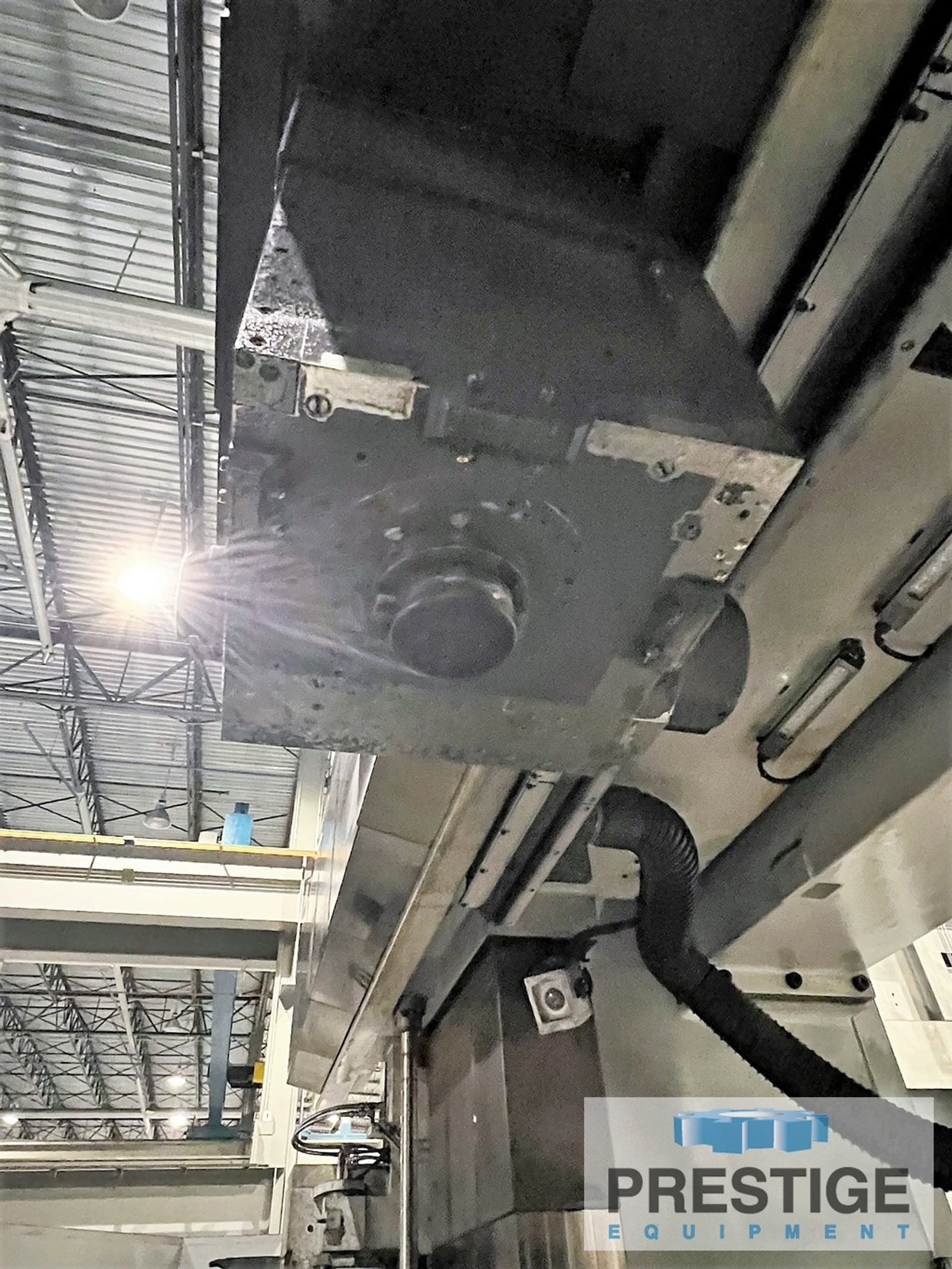

(1) Small Angle Attachment
(1) Snout Extension Attachment
Hydraulic Cross Rail Servo Balancing System
Hydraulic Ram Balancing Mechanism
Oil Mist Lubrication for Gears and Bearings


SPECIFICATIONS:
Distance Between Columns .............. 122"
Spindle Nose to Tabletop .............. 96.06"
X-Travel .............................. 354"
Y-Travel .............................. 154"
Z-Travel .............................. 35"
W-Axis Crossrail Vertical Travel ...... 63"

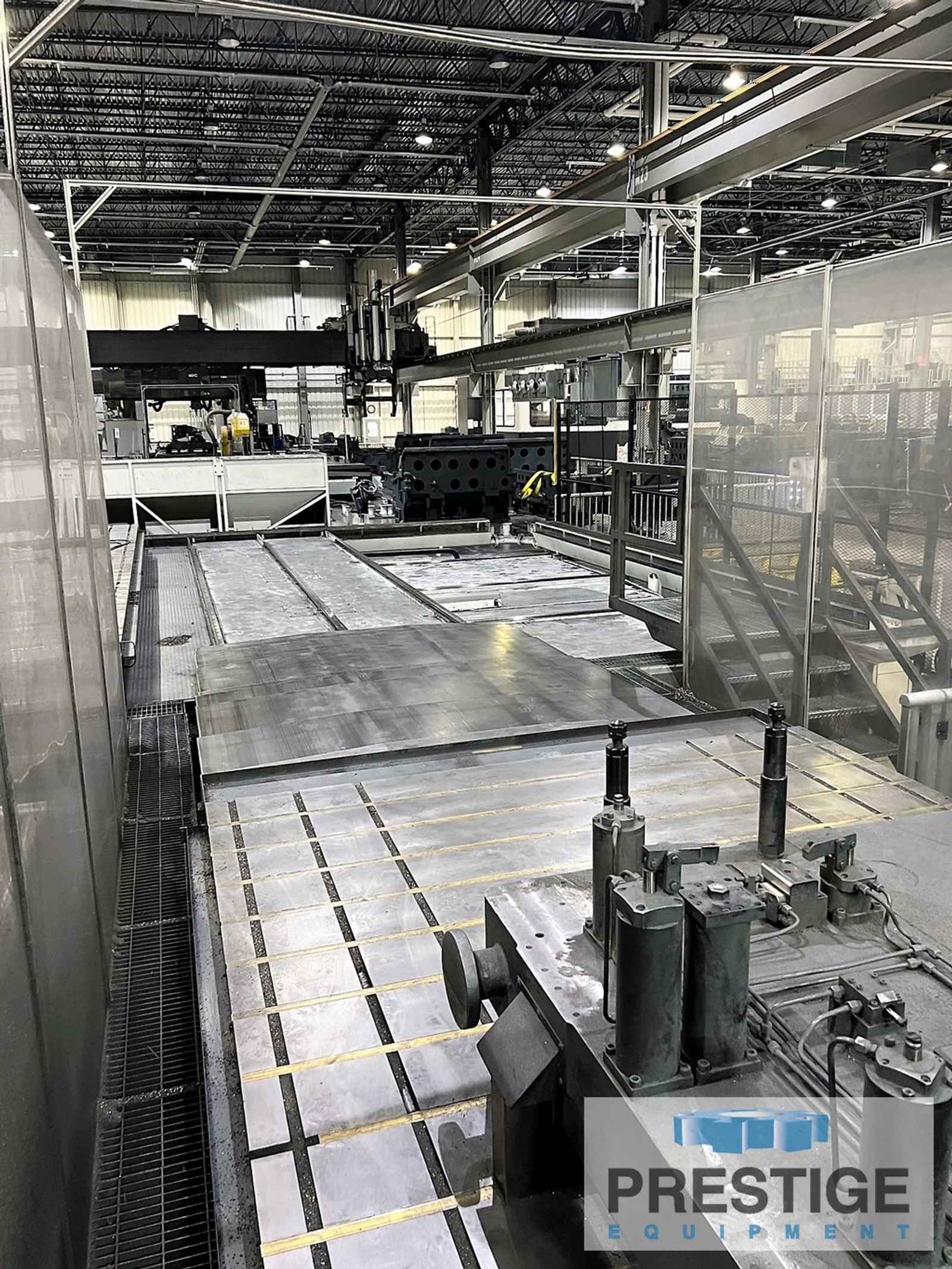

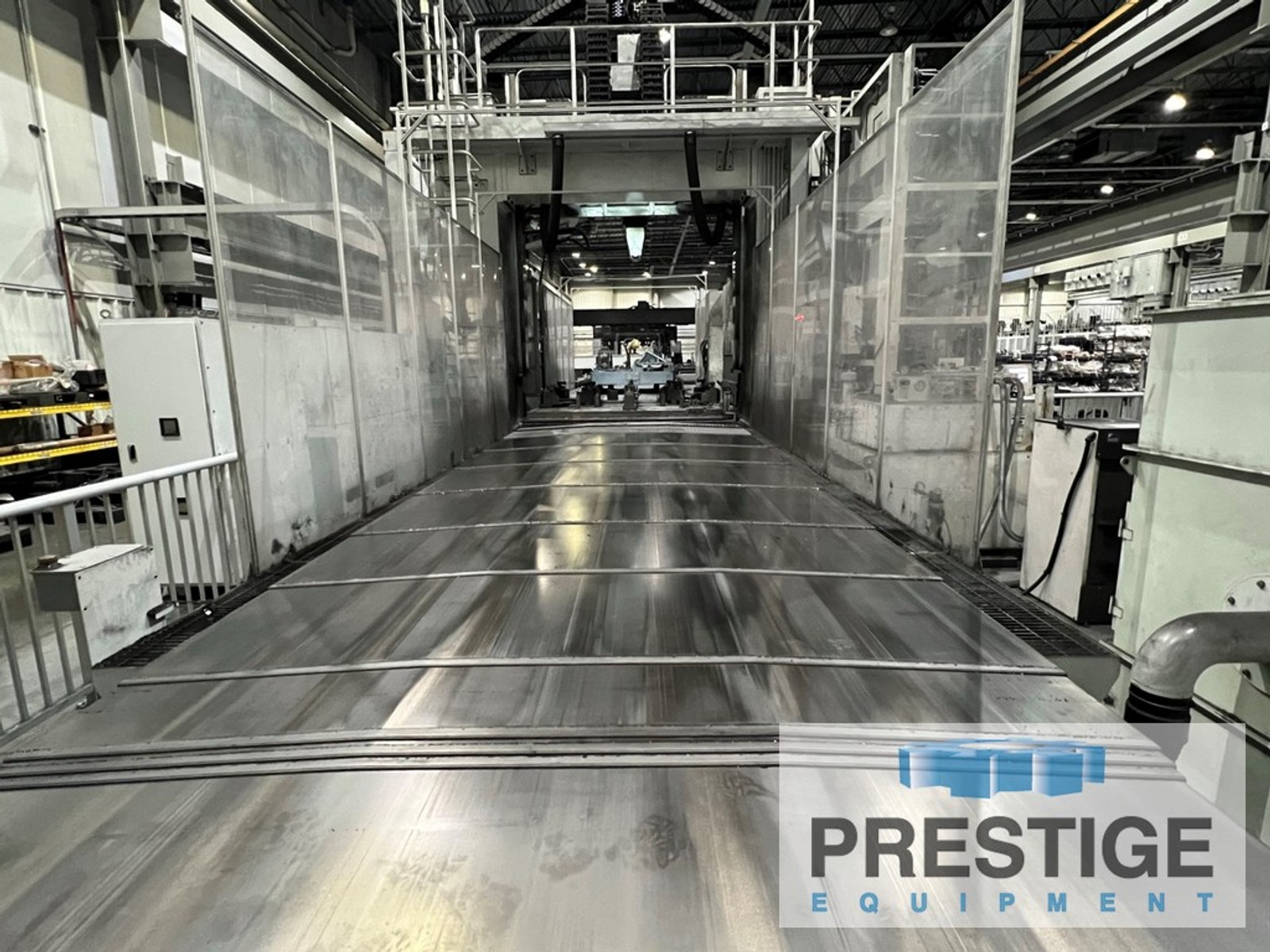

Pallet Size ........................... 315" x 106"
Number of Pallets ..................... 2
Cutting Feed Rate ..................... 2366.22 IPM

SPINDLE & TOOL CHANGER:
Ram Size .............................. 14.9" x 14.9"
Spindle Taper ......................... MAS BT-50
Spindle Speed ......................... 3,000 RPM
Spindle Speed Ranges .................. 2
Spindle Motor ......................... 40 HP
Tool Changer Capacity ................. 180 ATC
Tool Changer Type ..................... Chain

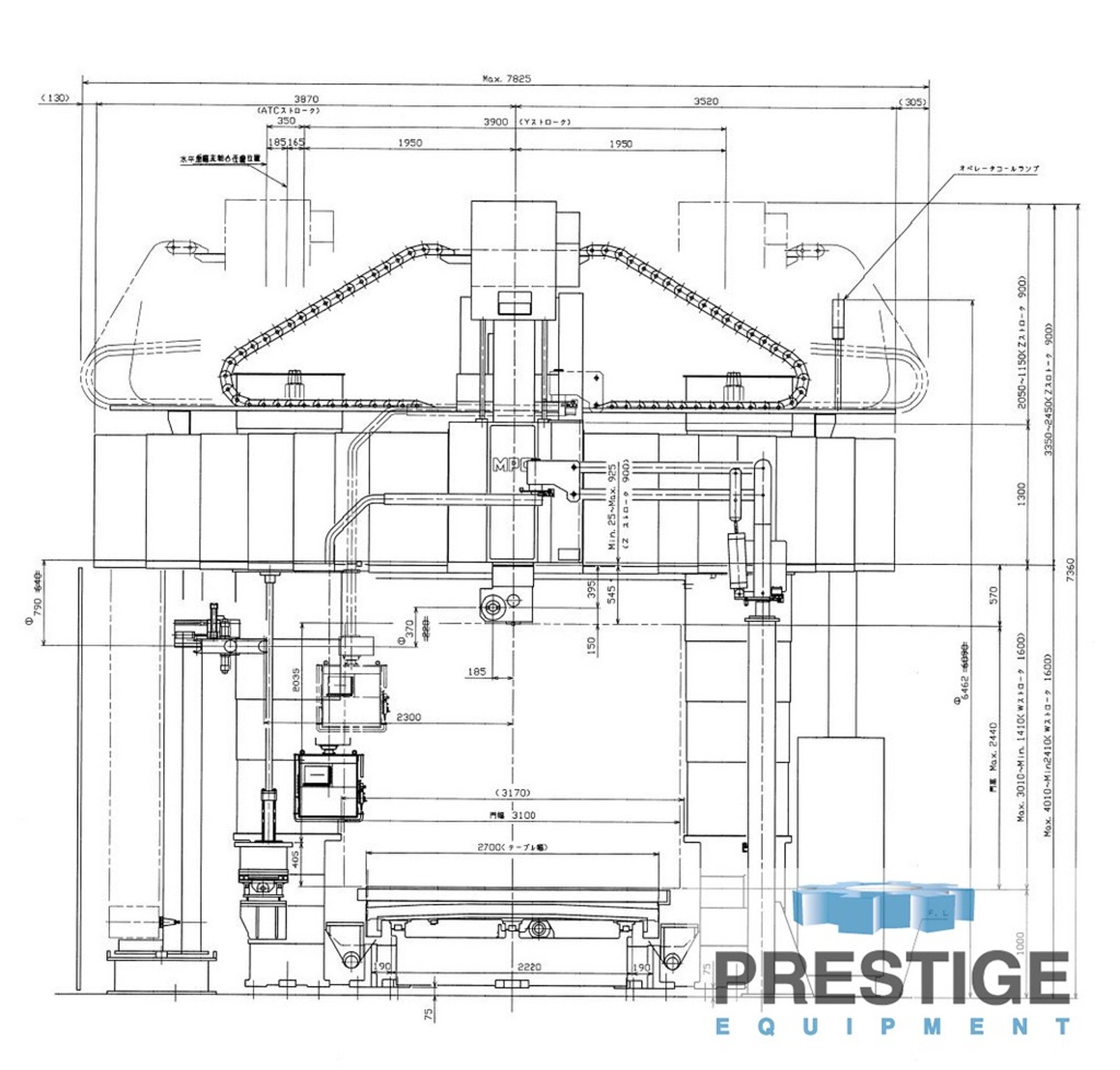

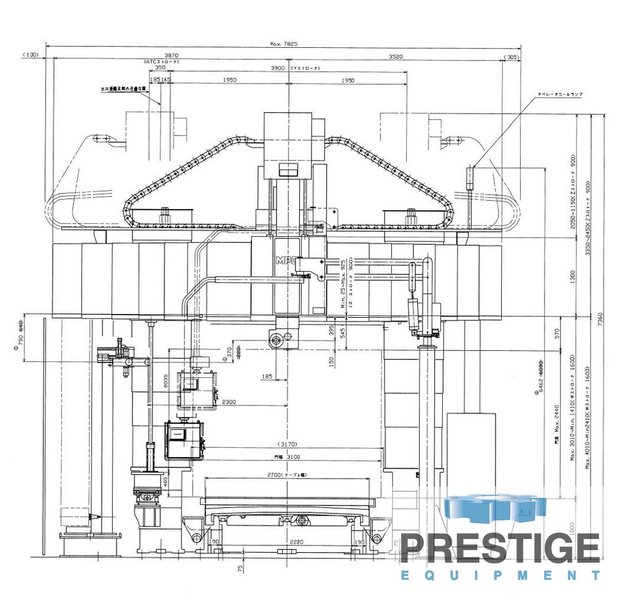

MACHINE DIMENSIONS:
Floor Space ........................... 1,146" x 390"
Machine Height ........................ 289"

EQUIPPED WITH:
Fanuc 30i-B CNC Control
180-Station Automatic Tool Changer
Automatic Tool Change to Vertical or Horizontal Spindle
2-Station Automatic Pallet Changer
(2) 315" x 106" Pallets
4-Station Automatic Attachment Changer
Automatic Attachment Indexing
(1) 5-Face (Vertical/Right Angle) Attachment with Auto Indexing: 1 Deg.
(1) Small Angle Attachment
(1) Snout Extension Attachment
Hydraulic Cross Rail Servo Balancing System
Hydraulic Ram Balancing Mechanism
Oil Mist Lubrication for Gears and Bearings

LOCATION:
Inspect In Plant Under Power
