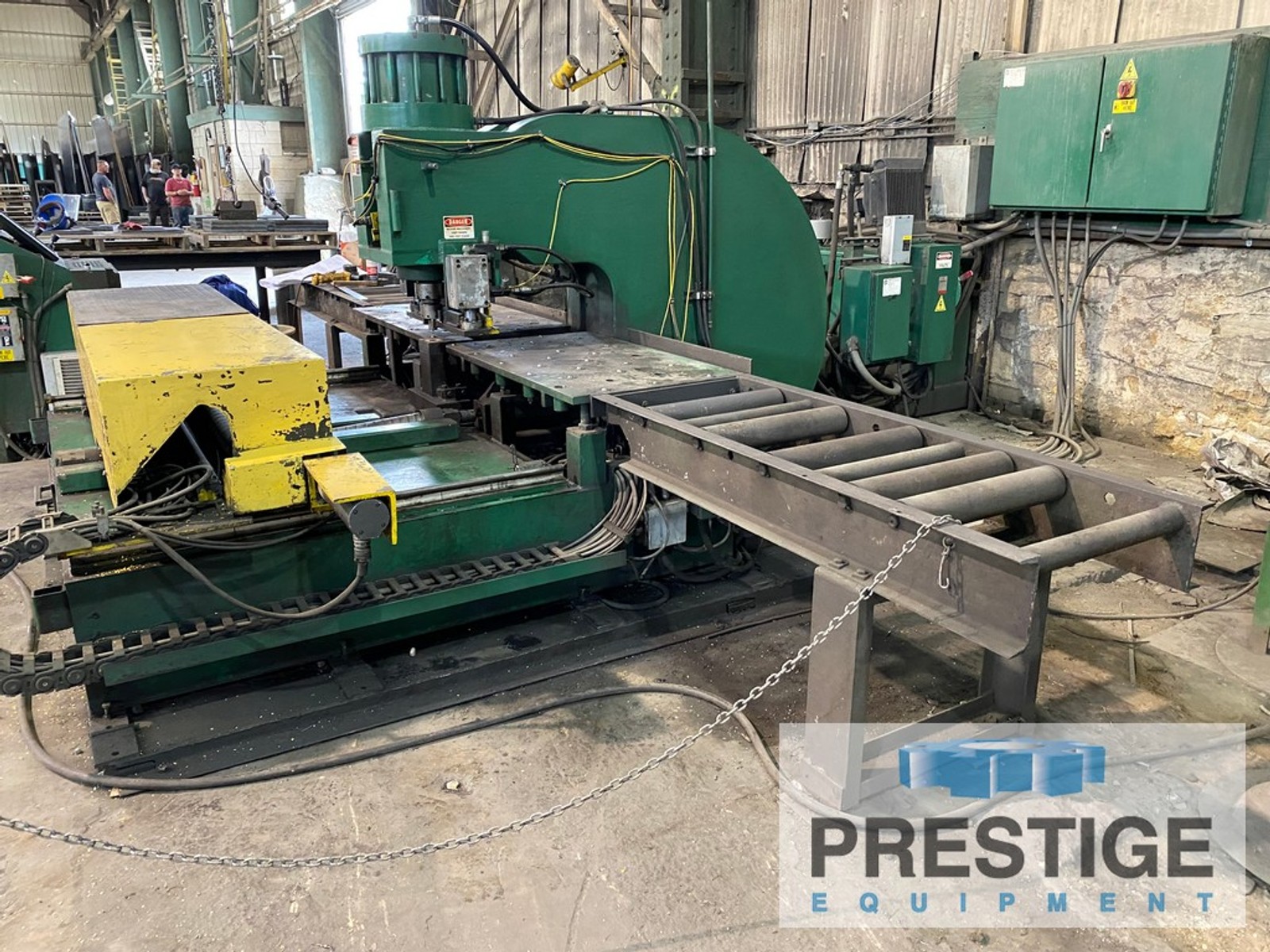

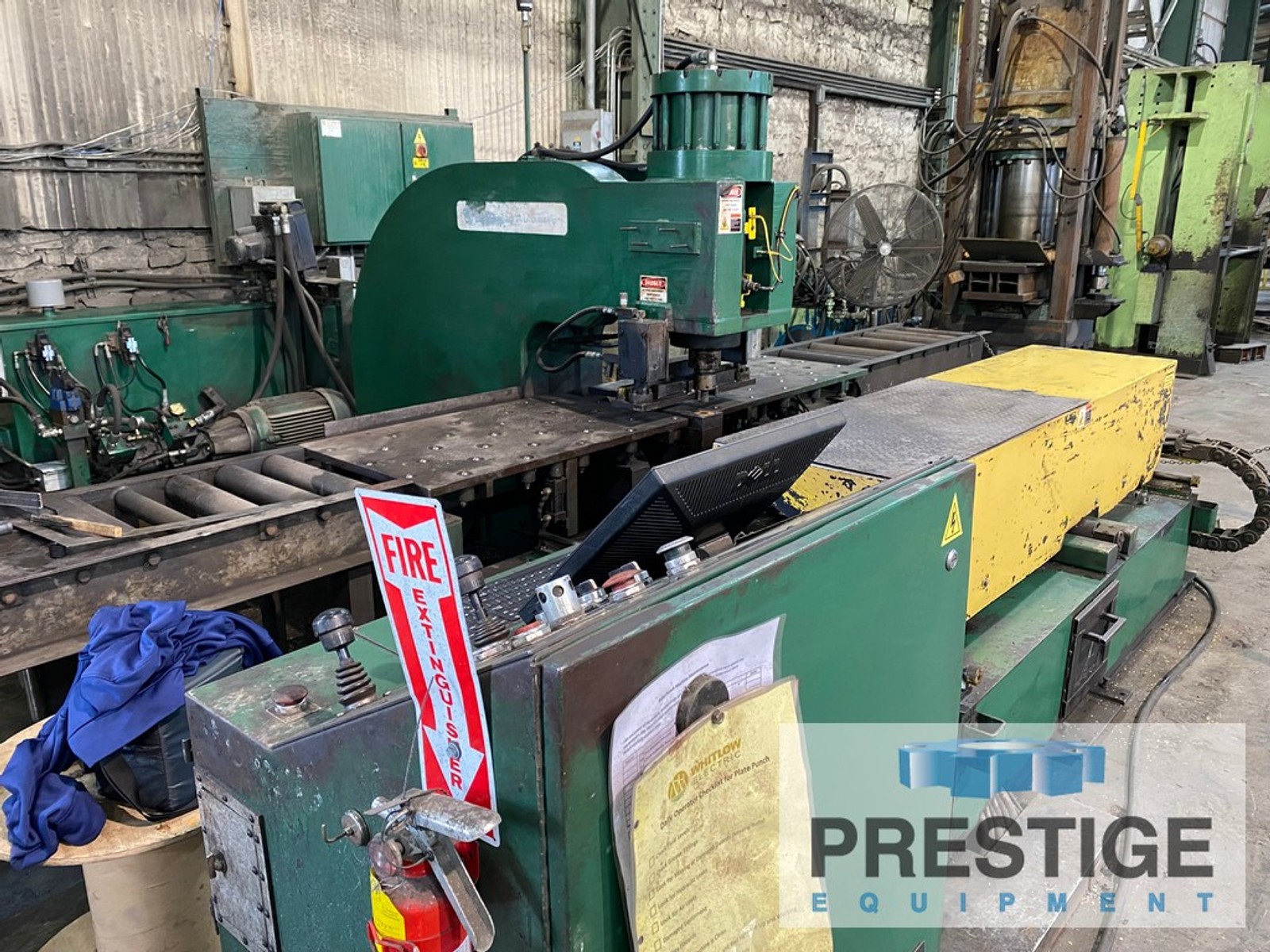

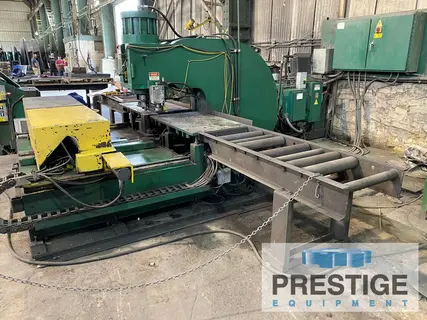

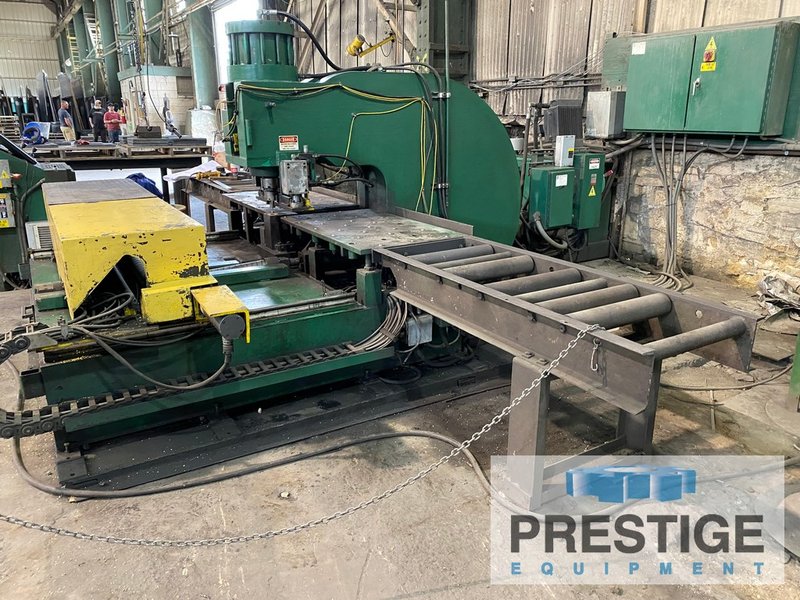

Controlled Automation AT-175 CNC Plate Punch, 30" x 60" travel, 1-1/2" max. plate thickness, 8" x 8" angle, 2009 #32614

Manufacturer

CONTROLLED AUTOMATION

Category

Punches

Type

PUNCHES, SINGLE END, CNC

Stock

32614

Model

2AT-175

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32614
Controlled Automation 2AT-175 CNC Plate Punch

FEATURES:
Windows XP CNC Control
Hydraulic Punch Stripping
Programmable Repositioning

CAPACITY:
Tonnage Capacity ...................... 175 Tons
Throat Depth .......................... 30"
Maximum Plate Size .................... 30" X 60"
Maximum Material Weight ............... 800 Lbs.
Maximum Material Thickness ............ 1-1/2"
Maximum Hole Size ..................... 2-5/16"
Maximum Angle Capacity ................ 8" X 8" X 1-1/8"
Minimum Angle Capacity ................ 2-1/2" X 2-1/2" X 1/8"
Maximum Punch Stroke .................. 2"
Material Clamping Force ............... 2,000 Lbs.
Approximate Shipping Weight ........... 15,000 Lbs.

EQUIPPED WITH:
Windows XP CNC Control
Hydraulic Punch Stripping
Programmable Repositioning
Assortment of Punch and Dies
Machine Manuals

NOTE:
Inspect in Plant Under Power

No Video Available
