USED CINCINNATI 1/4" X 10' HYDRAULIC SHEAR WITH CNC FRONT AND REAR GAUGING MODEL 250HS 10, Stock

Stock

11031

Model

250HS 10

Dealer Location

Michigan

Spec Sheet



Brand: Cincinnati
Model: 250HS 10

Specifications:
Capacity: 26 gauge - 1/4"
Cutting length: 10'2"
Max rake: 3/8" per foot
Hold down force: 8.5 tons
Number of hold downs: 12
Height under guard: 1/2"
Back gauge range: 48"
Knife size: 1" x 3" x 126"
Main motor: 25 H.P.
Voltage: 220 / 440 volt 3 phase (currently wired 440 volt)
Dimensions: 14'5" x 8'5" x 7'5"
Weight: 16,000 Lbs.

Equipped with:

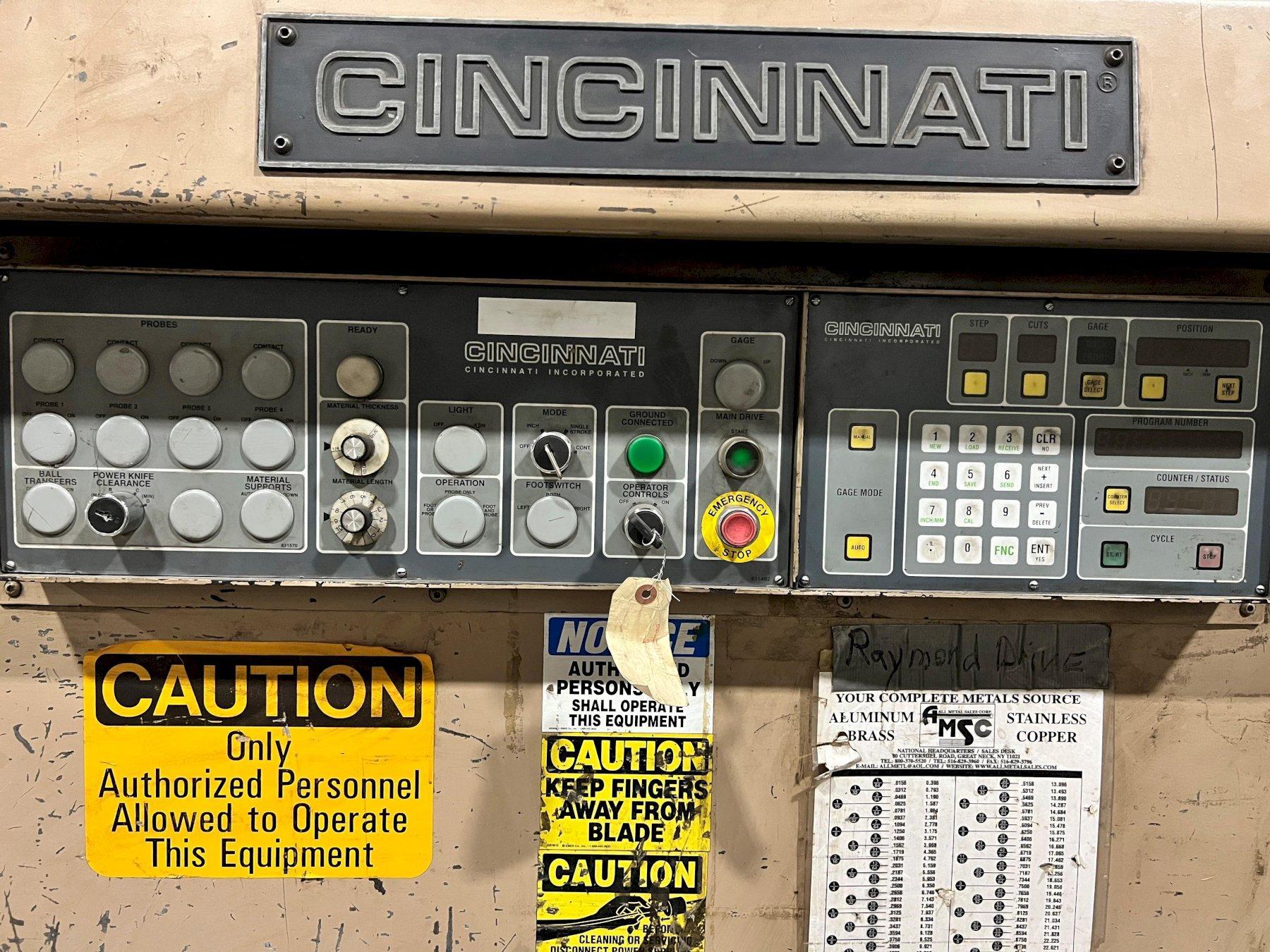

Multi axis gauge control
48" front operated programmable power back gauge
10' CNC power squaring arm left side
6' CNC power front arm

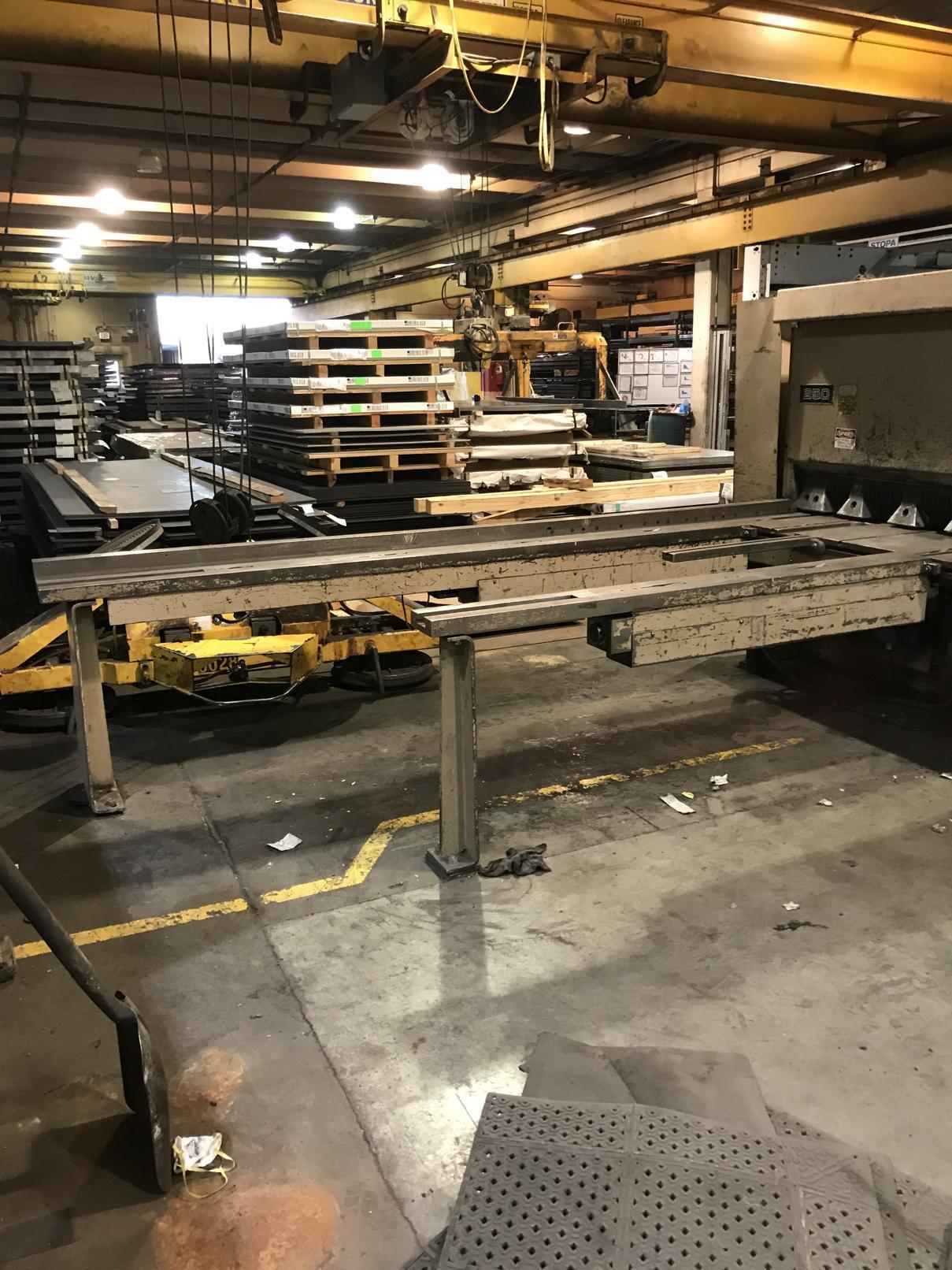

24" material support arm
Power blade gap adjustment
Adjustable stroke control
Inch, single, continuous cut modes
Portable foot pedal

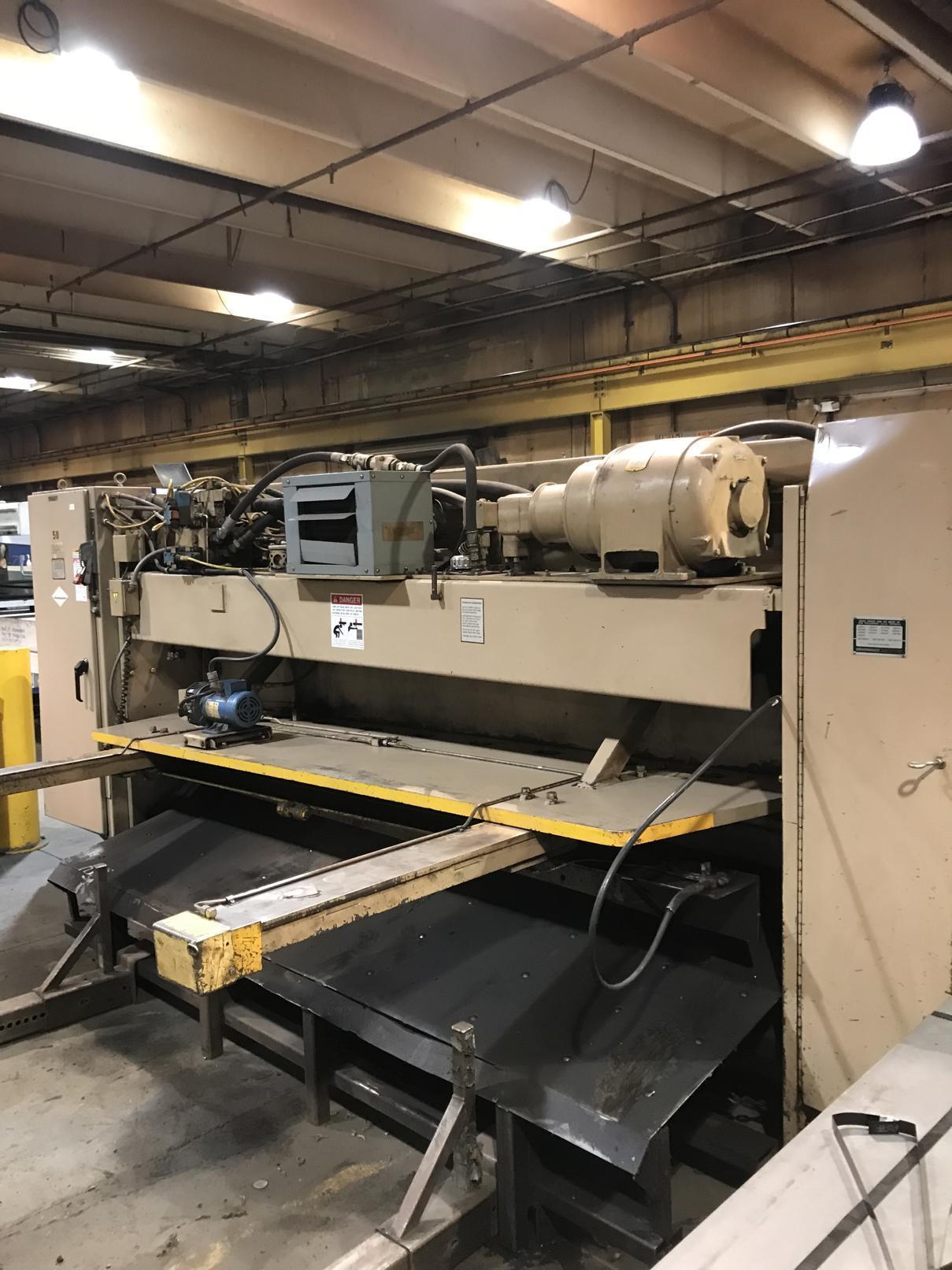

Oil cooler
