Wele MG-650Z4 5-Face, X-236", Y-196", 228" B/C, Fanuc 31i, 90 ATC, CTS, Rt. Angle and Univ. Heads, 2017, #32625

Manufacturer

WELE

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32625

Model

MG-650Z4

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32625

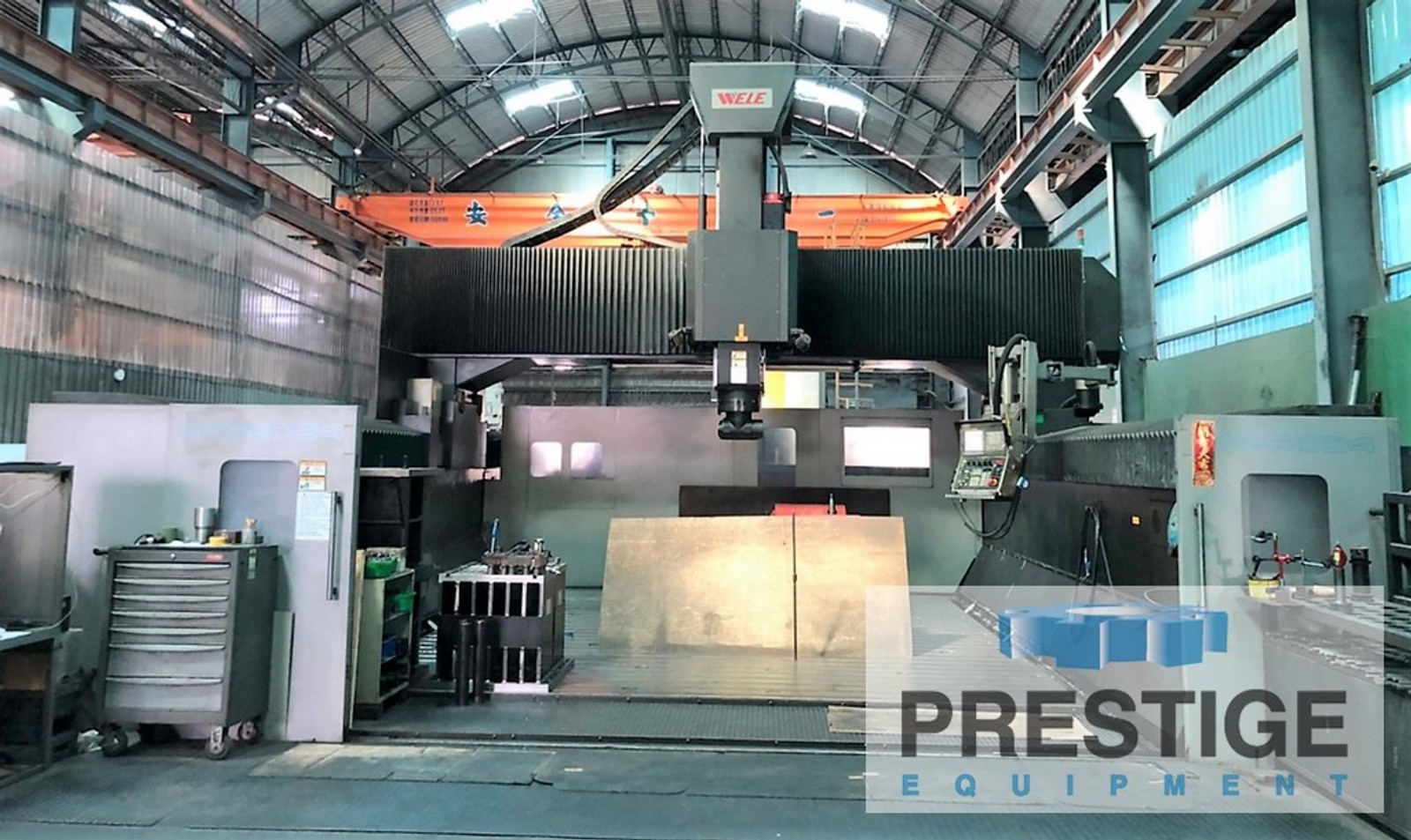

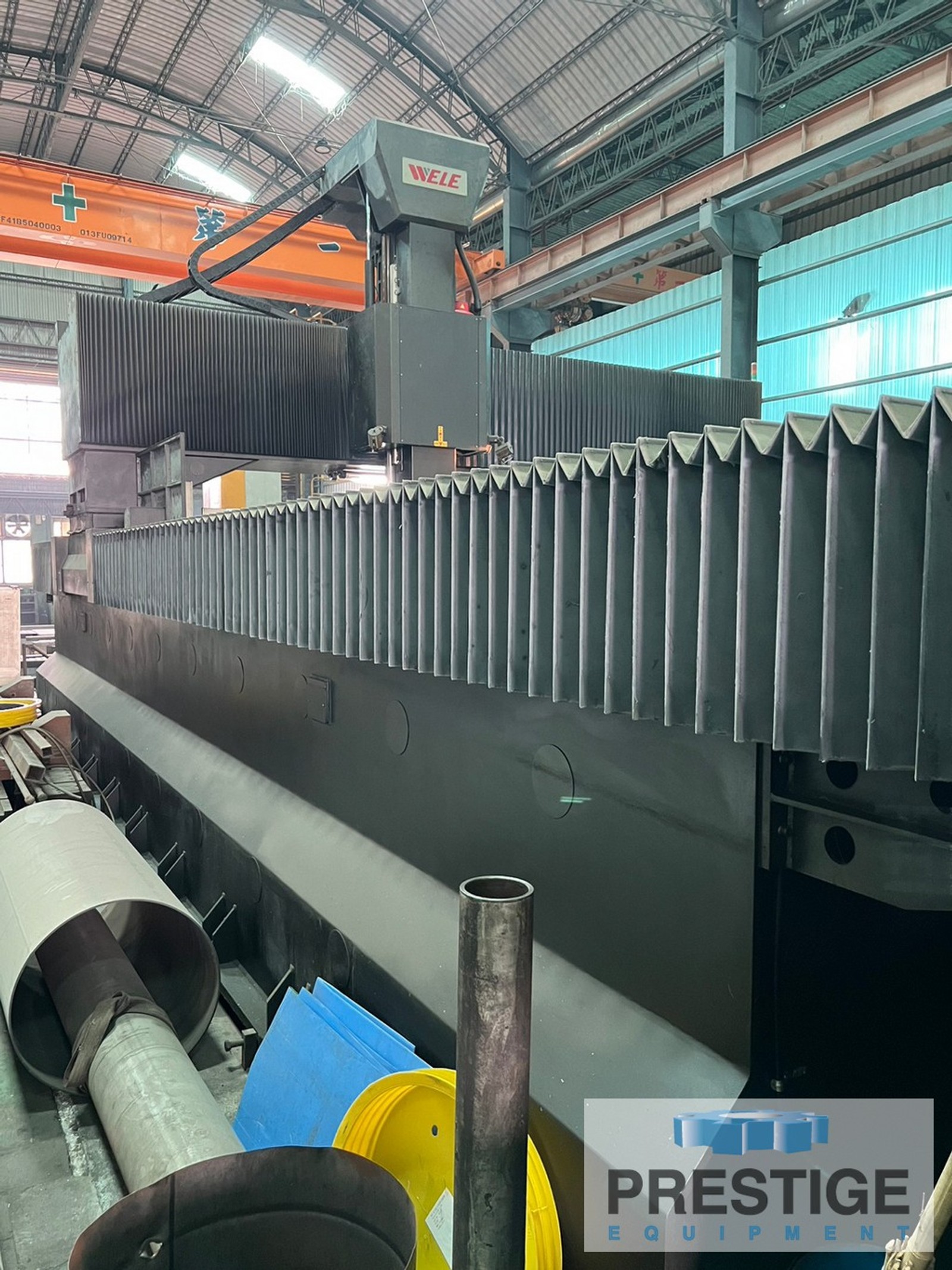

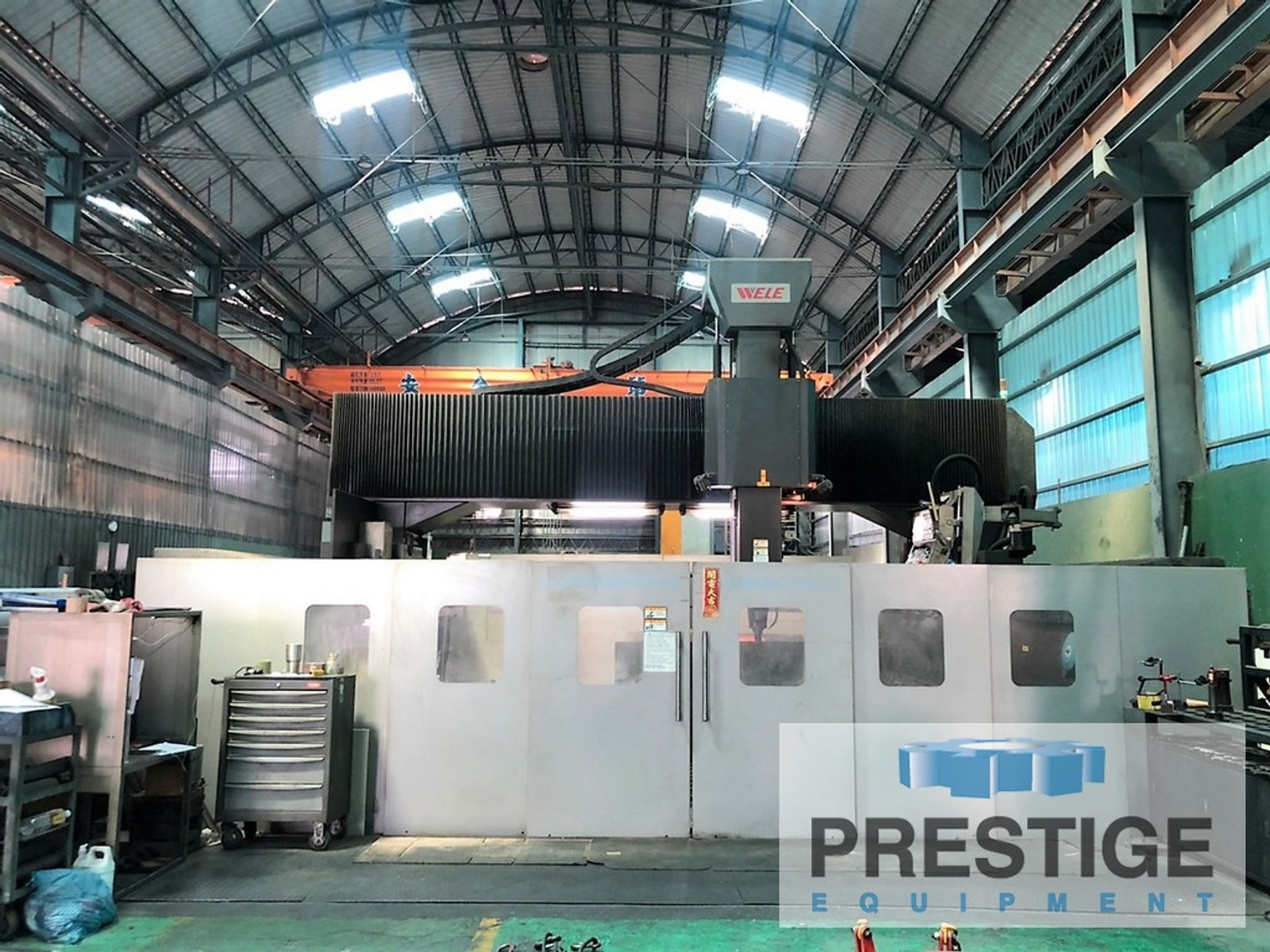

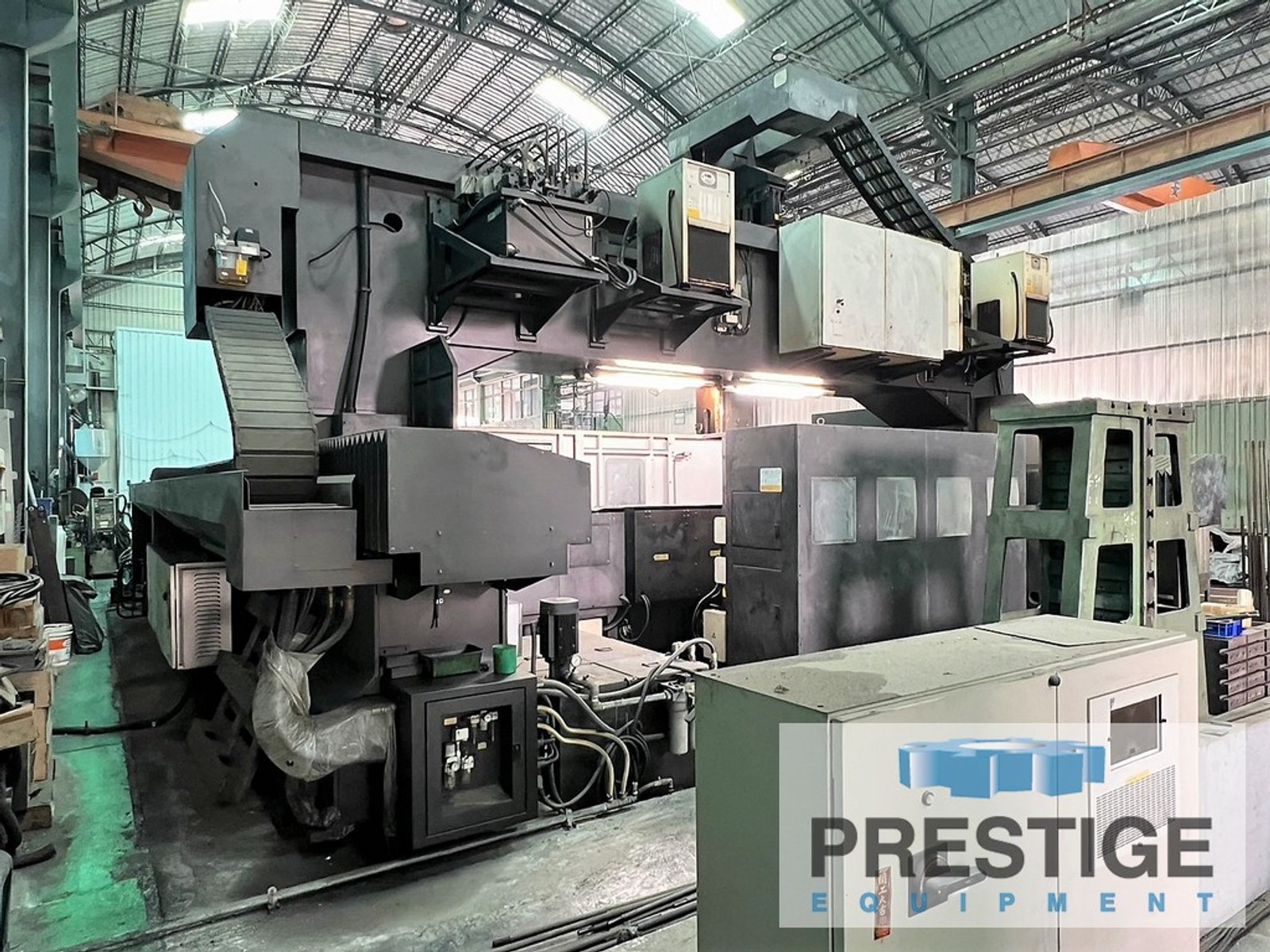

Wele MG-650Z4 5-Face CNC Bridge Type Machining Center

FEATURES:

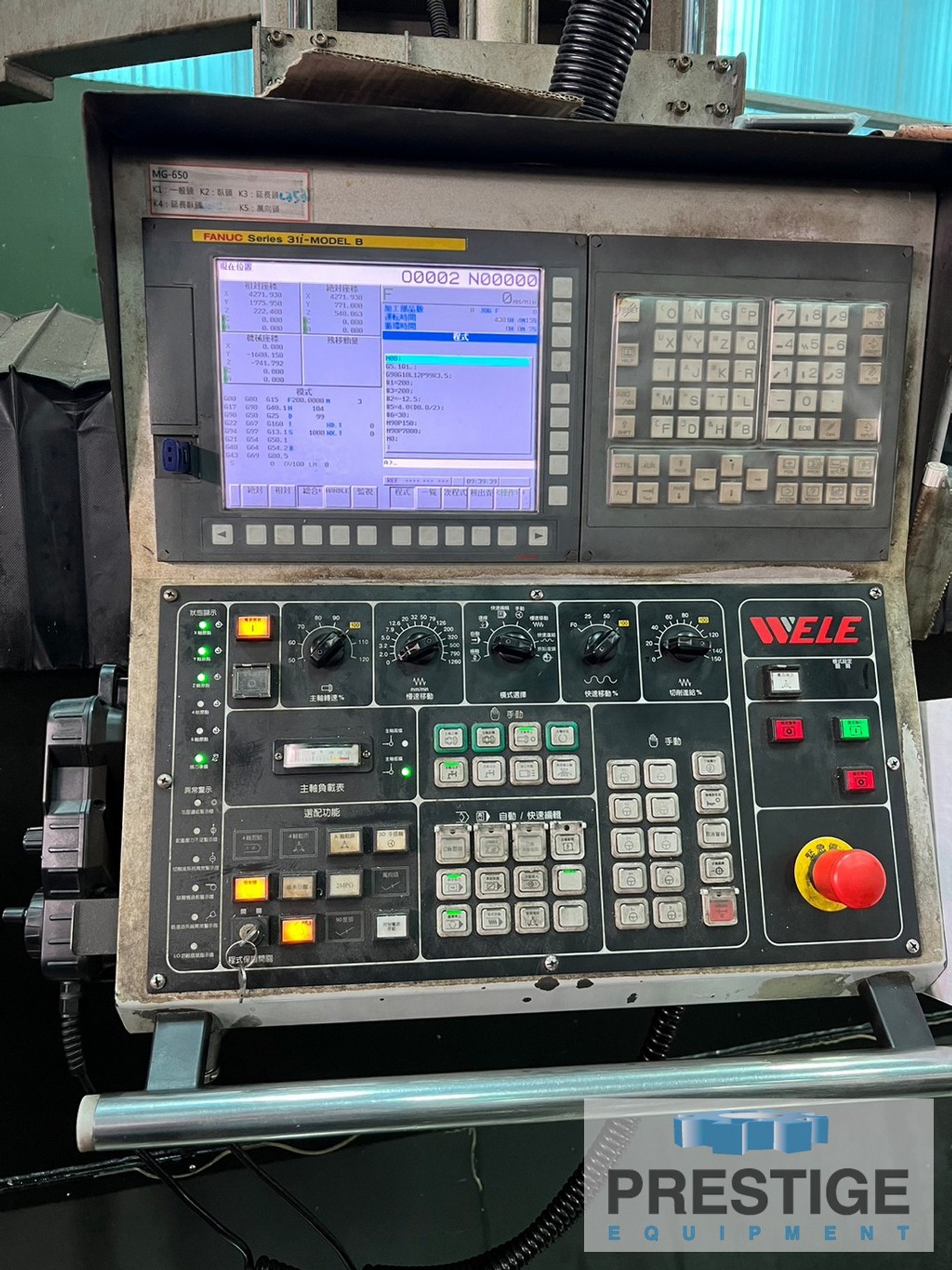

Fanuc 31iMB CNC Control

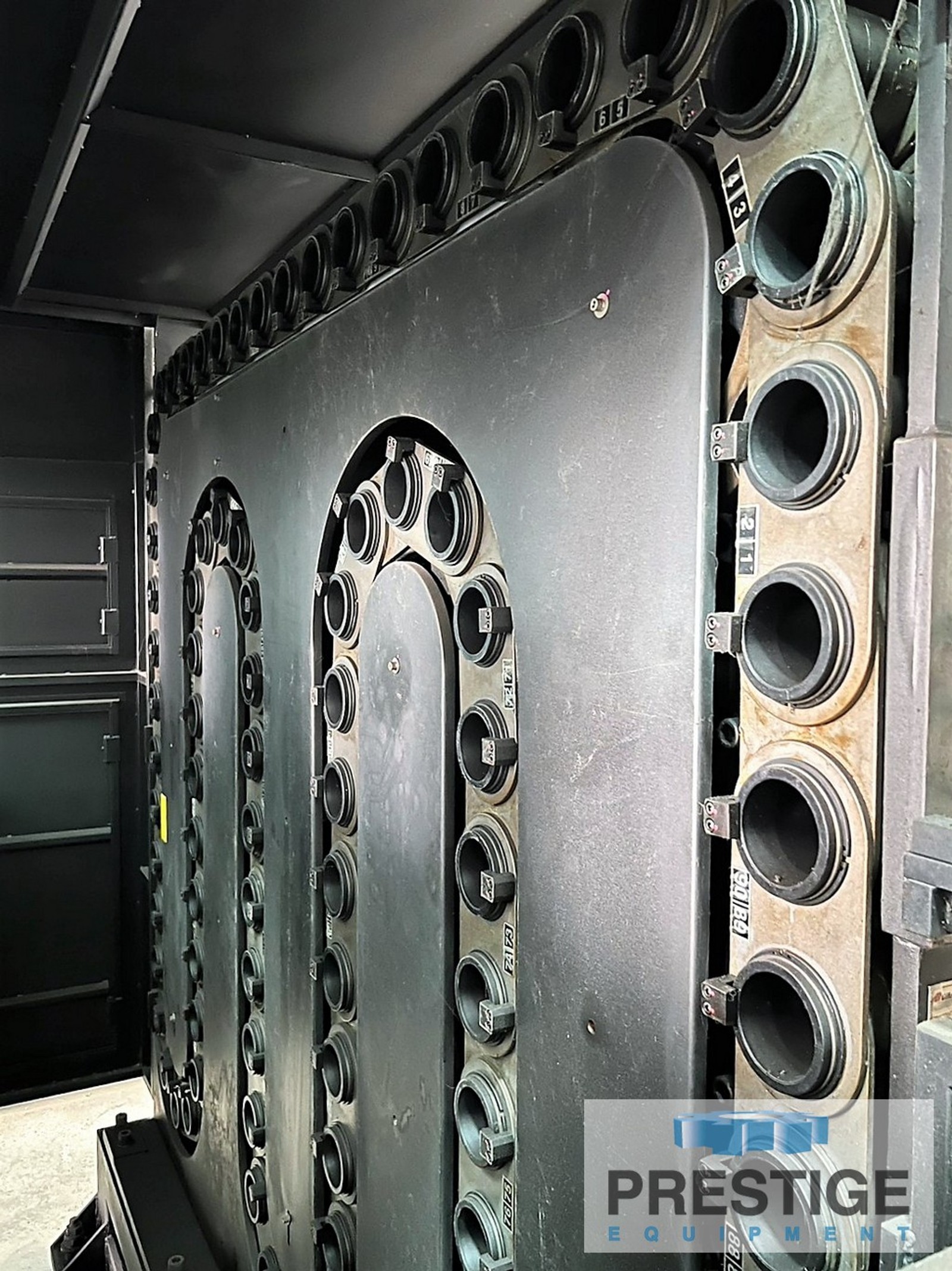

90-Station Automatic Tool Changer
Automatic Head Storage
Coolant Thru Spindle

SPECIFICATIONS:
X-Axis Travel ......................... 236.22"
Y-Axis Travel ......................... 196.85"
Z-Axis Travel ......................... 55.11"
Distance Between Columns .............. 228.34"
Distance Spindle Nose to Table ........ 39.37"-94.48"
Table Size ............................ 236.22" x 188.97"
Table Weight Capacity ................. 2,500 kg/m2
Spindle Speed (Gear Type) ............. 6000 RPM
Spindle Drive Motor ................... 35 HP/ 30 HP
Spindle Taper ......................... BT #50
Rapid Feed Rate (X-Axis) .............. 787 IPM
Rapid Feed Rate (Y-Axis) .............. 472 IPM
Rapid Feed Rate (Z-Axis) .............. 472 IPM

EQUIPPED WITH:
Fanuc 31iMB CNC Control
90 Station Automatic Tool Changer
Coolant Thru Spindle
35 HP Spindle Motor
90 Degree Right Angle Head (5 Deg. Indexing)
Extension Head

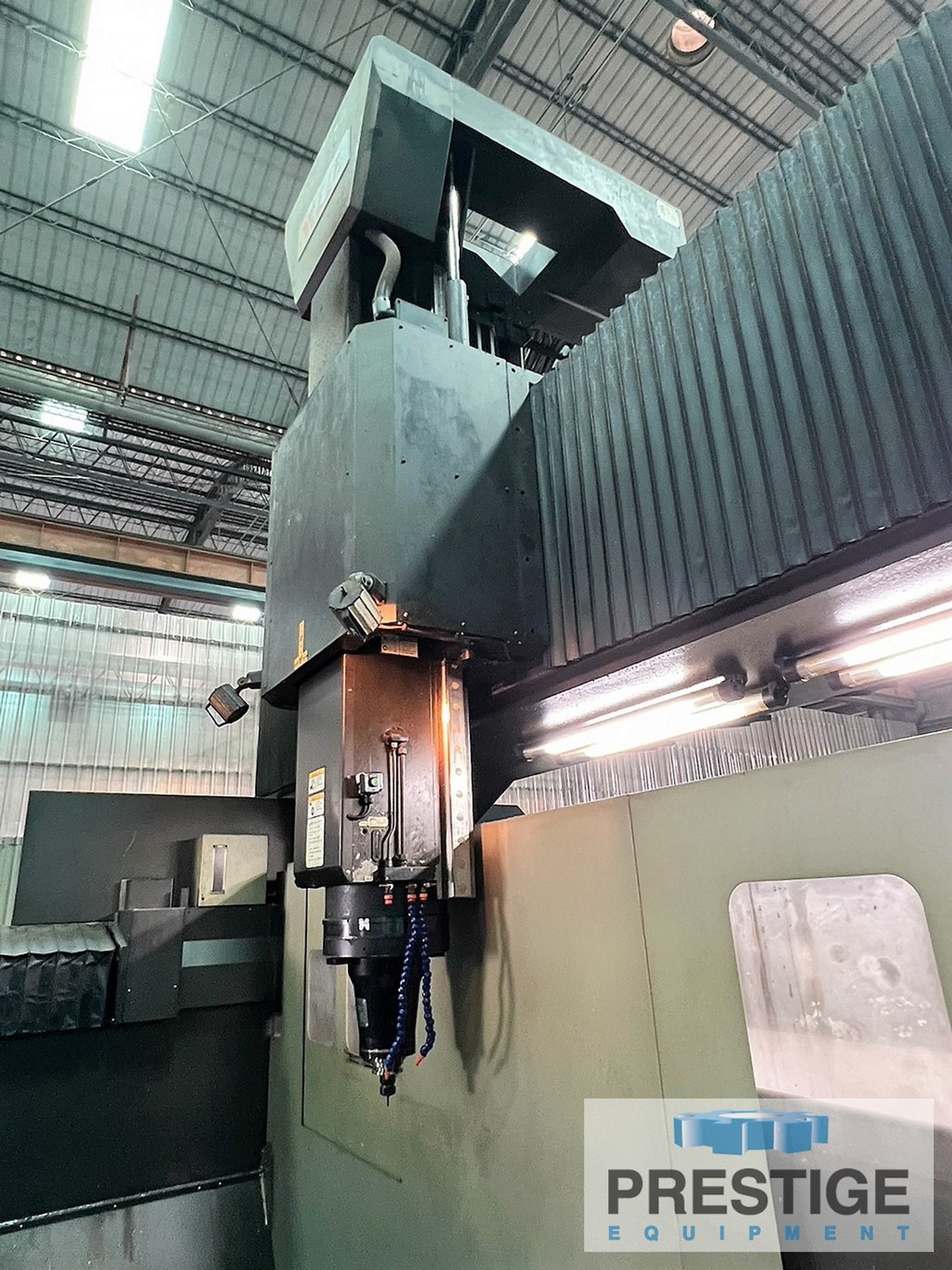

Universal Head (5 Deg. Auto Indexing with A/C Axis)
Automatic Head Storage
Linear Scales on X/Y/Z Axes

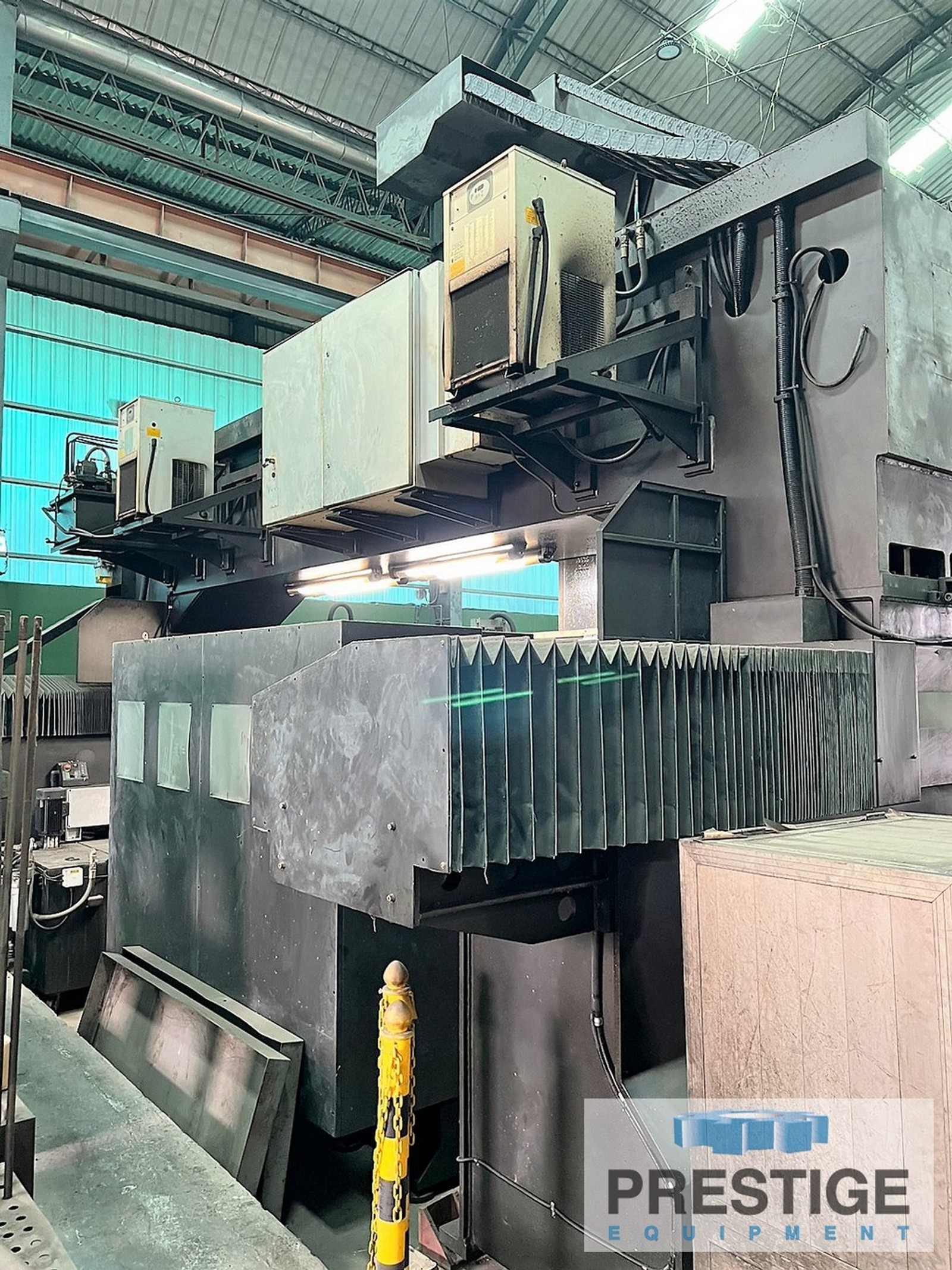

Electrical Cabinet Air Conditioner

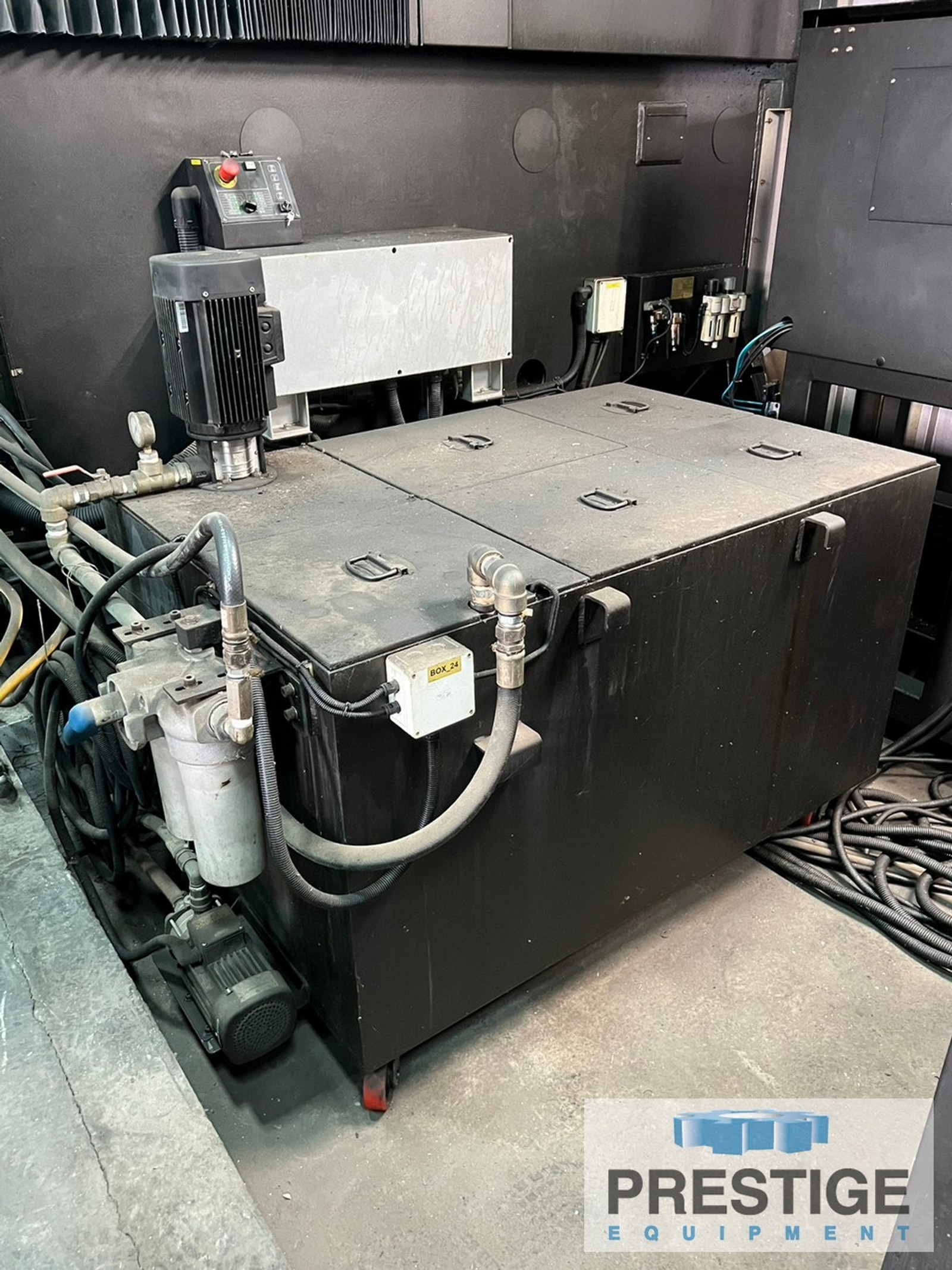

Spindle Coolant System
Oil Skimmer

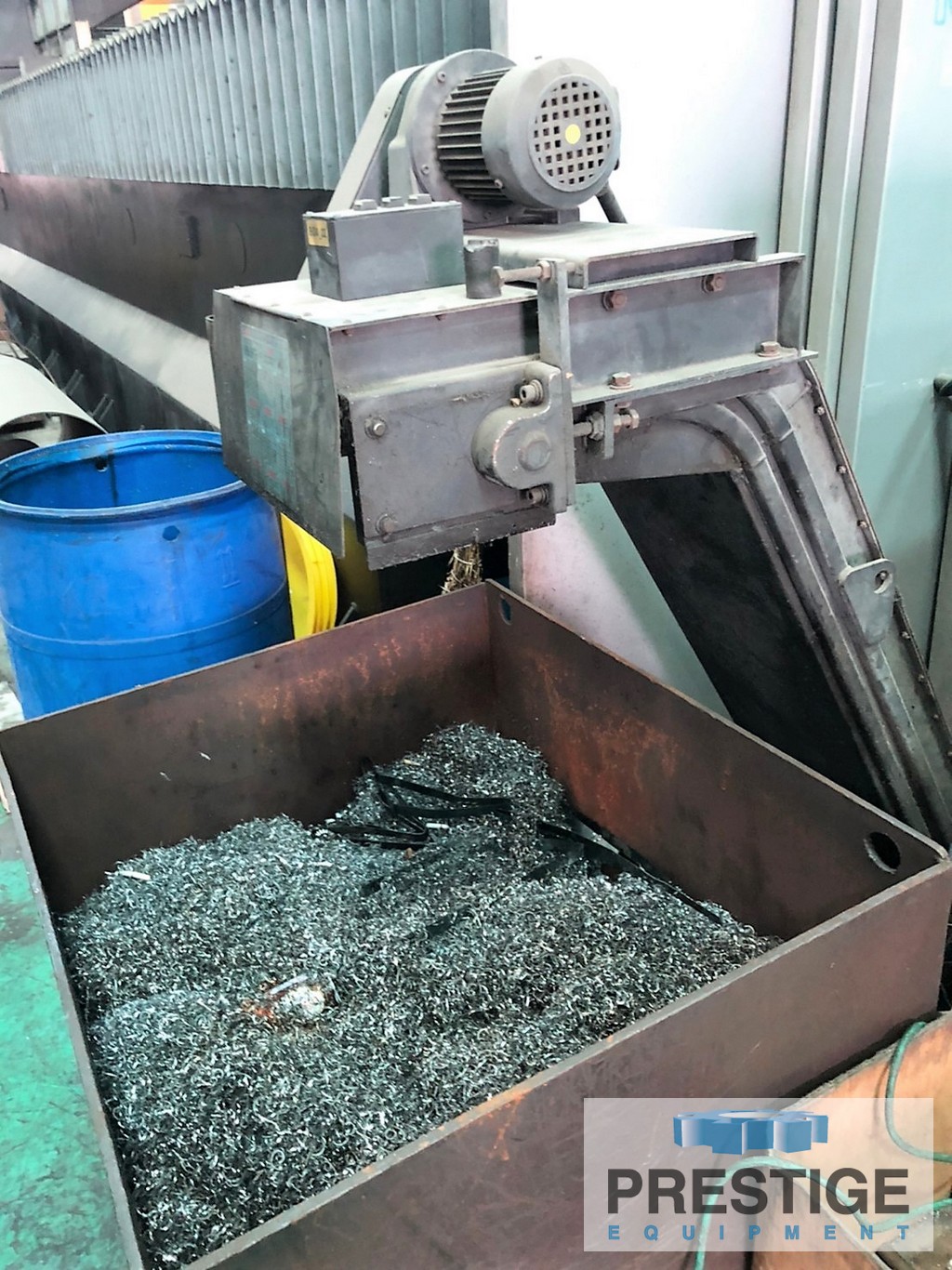

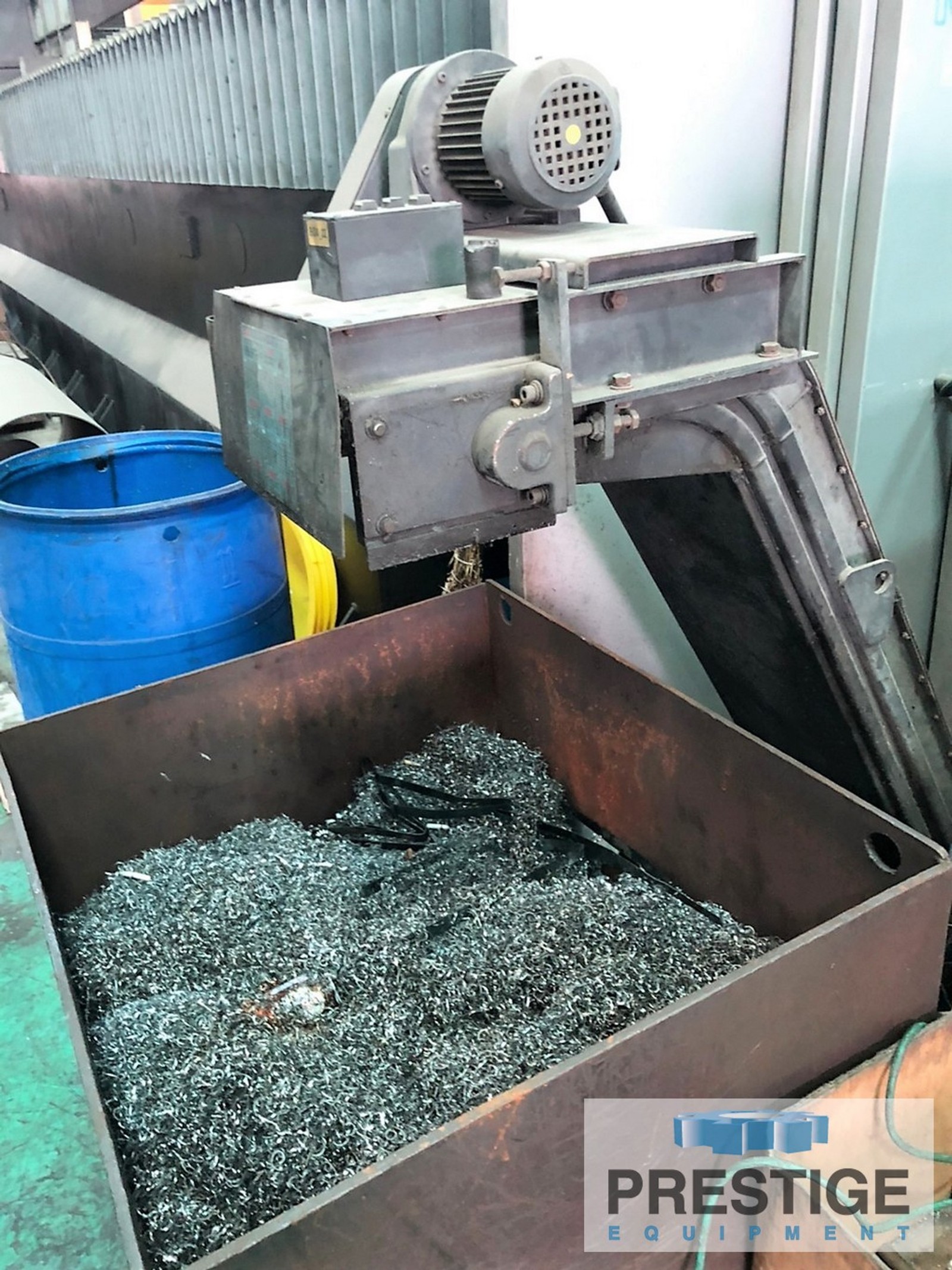

Chip Conveyor
