Ingersoll Masterhead 5-Axis CNC, X-185", 118" Bet. Columns, Z-39.4", W-80", 98 x 157" Table, ATC, Fanuc CNC # 32616

Manufacturer

INGERSOLL

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

32616

Model

Masterhead 5-Axis

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #32616

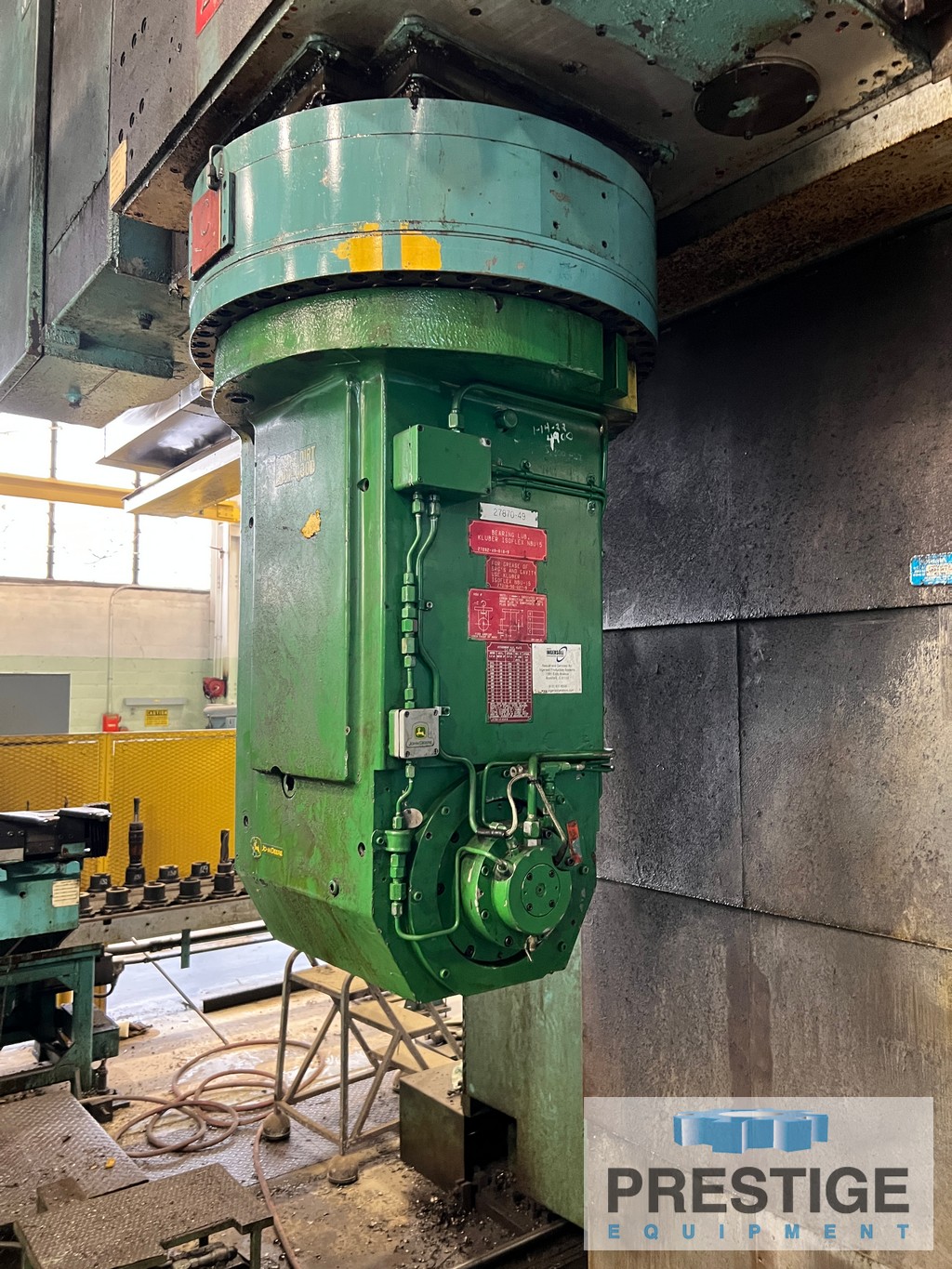

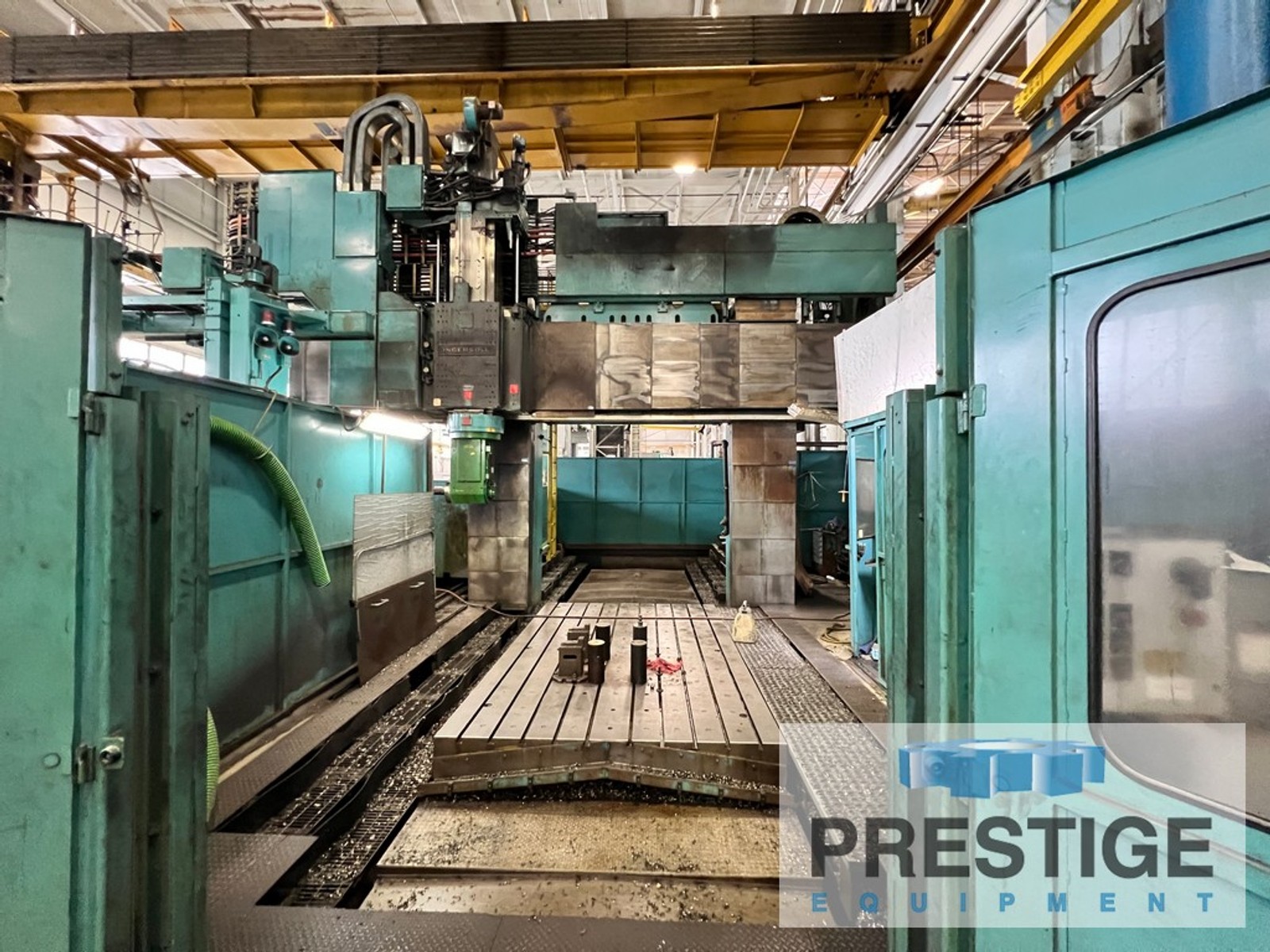

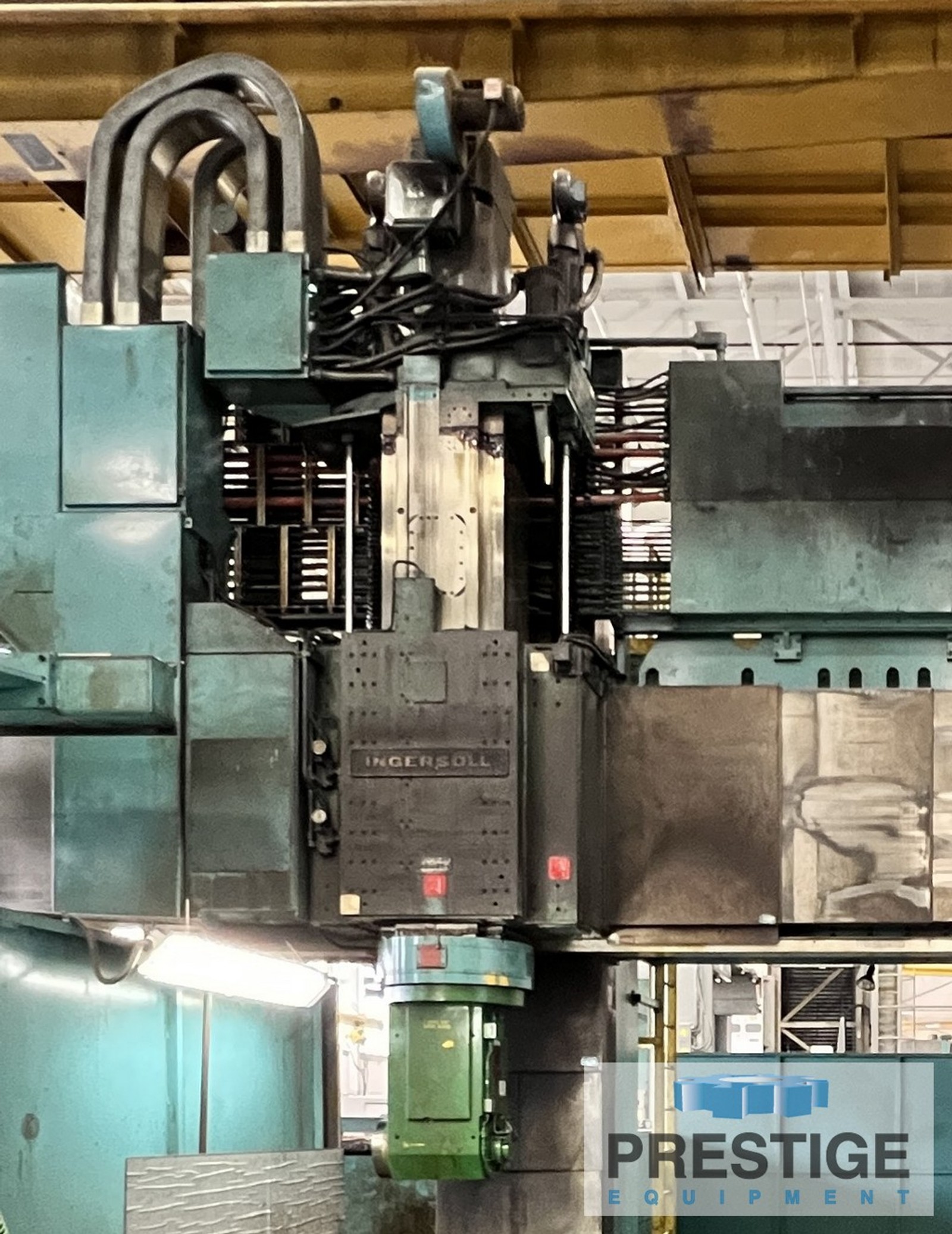

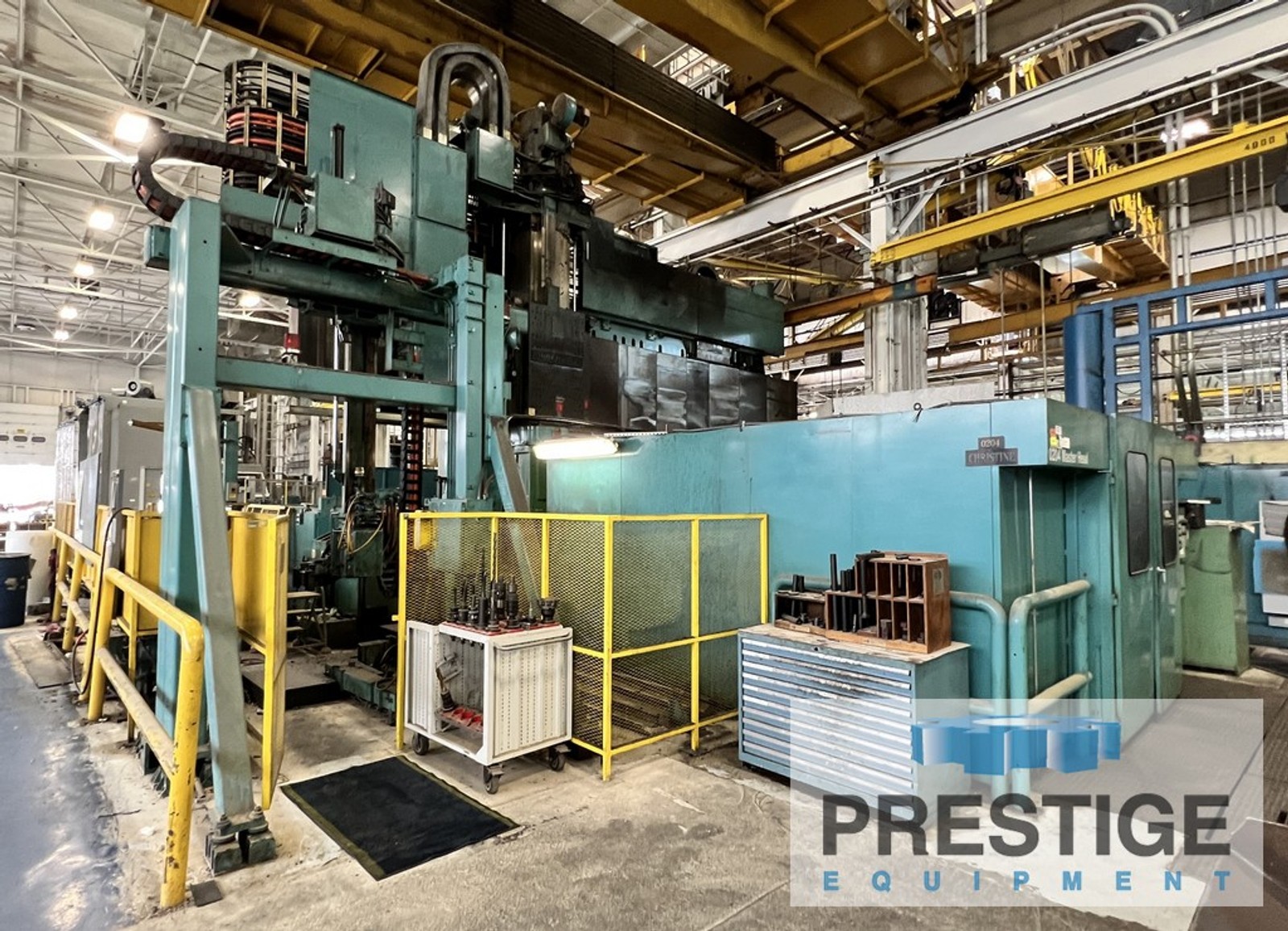

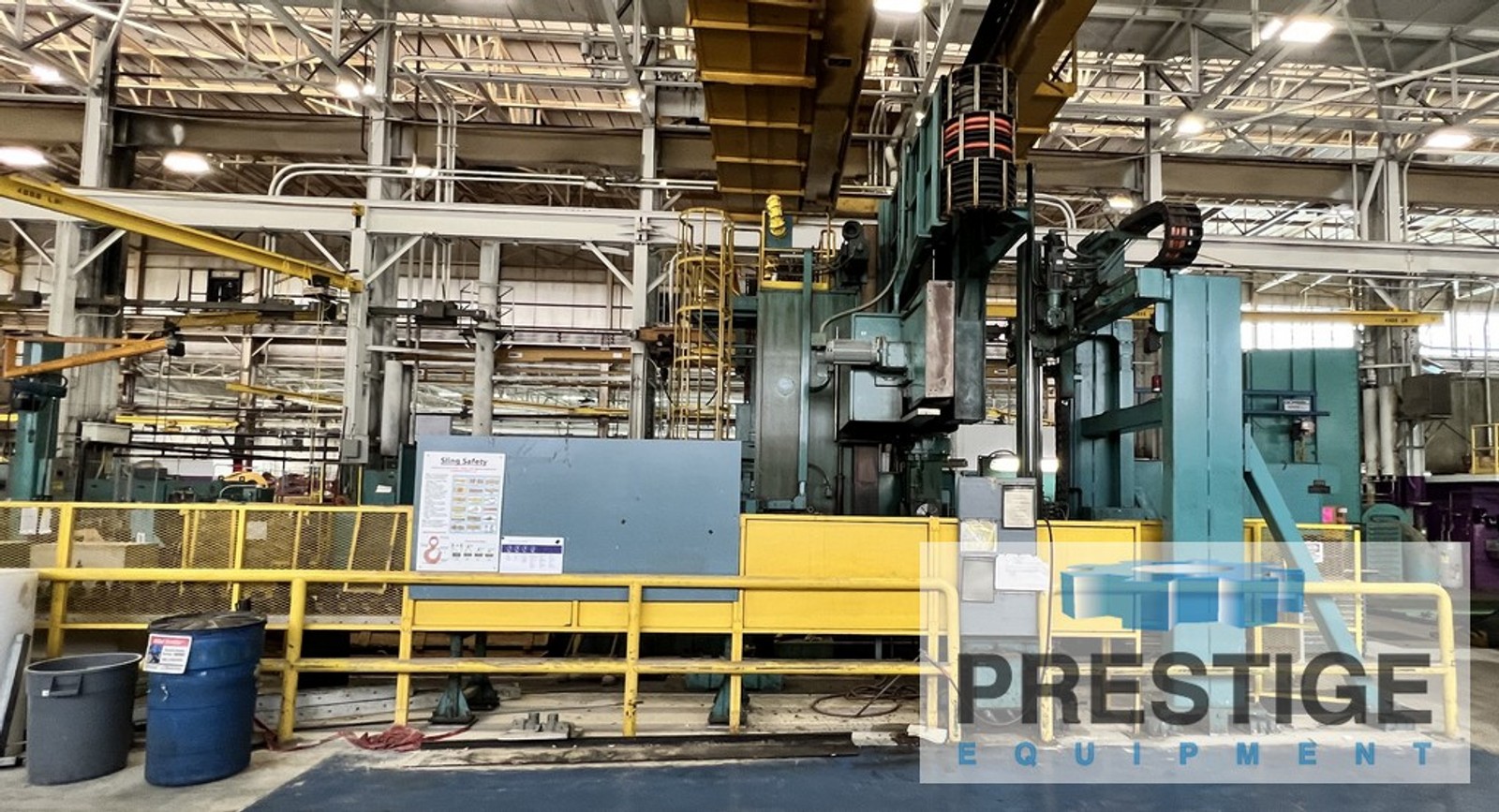

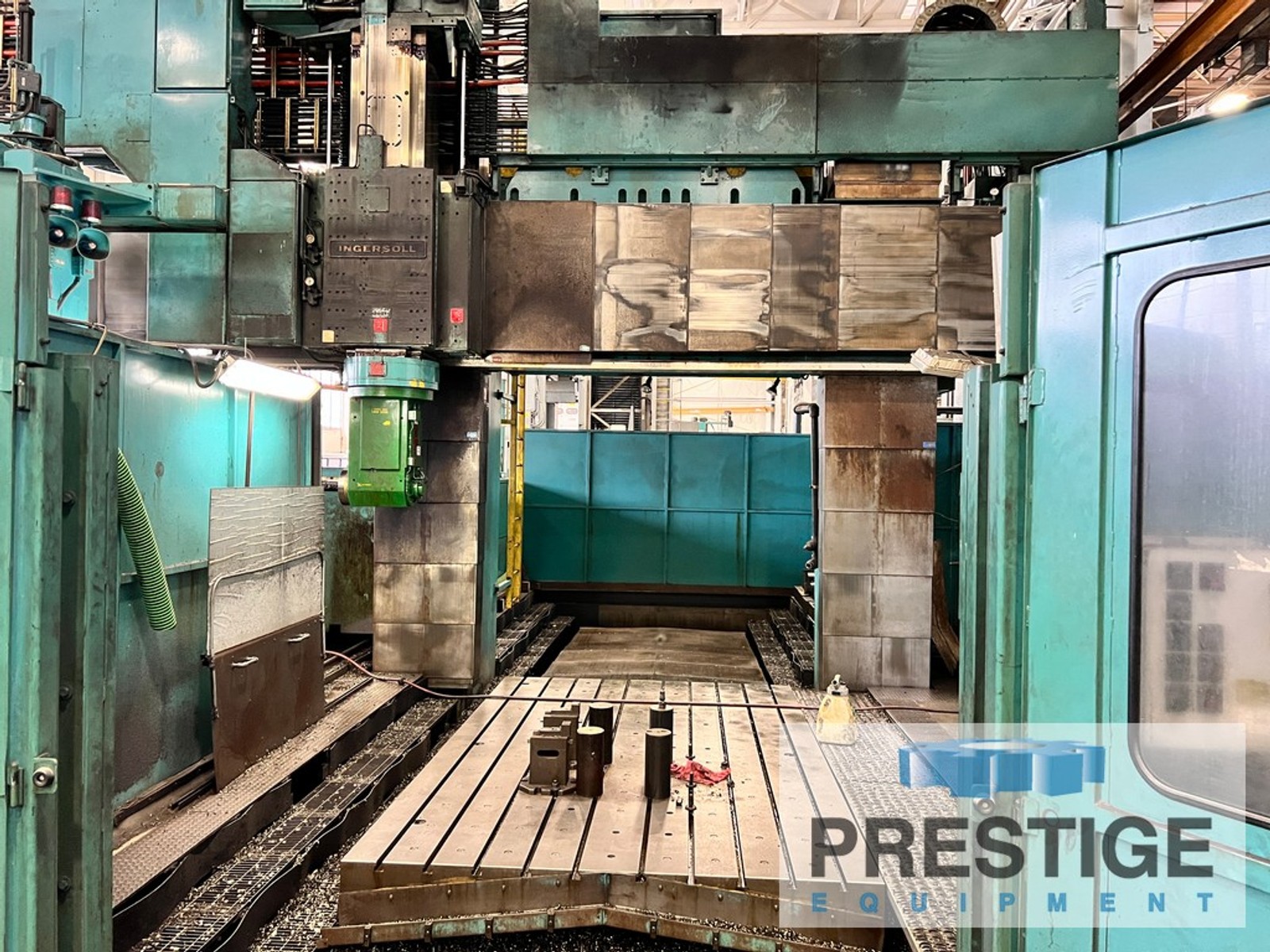

Ingersoll Masterhead Adj Rail 5-Axis Plano Mill w/2-Axis Nutating Head

Features:

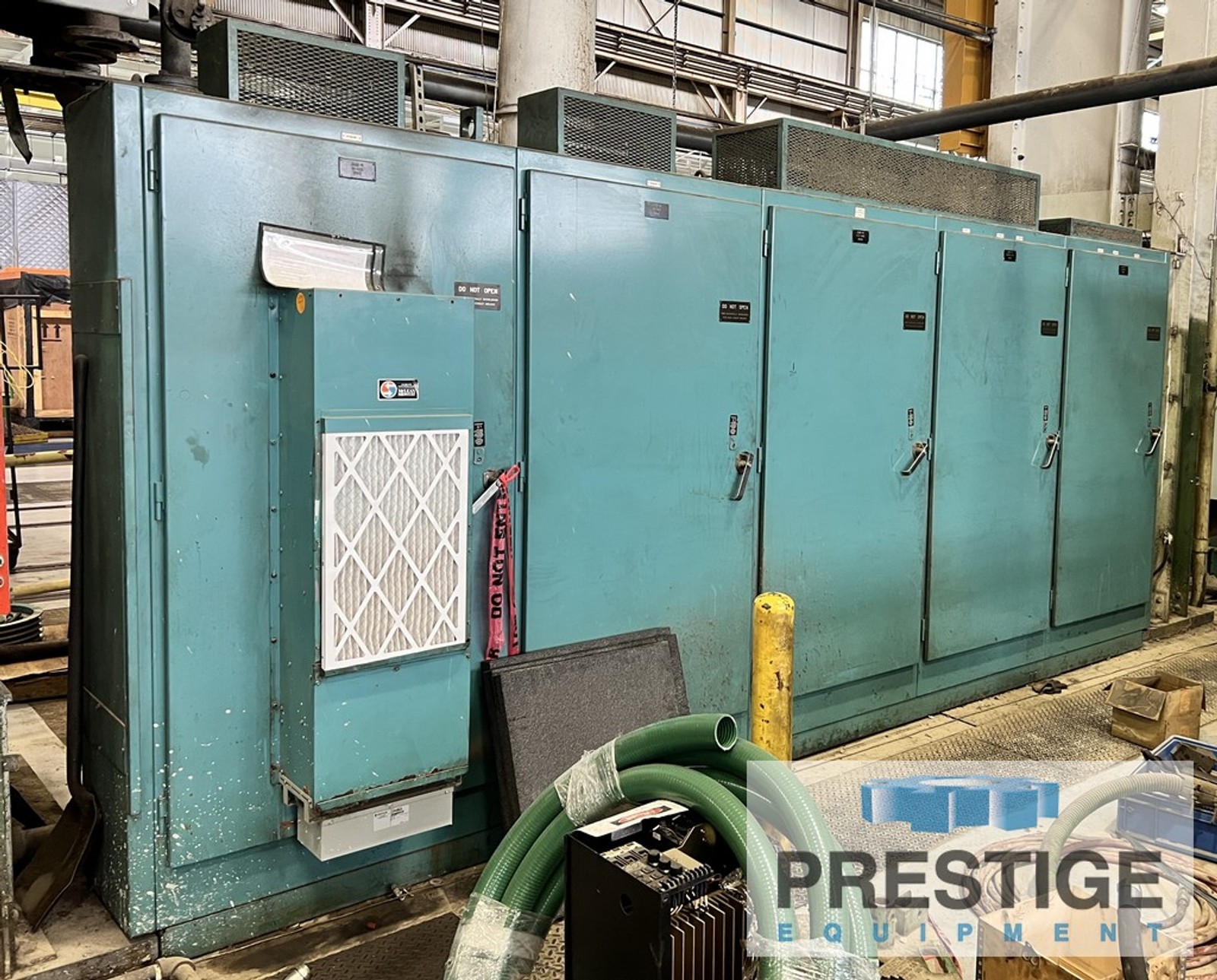

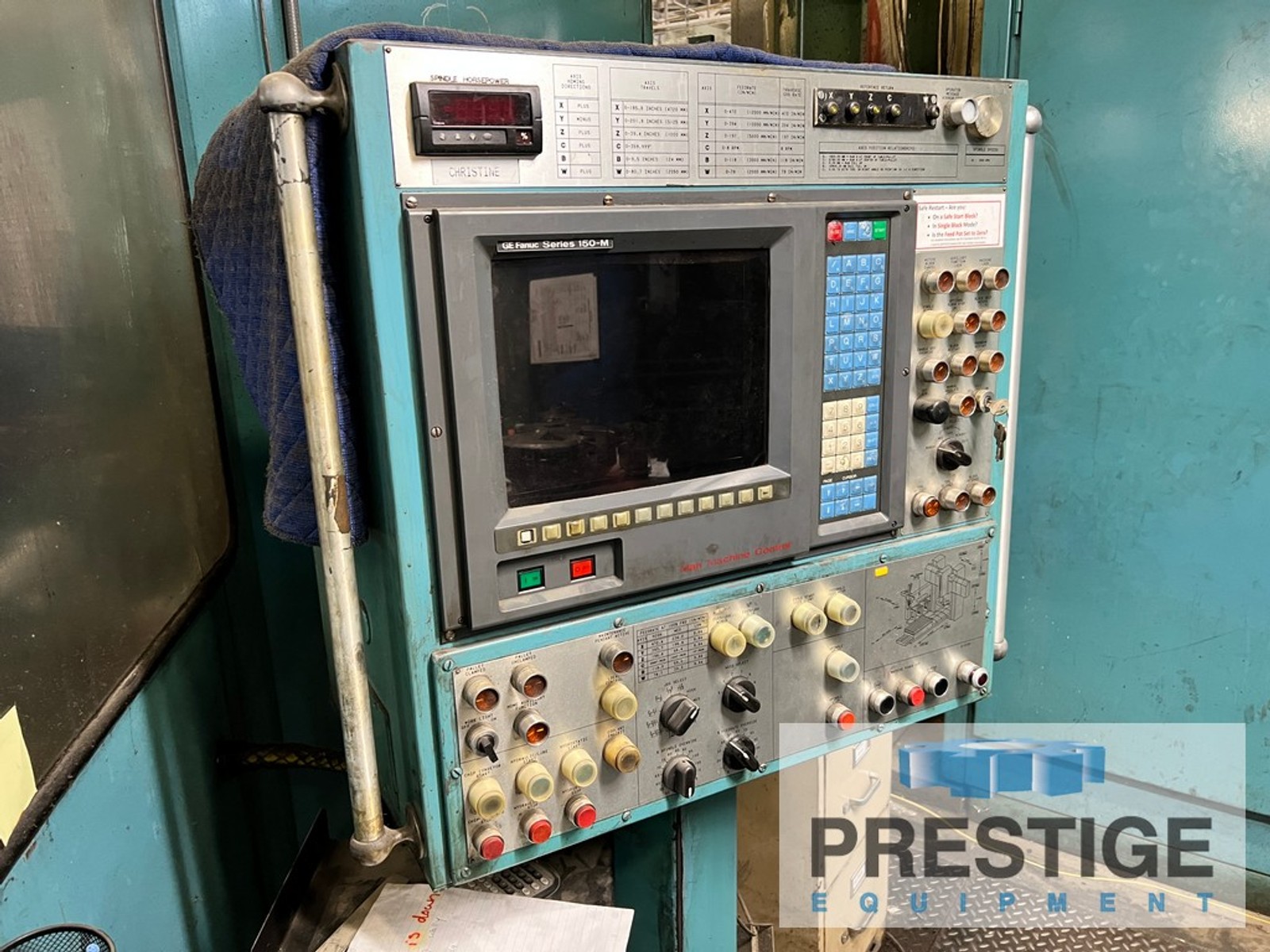

GE Fanuc Series 150M CNC Control

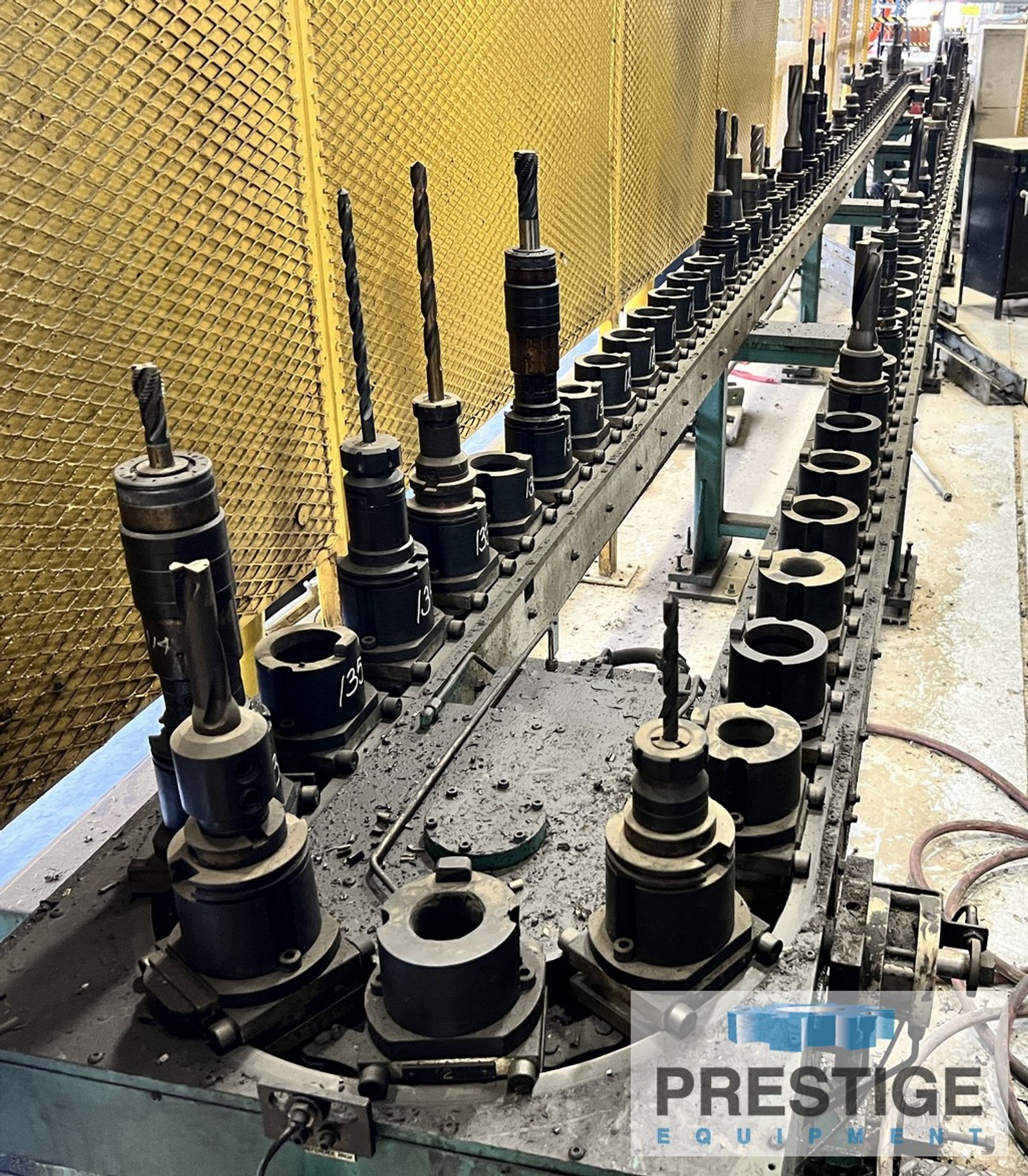

140 Station Automatic Tool Changer

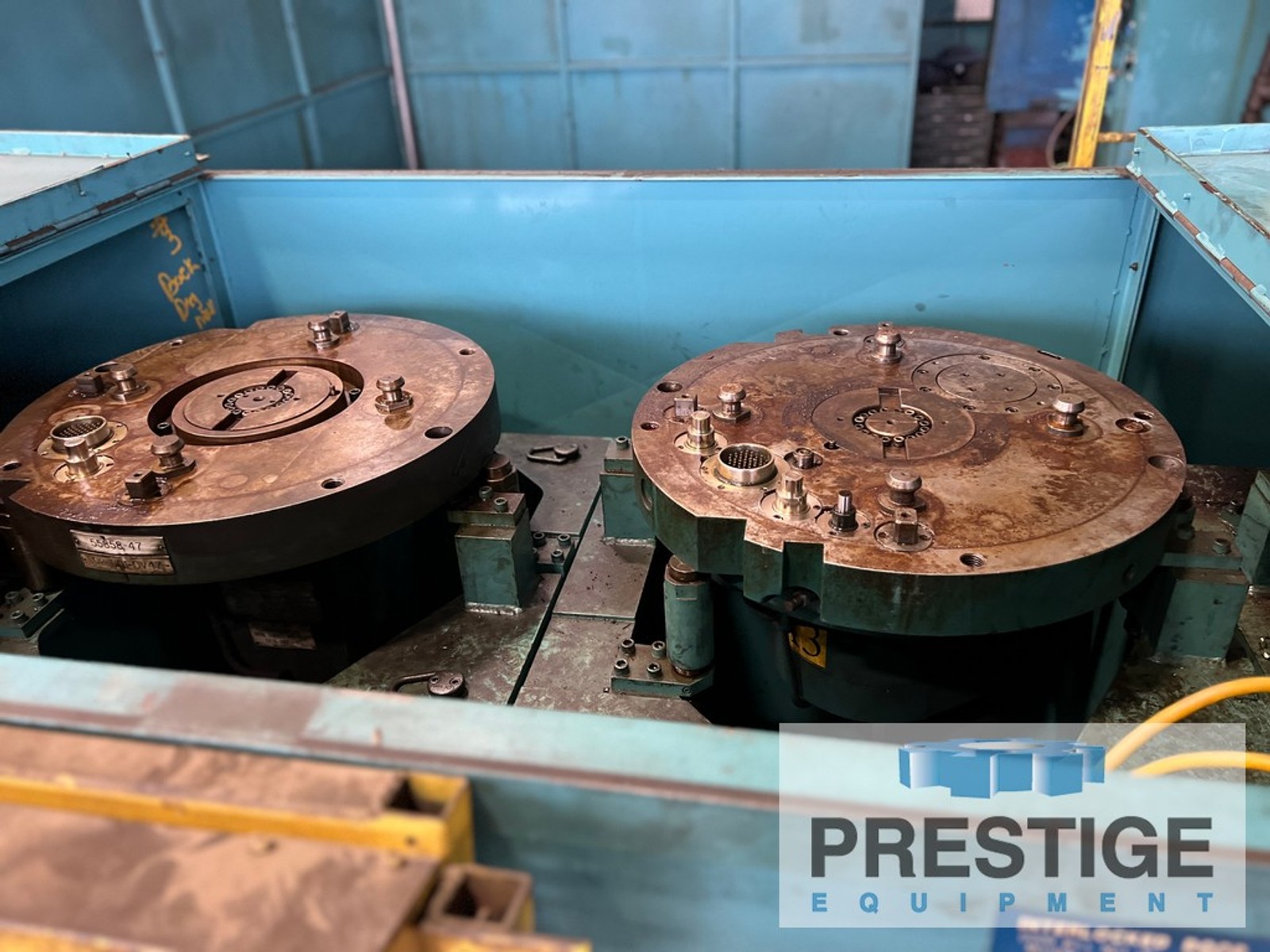

4-Station Automatic Attachment Changer

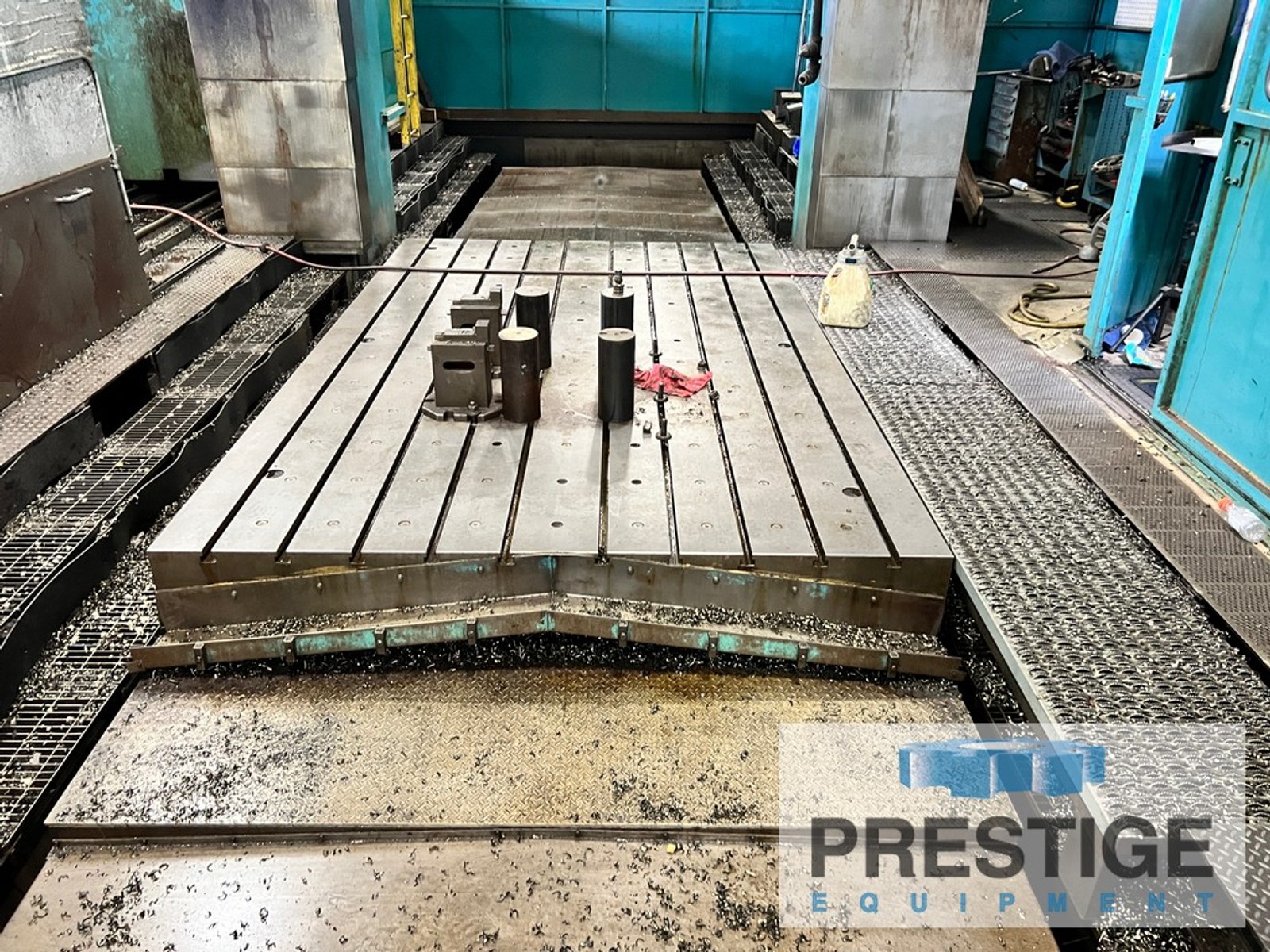

98.4" x 157.5" T-Slotted Table
Through Spindle Coolant
Adjustable Rail

Specifications:
Table Travel, X-Axis .................. 185.8"
Head Travel, Y-Axis ................... 201.8"
Ram Stroke, Z-Axis .................... 39.43"
Cross Rail Travel, W-Axis.............. 80.7"
C-Axis, Continuous .................... .001
Distance Between Columns .............. 118.11"
Table Size ............................ 98.4" x 157.5"
Spindle Taper ......................... #50

Equipped With:
GE Fanuc Series 150M CNC Control
140 Station Automatic Tool Changer
4-Station Automatic Attachment Changer
98.4" x 157.5" T-Slotted Table
Thu-Spindle Coolant
Adjustable Rail
Steel Sliding Way Covers
50 HP Spindle Drive Motor
