Amada EG 6013 AR Robotic Bend Cell, 67 Ton, 53" Bend Length, Auto Tool Changer, 7-Axis Robot, 2017 #32717

Manufacturer

AMADA

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

32717

Model

EG 6013 AR

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32717

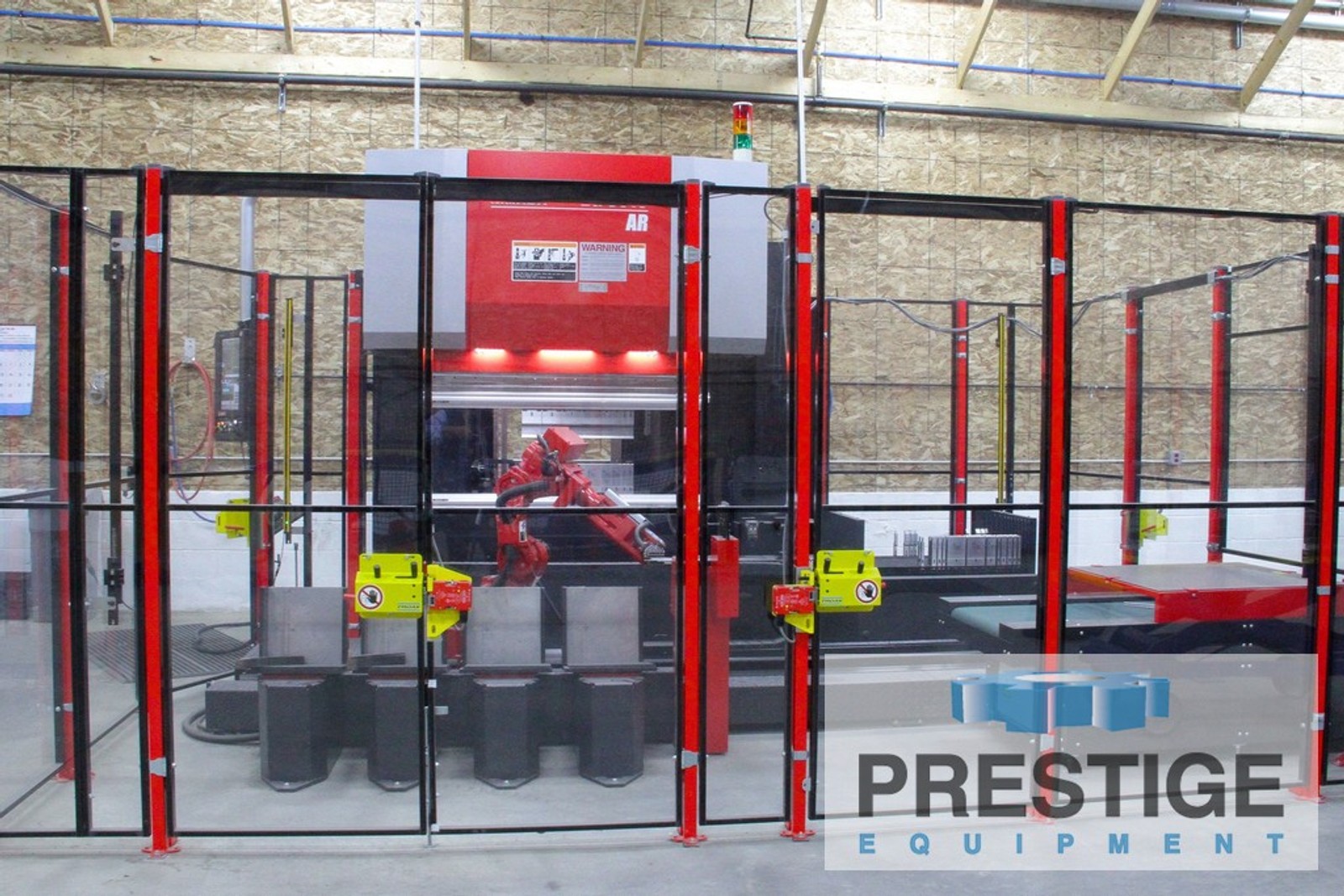

Amada EG 6013 AR Ultra Compact Robotic Bending Cell

FEATURES:
AMNC 3i CNC Control with Vertical 18.5" Multi-Touch Display
Dual Electric Servo Power Drive
Automatic Tool Changer

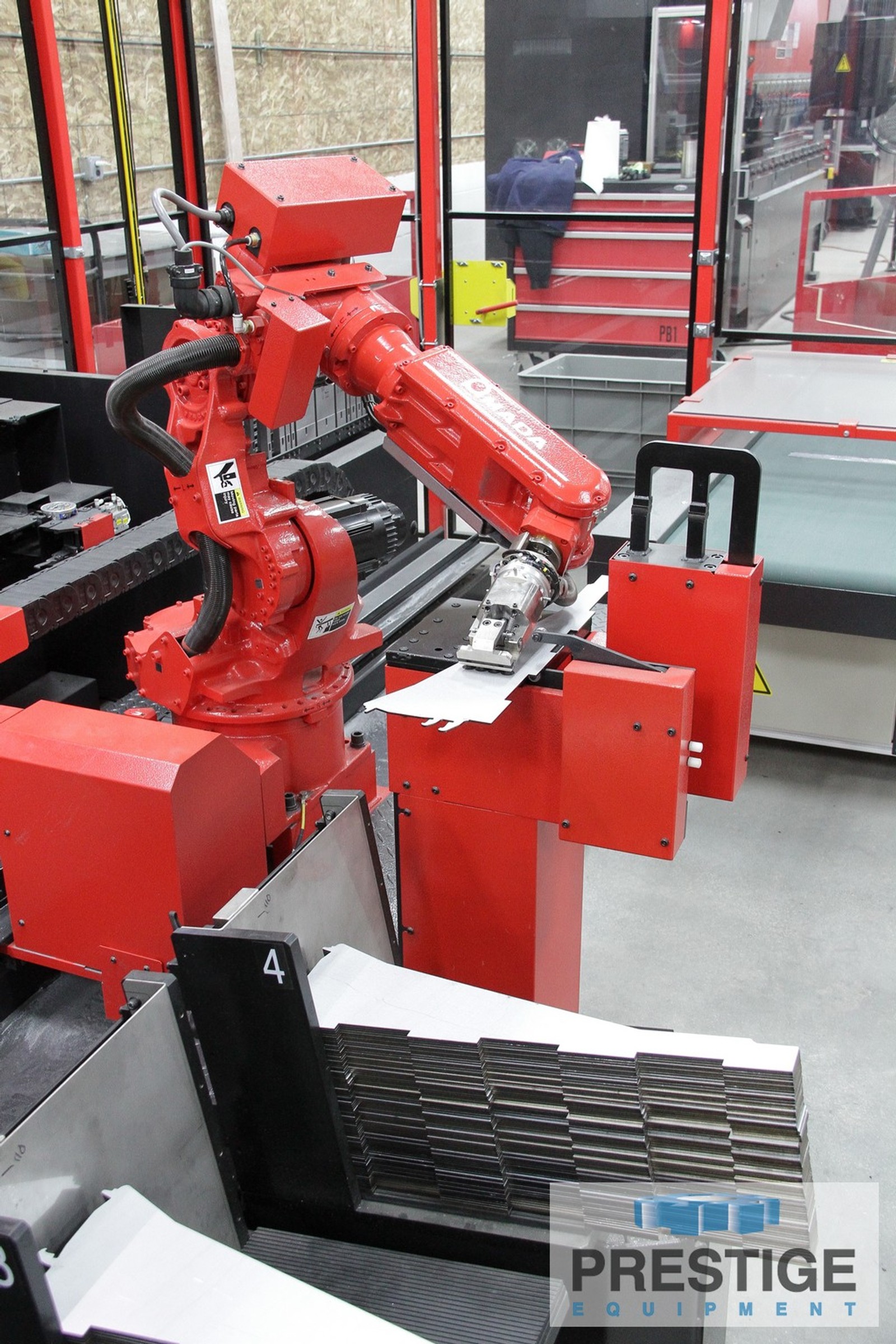

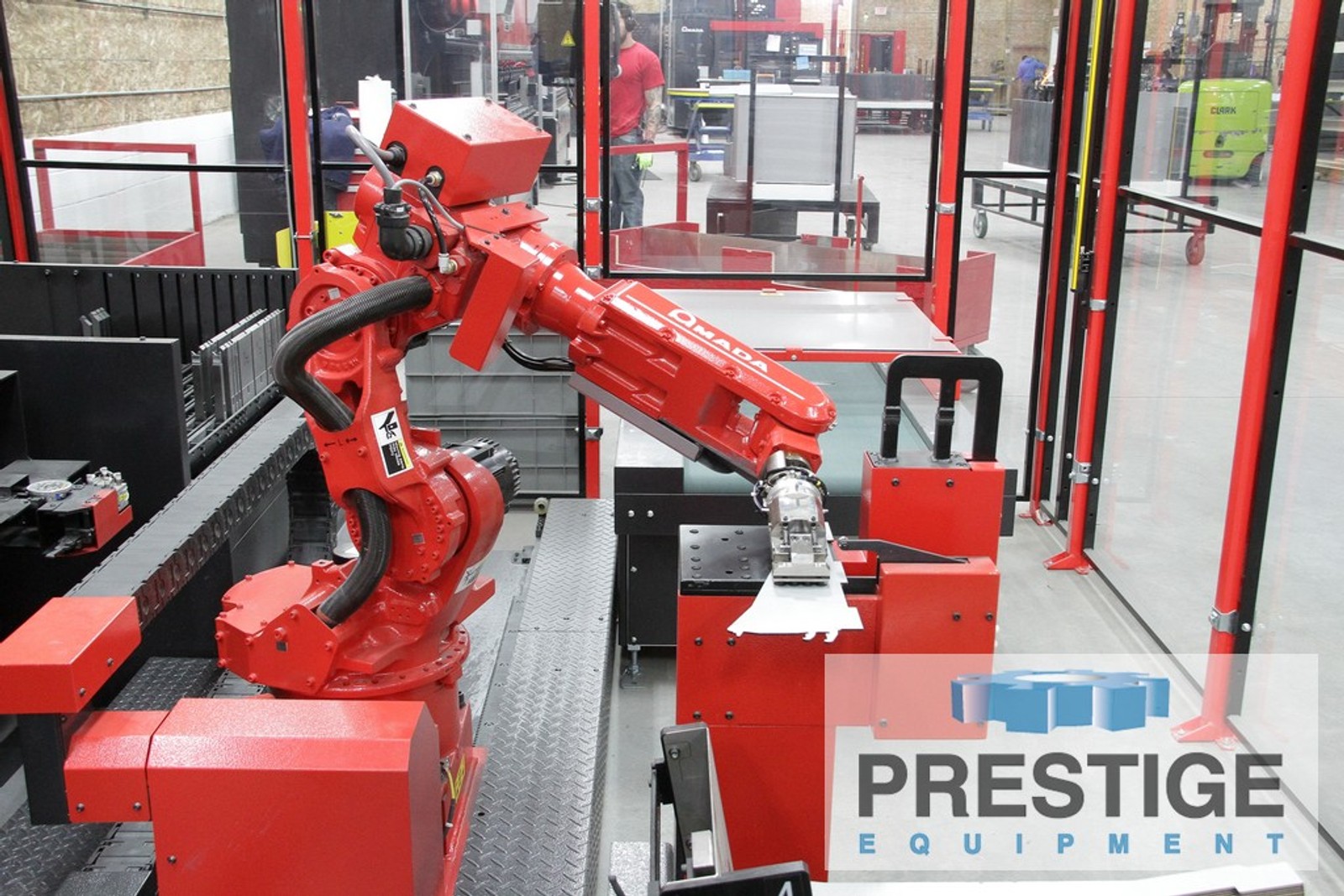

Yaskawa MH6S-10 High Precision 7-Axis Bending Robot
Tool Package

CAPACITY:
Maximum Tonnage Capacity .............. 67 Ton
Maximum Bending Length ................ 53.1"
Stroke Length ......................... 6"
Open Height ........................... 16.5"
Approach Speed ........................ 8.7"/sec.
Bend Speed ............................ 1"/sec.
Return Speed .......................... 8.7"/sec.
Floor Space ........................... 211" L x 154" Wide x 105" High
Weight of Brake ....................... 8,200 Lbs.

ROBOT:
Axis Configuration .................... 6-Axis
Carriage Axis ......................... 120"
Max. Part Weight ...................... 22 Lbs.
Maximum Reach P-Point ................. 39.25"
Tool Holder Length .................... 49.2"
Max. Tool Length ...................... 31.5"
Number of Tools ....................... 10

EQUIPPED WITH:
AMNC 3i CNC Control with Vertical 18.5" Multi-Touch Display
Dual Electric Servo Power Drive
Automatic Tool Changer
Yaskawa MH6S-10 High Precision 7-Axis Bending Robot
Potentiometer Backgauge with Side Gauge System
High-Rigidity Frame for Large Open Height and Stroke
3 Gripper Station, Seamless Tool Change to Production
Load/Unload to Drop Box or Conveyor
Tool Package

NOTE:
Inspect in Plant Under Power, Low Hours, Excellent Condition
Hours, 4,581 Total, 3,961 Run Time
