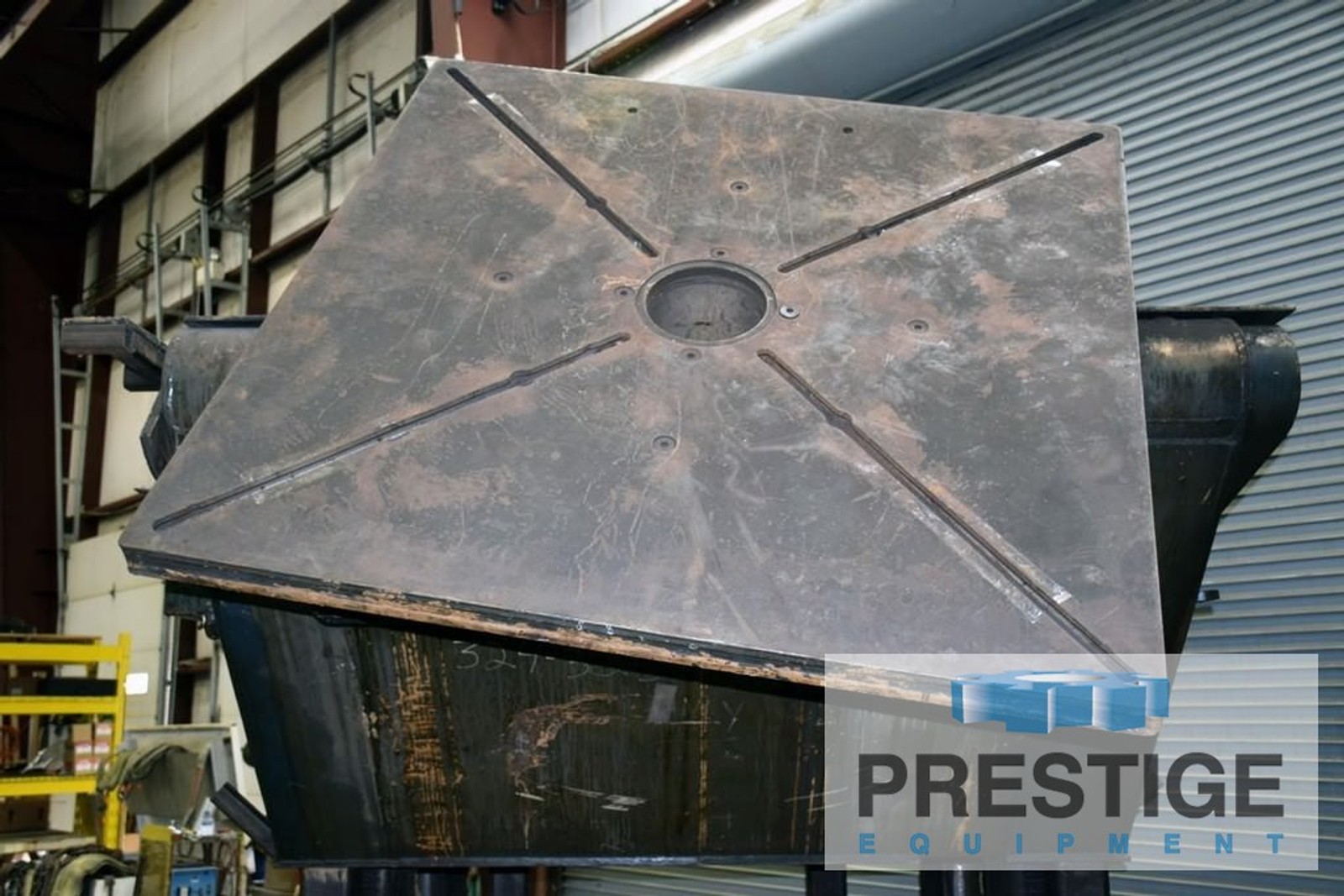

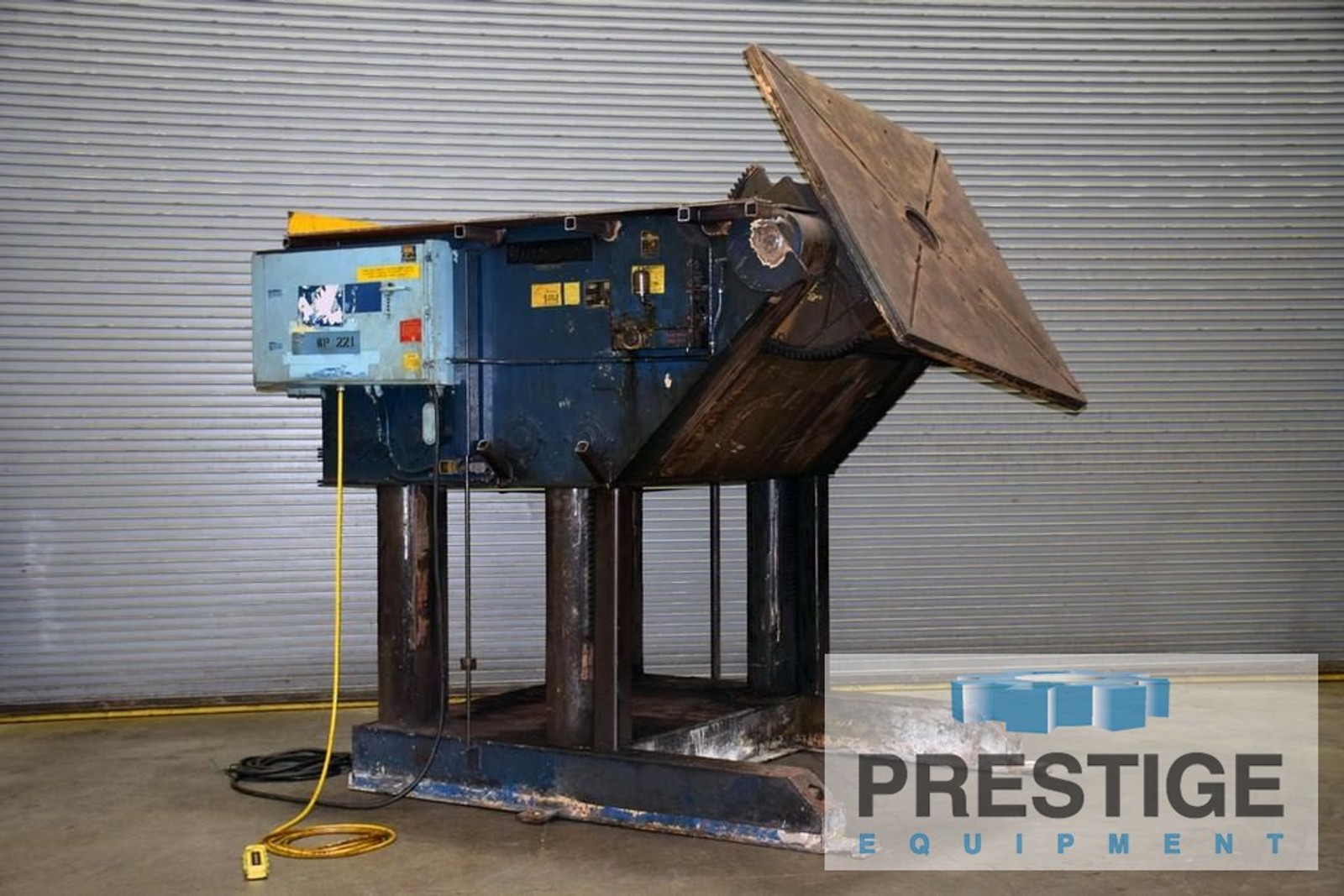

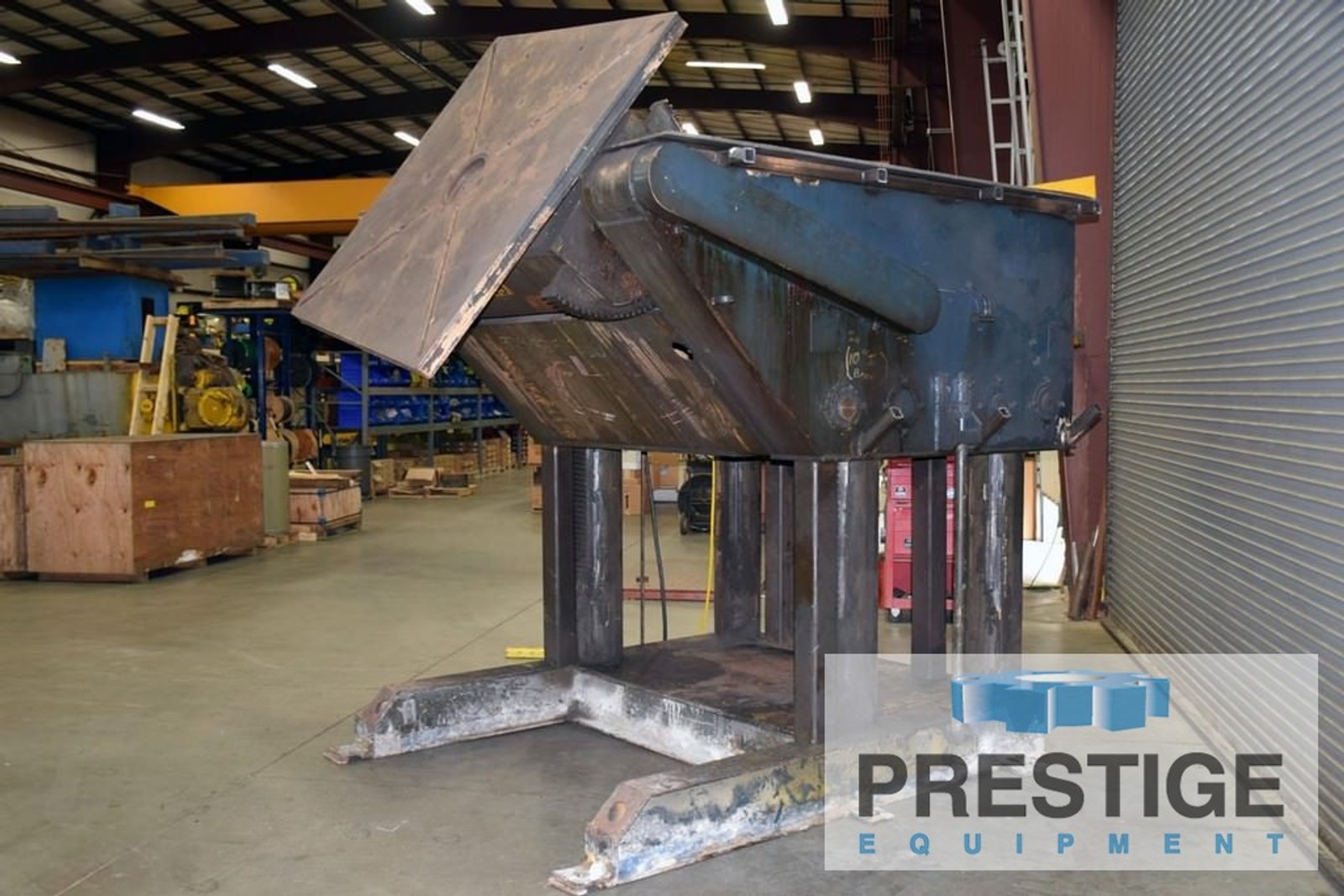

25,000 Lb. Aronson GE-250CS, Vari-Speed, 60" Sq. Table, Power Tilt, 1981, #25620

Manufacturer

ARONSON

Category

Welding Machines

Type

WELDING POSITIONERS

Stock

25620

Model

GE250CS

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #25620
Aronson Model GE-250 25,000 lb. Welding Positioner

CAPACITY:
Capacity At 12" Over Hang ............. 25,000 Lbs.
Table Size ............................ 60" X 60"
Tilt (Constant Speed) ................. 135 Degrees
Fixed Height to Table Center, Vert .... 91.5""
Fixed Height to Table Center, Horiz ... 100"
Rotational Speed Range, Variable ..... .07-.66 RPM
Hole Through Spindle .................. 8" Dia.
Tilting Motor ......................... 5 HP
Shipping Weight ....................... 15,500 Lbs.
Shipping Dimensions ................... 144" L x 84" W x 102"H

EQUIPPED WITH:
Power Table Rotation
Variable Speed Rotation
Power Tilting Table
Pendant Controls
460 Volt 3 Phase Electrics
